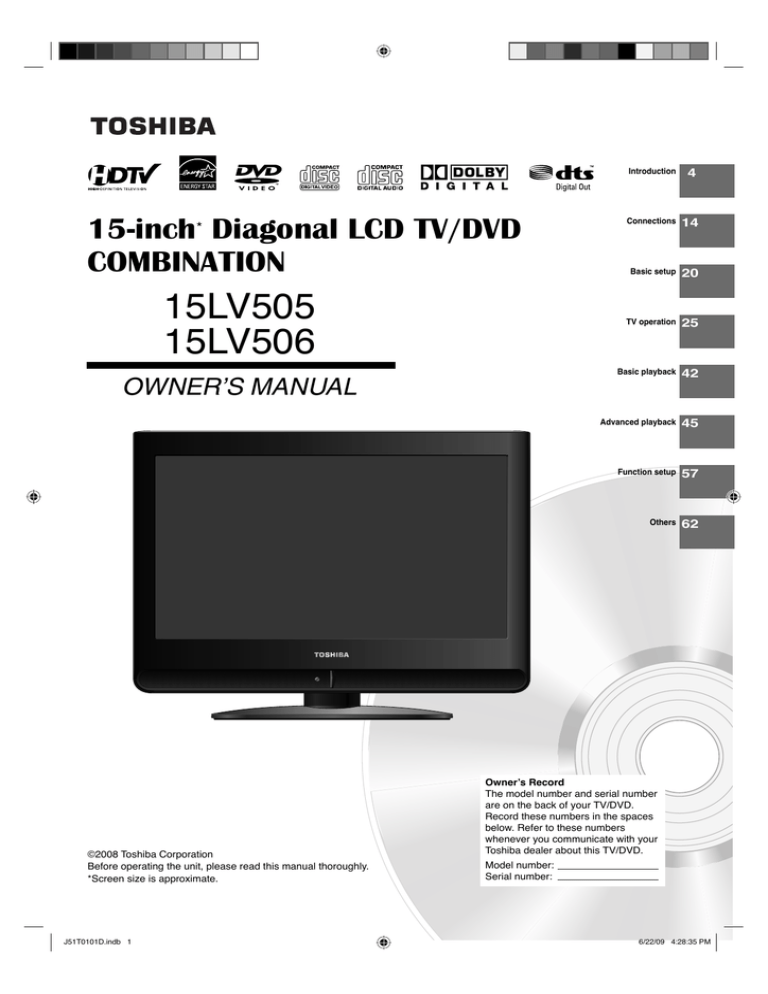

Toshiba 15LV505 Television User guide

15-inch* Diagonal LCD TV/DVD
COMBINATION
15LV505
15LV506
OWNER’S MANUAL
©2008 Toshiba Corporation
Before operating the unit, please read this manual thoroughly.
*Screen size is approximate.
J51T0101D.indb 1
Introduction
4
Connections
14
Basic setup
20
TV operation
25
Basic playback
42
Advanced playback
45
Function setup
57
Others
62
Ownerʼs Record
The model number and serial number
are on the back of your TV/DVD.
Record these numbers in the spaces
below. Refer to these numbers
whenever you communicate with your
Toshiba dealer about this TV/DVD.
Model number:
Serial number:
6/22/09 4:28:35 PM
Dear Customer,
Thank you for purchasing this Toshiba LCD TV or TV/DVD
Combination television.
CHILD SAFETY:
This manual will help you use the many exciting features of
your new LCD TV. Before operating your LCD TV or TV/DVD
Combination, please read this manual completely, and keep it
nearby for future reference.
Congratulations on your purchase! As you enjoy your
new product, please keep these safety tips in mind:
Safety Precautions
WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
WARNING
R I S K OF E LECTR IC S HOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
It Makes A Difference How and Where You Use Your Flat
Panel Display
The Issue
• The home theater entertainment experience is a growing trend
and larger flat panel displays are popular purchases. However,
flat panel displays are not always supported on the proper stands
or installed according to the manufacturer’s recommendations.
• Flat panel displays that are
inappropriately situated on dressers,
bookcases, shelves, desks,
speakers, chests or carts may fall
over and cause injury.
TOSHIBA Cares!
NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to
the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle,
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
CAUTION: To reduce the risk of electric shock,
do not use the polarized plug with an extension
cord, receptacle, or other outlet unless the blades
can be inserted completely to prevent blade
exposure.
ENERGY STAR® qualified TV. Products that earn
the ENERGY STAR prevent green house gas
emissions by meeting strict energy efficiency
guidelines set by the U.S. Environmental
Protection Agency and the U.S. Department of
Energy. ENERGY STAR and the ENERGY STAR
mark are registered U.S. marks.
NOTE TO CATV INSTALLERS
This is a reminder to call the CATV system installer’s attention
to Article 820-40 of the NEC, which provides guidelines for proper
grounding and, in particular, specifies that the cable ground shall be
connected to grounding system of the building, as close to the point of
cable entry as practical. For additional antenna grounding information,
see item 26 on page 5.
WARNING: Handling the cord on this product or cords associated
with accessories sold with this product will expose you to lead, a
chemical known to the State of California to cause birth defects or
other reproductive harm. Wash hands after handling.
• The consumer electronics industry
is committed to making home
entertainment enjoyable and safe.
Tune Into Safety
• One size does NOT fit all. Follow the manufacturer’s recommendations
for the safe installation and use of your flat panel display.
• Carefully read and understand all enclosed instructions for
proper use of this product.
• Don’t allow children to climb on or play with furniture and
television sets.
• Don’t place flat panel displays on furniture
that can easily be used as steps, such
as a chest of drawers.
• Remember that children can
become excited while watching a
program, especially on a “larger
than life” flat panel display. Care
should be taken to place or install
the display where it cannot be
pushed, pulled over, or knocked down.
• Care should be taken to route all cords and
cables connected to the flat panel display so that they cannot be
pulled or grabbed by curious children.
Wall Mounting: If you decide to wall mount your
flat panel display, always:
• Use a mount that has been recommended by the display
manufacturer and/or listed by an independent laboratory (such
as UL, CSA, ETL).
• Follow all instructions supplied by the display and wall mount
manufacturers.
• If you have any doubts about your ability to safely install your
flat panel display, contact your retailer about professional
installation.
• Make sure that the wall where you are mounting the display is
appropriate. Some wall mounts are not designed to be mounted
to walls with steel studs or old cinder block construction. If you
are unsure, contact a professional
installer.
• A minimum of two people are
required for installation. Flat panel
displays can be heavy.
2
J51T0101D.indb 2
6/22/09 4:28:42 PM
FCC compliance information
CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION CORD, RECEPTACLE
OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
FCC Declaration of Conformity Compliance Statement (Part 15):
CAUTION:
THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM.
TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ
THIS OWNER'S MANUAL CAREFULLY AND RETAIN FOR
FUTURE REFERENCE. SHOULD THE UNIT REQUIRE
MAINTENANCE, CONTACT AN AUTHORIZED SERVICE
LOCATION.
USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE
OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
TO PREVENT DIRECT EXPOSURE TO LASER BEAM, NEVER
OPEN THE ENCLOSURE. VISIBLE LASER RADIATION MAY BE
PRESENT WHEN THE ENCLOSURE IS OPENED. NEVER STARE
INTO BEAM.
Introduction
The Toshiba 15LV505, 15LV506 LCD TV/DVD Combination complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.
The party responsible for compliance to these rules is:
Toshiba America Consumer Products, L.L.C.
82 Totowa Rd. Wayne, NJ 07470.
Ph: (800) 631-3811 or visit TACPʼs website at www.tacp.Toshiba.com
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by removing and applying power to the equipment, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modifications to this equipment not expressly approved by Toshiba could void the userʼs authority to operate this
equipment.
Location of the required Marking
The rating sheet and the safety caution are the rear of the unit.
CERTIFICATION: COMPLIES WITH FDA RADIATION
PERFORMANCE STANDARDS, 21 CFR SUBCHAPTER J.
ON DISPOSAL
The lamp(s) inside this product contain mercury. Disposal may be regulated due to environmental
considerations. For disposal or recycling information, contact your local authorities or the
Electronic Industries Alliance (www.eiae.org).
3
J51T0101D.indb 3
6/22/09 4:28:44 PM
Introduction
SAFETY INSTRUCTIONS
Important Safety Instructions
Installation, Care, and Service
1)
2)
3)
4)
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Installation
Follow these recommendations and precautions and
heed all warnings when installing your TV:
5)
Do not use this apparatus near water.
6)
Clean only with dry cloth.
15) To avoid damage to this product, never place or
store the TV in direct sunlight; hot, humid areas;
or areas subject to excessive dust or vibration.
7)
Do not block any ventilation openings.
Install in accordance with the manufacturerʼs instructions.
8)
Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9)
Do not defeat the safety purpose of the polarized or
grounding type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has
two blades and a third grounding prong.
The wide blade or the third prong Wide plug
are provided for your safety. If
the provided plug does not fit into
your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked
on or pinched, particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
11) Only use attachments/accessories specified by the
manufacturer.
12) Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the cart/
apparatus combination to avoid
injury from tip-over.
13) Unplug this apparatus during
lightning storms or when unused
for long periods of time.
14) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
Additional Safety Precautions
14a) CAUTION: If the TV is dropped and the cabinet or
enclosure surface has been damaged or the TV does
not operate normally, take the following precautions:
• ALWAYS turn off the TV and unplug the power
cord to avoid possible electric shock or fire.
• NEVER allow your body to come in contact with
any broken glass or liquid from the damaged
television. The LCD panel inside the TV contains
glass and a toxic liquid. If the liquid comes in contact
with your mouth or eyes, or your skin is cut by
broken glass, rinse the affected area thoroughly with
water and consult your doctor.
• ALWAYS contact a service technician to inspect
the TV any time it has been damaged or dropped.
14b) WARNING: To prevent the spread of fire, keep
candles or other open flames away from this product
at all times.
16) Never modify this equipment. Changes or modifications
may void: a) the warranty, and b) the userʼs authority to
operate this equipment under the rules of the
Federal Communications Commission.
17)
DANGER: RISK OF SERIOUS
PERSONAL INJURY, DEATH, OR
EQUIPMENT DAMAGE! Never place
the TV on an unstable cart,
stand, or table. The TV may fall, causing
serious personal injury, death, or serious
damage to the TV.
18) Never place items such as vases, aquariums, or
candles on top of the TV.
19) WARNING: Always place the TV on the floor or a
sturdy, level, stable Sturdy tie (as short as possible; min. 4 in.)
surface that can
Clip
support the weight
of the unit. To
Hooks
secure the TV, use a
Screw
sturdy strap from the
TV top
hooks on the rear
Band
of the TV pedestal TV side
to a wall stud, pillar
or other immovable structure. Make sure the strap is
tight, secure, and parallel to the floor.
20) Never expose the apparatus to dripping or splashing
liquid or place items such as vases, aquariums, any
other item filled with liquid, or candles on top of the TV.
21) Never block or cover the slots or openings in the TV
cabinet back, bottom, and sides.
Never place the TV:
• on a bed, sofa, rug, or similar surface;
• too close to drapes, curtains,
or walls; or
• in a confined space such as
a bookcase, built-in cabinet,
or any other place with poor ventilation.
The slots and openings are provided to protect the TV from
overheating and to help maintain reliable operation of the TV.
Leave a space of at least 4 inches around the TV.
22) Always place the back of the television at least four
(4) inches away from any vertical surface (such as a
wall) to allow proper ventilation.
23) Never allow anything to rest on or roll over the power
cord, and never place the TV where the power cord
is subject to wear or abuse.
24) Never overload wall outlets and extension cords.
25) Always operate the TV with a 120V AC, 60Hz power source only.
CAUTION: To reduce the risk of electric shock, do not use the
polarized plug with an extension cord, receptacle, or other outlet
unless the blades can be inserted completely with three-wire
grounding type to prevent blade exposure.
4
J51T0101D.indb 4
6/22/09 4:28:45 PM
SAFETY INSTRUCTIONS (Continued)
Care (cont. from previous column)
26) Always make sure the antenna system is properly
grounded to provide adequate protection against
voltage surges and built-up static charges (see
Section 810 of the National Electric Code.)
32) During normal use, the TV may make occasional
snap ping or popping sounds. This is normal,
especially when the unit is being turned on or off.
If these sounds become frequent or continuous,
unplug the power cord and contact a Toshiba
Authorized Service Center.
Antenna
lead-in wire
Ground clamp
Electric service
equipment
Antenna discharge unit
(NEC Section 810-20)
Grounding conductors
(NEC Section 810-21)
Ground clamps
Power service grounding
electrode system
(NEC Art 250 Part H)
27)
DANGER: RISK OF SERIOUS
PERSONAL INJURY OR DEATH!
• Use extreme care to make sure you
are never in a position where your body
(or any item you are in contact with,
such as a ladder or screwdriver) can
accidentally touch overhead power lines.
Never locate the antenna near overhead
power lines or other electrical circuits.
• Never attempt to install any of the following during
lightning activity: a) an antenna system; or b) cables,
wires, or any home theater component connected
to an antenna or phone system.
34) When you use headphones, keep the volume at a
moderate level. Using headphones continuously
at a high volume may cause hearing damage.
35) NEVER look directly into the disc slot or ventilation
slots at the source of the laser beam. Doing so
may cause sight damage.
36) NEVER use a cracked, deformed, or repaired disc.
Such discs are easily broken and may cause serious
personal injury or product damage. SUCH DAMAGE
IS NOT COVERED UNDER YOUR WARRANTY.
37) WARNING: RISK OF SERIOUS PERSONAL
INJURY OR EQUIPMENT DAMAGE!
• Never strike the screen with a sharp or heavy
object.
• Never touch, press, or place anything on the
LCD screen. These actions will damage the LCD
screen If you need to clean the LCD screen,
follow the instructions in item 28 on this page.
Service
Care
38)
For better performance and safer operation of your
TOSHIBA TV, follow these recommendations and precautions:
28) Always unplug the TV before cleaning.
Wipe the display panel
surface gently using only a
soft cloth (cotton, flannel,
etc.) A hard cloth may
damage the surface of the
panel. Avoid contact with
alcohol, thinner, benzene,
acidic or and alkaline solvent cleaners, abrasive
cleaners, or chemical cloths, which may damage
the surface. Never spray volatile compounds such
as insecticide on the cabinet. Such products may
damage or discolor the cabinet.
29)
33) Keep your fingers well clear of the disc slot as it is closing.
Failure to do so may cause serious personal injury.
Introduction
Installation (cont. from previous page)
WARNING: RISK OF ELECTRIC SHOCK!
Never spill liquids or push objects of
any kind into the TV cabinet slots.
WARNING: RISK OF ELECTRIC SHOCK!
Never attempt to service the TV
yourself.
Opening and removing the covers
may expose you to dangerous voltage or other
hazards. Failure to follow this WARNING may
result in death or serious injury.
Refer all servicing to a Toshiba Authorized Service
Center.
39) If you have the TV serviced:
• Ask the service technician to use only replacement
parts specified by the manufacturer.
• Upon completion of service, ask the service
technician to perform routine safety checks to
determine that the TV is in safe operating condition.
40) When the TV reaches the end of its useful life,
ask a qualified service technician to properly
dispose of the TV.
30) While it is thundering, do not touch the connecting
cables or apparatus.
31) For added protection of your TV from lightning and
power surges, always unplug the power cord and
disconnect the antenna from the TV if you leave the
TV unattended or unused for long periods of time.
5
J51T0101D.indb 5
6/22/09 4:28:46 PM
Introduction
Precautions
Choosing a location for your LCD TV
Notes on moisture condensation
■ To Display your LCD TV on the included Pedestal Stand:
Moisture condensation damages the unit. Please
read the following carefully.
Moisture condensation occurs, for example, when you
pour a cold drink into a glass on a warm day and drops
of water form on the outside of the glass. In the same
way, moisture may condense on this unitʼs internal optical
pick-up lens, one of the most crucial internal parts of the unit.
Observe the following safety precautions:
1) Place the TV on a sturdy, level surface that can
support the weight of the TV.
2) Be sure to secure the TV to a wall, pillar, surface, or
other immovable structure. To secure the TV in this
manner, use the included strap located at the rear of
pedestal stand. (see item 19, page 4).
le of mo
Examp ensat isture
ion!
cond
Important notes about your LCD TV
The following symptoms are technical limitations of
LCD Display technology and are not an indication of
malfunction; therefore, Toshiba is not responsible for
perceived defects resulting from these symptoms.
1) An after image (ghost) may appear on the screen
if a fixed, non-moving image is displayed for a long
period of time. The after image is not permanent and
will disappear in a short period of time.
2) The LCD panel contained in this TV is manufactured
using an extremely high level of precision technology;
however, there may be an occasional pixel (dot of light)
that does not operate properly (does not light, remains
constantly lit, etc.). This is a structural property of
LCD technology, is not a sign of malfunction, and is
not covered under your warranty. Such pixels are
not visible when the picture is viewed from a normal
viewing distance.
Note: Interactive video games that involve shooting a
“gun” type of joystick at an on-screen target may not
work on this TV.
Optical pick-up
lens
■ Moisture condensation may occur in the following
situations:
When you move the unit from a cold area to a warm area.
When you use the unit in a room in which the heat
was just turned on.
When you use the unit in an area where cold air from
an air conditioner directly hits the unit.
When you use the unit in a humid area.
Notes on handling
■ Do not subject the LCD panel to physical shock, such
as dropping it. It may cause unit damage and malfunction.
■ When shipping the unit, the original shipping carton
and packing materials come in handy. For fully
protection, repack the unit as it was originally packed
at the factory.
■ Do not use volatile liquids, such as insecticide, near
the unit.
Do not leave rubber or plastic products in contact with
the unit for prolonged periods of time.
Doing so will leave marks on the finish.
■ The top and rear panels of the unit may become warm
after a long period of use. This is not a malfunction.
■ When the unit is not in use, always remove the disc
and turn off the power.
■ Never use the unit when moisture condensation
may occur
Using the unit when moisture condensation exists may
damage discs and internal parts. Connect the power
cord of the unit to the wall outlet, turn on the unit,
remove the disc, and leave it for two or three hours.
After two or three hours, the unit will have warmed up
and evaporated any moisture. Leaving the TV
connected to the wall outlet will help prevent moisture
condensation in the TV or DVD Player.
Notes on locating the unit
■ When you place this unit near a TV, radio, or VCR,
the playback picture may become poor and the sound
may be distorted. In this case, place the unit away
from the TV, radio, or VCR.
■ To avoid damage to this product, never place or store
the TV/DVD in direct sunlight; hot, humid areas; or
areas subject to excessive dust or vibration.
Wa
i t!
Wall outlet
6
J51T0101D.indb 6
6/22/09 4:28:47 PM
Notes on discs
On handling discs
Notes on copyright
Do not attach paper or tape to discs.
Playback side
On cleaning discs
Fingerprints and dust on the disc cause picture and
sound deterioration. Wipe the disc from the center
outwards with a soft cloth. Always keep the disc
clean.
Do not use any type of solvent such as thinner,
benzine, commercially available cleaners or antistatic
spray for vinyl LPs. It may damage the disc.
Do not store discs in a place subject to direct sunlight
or near heat sources.
Do not store discs in places subject to moisture and
dust such as a bathroom or near a humidifier.
Store discs vertically in a case. Stacking or placing
objects on discs outside of their case may cause
warping.
Normally, DVD video discs are divided into titles, and
the titles are sub-divided into chapters. Video CDs and
Audio CDs are divided into tracks.
DVD video disc
DVD video disc
Title 2
Chapter 2
Chapter 1
Chapter 2
Chapter 3
Video CD/Audio CD
Video CD/Audio CD
Track 1
Track 2
Track 3
Track 4
The following symbol may appear on the TV screen during
operation.
It means that the operation is not permitted by the TV/DVD
or the disc.
For example, sometimes it is unable to stop the playback
of copyright message of the disc when the STOP (■)
button is pressed. Alternatively, this symbol may also
indicate that the feature is not available for the disc.
The region number of this unit is 1. If region numbers,
which stand for their playable area, are printed on your
DVD video disc and you do not find 1 or ALL , disc
playback will not be allowed by the player. (In this case,
the unit will display a message on-screen.)
Some DVDs that have no region code label may still be
subject to area restrictions and therefore not playable.
This unit supports Video CDs equipped with the PBC
(Version 2.0) function. (PBC is the abbreviation of
Playback Control.) You can enjoy two playback variations
depending on types of discs.
• Video CD not equipped with PBC function (Version 1.1)
Sound and movie can be played on this unit in the same
way as a DVD.
• Video CD equipped with PBC function (Version 2.0)
In addition to operation of a Video CD not equipped with
the PBC function, you can enjoy playback of interactive
software with search function by using the menu
displayed on the TV screen (Menu Playback). Some of
the functions described in this ownerʼs manual may not
work with some discs.
Track 5
Each title, chapter or track is assigned a number, which
is called “title number”, “chapter number” or “track
number” respectively.
There may be discs that do not have these numbers.
J51T0101D.indb 7
This ownerʼs manual explains the basic instructions of this
unit. Some DVD video discs are produced in a manner
that allows specific or limited operation during playback. As
such, the unit may not respond to all operating command.
This is not a defect in the unit. Refer to instruction notes of
discs.
On Video CDs
Structure of disc contents
Chapter 1
About this ownerʼs manual
Notes on region numbers
On storing discs
Title 1
The unauthorized recording, use, distribution, or revision
of copyrighted materials including, without limitation,
television programs, videotapes, and DVDs, is prohibited
under the Copyright Laws of the United States and other
countries, and may subject you to civil and criminal liability.
Introduction
Do not touch the playback side of the disc.
For example, handle the disc so that it is shown in
figure below.
7
6/22/09 4:28:48 PM
Introduction
Notes on discs (Continued)
Playable discs
This unit can play the following discs.
Disc Mark
Audio
+
Video
(moving
pictures)
DVD
video
discs
Video
CDs
DIGITAL VIDEO
Audio
CDs
Contents
Audio
+
Video
(moving
pictures)
Disc
Size
12 cm
8 cm
Maximum
playback time
Approx. 4 hours
(single sided disc)
Approx. 8 hours
(double sided disc)
Approx. 80 minutes
(single sided disc)
Approx. 160 minutes
(double sided disc)
12 cm
Approx. 74 minutes
(single sided disc)
8 cm
Approx. 20 minutes
(single sided disc)
12 cm
Approx. 74 minutes
(single sided disc)
8 cm
Approx. 20 minutes
(single sided disc)
Audio
The following discs are also available.
DVD-R/RW discs of DVD video format
CD-R/CD-RW discs of CD-DA, Video CD, MP3, WMA or
JPEG format
Kodak Picture CD and FUJICOLOR CD format
Some of these discs may be incompatible.
• You cannot play discs other than those listed above.
• You cannot play discs of DVD-RAM, DVD-ROM, CDROM, Photo CD, etc., or non standardized discs even
if they may be labeled as above.
• Some CD-R/RWs cannot be played back depending
on the recording conditions.
• This unit uses the NTSC color system, and cannot
play DVD video discs recorded in any other color
system (PAL, SECAM, etc.).
• This unit can play an 8cm disc. Please do not use a
disc adapter. It may cause trouble.
• Please do not insert any disc of an irregular shape into
the unit, as it may interfere with the function of the unit.
You may not be able to remove it.
• Please do not use after market accessories, such as a
ring protector, as this may cause trouble with the
operation of the unit.
Because of problems and errors that can occur during the
creation of DVD and CD Software and/or the manufacture
of DVD and CD discs, Toshiba cannot assure that the
DVD player contained in this TV will successfully play
every disc bearing the DVD and CD logos.
If you happen to experience any difficulty playing a DVD
and/or CD disc on the DVD player contained in this TV,
please contact Toshiba Customer Service.
is a trademark of DVD Format/Logo Licensing
Corporation.
8
J51T0101D.indb 8
6/22/09 4:28:49 PM
Contents
Basic playback
SAFETY INSTRUCTIONS................................ 4
Precautions....................................................... 6
Notes on discs .................................................. 7
Contents ........................................................... 9
Identification of controls ..................................10
Playing a disc ................................................. 42
Connections
Antenna connections ...................................... 14
Cable TV connections .................................... 15
Connecting to optional equipment .................. 16
Power source.................................................. 19
Basic setup
Auto setup ...................................................... 20
Setting the language....................................... 21
To memorize channels.................................... 22
TV operation
TV operation ................................................... 25
Labeling channels........................................... 27
Labeling video inputs ...................................... 28
Setting the V-Chip........................................... 29
Setting the closed captions............................. 33
CC advanced .................................................. 34
Adjusting the picture preference ..................... 35
Picture settings ............................................... 35
Viewing the wide-screen picture formats ........ 36
Film Mode ....................................................... 37
DNR ................................................................ 37
Sound control adjustment ............................... 38
Selecting Stereo/Second Audio Program (SAP) .... 38
Selecting the audio language ......................... 39
Using the aspect feature................................. 39
Setting the POWER indicator ......................... 40
Adjusting the back lighting .............................. 40
Setting the Auto Shut Off ................................ 41
Resetting your settings ................................... 41
Advanced playback
Zooming.......................................................... 45
Locating desired scene................................... 45
Marking desired scenes.................................. 46
Repeat playback ............................................. 47
A-B Repeat playback ...................................... 47
Program playback........................................... 48
Random playback ........................................... 48
Changing angles..............................................49
Title selection ...................................................49
DVD menu .......................................................49
Changing soundtrack language .......................50
Subtitles ...........................................................50
Disc status .......................................................51
To turn off the PBC ..........................................51
MP3/WMA/JPEG and Audio CD operation ......52
Repeat, random and program playback
using file browser.............................................55
Introduction
Introduction
Function setup
Customizing the function settings ....................57
Temporary cancel the rating level
by DVD disc .....................................................61
Others
Understanding the Power Return feature ........62
Troubleshooting ...............................................62
Reception disturbances ...................................64
Language code list ..........................................65
Specifications ..................................................66
Limited United States Warranty .......................67
9
J51T0101D.indb 9
6/22/09 4:28:50 PM
Introduction
Identification of controls
Front
Speaker
Remote sensor
Side
13
POWER indicator
20
40
Top
CH
25 / ■ STOP button 42
MENU button 21 57
INPUT/ENTER button 16
POWER button 20
CH
25 /
PLAY button 42
VOLUME (+/–) buttons 25
EJECT button 43
Disc slot 42
10
J51T0101D.indb 10
6/22/09 4:28:50 PM
Introduction
Rear
AC INPUT
cover 19
AC INPUT 19
Antenna jack 14 15
COLORSTREAM HD IN jacks 17
VIDEO/GAME IN jack 16 17
COAXIAL DIGITAL AUDIO OUT jack 18 19
HEAD PHONE jack 26
11
J51T0101D.indb 11
6/22/09 4:28:52 PM
Introduction
Identification of controls (Continued)
Remote control
The instructions in this manual describe the function on the remote control. See the page in
EJECT button 43
TV/DVD button 42
for details.
POWER button 20 42
SLEEP button 26
Direct channel selection
buttons (0-9) 25
Numbered buttons (0-9) 29
JUMP button 45
Direct channel selection button (
DISPLAY button 26 51
CH / button 25
SUBTITLE button 50
) 25
AUDIO SELECT button 50
VOL +/– button 25
INPUT button 16
ZOOM button 45
PLAY MODE button 47 48 51
MUTE button 26
*DVD MENU button 49
ENTER button 20
PLAY button 42
Direction buttons ( / / / ) 20
MENU button 21
SETUP button 57
PAUSE button
CH RTN button
SKIP ( ) button
REV button
FF button
SLOW ( ) button
TOP MENU button
RETURN button 53
EXIT/CANCEL button 20
43
26
44
STOP button 42
CLOSED CAPTION button 33
SKIP ( )button 44
SLOW ( ) button 44
MARKER button 46
ANGLE button 49
44
44
44
49
57
REPEAT A-B button 47
PIC SIZE button 36
GAME button 16
SE-R0305
*DVD MENU button
Use the DVD MENU button to
display the menu included on
many DVD video discs.
To operate a menu, follow the
instructions in “DVD menu.” 49
12
J51T0101D.indb 12
6/22/09 4:28:53 PM
1
Open the battery compartment
cover in the direction of the
arrow.
2
Install two “R03/AAA” batteries
(supplied), paying attention to
the polarity indicated in the
battery compartment.
3
Introduction
Inserting batteries
Replace the compartment
cover.
Operation
•
•
Aim the remote control at the remote sensor and press control buttons to operate.
Operate the remote control within 30° angle on either side of the remote sensor, up to a distance of approx. 5 meters.
Approx. 5 meters
Caution:
• Never throw batteries into a fire.
Note:
• Be sure to use AAA size batteries.
• Dispose of batteries in a designated disposal area.
• Batteries should always be disposed of with the environment in mind. Always dispose of batteries in accordance with
applicable laws and regulations.
• If the remote control does not operate correctly, or if the operating range becomes reduced, replace batteries with
new ones.
• When necessary to replace batteries in the remote control, always replace both batteries with new ones.
Never mix battery types or use new and used batteries in combination.
• Always remove batteries from remote control if they are dead or if the remote control is not to be used for an extended
period of time. This will prevent battery acid from leaking into the battery compartment.
13
J51T0101D.indb 13
6/22/09 4:28:54 PM
Connections
Antenna connections
If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your antenna system.
If you are using a cable TV service (CABLE), see 15 for Cable TV connections.
Combination VHF/UHF antenna (Single 75 ohm cable or 300 ohm twin-lead wire)
Antenna
jack
Antenna
jack
Connect the 75 ohm cable from the combination
VHF/UHF antenna to the antenna jack on the back
of the TV/DVD.
If your combination VHF/UHF antenna has a 300
ohm twin-lead wire, use the 300-75 ohm matching
transformer (not supplied).
75 ohm coaxial cable
(not supplied)
300-75 ohm matching
transformer (not supplied)
Combination VHF/UHF antenna (Separate VHF and UHF 300 ohm twin-lead wires)
Antenna
jack
300-75 ohm matching
transformer (not supplied)
Connect the UHF 300 ohm twin-lead wire to the
combiner (not supplied). Connect the VHF 300 ohm
twin-lead wire to the 300-75 ohm matching transformer
(not supplied). Attach the transformer to the combiner,
then attach the combiner to the antenna jack on the
back of the TV/DVD.
Combiner
(not supplied)
UHF 300 ohm
twin-lead wire
(not supplied)
VHF 300 ohm
twin-lead wire
(not supplied)
Separate VHF/UHF antennas (75 ohm VHF cable and 300 ohm UHF twin-lead wires)
Connect the VHF 75 ohm cable and UHF 300 ohm
twin-lead wire to the combiner (not supplied).
Attach the combiner to the antenna jack on the back
of the TV/DVD.
Antenna
jack
VHF 75 ohm
(not supplied)
Combiner
(not supplied)
UHF 300 ohm
twin-lead wire
(not supplied)
14
J51T0101D.indb 14
6/22/09 4:28:54 PM
Cable TV connections
This TV/DVD has an extended tuning range and can tune most cable channels without using a Cable TV converter box.
Some cable companies offer “premium pay channels” in which the signal is scrambled. Descrambling these signals for
normal viewing requires the use of a descrambler device which is generally provided by the cable company.
For subscribers to basic cable TV service
For basic cable service not requiring a converter/descrambler
box, connect the Cable TV 75 ohm coaxial cable directly to the
Antenna jack on the back of the TV/DVD.
75 ohm
coaxial cable
Connections
Antenna
jack
For subscribers to scrambled cable TV service
If you subscribe to a cable TV service which requires the use of a converter/descrambler box, connect the
incoming 75 ohm coaxial cable to the converter/descrambler box. Using another 75 ohm coaxial cable, connect
the output jack of the converter/descrambler box to the antenna jack on the TV/DVD. Follow the connections
shown below. Set the TV/DVD to the output channel of the converter/descrambler box (usually channel 3 or 4)
and use the converter/descrambler box to select channels.
Incoming 75 ohm
Cable TV
75 ohm cable to
TV/DVD
Converter/
descrambler
Antenna
jack
For subscribers to unscrambled basic cable TV service with scrambled
premium channels
If you subscribe to a cable TV service in which basic channels are unscrambled and premium channels require
the use of a converter/descrambler box, you may wish to use a signal splitter and an A/B Switch box (available
from the cable company or an electronics supply store). Follow the connections shown below. With the switch in
the “B” position, you can directly tune any nonscrambled channels on your TV/DVD. With the switch in the “A”
position, tune your TV/DVD to the output of the converter/descrambler box (usually channel 3 or 4) and use the
converter/descrambler box to tune scrambled channels.
Incoming
75 ohm
Cable TV
Converter/
descrambler
Splitter
A/B switch
A
75 ohm cable
to TV/DVD
Antenna
jack
B
15
J51T0101D.indb 15
6/22/09 4:28:55 PM
Connections
Connecting to optional equipment
0-3
CH /
INPUT
You can enjoy VCR, camcorder or TV game with connection to external input.
GAME
Using the audio/video inputs
Press INPUT to view a signal from another device connected to your TV/DVD, such
as a VCR player. You can select TV, Video or ColorStream HD depending on which
input jacks you used to connect your devices.
Source Selection
0.TV
1.Video
2.ColorStream HD
3.DVD
Press INPUT on the remote control to display the current signal source.
To change the input source, press INPUT again or press 0-2. (3 is for selection DVD
mode.)
[0-3]:Select
Connecting to a VCR
To playback from the VCR, connect the VCR to the TV/DVD as shown.
Select the “Video” by pressing INPUT repeatedly.
(yellow)
VCR
: Signal flow
Back side
(white)
(red)
To VIDEO/GAME IN
To Audio/Video OUT
Audio/Video cable (not supplied)
Connecting to a camcorder
To playback from the camcorder, connect the camcorder to the TV/DVD as shown.
Select the “Video” by pressing INPUT repeatedly.
: Signal flow
Camcorder
(yellow)
(white)
(red)
Back side
To VIDEO/GAME IN
To Audio/Video OUT
Audio/Video cable (not supplied)
Connecting to a TV Game
You can enjoy playing a TV game on the screen by adjusting to the suitable brightness for your eyes.
1. Connect a TV Game to the TV/DVD.
2. Select the Game mode by pressing GAME. The Game mode screen appears.
• If GAME is pressed during standby mode, the unit turns on automatically and the Game mode screen
appears on the screen.
Back side
(yellow)
: Signal flow
(white)
To Audio/Video OUT
(red)
To VIDEO/GAME IN
Audio/Video cable (not supplied)
Note:
• You can also change the TV/DVD screen to the desired mode by pressing the CH / .
• The TV/DVD can also be used as a display device for many video games. However, due to the wide variety of
different types of signal generated by these devices and subsequent hook-up variations required, they have not all
been included in the suggested connection diagrams. Youʼll need to consult each componentʼs Ownerʼs Manual
for additional information.
• Interactive video games that involve shooting a “gun” type of joystick at on-screen target may not work on this
TV/DVD.
16
J51T0101D.indb 16
6/22/09 4:28:55 PM
Connecting to an optional equipment with S-video output
Back side
To S-VIDEO IN
(white)
: Signal flow
Connections
If you connect a VCR with an S-Video cable to the S-VIDEO IN jack on the left side of the TV/DVD, you must
also connect the audio cables to the AUDIO IN jacks as shown below. The S-Video cable only carries the video
signal. The audio signal is separated.
Select the “Video” by pressing INPUT repeatedly.
Ex. VCR with S-Video
(playback)
To Audio (L/R) OUT
(red) To VIDEO/GAME IN
To S-VIDEO OUT
S-Video cable (not supplied)
To AUDIO (L/R) IN
Audio cable (not supplied)
Note:
• When the S-Video cable and the standard video cable are connected at the same time, the S-video cable takes
precedence.
Connecting an optional equipment with ColorStream® (Component video) output
Your TV/DVD is capable of using ColorStream® (component video). Connecting your TV/DVD to a component
video compatible DVD player, such as a Toshiba DVD player with ColorStream® can greatly enhance picture
quality and performance.
Select the “ColorStream HD” by pressing INPUT repeatedly.
Back side
Ex. DVD player with Component video
: Signal flow
To Audio (L/R) OUT
To COLORSTREAM HD
(Y, PB, PR) IN
To Component Video OUT
Component video cable
(not supplied)
(white)
Audio cable (not supplied)
(red)
To COLORSTREAM HD
AUDIO (L/R) IN
When using the Component video cable,
an Audio cable must be connected to
COLORSTREAM HD AUDIO(L/R) IN jacks.
Note:
• The ColorStream® (component video) inputs on this unit are for use with devices that output 480i, 1080i interlaced signals and 480p, 720p progressive signals.
• Refer to the ownerʼs manual of the connected equipment as well.
• When you connect the unit to other equipment, be sure to turn off the power and unplug all of the equipment
from the wall outlet before making any connections.
• If you place the unit near a tuner or radio, the radio broadcast sound might be distorted. In this case, place the
unit away from the tuner and radio.
17
J51T0101D.indb 17
6/22/09 4:28:57 PM
Connections
Connecting to optional equipment (Continued)
You can enjoy high quality dynamic sounds by connecting the * This section uses the following reference mark.
TV/DVD to optional audio equipment.
: Center speaker
: Signal flow
: Front speaker
: Rear speaker
: Sub woofer
Connecting to an amplifier equipped with a Dolby® Digital decoder
Dolby Digital
Dolby Digital is the surround sound technology used in theaters showing the latest movies, and is now available to reproduce
this realistic effect in the home. You can enjoy motion picture and live concert DVD video discs encoded via the Dolby Digital
recording system with this dynamic realistic sound by connecting the TV/DVD to a 6 channel amplifier equipped with a Dolby
Digital decoder or Dolby Digital processor. If you have a Dolby Surround Pro Logic decoder, you will obtain the full benefit of
Pro Logic from the same DVD movies that provide full 5.1-channel Dolby Digital soundtracks, as well as from titles with the
Dolby Surround mark.
Back side
To COAXIAL DIGITAL
AUDIO OUT
Amplifier equipped with a
Dolby Digital decoder
To COAXIAL
type digital
audio input
75 Ω coaxial cable (not supplied)
Manufactured under license
from Dolby Laboratories.
Dolby and the double-D symbol
are trademarks of Dolby
Laboratories.
Connecting to an amplifier equipped with a DTS® decoder
Digital Theater Systems (DTS)
DTS is a high quality surround technology used in theaters and now available for home use, on DVD video discs or audio CDs.
If you have a DTS decoder or processor, you can obtain the full benefit of 5.1 channel DTS encoded sound tracks on DVD
video discs or audio CDs.
Back side
To COAXIAL DIGITAL
AUDIO OUT
Amplifier equipped with
a DTS decoder
To COAXIAL
type digital
audio input
75 Ω coaxial cable (not supplied)
Manufactured under license
under U.S. Patent #: 5,451,942 &
other U.S. and worldwide
patents issued & pending. DTS
and DTS Digital Out are
registered trademarks and the
DTS logos and Symbol are
trademarks of DTS, Inc.
© 1996-2007 DTS, Inc. All Rights
Reserved.
Connecting to an amplifier equipped with an MPEG audio decoder
MPEG2 sound
You can enjoy motion picture and live concert DVD video discs encoded via the MPEG2 recording system with dynamic
realistic sound by connecting an amplifier equipped with an MPEG2 audio decoder or MPEG2 audio processor.
Back side
Amplifier equipped with an
MPEG2 audio decoder
To COAXIAL DIGITAL
AUDIO OUT
To COAXIAL
type digital
audio input
75 Ω coaxial cable (not supplied)
18
J51T0101D.indb 18
6/22/09 4:28:58 PM
Connecting to optional equipment (Continued)/
Power source
Connecting to an amplifier equipped with a digital audio input
To COAXIAL DIGITAL
AUDIO OUT
Amplifier equipped with a
Digital audio input
Connections
2 channel digital stereo
You can enjoy the dynamic sound of 2 channel digital stereo by connecting an amplifier equipped with a digital audio input and speaker
system (right and left front speakers).
Note: PCM audio is limited to DVD or CD playback.
Back side
To COAXIAL
type digital
audio input
75 Ω coaxial cable (not supplied)
Note:
• DO NOT connect the COAXIAL DIGITAL AUDIO OUT jack of the TV/DVD to the AC-3 RF input of a Dolby Digital Receiver.
This input on your A/V Receiver is reserved for Laserdisc use only and is incompatible with the COAXIAL DIGITAL AUDIO OUT jack
of the TV/DVD.
• Connect the COAXIAL DIGITAL AUDIO OUT jack of the TV/DVD to the “COAXIAL” input of a Receiver or Processor.
• Refer to the ownerʼs manual of the connected equipment as well.
• When you connect the TV/DVD to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet
before making any connections.
• The output sound of the TV/DVD has a wide dynamic range. Be sure to adjust the receiverʼs volume to a moderate listening level.
Otherwise, the speakers and your hearing may be damaged by a sudden high volume sound.
• Turn off the amplifier before you connect or disconnect the TV/DVDʼs power cord. If you leave the amplifierʼs power on, the speakers
may be damaged.
Power source
To use AC power source
1. Open the AC INPUT cover.
2. Connect the AC cord plug into this TV/DVD’s AC INPUT jack, then close the AC INPUT cover.
3. Connect the AC cord into an AC outlet.
AC Outlet
Wider Hole
and Blade
AC 120V, 60Hz
AC cord (supplied)
Note:
• Never connect the AC line cord plug to other than the specified voltage (120V 60Hz). Use the attached power cord only.
• If the polarized AC cord does not fit into a non-polarized AC outlet, do not attempt to file or cut the blade. It is the user’s
responsibility to have an electrician replace the obsolete outlet.
• If you cause a static discharge when touching the unit and the unit fails to function, simply unplug the unit from the AC outlet
and plug it back in. The unit should return to normal operation.
• If the AC cord plug is plugged in for the first time, wait for approx. 5 seconds before pressing POWER.
19
J51T0101D.indb 19
6/22/09 4:28:59 PM
Basic setup
Auto Setup
POWER
The Auto Setup function helps to install your TV/DVD easily.
It leads you the Language selection, Air/Cable selection and Automatic
channel search.
IMPORTANT: Make sure that the antenna or cable TV system
connection is made!
ENTER
/ / /
EXIT/CANCEL
Auto Setup
1
To turn on the TV/DVD, press POWER.
• POWER indicator on the front of the unit
changes blue. It may take approx. 10 seconds
for a picture to appear on screen.
5
Now the “Automatic Search” starts.
Auto Setup
Language
Signal Type
Automatic Search
English
Cable
Start
Analog Channel Found : 0
Digtal Channel Found : 0
2
Auto Setup menu appears on the screen.
Press ▲ or ▼ to select “Language”, then
press ◀ or ▶ to select your desired language.
Auto Setup
Language
Signal Type
Automatic Search
: Select
3
English
Cable
EXIT : End
• If you press EXIT/CANCEL, the Automatic
Search stops and changes to the TV screen.
• After the starting setup is completed, the TV
channel appears on the screen.
Start
: Adjust
Press ▲ or ▼ to select “Signal Type”, then
press ◀ or ▶ to select “Air” or “Cable”.
Note:
• The Auto Setup function will work only when you
press POWER for the first time.
• The process of “Automatic Search” may take 15 to
30 minutes to complete, depending on your regional
cable service.
Auto Setup
Language
Signal Type
Automatic Search
: Select
Air
Cable
4
English
Cable
Start
: Adjust
- VHF/UHF channels
- Cable TV channels
Press ▲ or ▼ to select “Automatic Search”,
then press ▶ or ENTER.
Auto Setup
Language
Signal Type
Automatic Search
: Select
English
Cable
Start
ENTER:Set
20
J51T0101D.indb 20
6/22/09 4:29:00 PM
Setting the language
POWER
This TV/DVD can display the on screen language in English, French or
Spanish.
Select the language you prefer first, then proceed with the other menu options.
MENU
ENTER
/ / /
EXIT/CANCEL
Setting the language
2
Press MENU. The TV menu screen will
appear. Press ▲ or ▼ to select “Setup”, then
press ▶ or ENTER.
Main Menu
4
Press ◀ or ▶ to select the desired language:
English, French (Français) or Spanish
(Español).
5
Press EXIT/CANCEL to return to the normal
screen.
Basic setup
1
To turn on the TV/DVD, press POWER.
• POWER indicator on the front of the unit
changes blue. It may take approx. 10 seconds
for a picture to appear on screen.
Audio
Channel
Lock
Setup
: Select
3
ENTER:Set
Press ▲ or ▼ to select “Language”.
Setup
Closed Caption
Language
Video Label
Standby LED
Auto Shut Off
Aspect
Reset
: Select
>>
English
>>
On
Note:
• If the unit does not operate properly, or No key
operation (by the unit and/or the remote control):
Static electricity, etc., may affect the TV/DVD’s
operation. In such case, disconnect the AC cord once,
then connect it again.
• If no buttons are pressed for more than about 60
seconds, the MENU screen will return to normal
operation automatically.
• The TV section has its own menu and the DVD
section also has its own menu 57 .
Off
On
>>
: Adjust
21
J51T0101D.indb 21
6/22/09 4:29:01 PM
Basic setup
To memorize channels
This TV/DVD is equipped with a channel memory feature which allows
channels to skip up or down to the next channel set into memory, skipping
over unwanted channels. Before selecting channels, they must be
programmed into the TV/DVDʼs memory. To use this TV/DVD with an antenna,
set the Signal Type option to the Air mode. When shipped from the factory, this
menu option is in the Cable mode.
ENTER
/ / /
EXIT/CANCEL
MENU
Air/Cable selection
1
Automatic search
Press MENU in the TV mode. The TV menu
screen will appear. Press ▲ or ▼ to select
“Channel”, then press ▶ or ENTER.
1
Press MENU in the TV mode. The TV menu
screen will appear. Press ▲ or ▼ to select
“Channel”, then press ▶ or ENTER.
Main Menu
Main Menu
Audio
Audio
Channel
Channel
Lock
Lock
Setup
Setup
: Select
2
: Select
ENTER:Set
Press ▲ or ▼ to select “Auto Ch Memory”,
then press ▶ or ENTER.
2
Channel
Add/Delete
Auto Ch Memory
Ch Label
3
>>
>>
Press ▲ or ▼ to select “Signal Type”.
Channel
>>
>>
>>
: Select
Auto Ch Memory
Signal Type
Automatic Search
Press ▲ or ▼ to select “Auto Ch Memory”,
then press ▶ or ENTER.
Add/Delete
Auto Ch Memory
Ch Label
>>
ENTER:Set
Cable
Start
3
ENTER:Set
Press ▲ or ▼ to select “Automatic Search”,
then press ▶ or ENTER.
Auto Ch Memory
Signal Type
Automatic Search
4
Press ◀ or ▶ to select “Air” or “Cable”.
Analog Channel Found : 0
Digital Channel Found : 0
Auto Ch Memory
Signal Type
Automatic Search
Air
Cable
5
: Select
Air
Start
Cable
Stop
4
ENTER:Cancel
The TV/DVD will begin memorizing all the
channels available in your area.
- VHF/UHF channels
- Cable TV channels
Press EXIT/CANCEL to return to the normal
screen.
22
J51T0101D.indb 22
6/22/09 4:29:02 PM
ENTER
/
/ /
EXIT/CANCEL
MENU
Add/Delete channel
1
Press MENU in the TV mode. The TV menu
screen will appear. Press ▲ or ▼ to select
“Channel”, then press ▶ or ENTER.
4
Press ▲ or ▼ to select the channel that you
want to skip.
Add/Delete
CH
Main Menu
2
3
3-001
3-002
4
Audio
Channel
Signal
Analog
Analog
Digital
Digital
Analog
Basic setup
You can select the channel that you want to skip.
Add
Add
Delete
Add
Delete
Lock
Setup
: Select
2
: Select
ENTER:Set
Press ▲ or ▼ to select “Add/Delete”, then
press ▶ or ENTER.
5
Press ◀ or ▶ to select “Add” or “Delete”,
whichever function you want to perform.
Add/Delete
CH
Channel
Add/Delete
Auto Ch Memory
Ch Label
2
3
3-001
3-002
4
>>
>>
>>
: Select
: Select
3
ENTER:Set
Press ▲ or ▼ to select “Add/Delete”, then
press ▶ or ENTER.
Add/Delete
Adding Channel
Add/Delete
Clear All
: Select
>>
>>
>>
: Adjust
6
7
Signal
Analog
Analog
Digital
Digital
Analog
Delete
Add
Delete
Add
Delete
: Adjust
Repeat steps 4 - 5 for other channels you
want to add or delete.
Press EXIT/CANCEL to return to the normal
screen.
ENTER:Set
23
J51T0101D.indb 23
6/22/09 4:29:04 PM
Basic setup
To memorize channels (Continued)
ENTER
/
/
EXIT/CANCEL
MENU
Adding Channel
Clear All
If you find a new channel unregistered, you can add the
new channel into the channel memory.
All channels are deleted from the channel memory.
1
2
Tune in the new channel.
Press MENU. The TV menu screen will appear.
Press ▲ or ▼ to select “Channel”, then press
▶ or ENTER.
1
Press MENU in the TV mode. The TV menu
screen will appear. Press ▲ or ▼ to select
“Channel”, then press ▶ or ENTER.
Main Menu
Audio
Main Menu
Channel
Lock
Setup
Audio
: Select
Channel
ENTER:Set
Lock
Setup
: Select
3
ENTER:Set
Press ▲ or ▼ to select “Add/Delete”, then
press ▶ or ENTER.
2
Channel
Add/Delete
Auto Ch Memory
Ch Label
Channel
Add/Delete
Auto Ch Memory
Ch Label
Press ▲ or ▼ to select “Add/Delete”, then
press ▶ or ENTER.
4
>>
>>
>>
>>
>>
: Select
: Select
>>
ENTER:Set
3
Press ▲ or ▼ to select “Adding Channel”,
then press ▶ or ENTER. The new channel will
be added into the channel memory.
ENTER:Set
Press ▲ or ▼ to select “Clear All”, then press
▶ or ENTER.
Add/Delete
Adding Channel
Add/Delete
Clear All
>>
>>
>>
Add/Delete
Adding Channel
Add/Delete
Clear All
: Select
5
>>
>>
>>
ENTER:Set
: Select
4
ENTER:Set
Press EXIT/CANCEL to return to the normal
screen.
Press EXIT/CANCEL to return to the normal
screen.
24
J51T0101D.indb 24
6/22/09 4:29:05 PM
TV operation
TV operation
POWER
0–9, –
VOL +/–
CH /
TV operation
TO SELECT ANALOG CHANNELS
1-9:
Press 1-9 as needed. Example, to
select channel 2, press 2.
10-99:
Press the 2 digits in order. Example, to
select channel 12, press 1, 2.
100-125: Press the 3 digits in order. Example, to
select channel 120, press 1, 2, 0.
2
Adjust the volume level by pressing VOL + or – .
The volume level will be indicated on the screen
by orange bars. As the volume level increases, so
do the number of bars. If the volume decreases,
the number of orange bars also decreases.
3
Set the Signal Type option to the appropriate
position (see “Air/Cable selection” 22 ).
TO SELECT DIGITAL CHANNELS
Press the first 3 digits, then press the – button,
followed by the remaining number.
Example, to select channel 015-001, press 0, 1,
5, –, 0, 0, 1.
• If a channel is selected with only audio content,
“Audio only” will be displayed on the screen.
• If a channel is selected with a weak digital
signal, “Digital channel signal strength is low”
will be displayed on the screen.
The same program may be available on either
an analog channel or a digital channel. You may
choose to watch either format.
• If a channel is selected to which you have not
subscribed, “Digital channel is encrypted” will
be displayed on the screen.
Air
Cable
4
- VHF/UHF channels
- Cable TV channels
Press the Direct Channel Selection (0-9, –)
buttons or CH / to select the channel.
(If you press only channel number, channel
selection will be delayed for a few seconds.)
TV operation
1
To turn on the TV/DVD, press POWER.
(POWER indicator on the front of the unit changes
blue. It may take approx. 10 seconds for a picture
to appear on screen.)
VHF/UHF/CABLE CHANNELS
Air
VHF
2-13
UHF
14-69
Cable
VHF
2-13
STD/HRC/IRC
14-36
(A) (W)
37-59
(AA) (WW)
60-85
(AAA) (ZZZ)
86-94
(86) (94)
95-99
(A-5) (A-1)
100-125 (100) (125)
01
(5A)
Note:
• If a channel with no broadcast is selected, the sound
will automatically be muted.
• It may take a few seconds for a digital channel picture
to appear on screen after being selected.
25
J51T0101D.indb 25
6/22/09 4:29:07 PM
TV operation
TV operation (Continued)
SLEEP
DISPLAY
VOL +/–
MUTE
CH RTN
TV operation (continued)
■ DISPLAY
Press DISPLAY to display the current information on the
screen.
62-001 HDTV Moving Picture1
CH-1
Digital
When the TV/DVD
receives a digital signal,
the digital information
will appear.
• Channel number
• Channel label (if preset)
• V-Chip rating
• Sleep timer
• Program guide
• Resolution
Air
Sleep Timer
Off
English
No Program Information is available
Natural
1080i
•
•
•
•
•
Station name
Broadcast program name
Signal type
Audio language
Picture size
Sleep Timer
Off
14
Analog
Cable
■ SLEEP
To set the TV/DVD to
turn off after a preset
amount of time, press
SLEEP on the remote
control. The clock will
count up 10 minutes for
each press of the SLEEP button (Off, 0h 10m, 0h 20m,
..., 2h 0m). After the sleep time is programmed, the
display will appear briefly every ten minutes to remind
you that the sleep timer is operating. To confirm the
sleep timer setting, press SLEEP and the remaining
time will be displayed for a few seconds. To cancel the
sleep timer, press SLEEP repeatedly until the display
turns to Off.
S l e e p Ti m e r
0h 10m
■ HEAD PHONES
Insert a stereo headphones (not supplied) with a 1/8” mini
plug into the HEAD PHONE jack on the rear panel.
If you connect headphones, the sound from TV/DVD
speakers is muted.
When the TV/DVD
receives a analog signal,
the analog information
will appear.
• Channel number
• Channel label (if preset)
• V-Chip rating
• Signal type
• Sleep timer
• Audio information (Stereo or SAP)
• Picture size
• Resolution
Natural
480i
Press DISPLAY again to clear the call display.
Note:
• After a few seconds, DISPLAY screen will return to
normal TV-operation automatically.
■ CH RTN
This button allows you to go back to the last channel
selected by pressing CH RTN. Press CH RTN again to
return to the last channel you were watching.
■ MUTE
Press MUTE to switch off the sound. The TV/DVD’s
sound will be silenced and “Mute” will appear on the
screen. The sound can be switched back on by pressing
this button again or the VOL + or –.
26
J51T0101D.indb 26
6/22/09 4:29:08 PM
Labeling channels
Channel label appear with the channel number display each time you turn on the
TV/DVD, select a channel, or press DISPLAY.
You can choose any four characters to identify a channel.
ENTER
/
/ /
EXIT/CANCEL
MENU
Labeling channels
1
Press MENU in the TV mode. The TV menu
screen will appear. Press ▲ or ▼ to select
“Channel” menu, then press ▶ or ENTER.
4
Press ◀ or ▶ repeatedly until the character
you want appears in the first space.
Ch Label
TV operation
Channel Number
Ch Label
Label Clear
Main Menu
15-1
A
>>
Audio
Channel
Lock
Setup
: Select
: Select
2
ENTER:Set
-
3
>>
>>
>>
ENTER:Set
Press ◀ or ▶ to select a channel you want to
label, then press ▼.
, () @ / + = -
SPACE
Channel
: Select
ENTER:Set
The characters rotation as follows:
Press ▲ or ▼ to select “Ch Label”, then
press ▶ or ENTER.
The “Ch Label” menu will appear.
Add/Delete
Auto Ch Memory
Ch Label
: Adjust
5
If the character which you desire appears, press
ENTER.
Repeat this step to enter the rest of the
characters.
If you would like a blank space in the label name,
you must choose the empty space from the list of
characters.
When you finish inputting the label name,
press EXIT/CANCEL to return to the normal
screen.
Ch Label
Channel Number
Ch Label
Label Clear
: Select
15-1
>>
: Adjust
6
Repeat steps 3-5 for other channel. You can
assign a label to each channel.
To clear a Ch Label
After step 3 above, press ▲ or ▼ to select “Label Clear”,
then press ▶ or ENTER.
Note:
• The channel labels will be reset after “Automatic
Search” 22 .
27
J51T0101D.indb 27
6/22/09 4:29:09 PM
TV operation
Labeling video inputs
The Video Label feature allows you to label each input source for your TV/DVD.
ENTER
/ / /
EXIT/CANCEL
MENU
Labeling video inputs
1
Press MENU in the TV mode. The TV menu
screen will appear. Press ▲ or ▼ to select
“Setup”, then press ▶ or ENTER.
4
Press ◀ or ▶ to select the desired label for
that input source.
Video Label
Video
ColorStream HD
Main Menu
SAT
Audio
Channel
Lock
Setup
: Select
: Select
2
ENTER:Set
–
VCR
DVD
DTV
SAT
CBL
Press ▲ or ▼ to select “Video Label”, then
press ▶ or ENTER.
Setup
3
Closed Caption
Language
Video Label
Standby LED
Auto Shut Off
Aspect
>>
English
>>
On
Off
On
Reset
>>
: Select
5
: Adjust
: Uses the default label name
: Video cassette recorder
: DVD video
: Digital TV set-top box
: Satellite box
: Cable box
Press EXIT/CANCEL to return to the normal
screen.
ENTER:Set
Press ▲ or ▼ to select an input which you
want to label.
Video Label
Video
ColorStream HD
: Select
-
: Adjust
28
J51T0101D.indb 28
6/22/09 4:29:10 PM
Setting the V-Chip
An age limitation can be set to restrict children from viewing or hearing
violent scenes or pictures that you may choose to exclude. The restriction
applies to “TV Rating” and “Movie Rating” if this data is transmitted. You may
set this restriction separately. To use the V-Chip function, you must register
a password.
0–9
DISPLAY
ENTER
Notes:
If you forget the password, press DISPLAY four times within
five seconds while the TV is in password entering mode. This
allows you to reset your password.
/ /
MENU
To register a password
To change a password
1
1
Press MENU in the TV mode. The TV menu
screen will appear. Press ▲ or ▼ to select
“Lock”, then press ▶ or ENTER.
Press MENU in the TV mode. The TV menu
screen will appear. Press ▲ or ▼ to select
“Lock”, then press ▶ or ENTER.
TV operation
Main Menu
Main Menu
Audio
Audio
Channel
Channel
Lock
Lock
Setup
Setup
: Select
: Select
2
Select and enter your password (4 digits)
using Number buttons (0-9), then press
ENTER.
2
3
[0-9] : Select
Press ▲ or ▼ to select “Change Password”,
then press ▶ or ENTER.
The Change Password screen will appear.
Lock
Lock
New Password
ENTER:Set
ENTER:Set
V-Chip
V-Chip Set
V-Chip Set (DTV)
Update
Change Password
----
ENTER:Set
Enter the same password again to confirm,
then press ENTER.
The password is now registered.
3
Off
>>
>>
>>
>>
: Select
ENTER: Set
Enter a new password using Number buttons
(0-9), then press ENTER.
Change Password
Lock
Confirm Password
----
New Password
----
Confirm Password
----
[0-9] : Select
[0-9] : Select
ENTER:Set
Note:
• The V-Chip feature is available only for the U.S. V-Chip
system. The Canadian V-Chip system is not supported.
4
ENTER:Set
Enter the same password again to confirm,
then press ENTER.
The new password is now registered.
29
J51T0101D.indb 29
6/22/09 4:29:12 PM
TV operation
operation
TV
Setting the V-Chip (Continued)
0–9
ENTER
/ / /
MENU
To set the V-Chip
1
Press MENU in the TV mode. The TV menu
screen will appear. Press ▲ or ▼ to select
“Lock”, then press ▶ or ENTER.
4
Press ▲ or ▼ to select “V-Chip Set”, then
press ▶ or ENTER.
The V-Chip Set Menu appears.
Lock
Main Menu
V-Chip
V-Chip Set
V-Chip Set (DTV)
Update
Change Password
Audio
Channel
On
>>
>>
>>
>>
Lock
Setup
: Select
2
ENTER:Set
Use Number buttons (0-9) to enter your password, then press ENTER. Then Lock menu will
appear.
5
: Select
Press ▲ or ▼ to select which rating will be
used, then press ▶ or ENTER. Each rating
below will appear.
V-Chip Set
TV Rating
Movie Rating
Lock
Password
>>
>>
----
[0-9] : Select
3
ENTER: Set
ENTER:Set
: Select
TV Rating
ENTER: Set
TV Rating
Press ▲ or ▼ to select “V-Chip”, then press
◀ or ▶ to select “On” .
Lock
V-Chip
V-Chip Set
V-Chip Set (DTV)
Update
Change Password
: Select
On
>>
>>
>>
>>
: Adjust
ALL D
L
S
V
FV
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
: Select
ENTER:Set
You can set the rating using age level and genre.
Age:
TV-Y
: All children
TV-Y7 : 7 years old and above
TV-G
: General audience
TV-PG : Parental guidance
TV-14 : 14 years old and above
TV-MA : 17 years old and above
Genre:
ALL
: All
D
: Dialogue
L
: Language
S
: Sex
V
: Violence
FV
: Fantasy Violence
30
J51T0101D.indb 30
6/22/09 4:29:13 PM
MUTE
ENTER
/
EXIT/CANCEL
Movie Rating
Movie Rating
: Select
TV operation
G
PG
PG-13
R
NC-17
X
ENTER:Set
G
PG
PG-13
R
: All ages
: Parental guidance
: Parental guidance less than 13 years old
: Under 17 years old parental guidance
suggested
NC-17 : 17 years old and above
X
: Adult only
6
Press ▲ or ▼ to select the desired rating, then
press ENTER.
7
Press EXIT/CANCEL to return to the normal
screen.
To use the TV/DVD after it is protected.
When a program is received that is blocked by the VChip, press MUTE, then enter your password.
The protection will be temporarily overridden. If the TV/
DVD is turned off or the channel is changed, the V-Chip
restriction will be reactivated.
Note:
• The V-Chip function is activated only on programs and
input sources that include a rating signal.
31
J51T0101D.indb 31
6/22/09 4:29:15 PM
TV operation
Setting the V-Chip (Continued)
As a supplement to the standard V-Chip rating system, your television will
be able to download an additional rating system, if such a system becomes
available in the future.
0–9
ENTER
/
/
MENU
To download the additional V-Chip rating system (when available)
1
Press MENU in the TV mode. The TV menu
screen will appear. Press ▲ or ▼ to select
“Lock”, then press ▶ or ENTER.
Main Menu
Audio
Channel
Lock
Setup
: Select
2
ENTER:Set
Use Number buttons (0-9) to enter your password, then press ENTER. Then Lock menu will
appear.
Lock
Password
[0-9] : Select
3
----
6
You also need “Update” procedure to update
rating information.
Note:
• You can only download the additional V-Chip rating
system when your TV/DVD is receiving a digital signal.
• When you download the additional rating system, it
may take some time for the download to occur.
• The V-Chip rating information and system are not
determined or controlled by the TV/DVD.
• The standard V-Chip rating system is available
whether your TV/DVD is receiving a digital signal or
not, and will block both analog and digital programs.
To set the restriction level using the standard V-Chip
rating system, select “V-Chip Set” in step 3.
• The downloadable V-Chip rating system is an evolving
technology, and availability, content, and format may
vary.
• You cannot select this feature if the TV/DVD is not
receiving a digital signal for the current station.
ENTER:Set
Press ▲ or ▼ to select “V-Chip Set (DTV)”,
then press ▶ or ENTER.
Lock
V-Chip
V-Chip Set
V-Chip Set (DTV)
Update
Change Password
4
5
: Select
On
>>
>>
>>
>>
ENTER:Set
If the TV/DVD is not storing the additional
rating system, the TV/DVD will begin downloading it, which may take some time to be
completed.
Set your preferred content rating limits for the
additional rating system.
32
J51T0101D.indb 32
6/22/09 4:29:15 PM
Setting the closed captions
WHAT IS CLOSED CAPTIONING?
This television has the capability to decode and display closed captioned
television programs. Closed captioning will display text on the screen for
hearing impaired viewers or it will translate and display text in another
language.
ENTER
/ / /
EXIT/CANCEL
MENU
CLOSED CAPTION
Setting the closed captions
1
Press MENU in the TV mode. Press ▲ or ▼ to
select “Setup”, then press ▶ or ENTER.
4
When you select “Digital Caption”, you can
choose from CS1, CS2, CS3, CS4, CS5 and CS6.
Audio
Channel
Lock
Closed Caption
Setup
: Select
CC Setting
CC Priority
Analog Caption
Digital Caption
Digital CC Preset
CC Advanced
ENTER:Set
Press ▲ or ▼ to select “Closed Caption”,
then press ▶ or ENTER.
The Closed Caption menu will appear.
Setup
Closed Caption
Language
Video Label
Standby LED
Auto Shut Off
Aspect
Reset
3
>>
English
>>
On
Off
On
>>
: Select
5
Closed Caption
: Select
: Select
On
Digital CC
C1
CS1
Default
>>
: Adjust
Press ▲ or ▼ to select “CC Priority”, then
press ◀ or ▶ to select “Digital CC” or “Analog
CC”.
ENTER:Set
Press ▲ or ▼ to select “CC Setting”, then
press ◀ or ▶ to select “On”.
On: Captions will be displayed on the screen.
Off: Captions will not be displayed on the screen.
CC Setting
CC Priority
Analog Caption
Digital Caption
Digital CC Preset
CC Advanced
TV operation
When you select “Analog Caption”, you can
choose C1, C2, C3, C4, T1, T2, T3 and T4.
Main Menu
2
Press ▲ or ▼ to select “Analog Caption” or
“Digital Caption”, then press ◀ or ▶ to select
the desired Closed Caption mode.
Off
Digital CC
C1
CS1
Default
>>
6
Note:
• Depending on the broadcast signal, some
Analog Captions will function with a Digital
broadcast signal. This step prevent that two kind
of captions are overlapping.
Press EXIT/CANCEL to return to the normal
screen.
: Adjust
Note:
• You can also display the Closed Caption menu screen by pressing CLOSED CAPTION on the remote control.
• Digital caption feature is not available for analog channel.
Important Note:
If text is not available in your viewing area, a black rectangle may appear on-screen. If this happens, set
“CC Setting” to “Off”.
33
J51T0101D.indb 33
6/22/09 4:29:16 PM
TV operation
CC advanced
When you have selected Custom as the display method, you can adjust the
various setting listed below as follows:
This feature is designed to customize Digital Captions only.
ENTER
/ / /
EXIT/CANCEL
MENU
CC advanced
1
Press MENU in the TV mode. Press ▲ or ▼ to
select “Setup”, then press ▶ or ENTER.
5
Press ▲ or ▼ to select the desired item,
then press ◀ or ▶ to change the setting.
CC Advanced
Main Menu
Text Size
Text Type
Audio
Text Edge
Auto
Text Color
Auto
Channel
Text Opacity
Auto
Lock
Background Color
Auto
Setup
Background Opacity
: Select
: Select
2
ENTER:Set
Press ▲ or ▼ to select “Closed Caption”,
then press ▶ or ENTER.
The Closed Caption menu will appear.
Setup
3
Closed Caption
Language
Video Label
Standby LED
Auto Shut Off
Aspect
>>
English
>>
On
Off
On
Reset
>>
: Select
ENTER:Set
Press ▲ or ▼ to select “Digital CC Preset”,
then press ◀ or ▶ to select “Custom”.
Closed Caption
CC Setting
CC Priority
Analog Caption
Digital Caption
Digital CC Preset
CC Advanced
: Select
4
Auto
On
Digital CC
C1
6
Auto
Auto
: Adjust
You can select from among the following items
and parameters.
Text Size:
Auto, Small, Standard, Large
Text Type:
Auto, Style1, Style2, Style3,
Style4, Style5, Style6, Style7
Text Edge:
Auto, None, Raised, Depressed,
Uniform, Left Shadow, Right
Shadow
Text Color:
Auto, Black, White, Red, Green,
Blue, Yellow, Magenta, Cyan
Text Opacity: Auto, Solid, Transparent,
Translucent, Flashing
Background Auto, Black, White, Red, Green,
Color:
Blue, Yellow, Magenta, Cyan
Background Auto, Solid, Transparent,
Opacity:
Translucent, Flashing
Press EXIT/CANCEL to return to the normal
screen.
CS1
Custom
>>
Note:
: Adjust
Press ▲ or ▼ to select “CC Advanced”, then
press ▶ or ENTER.
The CC Advanced menu will appear.
• You cannnot select “CC Advanced” in the menu
before set “Digital CC preset” to “Custom”.
• You cannot set the Closed Caption “Text Color” and
“Background Color” as the same color.
Closed Caption
CC Setting
CC Priority
Analog Caption
Digital Caption
Digital CC Preset
CC Advanced
: Select
On
Digital CC
C1
CS1
Custom
>>
ENTER:Set
34
J51T0101D.indb 34
6/22/09 4:29:18 PM
Adjusting the picture preference/
Picture settings
You can select four picture modes—Sports, Standard, Movie and Memory—
as described in the following table:
Picture settings are factory preset but you can adjust them individually as
follows:
ENTER
/ / /
EXIT/CANCEL
MENU
Adjusting the picture preference
Picture settings
1
1
2
Press MENU in the TV mode. The TV menu
screen will appear. Press ▲ or ▼ to select
“Picture”, then press ▶ or ENTER.
Press ▲ or ▼ to select “Picture Setting”, then
press ▶ or ENTER.
The Picture Setting menu will appear.
Audio
Channel
Picture Setting
Picture Preference
Picture Size
Film Mode
DNR
Lock
Setup
: Select
2
ENTER:Set
Press ▲ or ▼ to select “Picture Preference”.
Picture Setting
Picture Preference
Picture Size
Film Mode
DNR
3
: Select
3
Mode
Sports
Standard
Movie
Memory
4
Press ▲ or ▼ to select the item you want to
adjust. Press ◀ or ▶ to adjust the setting.
Picture Setting
25
Brightness
Contrast
50
Sharpness
25
Color
25
0
Tint
Color Temperature
16
Backlight
: Adjust
: Select
◀
Brightness decrease
brightness
Contrast
decrease
contrast
Sharpness makes picture
softer
Color
be pale color
Tint
be reddish color
: Select
>>
Standard
>>
On
On
: Adjust
Picture Quality
Bright and dynamic picture (factory-set)
Standard picture quality (factory-set)
Movie-like picture setting (factory-set)
Your personal preferences (set by
you; see “Picture settings” at right).
After your desired setting, press EXIT/
CANCEL to return to the normal screen.
ENTER:Set
: Select
>>
Sports
>>
On
On
Press ◀ or ▶ to select a mode you want to
adjust.
Picture Setting
Picture Preference
Picture Size
Film Mode
DNR
>>
Sports
>>
On
On
TV operation
Main Menu
Press MENU in the TV mode. The TV menu
screen will appear. Press ▲ or ▼ to select
“Picture”, then press ▶ or ENTER.
Color Temperature
4
Cool
Standard
Warm
: Adjust
Cool
ENTER:Set
▶
increase
brightness
increase
contrast
makes picture
clearer
be brilliant color
be greenish
color
Picture Quality
Bluish
Neutral
Reddish
After your desired setting, press EXIT/
CANCEL to return to the normal screen.
Note:
• The Contrast default setting is set to maximum at the
factory.
35
J51T0101D.indb 35
6/22/09 4:29:19 PM
TV operation
Viewing the wide-screen picture formats
You can view programs in a variety of picture sizes— Natural, Theater
Wide1, Theater Wide2, Theater Wide3 and Full.
0-4
MENU
ENTER
/ /
EXIT/CANCEL
PIC SIZE
Viewing the wide-screen picture formats
1
2
Press MENU. Press ▲ or ▼ to select “Picture”,
then press ▶ or ENTER.
Press ▲ or ▼ to select “Picture Size”, then
press ▶ or ENTER to display Picture Size
menu. Press ▲/▼ or corresponding Number
button (0-4) to select the desired picture size,
as described below.
Theater Wide2 picture size (for letter box
programs)
The entire picture is uniformly enlarged—it is stretched
the same amount both wider and taller (retains its
original proportion).
The top and bottom edges of the picture may be hidden.
Picture Size
0.Natural
1.Theater Wide1
2.Theater Wide2
3.Theater Wide3
4.Full
[0-4]:Select
Note:
• Selectable picture sizes may vary depending on the
input source or broadcast signal.
• Picture Size menu also can be displayed by pressing
PIC SIZE on the remote control.
3
Press EXIT/CANCEL to return to the normal
screen.
Natural picture size
In some cases, this image will display the size of
standard 4:3 with a black side bar.
Theater Wide1 picture size (for 4:3 format
programs)
To fill the screen, the right and left edges are extended,
however; the center of the picture remains near its
former ratio.
The top and bottom edges of the picture may be hidden.
ABCDEFG----------------
Theater Wide3 picture size (for letter box programs
with subtitles)
To fill the width of the screen, it is extended horizontally.
However; it is only slightly extended at the top and the
bottom.
The top and bottom edges of the picture may be hidden.
ABCDEFG----------------
ABCDEFG--------------------------
Full picture size (for 16:9 source programs)
Full will display the picture at the maximum size.
Note:
• Some High Definition and/or Digital broadcasts may
not allow you to change the picture size.
• In 720p or 1080i signal, only the Theater Wide2 and
Full picture size features are available.
36
J51T0101D.indb 36
6/22/09 4:29:21 PM
Film Mode/DNR
A smoother motion may be obtained by setting the Film Mode to “On” when
you view a DVD.
DNR (Digital Noise Reduction) can reduce the roughness of the picture.
(This function is available only for analog broadcast.)
ENTER
/ / /
EXIT/CANCEL
MENU
Film Mode
DNR
1
1
Press MENU in the TV mode. The TV menu
screen will appear. Press ▲ or ▼ to select
“Picture”, then press ▶ or ENTER.
Press MENU in the TV mode. Then press ▲ or
▼ to select “Picture”, then press ▶ or ENTER.
Main Menu
Main Menu
Audio
Audio
Channel
Channel
Lock
Lock
TV operation
Setup
Setup
: Select
: Select
2
2
Press ▲ or ▼ to select “Film Mode”.
Press ▲ or ▼ to select “DNR”.
Picture Setting
Picture Preference
Picture Size
Film Mode
DNR
3
: Select
Picture Setting
Picture Preference
Picture Size
Film Mode
DNR
>>
Sports
>>
On
On
: Adjust
Press ◀ or ▶ to select “On” or “Off”.
3
: Select
>>
Sports
>>
On
On
: Adjust
Press ◀ or ▶ to select “On” or “Off”.
Picture Setting
Picture Preference
Picture Size
Film Mode
DNR
>>
Sports
>>
Off
On
Picture Setting
Picture Preference
Picture Size
Film Mode
DNR
: Select
4
ENTER:Set
ENTER:Set
: Select
>>
Sports
>>
On
Off
: Adjust
: Adjust
Press EXIT/CANCEL to return to the normal
screen.
Note:
• A smoother motion may be obtained by setting the Film
Mode to “On” when you view a DVD from the DVD player
connected with ColorStream (component video) inputs.
37
J51T0101D.indb 37
6/22/09 4:29:22 PM
TV operation
Sound control adjustment/
Selecting Stereo/Second Audio Program (SAP)
The multi-channel TV sound (MTS) feature provides high-fidelity stereo sound.
MTS also can transmit a second audio program (SAP) containing a second
language or other audio information.
When the TV/DVD receives a stereo or SAP broadcast, the word “Stereo” or
“SAP” displays on-screen every time you press DISPLAY.
ENTER
/ / /
EXIT/CANCEL
MENU
Selecting Stereo/Second
Audio Program (SAP)
Sound control adjustment
1
DISPLAY
Press MENU in the TV mode. The TV menu
screen will appear. Press ▲ or ▼ to select
“Audio” , then press ▶ or ENTER.
Main Menu
1
Press MENU in the TV mode. Press ▲ or ▼ to
select “Audio”, then press ▶ or ENTER.
Main Menu
Audio
Channel
Audio
Lock
Channel
Lock
Setup
: Select
Setup
ENTER:Set
: Select
2
Press ▲ or ▼ to select the item you want to
adjust. Then press ◀ or ▶ to adjust each
setting.
2
ENTER:Set
Press ▲ or ▼ to select “MTS”, then press ◀ or
▶ to select “Stereo”.
Audio
Bass
15
15
Treble
Balance
0
MTS
Audio Language
: Select
Audio
Stereo
English
Stereo
English
: Adjust
Bass:
Treble:
Press ◀ or ▶ to adjust the bass sound.
Press ◀ or ▶ to adjust the treble
sound.
Balance: Press ◀ or ▶ to obtain an equal sound
level from both speakers.
3
Bass
15
15
Treble
Balance
0
MTS
Audio Language
After your desired setting, press EXIT/CANCEL
to return to the normal screen.
3
: Select
: Adjust
Press EXIT/CANCEL to return to the normal
screen.
Note:
• Generally you can leave your TV in stereo mode
because the TV automatically outputs the type of
sound being broadcast (stereo or mono).
• If the stereo sound is noisy, select “Mono” to reduce
the noise.
To listen to a second audio program (SAP)
Press ◀ or ▶ to select “SAP” in step 2 above. The TV
speakers will output the second audio program instead
of normal audio.
38
J51T0101D.indb 38
6/22/09 4:29:23 PM
Selecting the audio language/
Using the aspect feature
0-6
When two or more audio languages are included in a digital signal, you can
select one of the audio language. (This function is available only for digital
broadcast.)
ENTER
/ / /
When the Aspect feature is set to On and the TV receives a 480i signal, the
picture size is automatically selected (as described in the following table).
EXIT/CANCEL
MENU
Selecting the audio language
Using the aspect feature
1
1
Press MENU in the TV mode. Then press ▲ or
▼ to select “Audio” , then press ▶ or ENTER.
Press MENU in the TV mode. The TV menu
screen will appear. Press ▲ or ▼ to select
“Setup” , then press ▶ or ENTER.
Main Menu
TV operation
Main Menu
Audio
Audio
Channel
Channel
Lock
Lock
Setup
Setup
: Select
ENTER:Set
: Select
2
Press ▲ or ▼ to select “Audio Language”,
then press ▶ or ENTER to display the Audio
Language menu.
2
ENTER:Set
Press ▲ or ▼ to select “Aspect”.
Press ◀ or ▶ to select “On” or “Off”.
Setup
Audio
Bass
15
15
Treble
Balance
0
MTS
Audio Language
Closed Caption
Language
Video Label
Standby LED
Auto Shut Off
Aspect
Stereo
English
>>
English
>>
On
Off
On
Reset
: Select
3
ENTER:Set
Press ▲/▼ or Number buttons (0-6) to select
your desired language.
3
>>
: Select
: Adjust
After your desired setting, press EXIT/CANCEL
to return to the normal screen.
Audio Language
0. English
1. Language 1
2. Language 2
3. French
4. Language 3
5. Spanish
6. No Info.
4
[0-6]: Select
After your desired setting, press EXIT/CANCEL
to return to the normal screen.
Aspect ratio of signal
source
Automatic aspect size
(When Aspect is On)
4:3 Normal
Natural
16:9 Full
Full
4:3 Letter box
Theater Wide2
Not defined
User-set mode
39
J51T0101D.indb 39
6/22/09 4:29:25 PM
TV operation
Setting the POWER indicator/
Adjusting the back lighting
When the Standby LED is set to On, the POWER indicator on the front of
the unit will change from blue to red in standby mode. If you set to Off, the
POWER indicator will not light up in standby mode for power saving.
ENTER
/ / /
The Backlight feature adjusts the screen brightness for improved picture
clarity.
EXIT/CANCEL
MENU
Setting the POWER indicator
Adjusting the back lighting
1
1
2
Press MENU in the TV mode. The TV menu
screen will appear. Press ▲ or ▼ to select
“Setup”, then press ▶ or ENTER.
Main Menu
Audio
Press MENU in the TV mode. The TV menu
screen will appear. Press ▲ or ▼ to select
“Picture”, then press ▶ or ENTER.
Press ▲ or ▼ to select “Picture Setting”, then
press ▶ or ENTER.
The Picture Setting menu will appear.
Channel
Lock
Setup
: Select
2
Press ▲ or ▼ to select “Standby LED”.
Press ◀ or ▶ to select “On” or “Off”.
Setup
3
Closed Caption
Language
Video Label
Standby LED
Auto Shut Off
Aspect
>>
English
>>
On
Off
On
Reset
>>
: Select
Picture Setting
Picture Preference
Picture Size
Film Mode
DNR
ENTER:Set
3
>>
Sports
>>
On
On
ENTER:Set
: Select
Press ▲ or ▼ to select “Backlight”.
Picture Setting
25
Brightness
Contrast
50
Sharpness
25
Color
25
0
Tint
Color Temperature
16
Backlight
: Adjust
After your desired setting, press EXIT/CANCEL
to return to the normal screen.
4
: Select
Cool
: Adjust
Press ◀ or ▶ to adjust the setting.
Picture Setting
25
Brightness
Contrast
50
Sharpness
25
Color
25
0
Tint
Color Temperature
16
Backlight
: Select
5
Cool
: Adjust
After your desired setting, press EXIT/CANCEL
to return to the normal screen.
40
J51T0101D.indb 40
6/22/09 4:29:26 PM
Setting the Auto Shut Off/
Resetting your settings
If the Auto Shut Off feature is On, a station being viewed stops broadcasting
and the TV is not operated, the TV will automatically shut itself off after 15
minutes.
ENTER
/ / /
The Reset function returns your settings to the factory settings.
EXIT/CANCEL
MENU
Setting the Auto Shut Off
Resetting your settings
1
1
Press MENU in the TV mode. The TV menu
screen will appear. Press ▲ or ▼ to select
“Setup” , then press ▶ or ENTER.
Press MENU in the TV mode. The TV menu
screen will appear. Press ▲ or ▼ to select
“Setup” , then press ▶ or ENTER.
Audio
Audio
Channel
Channel
Lock
Lock
Setup
Setup
: Select
2
: Select
ENTER:Set
Press ▲ or ▼ to select “Auto Shut Off”.
Press ◀ or ▶ to select “On” or “Off”.
2
Reset
3
: Select
Setup
>>
English
>>
On
Off
On
>>
: Adjust
After your desired setting, press EXIT/CANCEL
to return to the normal screen.
ENTER:Set
Press ▲ or ▼ to select “Reset”.
Setup
Closed Caption
Language
Video Label
Standby LED
Auto Shut Off
Aspect
TV operation
Main Menu
Main Menu
Closed Caption
Language
Video Label
Standby LED
Auto Shut Off
Aspect
>>
English
>>
On
Off
On
Reset
>>
: Select
ENTER:Set
3
Press ▶ or ENTER to return your settings to
the factory settings.
4
“Reset” will appear on the screen approx. 3
seconds, then it returns to the normal
Note:
• The Reset function returns your adjustments to the
following factory settings:
Picture Setting
Brightness ...... center (25)
Contrast ............ max (50)
Sharpness...... center (25)
Color .............. center (25)
Tint ................... center (0)
Color Temperature ... Cool
Picture Preference .... Sports
Film Mode .......................On
Bass................... center (15)
Treble ................ center (15)
Balance................ center (0)
41
J51T0101D.indb 41
6/22/09 4:29:27 PM
Basic playback
TV/DVD
POWER
Playing a disc
PLAY
This section shows you the basics on how
to play a disc.
STOP
POWER
VOLUME +/–
VOL +/–
EJECT
CAUTION
Keep your fingers well clear of the disc slot when
disc is loading or unloading. Neglecting to do so
may cause serious personal injury.
DVD
VCD
CD
ENTER
/ / /
PLAY
STOP
Basic playback
Preparations:
• When connecting to other equipment, turn the power off.
1
2
3
Press POWER on the unit or on the remote control to turn on the unit.
• POWER indicator on the front of the unit changes
blue. It may take approx. 10 seconds for a picture to
appear on screen.
• Every time you press POWER, the TV/DVD starts
from TV mode.
• When using an amplifier, switch on the amplifier.
4
Reading
A menu screen will appear on the TV screen if the
disc has a menu feature.
Press
/ or / on the remote control to
select title, then press ENTER. Title is selected and
play commences.
Press TV/DVD on the remote control to select DVD
mode.
The DVD startup screen will appear on the TV screen.
Load a disc in the disc slot.
• Load the disc in the disc slot with the label side facing forward. (If the disc has a label.) Hold the disc
without touching either of its surfaces, align it with
the guides, and place it in position.
• If a disc is inserted during some modes other than
DVD mode, it may switch to DVD mode and then
playback may be begun automatically.
On the TV screen, “ ” changes to “Reading” and
then playback commences.
5
Press VOLUME + or – to adjust the volume.
6
Press STOP to end playback.
Volume : 25
■ Resuming facility
• The unit records the stopped
point, depending on the disc.
“ ” appears on the screen.
Press PLAY to resume playback
(from the scene point).
• If you press STOP again
(“■” appears on the TV screen.),
the unit will clear the stopped
point.
■ To start playback in the stop mode
Press PLAY.
Note:
If the unit does not operate properly:
Static electricity, etc., may affect the TV/DVDʼs operation. In such
case, disconnect the AC cord, then connect it again.
42
J51T0101D.indb 42
6/22/09 4:29:29 PM
EJECT
POWER
To obtain a higher quality picture
Occasionally, some picture noise may appear on the TV screen while playing a
DVD video disc because the high resolution pictures on these discs include a
lot of information. In such case, you may reduce the Sharpness with the Picture
Setting menu 35 .
About
DVD
VCD
CD
The DVD VCD CD icons on the heading bar show the playable discs for the
function described under that heading.
: You can use this function with DVD video discs.
VCD : You can use this function with Video CDs.
CD : You can use this function with Audio CDs and CD-R/RW CDs.
DVD
VCD
CD
PLAY
STOP
PAUSE
Basic playback (continued)
To pause playback (still mode)
To remove the disc
Press PAUSE during playback.
Press EJECT.
To resume normal playback,
press PLAY.
Remove the disc after the disc comes
out.
Basic playback
• The sound is muted during still
mode.
To stop playback
Press STOP.
Note:
• If a non-compatible disc is loaded, “Incorrect Disc”, “Region Code Error” or “Parental Error” will appear on the TV screen
according to the type of loaded disc. In this case, check your disc again 8 60 .
• Some discs may take a minute or so to start playback.
• When you set a single-faced disc label downwards (ie. the wrong way up), “Reading” will appear on the display for a few
minutes and then “Incorrect Disc” will continue to be displayed.
• Some discs may not work the resuming facility.
• Resuming cannot function when you play a PBC-featured Video CD while the PBC is on. To turn off the PBC 51 .
• Some playback operations of DVDs may be intentionally fixed by software producers. Since this unit plays DVDs according
to the disc contents the software producers designed, some playback features may not be available. Also refer to the
instructions supplied with the DVDs.
• Do not move the unit during playback. Doing so may damage the disc.
• Use the EJECT to unload and eject the disc.
• Do not put any objects other than discs on the disc slot. Doing so may cause the unit to malfunctions.
• In many instances, a menu screen will appear after playback of a movie is completed. Prolonged display of an on-screen
menu may damage your television set, permanently etching that image onto its screen. To avoid this, be sure to press
POWER on the remote control once the movie is completed.
• There may be a slight delay between the button is pressed and the function activates.
43
J51T0101D.indb 43
6/22/09 4:29:32 PM
Basic playback
Playing a disc (Continued)
PAUSE
PLAY
SKIP
/
REV
/ FF
SLOW
DVD
VCD
CD
/
Playing in fast reverse or fast forward directions
Press REV or FF during playback.
To resume normal playback
Press PLAY.
REV: Fast reverse playback
FF: Fast forward playback
Each time you press REV or FF
button, the playback speed changes.
DVD
VCD
Note:
• The TV/DVD mutes sound during reverse and forward scan
of DVD/VCD/Audio CD discs.
• The playback speed may differ depending on the disc.
Playing frame by frame
Press PAUSE during still playback.
To resume normal playback
Press PLAY.
Each time you press PAUSE, the
picture advances one frame.
Note:
• The sound is muted during frame by frame playback.
DVD
VCD
Playing in slow-motion
Press SLOW (REVERSE) or
during playback.
(FORWARD)
Each time you press the button, the
slow-motion speed changes.
DVD
VCD
CD
To resume normal playback
Press PLAY.
Note:
• The sound is muted during slow-motion playback.
• The Video CD cannot play Reverse Slow.
Locating a chapter or track
Press SKIP
or
repeatedly to display the chapter or track number you want.
Playback starts from the selected chapter or track.
To locate succeeding chapters or tracks.
Playback starts from the beginning of
the current chapter or track.
When you press twice in quick successions,
playback starts from the beginning of
the preceding chapter or track.
Note:
• A “Prohibition” symbol “✕” may appear at the upper right of the screen. This symbol means either the feature you tried is not
available on the disc, or the TV/DVD cannot access the feature at this time. This does not indicate a problem with the
TV/DVD.
44
J51T0101D.indb 44
6/22/09 4:29:33 PM
Advanced playback
Zooming/Locating desired scene
This unit will allow you to zoom in on the frame image. You can then make
selections by switching the position of the frame.
Use the title, chapter and time recorded on the DVD disc to locate the
desired point to playback. In the case of VCD/Audio CD discs, time and
track are used to locate the desired point to playback.
To check the title/track, chapter/track and time, press DISPLAY.
DVD
VCD
CD
1
DVD
VCD
CD
Zooming
Press ZOOM during playback.
The center part of the image will be
zoomed in.
Each press of ZOOM will change
the ZOOM 1 (x 1.3), 2 (x 1.5)
and 3 (x 2.0).
1
1
0–9
JUMP
DISPLAY
ZOOM
/ / /
ENTER
EXIT/CANCEL
Locating desired scene
Press JUMP during playback or stop mode.
Jump
Title
Chapter
Time
2
Press
or
to select the “Title/Track”, “Chapter” or “Time”.
Jump
2
Press
frame.
/ / /
to view a different part of the
You may move the frame from
the center position to UP, DOWN,
LEFT or RIGHT direction.
3
3
Jump
Title
Chapter
Time
In the zoom mode, press ZOOM repeatedly to
return to a 1:1 view ( Off).
Note:
• You can select the Pause, Slow or Search playback in the
zoom mode.
• Some discs may not respond to zoom feature.
Press Number buttons (0–9) to input the number.
Advanced playback
Title
Chapter
Time
12
• If you input a wrong number, press
EXIT/CANCEL.
• Refer to the package supplied with
the disc to check the numbers.
4
Press ENTER. Playback starts.
• When you change the title,
playback starts from Chapter 1 of
the selected title.
• Some discs may not work in the
above operation.
Note:
• In case of the Audio CD and Video-CD, only Track and Time
can be selected.
• In case of the Video-CD playback with PBC, the JUMP does
not work. To turn off PBC, see page 51 .
45
J51T0101D.indb 45
6/22/09 4:29:34 PM
Advanced playback
Marking desired scenes
The unit stores the points that you want to watch again up to 3 points.
You can resume playback from each scene.
ENTER
/
EXIT/CANCEL
MARKER
DVD
VCD
Marking the scenes
DVD
VCD
Returning to the scenes
1
Press MARKER during playback.
1
Press MARKER during playback or stop mode.
2
Select the blank Marker using
or .
Then press ENTER to mark the desired scene.
2
Press
3
Press ENTER.
or
to select the Marker 1-3.
• Repeat this procedure to mark the
other 2 scenes.
3
Press MARKER to clear the display.
Playback starts from the marked
scene.
Note:
■ To cancel the Marker
• Some discs may not work with the marking operation.
Follow the above steps 1~2, then press EXIT/CANCEL.
• The marking is cancelled when you eject the disc or turn the
power off.
• Some subtitles recorded around the marker may fail to
appear.
• In case of Video CD with PBC, Marker function is prohibited.
46
J51T0101D.indb 46
6/22/09 4:29:35 PM
Repeat playback/A-B Repeat playback
PLAY MODE
ENTER
PLAY
SKIP
/
REPEAT A-B
DVD
VCD
1
DVD
VCD
CD
Repeat playback
Press PLAY MODE during playback or stop
mode.
A-B Repeat playback
A-B repeat playback allows you to repeat a section between
two selected points.
1
Press REPEAT A-B during playback.
The start point is selected.
A
2
[DVD]
Press ENTER repeatedly to select “Chapter”
or “Title”.
The unit automatically starts
repeat playback after finishing
the current title or chapter.
: Off
2
Press REPEAT A-B again.
The end point is selected. Playback
starts at the point that you selected.
Playback stops at the end point and
returns to Point A automatically, then
starts again.
[Video CD]
to select “Repeat”.
Press
Press ENTER repeatedly to select “Track” or
“All”.
Advanced playback
Play Mode
Repeat
A B
The unit automatically starts
repeat playback after finishing
the current track.
Play Mode
Mode
: Off
Repeat
: Off
• If you set the repeat mode during stop mode,
press PLAY to start Repeat playback.
3
Press PLAY MODE again to clear the screen.
To resume normal playback
Select Repeat : “Off” in step 2.
Note:
• Some discs may not work with the repeat operation.
• In case of Video CD with PBC, Repeat function is
prohibited during playback.
• Chapter/Track repeat function is canceled whenever SKIP
or
is pressed.
To resume normal playback
Press REPEAT A-B again.
“
Off ” appears on the screen.
Note:
• In A-B Repeat mode, subtitles near the A or B locations
may not be displayed.
• You cannot set the A-B Repeat for the scenes that include
multiple angles.
• A-B Repeat playback does not work when Repeat playback
is activated.
• You may not be able to set A-B Repeat during certain
scenes of the DVD.
• A-B Repeat does not work with an interactive DVD and
MP3/WMA/JPEG CD.
• In case of Video CD with PBC, A-B Repeat is prohibited.
47
J51T0101D.indb 47
6/22/09 4:29:37 PM
Advanced playback
Program playback/Random playback
0–9
You can arrange the playback order of tracks on the disc. And the
unit can also select tracks at random and playback them. These
features work for Video CD.
PLAY MODE
ENTER
For Audio CD and MP3/WMA CD, please see “Random playback
(Audio CD/MP3/WMA/JPEG)” 55 and “Program playback (Audio
CD/MP3/WMA/JPEG)” 56 .
VCD
VCD
1
Program playback
4
Press PLAY MODE in the stop mode.
Play Mode
Mode
: Off
Repeat
: Off
Program Playback
2
1
2
3
–––
–––
–––
Press / to return to the left column, then
press / to select the “Program Playback”
and press ENTER.
The programs you selected will start to playback in order.
• To resume normal playback,
select Mode: “Off” in step 2.
Press or to select “Mode”, then press
ENTER repeatedly to select “Program”.
Play Mode
Play Mode
Mode
: Program
Repeat
: Off
Program Playback
3
/ / /
EXIT/CANCEL
PLAY
1
2
–––
–––
3
–––
Press / to select the programming position.
Press / and then use Number buttons (0–9)
to input the track.
• To program others, repeat this step.
• If you input a wrong number, press
EXIT/CANCEL.
Play Mode
Mode
: Program
Repeat
: Off
Program Playback
1
2
3
9
–––
–––
Mode
: Program
Repeat
: Off
Program Playback
1
2
9
3
3
11
■ To change the program
1. Select Mode to “Program” (as step 2), press / / /
to select the track number you want to change, then
press EXIT/CANCEL.
2. Press Number buttons (0–9) to input the new track
number.
■ To clear the program one by one
Select Mode to “Program”, press / / / to select the
track number. Then press EXIT/CANCEL.
■ To clear all the programs
At the left column, press / to select “Clear Program”.
Then press ENTER.
Note:
• In playing back the Video CD with PBC, you cannot set
Program playback.
• The program is canceled when you eject the disc or turn the
power off.
Random playback
CD
VCD
1
Press PLAY MODE during playback or stop
mode.
2
Press / to select “Mode”, then press
ENTER repeatedly to select “Random”.
Play Mode
Mode
: Random
Repeat
: Off
Program Playback
48
J51T0101D.indb 48
1
2
3
–––
–––
–––
3
Press PLAY.
The Random Playback will start.
• If you set “Random” during playback mode,
Random playback will begin after the track that is
currently being played has ended.
• To resume normal playback,
select Mode: “Off” in step 2.
Note:
• In case of Video CD with PBC, you cannot set Random
function during playback.
• The random playback is canceled when you eject the disc or
turn the power off.
6/22/09 4:29:38 PM
Changing angles/Title selection/
DVD menu
DVD MENU
/ / /
ENTER
PLAY
ANGLE
TOP MENU
Changing angles
When playing back a disc recorded with multi-angle facility, you can change the angle that you are viewing the scene from.
1
Press ANGLE during playback.
The current angle will appear.
2
Press ANGLE repeatedly until the desired angle
is selected.
1/2
Note:
• Depending on the DVD, you may not be able to change the
angle even if multi-angles are recorded on the DVD.
Two or more titles are recorded on some discs. If the title menu is recorded on the disc, you can select the desired title.
1
2
Press TOP MENU during playback.
Title menu appears on the screen.
Press
/
/
/
3
Press ENTER or PLAY.
The playback of the selected title will
start.
Advanced playback
Title selection
to select the desired title.
Note:
• Depending on the DVD, you may not be able to select the title.
• Depending on the DVD, a “title menu” may simply be called a
“menu” or “title” in the instructions supplied with the disc.
DVD menu
Some DVDs allow you to select the disc contents using the menu.
When you playback these DVDs, you can select the subtitle language, soundtrack language, etc, using the menu.
1
Press DVD MENU during playback.
2
Press
The DVD menu appears on the TV
screen.
• Press DVD MENU again to resume
playback at the scene when you
pressed DVD MENU.
/
/
/
to select the desired item.
3
Press ENTER.
The menu continues to another
screen. Repeat steps 2 and 3 to set
the item completely.
Note:
• Depending on the DVD, you may not be able to resume
playback from the scene point when you press DVD MENU.
49
J51T0101D.indb 49
6/22/09 4:29:39 PM
Advanced playback
Changing soundtrack language/Subtitles
DVD
VCD
Changing soundtrack language
AUDIO SELECT
SUBTITLE
Subtitles
You can select the language when you play a multilingual disc. When playing back a disc recorded with subtitles, you can
select the subtitle language or turn the subtitle off.
1
Press AUDIO SELECT during playback.
The current soundtrack language will
appear.
1
1/5 Eng
1/2 Eng Dolby Digital
2
Press AUDIO SELECT repeatedly until the
desired language is selected.
Press SUBTITLE repeatedly during playback until
the desired language is selected.
2
To turn off the subtitle, press SUBTITLE until
“Off” appears.
Off
2/2 Fre Dolby Digital
• The on screen display will disappear after a few
seconds.
In case of Video CD playback
Audio type changes as follows each time you press AUDIO
SELECT.
LR
L
R
• The on screen display will disappear after a
few seconds.
Note:
• Depending on the DVD, you may not be able to change
subtitles, or to turn subtitles on or off.
• While playing a DVD, the subtitle may change when
you loaded or eject the disc.
• In some cases, a selected subtitle language may not
be changed immediately.
Note:
• If the desired language is not heard after pressing the
button several times, the language is not recorded on
the disc.
• The selected soundtrack language is cancelled when
you eject the disc. The initial default language or
available language will be heard if the disc is played
back again.
• If you select DTS in playing DTS-encoded disc, no
sound will be heard from the TV/DVDʼs speakers.
50
J51T0101D.indb 50
6/22/09 4:29:40 PM
Disc status/To turn off the PBC
DISPLAY
PLAY MODE
/
ENTER
DVD
VCD
Disc status
VCD
To turn off the PBC
(see 7 )
With press of DISPLAY, the status of the disc
will appear on the screen.
To cancel the display, press DISPLAY again.
1
Press PLAY MODE in the stop mode.
DVD
2
Press / to select “Mode”, then press
ENTER repeatedly until “Off” appear.
ELAPSED
TIME
DISC OPERATION
Play Mode
TOTAL
TIME
Mode
: Off
Repeat
: Off
Program Playback
TITLE NO.
ANGLE NO.
00:15:25 01:41:39
Chapter 2/24
1/2 Eng
–––
CHAPTER
NO.
SUBTITLE LANGUAGE
AUDIO LANGUAGE
–––
–––
3
3
Press PLAY MODE again to clear the screen.
A KIND OF AUDIO
■ To turn on the PBC
Follow the above steps 1~2, then press ENTER repeatedly
until “PBC” appear.
Video CD
DISC OPERATION
VCD
Track 3/15
ELAPSED
TIME
Advanced playback
DVD
Title 1/3
1/1 Eng Dolby Digital
1/1
1
2
TOTAL
TIME
00:08:32 00:51:03
TRACK NO.
51
J51T0101D.indb 51
6/22/09 4:29:41 PM
Advanced playback
MP3/WMA/JPEG and Audio CD operation
This unit can playback the MP3/WMA/JPEG-data which has been recorded on CD-R or CD-RW. To produce the MP3/
WMA/JPEG-data, you need a Windows-PC with CD-RW drive and a MP3/WMA/JPEG-encoding Software (not supplied).
The Apple-HFS-System cannot be played.
This player requires discs/recordings to meet certain technical standards in order to achieve optimal playback quality.
There are many different types of recordable disc formats (including CD-R containing MP3/WMA files). Not all recordable
discs will produce optimal playback quality. The technical criteria set forth in this ownerʼs manual are meant only as a
guide. Use of CD-RW for MP3 files is not recommended.
You must obtain any required permission from copyright owners to download or use copyrighted content.
Toshiba cannot and does not grant such permission.
CD
Audio CD/MP3/WMA/JPEG CD information
Limitations on MP3/WMA/JPEG CD playback
• MP3/WMA/JPEG CD is the disc that is standardized by ISO9660, its file name must include 3-digits extension letters,
“.mp3”, “.wma”, “.jpg”.
• MP3/WMA/JPEG CD must be correspond to the ISO standardized files.
• This unit can read 2000 files per disc. If one disc has more than 2000 files, it reads up to 2000 files, the remaining files
will be omitted.
• MP3/WMA/JPEG CDs cannot be used for the purpose of recording.
• It may take more than one minute for this unit to read MP3/WMA/JPEG files depending on its structure.
• Music recorded by “Joliet Recording Specification” can be played back, the file name is displayed (within 15 letters) on
the screen. Long file names will be condensed.
• The music files recorded by “Hierarchical File System” (HFS) cannot be played.
Limitations on display
• The maximum number for display is 15 letters.
Available letters for display are the following:
capital or small alphabets of A through Z, numbers of 0 through 9, and _ (under score).
• Other letters than those above are replaced in hyphen.
Notes on MP3/WMA/JPEG files
To playback MP3/WMA/JPEG CD in the recorded order,
1. Use MP3/WMA/JPEG software that records data alphabetically or numerically.
2. Name each file including two-digit or three-digit number (ex. “01” “02” or “001” “002”).
3. Refrain from making too many sub-folders.
CAUTION:
• Some MP3/WMA/JPEG CDs cannot be played back depending on the recording conditions.
• The CD-R/RW that has no music data or non MP3/WMA/JPEG files cannot be played back.
Standard, sampling frequency and the bit rate:
MP3 CD
MPEG-1 Audio
32kHz, 44.1kHz, 48kHz
32kbps ~ 320kbps (constant bit rate or variable bit rate)
The recommend recording setting for a high-quality sound is 44.1kHz of sampling frequency and 128kbps of constant
bit rate.
WMA CD
WMA version 7 and 8
32kHz/48kbps, 44.1kHz/48kbps~192kbps, 48kHz/128kbps~192kbps
The file recorded by mono, 48kHz, 48 kbps is not available to this unit.
Microsoft, Windows Media, and Windows Logo are either registered trademarks or trademarks of Microsoft Corporation in the
United States and/or other countries.
52
J51T0101D.indb 52
6/22/09 4:29:42 PM
/ / /
ENTER
STOP
PLAY
RETURN
CD
1
2
MP3/WMA and Audio CD playback
Load an Audio CD or a disc on which MP3
or WMA files have been recorded in the disc
slot.
A file browser screen will appear on the screen.
Folder-1
Folder-2
MP3-1
MP3-2
MP3-3
WMA-1
WMA-2
WMA-3
Press
/
:Off
Mode
:Off
JPEG Preview
to select file.
3/15 00:00:00
/WMA-11.WMA
MP3-5
MP3-6
WMA-11
WMA-12
Picture-1
Picture-2
Picture-3
Picture-4
Select Files
Repeat
:Off
Mode
:Off
Music Playing
/MP3-2.MP3
Folder-1
Folder-2
MP3-1
MP3-2
MP3-3
WMA-1
WMA-2
WMA-3
Select Files
Repeat
:Off
Mode
:Off
JPEG Preview
• In case the current directory includes more than 8
files, press or to scroll in the file list.
• To see contents in folder, select the folder and then
press ENTER. To return to the parent directory, press
RETURN or select “ Go Up ...” then press ENTER.
• When PLAY is pressed after the file browser
displayed, playback begins automatically starting
from the first file. In this case, if the first file is an
MP3/WMA file, only MP3/WMA files are played
back in order. If the first file is a JPEG file, the first
JPEG file is played back. If there is no file at a root
directory, playback does not begin automatically.
4
Press ENTER.
The selected file starts playing back.
5
Press STOP to end playback.
Note:
• In the case of a CD containing a mixture of MP3, WMA
and JPEG files, the files are played back by selecting
them from the file browser.
Advanced playback
3
Select Files
Repeat
About file menu
Note:
• During MP3/WMA playback, you cannot use Jump and A-B
Repeat functions.
• You can use Repeat (Track or All), Random functions and
Program playback for Audio CD/MP3/WMA/JPEG playback
55 56 .
■ Select Files
The file type to make it display in the file browser can
be chosen.
1.Press or to highlight “Select Files” at right column
in the file browser.
2. Press ENTER, then press or to select file type
from the list (Music or Picture).
3. Press ENTER to add/remove check mark. Checked
file type will be displayed in the file browser.
4. Press RETURN to save the setting.
Note:
• Select files is not applicable to Audio CD.
• The unit records the stopped point. “ ” appears
on the TV screen. Press PLAY to resume playback
(from the scene point).
• If you press STOP again or unload the disc, the unit
will clear the stopped point.
53
J51T0101D.indb 53
6/22/09 4:29:43 PM
Advanced playback
ZOOM
DVD MENU
MP3/WMA/JPEG and Audio CD
operation (Continued)
CD
1
2
JPEG playback
CD
/Picture-01.JPG
Picture-01
Picture-02
Picture-03
Picture-04
Picture-05
Picture-06
Picture-07
Picture-08
3
Slide show playback
The slide show enables you to view pictures (files) one after
another automatically.
Load a JPEG disc in the disc slot.
A file browser screen
will appear on the
screen.
ENTER
/ / /
PAUSE
STOP
PLAY
SKIP
ANGLE
TOP MENU
Select Files
Repeat
:Off
Mode
:Off
JPEG Preview
W: 2048 H: 1536
Press / to select the file.
To display a thumbnail list, press DVD MENU.
Press / / / to select the desired file.
(To return to the file browser, press TOP MENU.)
Preparation:
• Set “JPEG Interval” setting to “5 Seconds”, “10 Seconds”
or “15 Seconds” 59 .
1
2
Select your desired starting file for the slide
show in the step 3 on left.
Press ENTER or PLAY to start slide show from
the selected file.
• If you press PAUSE during the slide show, the slide
• When PLAY is pressed after the file browser
displayed, playback begins automatically
starting from the first file. In this case, if the
first file is a JPEG file, the first JPEG file is
played back. If the first file is an MP3/WMA
file, only MP3/WMA files are played back in
order. If there is no file at a root directory,
playback does not begin automatically.
4
Press ENTER or PLAY. The selected picture
appears on the screen.
Rotating an image
You can rotate an image by 90 degrees.
Press ANGLE during playback of the image.
show stops temporary. “❙❙” appears briefly on the TV
screen.
Press PLAY or SKIP
again to resume the slide show.
• If the picture appears upside down or sideways, press
ANGLE repeatedly until itʼs right side up.
“
”, “
”, “
” or “
” appears on the TV screen.
• When the slide show playback finished, the file list
appears.
• To stop the slide show, press STOP. The file browser
appears.
Note:
• During JPEG playback, you cannot use Jump and A-B
Repeat functions.
• When an image exceeds 5760 x 3840 pixels, the entire
image may not be displayed on a screen, preview window
or thumbnail list.
• It may have a longer interval due to the size of data.
“
”, “ ”, “
” or “ ” appears on the screen.
Zooming an image
Zoom function also can be used in viewing JPEG
files. Press ZOOM (See “Zooming” 45 ).
5
Press STOP to end playback.
The file browser appears on the
screen. If you want to watch the
other file, repeat steps 3 ~ 4.
54
J51T0101D.indb 54
6/22/09 4:29:44 PM
Repeat, random and program playback
using file browser
/ / /
ENTER
PLAY
SKIP
CD
1
Repeat playback (Audio CD/
MP3/WMA/JPEG)
In the file browser, press / /
“Repeat” during stop mode.
Folder-1
Folder-2
MP3-1
MP3-2
/
to select
CD
1
Random playback (Audio CD/
MP3/WMA/JPEG)
In the file browser, press /
“Mode” during stop mode.
Select Files
Repeat
:Off
Mode
:Off
Folder-1
Folder-2
MP3-1
MP3-2
Folder-2
MP3-1
MP3-2
MP3-3
:Track
Mode
:Off
2
Folder-1
Folder-2
MP3-1
MP3-2
3
The unit automatically starts repeat
playback after finishing the current
track.
To resume normal playback
Select Repeat : “Off” in step 2.
Note:
• The repeat function is canceled when you eject the disc
or turn the power off.
or
• Track repeat function is canceled whenever SKIP
is pressed.
Select Files
Repeat
:Off
Mode
:Off
Select Files
Repeat
:Off
Mode
:Random
MP3-3
MP3 3
Press PLAY.
to select
Press ENTER to select “Random”.
Select Files
Repeat
/
3
Advanced playback
2
/
Folder-1
MP3-3
Press ENTER repeatedly to select “Track” or
“All”.
/
Press PLAY.
The random playback will start.
To resume normal playback
Select Mode : “Off” in step 2.
Note:
• The random function is canceled when you eject the disc
or turn the power off.
55
J51T0101D.indb 55
6/22/09 4:29:45 PM
Advanced playback
Repeat, random and program playback
using file browser (Continued)
/ / /
ENTER
PLAY
Program playback (Audio CD/MP3/WMA/JPEG)
CD
1
In the file browser, press / / /
“Edit Mode”, then press ENTER.
Folder-1
Folder-2
MP3-1
to select
Repeat
:Off
Mode
:Off
4
Press / to select “Program View”, then press
ENTER. Program View shows only the
programmed files that you have added in step 2.
MP3-1
MP3-2
MP3-3
WMA-3
Edit Mode
MP3-2
MP3 3
Repeat
:Off
Mode
:Off
Edit Mode
Browser View
Press / / / to select “Add To Program”.
Then press ENTER. All marked files are added
into the program list.
Folder-1
Edit Mode
Folder-2
MP3-1
MP3-2
Add To Program
MP3-3
WMA-1
WMA 2
Folder-1
Folder-2
MP3-1
MP3-2
MP3-3
WMA-1
WMA-2
WMA-3
Edit Mode
Program View
Add To Program
JPEG Preview
JPEG Preview
Press ENTER. Selected file
was marked.
Repeat this procedure to
select the other files.
3
Program View
Press / / / to select file you want to
add into the program list.
Folder-1
Folder-2
MP3-1
MP3-2
MP3-3
WMA-1
WMA 2
Clear Program
JPEG Preview
When “Edit Mode” is black
color, you can mark the files
which you want to add into
Program list.
2
Edit Mode
Browser View
Program View
5
In the Program View, press PLAY. The files
start to playback in programed order that were
added by you.
To remove file from program list in stop mode
In the Edit Mode, switch to Program View. Select file
you want to remove, then press ENTER. Select “Clear
Program” and press ENTER. Marked file is removed
from program list.
Note:
• The program function is cancelled when you eject the disc
or turn the power off.
JPEG Preview
When you finish storing the files
which you want into the Program
list, select “Edit Mode” and press
ENTER to release edit mode.
56
J51T0101D.indb 56
6/22/09 4:29:47 PM
Function setup
TV/DVD
Customizing the function settings
You can change the default settings of the DVD mode to customize
performance to your preference.
Press TV/DVD on the remote control to select DVD mode.
/ / /
ENTER
SETUP
RETURN
DVD
VCD
CD
1
Setting procedure
Press SETUP during stop mode.
The following on-screen display appears.
4
Then press or ENTER. The selectable
settings will appear.
Parental
DRC
Menu
TV
Screen
Parental
DRC
E.B.L.
Menu
: 4:3
Off
English
4:3
QSoundSet Password
Subtitle
Display
: English
On
16:9
Output Mode : Auto
Audio
Interlace
English
: English
Off
QSound
TV
Subtitle
Screen
Set Password
: On
4:3
English
JPEG Interval
DivX(R) :VOD
Off
Output
Display
Audio
Pi t
2
Press
press
: English
Interlace
On
M
Di dX(R) VOD
A t
or to select the desired section, then
or .
Parental
DRC
Menu
TV
Screen
: Off
English
16:9
QSoundSet Password
Subtitle
Display
: On
English
Output Mode
Audio
: Auto
Interlace
English
5
Change the selection using or , by referring
to the corresponding pages 57 ~ 60 .
Press ENTER to save the setting.
JPEG Interval
DivX(R) :VOD
Off
• Repeat steps 3, 4 and 5 to
change other option.
• To select another section, go
Parental
DRC
Menu
TV
Screen
: English
Off
16:9
QSoundSet Password
Subtitle
Display
: On
English
Output Mode
Audio
back to step 2 by pressing
repeatedly.
or
: Auto
English
Interlace
JPEG Interval
DivX(R) :VOD
Off
6
To clear SETUP screen, press SETUP once or
press RETURN repeatedly.
Function setup
3
First option will be highlighted. Press
to select the desired option.
Setting details
Section
Option
Details
Menu Subtitle
Audio
To select the language of “Menu”, “Subtitle” and “Audio”
if more than one language are available on the disc.
TV Screen
To select a picture size according to the aspect ratio of your TV.
Display
To turn On or Off the operational status display on the TV screen.
Picture Mode
To select a preferred picture mode from “Video”, “Film” or “Auto”.
JPEG Interval
To select a preferred setting for the slide show playback.
Night Mode
To select On or Off for Night Mode.
Digital Out
To select a digital output sound format corresponding to your
system connection.
Parental
To select a preferred parental level for the parental setting.
Password
To change the password.
Page
58
59
60
57
J51T0101D.indb 57
6/22/09 4:29:47 PM
Function setup
Customizing the function settings (Continued)
Setting details
Parental
DRC
E.B.L.
Menu
: Off
English
Parental
DRC
Menu
TV
Screen
: Off
English
16:9
QSound
TV
Subtitle
Screen
Set Password
: On
4:3
English
QSoundSet Password
Subtitle
Display
: On
English
Output
Display
Audio
Output Mode
Audio
: On
Interlace
English
Picture Mode
DivX(R) :VOD
Auto
JPEG Interval
: 5 Seconds
Screen Saver
: On
Menu, Subtitle, Audio
You can select the language of “Menu”, “Subtitle” and
“Audio” if more than one languages are recorded onto
the disc.
English, Francais, Espanol:
The selected language will be heard or seen.
Other:
Other language can be selected (see “Language
code list” 65 ).
Original (Audio):
The unit will select the first priority language of
each disc.
Off (Subtitle):
Subtitles do not appear.
Note:
• If the selected language is not recorded on the disc, the
first-priority language is selected.
• If you want to change the OSD language, you can perform
it by “Language” in the TV menu 21 .
: Auto
Interlace
English
JPEG Interval
DivX(R) :VOD
Off
TV Screen
You have the following screen sizes to choose from:
(Letter box):
4:3
When playing back a wide screen-DVD disc, it
displays the wide picture with black bands at the
top and bottom of screen.
(Pan & scan):
4:3
It displays the wide picture on the whole screen
with left and right edges automatically cut off.
16:9
(Wide):
A wide screen picture is displayed full size.
Note:
• If the DVD disc is not formatted in the Pan & scan style, it
will display 4:3 style.
Display
On screen display can be switched on or off when you
press any buttons.
Off: On screen displays do not appear when you
press any buttons.
On: On screen displays appear when you press
the buttons (factory setting).
58
J51T0101D.indb 58
6/22/09 4:29:49 PM
Picture Mode
Parental
Menu
E.B.L.
Night
Mode
There are two types of source content in pictures
recorded in DVD video discs: film content (pictures
recorded from films at 24 frames per second) and
video content (video signals recorded at 30 frames per
second). Make this selection according to the type of
content being viewed.
Auto:
Film:
Select this selection normally.
The DVD player automatically detects
source content, film or video of
playback source, and converts that
signal in an appropriate method.
The DVD player converts film content
pictures appropriately. Suitable for
playback of film content pictures.
Note:
• Depending on the disc, pictures may be cut off or
doubled. In this case, select “Video”.
JPEG Interval
You can continuously playback all JPEG files
automatically.
After the selection below, the disc will start playback on
JPEG files which have been recorded.
Off:
Plays back one file at a time.
5 Seconds:
Plays back images in the form of a slide show at
5 second intervals.
Output
Audio
Display
: On
Interlace
English
Picture Mode
DivX(R) VOD
: Auto
JPEG Interval
: 5 Seconds
Screen Saver
: On
■ Night Mode
Night Mode enables you to control the dynamic range so as
to achieve a suitable sound for your equipment.
Off: It plays back at the recording level on the disc.
On: Loud sound such as explosion is toned down
slightly when played back. This is suitable when
it is connected to a stereo.
Note:
• This function works only when the disc recorded with
Dolby Digital is played back.
• The level of Night Mode may differ depending on DVD
video disc.
Function setup
Video: The DVD player filters video signal and
converts it appropriately.
Suitable for playback of video content
pictures.
: Off
English
Subtitle
TV
Digital
Screen
Out
Set Password
: English
4:3
Bitstream
■ Digital Out
You can select the digital output sound format corresponding
to your system connection.
Off:
There is no sound output from DIGITAL AUDIO OUT
jack.
PCM:
Change Dolby Digital to PCM for the output.
Select when connected to a 2 channel digital stereo
amplifier.
Bitstream:
Disc audio bitstream data will be output.
Note:
• Even if you select “Bitstream”, MPEG Audio will be output
in PCM format.
10 Seconds:
Plays back images in the form of a slide show at
10 second intervals.
15 Seconds:
Plays back images in the form of a slide show at
15 second intervals.
59
J51T0101D.indb 59
6/22/09 4:29:49 PM
Function setup
Customizing the function settings (Continued)
Setting details (continued)
DRC
Menu
E.B.L.
Parental
: Off
English
QSound
Subtitle
TV
Password
Screen
: On
Change
English
4:3
Audio
Display
: On
English
Picture Mode
: Auto
JPEG Interval
: 5 Seconds
Screen Saver
: On
Parental control setting
Some discs are specified as not suitable for children. Such
discs can be limited not to playback with the unit.
1) Press or to select “Parental”, then press
ENTER. “Enter Password” screen will appear.
2) Press “0000” using Number buttons (0–9).
(Please note, this is pre-setting password of this
unit). Then press ENTER. The parental level list
will appear.
• Level Off: The parental control setting does not
function.
• Level 8: Virtually all DVD software can be
played back.
• Level 1: DVD software for adults cannot be
played back.
3) Press or to select from the level 1 to level 8.
The limitation will be more severe as the level
number is lower. Then press ENTER.
■ Set the new password
1) Press or to select “Password”, then press
ENTER. “Enter Current Password” screen will
appear.
2) Press Number buttons (0–9) to input the current
password (If the password has not been set yet
after you purchase this unit, it is “0000”).
3) Then press ENTER. “Enter New Password” screen
will appear. Press Number buttons (0–9) to input
the new password.
4) Press ENTER. Now your new password has been
set. Be sure to remember this number!
If you forget the password
1) Press EJECT to remove the disc.
2) While holding 7 down on the remote control and
then press STOP on the unit. “Password Clear”
appears on the screen. Now the password
has been returned to the initial value (“0000”).
Note:
• If each setup (pages 58 ~ 60 ) has completed, the unit
can always work under the same condition (especially with
DVD discs).
Each setup will be retained in the memory even if you turn
the power off.
Note:
• The parental control level is equivalent to the following
USA movie ratings.
Level 1: G
Level 2:
Level 3: PG
Level 4: PG-13
•
•
•
•
Level 5:
Level 6: R
Level 7: NC-17
Level 8:
The parental control levels for other countries/area
than U.S. are included for future use. Check the
appropriate parental control level when you buy a DVD
video disc equipped with the parental control feature
in the future.
Depending on the discs, the unit cannot limit playback.
Some discs may not be encoded with specific rating
level information though its disc jacket says “adult.”
For those discs, the age restriction will not work.
The password is required every time when you
change the parental level.
If you input a wrong number, press EXIT/CANCEL.
60
J51T0101D.indb 60
6/22/09 4:29:50 PM
Temporary cancel the rating level by DVD disc
EJECT
0–9
Depending on the DVD disc, the disc may try to temporarily cancel the rating level
that you have set.
It is up to you to decide whether to cancel the rating level or not.
ENTER
RETURN
DVD
Temporary cancel the rating level by DVD disc
Note:
1
Load a DVD disc.
2
If the DVD disc has been designed to
temporarily cancel the Rating level, the screen
which follows the “Reading” screen will
change, depending on which disc is played.
If you select “YES” with the ENTER key,
password input screen will then appear.
• If “NO” is selected, press EJECT to remove
the disc.
3
Enter the password with Number buttons (0–9).
Then press ENTER.
• This temporary cancellation of rating level will be kept until
the disc is ejected.
When the disc is ejected, the original rating level will be
set again automatically.
Function setup
To exit from the entry, press
RETURN.
Enter Password
4
Playback will commence if the entered
password is correct.
61
J51T0101D.indb 61
6/22/09 4:29:50 PM
Others
Understanding the Power Return feature
If the power is cut off while you are viewing the TV/DVD and the power is resupplied, the Power Return feature will
turn the TV/DVD on automatically. If the power is going to be off for a long time or you are going to be away from the
TV/DVD for a long time, unplug the power cord from the wall outlet to prevent the TV/DVD from turning on in your
absence.
Troubleshooting
Use the following check list for troubleshooting when you have problems with your unit. Consult your local dealer or
service outlet if problems persist.
Be sure all connections are properly made when using with other units.
SYMPTOMS
POSSIBLE SOLUTIONS
PAGE
POWER
TV/DVD does not operate.
• Make sure the connection of AC cord is secured.
• Try another AC outlet.
• Unplug unit, then plug it back in.
19
TV BROADCAST RECEPTION
Poor sound or No sound.
• Station or Cable TV may have problems, try another station.
• Check Volume adjustments or mute.
• Check for sources of possible interference.
25
25, 26
64
Poor picture or No picture.
• Station or Cable TV may have problems, try another station.
• Check antenna or Cable TV connections, reorient antenna.
• Check for sources of possible interference.
• Check Picture setting.
25
14, 15
64
35
Poor reception on some
channels.
• Station or Cable TV may have problems, try another station.
• Station signal is weak, reorient antenna to receive weaker station.
• Check for sources of possible interference.
Poor color or no color.
• Station or Cable TV may have problems, try another station.
• Make sure channels are set into memory.
• Check Picture setting.
• Check antenna or Cable TV connections, reorient antenna.
• Check for sources of possible interference.
25
22
35
14, 15
64
Picture wobbles or drifts.
• Station or Cable TV may have problems, try another station.
• Make sure channels are set into memory.
• Cable TV company is scrambling signal.
• Check antenna or Cable TV connections, reorient antenna.
25
22
14, 15
No CATV reception.
• Check all Cable TV connections.
• Set Air/Cable selection to the Cable position.
• Station or Cable TV system problems, try another station.
Horizontal or diagonal bars on
screen.
• Check antenna or Cable TV connections, reorient antenna.
• Check for sources of possible interference.
14, 15
64
No reception above channel 13.
• Make sure Air/Cable selection is in the appropriate position.
• If antenna is used, check UHF antenna connections.
22
14
TV shuts off.
• Auto shut off feature worked.
• Sleep Timer is set.
• Power interrupted.
41
26
25
Closed - Caption is not
activated.
• TV station experiencing problems or program tuned is not closed
captioned. Try another channel.
• Check Cable TV connection or VHF/UHF antenna, reposition or
rotate antenna.
• Set “CC Setting” to “On” to turn on the closed caption decoder.
Display is not shown in your
language.
• Select proper language in the menu options.
25
14
64
15
22
25
14, 15
33
21
62
J51T0101D.indb 62
6/22/09 4:29:51 PM
SYMPTOMS
POSSIBLE SOLUTIONS
PAGE
DVD
Playback doesnʼt start.
• No disc is loaded.
• The disc may be dirty. Clean up the disc.
• The unit cannot play CD-ROMs, etc.
42
7
8
No picture.
• TV/DVD selector is not set correctly.
42
No sound.
• Check the input selector of the amplifier is set properly.
• The unit is in the special playback mode.
• Select the correct Audio Input/Output position on AV amplifier.
Picture is distorted during fast
reverse/forward playback.
• The picture will be distorted occasionally.
-
Stopping playback, search,
slowmotion play, repeat play, or
program play, etc. cannot be
performed.
• Some discs may not do some of the functions.
-
No on-screen display.
• Set Display to On.
The unit or remote operation key
is not functioning.
• Turn off the unit and unplug the AC power cord for several minutes,
then replug it.
Playback does not start when
the title is selected.
• Check the Parental setup.
60
Audio soundtrack and/or subtitle
language is not changed when
you playback a DVD.
• Multilingual language is not recorded on the DVD disc.
50
No subtitle.
• Some discs have no subtitles.
• Subtitles are cleared. Press SUBTITLE.
50
Angle cannot be changed.
• Multi-angles are not recorded on the DVD disc.
49
“✕” appears on the screen.
• The function is prohibited with the unit or the disc.
44
• Aim the remote control at the remote sensor.
• Operate within approx. 5 meters or reduce the light in the room.
• Clear the path of the beam.
• The batteries are weak. Replace the batteries.
• Check the batteries are inserted correctly.
13
44
18, 19
58
-
Others
REMOTE CONTROL
The remote control does not
function.
63
J51T0101D.indb 63
6/22/09 4:29:52 PM
Others
Reception disturbances
Most types of television interference can be remedied by adjusting the height and position of the VHF/UHF antenna.
Outdoor antennas are recommended for best results. The most common types of television interference are shown
below. If one of these symptoms appear when the TV/DVD is connected to a Cable TV system, the disturbance may
be caused by the local Cable TV company broadcast.
IGNITION
Black spots or horizontal streaks may appear, the picture may flutter or
drift. Usually caused by interference from automobile ignition systems,
neon lamps or AC powered tools and appliances such as drills or hair
dryers.
GHOSTS
Ghosts are caused by the television signal following two paths. One is
the direct path and the other is reflected by tall buildings, hills or other
large objects. Changing the direction or position of the antenna may
improve the reception.
SNOW
If the TV/DVD is located far from the TV station, in a fringe reception
area where the signal is weak, small dots may appear in the picture.
If the signal is extremely weak, the installation of a larger external
antenna may be necessary.
RADIO FREQUENCY INTERFERENCE (RFI)
Caused by two-way radios, this type of interference produces moving
ripples or diagonal streaks in the picture. Some cases may cause a
loss of contrast in the picture. Changing the direction and position of
the antenna or installing an RFI filter may improve the picture.
CARE AND MAINTENANCE
To prevent fire or shock hazard, disconnect the TV/DVD from the power source before cleaning.
Use caution when cleaning or wiping the plastic parts.
64
J51T0101D.indb 64
6/22/09 4:29:52 PM
Language code list
Enter the appropriate code number for the initial settings “Menu”, “Subtitle” and/or “Audio” 58 .
Language Name
Code
Language Name
Code
Language Name
Code
Language Name
Code
Abkhazian
1112
Fiji
1620
Lingala
2224
Singhalese
2919
Afar
1111
Finnish
1619
Lithuanian
2230
Slovak
2921
Afrikaans
1116
French
1628
Macedonian
2321
Slovenian
2922
Albanian
2927
Frisian
1635
Malagasy
2317
Somali
2925
Amharic
1123
Galician
1722
Malay
2329
Spanish
1529
Arabic
1128
Georgian
2111
Malayalam
2322
Sundanese
2931
Armenian
1835
German
1415
Maltese
2330
Swahili
2933
Assamese
1129
Greek
1522
Maori
2319
Swedish
2932
Aymara
1135
Greenlandic
2122
Marathi
2328
Tagalog
3022
Azerbaijani
1136
Guarani
1724
Moldavian
2325
Tajik
3017
Bashkir
1211
Gujarati
1731
Mongolian
2324
Tamil
3011
Basque
1531
Hausa
1811
Nauru
2411
Tatar
3030
Bengali; Bangla
1224
Hebrew
1933
Nepali
2415
Telugu
3015
Bhutani
1436
Hindi
1819
Norwegian
2425
Thai
3018
Bihari
1218
Hungarian
1831
Oriya
2528
Tibetan
1225
Breton
1228
Icelandic
1929
Panjabi
2611
Tigrinya
3019
Bulgarian
1217
Indonesian
1924
Pashto, Pushto
2629
Tonga
3025
2335
Interlingua
1911
Persian
1611
Turkish
3028
Byelorussian
1215
Irish
1711
Polish
2622
Turkmen
3021
Cambodian
2123
Italian
1930
Portuguese
2630
Twi
3033
Catalan
1311
Japanese
2011
Quechua
2731
Ukrainian
3121
Chinese
3618
Javanese
2033
Rhaeto-Romance
2823
Urdu
3128
Corsican
1325
Kannada
2124
Romanian
2825
Uzbek
3136
Croatian
1828
Kashmiri
2129
Russian
2831
Vietnamese
3219
Czech
1329
Kazakh
2121
Samoan
2923
Volapük
3225
Danish
1411
Kirghiz
2135
Sanskrit
2911
Welsh
1335
Dutch
2422
Korean
2125
Scots Gaelic
1714
Wolof
3325
English
1524
Kurdish
2131
Serbian
2928
Xhosa
3418
Esperanto
1525
Laothian
2225
Serbo-Croatian
2918
Yiddish
2019
Estonian
1530
Latin
2211
Shona
2924
Yoruba
3525
Faroese
1625
Latvian, Lettish
2232
Sindhi
2914
Zulu
3631
Others
Burmese
65
J51T0101D.indb 65
6/22/09 4:29:53 PM
Others
Specifications
Model
15LV505 / 15LV506
General
Power supply
AC 120V 60Hz
Power consumption
Operation: 35 W, Stand by: 0.8 W
Weight
7.7 lbs (3.5 kg)
Dimensions
Width: 15-13/16 inches (402 mm)
Height: 12-5/8 inches (320 mm)
Depth: 5-1/2 inches (140.1 mm)
Operating temperature
5°C-40°C (41°F-104°F)
Operating humidity
Less than 80% RH (No condensation)
Television
LCD panel (Screen size is approximate.)
15-inch diagonal
Display method
Color TFT LCD
Number of pixels
1366 (Horizontal) x 768 (Vertical)
Television system
NTSC standard, ATSC standard (8VSB), QAM
Receiving channels
VHF: 2-13
UHF: 14-69
CATV: 1-125 (4A, A-5~A-1, A~I, J~W, W+1~W+84)
Antenna input
VHF/UHF 75 ohm
Speaker
1-3/16 x 2-13/16 inches (30.5 x 71.1 mm), 8 ohm x 2
Audio output power
1.5W + 1.5W
DVD/CD player
Signal system
NTSC
Applicable disc
1. DVD (12cm, 8cm)
2. CD (12cm, 8cm)
Pickup
1-Lens, 2-Beams System
Input/Output
S-Video input
(Y) 1.0 V (p-p), 75 ohm, negative sync., Mini DIN 4-pin x 1
(C) 1.0 V (p-p), 75 ohm
ColorStream video input
(Y) 1.0 V (p-p), 75 ohm, negative sync., pin jack x 1
(PB, PR) 0.7 V (p-p), 75 ohm, pin jack x 2
Video input
1.0 V (p-p), 75 ohm, negative sync., pin jack x 1
Audio input
–8dBm, 50 kohm, negative sync., pin jack (L/R) x 2
Digital audio output (Coaxial)
0.5 V (p-p), 75 ohm, pin jack x 1
Headphone
ø3.5mm stereo mini jack x 1
Accessories
Remote control (SE-R0305) ................................................................................................... 1
Batteries (R03/AAA) .............................................................................................................. 2
AC cord .................................................................................................................................. 1
Ownerʼs manual (this booklet) ..................................................... .......................................... 1
Quick setup guide (Spanish) .................................................................................................. 1
• This model complies with the above specifications.
• Designs and specifications are subject to change without notice.
• This model may not be compatible with features and/or specifications that may be added in the future.
66
J51T0101D.indb 66
6/22/09 4:29:54 PM
Limited United States Warranty
LCD TV/DVD Combination - Depot Repair Warranty
Toshiba America Consumer Products, L.L.C. (“TACP”) makes the following limited warranties to original
consumers in the United States. THESE LIMITED WARRANTIES EXTEND TO THE ORIGINAL CONSUMER
PURCHASER OR ANY PERSON RECEIVING THIS LCD TV/DVD COMBINATION AS A GIFT FROM THE
ORIGINAL CONSUMER PURCHASER AND TO NO OTHER PURCHASER OR TRANSFEREE.
LCD TV/DVD COMBINATIONS PURCHASED IN THE U.S.A. AND USED ANYWHERE OUTSIDE
OF THE U.S.A., INCLUDING, WITHOUT LIMITATION, CANADA AND MEXICO, ARE NOT COVERED
BY THESE WARRANTIES.
LCD TV/DVD COMBINATIONS PURCHASED ANYWHERE OUTSIDE OF THE U.S.A., INCLUDING,
WITHOUT LIMITATION, CANADA AND MEXICO, AND USED IN THE U.S.A., ARE NOT COVERED
BY THESE WARRANTIES.
Limited One (1) Year Warranty on Parts and Labor
TACP warrants this LCD TV/DVD Combination
and its parts against defects in materials or
workmanship for a period of one (1) year after
the date of original retail purchase. DURING
THIS PERIOD, TACP WILL, AT TACPʼS OPTION,
REPAIR OR REPLACE A DEFECTIVE PART WITH
A NEW OR REFURBISHED PART WITHOUT
CHARGE TO YOU.
(1) You must retain your bill of sale or provide
other proof of purchase.
(2) All warranty servicing of this LCD TV/DVD
Combination must be made by the Depot
Warranty Repair Center specified by the TACP
Consumer Solutions Center.
(3) The warranties from TACP are effective only
if the LCD TV/DVD Combination is purchased
and operated in the Continental U.S.A. or
Puerto Rico.
Commercial Units
LCD TV/DVD Combinations sold and used for
commercial purposes have a limited warranty for all
parts and labor, which warranty begins on the date
of original retail purchase and ends on the date that
is ninety (90) days thereafter.
(4) Labor service charges for set installation,
setup, adjustment of customer controls, and
installation or repair of antenna systems are not
covered by this warranty. Reception problems
caused by inadequate antenna systems are
your responsibility.
Ownerʼs Manual and Product Registration Card
Read this ownerʼs manual thoroughly before operating
this LCD TV/DVD Combination.
(5) Warranties extend only to defects in materials
or workmanship as limited above, and do not
extend to any LCD TV/DVD Combination or
parts that have been lost or discarded by you
or to damage to the LCD TV/DVD Combination
or parts caused by fires, misuse, accident,
Acts of God (such as lightning or fluctuations in
electric power), improper installation, improper
maintenance, or use in violation of instructions
furnished by TACP; use or malfunction
through simultaneous use of this LCD TV/DVD
Combination and connected equipment; or to
units that have been modified or had the serial
number removed, altered, defaced, or rendered
illegible.
Complete and mail the enclosed product registration
card or register your LCD TV/DVD Combination
online at www.tacp.toshiba.com/service as soon as
possible. By registering your LCD TV/DVD
Combination you will enable TACP to bring you
new products specifically designed to meet your
needs and help us to contact you in the unlikely
event a safety notification is required under the
U.S. Consumer Product Safety Act. Failure to
complete and return the product registration card
does not diminish your warranty rights.
Others
Rental Units
The warranty for LCD TV/DVD Combination rental
units begins on the date of the first rental or thirty
(30) days after the date of shipment to the rental
firm, whichever comes first.
Your Responsibility
THE ABOVE WARRANTIES ARE SUBJECT TO
THE FOLLOWING CONDITIONS:
(6) This warranty does not cover Product sold AS
IS or WITH ALL FAULTS.
67
J51T0101D.indb 67
6/22/09 4:29:54 PM
How to Obtain Warranty Services
If, after following all of the operating instructions
in this manual and checking the section
“Troubleshooting,” you find that service is needed:
(1) For instructions on how to obtain warranty
service for your LCD TV/DVD Combination,
contact TACPʼs Consumer Solution Center toll
free at 1-800-631-3811.
(2) You must include a copy or original bill of
sale or other proof of purchase along with
the entire LCD TV/DVD Combination to the
Depot Warranty Repair Center specified by
the TACP Consumer Solutions Center. You
are responsible for all inbound transportation
and insurance charges for the LCD TV/DVD
Combination to the Depot Warranty Repair
Center specified by the TACP Consumer
Solutions Center.
For additional information, visit TACPʼs website:
www.tacp.toshiba.com
No person, agent, distributor, dealer, or company
is authorized to change, modify, or extend
the terms of these warranties in any manner
whatsoever. The time within which an action must
be commenced to enforce any obligation of TACP
arising under the warranty or under any statute
or law of the United States or any state thereof is
hereby limited to ninety (90) days from the date
you discover, or should have discovered, the
defect. This limitation does not apply to implied
warranties arising under state law.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS AND YOU MAY ALSO HAVE OTHER
RIGHTS WHICH MAY VARY FROM STATE TO
STATE IN THE U.S.A. SOME STATES OF THE
U.S.A. DO NOT ALLOW LIMITATIONS ON HOW
LONG AN IMPLIED WARRANTY LASTS, WHEN
AN ACTION MAY BE BROUGHT, OR THE
EXCLUSION OR LIMITATION OF INCIDENTAL
OR CONSEQUENTIAL DAMAGES, SO THE
ABOVE PROVISIONS MAY NOT APPLY TO YOU
UNDER SUCH CIRCUMSTANCES.
ALL WARRANTIES IMPLIED BY THE LAW OF
ANY STATE OF THE U.S.A., INCLUDING THE
IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE,
ARE EXPRESSLY LIMITED TO THE DURATION
OF THE LIMITED WARRANTIES SET FORTH
ABOVE. WITH THE EXCEPTION OF ANY
WARRANTIES IMPLIED BY THE LAW OF ANY
STATE OF THE U.S.A. AS HEREBY LIMITED,
THE FOREGOING WARRANTY IS EXCLUSIVE
AND IN LIEU OF ALL OTHER WARRANTIES,
GUARANTEES, AGREEMENTS, AND SIMILAR
OBLIGATIONS OF TACP WITH RESPECT TO
THE REPAIR OR REPLACEMENT OF ANY
PARTS. IN NO EVENT SHALL TACP BE LIABLE
FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO,
LOST PROFITS, BUSINESS INTERRUPTION, OR
MODIFICATION OR ERASURE OF RECORDED
DATA CAUSED BY USE, MISUSE OR INABILITY
TO USE THIS LCD TV/DVD COMBINATION).
ColorStream is registered trademark of Toshiba America Consumer Products, L.L.C.
J51T0101D SH 09/06 N
J51T0101D.indb 68
Printed in Thailand
6/22/09 4:29:55 PM

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
