HP Desktop Mini 500GB HDD/ I/O Module

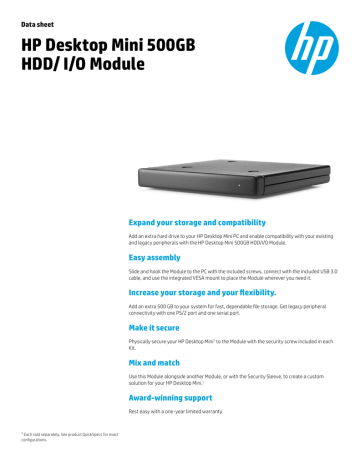

Data sheet
HP Desktop Mini 500GB
HDD/ I/O Module
Expand your storage and compatibility
Add an extra hard drive to your HP Desktop Mini PC and enable compatibility with your existing
and legacy peripherals with the HP Desktop Mini 500GB HDD/I/O Module.
Easy assembly
Slide and hook the Module to the PC with the included screws, connect with the included USB 3.0
cable, and use the integrated VESA mount to place the Module wherever you need it.
Increase your storage and your flexibility.
Add an extra 500 GB to your system for fast, dependable file storage. Get legacy peripheral
connectivity with one PS/2 port and one serial port.
Make it secure
Physically secure your HP Desktop Mini1 to the Module with the security screw included in each
Kit.
Mix and match
Use this Module alongside another Module, or with the Security Sleeve, to create a custom
solution for your HP Desktop Mini.1
Award-winning support
Rest easy with a one-year limited warranty.
1 Each sold separately. See product QuickSpecs for exact
configurations.
Data sheet | HP Desktop Mini 500GB HDD
HP Desktop Mini 500GB HDD/ I/O Expansion Module
Model number
K9Q82AA
Dimensions (w x l x d)
0.9 x 7 x 6.9 in (22.8 x 177 x 174.6 mm)
Weight
729g (27.71oz)
Color
Jack Black
Host Interface
USB 3.0 Type B female connector
Ports Included on
module
PS/2, Serial, USB 3.0 Type B to Type A connector on the ODD, HDD/ I/O, and I/O
modules*
*PC will recognize PS/2 and Serial as a USB to serial connection and is not intended use with peripherals
that require native serial connectivity.
Power
USB 3.0 Type B
VESA mount
Yes, 100mm
Connectors
Signal output: USB 3.0 Type B
Capacity
500,107,862,016 bytes
Interface
Serial ATA (6.0 Gb/s)
Synchronous Transfer
Rate (Maximum)
Up to 6 Gb/s
Cache
16 MB
Seek Time (typical
reads, includes
controller overhead,
including settling)
Single Track
2 ms
Average
11 ms
Full-Stroke
21 ms
Rotational Speed
7200 rpm
Logical Blocks
625,142,448
System Requirements
Software
Windows 8.1, Driver located on HP.com for HP EliteDesk 800 Desktop Mini, HP EliteDesk
705 Desktop Mini, HP ProDesk 600 Desktop Mini
Option kit contents
Expansion module, 3 4mm ladder screws, 3 8mm ladder screws, 1 29mm secured
torx screw, 1 54mm secured torx screw, 1 29mm torx screw, 1 54mm torx screw, 1
50mm USB 3.0 Type B USB to Type A cable,1 80mm USB 3.0 Type B USB to Type A cable,
Installation guide, Warranty
Expansion Module
Overview
These modules can be mounted to the DM directly and to another module with
screws in the kit that allow the module to slide into place. All modules can be
used with the PC that is wrapped in the Security/Dual VESA Sleeve, and all can
be mounted with standard VESA 100mm requirements. Both options can be
secured in place with a tamper-resistant screw. They are powered by a single
USB connection cable. The HP 260 and ProDesk 400 can support 2 expansion
modules at a time using 2 USB Type A ports on the back of the unit
Compatibility
HP 260 Desktop Mini, HP ProDesk 400 Desktop Mini, HP ProDesk 600 Desktop Mini, HP
EliteDesk 705 Desktop Mini, HP EliteDesk 800 Desktop Mini
Sign up for updates
hp.com/go/getupdated
Share with colleagues
Rate this document
© Copyright 2015 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only
warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
4AA5-7303ENW, February 2015
