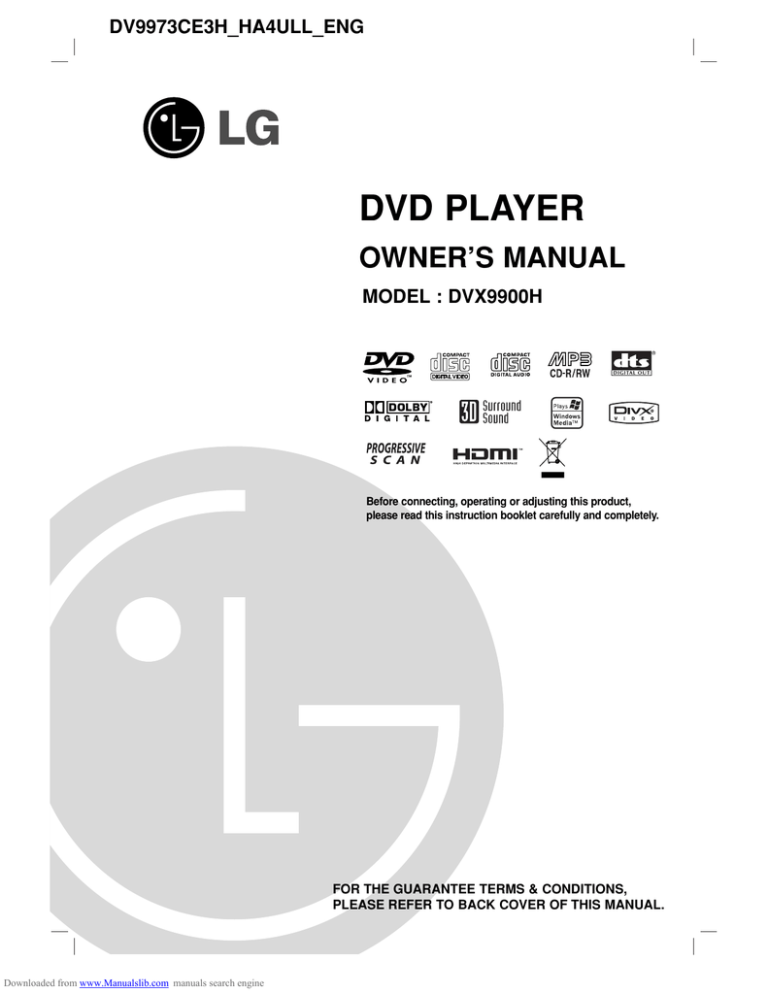

LG DVX9900H User Manual

DV9973CE3H_HA4ULL_ENG

DVD PLAYER

OWNER’S MANUAL

MODEL : DVX9900H

Before connecting, operating or adjusting this product, please read this instruction booklet carefully and completely.

Downloaded from www.Manualslib.com

manuals search engine

FOR THE GUARANTEE TERMS & CONDITIONS,

PLEASE REFER TO BACK COVER OF THIS MANUAL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: THESE SERVICING

INSTRUCTIONS ARE FOR USE BY

QUALIFIED SERVICE PERSONNEL ONLY.

TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT PERFORM ANY

SERVICING OTHER THAN THAT

CONTAINED IN THE OPERATING

INSTRUCTIONS UNLESS YOU ARE

QUALIFIED TO DO SO.

Caution: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus.

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit;

That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

CAUTION: This product employs a Laser

System.

To ensure proper use of this product, please read this owner’s manual carefully and retain for future reference.

Should the unit require maintenance, contact an authorized service center.

Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure.

Visible laser radiation when open. DO

NOT STARE INTO BEAM.

WARNING: Do not install this equipment in a confined space such as a bookcase or similar unit.

POWER: This unit operates on a mains supply of 110-240V,

50/60Hz.

WIRING: This unit is supplied with a BSI 1363 approved 13 amp mains plug, fused at 5 amp. When replacing the fuse always use a 5 amp BS 1362, BSI or ASTA approved type.

Never use this plug with the fuse cover omitted. To obtain a replacement fuse cover contact your dealer. If the type of plug supplied is not suitable for the mains sockets in your home, then the plug should be removed and a suitable type fitted. Please refer to the wiring instructions below:

WARNING: A mains plug removed from the mains lead of this DVD player must be destroyed. A mains plug with bared wires is hazardous if inserted in a mains socket.

Do not connect either wire to the earth pin, marked with the letter E or with the earth symbol green and yellow.

or coloured green or

If any other plug is fitted, use a 5 amp fuse, either in the plug, or at the distribution board.

IMPORTANT: The wires in this mains lead are coloured in accordance with the following codes:

- BLUE: NEUTRAL, BROWN: LIVE - As the colours of the wires in the mains lead of this DVD player may not correspond with the coloured marking identifying the terminals in your plug, proceed as follows: The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

2

Downloaded from www.Manualslib.com

manuals search engine

This product is manufactured to comply with the radio interference requirements of EEC DIRECTIVE 89/336/EEC, 93/68/EEC and 73/23/EEC.

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive

2002/96/EC.

2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.

4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

SERIAL NUMBER:

You can find the serial number on the back of the unit.

This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase.

Model No. ______________________________

Serial No. ______________________________

Date of Purchase_________________________

Downloaded from www.Manualslib.com

manuals search engine

3

4

Contents

Introduction . . . . . . . . . . . . . . . . . . .5

Symbol used in this Manual . . . . . . . . . . . . . .5

About the Symbol Display . . . . . . . . . . . .5

Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . .5

Handling Discs . . . . . . . . . . . . . . . . . . . . . .5

Storing Discs . . . . . . . . . . . . . . . . . . . . . . . .5

Cleaning Discs . . . . . . . . . . . . . . . . . . . . . .5

Types of Playable Discs . . . . . . . . . . . . . . . . .6

Regional code . . . . . . . . . . . . . . . . . . . . . . . .6

Disc-related terms . . . . . . . . . . . . . . . . . . . . .7

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Remote Control . . . . . . . . . . . . . . . . . . . . . . . .9

Remote Control Operation . . . . . . . . . . . . . .9

Remote Control Battery Installation . . . . . . .9

Installation and Setup . . . . . . . . . .10

Setting up the Player . . . . . . . . . . . . . . . . . .10

DVD Player Connections . . . . . . . . . . . . . . .10

Video and Audio Connections to Your TV . .10

HDMI connection . . . . . . . . . . . . . . . . . . . .11

Audio Connection to Optional Equipment . .12

On-Screen Display . . . . . . . . . . . . . . . . . . . .13

Playback Status/Restrictions . . . . . . . . . . .13

Initial Settings . . . . . . . . . . . . . . . . . . . . . . . .14

General Operation . . . . . . . . . . . . . . . . . . .14

LANGUAGE . . . . . . . . . . . . . . . . . . . . . . .14

• Menu Language . . . . . . . . . . . . . . . . . . .14

• Disc Audio / Subtitle / Menu . . . . . . . . . .14

DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . .15

• TV Aspect . . . . . . . . . . . . . . . . . . . . . . .15

• Display Mode . . . . . . . . . . . . . . . . . . . . .15

• TV Output S elect . . . . . . . . . . . . . . . . . . .15

AUDIO . . . . . . . . . . . . . . . . . . . . . . . . . . .15

• Dolby Digital / DTS / MPEG . . . . . . . . . . .15

• Sample Freq. (Frequency) . . . . . . . . . . . .15

• Dynamic Range Control (DRC) . . . . . . .15

• Vocal . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

OTHERS . . . . . . . . . . . . . . . . . . . . . . . . . .16

• PBC . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

• Auto Play . . . . . . . . . . . . . . . . . . . . . . . .16

• B.L.E. (Black Level Expansion) . . . . . . . .16

• DivX(R) VOD . . . . . . . . . . . . . . . . . . . . . .16

LOCK (Parental Control) . . . . . . . . . . . . . .17

• Rating . . . . . . . . . . . . . . . . . . . . . . . . . .17

• Password (Security Code) . . . . . . . . . . . .17

• Area Code . . . . . . . . . . . . . . . . . . . . . . .17

Operation . . . . . . . . . . . . . . . . . . . .18

Playing a DVD or Video CD . . . . . . . . . . . . .18

Playback Setup . . . . . . . . . . . . . . . . . . .18

General Features . . . . . . . . . . . . . . . . . . . . .18

Moving to another TITLE . . . . . . . . . . . . . .18

Moving to another CHAPTER/TRACK . . . .18

Search . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Changing the Audio Channel . . . . . . . . . .18

Still Picture and Frame-by-Frame Playback . . .19

Slow Motion . . . . . . . . . . . . . . . . . . . . . . . .19

Random . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Repeat A-B . . . . . . . . . . . . . . . . . . . . . . . .19

Repeat . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

3D Surround . . . . . . . . . . . . . . . . . . . . . .19

Time Search . . . . . . . . . . . . . . . . . . . . . . . .19

Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Marker Search . . . . . . . . . . . . . . . . . . .20

Special DVD Features . . . . . . . . . . . . . . . . .20

Checking the contents of DVD discs: Menus .20

Title Menu . . . . . . . . . . . . . . . . . . . . . . . .20

Disc Menu . . . . . . . . . . . . . . . . . . . . . . . .20

Camera Angle . . . . . . . . . . . . . . . . . . . . .20

Changing the Audio Language . . . . . . . . . .20

Subtitles . . . . . . . . . . . . . . . . . . . . . . . . .20

Playing an Audio CD or MP3/WMA Disc . . .21

Audio CD and MP3 / WMA Disc Features . .22

Pause . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Moving to another Track . . . . . . . . . . . . . .22

Repeat Track/All/Off . . . . . . . . . . . . . . . . .22

Search . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Random . . . . . . . . . . . . . . . . . . . . . . . . . .22

Repeat A-B . . . . . . . . . . . . . . . . . . . . . . . .22

3D Surround . . . . . . . . . . . . . . . . . . . . . . .22

Programmed Playback . . . . . . . . . . . . . . . .23

Repeat Programmed Tracks . . . . . . . . . . .23

Erasing a Track from Program List . . . . . .23

Erasing the Complete Program List . . . . . .23

Viewing a JPEG Disc . . . . . . . . . . . . . . . . . .24

Slide Show . . . . . . . . . . . . . . . . . . . . . . . .24

Still Picture . . . . . . . . . . . . . . . . . . . . . . . . .24

Moving to another File . . . . . . . . . . . . . . . .24

Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

To rotate picture . . . . . . . . . . . . . . . . . . . . .24

To listen to MP3/WMA music watching picture . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Maintenance and Service . . . . . . . . . . . . . . .25

Playing a DivX Movie Disc . . . . . . . . . . . . . .26

Additional Features . . . . . . . . . . . . . . . . . . .27

Last Scene Memory . . . . . . . . . . . . . . . . . .27

Screen Saver . . . . . . . . . . . . . . . . . . . . . . .27

System Select . . . . . . . . . . . . . . . . . . . . . . . .27

Video Mode Setting . . . . . . . . . . . . . . . . . . . .27

Controlling other TVs with the remote control . . .27

Reference . . . . . . . . . . . . . . . . . . . .28

Language Codes . . . . . . . . . . . . . . . . . . . . . . .28

Area Codes . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . .29

Specifications . . . . . . . . . . . . . . . . . . . . . . . . .30

Downloaded from www.Manualslib.com

manuals search engine

Introduction

To ensure proper use of this product, please read this owner’s manual carefully and retain for future reference.

This manual provides information on the operation and maintenance of your DVD player. Should the unit require service, contact an authorized service location.

About the Symbol Display

“ ” may appear on your TV display during operation and indicates that the function explained in this owner’s manual is not available on that specific

DVD video disc.

Notes on Discs

Symbol Used in this Manual

The lightning flash symbol alerts you to the presence of dangerous voltage within the product enclosure that may constitute a risk of electric shock.

The exclamation point alerts you to the presence of important operating and maintenance / servicing instructions.

Indicates hazards likely to cause harm to the unit itself or other material damage.

Note:

Indicates special notes and operating features.

Tip:

Indicates tips and hints for making the task easier.

Handling Discs

Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints do not get on the surface. Never stick paper or tape on the disc.

Storing Discs

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight.

Cleaning Discs

Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center out.

A section whose title has one of the following symbols is applicable only to the disc represented by the symbol.

DVD

VCD

CD

MP3

WMA

JPEG

DivX

DVD and finalized DVD±R/RW

Video CDs

Audio CDs

MP3 Discs

WMA Discs

JPEG Discs

DivX Discs

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

5

Downloaded from www.Manualslib.com

manuals search engine

Types of Playable Discs

DVD

(8 cm / 12 cm disc)

Video CD (VCD)

(8 cm / 12 cm disc)

Audio CD

(8 cm / 12 cm disc)

In addition, this unit plays DivX file, DVD -R, DVD +R,

DVD -RW, DVD +RW, SVCD, and CD-R / CD-RW that contains audio titles, MP3, WMA, and/or JPEG files.

Notes:

• Depending on the conditions of the recording equipment or the CD-R/RW (or DVD -R, DVD +R,

DVD -RW, DVD +RW) disc itself, some CD-R/RW

(or DVD -R, DVD +R, DVD -RW, DVD +RW) discs cannot be played on the unit.

• Do not attach any seal or label to either side (the labeled side or the recorded side) of a disc.

• Do not use irregularly shaped CDs (e.g., heartshaped or octagonal) since they may result in malfunctions.

Notes on DVDs and Video CDs

Some playback operations of DVDs and Video CDs may be intentionally programmed by software manufacturers. This unit plays DVDs and Video CDs according to disc content designed by the software manufacturer, therefore some playback features may not be available or other functions may be added.

Manufactured under license from Dolby

Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby

Laboratories.

DTS and DTS Digital Out are trademarks of

Digital Theater Systems, Inc.

Regional code

This DVD player is designed and manufactured for playback of region “2” encoded DVD software. This unit can play only DVD discs labe lled “2” or “ALL”.

2

Notes on Regional Codes

• Most DVD discs have a globe with one or more numbers in it clearly visible on the cover. This number must match your DVD player’s regional code or the disc cannot play.

• If you try to play a DVD with a different region code from your player, the message “Check Regional

Code” appears on the TV screen.

Notes on Copyrights:

It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material without permission. This product features the copy protection function developed by Macrovision.

Copy protection signals are recorded on some discs.

When recording and playing the pictures of these discs picture noise will appear. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by

Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision

Corporation. Reverse engineering or disassembly is prohibited.

CONSUMERS SHOULD NOTE THAT NOT ALL HIGH

DEFINITION TELEVISION SETS ARE FULLY

COMPATIBLE WITH THIS PRODUCT AND MAY

CAUSE ART

EFACTS TO BE DISPLAYED IN THE

PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE

SCAN PICTURE PROBLEMS, IT IS RECOMMENDED

THAT THE USER SWITCH THE CONNECTION TO

THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE

ARE QUESTIONS REGARDING OUR TV SET

COMPATIBILITY WITH THIS MODEL 525p AND 625p

DVD PLAYER, PLEASE CONTACT OUR CUSTOMER

SERVICE CENTER.

6

Downloaded from www.Manualslib.com

manuals search engine

Disc-related terms

DVD ±R / DVD ±RW

DVD -R and DVD +R are two different standards for recordable DVD drives and discs. This format allows information to be recorded onto the DVD disc only once. DVD +RW and DVD -RW are two standards for re-writable media, meaning the DVD content can be erased and re-recorded.

VCD (Video CD)

A VCD holds up to 74 minutes (650 MB disc) or 80 minutes (700 MB disc) of MPEG-1 full-motion video along with quality stereo sound.

MPEG

MPEG is an international standard for video and audio compression. MPEG-1 is used in encoding video for

VCD and provides for multichannel surround sound coding such as PCM, Dolby Digital, DTS and MPEG audio.

MP3

MP3 is a popular compression format used for digital audio files that yields very high near-CD quality.

WMA

Windows media audio file. A type of coding / decoding developed by Microsoft Corp.

JPEG

Joint Pictures Expert Group. JPEG is a compressed file format that allows you to save images with no limit on the number of colo urs.

DivX

DivX is the name of a revolutionary new video codec which is based on the new MPEG-4 compression standard for video.You will be able to play DivX movies using this DVD player.

PBC: Playback Control (Video CD only)

Playback control is available for Video CD (VCD) version 2.0 disc formats. PBC allows you to interact with the system via menus, search functions, or other typical computer-like operations. Moreover, still pictures of high resolution can be played if they are included in the disc. Video CDs not equipped with

PBC (Version 1.1) operate in the same way as audio

CDs.

Title (DVD video discs only)

A title is generally a distinct section of a DVD disc. For example the main feature could be title 1, a documentary describing how the film was made could be title 2, and cast interviews could be title 3. Each title is assigned a reference number enabling you to locate it easily.

Chapter (DVD video discs only)

A chapter is a segment of a title such as a scene in a film or one interview in a series. Each chapter is assigned a chapter number, enabling you to locate the chapter you want. Depending on the disc, chapters may not be recorded.

Scene (VCD)

On a video CD with PBC (playback control) functions, moving pictures and still pictures are divided into sections called “scenes”. Each scene is displayed in the menu screen and assigned a scene number, enabling you to locate the scene you want. A scene is composed of one or several tracks.

Track

A distinct element of audiovisual information, such as the picture or sound track for a specific language

(DVD), or a musical piece on a video or audio CD.

Each track is assigned a track number, enabling you to locate the track you want. DVD discs allow one track of video (with multiple angles) and several tracks of audio.

7

Downloaded from www.Manualslib.com

manuals search engine

Front Panel

POWER

Switches the player ON and OFF.

OPEN / CLOSE ( Z )

Opens or closes the disc tray.

Disc Tray

Insert a disc here.

STOP ( x )

Stops playback.

PLAY ( N )

Starts playback.

Display window

Shows the current status of the player.

Remote Sensor

Point the DVD Player remote control here.

8

Downloaded from www.Manualslib.com

manuals search engine

OPEN / CLOSE

Opens and closes the disc tray.

POWER

Switches DVD Player ON and OFF.

0-9 number buttons

Selects numbered items in a menu.

CLEAR

Removes a track number on the program list or a mark on the

MARKER SEARCH menu.

SCAN ( m / M )

Search backward or forward.

PAUSE / STEP ( X )

Pauses playback temporarily/ press repeatedly for frame-by-frame playback.

PLAY ( N )

Starts playback.

DVD MENU

Accesses menu on a DVD disc.

b B v V (left/right/up/down) •

Selects an item in the menu.

ENTER

Confirms menu selection.

DISPLAY

Accesses On-Screen display.

AUDIO •

Selects an audio language (DVD).

SUBTITLE •

Selects a subtitle language.

ANGLE •

Selects a DVD camera angle if available

SETUP •

Accesses or removes setup menu.

Remote Control Operation

Point the remote control at the remote sensor and press the buttons.

Do not mix old and new batteries and never mix different types of batteries such as standard, alkaline, etc.

Remote Control

TV Control Buttons

TV POWER:

Turns the TV on or off.

TV PR/CH +/–:

Selects TV’s channel.

TV VOL +/–:

Adjusts TV’s volume.

AV:

Selects the TV’s source.

SKIP (. / >)

Go to next chapter or track.

Returns to beginning of current chapter or track or go to previous chapter or track.

STOP ( x )

Stops playback.

TITLE

Displays title menu, if available.

RETURN

Removes the setup menu, displays the video CD with PBC.

• MARKER

Marks any point during playback.

• SEARCH

Displays MARKER SEARCH menu.

• PROGRAM

Places a track on the program list.

• ZOOM

Enlarges video image.

• REPEAT

Repeat chapter, track, title all.

• A-B

Repeat sequence.

• RANDOM

Plays tracks in random order.

• RESOLUTION

You can change the resolution depending on your TV.

Remote Control Battery installation

Detach the battery cover on the rear of the remote control, and insert two batteries

9

Downloaded from www.Manualslib.com

manuals search engine

10

Installation and Setup

Setting up the Player

The picture and sound of a nearby TV, VCR, or radio may be distorted during playback. If this occurs, position the player away from the TV, VCR, or radio, or turn off the unit after removing the disc.

DVD Player Connections

Depending on your TV and other equipment there are various ways you can connect the player. Please refer to the manuals of your TV, stereo system or other devices as necessary for additional connection information.

Rear of TV

Video: Connect the VIDEO OUT jack on the DVD player to the video in jack on the TV using the video cable (V).

S-Video: Connect the S-VIDEO OUT jack on the

DVD Player to the S-Video in jack on the TV using the S-Video cable (S)

SCART connection: Connect the TO TV scart jack on the DVD Player to the corresponding in jacks on the TV using the scart cable (T).

Component Video : Connect the COMPONENT

VIDEO OUT / (576p / 720p / 1080i) jacks on the

DVD Player to the corresponding in jacks on the

TV using an Y Pb Pr cable (C).

COMPONENT VIDEO /

PROGRESSIVE SCAN INPUT

Pr

C

Pb

Y

AUDIO INPUT

VIDEO

INPUT

R

A

L

V

T

SCART INPUT

• If your television is a high-definition or

“digital ready” television, you may take advantage of displaying the highest video resolution possible.

• If your TV does not accept your resolution setting, abnormal picture appears on the screen.

Please read TV’s owner’s manual then set the resolution that your TV can accept.

Resolution setting

You can change the resolution for the COMPONENT

VIDEO OUT / (576p / 720p / 1080i) video output by pressing RESOLUTION on the front panel. Available resolution settings are as shown below.

Rear of DVD player

Caution:

You must set the TV Output Select option to use

COMPONENT VIDEO OUT/ (576p / 720p / 1080i) and SCART jacks.

(See “TV Output Select” on page 15.)

OUTPUT Available Resolution

CONNECTION

PAL NTSC

HDMI

VIDEO OUT

1920 x 1080i

1280 x 720p

720 x 576p

1440 x 576i

1920 x 1080i

1280 x 720p

720 x 480p

1440 x 480i

COMPONENT

VIDEO OUT

1920 x 1080i

1280 x 720p

720 x 576p

720 x 576i

1920 x 1080i

1280 x 720p

720 x 480p

720 x 480i

VIDEO OUT

S-VIDEO

720 x 576i

720 x 576i

720 x 480i

720 x 480i

SCART 720 x 576i

Video and Audio Connections to Your TV

Make sure the DVD player is connected directly to the

TV and not to a VCR, otherwise the DVD image could be distorted by the copy protection system.

Audio: Connect the left and right AUDIO OUT jacks of the DVD Player to the audio left and right

IN jacks on the TV (A) using the audio cables.

Do not connect the DVD Player’s AUDIO OUT jack to the phone in jack (record deck) of your audio system.

Notes:

• For 720p and 1080i resolution on the component video out, only non-copy protected discs can be played back. If the disc is copy protected, it will be displayed at the 576p(PAL) or 480p(NTSC) resolution.

• 1080i, 720p, 576p and 480p do not work with the analog ue video connections (VIDEO OUT, SCART &

S-VIDEO).

Downloaded from www.Manualslib.com

manuals search engine

HDMI connection

If you have an HDMI TV or monitor, you can connect it to this player using an HDMI cable.

1. Connect the HDMI OUT jack on the player to the

HDMI jack on an HDMI compatible TV or monitor

(H).

2. Set the TV’s source to HDMI (refer to TV’s Owner’s manual).

3. Press RESOLUTION repeatedly to select the resolution you wish to change.

H

HDMI

HDMI compatible TV

Notes :

• Both PCM and Bitstream Audio out is available, when the sample frequency is set to 48kHz in HDMI connection.

• If Audio setup is set to bitstream and your TV does not support Bitstream Audio out in HDMI connection, audio sound is converted to PCM.

• If Audio setup is set to bitstream and the sound is distorted, check your TV’s audio capability and set the Audio setup to PCM.

• The arrow on the cable connector body should face up for correct alignment with the connector on the player.

• If there is noise or lines on the screen, please check the HDMI cable.

• Not all HDCP-compatible DVI devices will work with this DVD player.

• If TV does not support HDCP, snow noise appears on the screen.

Rear of DVD player

About HDMI

HDMI (High Definition Multimedia Interface) supports both video and audio on a single digital connection for an easy all- digital output to an HDMI or

DVI-equipped TV.

Connection to an HDMI TV requires an HDMI cable while connection to a DVI-equipped TV requires an

HDMI to DVI adapter.

HDMI has the capability to support standard, enhanced, or high-definition video plus standard to multi-channel surround-sound audio. HDMI features include uncompressed digital video, a bandwidth of up to 5 gigabytes per second, one connector (instead of several cables and connectors): communication between the AV source and AV devices such as

Digital Televisions.

HDMI, the HDMI logo and High-Definition Multimedia

Interface are trademarks or registered trademarks of

HDMI licensing LLC.

Tip:

When you use HDMI connection, you can change the resolution (576i, 576p, 720p, 1080i) for the HDMI output by pressing the RESOLUTION button on the remote control.

11

Downloaded from www.Manualslib.com

manuals search engine

Audio Connection to Optional Equipment

Connect the DVD player to your optional equipment for audio output.

Rear of DVD player

X

COAXIAL

DIGITAL INPUT

Amplifier (Receiver)

A

R

L

AUDIO INPUT

O

OPTICAL

DIGITAL INPUT

Amplifier equipped with 2-channel analog ue stereo

or Dolby Pro Logic ll / Pro Logic: Connect the left and right AUDIO OUT jacks on the DVD player to the audio left and right IN jacks on your amplifier, receiver, or stereo system, using the audio cables (A).

Amplifier equipped with 2-channel digital stereo

(PCM) or Audio / Video Receiver equipped with a multi-channel decoder (Dolby Digital™, MPEG 2,

or DTS): Connect one of the DVD Player’s DIGITAL

AUDIO OUT jacks (OPTICAL O or COAXIAL X) to the corresponding in jack on your Amplifier. Use an optional digital (optical O or coaxial X) audio cable.

Digital Multi-channel sound

A digital multi-channel connection provides the best sound quality. For this you need a multi-channel audio

/ video receiver that supports one or more of the audio formats supported by your DVD player such as MPEG

2, Dolby Digital and DTS. Check the receiver manual and the logos on the front of the receiver.

Notes:

If the audio format of the digital output does not match the capabilities of your receiver, the receiver produces a strong, distorted sound or no sound at all.

• Six Channel Digital Surround Sound via a digital connection can only be obtained if your receiver is equipped with a Digital Multi-channel decoder.

• To see the audio format of the current DVD in the on-screen display, press AUDIO button.

12

Downloaded from www.Manualslib.com

manuals search engine

On-Screen Display

You can display the general playback status on the TV screen. Some items can be changed using the menu.

To use the on-screen display:

1. Press DISPLAY during playback.

2. Press v / V to select an item.

The selected item is highlighted.

3. Press b / B to change the setting. You can also use the number buttons if appropriate (e.g.

inputting the title number). For some functions, press ENTER to execute the setting.

Notes:

Some discs may not provide all of the features shown below.

• If no button is pressed for 10 seconds, the onscreen display disappears.

Playback Status/Restrictions

Title

Repeat title

A - B

Repeat sequence

1 / 9

Enter a Marker

MARKER SEARCH

Marker Search menu

Resume play from this point

Action prohibited or not available

Example: On-Screen Display during playing DVD Video

Items

Title Number

Chapter Number

Time search

Audio language and Digital Audio

Output mode

1 / 3

1 / 12

0:20:09

Selection Method

b / B, Numbers

ENTER b / B, Numbers

ENTER

Numbers, ENTER b / B or

AUDIO

Subtitle language

ABC

Angle

1 ENG

1 / 3

b / B or

SUBTITLE b / B or

ANGLE

Sound

3D SUR

b / B

Example: On-Screen Display during playing VCD

Items

Track Number

(or PBC mode)

Time search

Audio Channel

1 / 3

0:20:09

Selection Method

b / B, Numbers

ENTER

Numbers

ENTER b / B or

AUDIO

Sound

3D SUR

b / B

Example: On-Screen Display during playing

Divx movie disc

Items

Track Number

1 / 3

Selection Method

b / B, Numbers

ENTER

Time search

0:20:09

Numbers, ENTER

Audio language and Digital Audio

Output mode

Subtitle language

ABC

1

MP3

ENG

b / B or

AUDIO b / B or

SUBTITLE

Sound

3D SUR

b / B

13

Downloaded from www.Manualslib.com

manuals search engine

Initial Settings

By using the Setup menu, you can make various adjustments to items such as picture and sound. You can also set a language for the subtitles and the

Setup menu, among other things. For details on each

Setup menu item, see pages 14 to 17.

LANGUAGE

LANGUAGE

Menu Language

Disc Audio

Disc Subtitle

Disc Menu

English

Original

Off

Original

To display and exit the Menu:

Press SETUP to display the menu. A second press of

SETUP will take you back to initial screen.

To go to the next level:

Press B on the remote control.

To go back to the previous level:

Press b on the remote control.

General Operation

1. Press SETUP. The Setup menu appears.

2. Use v / V to select the desired option then press

B to move to the second level. The screen shows the current setting for the selected item, as well as alternate setting(s).

3. Use v / V to select the second desired option then press B to move to the third level.

4. Use v / V to select the desired setting then press

ENTER to confirm your selection. Some items require additional steps.

5. Press SETUP or PLAY to exit the Setup menu.

Move Select

Menu Language

Select a language for the Setup menu and on-screen display.

Disc Audio / Subtitle / Menu

DVD

Select the language you prefer for the audio track

(disc audio), subtitles, and the disc menu.

Original: Refers to the original language in which the disc was recorded.

Other: To select another language, press number buttons then ENTER to enter the corresponding 4-digit number according to the language code list in the reference chapter.

If you enter the wrong language code, press CLEAR.

14

Downloaded from www.Manualslib.com

manuals search engine

DISPLAY

DISPLAY

TV Aspect

Display Mode

TV Output Select

16 : 9

Widescreen

RGB

Move Select

AUDIO

Each DVD disc has a variety of audio output options.

Set the player’s AUDIO options according to the type of audio system you use.

AUDIO

Dolby Digital

DTS

MPEG

Sample Freq.

DRC

Vocal

Bitstream

Bitstream

PCM

48 kHz

On

On

TV Aspect

DVD

4:3: Select when a standard 4:3 TV is connected.

16:9: Select when a 16:9 TV is connected.

Display Mode

DVD

Display Mode setting works only when the TV Aspect mode is set to “4:3”.

Letterbox: Displays a wide picture with bands on the upper and lower portions of the screen.

Panscan: Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit.

TV Output Select

Set the player’s TV Output Select options according to the TV connection type.

YPbPr: When your TV is connected with the

COMPONENT VIDEO OUT/ (576p / 720p / 1080i) jacks on the DVD player.

RGB: When your TV is connected with the SCART

(RGB signal) jack.

Notes:

• If you are playing this unit with scart connection while HDMI jack is connected, set the resolution to

576i.

• The resolution is unchangeable, if the TV Output

Select option is set to RGB while the HDMI jack is not connected.

• You can change the TV Output Select option only when the resolution is set to 576i.

Move Select

Dolby Digital / DTS / MPEG

DVD DivX

Bitstream: Select “Bitstream” if you connect the

DVD Player’s DIGITAL OUT jack to an amplifier or other equipment with a Dolby Digital, DTS or

MPEG decoder.

PCM (for Dolby Digital / MPEG): Select when connected to a two-channel digital stereo amplifier.

DVDs encoded in Dolby Digital or MPEG will be automatically downmixed to two-channel PCM audio.

Off (for DTS): If you select “Off”, the DTS signal is not output through the DIGITAL OUT jack.

Sample Freq. (Frequency)

DVD

If your receiver or amplifier is NOT capable of handling

96 kHz signals, select 48 kHz. When this choice is made, this unit automatically converts any 96 kHz signals to 48 kHz so your system can decode them.

If your receiver or amplifier is capable of handling 96 kHz signals, select 96 kHz. When this choice is made, this unit passes each type of signal through without any further processing.

Check the documentation for your amplifier to verify its capabilities.

Dynamic Range Control (DRC)

DVD DivX

With the DVD format, you can hear a program’s soundtrack in the most accurate and realistic presentation possible, thanks to digital audio technology.

However, you may wish to compress the dynamic range of the audio output (the difference between the loudest sounds and the quietest ones). This allows you to listen to a movie at a lower volume without losing clarity of sound. Set DRC to On for this effect.

Vocal

DVD

Set to On only when a multi-channel karaoke DVD is playing. The karaoke channels on the disc mix into normal stereo sound.

15

Downloaded from www.Manualslib.com

manuals search engine

OTHERS

The PBC, Auto Play, B.L.E. and DivX(R) VOD settings can be changed.

OTHERS

PBC

Auto Play

B.L.E.

DivX(R) VOD

On

Off

On

Select

DivX(R) VOD

DivX

You can display the DivX DRM (Digital Rights

Management) Registration code for your unit only.

Move Select

PBC

VCD

Set Playback Control (PBC) to On or Off.

On: Video CDs with PBC are played according to the PBC.

Off: Video CDs with PBC are played the same way as Audio CDs.

The Registration code is used for VOD (Video-On-

Demand) service agent. You can purchase or rent an encrypt movie file.

Notes:

If you rent the DivX VOD file, it has several options of viewing limits as shown below.

Display the number which you can watch the file.

Auto Play

DVD

You can set up the DVD Player so a DVD disc automatically starts playing whenever the DVD is inserted.

If Auto Play mode is set to On, this DVD player will search for title that has the longest playback time and then play back the title automatically.

On: Auto Play function is active.

Off: Auto Play function is not active.

Note:

The Auto Play function may not work for some DVDs.

B.L.E. (Black Level Expansion)

To select the black level of playback pictures. Set your preference and monitor’s ability.

On: Expanded grey scale. (0 IRE cut off)

Off: Standard grey scale. (7.5 IRE cut off)

Note:

The B.L.E. function works NTSC system only.

The rental has been expired.

Display the authorization error.

16

Downloaded from www.Manualslib.com

manuals search engine

LOCK (Parental Control)

LOCK

Rating

Password

Area Code

Unlock

New

Move Select

Rating

DVD

Some movies contain scenes that may not be suitable for children to view. Many of these discs contain parental control information that applies to the complete disc or to certain scenes on the disc. Movies and scenes are rated from 1 to 8, depending on the country. Some discs offer more suitable scenes as an alternative.

The parental control feature allows you to block access to scenes below the rating you input, thereby preventing your children from being able to view material you believe is unsuitable.

1. Select “Rating” on the LOCK menu then press B.

2. To access the Rating, Password and Area Code features, you must input the 4-digit security code you created. If you have not yet entered a security code you are prompted to do so.

Input a 4-digit code and press ENTER. Enter it again and press ENTER to verify. If you make a mistake before pressing ENTER, press CLEAR.

3. Select a rating from 1 to 8 using the v / V buttons.

Rating 1-8: Rating one (1) has the most restrictions and rating eight (8) is the least restrictive.

Unlock

If you select unlock, parental control is not active and the disc plays in full.

Note:

If you set a rating for the player, all disc scenes with the same rating or lower are played. Higher rated scenes are not played unless an alternate scene is available on the disc. The alternative must have the same rating or a lower one. If no suitable alternative is found, playback stops. You must enter the 4-digit password or change the rating level in order to play the disc.

4. Press ENTER to confirm your rating selection, then press SETUP to exit the menu.

Password (Security Code)

You can enter or change password.

1. Select Password on the LOCK menu then press B.

2. Follow step 2 as shown left (Rating). “Change” or

“New” is highlighted.

3. Enter the new 4-digit code, then press ENTER.

Input it again to verify.

4. Press SETUP to exit the menu.

If you forget your Security Code

If you forget your security code you can clear it using the following steps:

1. Press SETUP to display the Setup menu.

2. Input the 6-digit number “210499” and the security code is cleared.

3. Enter a new code as described above.

Area Code

DVD

Enter the code of the country/area whose standards were used to rate the DVD video disc, based on the list in the reference chapter.

1. Select “Area Code” on the LOCK menu then press B.

2. Follow step 2 as shown left (Rating).

3. Select the first character using v / V buttons.

4. Press ENTER and select the second character using v / V buttons.

5. Press ENTER to confirm your Area code selection.

17

Downloaded from www.Manualslib.com

manuals search engine

Operation

Playing a DVD or Video CD

Playback Setup

1. Turn on the TV and select the video input source connected to the DVD player.

2. Turn on the audio system (if applicable) and select the input source connected to the DVD player.

3. Press OPEN/CLOSE to open the disc tray and load your chosen disc in the tray, with the playback side down.

4. Press OPEN/CLOSE to close the tray.

Press PLAY.

In some cases, the disc menu might appear instead:

DVD

Use the b B v V buttons to select the title/chapter you want to view, then press ENTER to start.

Press TITLE or DVD MENU to return to the menu screen.

VCD

Use the number buttons to select the track you want to view and press RETURN to return to the menu screen. Menu settings and operating procedures may differ. Follow the instructions on each menu screen. You also may set PBC to

Off (See “PBC” on page 16).

Notes:

• If parental control is set and the disc is not within the rating settings you must input the password.

(See “Lock Menu” on page 17.)

• DVDs may have a region code. Your player does not play discs that have a region code different from your player. The region code for this player is 2

(two).

General Features

Note:

Unless stated otherwise, all operations described use the remote control. Some features may also be available on the Setup menu.

Moving to another TITLE

DVD

When a disc has more than one title, you can move to another title. Press DISPLAY while playback is stopped then the appropriate number (0-9) or use b / B to move to another title.

You can play any title by inputting its number while playback is stopped.

Moving to another CHAPTER/TRACK

DVD VCD DivX

When a title on a disc has more than one chapter or a disc has more than one track, you can move to another chapter/track as follows:

• Press SKIP . or > briefly during playback to select the next chapter/track or to return to the beginning of the current chapter/track.

• Press SKIP . twice briefly to step back to the previous chapter/track.

• To go directly to any chapter during DVD playback, press DISPLAY and press v / V to select the chapter/track icon. Then, input the chapter/track number or use b / B.

Search

DVD VCD DivX

1. Press SCAN ( m or

M

) during playback.

2. Press SCAN ( m or M ) repeatedly to select the required speed.

DVD, DivX disc; X2, X4, X16 or X100

Video CD; X2, X4 or X8

3. To exit SEARCH mode, press PLAY.

Changing the Audio Channel

VCD

Press AUDIO repeatedly during playback to hear a different audio channel (Stereo, Left, or Right).

18

Downloaded from www.Manualslib.com

manuals search engine

Still Picture and Frame-by-Frame Playback

DVD VCD DivX

1. Press PAUSE/STEP on the remote control during playback. Advance the picture frame-by-frame by pressing PAUSE/STEP repeatedly.

2. To exit still motion mode, press PLAY.

Slow Motion DVD VCD DivX

1. Press PAUSE/STEP (X) during playback.

The DVD player will now go into PAUSE mode.

2. Use the SCAN (m or M) to select the required speed: t 1/16, t 1/8, t 1/4, or t 1/2

(backward), or T 1/16, T 1/8, T 1/4, or T 1/2

(forward).

With a DivX Disc and Video CD, the Slow speed changes: T 1/16, T 1/8, T 1/4 or T 1/2

(forward).

3. To exit Slow Motion mode, press PLAY (N).

Note:

Slow motion playb ack in reverse is not possible with

Video CDs and DivX Discs.

Random

VCD Karaoke DVD

1. Press RANDOM during playback. The unit automatically begins random playback and

RANDOM appears on the TV screen.

2. Press RANDOM again to normal.

Tip:

By pressing SKIP > during random playback, the unit selects another title (track) and resumes random playback.

Note:

On a Video CD with PBC, You must set PBC to Off on the setup menu to use the random function (See “PBC” on page

16).

Repeat A-B

DVD VCD DivX

To repeat a sequence.

1. Press A-B at your chosen starting point. “ A * ” appears briefly on the TV screen.

2. Press A-B again at your chosen end point.

“A B” appears briefly on the TV screen and the repeat sequence begins.

3. Press A-B again to cancel.

Repeat

DVD

VCD1.1

DivX

You can play a title/chapter/all/track on a disc.

Press REPEAT during playback to select a desired repeat mode.

DVD Video Discs - Repeat Chapter/Title/Off

• Chapter: repeats the current chapter.

• Title: repeats the current title.

• Off : does not play repeatedly.

Video CDs, DivX discs - Repeat Track/All/Off

• Track : repeats the current track

• All : repeats all the tracks on a disc.

• Off : does not play repeatedly.

Notes:

• On a Video CD with PBC, you must set PBC to Off on the setup menu to use the repeat function (See “PBC” on page 16).

• If you press SKIP (>) once during Repeat Chapter

(Track) playback, the repeat playback cancels.

3D Surround

DVD VCD DivX

To produce a 3D surround effect that simulates multichannel audio from two stereo speakers (instead of the five+ speakers normally required for multi-channel audio from a home theater system).

1. Press DISPLAY during playback.

2. Use 3 or 4 to select the sound option.

The sound option will be highlighted.

3. Use 1 or 2 to to select “3D SUR”.

To turn off the 3D Surround effect, select “Normal”.

Time Search

DVD VCD DivX

To start playing at any chosen time on the disc:

1. Press DISPLAY during playback. The time search box shows the elapsed playing time.

2. Press v / V to select the time clock icon and

“-:--:--” appears.

3. Input the required start time in hours, minutes, and seconds from left to right. If you enter the wrong numbers, press CLEAR to remove the numbers you entered. Then input the correct numbers.

4. Press ENTER to confirm. Playback starts from the selected time.

19

Downloaded from www.Manualslib.com

manuals search engine

Zoom

DVD VCD DivX

Use zoom to enlarge the video image.

1. Press ZOOM during playback or still playback to activate the Zoom function. The square frame appears briefly in the right bottom of the picture.

2. Each press of the ZOOM button changes the TV screen in the sequence: 100% size → 400% size

→ 1600% size → screen fit mode → 100% size

Screen fit mode:

You can change the way the image appears on the screen when you’re playing a DVD movie.

3/4 to select between Normal, Enhanced, and Maximum.

3. Use the b B v V buttons to move through the zoomed picture.

4. To resume normal playback, press CLEAR button.

Notes:

• Zoom may not work on some DVDs.

• Screen fit mode is available for playing the DVD disc and movie file.

Marker Search

DVD VCD DivX

To enter a Marker

You can start playback from up to nine memorized points. To enter a marker, press MARKER at the desired point on the disc. The Marker icon appears on the TV screen briefly. Repeat to enter up to nine markers.

To Recall or Clear a Marked Scene

1. During disc playback, press SEARCH. The marker search menu appears on the screen.

2. Within 10 seconds, press b / B to select a marker number that you want to recall or clear.

3. Press ENTER and playback starts from the marked scene. Or, Press CLEAR and the marker number is erased from the list.

4. You can play any marker by inputting its number on the marker search menu.

Special DVD Features

Checking the contents of DVD discs: Menus

DVDs may offer menus that allow you to access special features. To use the disc menu, press DVD

MENU. Input the corresponding number or use the b B v V buttons to highlight your selection.

Then press ENTER.

Title Menu

DVD

1. Press TITLE. If the current title has a menu, the menu appears on the screen. Otherwise, the disc menu may appear.

2. The menu offers features such as camera angles, spoken language and subtitle options, and chapters for the title.

3. Press TITLE to exit.

Disc Menu

DVD

Press DVD MENU and the disc menu is displayed.

Press DVD MENU again to exit.

Camera Angle

DVD

If the disc contains scenes recorded at different camera angles, you can change to a different camera angle during playback. Press ANGLE repeatedly during playback to select a desired angle. Note that the number of the current angle appears on the display.

Tip:

The angle indicator will blink on the TV screen during scenes recorded at different angles as an indication that angle switching is possible.

Changing the Audio Language

DVD DivX

Press AUDIO repeatedly during playback to hear a different audio language or audio track.

Subtitles

DVD DivX

Press SUBTITLE repeatedly during playback to see the different subtitle languages.

Note:

If there is no information or there is a code that can not read in the DivX file, “ 1 ” etc are displayed.

20

Downloaded from www.Manualslib.com

manuals search engine

Playing an Audio CD or MP3/WMA

Disc

The DVD player can play MP3/WMA formatted recordings on CD-ROM, CD-R, or CD-RW discs.

Audio CD

Once you insert an audio CD a menu appears on the

TV screen. Press v / V to select a track then press

PLAY or ENTER and playback starts.

AUDIO CD

0:52:07

List

Track1

Track2

Track3

Track4

Track5

Track6

Track7

Track8

1 / 12

Program

Clear All

PROGRAM Edit

MP3 / WMA

1. Press v / V to select a folder, and press ENTER to see the folder contents.

2. Press v / V to select a track then press PLAY or

ENTER. Playback starts.

MUSIC

0:00:00

List

1-Music1

2-Music2

3-Music3

4-Music4

5-Music5

6-Music6

7-Music7

DISPLAY Info

1 / 12

PROGRAM Edit

Program

Clear All

ID3 TAG

• When playing a file containing information such as track titles, you can see the information by pressing

DISPLAY.

[ Title, Artist, Album, Year, Comment ]

• If there is no information, “NO ID3 TAG” appear on the display.

Tips:

• If you are in a file list on the MUSIC menu and want to return to the Folder list, use the v / V to highlight press ENTER.

and

• Press DVD MENU to move to the next page.

• On a CD with MP3/WMA and JPEG you can switch

MP3/WMA and JPEG. Press TITLE and MUSIC or

PHOTO word on top of the menu is highlighted.

MP3 / WMA disc compatibility with this player is limited as follows:

• Sampling frequency: within 8 - 48 kHz (MP3), within 32 - 48kHz (WMA)

• Bit rate: within 8 - 320kbps (MP3),

32 - 192kbps (WMA)

• The player cannot read an MP3/WMA file that has a file extension other than “.mp3” / “.wma”.

• CD-R physical format should be ISO 9660

• If you record MP3 / WMA files using software that cannot create a file system (eg. Direct-CD) it is impossible to playback MP3 / WMA files. We recommend that you use Easy-CD Creator, which creates an ISO 9660 file system.

• File names should have a maximum of 8 letters and must incorporate an .mp3 or .wma extension.

• They should not contain special letters such as /

? * : “ < > l etc.

• The total number of files on the disc should be less than 650.

This DVD player requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats

(including CD-R containing MP3 or WMA files) and these require certain pre-existing conditions (see above) to ensure compatible playback.

Customers should note that permission is required in order to download MP3 / WMA files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

21

Downloaded from www.Manualslib.com

manuals search engine

Audio CD and MP3 / WMA Disc

Features

Pause

CD MP3

WMA

1. Press PAUSE/STEP during playback.

2. To return to playback, press PLAY, ENTER or press PAUSE/STEP again.

Moving to another Track

CD MP3 WMA

1. Press SKIP (. or >) briefly during playback to go to the next track or to return to the beginning of the current track.

2. Press SKIP . twice briefly to go back to the previous track.

3. You can play any track by inputting its number.

Repeat Track/All/Off

CD MP3

WMA

You can play a track/all on a disc.

1. Press REPEAT when playing a disc. The repeat icon appears.

2. Press REPEAT to select a desired repeat mode.

• Track: repeats the current track

• All: repeats all the tracks on a disc.

• Off(No display): does not play repeatedly.

Note:

If you press SKIP (>) once during Repeat Track playback, the repeat playback cancels.

Search

CD MP3 WMA

1. Press SCAN ( m or

M

) during playback.

2. Press SCAN ( m or

M

) repeatedly to select the required speed: X2, X4, X8 backward or forward.

3. To exit SEARCH mode, press PLAY.

Random

CD MP3 WMA

1. Press RANDOM during playback. Random

Playback begins immediately and RANDOM appears on the menu screen.

2. To return to normal playback, press RANDOM repeatedly until RANDOM disappears from the menu screen.

Tip:

By pressing SKIP > during random playback, the unit selects another track and resumes random playback.

Repeat A-B

CD

1. To repeat a sequence during disc playback press

A-B at your chosen starting point. The Repeat icon and “A” appear on the menu screen.

2. Press A-B again at your chosen end point. The

Repeat icon and “A-B” appear on the menu screen, and the sequence begins to play repeatedly.

3. To exit the sequence and return to normal play, press A-B again. The Repeat icon disappears from the menu screen.

3D Surround

CD

To produce a 3D surround effect that simulates multichannel audio from two stereo speakers (instead of the five+ speakers normally required for multi-channel audio from a home theater system).

1. Press AUDIO during playback.

“3D SUR.” appears on the menu screen.

2. To return to normal playback, press AUDIO repeatedly until “3D SUR.” disappears from the menu screen.

22

Downloaded from www.Manualslib.com

manuals search engine

Programmed Playback

The program function enables you to store your favo urite tracks from any disc in the player memory.

A program can contain 30 tracks.

1. Insert a disc.

Audio CD or MP3/WMA Discs:

AUDIO CD or MUSIC menu appears.

2. Press PROGRAM.

The

E

mark will appear to the right of the word

“Program” on the right side of the menu screen.

Note:

Press PROGRAM again, then the

E

mark will disappear to exit the Program Edit mode.

AUDIO CD

0:52:07

List

Track1

Track2

Track3

Track4

Track5

Track6

Track7

Track8

1 / 12

Program

Track5

Track7

Track4

Track1

Clear All

PROGRAM Edit

Audio CD Menu

E

MUSIC

0:00:00

List

1-Music1

2-Music2

3-Music3

4-Music4

5-Music5

6-Music6

7-Music7

DISPLAY Info

1 / 12

PROGRAM

Edit

Program

2-Music2

4-Music4

6-Music6

1-Music1

Clear All

E

MP3/WMA Menu

Video CD: Press PROGRAM while playback is stopped. The program menu appears. Press

PROGRAM again and hold it down for a few seconds to exit the menu.

Note:

On a Video CD with PBC, you must set PBC to Off on the setup menu to use the programmed playback

(See “PBC” on page 16).

5. Press PLAY or ENTER to start. Playback begins in the order in which you programmed the tracks.

Playback stops after all of the tracks on the

“Program” list have played once.

6. To resume normal playback from programmed playback, select a track of AUDIO CD (or MUSIC) list and then press PLAY.

Repeat Programmed Tracks

1. Press REPEAT when playing a disc. The repeat icon appears.

2. Press REPEAT to select a desired repeat mode.

• Track: repeats the current track

• All: repeats all the tracks on programmed list.

• Off(No display): does not play repeatedly.

Note:

If you press > once during Repeat Track playback, the repeat playback cancels.

Erasing a Track from “Program” List

1. Use v V B to select the track that you wish to erase from the Program list.

2. Press CLEAR. Repeat to erase additional tracks on the list.

Erasing the Complete Program List

1. Press B to move to the “Program” list.

2. Use v / V to select “Clear All”, then press ENTER.

Note:

The programs are also cleared when the disc is removed.

VIDEO CD

List

Track1

Track2

Track3

Track4

Track5

Program

Track5

Track2

Track3

Track1

E

Clear All

Video CD Menu

3. Select a track on the “List”, then press ENTER to place the selected track on the “Program” list.

Repeat to place additional tracks on the list.

4. Press B.

Select the track you want to start playing on the

“Program” list.

23

Downloaded from www.Manualslib.com

manuals search engine

24

Viewing a JPEG Disc

Using this DVD Player you can view discs with JPEG files.

1. Insert a disc and close the tray. The PHOTO menu appears on the TV screen.


List

JPEG Folder 1

JPEG Folder 2

JPEG Folder 3

JPEG Folder 4

JPEG Folder 5

JPEG Folder 6

JPEG Folder 7

JPEG Folder 8

Preview

2. Press v / V to select a folder, and press ENTER.

A list of files in the folder appears. If you are in a file list and want to return to the previous Folder list, use the v / V buttons on the remote to highlight and press ENTER.

3. If you want to view a particular file, press v / V to highlight a file and press ENTER or PLAY.

While viewing a file, you can press STOP to move to the previous menu (PHOTO menu).

Tips:

• Press DVD MENU to move to the next page.

• There are three Slide Speed options

(Normal) and > (Slow).

: >>> (Fast), >>

Use v V b B to highlight the Speed. Then, use b / B to select the option you want to use then press ENTER.

• On a disc with MP3/WMA and JPEG you can switch

MP3/WMA and JPEG. Press TITLE and MUSIC or

PHOTO word on top of the menu is highlighted.

• Press RETURN, information of file is hidden.

Slide Show

JPEG

Use v V b B to highlight the press ENTER.

(Slide Show) then

Still Picture

JPEG

1. Press PAUSE/STEP during slide show.

The player will now go into PAUSE mode.

2. To return to the slide show, press PLAY or press

PAUSE/STEP again.

Moving to another File

JPEG

Press SKIP (. or >) or cursor (b or B) once while viewing a picture to advance to the next or previous file.

Zoom

JPEG

Use zoom to enlarge the photo image.

(see 20 page)

To rotate picture

Press v / V during showing a picture to rotate the picture clockwise or counter clockwise.

Listen to MP3/WMA Music and view your Images

JPEG

You can display image files while listening to MP3/WMA music files recorded on the same disc.

1. Insert the disc containing the two types of file in the player.

2. Press TITLE to display PHOTO menu.

3. Press v / V to select a photo file.

4. Use B to select icon then press ENTER.

Playback starts. The playback will continue until

STOP is pressed.

Tip:

To listen to

ONLY the desired music with your images, programme the desired tracks from the “MUSIC” menu and then proceed as above

.

JPEG disc compatibility with this player is limited as follows:

• Depending upon the size and number of JPEG files, it could take a long time for the DVD player to read the disc’s contents. If you don’t see an onscreen display after several minutes, some of the files may be too large — reduce the resolution of the JPEG files to less than 2M pixels as 2760 x

2048 pixels and burn another disc.

• The total number of files and folders on the disc should be less than 650.

• Some discs may be incompatible due to a different recording format or the condition of disc.

• Ensure that all the selected files have the “.jpg” extensions when copying into the CD layout.

• If the files have “.jpe” or “.jpeg” extensions, please rename them as “.jpg” file.

• File names without “.jpg” extension will not be able to be read by this DVD player. Even though the files are shown as JPEG image files in

Windows Explorer.

Downloaded from www.Manualslib.com

manuals search engine

Maintenance and Service

Refer to the information in this chapter before contacting a service technician.

Handling the Unit

When shipping the unit

Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.

Keeping the exterior surfaces clean

• Do not use volatile liquids such as insecticide spray near the unit.

• Do not leave rubber or plastic products in contact with the unit for a long period of time. since they leave marks on the surface.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution.

Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

Maintaining the Unit

The DVD player is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished.

Depending on the operating environment, regular inspection and maintenance are recommended after every 1,000 hours of use.

For details, please contact your nearest authorized service center.

Downloaded from www.Manualslib.com

manuals search engine

25

Playing a DivX Movie Disc

Using this DVD Player you can play DivX disc.

1. Insert a disc and close the tray. The MOVIE menu appears on the TV screen.

MOVIE

0:00:00

List

Movie Folder 1

Movie Folder 2

Movie Folder 3

Movie Folder 4

Movie Folder 5

Movie Folder 6

Movie Folder 7

Movie Folder 8

2. Press v / V to select a folder, and press

ENTER. A list of files in the folder appears. If you are in a file list and want to return to the

Folder list, use the v / V buttons on the remote to highlight and press ENTER.

3. If you want to view a particular file, press v / V to highlight a file and press ENTER or

PLAY.

4. Press STOP to exit.

Tips:

Press DVD MENU to move to the next page.

On a CD with MP3/WMA, JPEG and MOVIE file, you can switch MUSIC, PHOTO and MOVIE menu. Press TITLE and MUSIC, PHOTO and MOVIE word on top of the menu is highlighted.

• The disc subtitle may not be displayed properly, if a DivX subtitle is downloaded through the internet.

• If the Disc Subtitle setup menu does not have the DivX subtitile language you are going to play, the subtitle may not be displayed properly.

DivX disc compatibility with this player is limited as follows:

• Available resolution size of the DivX file is under

720x576 (W x H) pixel.

• The file name of the DivX subtitle is available by

56 characters.

• If there is impossible code to express in the DivX file, it may be displayed as " _ " mark on the display.

• If the number of the screen frame is over 30 per 1 second, this unit may not operate normally.

• If the video and audio structure of recorded file is not interleaved, either video or audio is outputted.

• If the file is recorded with GMC, the unit supports only 1-point of the record level.

* GMC?

GMC is the acronym for Global Motion Compensation. It is an encoding tool specified in MPEG4 standard. Some

MPEG4 encoders, like DivX or Xvid, have this option.

There are different levels of GMC encoding, usually called 1-point, 2-point, or 3-point GMC.

Playable DivX file

Playable Subtitle format

SAMI(*.smi)

SubStation Alpha(*.ssa/*.txt)

MicroDVD(*.sub/*.txt)

SubViewer 2.0(*.sub/*.txt)

TMPlayer(*.txt)

Dvd Subtitle System(*.txt)

VobSub (*.sub) b Sub/idx, stream based format.

Playable Codec format

"MP43 ", "3IVX ".

Playable Audio format

• Sampling frequency: within 8 - 48 kHz (MP3), within 32 - 48kHz (WMA)

• Bit rate: within 8 - 320kbps (MP3),

32 - 192kbps (WMA)

26

Downloaded from www.Manualslib.com

manuals search engine

Additional Features

Last Scene Memory DVD CD VCD1.1

This player memorizes last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the player or switch off the player. If you load a disc that has the scene memorized, the scene is automatically recalled.

Note:

This player does not memorize the scene of a disc if you switch off the player before commencing to play the disc.

Detailed Descriptions for Video Modes

MODE1: The source material of the DVD video (film material or video material) is determined from disc information.

MODE2: Suitable for playing film based content or video based material recorded by the progressive scan method.

MODE3: Suitable for playing video based content with comparatively little motion.

Note:

The video mode setting only works in progressive scan mode (720p, 576p or 480p).

Screen Saver

The screen saver appears when you leave the DVD player in Stop mode for about five minutes. If the

Screen Saver is displayed for five minutes, the DVD

Player automatically turns itself off.

System Select

You must select the appropriate system mode for your

TV system. If NO DISC appears in the display window, press and hold PAUSE/STEP for more than 5 seconds to be able to select a system (PAL, NTSC, or

AUTO).

Controlling other TVs with the remote control

You can control the sound level, input source, and power switch of your LG TV with the supplied remote control.

You can control the sound level, input source, and power switch of non-LG TVs as well. If your TV is listed in the table below, set the appropriate manufacturer code.

1. While holding down TV POWER button, press the number buttons to select the manufacturer code for your TV (see the table below).

2. Release TV POWER button.

Code numbers of controllable TVs

If more than one code number is listed, try entering them one at a time until you find the one that works with your TV.

Video Mode Setting

With certain discs, the playback picture may be flickering or Dot Crawl is shown on straight lines.

That means Vertical interpolation or De-interlace is not perfectly matched with the disc. In this case, the picture quality may be improved by changing the video mode.

To change the video mode, press and hold

DISPLAY about 3 seconds during disc playback.

The new video mode number selected is displayed on the TV screen. Check whether the video quality has improved. If not, repeat the above procedure until picture quality is improved.

Video mode change sequence:

MODE1 → MODE2 → MODE3 → MODE1

If you turn off the power, the video mode will be back to initial state (MODE1).

Manufacturer

LG / GoldStar

Zenith

Samsung

Sony

Hitachi

Code Number

1 (Default), 2

1, 3, 4

6, 7

8, 9

4

Notes:

• Depending on your TV, some or all buttons may not function on the TV, even after entering the correct manufacturer code.

• If you enter a new code number, the code number previously entered will be erased.

• When you replace the batteries of the remote, the code number you have set may be reset to the default setting.

Set the appropriate code number again.

27

Downloaded from www.Manualslib.com

manuals search engine

28

Reference

Language Codes

Use this list to input your desired language for the following initial settings:

Disc Audio, Disc Subtitle, Disc Menu.

Language

Abkhazian

Afar

Afrikaans

Albanian

Ameharic

Code

6566

6565

6570

8381

6577

Arabic

Armenian

Assamese

Aymara

6582

7289

6583

6588

Azerbaijani

Bashkir

6590

6665

Basque 6985

Bengali; Bangla 6678

Bhutani 6890

Bihari

Breton

Bulgarian

Burmese

Byelorussian

Cambodian

Catalan

Chinese

Corsican

Croatian

Czech

Danish

Dutch

English

Esperanto

Estonian

Faroese

6779

7282

6783

6865

7876

6978

6979

6984

7079

6672

6682

6671

7789

6669

7577

6765

9072

Language

Fiji

Finnish

French

Frisian

Galician

Georgian

German

Greek

Greenlandic

Guarani

Gujarati

Hausa

Hebrew

Hindi

Hungarian

Icelandic

Indonesian

Interlingua

Irish

Italian

Japanese

Javanese

Kannada

Kashmiri

Kazakh

Kirghiz

Korean

Kurdish

Laothian

Latin

Latvian, Lettish

7578

7583

7575

7589

7579

7585

7679

7665

7686

7285

7383

7378

7365

7165

7384

7465

7487

Code

7074

7073

7082

7089

7176

7565

6869

6976

7576

7178

7185

7265

7387

7273

Language

Lingala

Lithuanian

Macedonian

Malagasy

Malay

Malayalam

Maltese

Maori

Marathi

Moldavian

Mongolian

Nauru

Nepali

Norwegian

Oriya

Panjabi

Pashto, Pushto

Persian

7982

8065

8083

7065

Polish

Portuguese

8076

8084

Quechua 8185

Rhaeto-Romance 8277

Rumanian

Russian

Samoan

Sanskrit

Scots Gaelic

Serbian

Serbo-Croatian

Shona

Sindhi

8279

8285

8377

8365

7168

8382

8372

8378

8368

Code

7678

7684

7775

7771

7783

7776

7784

7773

7782

7779

7778

7865

7869

7879

Area Codes

Choose an area code from this list.

Area

Afghanistan

Argentina

Australia

Austria

Belgium

Bhutan

Bolivia

Brazil

Cambodia

Canada

Chile

China

Colombia

Congo

Costa Rica

Croatia

Czech Republic

Denmark

Ecuador

Egypt

El Salvador

BR

KH

CA

CL

CN

CO

CG

CR

Code

AF

AR

AU

AT

BE

BT

BO

HR

CZ

DK

EC

EG

SV

Area

Ethiopia

Fiji

Finland

France

Germany

Great Britain

Greece

Code

ET

FJ

FI

FR

DE

GB

GR

Greenland GL

Heard and McDonald Islands

HM

Hong Kong

Hungary

India

Indonesia

Israel

Italy

Jamaica

Japan

Kenya

Kuwait

Libya

Luxembourg

HK

HU

IN

ID

IL

IT

JM

JP

KE

KW

LY

LU

Area

Malaysia

Maldives

Mexico

Monaco

Mongolia

Morocco

Nepal

Netherlands NL

Netherlands Antilles AN

New Zealand

Nigeria

NZ

NG

Norway

Oman

Pakistan

Panama

NO

OM

PK

PA

Code

MY

MV

MX

MC

MN

MA

NP

Paraguay

Philippines

Poland

Portugal

PY

PH

PL

PT

Romania RO

Russian Federation RU

Area

Saudi Arabia

Senegal

Singapore

Slovak Republic

Slovenia

South Africa

South Korea

Spain

Sri Lanka

Sweden

Switzerland

Taiwan

Thailand

Turkey

Uganda

Ukraine

United States

Uruguay

Uzbekistan

Vietnam

Zimbabwe

ES

LK

SE

CH

TW

TH

TR

UG

Code

SA

SN

SG

SK

SI

ZA

KR

UA

US

UY

UZ

VN

ZW

Tibetan

Tigrinya

Tonga

Turkish

Turkmen

Twi

Ukrainian

Urdu

Uzbek

Vietnamese

Volapük

Welsh

Wolof

Xhosa

Yiddish

Yoruba

Zulu

Language

Singhalese

Slovak

Slovenian

Somali

Spanish

Sudanese

Swahili

Swedish

Tagalog

Tajik

Tamil

Tatar

Telugu

Thai

8590

8673

8679

6789

8779

8872

7473

8979

9085

6679

8473

8479

8482

8475

8487

8575

8582

Code

8373

8375

8376

8379

6983

8385

8387

8386

8476

8471

8465

8484

8469

8472

Downloaded from www.Manualslib.com

manuals search engine

Troubleshooting

Symptom

No power.

The power is on, but the DVD player does not work.

No picture.

No sound.

The DVD player does not start playback.

Possible Cause

• The power cord is disconnected.

• No disc is inserted.

• The TV is not set to receive DVD signal output.

• The video cable is not connected securely.

• Unit output setting and TV resolution capabilities mismatch.

• The equipment connected with the audio cable is not set to receive DVD signal output.

• The power of the equipment connected with the audio cable is turned off.

• The AUDIO options are set to the wrong position.

• The Digital Audio Output mismatch with the amplifier.

• An unplayable disc is inserted.

• The rating level is set.

The Remote Control does not work properly.

• The Remote Control is not pointed at the remote sensor on the DVD player.

• The Remote Control is too far from the

DVD player.

Correction

• Plug the power cord into the wall outlet securely.

• Insert a disc. (Check that the DVD or audio CD indicator in the display window is lit.)

• Select the appropriate video input mode on the TV.

• Connect the video cable securely.

• Check TV capability.

• Check mode of connections

(eg. S-Video, Component etc.).

• Check unit Resolution setting according to TV capability and mode of connection.

• Select the correct input mode of the audio receiver so you can listen to the sound from the DVD player.

• Turn on the equipment connected with the audio cable.

• Set the Digital Audio Output to the correct position, then turn on the DVD player again by pressing POWER.

• Select the proper audio setting in

AUDIO setup.

• Insert a playable disc. (Check the disc type, colo ur system, and regional code.)

• Cancel the rating function or change the rating level.

• Point the Remote Control at the remote sensor of the DVD player.

• Operate the Remote Control closer to the DVD player.

29

Downloaded from www.Manualslib.com

manuals search engine

Specifications

General

Power requirements: AC 110-240 V , 50/60 Hz

Power consumption: 10 W

Dimensions (Approx.):

430 x 35 x 242 mm (W x H x D) without foot

Weight (Approx.): 1.9 kg

Operating temperature:

5 °C to 35 °C (41 °F to 95 °F)

Operating humidity: 5 % to 90 %

Outputs

VIDEO OUT:

1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1 /

SCART (TO TV)

S-VIDEO OUT:

(Y) 1.0 V (p-p), 75 Ω, negative sync, Mini DIN 4-pin x 1

(C) 0.3 V (p-p) 75 Ω

COMPONENT VIDEO OUT:

(Y) 1.0 V (p-p), 75 Ω,negative sync, RCA jack x 1

(Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2

AUDIO OUT:

2.0 Vrms (1 KHz, 0 dB), 600 Ω, RCA jack (L, R) x 1 /

SCART (TO TV)

DIGITAL OUT (COAXIAL):

0.5 V (p-p), 75 Ω, RCA jack x 1

DIGITAL OUT (OPTICAL):

3 V (p-p), 75 Ω, Optical connector x1

System

Laser:

Semiconductor laser, wavelength 650 nm

Signal system: PAL / NTSC

Frequency response:

DVD (PCM 96 kHz): 8 Hz to 44 kHz

DVD (PCM 48 kHz): 8 Hz to 22 kHz

CD: 8 Hz to 20 kHz

Signal-to-noise ratio:

More than 100 dB (ANALOG

UE OUT connectors only)

Harmonic distortion: Less than 0.008%

Dynamic range:

More than 95 dB (DVD/CD)

Accessories:

Remote control (1), Batteries (2)

Note: Design and specifications are subject to change without prior notice.

30

Downloaded from www.Manualslib.com

manuals search engine

Technology with the human touch

GUARANTEE

● LG Electronics U.K. Ltd. will provide the following services in order to expedite this Guarantee.

1. All faulty components which fail due to defective manufacture will be replaced free of charge for a period of 12 months from the original date of purchase.

2. The dealer (or his service agent) who sold the product will be reimbursed for any labour provided in the repair of this LG equipment, for a period of 12 months from the original date of purchase.

These claims must be made in accordance with the published scale of service charges and relevant claims procedure.

PLEASE NOTE:

A. The dealer may restrict the guarantee to the original purchaser.

B. The dealer is not obliged to carry out service under guarantee if unauthorized modifications are made to the apparatus, or if non standard components are used or if the serial number of the apparatus is removed, defaced, misused, or altered.

C. Any claims made under guarantee must be directed to the dealer from whom the equipment was originally purchased. The dealer may, before carrying out service under guarantee, require a receipted account as evidence of the date of purchase.

D. We respectfully point out that your dealer is not obligated to replace batteries if they become exhausted or worn in use.

E. Aerial alignment and consumer control adjustments are not covered by this guarantee.

This guarantee does not affect your statutory rights.

● REQUIREMENTS TO MAINTAIN WARRANTY COVERAGE:

RETAIN YOUR RECEIPT TO PROVE DATE OF PURCHASE. A COPY OF YOUR RECEIPT MUST BE

SURRENDERED AT THE TIME GUARANTEE SERVICE IS PROVED.

● Product Registration Card :

It is helpful to complete at least your name, address, phone, model & serial numbers and return it. This will enable LG to assist you in the future should you lose your receipt, your units be stolen, or should modifications be necessary.

● To obtain information or assistance:

Call 0870 873 5454 Monday-Friday 9.00am-4.30pm

MODEL NO.* SERIAL NO.* DATE OF PURCHASE.*

*

Please complete for your own record

In all cases of difficulty - consult your LG dealer from whom the product was purchased

P/NO : 3834RD0076K

Downloaded from www.Manualslib.com

manuals search engine

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
