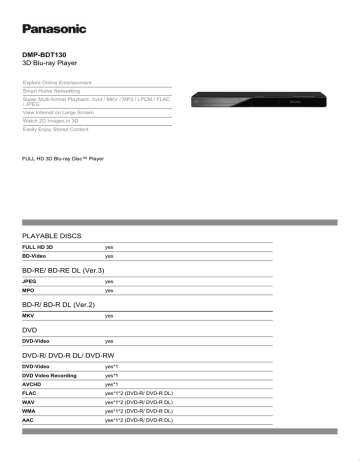

Panasonic DMPBDT130 Networked 3D Ready Blu-ray

Panasonic DMPBDT130 Networked 3D Ready Blu-ray
DMP-BDT130
3D Blu-ray Player
Explore Online Entertainment
Smart Home Networking
Super Multi-format Playback: Xvid / MKV / MP3 / LPCM / FLAC
/ JPEG
View Internet on Large Screen
Watch 2D Images in 3D
Easily Enjoy Stored Content
FULL HD 3D Blu-ray Disc™ Player
PLAYABLE DISCS
FULL HD 3D
yes
BD-Video
yes
BD-RE/ BD-RE DL (Ver.3)
JPEG
yes
MPO
yes
BD-R/ BD-R DL (Ver.2)
MKV
yes
DVD
DVD-Video
yes
DVD-R/ DVD-R DL/ DVD-RW
DVD-Video
yes*1
DVD Video Recording
yes*1
AVCHD
yes*1
FLAC
yes*1*2 (DVD-R/ DVD-R DL)
WAV
yes*1*2 (DVD-R/ DVD-R DL)
WMA
yes*1*2 (DVD-R/ DVD-R DL)
AAC
yes*1*2 (DVD-R/ DVD-R DL)
MP3
yes*1*2 (DVD-R/ DVD-R DL)
MKV
yes*1 (DVD-R/ DVD-R DL)
JPEG
yes*1 (DVD-R/ DVD-R DL)
MPO
yes*1 (DVD-R/ DVD-R DL)
+R/ +R DL/ +RW
Video
yes*1
AVCHD
yes*1
CD, CD-R/ -RW
CD-DA
yes, (-RW*3)
FLAC
yes*2, (-RW*3)
WAV
yes*2, (-RW*3)
WMA
yes*2, (-RW*3)
AAC
yes*2, (-RW*3)
MP3
yes*2, (-RW*3)
MKV
yes, (-RW*3)
JPEG
yes, (-RW*3)
MPO
yes, (-RW*3)
AUDIO SYSTEM
Dolby® Digital Plus/ Dolby®
TrueHD
yes, Decode(5.1ch) and Bitstream Output*4
DTS™-HD Master Audio Essenti- yes, Decode and Bitstream Output*4
al/ DTS™-HD High Resolution
Audio
SD MEMORY CARD
Slot
yes
Compatible Media
SD/ SDHC/ SDXC
Playback
JPEG
yes
MPO
yes
MPEG2
-
AVCHD
yes
MP4
yes
USB
Slot (Front, Rear)
yes(2) (For Playback, - )
USB Standard
USB 2.0 High Speed
Playback
FLAC
yes*2
WAV
yes*2
WMA
yes*2
AAC
yes*2
MP3
yes*2
MKV/ MP4
yes
JPEG
yes
MPO
yes
HIGH QUALITY PICTURE
Built-in 4K (UHD) Up-scaling
-
Adaptive Chroma Processing
-
2D-3D Conversion
yes (BD/ DVD/ CD/ SD Memory Card/ VOD/ USB/ NAS)
3D Effect Controller
yes (BD/ DVD/ CD/ SD Memory Card/ VOD/ USB/ NAS)
Full HD Up Sampling
yes
Deep Color
yes
x.v.Color
yes*6
HIGH QUALITY SOUND
TWIN HDMI
-
High Quality Network Audio
Playback
yes
Pure Audio on HDMI
-
High Clarity Sound Plus
-
Digital Tube Sound
-
Audio D/A Converter
-
Analog 7.1ch Output
-
96kHz Surround Re-Master
-
EASY OPERATION
Web Browser
yes
Miracast™
-
Touch Pad Remote
-
Smartphone Remote Control
-
Multi-User Mode/ Stylish GUI/
Wallpaper
yes
VIERA Link™ (HDAVI Control 5) -
NETWORKING
VIERA Connect™
yes*10
IP VOD
-
Wireless LAN System
Capable with Optional Adaptor*11
DLNA (DMP&DMR) Function
yes
External HDD Playback
yes
Network Drive Access
yes
BD-Live™
yes*12
TERMINAL
HDMI Output
yes
Video Output
-
Optical Output
yes
Coaxial Output
-
Analog Audio Output
-
LAN (Ethernet) Terminal
yes (for DLNA, BD-Live™*12, VIERA Connect*10 and Firmware Update)
OTHERS
Video System
PAL/ NTSC
Audio S/N
-
Dynamic Range
-
Power Supply
AC 220-240V, 50Hz
Power Consumption
Normal Use [Approx.]
18W
Standby - Quick Start Off [Approx.]
0.5W
Standby - Quick Start On [Approx.]
5.5W
DIMENSIONS, WEIGHT
Dimensions (W x H x D) [Approx.]
430 x 38 x 179 mm
Weight [Approx.]
1.4 kg
NOTE
*1 Discs recorded and finalized on recording devices.
*2 For contents recorded disc media from CDs for your personal use.
*3 Playability may vary depending on the contents, discs and quality of
the recording.
*4 HDMI connection required.
*5 For 4K2K playback a TV with same resolution is required.
*6 This function is effective only when reproducing AVCHD data recorded with x.v.Colour technology. The function cannot be used with BDROM or DVD-ROM discs. HDMI connection is required. x.v.Colour is a
registered trademark.
*7 CD sampling is done at 88.2 kHz. MP3 data can be re-mastered only
on CD.
*8 Compatible with Android™ devices, Ver. 4.2 and above and Miracast
certified. For information on whether the smartphone, etc. supports Miracast, contact the manufacturer of the device.
*9 Requires the device with the App installed and the player to be
connected to the same home network.
*10 Requires broadband Internet service.
*11 With the purchase of Wireless LAN Adaptor DY-WL5.
*12 To enjoy content, you will need to insert an SD card in BBT01 and
BDT500 or USB flash drive in BDT330, BDT230, BDT130/ BDT131 and
BD79 (1GB or more of free space/ sold separately). Requires broadband Internet service.
*13 Using included AC adaptor.
*14 Excluding the projecting parts and the pedestal.
Specifications are subject to change without notice. Weight and dimensions are approximate.
