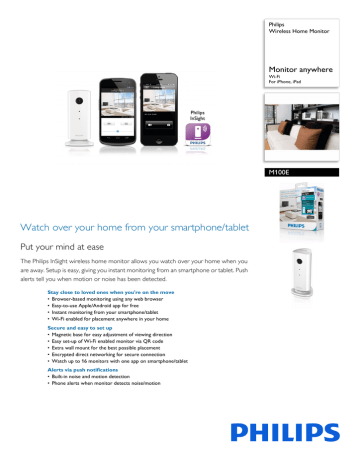

M100E/12 Philips Wireless Home Monitor

M100E/12 Philips Wireless Home Monitor
Philips
Wireless Home Monitor
Monitor anywhere
Wi-Fi
For iPhone, iPad
M100E
Watch over your home from your smartphone/tablet
Put your mind at ease
The Philips InSight wireless home monitor allows you watch over your home when you
are away. Setup is easy, giving you instant monitoring from an smartphone or tablet. Push
alerts tell you when motion or noise has been detected.
Stay close to loved ones when you're on the move
• Browser-based monitoring using any web browser
• Easy-to-use Apple/Android app for free
• Instant monitoring from your smartphone/tablet
• Wi-Fi enabled for placement anywhere in your home
Secure and easy to set up
• Magnetic base for easy adjustment of viewing direction
• Easy set-up of Wi-Fi enabled monitor via QR code
• Extra wall mount for the best possible placement
• Encrypted direct networking for secure connection
• Watch up to 16 monitors with one app on smartphone/tablet
Alerts via push notifications
• Built-in noise and motion detection
• Phone alerts when monitor detects noise/motion
M100E/12
Wireless Home Monitor
Monitor anywhere Wi-Fi, For iPhone, iPad
Highlights
Wi-Fi enabled
The In.Sight wireless monitor is a Wi-Fi
enabled monitor, it uses your home wireless
network to stream live video and audio to your
smartphone/tablet. A home monitor that you
can set up anywhere you like.
Instant monitoring
Instant monitoring from your smartphone/
tablet
Free Apple/Android app
Easy-to-use Apple/Android app for free
Browser-based monitoring
The InSight wireless home monitor also allows
you to find out what's going on at home in real
time from your favorite web browser, be it
Chrome, Internet Explorer, Safari or Firefox,
on a PC or Mac.
Easy set-up via QR code
Set-up is simple with the app. The app will
generate a QR code for your home Wi-Fi
settings. With the QR code, the monitor will
automatically pair with your Wi-Fi network,
easily and instantly.
Watch up to 16 monitors
Watch up to 16 monitors with one app on
smartphone/tablet
Direction adjustable
Encrypted direct networking
Philips InSight wireless home monitor has a
magnetic base that holds the monitor, allowing
you to rotate and adjust your monitor to any
angle.
Philips In.Sight wireless home monitor uses
highly secure encryption to provide you with
privacy at all times. In.Sight wireless home
monitor uses a unique encryption key each
time it makes a connection.
Extra wall mount
Noise and motion detection
InSight wireless home monitor comes with a
wall mounting bracket. Use it to easily mount
your monitor to any wall or ceiling. The base
itself pivots and turns, so you can still
reposition the InSight wireless home monitor
when it is mounted.
It's impossible to predict when something
might happen. InSight wireless home monitor
keeps watch with adjustable noise and motion
detection. You will be alerted anytime noise or
motion is detected.
Alert notifications
Phone alerts when monitor detects noise/
motion
M100E/12
Wireless Home Monitor
Monitor anywhere Wi-Fi, For iPhone, iPad
Specifications
Lens & Sensor
• Sensor: VGA
• Focus mode: Fixed
• Focus range: 0.4M to infinity
4S, iPhone 5
• iPod compatibility: iPod Touch 4th generation & up
• Android phone compatibility: Philips recommends
Samsung Galaxy 3 performance phones or better
Video Quality
Accessories included
•
•
•
•
VGA streaming
Formats: H.264 video compression
White Balance: Automatic white balance
Exposure: Automatic exposure control
Features
• Wi-Fi: 802.11 b/ g/ n (2.4GHz), 802.11 a (5GHz)
not supported
• Motion detection
• Noise detection
• LED indicator
• Magnetic base: Direction adjustable
• Reset button
• Screw holes: Yes, 1
Software
•
•
•
•
Installation: via App
Automatic App update
Web browser support
System supported: iOS4.3 or above, Android 2.3
or above
• iPad compatibility: iPad, iPad 2, New iPad, iPad
mini, iPad (3rd generation)
• iPhone compatibility: iPhone 3GS, iPhone 4, iPhone
•
•
•
•
•
Extra wall mount
USB power adapter
USB cable: Yes, 2.5 m
Screws / wall anchors: 3
Quick Start Guide
Input and Output
• Microphone: High-senstitive, Mono
• USB: Mini-USB port
Minimum Requirements
• Windows: Windows XP, Windows Vista,
Windows 7, Internet Explorer 6.0, PENTIUM 4 2.8 GHz processor, 1GB RAM and 64 MB Video
RAM
• MAC: MACINTOSH 10.4, MACINTOSH 10.5,
MACINTOSH 10.6, MAC 1.66 Ghz Intel Core
Duo, Safari 1.1
Dimensions
• Packaging dimensions (W x H x D):
158 x 160 x 58 mm
• Product dimensions (W x H x D):
45 x 95 x 45 mm
•
Issue date 2014-05-29
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Version: 7.0.4
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
12 NC: 8670 000 98563
EAN: 87 12581 67071 9
www.philips.com
* Viewing live video over your home Wi-Fi network using the In.Sight
wireless home monitor is free and unrestricted. Viewing live video
remotely (either over an external Wi-Fi network or 3G network) is
also free for unlimited sessions, but subject to a limit of 5 minutes
per session.
* Longer remote viewing session times and other premium features
are available for purchase from the App. These conditions are
subject to change.
