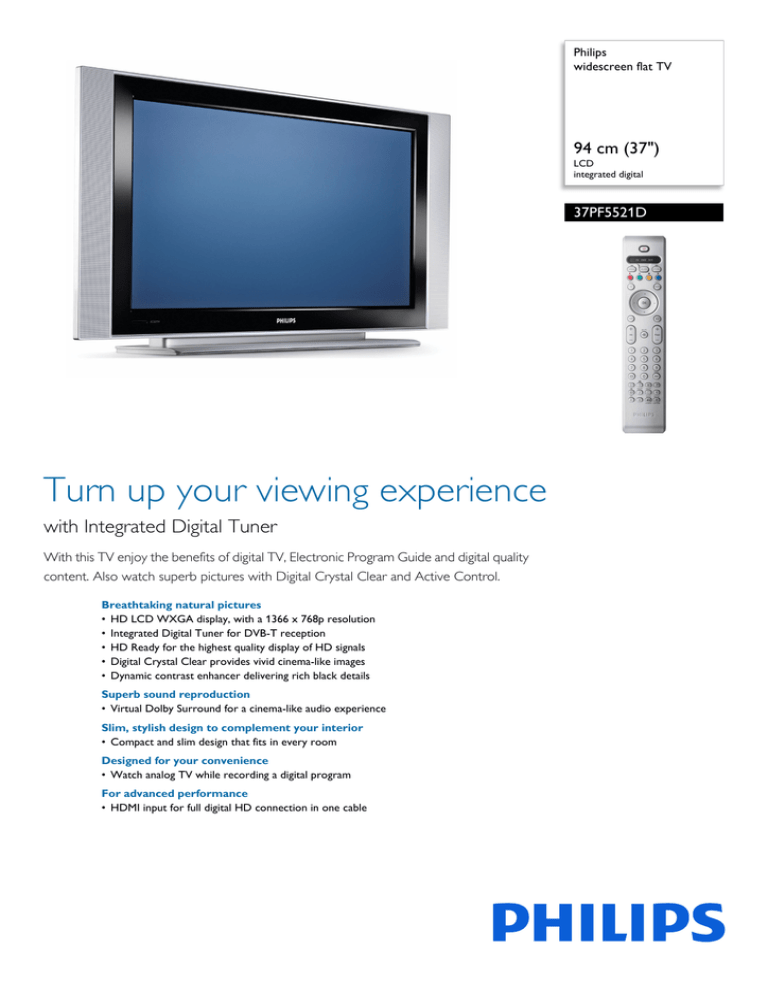

37PF5521D/12 Philips widescreen flat TV

37PF5521D/12 Philips widescreen flat TV
Philips
widescreen flat TV
94 cm (37")
LCD
integrated digital
37PF5521D
Turn up your viewing experience
with Integrated Digital Tuner
With this TV enjoy the benefits of digital TV, Electronic Program Guide and digital quality
content. Also watch superb pictures with Digital Crystal Clear and Active Control.
Breathtaking natural pictures
• HD LCD WXGA display, with a 1366 x 768p resolution
• Integrated Digital Tuner for DVB-T reception
• HD Ready for the highest quality display of HD signals
• Digital Crystal Clear provides vivid cinema-like images
• Dynamic contrast enhancer delivering rich black details
Superb sound reproduction
• Virtual Dolby Surround for a cinema-like audio experience
Slim, stylish design to complement your interior
• Compact and slim design that fits in every room
Designed for your convenience
• Watch analog TV while recording a digital program
For advanced performance
• HDMI input for full digital HD connection in one cable
37PF5521D/12
Widescreen flat TV
94 cm (37") LCD, integrated digital
Highlights
LCD WXGA display, 1366 x 768p
This WXGA display with state-of-the-art LCD
screen technology gives you widescreen HD
resolution of 1366 x 768p pixels. It produces
brilliant flicker-free progressive scan pictures
with optimum brightness and superb colors.
This vibrant and sharp image will provide you
with an enhanced viewing experience.
Integrated Digital DVB-T tuner
The integrated Digital DVB-T tuner lets you
receive digital terrestrial TV without an
additional set top box. Enjoy quality TV clutter
free.
HD Ready
Enjoy the exceptional picture quality of High
Definition pictures and be fully prepared for
HD sources like HDTV settop box or Blu-ray
disc. HD Ready is a protected label that offers
picture quality beyond that of progressive scan.
It conforms to strict standards laid out by
EICTA to offer a HD screen that displays the
benefits of resolution and picture quality of a
High Definition signal. It has a universal
connection for both analog YPbPr and
uncompressed Digital connection of DVI or
HDMI, supporting HDCP. It can display 720p,
and 1080i signals at 50 and 60Hz.
Digital Crystal Clear
Digital Crystal Clear is a package of picture
innovations that digitally adjusts and optimizes
picture quality to optimal contrast, color and
sharpness levels. It's like watching vivid cinemalike images.
Dynamic contrast enhancer
You want the LCD flat display with the highest
contrast and most vibrant images even at wide
viewing angle. The Philips dynamic contrast
enhancer uses video processing and unique
dimming backlight technology. This delivers
deep rich black levels with increased detail.
The dimming backlight increases the contrast
up to 5 times*, and at the same time improves
the viewing angle. It gives a bright, lifelike
picture with high contrast and vibrant colors,
(* factor between 2 and 5, screen type and
picture content dependant).
Virtual Dolby Surround
Virtual Dolby Surround is a processing
technology for enhancing surround sound
effects. It will create the sensation of Dolby
Pro Logic without the necessity of additional
rear speakers. You become totally immersed
in your television experience.
Watch analog, record digital
Watch analog TV while recording a digital
program
HDMI input
HDMI makes an uncompressed digital RGB
connection from the source to the screen. By
eliminating conversion to an analog signal, it
delivers an unblemished image. The nondegraded signal reduces flicker and leads to a
clearer picture. HDMI intelligently
communicates the highest output resolution
with the source device. The HDMI input is fully
backward compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy
protection.
37PF5521D/12
Widescreen flat TV
94 cm (37") LCD, integrated digital
Specifications
Picture/Display
•
•
•
•
•
•
•
•
•
•
•
•
Aspect ratio: 16:9
Brightness: 500 cd/m²
Contrast ratio (typical): 800:1
Dynamic screen contrast: 1600:1
Response time (typical): 8 ms
Viewing angle: 176º (H) / 176º (V)
Diagonal screen size: 37 inch / 94 cm
Display screen type: LCD WXGA Active Matrix
TFT
Panel resolution: 1366 x 768p
Picture enhancement: 3/2 - 2/2 motion pull down,
3D Combfilter, Active Control, Color
Temperature Adjustment, Contrast Plus, Digital
Crystal Clear, Digital Noise Reduction, Jagged Line
Suppression, Progressive scan, Pulse Killer Chip,
Sharpness Adjustment
Color cabinet: Silver Frost Bi-Color with
Tempered Glass Deco Front
Screen enhancement: Anti-Reflection coated
screen
Supported Display Resolution
• Computer formats
Refresh rate
Resolution
640 x 480
60, 67, 72, 75Hz
720 x 400
70Hz
800 x 600
56, 60, 72, 75Hz
1024 x 768
60, 70, 75Hz
• Video Formats
Refresh rate
Resolution
640 x 480i
1Fh
640 x 480p
2Fh
720 x 576i
1Fh
720 x 576p
2Fh
1280 x 720p
3Fh
1920 x 1080i
2Fh
Sound
•
•
•
•
Equalizer: 5-bands
Output power (RMS): 2 x 15W
Sound Enhancement: Dynamic Bass Enhancement
Sound System: Stereo, Virtual Dolby Surround
Loudspeakers
• Built-in speakers: 2
Program information Line
• User Interface: 7 day Electronic program Guide
Tuner/Reception/Transmission
Accessories
•
•
•
•
•
•
•
Aerial Input: 75 ohm coaxial (IEC75)
TV system: PAL, SECAM
Digital TV: DVB Terrestrial *
Tuner bands: Hyperband, S-Channel, UHF, VHF
Number of Preset Channels: 100
Tuner Display: PLL
Video Playback: NTSC, PAL, SECAM
Connectivity
• Ext 1 Scart: Audio L/R, CVBS in/out, RGB
• Ext 2 Scart: Audio L/R, CVBS in/out, RGB out, Svideo in
• Number of Scarts: 2
• Ext 4: YPbPr
• Ext 5: HDMI
• Ext 6: HDMI
• Front / Side connections: Audio L/R in, CVBS in,
Headphone Out, S-video in
• Other connections: Antenna IEC75, S/PDIF out
(coaxial), Common Interface
Convenience
• Clock: Sleep Timer, Wake up Clock
• Ease of Installation: Auto Program Naming,
Automatic Channel Install(ACI), Automatic Tuning
System (ATS), Autostore, Fine Tuning, Plug & Play,
Program Name, Sorting
• Ease of Use: Auto Volume Leveller (AVL), Easy
toggle Dig/Analog modes, Program List, Side
Control, Smart Picture, Smart Sound, Watch
analogue/record digital
• Picture in Picture: Picture in graphics
• Remote Control: TV, Aux, DVD
• Remote control type: RC4343/01
• Screen Format Adjustments: 4:3, Movie expand
14:9, Movie expand 16:9, Subtitle Zoom, Super
Zoom, Widescreen
• Teletext: 500 page Smart Text
• Teletext enhancements: 4 favourite pages,
Issue date 2015-08-18
© 2015 Koninklijke Philips N.V.
All Rights reserved.
Version: 5.0.7
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
12 NC: 8670 000 23993
EAN: 87 10895 94781 7
www.philips.com
• Included accessories: Table top stand, Power cord,
Quick start guide, User Manual, Registration card,
Warranty certificate, Remote Control, Batteries
for remote control
• Optional accessories: Floor stand
Dimensions
• Set dimensions (W x H x D):
1100 x 609 x 120.5 mm
• Dimensions (with base) (W x H x D):
964 x 657 x 240 mm
• Weight incl. Packaging: 31.5 kg
• Product weight: 25.1 kg
• Box dimensions (W x H x D):
1191 x 821 x 330 mm
• VESA wall mount compatible: 800 x 400 mm
Power
•
•
•
•
•
•
Ambient temperature: 5 °C to 40 °C
Mains power: AC 220 - 240 V +/- 10%
Power consumption: 150-205 W
Power supply: AC 90-240
Standby power consumption: < 2 W
