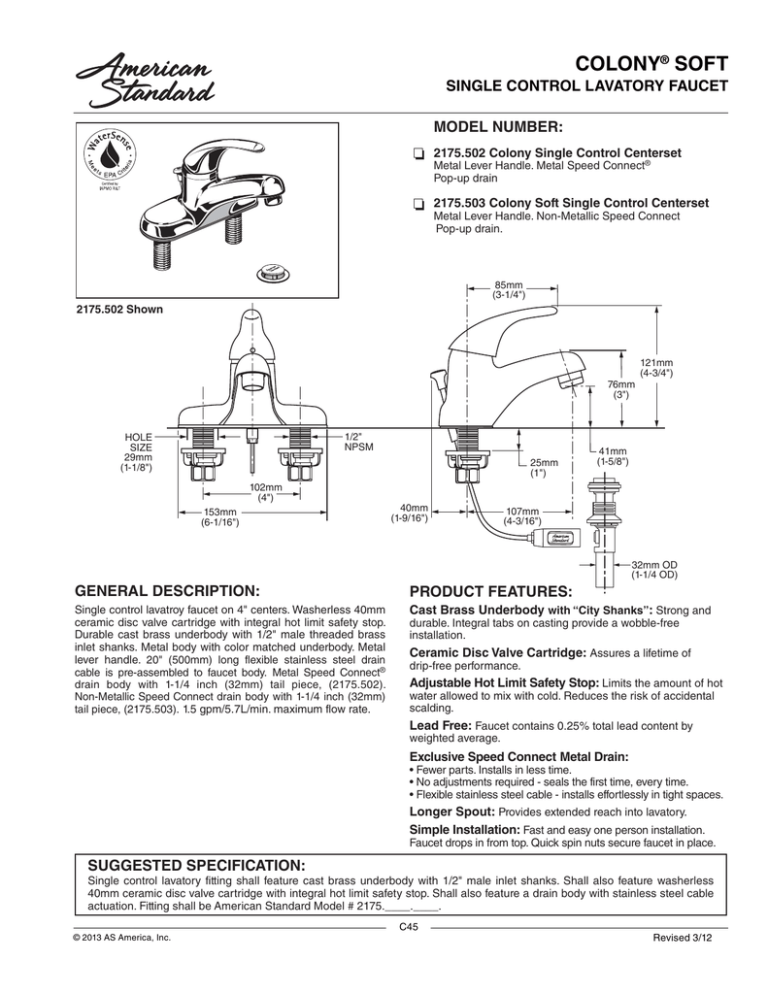

COLONY® SOFT
SINGLE CONTROL LAVATORY FAUCET
MODEL NUMBER:
2175.502 Colony Single Control Centerset
Metal Lever Handle. Metal Speed Connect®
Pop-up drain
2175.503 Colony Soft Single Control Centerset
Metal Lever Handle. Non-Metallic Speed Connect
Pop-up drain.
85mm
(3-1/4")
2175.502 Shown
121mm
(4-3/4")
76mm
(3")
1/2"
NPSM
HOLE
SIZE
29mm
(1-1/8")
25mm
(1")
41mm
(1-5/8")
102mm
(4")
153mm
(6-1/16")
40mm
(1-9/16")
107mm
(4-3/16")
32mm OD
(1-1/4 OD)
GENERAL DESCRIPTION:
PRODUCT FEATURES:
Single control lavatroy faucet on 4" centers. Washerless 40mm
ceramic disc valve cartridge with integral hot limit safety stop.
Durable cast brass underbody with 1/2" male threaded brass
inlet shanks. Metal body with color matched underbody. Metal
lever handle. 20" (500mm) long flexible stainless steel drain
cable is pre-assembled to faucet body. Metal Speed Connect®
drain body with 1-1/4 inch (32mm) tail piece, (2175.502).
Non-Metallic Speed Connect drain body with 1-1/4 inch (32mm)
tail piece, (2175.503). 1.5 gpm/5.7L/min. maximum flow rate.
Cast Brass Underbody with “City Shanks”: Strong and
durable. Integral tabs on casting provide a wobble-free
installation.
Ceramic Disc Valve Cartridge: Assures a lifetime of
drip-free performance.
Adjustable Hot Limit Safety Stop: Limits the amount of hot
water allowed to mix with cold. Reduces the risk of accidental
scalding.
Lead Free: Faucet contains 0.25% total lead content by
weighted average.
Exclusive Speed Connect Metal Drain:
• Fewer parts. Installs in less time.
• No adjustments required - seals the first time, every time.
• Flexible stainless steel cable - installs effortlessly in tight spaces.
Longer Spout: Provides extended reach into lavatory.
Simple Installation: Fast and easy one person installation.
Faucet drops in from top. Quick spin nuts secure faucet in place.
SUGGESTED SPECIFICATION:
Single control lavatory fitting shall feature cast brass underbody with 1/2" male inlet shanks. Shall also feature washerless
40mm ceramic disc valve cartridge with integral hot limit safety stop. Shall also feature a drain body with stainless steel cable
actuation. Fitting shall be American Standard Model # 2175.____.____.
C45
© 2013 AS America, Inc.
Revised 3/12
COLONY® SOFT
SINGLE CONTROL LAVATORY FAUCET
CODES AND STANDARDS
FLOW RATE*
2.0
GALLONS PER MINUTE
These products meet or exceed the following
codes and standards:
ANSI A117.1
ASME A112.18.1
NSF 61/Section 9 & Annex G
CSA B 125.1
1.5
1.0
0.5
0.0
20
40
60
80
100
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
Finish Options
Product
Number
Polished
Chrome
Description
002
2175.502 Colony Single Control Centerset. Metal Speed
Connect®
PVD
Satin
Nickel
295
Pop-up drain.
2175.503 Colony Soft Single Control Centerset. Non-Metallic Speed Connect Pop-up drain.
N/A
N/A = Not Available
Meets the American
Disabilities Act Guidelines and
ANSI A117.1 Requirements for
the physically challenged.
Flow Control Options
Available Modifications*
Part Suffix
Non-Aerated
0.5gpm/1.9L/min. PCA Spray
__F05
Vandal-Resistant Non-Aerated
0.5gpm/1.9L/min. PCA Spray
__V05
1.0gpm/3.8L/min. PCA Aerator
__F10
Vandal-Resistant
1.0gpm/3.8L/min. PCA Aerator
__V10
Vandal-Resistant
1.5gpm/5.7L/min. PCA Aerator
__V15
Non-Aerated Laminar PCA
1.5gpm/5.7L/min. Flow Outlet
__L15
*Modified product models are NOT Water Sense certified.
C46
© 2013 AS America, Inc.
Revised 3/12
