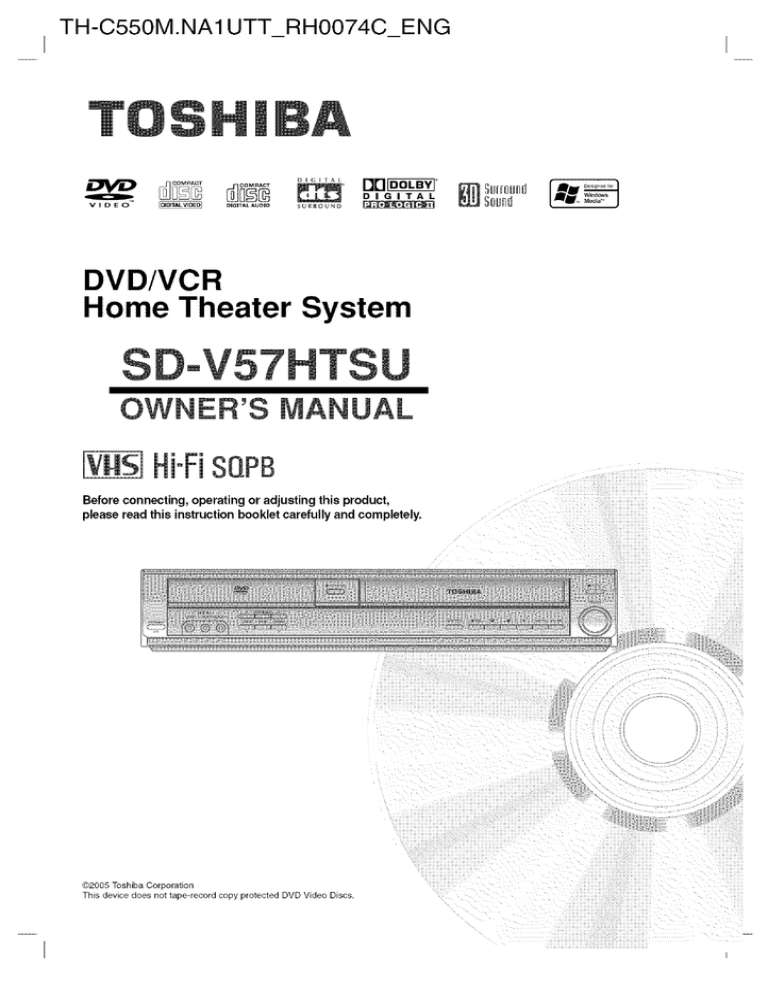

Toshiba SD-V57HTSU Home Theater Owner's Manual

PDF

Document

TH-C550M.NA1UTT

RH0074C ENG

I D E 0

O=_=TALAUO=O

SURROUND

DIGITAL

DVD/VCR

Home Theater System

Before connecting, operating or adjusting this product,

please read this instruction booklet carefully and completely.

This device does not tape-record copy protected DVD Video Discs.

CAUTION

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING: TO REDUCE THE RISK OF FIRE OR ELEC-

TRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO

RAIN OR MOISTURE.

CAUTION:

CAUTION: TO REDUCE THE RISK

OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

TO PREVENT ELECTRIC

WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR €:VITER LES CHOC €:LECTRIQUES,

INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE

DANS LA BORNE CORRESPONDANTE

POUSSER JUSQU'AU FOND.

SHOCK, MATCH

DE LA PRISE ET

WARNING: Do not install this equipment in a confined space such as a bookcase or similar unit.

NOTE TO CABLE/TV INSTALLER: This reminder is provided to call the cable TV system installer's attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.

CAUTION:

This DVD/VCR receiver employs a Laser System.

To ensure proper use of this product, please read this owner's manual carefully and retain for future reference.

Should the unit require maintenance, contact an authorized service location.

Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure.

Visible laser radiation when open. DO NOT

STARE INTO BEAM.

CAUTION: The apparatus should not be exposed to water

(dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus.

FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

REGULATORY

INFORMATION:

FCC Part 15

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the product is operated in a residential installation.

This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.

If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the product and receiver.

• Connect the product into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

SERIAL NUMBER: The serial number is found on the back of this unit. This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase.

Model No.

Serial No.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions. - All these safety and operating instructions should be read before the product is operated.

11. Only use attachments/accessories

the manufacturer.

2. Keep these instructions.

- The safety, operating and use instructions should be retained for future reference.

3. Heed all warnings.

- All warnings on the product and in the operating instructions should be adhered to.

4. Follow all instructions.

- All operating and use instructions should be followed.

5. Do not use this product near water. - For example: near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet basement; cleaners.

or near a swimming other areas located near water.

pool; and

6. Clean only with dry cloth. - Unplug this product from the wall outlet before cleaning.

Do not use liquid

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. -

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over-heating.

The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface.

This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

specified by

12.

Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with apparatus.

When a cart is used, use caution when moving the cart/product combination to avoid injury from tip-over.

13.

Unplug

this product during lightning storms or

when unused for long periods of time.

14.

Refer all servicing to qualified service personnel.

Servicing is required when the product has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the product, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are

provided for your safety. If the provided plug does

not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.

Introduction

Safety Precautions ............................

IMPORTANT SAFETY INSTRUCTIONS

............

Table of Contents .............................

Before Use ................................

Playable Discs .............................

Precautions ...............................

Notes on Discs .............................

About Symbols .............................

Selecting the Viewing Source ..................

Front Panel ..................................

Display Window ..............................

Remote Control ..............................

Rear Panel .................................

Preparation

Connections

.............................

11-14

Connecting Antenna/Cable TV to a

DVDNCR Receiver ........................

Basic TV Connections ......................

Optional TV Connections ....................

Speaker System Connections .................

Speaker Positioning ........................

Radio Antenna Connections ..................

Accessory AudioNideo (A/V) Connections to

DVDNCR Receiver ........................

Digital Device Connections ...................

Selecting the Input/Output Source ..............

Before Operation - Sound Mode Descriptions .....

Mini Glossary for Audio Stream & Surround Mode . 16

Sound Mode .............................

Volume Control ...........................

Muting ..................................

VCR Operation Setup ......................

On-Screen Display(OSD) ....................

On-Screen Menus Setup ....................

VCR Setup Menu Options ...................

Channel Selection .........................

17-19

Setting the Clock ..........................

DVD Operation Setup ......................

General Explanation ........................

On-Screen Display .........................

Initial Settings ..........................

• General Operation ......................

• Language .............................

• Picture ...............................

Progressive Scan .......................

• Speaker Setup .........................

• Others ...............................

• Parental Control ........................

20-23

21-23

5-6

Operation ...........................

Normal Playback ..........................

Special Effect Playbacks ....................

• Search ...............................

24-29

• Still Picture and Frame-by-Frame Playback ... 24

• Slow Motion ...........................

• Variable playback speed control ............

Normal Recording .........................

Timer Recording ........................

Instant Timer Recording .....................

Dubbing and Editing ........................

Copying from DVD to VCR ...................

VHS Hi-Fi Stereo System/MTS Broadcast .......

Tape Counter Memory Feature ................

Additional Information .......................

DVD and Video CD Operation ................

Playing DVD and Video CD ..................

General Features .......................

• Moving to another TITLE .................

• Moving to another CHAPTER/TRACK

.......

25-26

30-32

30-32

• Slow Motion ...........................

• Still Picture and Frame-by-Frame Playback

... 30

• Search ...............................

• Random ..............................

• Repeat ...............................

• RepeatA-B

...........................

• 3D Surround ..........................

• Time Search ...........................

• Zoom ................................

• Marker Search .........................

• Changing Video Mode ...................

Special DVD Features ......................

• Checking the contents of

DVD Video discs: Menus .................

• Title Menu ............................

• Disc Menu ............................

• Camera Angle .........................

Changing the Audio Language .............

• Changing the Audio Channel ..............

• Subtitle ...............................

• Screen Saver ..........................

Audio CD and MP3/WMA Disc Operation .......

Playing an Audio CD and MP3/WMA Discs .......

Notes on MP3 Recordings ...................

• Pause ...............................

33-34

• Moving to another Tracks .................

• Search ...............................

• Random ..............................

• Repeat Track/All/Off

....................

• RepeatA-B

...........................

• 3D Surround ..........................

• Changing the Audio Channel ..............

JPEG File Operation .........................

Viewing JPEG Files on a Disc ................

• Selecting other Files .....................

• Still Picture ............................

• To flip the picture .......................

• To rotate picture ........................

Notes on JPEG Files .......................

Programmed Playback ........................

Programmed Playback with Audio CDs and MP3/WMA Discs .......................

Programmed Playback with Video CD ..........

• Repeat Programmed Tracks ...............

• Erasing a Track from Program List ..........

• Erasing the whole Program List ............

Speaker Setup ..............................

Radio Operation ..........................

Presetting the Radio Stations .................

Listening to the Radio ......................

To Clear the Stored Radio Stations .............

Tuning into a Station Manually ................

For your reference .........................

Tuning into a Station Automatically .............

Labeling Stations ..........................

38-39

Reference

Controlling Your TV with the Supplied Remote . 40-41

Troubleshooting ..........................

42-43

Language Code List ..........................

Area Code List ..............................

Specifications ............................

Limited United States Warranty .................

46-47

About the symbols

for instructions

Indicates hazards likely to cause harm to the unit itself or other material damage.

Note:

Indicates special operating features of this unit.

Tip:

Indicates tips and hints for making the task easier.

Playable Discs

v, D Eo

DVD

(8 cm/12 cm disc)

Video CD (VCD)

(8 cm / 12 cm disc)

AudioCD

(8 cm/12 cm disc) ............

In addition, this unit can play a DVD-R/+RW, SVCD and

CD-R or CD-RW that contains audio titles, MP3, WMA or JPEG files.

Notes

• Depending on the conditions of the recording equipment or the CD-R/RW (or DVD-R/_+RW) disc itself, some CD-R/RW (or DVD-R/+RW) discs cannot be played on the unit.

• Do not attach any seal or label to either side (the labeled side or the recorded side) of a disc.

• Do not use irregularly shaped CDs (e.g., heartshaped or octagonal).

It may result in malfunctions.

Notes on DVDs and Video CDs

Because of problems and errors that can occur during the creation of DVD and Video CD software and/or the manufacture of DVD and Video CD discs, Toshiba cannot guarantee that this DVDNCR Receiver will play every feature of every DVD bearing the DVD logo and/or every Video CD bearing the CD logo. As one of the creators of DVD technology, Toshiba DVD players are manufactured using the highest standards of quality, and as a result, such incompatibilities are rare. If you happen to experience any difficulty playing a DVD or a

Video CD on this DVDNCR Receiver, please feel free to call our Consumer Solution Center (see page 49).

Notes on copyright

The unauthorized recording, use, distribution, or revision of television programs, videotapes, DVDs and other materials, is prohibited under the Copyright Laws of the United States and other countries, and may subject you to civil and/or criminal liability.

This product incorporates copyright protection technology that is protected by method claims of certain U.S.

patents and other intellectual property rights owned by

Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.

Reverse engineering or disassembly is prohibited.

Regional code of the DVD/VCR Receiver and DVDs

This DVD/VCR Receiver is designed and manufactured for playback of region "1" encoded

DVD software. The region code on the labels of some DVDs indicates which type of player can play those discs. This unit can only play DVDs labelled

"1" or "ALL". If you try to play any other discs, the message "Check Regional Code" will appear on the TV screen. Some DVDs that have no region code label may still be subject to area restrictions and therefore not playable.

Note on DTS-encoded CDs

When playing DTS-encoded CDs, excessive noise may be exhibited from the analog stereo output. To avoid possible damage to the audio system, turn down the volume before playing back such discs, adjust the volume gradually, and keep the volume level low. To enjoy

DTS Digital Surround ® playback, an external 5.1 channel DTS Digital Surround ® decoder system must be connected to the digital output of the unit.

Disc-related Terms

Title (DVD only)

The main film content or accompanying feature content or additional feature content, or music album.

Each title is assigned a title reference number enabling you to locate it easily.

Chapter

(DVD only)

Sections of a picture or a musical piece that are smaller than titles. A title is composed of one or several chapters. Each chapter is assigned a chapter number, enabling you to locate the chapter you want. Depending on the disc, chapters may not be recorded.

Track (Video CD and Audio CD only)

Sections of a picture or a musical piece on a video CD or an audio CD. Each track is assigned a track number, enabling you to locate the track you want.

Scene

On a video CD with PBC (Playback control) functions, moving pictures and still pictures are divided into sections called "Scenes".

Each scene is displayed in the menu screen and assigned a scene number, enabling you to locate the scene you want.

A scene is composed of one or several tracks.

Types

of Video CDs

There are two types of Video CDs:

Video CDs equipped with PBC (Version 2.0)

PBC (Playback control) functions allow you to interact with the system via menus, search functions, or other typical computer-like operations.

Moreover, still pictures of high resolution can be played if they are included in the disc.

Video CDs not equipped with PBC (Version 1.1)

Operated in the same way as audio CDs, these discs allow playback of video pictures as well as sound, but they are not equipped with PBC.

Precautions

Handling the unit

When shipping the unit

The original shipping carton and packing materials come in handy. For maximum protection, re-pack the unit as it was originally packaged at the factory.

When setting up the unit

The picture and sound of a nearby TV, VCR, or radio may be distorted during playback. In this case, position the unit away from the TV, VCR, or radio, or turn off the unit after removing the disc.

To keep the surface clean

Do not use volatile liquids, such as insecticide spray, near the unit. Do not leave rubber or plastic products in contact with the unit for a long period of time. They will leave marks on the surface.

Cleaning the unit

To clean the cabinet

Use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

To obtain a clear picture

The DVDNCR Receiver is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality will be poor.

Regular inspection and maintenance are recommended after every 1,000 hours of use. (This depends on the operating environment.)

For details, please contact your nearest dealer.

Moisture

Condensation

Never operate the DVDNCR Receiver immediately after moving it from a cold location to a warm location. Leave it for two or three hours without operating it. If you use the DVDNCR Receiver in such a situation, it may damage discs/tapes and internal parts.

Notes

on Discs

Handling discs

Do not touch the playback side of the disc.

Hold the disc by the edges so that fingerprints will not get on the surface.

Do not stick paper or tape on the disc.

Storing

discs

After playing, store the disc in its case.

Do not expose the disc to direct sunlight or sources of heat, or leave it in a parked car exposed to direct sunlight, as there may be a considerable temperature increase inside the car.

Cleaning discs

Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center out.

YES NO _

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners or anti-static spray intended for older vinyl records.

About Symbols

About the ® symbol display

" (S) " may appear on the TV screen during operation.

This icon means the function explained in this owner's manual is not available at that moment or with that specific DVD video disc.

About the disc symbols

for instructions

A section whose title has one of the following symbols are applicable only to those discs represented by the symbol.

DVDs.

Audio CDs.

Video CDs with the PBC (playback control) function.

Video CDs without the PBC (playback control) function.

MP3 Discs.

WMA Discs.

JPEG Files.

Selecting the Viewing Source

You must select one of your output sources (DVD or

VCR) to view on the TV screen.

• If you want to view DVD deck output source:

PressDVD/CD until DVD indicator in the display window lights and output source of DVD deck is viewed on the TV screen,

• If you want to view VCR deck output source:

PressVCR until VCR indicator in the display window lights and output source of VCR deck is viewed on the TV screen,

• It you want to listen to AM/FM radio broadcasts:

PressFM/AM until RADIO indicator in the displaywindow lights and the frequency band appears on the TV screen.

Notes

• If you insert a disc while the DVD/VCR Receiver is in the VCR mode, the DVDNCR Receiver will switch to

DVD mode automatically.

• If you insert a cassette tape without an erasure prevention tab intact while the DVDNCR Receiver is in the DVD mode, the DVDNCR Receiver will switch to

VCR mode automatically.

ON/STANBY I/_

Switches the DVDNCR Receiver ON and OFF.

LINE IN 2 (VIDEO / AUDIO (L/R) input

Connect the audio/video output of an external source (Audio system, TV/Monitor, another VCR).

Disc Tray (DVD deck)

Insert a disc here.

_ (PLAY)

To play back a recorded tape er disc.

TUNING (/_ / _/)

Selects FM and AM band.

COPY/MEMORY

Press to copy a DVD in the DVD deck to a VHS tape in the VCR deck.

Memorizes currently tuned Radio frequency (station).

_ EJECT

Ejects the tape in the VCR deck.

VOLUME

Adjusts volume of speakers.

A OPEN/CLOSE

Opens or closes the disc tray.

Cassette Compartment (VCR deck)

Insert a video cassette here.

I m

RADIO

Selects Radio operation mode.

DVDNCR

Toggles control between the DVD deck and the

VCR deck.

OREC

To record normally or to activate

Instant Timer Recording.

CH/PRESET (/_/'_/)

Scans up or down through memorized channels or radio frequencies (stations).

Remote Sensor

Point the DVDNCR Receiver remote control here.

II (PAUSE/STEP)

Pause playback or recording temporarily/press repeatedly for frame-by-frame playback.

Display window

Shows the current status of the

DVDNCR Receiver.

• (STOP)

Stops playback of a disc or tape.

/_t_1

DVD: Go to beginning of current chapter/track or Press two times in quick successions to go to previous chapter/track.

Press and hold for a fast reverse search.

VCR: Rewinds the tape during the STOP mode or for fast reverse picture search.

DVD: Go to NEXT chapter/track.

Press and hold for two seconds for a fast forward search.

VCR: Advances the tape during the STOP mode or for fast forward picture search.

I I

Indicates encoding format of the current disc.

A cassette is in the VCR deck.

RADIO Indicates RADIO mode is active

MUTE The speaker sound is muted.

Indicates sound mode is

DOLBY PRO LOGIC or DOLBY PRO LOGIC II.

SAP Indicates when a SAP BILINGUAL broadcast is being received.

HI-FI Indicates the unit is playing back a tape recorded in Hi-Fi.

REC DVD/VCR Receiver is Recording.

COPY DVD to VCR copy is in progress.

TIMER DVD/VCR

Receiver is in timer recording or a timer recording is programmed.

Lights when a disc is in the DVD deck

PROG Indicates when programmed playback is in progress.

l)l)]:(1)l _ _

o-o]

Indicates clock, total playing time, elapsed time, remaining time, title number, chapter/track number, channel, radio frequency, level, volume, channel or current deck status (Playback, Pause, Mode, etc).

Lights when TV mode is active.

The VCR deck is selected.

Indicates repeat mode

DVD DVD inserted.

PHOTO Photo disc inserted.

VCD Video CD inserted.

MP3

MP3 disc inserted.

ST Indicates a stereo broadcast is being received.

Indicates when the Progressive scan playback is in progress.

Switches TV ON and OFE

INPUT •

- Selects the VCR deck's source

(Tuner, LINE 1, er LINE 2) in VCR mode.

- Selects the TV external source in TV mode.

AUX

•

To listen to an audio source connected to the

DIGITAL AUDIO IN (OPTICAL) jack with video from LINE 1.

SOUND

MODE •

Selects sound mode between BYPAS& PRO

LOGIC, PRO LOGIC I] (MOVIE, MUSIC,

MATRIX) and 3D SURROUND.

OPEN/CLOSE, EJECT ( _ ) •

- Opens and closes the disc tray.

- Ejects the tape in the VCR deck.

0-9 numerical buttons

Selects numbered options in a menu.

ZOOM

Enlarges DVD/VCD video image.

ANGLE

•

Selects a DVD camera angle if available.

SUBTITLE

•

Selects a subtitle language.

AUDIO

•

Selects an audio language (DVD) or an audio channel (CD).

SLOW

•

Forward slow playback ef tape.

STOP •

Stops playback.

PAUSE/STEP

•

Pause playback or recording temporarily/press repeatedly for

¸TUNING

POWER

SOUND uINPUT AUX MOOE

CCI CD CD

EJECI

©©d J

ANGLE SUB TITLE AUDIO

MARKER

©

SEARCH eCH/IRK

POWER

eVOLUME

"CII/TRK

SLOW STOP PAUSE/STEP PLAY

©C]@ E>

REW WD SKIP

Starts playback.

REW •

•

- Rewinds the tape during the STOP mode.

FWD •

- For fast forward picture search.

-Advances the tape during the STOP mode.

SKIP (14_1) •

- Skip to beginning of current DVD/CD chapter or track, press twice in quick succession to go to previous DVD/CD chapter or track.

- Press and hold for a fast reverse picture search in DVD mode.

SKIP (1_1_1)

•

- Skip te next DVD/CD chapter or track.

- Press and hold for a fast forward picture search in DVD mode.

REC/ITR (0) •

Records normally or activates Instant Timer

Recording.

REPEAT A-B, SP/SLP •

- Repeats sequence.

- Selects recording speed.

REPEAT

•

Repeat chapter, track, title, all.

RANDOM

•

Plays tracks in random order.

REC/ITR REPEATA-B REPEAT RANDOM

C3 C3 CB

SP/SLP

Note

This remote control uses the same buttons for VCR and

DVD functions (ex. PLAY).

To use the VCR, first press the VCR button.

To use the DVD, first press the DVD/CD button.

POWER (I/V)

Switches DVD/VCR Receiver ON and OFF.

• TV

To control multi-brand TV.

• DVD/CD

To control DVD/CD operating.

•

VCR

To control VCR operating.

• FM/AM

Selects the DVDNCR Receiver's tuner as the listening choice (FM and AM bands).

PROGRAM

Accesses or removes Program menu.

COUNT RESET, CLEAR

- Resets tape counter to 0:00:00

- Removes a track number en the program menu er a mark on the

MARKER SEARCH menu.

TOP MENU

Displays the disc's Title menu, if available.

DISC MENU

Accesses menu on a DVD disc.

RETURN

- Removes the setup menu.

- Displays the menu of a video CD with

PBC.

TUNING (A/V)

To tune in the desired station.

MARKER

Marks any point during playback.

Displays MARKER SEARCH menu.

VOLUME (A/V)

-Adjusts volume of speaker.

-Adjusts volume of TV in TV mode.

DISPLAY, CLK/CNT

Accesses On-Screen display.

Switches among the clock, tape counter and tape remaining modes on the display.

4/I_/A_

(left/right/up/down)

Selects an option in the menu.

CH/TRK (A_): Selects VCR channels in

VCR mode ; Selects TM channels in TV mode.

Manually adjusts the tape's picture onscreen in VCR mode.

4/1_ can also change the speed of VCR playback. For example, slow, still, 2x play,

3x play, review and cue.

TV/VCR

To view channels selected by the VCR tuner or by the TV tuner.

ENTER, MEMORY

-Acknowledges menu selection.

Displays functions on the TV screen.

SETUP, MENU

Accesses or removes DVD Setup menu and

VCR menu.

MUTE

Turns off sound from speaker connectors.

VCR IN LINE 1 (VIDEO IN/AUDIO IN

(Left/Right))

Connect the audio/video output of an external source (Audio system, TV/Monitor, Another

VCR).

AC Power Cord

DVD/VCR OUT (VIDEO/AUDIO (Left/Right))

Connect to a TV with video and audio inputs.

COMPONENT/PROGRESSIVE SCAN VIDEO OUT

(Y Pb Pr) (DVD OUT)

Connect to a TV with Y Pb Pr inputs. FOR DVD

VIEWING ONLY.

ANT.IN

Connect the VHF/UHF/CATV antenna to this terminal.

lug into the power source.

REOUT I

Connect to a TV with RF coaxial inputs. J

S-VIDEO OUT (DVD OUT)

Connect to a S-Video Input on TV. FOR DVD VIEWING ONLY.

SPEAKER Connectors

Connect the six supplied speakers to these terminals.

Do not touch

panel.

Electrostatic

the inner pins of the jacks

DIGITAL AUDIO IN (OPTICAL)

Connect to a digital audio output on a digital device.

on the rear discharge may cause permanent age to the unit.

dam-

AM Antenna Connectors

Connect the AM antenna to this terminal.

FM Antenna Connector_

Connect the FM antenna to this terminal.

Remote

Control

Operation Range

Point the remote control at the remote sensor and press the buttons.

• Distance: About 7m (23ft) from the front of the remote sensor

• Angle: About 30 ° in each direction of the front of the remote sensor

Remote control battery

installation

Detach the battery cover on the rear of the remote control, and insert two R03

(size AAA) batteries with © and • aligned correctly.

_Caution

Never throw batteries into a fire.

Notes

•

Be sure to use AAA size batteries.

• Dispose of batteries in a designated disposal area.

• Batteries should always be disposed of with the environment in mind. Always dispose of batteries in accordance with applicable laws and regulations.

• If the remote control does not operate correctly, or if the operating range becomes reduced, replace batteries with new ones.

• When necessary to replace batteries in the remote control, always replace both batteries with new ones. Never mix battery types or use new and used batteries in combination.

• Always remove batteries from remote control if they are dead or if the remote control is not to be used for an extended period of time. This will prevent battery acid from leaking into the battery compartment.

Tips

•

Depending on your TV and other equipment you wish to connect, there are various ways you could connect the

DVD/VCR Receiver. Use connections described on pages

11-14.

• Please refer to the manuals of your TV, VCR, Stereo

System or other devices as necessary to make the best connections.

Z_Caution

• Make sure the DVD/VCR Receiver is connected directly to the TV. Tune the TV to the correct video input channel.

• Do not connect the DVD/VCR Receiver's DVD/VCR AUDIO

OUT jack to the phono in jack (record deck) of your audio system.

• Do not connect your DVDNCR Receiver via your VCR. The

DVD image could be distorted by the copy protection system.

• The unauthorized recording, use, distribution, or revision of television programs, videotapes, DVDs and other materials, is prohibited under the Copyright Laws of the United States and other countries, and may subject you to civil and/or criminal liability.

Connecting Antenna/Cable TV to

DVD/VCR Receiver

Disconnect the antenna leads from the rear of the

TV.

Identify the type of cable from your antenna. If it is a round cable as illustrated, it is a 75 ohm coaxial antenna cable. This cable will connect directly to the jack marked ANT.IN on your DVDNCR Receiver.

Tip

If your antenna lead wire is a flat type antenna cable, connect it to an Antenna Adaptor (300-ohm to 75-ohm)

(not supplied) and slip the Adaptor onto the ANT.IN

jack. The Adaptor does not screw on to the DVD/VCR

Receiver, it just slips over the jack.

Without Cable Box

If your cable wire is connected to your TV without a converter or descrambler box, unscrew the wire from your TV and attach it to the ANT.IN jack on the DVD/VCR Receiver. Use the supplied round coaxial cable to connect between the DVD/VCR

Receiver's RROUT jack and the 75 ohm antenna input jack on the TV. With this connection, you can receive all midband, super band, and hyperband channels.

With Cable Box

If a converter is required in your cable system, follow the instruction below:

The cable hookup permits both TV and DVD/VCR Receiver operation.

To view or record a CATV channel

1 Tune the TV to the DVDNCR Receiver output channel (CH

3 or 4).

2 Set the DVDNCR Receiver channel selector to the output channel of the Cable Converter box using CH/TRK (A/V) or number (0-9) of your DVD/VCR Receiver. (Example: CH3)

3 Select the channel to view at the Cable Converter Box.

Notes

•

With this connection, you CANNOT record one program while viewing another.

• If you are using a cable box to tune channels, it is not necessary to do Auto Channel Programming, (Auto Channel

Search) as indicated on page 18.

Back Panel of

Typical Cable Box

Cable TV

Wall Jack

L_ i

CABLE

Antenna Antenna

Cable TV

Wall Jack

®®®o

Rear of DVD/VCR Receiver

(300 ohm)

300/75 ohm _

Adaptor

(Not supphed)

OR '

9 o

Rear of DVD/VCR Receiver

I I m

Basic TV Connections

Make one of the following connections, depending on the capabilities of your TV.

RF coaxial connection

Connect the RF.OUT jack on the DVDNCR Receiver to the antenna in jack on the TV using the 75-ohm Coaxial

Cable supplied (R).

Note

If you use this connection, tune the TV to the

DVDNCR Receiver's RF output channel (CH 3 or 4).

How to set the DVD/VCR Receiver's RF output channel

When the DVD/VCR Receiver is turned off, press and hold CH/PRESET (/_/_/) on the front panel for about five seconds to change the RF output channel (CH 03 or CH 04). "RF-03" or "RF-04" appears in the display window.

Audio/Video connection

1. Connect the DVDNCR VIDEO OUT jack on the

DVD/VCR Receiver to the video in jack on the TV using the supplied video cable (V).

2. Connect the Left and Right DVDNCR AUDIO OUT jacks on the DVD/VCR Receiver to the audio left/right in jacks on the TV (A) using the supplied audio cables.

Note

If you use this connection, set the TV's source selector to VIDEO.

Rear of TV

Optional TV Connections

Note

DVD playback can also be done using the S-VIDEO OUT and COMPONENT/PROGRESSIVE SCAN VIDEO OUT connection options below. The tuner and VCR ONLY output through the RROUT (R) or DVDNCR OUT (A,

V) jack. (See left)

S-Video Connection

1. Connect the S-VIDEO OUT jack on the DVD/VCR

Receiver to the S-Video in jack on the TV using the

S-Video cable (S).

2. Connect the Left and Right AUDIO OUT jacks on the DVDNCR Receiver to the audio left/right in jacks on the TV using the supplied audio cables (A).

Component Video (ColorStream ®) connection

1. Connect the COMPONENT/PROGRESSIVE SCAN

VIDEO OUT jacks on the DVDNCR Receiver to the corresponding in jacks on the TV using Y Pb Pr cables (C).

2. Connect the Left and Right AUDIO OUT jacks of the

DVDNCR Receiver to the audio left/right in jacks on the TV (A) using the supplied audio cables.

Progressive

Scan (ColorStream Pro ) connection

• If your television is a high-definition or "digital ready" television, you may take advantage of the DVD/VCR

Receiver's progressive scan output for the highest video resolution.

• If your TV does not accept the Progressive Scan format, the picture will appear scrambled if you try

Progressive Scan on the DVDNCR Receiver.

1. Connect the COMPONENT/PROGRESSIVE SCAN

VIDEO OUT jacks on the DVDNCR Receiver to the corresponding in jacks on the TV using Y Pb Pr cable (C).

2. Connect the Left and Right AUDIO OUT jacks of the

DVDNCR Receiver to the audio left/right in jacks on the TV (A) using the supplied audio cables.

Notes

• Set the Progressive Scan to "On" on the DVD setup menu for progressive signal, see page 21.

• Progressive scan does not work with the analog video connections (yellow VIDEO OUT and S-VIDEO OUT jack).

Rear of DVD/VCR Receiver

I m

Speaker System Connections

Connect the speakers using the supplied speaker cords by matching the colors of the terminals and those of the cords. To obtain the best possible surround sound, adjust the speaker parameters (distance, level, etc.).

Notes

• Be sure to match the speaker cord to the appropriate terminal on the components: (_ to (_ and Q to Q. If the cords are reversed, the sound will be distorted and lack bass.

• If you use front speakers with low maximum input rating, adjust the volume carefully to avoid excessive volume output to the speakers.

• Do not disassemble the front covers of supplied speakers.

Front Speaker

(RUght)

Center

Speaker

Front Speaker

(Left)

Speaker Positioning

For a normal setup use 6 speakers (2 front speakers, center speaker, 2 rear speakers and subwoofer).

• Front Speakers

Based on your listening position, set up the speakers at equal distance. And by hearing position, set up an interval between speakers of 45 degree.

• Center Speaker

It is ideal that the center speakers and front speakers are same height. But normally place it above or below the television as shown below.

• Rear Speakers

Place the rear surround speakers to the left and right behind the primary listening area. These speakers recreate sound motion and atmosphere required for surround playback. For best results, do not install the rear speakers too far behind the listening position, install them at or above the level of the listener's ears.

It is also effective to direct the rear speakers towards a wall or ceiling to further disperse the sound.

In the case of a smaller room size, if the audience is near to the rear wall set the rear speakers opposite each other, and set the rear speakers 60 - 90 cm above the listener's ears.

• Subwoofer

This can be placed in any front position.

Center Speaker

Rear

Speaker

(Left)

Subwoofer

Front

Speaker

Front

Speaker

(Right)

Rear

Speaker

(Right)

Rear speaker

(Right surround)

•

Subwoofer

Rear

speaker

(Left surround)

About Ferrite Core

Be sure to attach the ferrite core to the speaker cables (for connecting to this unit).

This ferrite core can reduce noises.

How

to attach the ferrite

core.

Push the stopper [a] of the ferrite core to open.

Wind the Center and Subwoofer Speaker cables once on the ferrite core.

Pass the others straight on the ferrite core.

3 Close the ferrite core until it clicks.

Speaker Positioning Example

Radio Antenna Connections

Connect the supplied FM/AM antennas for radio listening.

1. Connect the AM loop antenna to the AM antenna connectors.

2. Connect the FM wire antenna to the FM antenna connectors.

Notes

• To prevent noise pickup, keep the AM loop antenna away from the DVDNCR Receiver and other components.

• Be sure to fully extend the FM wire antenna.

• After connecting the FM wire antenna, keep it as horizontal as possible.

Digital Device Connections

Connect the DIGITAL AUDIO IN (OPTICAL) jacks on the DVD/VCR Receiver to the digital audio out (optical) jacks on your digital device (Game device, Digital Set

Top Box, etc.), using optional optical audio cable.

To select source of DVD/VCR Receiver to OPTICAL IN, press AUX on the remote control.

Notes

• If the audio format of the digital output does not match the capabilities of your DVD/VCR Receiver, the

DVD/VCR Receiver will produce a strong, distorted sound or no sound at all.

• The Optical input function is available only when the other unit's Sampling Frequency is 32 - 48kHz.

Game Device

! o

Digital Set Top Box

_ .... O,,)

Rear of DVD/VCR Receiver

Accessory Audio/Video

(A/V)

Connections to DVD/VCR

Receiver

Connect the VCR IN LINE1 or LINE in 2 jacks on the

DVDNCR Receiver to the audio/video out jacks on your accessory component, using optional audio/video cables.

Jack

Panel of Accessory Component

(VCR, Camcorder,

etc,) i

Rear of DVD/VCR Receiver

AUX

INPUT

DVD/CD VCR

ekNPUT

MODE EJECT

SOUND OPEN,CLO_

ANGLE SU£ TITLE AUDIO

DISC MENU

MARKER

SEARCH eVOLUME TbNING

DIS PlAY

O .oH,Tr,

SET

K O

CLK/CNT___MENU

TV/VCR

SLOW

STOP PAUSESTEP

MUTE

PLA'Y

SKIP

C> c0

REC/ITR REPEATA=B REPEAT RANDOM

C3 C3 C3

FM AM

Follow these guidelines to select and switch among the various DVDNCR Receiver input and output sources:

• DVD/CD

To view output from the DVD deck:

Press DVD/CD on the remote or DVD/VCR on the front panel until the DVD indicator on the front panel lights and output from the DVD deck is viewed on the

TV screen.

• VCR

To view output from the VCR deck:

Press VCR on the remote or DVDNCR on the front panel until the VCR indicator on the front panel lights and output from the VCR deck is viewed on the TV screen.

• FM/AM

To listen to AM/FM radio broadcasts:

Press FM/AM on the remote to toggle between AM and FM radio. The selected frequency appears on the front panel display.

AUX

To listen to an audio source connected to the

DIGITAL AUDIO IN (OPTICAL) jack with video from LINE 1:

Press AUX on the remote control once. L1 OPT will appear on the front panel display. Audio will come from an external source connected to the DIGITAL

AUDIO IN (OPTICAL) jack and video will come from an external source connected to the VIDEO IN jack of LINE 1 (for rear panel).

To listen to an audio source connected to the

AUDIO IN jack of LINE1 with video from LINE 1:

Press AUX on the remote control a second time.

L1 will appear on the front panel display. Audio will come from an external source connected to the

AUDIO IN jacks of LINE1 (for rear panel) and video will come from an external source connected to the

VIDEO IN jack of LINE 1 (for rear panel).

INPUT

To view a source connected

to the front or rear

LINE inputs:

First, press VCR to select the VCR deck, and then press INPUT to select LINE1 (L1) (for rear panel) or

LINE2 (L2) (for front panel).

Mini Glossary for Audio Stream &

Surround mode

(DTS)

Allows you to enjoy 5.1 (or 6) discrete channels of high quality digital audio from DTS program sources such as discs, DVD and compact discs, etc.bearing

the trademark.

DTS Digital

Surround delivers up to 6 channels of transparent audio(which means identical to the original masters) and results in exceptional clarity throughout a true 360 degree sound field. The term DTS is a trademark of DTS Technology, LLC.

Manufactured under license from DTS Technology, LLC.

NDDIGITAL

(Dolby Digital)

The Dolby Digital surround format lets you enjoy up to 5.1

channels of digital surround sound from a Dolby Digital program source. If you play DVDs with " uu_, mark, you can enjoy even better sound quality, greater spatial accuracy, and improved dynamic range.

DDPF{0LOGIC (Dolby

Pro Logic)

Use this mode when playing movie or Doiby Digital 2 channel which carries the" _ " mark. This mode provides the effect of being in a movie theater or live concert house-an effect with an intensity which can only be obtained through DOLBY PRO

LOGIC SURROUND.

The

effect

of the front/back/left/right movement of the sound image, as well as the sense of fixed position in the sound image, is much clearer and more dynamic than before.

BYPASS

Software with multichannel surround audio signals is played according to the way it was recorded.

Sound Mode

You can enjoy surround sound simply by selecting one of the pre-programmed sound fields according to the program you want to listen to.

Press SOUND MODE repeatedly until the sound mode you want appears in the display window as below.

Each time you press SOUND MODE button, the sound mode is changed in the following order;

BYPASS -_ PRO LOGIC -_ MOVIE -_ MUSIC -_ MATRIX -_

3D SURR

When DVD is inserted.

You can change the sound mode of DMD (Dolby Digital, DTS,

PCM, etc) by pressing the AUDIO button on the remote during playback.

Although the DVD contents differ from disc to disc, the following explains the basic operation when this feature is used.

Each time you press AUDIO button, the sound mode of DVD is changed as the following order;

DDDIGITAL-_ P'Z_J -_

PCM

-_ DDDIGITAL

Note

Depending on discs format, you may not be able to change the sound mode.

[_DPR0 LOGIC Ill (Dolby

Pro Logic ll)

Dolby Pro Logic II creates five full-bandwidth output channels from two-channel sources. This is done using an advanced, high-purity matrix surround decoder that extracts the spatial properties of the original recording without adding any new sounds or tonal colorations.

MOVIE mode:

The Movie mode is for use with stereo television shows and all programs encoded in Dolby Surround. The result is enhanced soundfield directionality that approaches the quality of discrete

5.1-channel sound.

MUSIC mode:

The Music mode is for use with any stereo music recordings, and provides a wide and deep sound space. The Music mode includes controls that allow the sound to be tailored to individual listening tastes.

MATRIX mode:

The Matrix mode is the same as the Music mode except that the directional enhancement logic is turned off. It may be used to

enhance mono signals by making them seem "larger." The Matrix mode may also find use in auto systems, where the fluctuations from poor FM stereo reception can otherwise cause disturbing surround signals from a logic decoder. The ultimate "cure" for poor FM stereo reception may be simply to force the audio to mono.

3D SURROUND

This unit can produce a 3D Surround effect, using 3D Surround

Sound technology, which simulates multi-channel audio playback from two conventional stereo speakers instead of the five or more speakers normally required to listen to multi-channel audio from a home theater. This feature works with DVD discs encoded with Dolby Pro Logic and Dolby Digital audio tracks.

For your reference

• The DVD/VCR Receiver memorizes the last mode settings for each source individually.

• You can identify the encoding

format of program software by looking at its packaging.

- Dolby Digital discs are labelled with the PuB logo.

- Dolby Surround encoded programs are labelled with the @_ logo.

- DTS Digital Surround discs are marked with _.

Note

When you play sound tracks with 96kHz sampling frequency, the output signals will be converted to 48kHz (sampling frequency).

Volume Control

You can adjust the volume by rotating VOLUME on the front panel or by pressing VOLUME (A/_') on the remote control repeatedly.

Muting

Press

MUTE

to mute your

unit.

You can mute your unit in order, for example, to answer the telephone, "MUTE" indicator in the display window will light up. To exit mute mode, press MUTE again.

On-Screen

Display (OSD)

Set the Output Source to VCR as shown in "Selecting the Input/Output Source" on page 15.

Some of these functions appear during VCR operated.

@ @

OTAPE SPEED DISPLAY

Shows the current tape speed.

€ FUNCTION

DISPLAY

Indicates the current function.

€ HI-FI DISPLAY

Indicates the unit is playing back tape recorded in Hi-Fi.

O CHANNEL DISPLAY

Indicates the selected channel (or LINEI(L1), LINE2(L2)).

STEREO/SAP DISPLAY (MONO is not displayed)

Shows the type of audio signal received by the VCR tuner.

Shows the current date. (Month/Date/Day of the week format)

CLOCK/COUNT/REMAIN DISPLAY

Shows the current time, the tape counter and remaining time on the tape.

Each press of the ENTER changes the TV on-screen displays in the following sequence.

I I °:35:°-L

Notes

• The function displays remain on the TV screen for 5 seconds.

• The clock (or tape counter, tape remaining) mode will remain on the screen until you press ENTER.

• The tape counter and the remaining tape length indicator appear only when a cassette is inserted. Also, the remaining tape length indicator appears after any tape operation.

EASY INFORMATION

If the Extended Data Service (XDS) signals are provided along with normal TV signal in your area or during playback of a tape recorded with Extended Data Service

(XDS) signals, the station ID, program title, and program details are shown on the TV screen.

When viewing a channel with Extended Data Service (XDS) signals, press ENTER and the station ID will appear on the

TV screen. Press ENTER again and the program details will appear on the TV screen.

When viewing a tape recorded with Extended Data

Service (XDS) signals, press ENTER twice and the program title and program details will appear on the TV screen.

PROGRAM DETAILS

LENGTH:

Indicates the run length of a program.

TIME REMAINING: Indicates the remaining time of a program.

RATING: Indicates the rating of the current program

(N/A, G, PG, PG-13, R, NC-17, X and Not Rated). The rating N/A means that the motion picture ratings are not applicable to this program.

CH 4

WABC

STEREO

PROGRAM DETAILS

"Home

video"

"Home video"

OCT 8, SAT

2:15 PM

Easy Information

Screen

(Station ID)

LENGTH

01:00

TIME REMAINING

00:26

RATING

N/A

Easy Information Screen

(Program details)

On-Screen Menus Setup

The SETUP, clock setting (CLOCK), and timer recordings (PROGRAM) are accessed conveniently with the on-screen menus, that lead you through each step.

The following pages describe the on-screen menu selections available.

Menu Selection

Your VCR allows remote control adjustment of several features.

Press MENU and the MAIN menu will appear.

2. Select the desired menu with &/v button and then press ENTER.

Note

Menus remain on-screen for 3 minutes.

MAIN MENU

]

]CLOCK

] PROGRAM

TUNING

SETUP

_RE SS 1'_9'_ravl

Press MENU when finished.

CLOCK SET (page 19)

PROGRAM

(page 25)

TUNING (page 18)

SETUP (page 18)

VCR Setup Menu Options

1. Press MENU and the MAIN menu will appear.

2. Use A/•

to select the SETUP menu, then press

ENTER.

The SETUP menu will appear.

Channel Selection

This DVD/VCR Receiver is equipped with a frequency synthesized tuner capable of receiving up to

181 channels. These include VHF channels 2-13, UHF channels 14-69 and CATV channels 1-125.

Preparation:

Connect the DVD/VCR Receiver to the desired type of antenna or cable TV system, as shown in Connecting Antenna/Cable

TV to DVD/VCR Receiver on page 11.

AUTO CHANNEL PROGRAMMING

Press MENU and the MAIN menu will appear.

Use A/•

to select the TUNING menu, then press

ENTER.

The TUNING menu will appear.

3. Use A/V to choose a desired option on the

SETUP menu. Then use </1_ to choose a desired setting.

FUNCTION OSD

The on-screen display of this DVDNCR Receiver can be turned on or off.

•

FUNCTION OSD can be switched between ON and OFF using 4/1_.

AUDIO MODE

The DVDNCR Receiver has two separate audio playback systems, the high quality VHS Hi-Fi system and standard NOR-

MAL mono system. The same audio is generally recorded on both systems. The VHS Hi-Fi system plays on separate (left and right) channels, and the NORMAL system plays monaural sound. The normal track is always played so the cassette can be played on a DVD/VCR Receiver that does not have VHS

Hi-Fi.

• AUDIO MODE can be switched between HI-FI and

NORMAL using 4/1_.

BROADCAST TYPE (STEREO/SAP/MONO)

Multichannel Television Sound (MTS) carries stereo and/or

Second Audio Program (SAP) bilingual signals. Set this display to the desired position when both MTS stereo and SAP signals are received. When only one of the MTS signal is received, the

DVD/VCR Receiver automatically selects the corresponding receiving mode (Stereo or SAP) regardless of the selected position. For normal operation, the display should be in the STEREO position. The DVD/VCR Receiver will then record a STEREO program when available, and record a mono program IF the program is

NOT IN STEREO.

For weak STEREO and/or SAP broadcasts, changing the display to mono may give clearer sound.

•

BROADCAST TYPE can be switched between STEREO,

SAP, and MONO using _1/1_.

AUDIO OUTPUT (STEREO/LEFT/RIGHT)

Used during playback [when AUDIO MODE (HI-FI/NORMAL) is in HI-FI position] for selecting the audio output signals from the

AUDIO OUT terminals (L ch and R ch), and RROUT.

This display setting should normally be left in the stereo position, so that when a stereo tape is played, the stereo sound will be heard through the left and right channels.

If a mono tape is played and the audio output is set to stereo, the same mono sound will be heard from both left and right channels.

• AUDIO OUTPUT can be switched between STEREO, LEFT, and RIGHT using 4/1_.

Press MENU when finished.

Use • to choose the SOURCE SELECT option,

then use </1_ to select TUNER.

Use A/• to choose the AUTO CHANNEL SET option,

then use 4/1_ to search for channels.

The tuner will automatically cycle through all available channels in the area and place them in the tuner's memory.

5. After the AUTO CHANNEL SET PROCEEDING is complete, make sure the TUNING BAND is set appropriately

(TV or CATV) using A/•

and choosing the correct TUNING BAND (TV or

CATV) by using </1_ while in the TUNING menu.

Remember, TV is for the air antenna reception,

CATV is for cable or wireless cable connection.

Press </1_ repeatedly to switch between TUNER,

LINE1 (L1) and LINE2(L2).

Press MENU to return to the TV screen.

Use CH/TRK (&/•)

on the remote control or

CH/PRESET (/_/V) on the front panel to cycle the DVD/VCR Receiver through the channels in memory.

TO ADD OR ERASE CHANNELS FROM MEMORY

This feature allows you to add or erase channels in memory manually.

1 Press • to choose the CH. ADD/DEL option on the

TUNING menu. Use </1_ to select a channel to add or erase.

2 Press ENTER to add or erase the channel.

Repeat steps 1 and 2 to add or erase channels.

3 Press MENU to return to the TV screen.

Setting

the Clock

The DVD/VCR Receiver gives you two ways to set the time and date: the Auto Clock Feature or manually. The

Auto Clock feature enables the DVD/VCR Receiver to set up the clock while the DVD/VCR Receiver is turned off.

Note

There are cases where the TV station does not send or sends the wrong time. Therefore, the incorrect time will be set. If this happens we recommend that you set the clock manually.

Manual Clock Set

The clock uses the 12-hour system.

(Be sure to set AM and PM correctly.)

The initial Clock Setting is JANUARY 1, 2005, 12:00 AM.

Auto Clock Set

The Auto Clock Set feature is set to ON at the factory. In the

ON setting, the DVDNCR Receiver looks for a channel carrying XDS (Extended Data Services) information. XDS updates the clock using the Coordinated Universal Time.

The Auto Clock feature enables the DVD/VCR Receiver to set up the clock while the DVD/VCR Receiver is turned off.

1. Press MENU and the MAIN menu will appear.

Use &/• to choose the CLOCK menu.

Press ENTER and the CLOCK menu will appear.

m CLOCK 1 __

Use • to choose the AUTO CLOCK SET option.

Use </1_ to choose ON.

Press MENU and the MAIN menu will appear.

Use _ to choose the CLOCK

menu.

Press ENTER and the CLOCK menu will appear.

Use </1_ to choose the month.

Use • to choose the DAY option.

Use •/1_ to choose the date.

The day of the week will display automatically.

Use • to choose the YEAR option.

Use </1_ to choose the year.

Use • to choose the TIME option.

Use </1_ to choose the time.

Press and hold _1/1_to advance clock

continuously.

Use • to choose the DAYLIGHT SAVINGS option.

Use • or I_ to choose AUTO, ON, or OFF.

If you choose AUTO, the VCR sets the clock using the

DST information broadcast in the signal (channel).

If you choose ON, the VCR adjusts the clock for Daylight

Saving Time automatically.

Use • to choose the DAYLIGHT SAVINGS option.

Use • or I_ to choose AUTO, ON, or OFF.

If you choose AUTO, the DVDNCR Receiver sets the clock using the DST information broadcast in the signal

(channel). If you choose ON, the DVD/VCR Receiver adjusts the clock for Daylight Saving Time automatically.

Use • to choose the TIME ZONE option.

Use • or I_ to choose the correct time zone

(AUTO, EASTERN, CENTRAL, MOUNTAIN,

PACIFIC, ALASKA or HAWAII).

If "AUTO" is selected as the time zone, the DVD/VCR

Receiver sets the clock using the first Coordinated

Universal Time information it finds in a broadcast signal.

Press MENU when finished.

Turn off the DVD/VCR Receiver and the auto

clock set feature

sets the time.

Press MENU when finished.

Note

If setting the clock manually, "AUTO CLOCK SET" must set to "OFF".

If set to "ON", an incorrect date and/or time will be entered again when the DVD/VCR Receiver is turned off.

I I m

General Explanation

This manual gives basic instructions for operating the

DVD/VCR Receiver. Some DVDs require specific operation or allow only limited operation during playback.

When this occurs, the symbol @ appears on the TV screen, indicating that the operation is not permitted by the DVD/VCR Receiver or is not available on the disc.

On-Screen Display

Set the Output Source to DVD as shown in "Selecting the Input/Output Source" on page 15.

General playback status can be displayed on the TV screen. Some items can be changed on the menu.

Temporary Feedback Field Icons

® ..... :

Repeat Title

.......................

@o"_"_:

Repeat Chapter

_ .....

..........

Repeat Track (non-PBC Video CDs and Audio CD only) i@ _LL

Repeat Disc (non-PBC Video CDs and Audio CD only)

i_0FFi

Repeat A-B

Repeat Off

@

Resume play from this point

Action prohibited or not available

On-screen display

operation

1. Press DISPLAY during playback.

2. Press A/V to select an item.

The selected item will be highlighted.

3. Press ,4/1_to change the setting of an item.

The number buttons can be also used for setting numbers (e.g., title number). For some functions, press ENTER to execute the setting.

Items

Title Number

Chapter Number

Time search

Audio language and Digital Audio

Output mode

Subtitle language

Angle

Sound

Notes

• Some discs may not provide all of the features on the on-screen display example shown below.

• If no button is pressed for 10 seconds, the on-screen display disappears.

Function (Press A/V to select desired item)

Shows the current title number and total number of

titles, and skips to the desired title number.

Shows

the current chapter

number and total number of chapters, and skips to the desired chapter number.

Shows the elapsed playing time, and searches the point directly from the elapsed time.

Shows the current audio soundtrack language, encoding method, and channel number, and changes the setting.

Shows the current subtitles language, and changes the setting.

Shows the current angle number and total number of angles, and changes the angle number.

Shows the current sound mode, and changes the setting.

Selection

Method

< /1_, or Numbers,

ENTER

/1_, or Numbers,

ENTER

Numbers, ENTER

< /1_, or

AUDIO

< /1_, or

SUBTITLE

< /1_, or

ANGLE

< / I_, or

SOUND MODE

Items

Track Number

Time

Audio Channel

Sound

Function (Press A/T to select desired item)

Shows the PBC On mode or current track number, total number of tracks and skips to the desired track number.

Shows the elapsed playing time (Display only)

Shows the audio

channel,

and changes the audio channel.

Shows the current sound mode, and changes the setting.

Selection

Method

< /1_,or Numbers,

ENTER

< /1_, or

AUDIO

< /1_, or

SOUND MODE

I m

I

Initial Settings

You can set your personal preferences on the DVD/VCR

Receiver.

General Operation

1. Press SETUP.

The Setup menu appears.


TV Aspect

4:3 Letterbox:

Select when a standard 4:3 TV is connected. Displays pictures with masking bars above and below the picture.

4:3 Panscan: Select when a standard 4:3 TV is connected. Displays pictures cropped to fill your TV screen.

Both sides of the picture are cut off.

16:9 Wide: Select when a 16:9 wide TV is connected.

Use A/T to select the desired option.

The screen will show the current setting for the selected option, as well as alternate setting(s).

3. While the desired option is selected, press I_, then A/T to select the desired setting.

Press ENTER to confirm your selection.

Some options require additional steps.

Press SETUP, RETURN, or PLAY to exit the setup menu.

Language

Disc Language

Select a language for the disc's Menu, Audio, and

Subtitle features.

Original : The original language set for the disc is selected.

Other : To select another language, use number buttons to enter the corresponding 4-digit number according to the language code list on page 44. If you enter the wrong language code, press CLEAR.

Note

Disc Language selection may not work for some DVDs.

Progressive

Scan |

Progressive Scan Video provides the highest resolution pictures with less flicker and line structure.

If you are using the COMPONENT/PROGRESSIVE

SCAN VIDEO OUT jacks, but are connecting the

DVDNCR Receiver to a standard (analog) television, set Progressive Scan to Off.

If you are using the Component Video jacks for connection to a TV or monitor that is compatible with a progressive scan signal, set Progressive Scan to On.

Menu Language

Select a language for the VCR and DVD Setup menu.

This is the menu you see when you press SETUP.

Z_Caution

Once the setting for progressive scan output is entered, an image will only be visible on a progressive scan compatible TV or monitor. If you set Progressive Scan to On in error, you must reset the unit.

1) Remove any disc from the unit and close the disc tray. See that "NO DISC" is displayed on the display window.

2) Press STOP (m) and hold it for more then five seconds before releasing it. The video output will be restored to the standard setting and a picture will once again be visible on a conventional analog TV or monitor.

I

I I m

Speaker setup

5.1 Speaker settings

Select speaker settings, including volume balance and distance, or test the speaker settings.

Speaker settings are only active on the Analog Multi-

Channel Output. (See "Speaker Setup", page 37.)

Auto Play

You can set up the DVDNCR Receiver so a DVD disc automatically starts playing whenever the DVD is inserted.

If Auto Play mode is set to On, this DVD/VCR Receiver will search a title where playback time is longest and then play back the title automatically.

On: Auto Play function is activated.

Off: Auto Play function is not activated.

Note

The Auto Play function may not work for some DVDs.

B.L.E.

(Black

Level

Expansion)

Others

The DRC, Vocal, PBC, Auto Play, B.L.E., Pluge and

DNR settings can be changed.

• Use A/V to select the desired item and press

ENTER. The setting of the selected item is changed between On and Off.

To select the black level of playback pictures. Set your preference and monitor's ability.

On: Expanded grey scale. (0 IRE cut off)

Off: Standard grey scale. (7.5 IRE cut off)

Pluge (Blacker than Black)

For proper adjustment of your television brightness settings utilizing a commercially available test disc.

On: Select when you adjust the level of your TV using a commercially available test disc that contains pluge signals.

Off: For normal use.

DNR (Digital Noise Reduction)

Dynamic Range Control (DRC) |

With the DVD format, you can hear a program's soundtrack in the most accurate and realistic presentation possible, thanks to digital audio technology. However, you may wish to compress the dynamic range of the audio output (the difference between the loudest sounds and the quietest ones). Then, you may listen to a movie at a lower volume without losing clarity of sound. Set

DRC to On for this effect.

Vocal ql_

Set Vocal to On only when a multi-channel karaoke

DVD is playing. The karaoke channels on the disc will mix into normal stereo sound.

PBC _

Set Playback Control (PBC) to On or Off.

On: Video CDs with PBC are played according to the PBC.

Off: Video CDs with PBC are played the same way as Audio

CDs.

You can reduce ambient noise in the picture.

DNRI:

Normal level

DNR2: Expanded level.

Off: Off.

Notes

• Actual picture enhancement may vary depending on the quality of the disc.

• While the DNR2 (expanded level) can provide additional improvement in the reduction of noise in the video signal, it may produce undesirable picture artifacts on some discs.

Should this occur, select a more appropriate DNR level (normal or off).

• Depending on the disc, some picture detail may be lost by the picture enhancement.

Parental Control

Rating

ql_

Movies on DVDs may contain scenes not suitable for children. Therefore, discs may contain Parental Control information that applies to the complete disc or to certain scenes on the disc. These scenes are rated from 1 to 8, and alternatively, more suitable scenes are available for selection on some discs. Ratings are area dependent.

DVD video discs may or may not respond to the parental control setting if the Area code of the disc is set wrongly.

The Parental Control feature allows you to prevent discs from being played by your children or to have certain discs played with alternative scenes.

Area Code

ql_

Enter the code of a area whose standards were used to rate the DVD video disc, referring to the list (See "Area

Code List", page 45).

Select Rating on the Setup menu using A/_'

buttons in stop mode.

While Rating is selected, press I_.

When you have not entered a password yet.

Enter a 4-digit password using the numbered buttons to create a personal 4-digit security password, then press ENTER. Enter the 4-digit password again and press ENTER to verify.

When you have already entered a password;

Enter a 4-digit password using the numerical buttons to confirm the personal 4-digit security password, then press ENTER.

If you make a mistake before pressing ENTER, press

CLEAR and enter 4-digit security password again.

Select a rating from 1 to 8 using A/T

buttons.

One (1) has the most playback

restrictions.

Eight

(8) has the least playback restrictions.

The limitation will be more severe as the level number decreases.

Unlock: If you select Unlock, Parental Control is not active. The disc will play in full.

Ratings 1 to 8: Some discs contain scenes not suitable for children. If you set a rating for the DVD, all disc scenes with the same rating or lower will be played. Higher rated scenes will not be played unless an alternative scene is available on the disc.

The alternative must have the same rating or a lower one. If no suitable alternative is found, playback will stop. You must enter the 4-digit password or change the rating level in order to play the disc.

Press ENTER to confirm your rating selection,

then press SETUP to exit the menu.

Press OPEN/CLOSE to activate the Parental

Control.

If the rating set is lower than the disc

rating, a message will appear. Select "YES" if

you want to continue playback and input the

password followed

by ENTER.

1. Select Area Code using the &/_' buttons on the

setup menu.

2. While Area Code is selected, press •.

3. Follow step 3 of "Rating"

on left.

4. Select the first character

using the &/_' buttons.

5. Press • to shift to second character

and select the second character using &/V buttons.

6. Press ENTER to confirm your Area code selection, then press SETUP to exit the menu.

Note

Confirmation of the 4-digit password is necessary when the password is changed (see Changing the 4-digit password below ).

Changing the 4-digit

1 Follow Steps 1-2 as shown above to the left (Rating).

2 Enter the old password, then press ENTER.

3 Select Change using &/V buttons then press

ENTER.

4 Enter the new 4-digit password, then press

ENTER.

5 Enter exactly the same password a second time and verify by pressing ENTER.

6 Press SETUP to exit the menu.

If you forget your password

4-digit password

If you forget your password, to clear the current password follow the procedure below.

1 Press SETUP to display the setup menu.

2 Enter the 6-digit number 210499.

The 4-digit password is cleared.

3 Enter a new password as shown above to the left

(Rating).

Normal Playback

Preparation:

• Turn on the TV.

• Tune the TV to the DVD/VCR Receiver output channel (CH

3 or 4) or set the TV's source selector to VIDEO.

• If a direct VIDEO/AUDIO connection is made between the

DVD/VCR Receiver and the TV, set the TV's source selector to VIDEO.

• Set the Output Source to VCR as shown in "Selecting the

Input/Output Source" on page 15.

Insert a prerecorded video cassette.

The O'--O indicator will light and the DVDNCR Receiver will power-up automatically.

•

Make sure that the (D indicator in the display window is not lighted. If it is, press POWER once.

• If a tape without a safety tab is inserted, the unit will start playback automatically.

Press PLAY once.

PLAY appears on the TV screen.

• It is not necessary to select the tape speed for playback. It will be automatically selected by the

DVD/VCR Receiver.

•

In playback, the TV/VOR selector switches to VCR mode automatically.

Press STOP to stop playback.

STOP appears on the TV screen.

• If the tape reaches the end before STOP is pressed, the

DVD/VCR Receiver will automatically stop, rewind and eject the tape, and it will turn itself off.

Tracking Control

Auto Tracking

The automatic tracking function adjusts the picture to remove snow or streaks.

The AUTO TRACKING cases: function works in the following

• A tape is played back for the first time.

• Tape speed (SP, SLP) changes.

• Streaks or snow appear because of scratches on the tape.

Manual Tracking

If noise appears on the screen during playback, press either CH/TRK (A/T) on the remote control or OH/PRE-

SET (/X/_/) on the front panel until the noise on the screen is reduced.

• If vertical jitter is present, adjust tracking controls very carefully.

• Tracking is automatically reset to normal when the tape is ejected or the power cord is unplugged for more than 3 seconds.

Special Effect Playbacks

Special effects playback notes

• Horizontal lines (noise bars) will appear on the TV screen.

This is normal.

• The audio is automatically muted during special effect modes, so there is no sound during search.

• During high-speed picture search mode, a short period is needed to stabilize tape speed when re-entering the PLAY mode. Slight interference may be observed during this period.

Search

This function lets you quickly and visually search for a desired tape section in either direction: forward or reverse.

1 Press PEW (44) or FWD (1_) during playback.

The

DVD/VCR Receiver will be activated in the SEARCH mode.

2 To return to playback, press PLAY.

Still Picture and Frame-by-Frame

Playback

1 Press PAUSE/STEP during playback.

Still picture will appear on the TV screen.

• If a still picture vibrates vertically, stabilize it using

CH/TRK(A/Y) on the remote control.

• If the DVD/VCR Receiver is left in the STILL mode for more than 5 minutes, the DVD/VCR Receiver will automatically enter the STOP mode to protect the tape and video heads.

2 Press PAUSE!STEP

repeatedly to advance the video picture one frame at a time while viewing a still picture.

3 To return to playback, press PLAY.

Slow Motion

1 Press SLOW.

The tape will be played back at a speed 1/19 times slower than the normal speed.

• During slow playback, use CH/TRK (A/Y) on the Remote

Control to minimize noise bands.

• If slow motion mode continues for more than 3 minutes, the DVDNCR Receiver will automatically change to playback mode.

2 To return to playback, press PLAY.

Variable playback speed control

During Playback use 4/1_, you can reach the following playback speeds.

(-7xplay (REV), -3xplay (-3PLY), -play (-PLAY), still

(STILL), 1/19 slow (SLOW), play (PLAY), 2xplay (2PLY),

7xplay(CUE)).

During slow motion and shuttle, the noise bars may appear on the picture according to the status of tape.

If distortions can be seen in the picture, reduce them with CH/TRK (A/T) on the remote control.

Normal Recording

Preparation:

• Turn on the power of both the DVDNCR Receiver and TV.

• Tune the TV to the DVD/VCR Receiver output channel (CH 3 or 4) or set the TV's source selector to VIDEO.

• If a direct VIDEO/AUDIO connection is made between the

DVDNCR Receiver and the TV, set the TV's source selector to VIDEO.

Insert a video cassette with the safety tab intact.

Select the desired channel with CH/TRK (A/T) or number (0-9) buttons.

If you are recording from another source via audio/video input jacks (at the Rear or Front panel), select LINE1(L1) or LINE2(L2) with INPUT.

Set the desired recording speed (SP or SLP) with the SP/SLP button.

Set the MTS mode as desired (See page

18, 28).

Press REC/ITR (O) once.

Recording will start.

(The REC indicator will light in the display window.)

• REC indicator appears only when the Output Source is set to VCR.

• If a cassette with no safety tab is loaded, the cassette will be ejected automatically.

Press STOP to stop recording.

If the tape reaches the end before STOP is pressed, the

DVD/VCR Receiver will automatically stop, rewind, eject the tape and turn itself off.

Timer Recording

This DVD/VCR Receiver can be programmed to record up to 8 programs within a period of 1 year. For unattended recording, the timer needs to know the channels to be recorded and the starting and ending times.

• If you try to set the program timer before setting the clock,

PLEASE SET THE CLOCK appears for a moment and then CLOCK menu appears on the TV screen. Set the time and date before proceeding.

• Make sure a tape is in the DVD/VCR Receiver and the safety tab is in place or the tape will be automatically ejected.

Preparation:

• Turn on the power of both the DVDNCR Receiver and the

TV.

• Be sure the TV is set to the DVD/VCR Receiver output channel

(CH3 or CH4).

• Make sure the TUNING BAND in the TUNING menu is set appropriately (TV or CATV).

Press MENU and the MAIN menu will appear.

Use A/•

to choose the PROGRAM menu.

Press ENTER

to go to the

PROGRAM

The PROGRAM menu will appear.

menu.

• If all 8 programs have been entered, FULLY

PROGRAMMED message will appear for a moment and then PROGRAM 1 will appear on the TV screen.

[] cLOCK ]

PROGRAM

To pause recording

1 Press PAUSE/STEP to pause the tape during recording.

The REC indicator will flash in the display window.

2 When you want to continue recording, press

PAUSE/STEP or REC/ITR (ll).

• After 5 minutes in Pause mode, the tape will be stopped automatically to protect the tape and the video heads.

To record one TV program while watching another

1 Use TV/VCR to select the TV mode during recording.

"TV" appears in the display window.

2 Using the TV, select the channel to be viewed.

Tips

Always use PAUSE/STEP for best results when making changes during recording.

For example: To change channels during recording, first press

PAUSE/STEP to put the unit in pause mode. Select the desired channel on the DVD/VCR Receiver, then press PAUSE/STEP again to resume recording.

Use _/1_ to choose the PROGRAM No. (1-8).

Use • to choose the MONTH option.

Use _/1_ to choose the desired month.

Use • to choose the DAY option.

Use _/1_ to choose the desired day.

Use • to choose the START option.

Use _/1_ to choose the desired start time.

Use •

to choose the STOP option.

Use _/1_ to choose

the desired stop time.

Use •

to choose the CHANNEL option.

Use _/1_ to choose

the desired channel

(Channel, LINEI(L1) or LINE2(L2)).

Cable Users: If you have CABLE TV and used Cable Box in Connecting Antenna/Cable TV to DVD/VCR Receiver

(page 11), using a cable box converter, you must set the channel in this step to match the cable box output channel

(usually CH 3 or 4). Change channels on the cable box instead of with the DVDNCR Receiver.

10. Use V to choose the SPEED option.

Use _/1_ to cheoee

(AUTO_ SP or SLP)o the desired recording speed

AUTO mode determines how much tape is left and switches speed from SP to SLP, if necessary, to complete recording the program. There will be some picture and sound distortion at the point of the speed change.

11o Use _' to choose the REPEAT option.

Use _/_ to choose the desired repeat (ONCE,

WEEKLY or DAJLY)o

ONCE event....for

recording up to 8 programs on a single day or over the days within a period of ! year.

WEEKLY event....for

recording up to 8 programs on a certain day of every week.

DAmLY event....for

recording up to 8 programs at the same time(s) Monday through Friday.

Notes

® If the power fails or the DVD/VCR Receiver is unplugged from the AC outlet, the correct clock time and timer settings are kept in memory for approximately 3 seconds. After 3 seconds, the clock and program timer must be reset when power is restored. Reset the clock according to instructions.

® After setting up a timer recording, recording will start if no other timer recordings are scheduled to occur at the same time (see "Program Priority" at right).

® The unauthorized recording, use, distribution, or revision of television programs, videotapes, DVDs and other materials, is prohibited under the Copyright Laws of the United States and other countries, and may subject you to civil and/or criminal liability.

Checking (Erasing) Timer Record

Programming

Programming can be checked whenever the DVD/VCR

Receiver is turned on=

1 Press MENU and the MAIN menu will appear=

2 Use _,/_' to choose the PROGRAM menu.

Press ENTER and the PROGRAM menu will appear=

Tip

If the input data is wrong, use A to select the data and correct it using _/_.

12. Press MENU, the program will be memorized by the DVD/VOR Receiver.

® (2) indicator lights in the display window.

® If the program preset time has past, the PAST TIME

PROGRAMMED message will appear on the TV screen.

Return to the incorrect program and program it with the correct time.

® If you had entered a past date, timer recording will be performed on that date of the next year.

® Additional programs may be entered by repeating steps

1_12.

CaMe Users: if your cable hookup is via a TV converter box, you can program multiple recordings only on the converter box output channel.

This is because the converter determines what channel you view through your

DVD/VCR Receiver.

Tip

if you have finished programming and you want to set the

DVD/VCR Receiver to record the programs you have entered,

MAKE SURE YOU HAVE INSERTED A TAPE mNTOTHE

DVD/VCR Receiver. The DVD/VCR Receiver is now set to record the preset programs.

Use _/_ to select a program you want to check or erase. If you want to erase the program, press

CLEAR.

4 Press MENU to return to the TV screen=

Program Priority

If the starting and ending times of two or more timer

7:00PM 8:00PM 9:00PM 10:00PM recordings overlap on the

I I I I same day, priority is given to

........

the earliest recording= For

........

,,.......

example,

in the diagram at left PROGRAM 2 will not be recorded untiI PROGRAM 1

These portions will notbe recorded,

PROGRAM iS finished.

The first part of

2 wilI not be recorded= Likewise, PRO-

GRAM 3 will not be recorded until PROGRAM 2 is finished, and so on=

Instant Timer Recording

Instant Timer Recording allows you to make a recording easily of a preset length without using the programmable timer.

Preparation:

•

Turn on the power of both the DVDNCR Receiver and the TV.

•

Be sure the TV is tuned to the DVDNCR Receiver output channel

(CH3 or 4).

• If a direct VIDEO/AUDIO connection is made between the

DVDNCR Receiver and the TV, set the TV's source selector to

VIDEO.

1. Insert a video cassette with the safety tab intact.

2. Select the desired channel with CH/TRK (&/_') or number (0-9) buttons.

The channel number appears on the TV screen.

• If you are recording from another source via audio/video input jacks (at the Rear or Front panel), select

LINEI(L1) or LINE2(L2).

3. Select the desired recording speed (SP or SLP)

with the SP/SLP button.

The tape speed will appear on the TV screen.

Press REC/ITR (O) twice.

The menu as illustrated, will appear on the TV screen.

• Recording will start. (The G indicator will light)

Press REC/ITR (O) repeatedly to select the recording time length.

At the end of the recording, the DVD/VCR Receiver will stop recording and shut off.

• During Instant Timer Recording, changing the channel on the DVD/VCR Receiver will not be possible.

• You can stop the recording by pressing STOP.

• Each additional press or REC/ITR(O) increases recording time by 30 minutes until you reach a maximum of 9 hours.

Checking

the Recording

Time

Press REC/ITR (O) once to check the recording time.

The recalled setting will automatically screen after 6 seconds.

return to the TV

To extend the Recording Time

The recording time can be extended anytime by pressing REC/ITR (O).

Subsequent presses result in advancing the recording time by 30-minute increments.

Notes

• If you press PAUSE/STEP during instant timer recording, the

DVDNCR Receiver will enter the recording pause mode.

Instant timer recording is cancelled.

• If the DVDNCR Receiver is set to "OHOOM", the DVDNCR

Receiver goes to normal recording mode.

Dubbing and Editing

If you wish to edit or dub your camcorder

VCR) recordings to this DVDNCR Receiver,

(or another the rear

(or Front) panel mounted Audio and Video (A/V) input jacks make the connections quick and easy. These direct AN jacks will also provide better picture results than using the RF jack on the rear panel.

1. Connect the camcorder's (or another VCR's) A/V outputs to your DVD/VCR Receiver as illustrated on page 14.

2. Select the input channel "LINE2" (Use INPUT to

select LINE2(L2)).

If you have connected your DVD/VCR Receiver to the A/V input jacks on the rear of DVD/VCR Receiver, you should select the input channel LINEI(L1) by pressing INPUT twice.

Play the tape in the camcorder (or another VCR).

If you have a TV attached to your DVD/VCR

Receiver, you can see the video playing.

When you desire

the

recording

DVD/VCR Receiver's REC/ITR

to begin,

(O) once

press

to start.

You can stop the recording by pressing STOP.

Note

Before recording, please confirm the recording start position.

Copying from

DVD to VCR

This unit allows you to copy the contents of a DVD to a

VHS tape.

Press DVD/CD to select DVD mode.

Insert Disc

Insert the disc you wish to copy in the DVD deck and close the disc tray.

Insert VHS Tape

Insert a blank VHS video tape into the VCR deck.

Press COPY button on the unit front panel or

press REC/ITR (O) button on the remote control.

The DVD will go into Play mode and the VCR will go into Record mode.

• If the DVD disc menu appears, you may need to press

PLAY

manually to begin copying.

• "COPY" indicator will light.

Stopping the Copy

Process

When the DVD is finished playing, press STOP to end copying.

You must stop the Copy process manually when the DVD movie ends, or the unit may replay and record over and over again.

Notes

• If the DVD you are attempting to copy is copy protected, you will not be able to copy the disc. It is not permitted to copy

Macrovision encoded DVDs. "LOCK" is displayed in the display window.

• When you stop the DVD playback during copying, VCR recording mode also stops automatically.

• You must set Progressive Scan to Off to copy process.

VHS Hi-F__

MTS Broadcast

This DVD/VCR Receiver is equipped with the VHS Hi-Fi audio sound system for recording and playback. The information below gives a brief description of Hi-Fi audio and how to record and play a tape in the Hi-Fi audio mode.

Playback with HFFi Stereo Audio Sound

A stereo TV with AUDIO/VIDEO input jacks or a stereo audio system is required for true stereo playback. To

experience

the full and rich stereo sound availabie with

Hi-Fi recorded tapes, we recommend the connection of this unit to a home stereo audio system.

1. Set the AUDIO MODE option to NI-F_ on the

SETUP menu.

Set the AUDIO OUTPUT option position.

to STEREO

STEREO: The left channel sound (L) is heard from the left speaker and the right channel sound (R) is heard from the right speaker,

LEFT: The left channel sound (L) is heard from both speakers,

RmGRT: The right channel sound (R) is heard from both speakers,

MTS (Multi-Channe_ TV Sound)

This DVD/VCR Receiver will decode MTS stereo and bilingual (SAP) off-the-air broadcast sound signals. It also decodes stereo TV sound from local cable companies, as long as they operate on assigned cable frequencies and use the EIA-recommended MTS stereo/bilinguai TV sound system.

Mu_tichannel TV Sound mndicator (MTS)

Shows onscreen as illustrated below when ENTER is pressed.

® One or both of the indicators will light, depending on the

MTS broadcast.

TV screen r

Lights up when a stereo broadcast

SAP

II Lights up when a SAP BILINGUAL

I broadcast is being received.

_f onmy STEREO appears on the TV screen.

The DVD/VCR Receiver can record in stereo onto the VHS Hi-

Fi audio tracks when the BROADCAST TYPE option is in the

STEREO position. The DVD/VCR Receiver will also record mono audio onto the mono audio track.

_f onmy SAP appears on the TV screen.

Set the BROADCAST TYPE option to SAP,

_f STEREO/SAP appears on the TV screen

Use the BROADCAST TYPE option to select the desired recording mode (STEREO or SAP),

SAP (Second Audio

Program)

Recording

Some stations transmit a Second Audio Program, which is used for a second language or additional information.

When the station broadcasts a Second Audio Program, follow the procedure below to record the SAP.

1. Insert a video cassette with the safety tab intact,

2. Set the BROADCAST TYPE option to SAP

(SETUP menu).

Do this if only the SAP appears on the TV screen or you know the program will use the SAP

3. Press r-_ENU.

4. insert a cassette and press PLAY.

Adjust volume at your stereo system,

Press r-_ENU.

Select the desired recording speed (SP or SLP) with the SP/SLP button.

Select the desired channel SAP shoumd appear on the

TV screen,

Press

REC/ITR (@) once

You are now recording the program you see and hear on the

TV.

Press STOP to stop recording.

Tape Counter Memory Feature

Real-Time Counter

Shows length of tape run in hours, minutes, and seconds.

Press CLK/CNT to select the real-time counter display.

Every press of CLK/CNT illustrated below.

changes the TV screen as

CLOCK COUNTER

REMAINING TIME

•

Counter changes to "0:00:00" when the cassette is ejected.

• The real-time counter does not operate if nothing is recorded on the tape.

• The real-time counter will not work unless a tape is inserted.

Note

During the "L1 OPT" mode, the OSD(On Screen

Display) can not be changed.

Additional Information

• In manual recording, Timer recording, Instant Timer

Recording, playback, or fast forward modes, the DVDNCR

Receiver automatically starts rewinding the tape at the end of the tape. The cassette will stop at the beginning of the tape and be ejected, and the DVD/VCR Receiver will turn itself off.

• After you have finished using the DVD/VCR Receiver, rewind, eject, and remove the cassette.

Place the cassette in its protective sleeve to protect it from dust. It is not necessary to rewind the cassette before removing it, but if you do, it will be ready to play or record the next time you use it.

• Be sure the DVD/VCR Receiver Channel Selector is on the correct channel you wish to record. The channel that is being recorded can always be checked by tuning the television to the DVD/VCR Receiver channel (3 or 4) and pressing the VCR button to set the DVDNCR Receiver to VCR mode (VCR appears in the display window).

• Do not attempt to hook up more than one television set to the DVD/VCR Receiver for either recording or playback.

Counter Memory Feature

This is useful if there is a section of tape you want to view immediately after recording or if you want to return to the same point several times.

Begin recording or playing a tape.

Press CLK/CNT real-time counter repeatedly to display on the TV screen.

the

3. At the point that you want to locate later, reset

the real-time counter to "0:00:00"

by pressing

CLEAR.

Continue

to play or record.

Press STOP when recording or playback

finishes.

Press REW (44).

The tape automatically stops when the tape counter returns to about "0:00:00".

Auto Play System

This DVD/VCR Receiver features automatic playback.

Load a cassette (with the safety tab removed).

•

The Output Source is changed to VCR mode automatically.

• The power turns on automatically and playback begins.

• At the end of the tape, the DVDNCR Receiver stops and rewinds the tape.

• The cassette is ejected after rewinding and the VCR turns itself off automatically.

Note

Auto power off does not function during regular DVD play mode. (DVD/VCR Receiver power stays on.)

Tape Remaining

This function shows the remaining time on the tape during recording or playback.

Press CLK/CNT repeatedly until the REM indicator displays on the TV screen during recording or playback.

Note

The remaining tape length indicator may not be displayed correctly depending on the condition of the tape and the kind of the tape (T-140, T-160, or T-210 etc)

S-VHS

Quasi Playback

(SQPB)

• This DVD/VCR Receiver can also play back a tape which is recorded in S-VHS playback picture.

• This DVDNCR Receiver cannot record in S-VHS format

• SQPB is an abbreviation for S-VHS Quasi Playback.

Playing DVD and Video CD

Playback Setup

| _

• Turn on the TV and select the video input source connected to the DVDNCR Receiver.

• Audio system: Turn on the audio system and select the input source connected to the DVDNCR Receiver.

• Set the Output Source to DVD as shown in "Selecting the

Input/Output Source" on page 15.

Press OPEN/CLOSE

( "_ ) to open the disc tray.

Load your chosen disc in the tray, with the label facing up.

When a double-sided DVD is inserted, make sure the side you want to play is facing down.

3. Press OPEN/CLOSE (_) to close the tray.

"READING" appears in the display window, and playback starts automatically.

If playback does not start, press PLAY.

In some cases, the disc menu might appear instead.

If a menu screen is displayed

A menu screen may appear automatically after loading a

DVD.

" i_vjm],,p

Use 4/l_/&/_' buttons to select the title/chapter you want to view, then press ENTER to start playback.

Press TOP MENU or DISC MENU to return to the menu screen.

• Use the number buttons to select the track you want to view.

Press RETURN to return to the menu screen.

• Menu setting and the exact operating procedures for using the menu may differ depending on the disc.

Follow the instructions on the each menu screen.

You also may set PBC to Off under setup. See page

22.

Notes

• If Parental Control is set and the disc is not within the

Rating settings (not authorized), the 4-digit password must be entered and/or the disc must be authorized

(see Parental Control, on page 23).

• DVDs may have a Region Code.

Your DVDNCR Receiver will not play discs that have a Region Code different from your DVDNCR

Receiver. The Region Code for this DVDNCR

Receiver is 1 (one).

• Do not keep a fixed image displayed on the screen for a long time.

General Features

Note

Unless stated otherwise, all operations described use the remote control. Some features may also be available on the Setup menu.

Moving

to another TITLE

If a disc has more than one title, you can move to another title as follows:

• Press DISPLAY, then press the appropriate number buttons (0-9) to select a title number.

Moving

to another CHAPTER/TRACK

If a title on a disc has more than one chapter or a disc has more than one track, you can move to another chapter/track as follows:

• Press SKIP (t4,4) or (1_1) briefly during playback to return to the beginning of the current chapter/track or to select the next chapter/track.

• Press SKIP (t4"4) twice in quick succession to step back to the previous chapter/track.

• To go directly to any chapter/track during playback, press DISPLAY. Use A/T to select Chapter/track icon.

Then, enter the chapter/track number with the number buttons (0-9).

Note

For two-digit numbers, press the numbered buttons

(0-9) in rapid succession.

Slow

Motion

| _

1 Press SLOW during playback or still mode.

The player will enter SLOW mode.

2 Use nEW or FWD (or SLOW) to select the required speed:

41 1/16, 41 1/8, 41 1/4, 41 1/2 (backward), or

I1_ 1/16, I1_ 1/8, I1_ 1/4, liD,1/2 (forward).

3 To return to playback, press PLAY.

Note

Slow motion playback in reverse is not applicable for

Video CD.

Still

Picture and Frame-by-Frame

Playback

1 Press PAUSE!STEP

during playback.

The DVDNCR Receiver will go into PAUSE mode.

2 You can advance the picture frame by frame by pressing PAUSE/STEP repeatedly on the remote control.

3 To return to playback, press PLAY.

General Features (Continued)

Search _ _

1 Press REW (_t_1) or FWD (1=,,_)during playback.

The DVDNCR Receiver will now go into SEARCH mode.

2 Each press of the REW (_t_1) or FWD (1=,,_)button will increase the speed of the search _t_IX2, _t_IX4,

_t_IX16, _t_IX100 (backward) or I=,,-I_X2,I=,,-I_X4,

I=,,_X16, I=,,_X100 (forward).

With a Video CD, the Search speed changes: _t_IX2,

_t_IX4, _t_IX8, (backward) or I=,,_X2, I=,,_X4, I=,,_X8,

(forward).

3 To return to playback, press PLAY.

Repeat A-B

To repeat a sequence in a title:

1 Press REPEAT A-B at your chosen start point.

"A * " appears briefly on the TV screen.

2 Press REPEAT A-B again at your chosen end point.

"A B" appears briefly on the TV screen, and the repeat sequence begins.

3 To cancel the sequence, press REPEAT A-B.

3D Surround

Random

1 Press RANDOM during playback or in Stop mode.

The unit automatically begins Random Playback and

"RANDOM" appears on the TV screen.

2 To return to normal playback, press RANDOM until

"NORMAL" appears on the TV screen.

Tips

By pressing SKIP (1_t_1 or I_N) during Random playback, the unit selects another title (track) and resumes

Random playback.

Notes

• This function only works with DVD Karaoke discs and

Video CD without PBC.

• On a Video CD with PBC, you must set PBC to Off on the setup menu to use the Random function.

See page 22.

Repeat

_ _)

DVD Video Discs - Repeat Chapter/Title/Off

1 To repeat the currently playing chapter, press

REPEAT.

The Repeat Chapter icon appears on the TV screen.

2 To repeat the title currently playing, press REPEAT a second time.

The Repeat Title icon appears on the TV screen.

3 To exit Repeat mode, press REPEAT a third time.

The Repeat Off icon appears on the TV screen.

Video CDs - Repeat Track/All/Off

1 To repeat the track currently playing, press REPEAT.

The Repeat Track icon appears on the TV screen.

2 To repeat the disc currently playing, press REPEAT a second time.

The Repeat All icon appears on the TV screen.

3 To exit Repeat mode, press REPEAT a third time.

The Repeat Off icon appears on the TV screen.

Note

On a Video CD with PBC, you must set PBC to Off on the setup menu to use the Repeat function. See page 22.

This unit can produce a 3D Surround effect, which simulates multi-channel audio playback from two conventional stereo speakers, instead of the five or more speakers normally required to listen to multichannel audio from a home theater system.

1 Press SOUND MODE to select "3D SUR" during playback.

2 To turn off the 3D Surround effect, press SOUND MODE again to select "BYPASS".

Time Search _

;

:::::

The Time Search function allows you to start playing at any chosen time on the disc.

1 Press DISPLAY during playback. The on-screen display appears on the screen.

The Time Search box shows the elapsed playing time of the current disc.

2 Within 10 seconds, use A/T to select the Time

Search icon in the on-screen display.

The "-:--:--" appears in the Time Search box.

3 Within 10 seconds, use the numbered buttons to enter the required start time. Enter hours, minutes and seconds from left to right in the box.

If you enter the wrong numbers, press CLEAR to remove the numbers you entered. Then enter the correct numbers.

4 Within 10 seconds, press ENTER.

Playback starts from the selected time on the disc. If you enter an invalid time, playback will continue from the current point.

Zoom

The Zoom function allows you to enlarge the video image and to move through the enlarged image.

1 Press ZOOM during playback or still playback to activate the Zoom function.

If you press ZOOM repeatedly, the magnification level increases up to six steps.

2 Use _l/l_/&/_' buttons to move through the zoomed picture.

3 Press CLEAR to resume normal playback or return to the paused image.

Notes

• The Zoom function may not work with some DVDs.

• The Zoom function may not work with some multi-angle scenes.

General Features

Marker Search

(Continued)

You can start playback from a memorized point. Up to nine points can be memorized.

To enter a mark, follow these steps.

1 During disc playback, press MARKER when playback reaches the spot that you want to memorize.

The Marker icon will appear on the TV screen briefly.

2 Repeat step 1 to enter up to nine Marker points on a disc.

To Recall a Marked Scene

1 During disc playback, press SEARCH.

The Marker Search menu will appear on the screen.

2 Within 10 seconds, use 4/I, or number button to select a Marker number that you want to recall.

3 Press ENTER.

Playback will start from the Marked scene.

4 To remove the MARKER SEARCH menu, press

SEARCH.

To Clear a Marked Scene

1 During disc playback, press SEARCH.

The Marker Search menu will appear on the screen.

2 Within 10 seconds, use 4_ or number button to select a Marker number that you want to erase.

3 Press CLEAR.

The Marker number will be erased from the list.

4 Repeat steps 2 and 3 to erase additional Marker numbers.

5 To remove the MARKER SEARCH menu, press

SEARCH.

• All markers are erased when the disc is ejected.

Special

DVD Features

Checking the contents of DVD Video discs: Menus

DVDs may contain menus that allow you to access special features. To use the disc menu, press DISC MENU.

Then, press the appropriate number button to select an option. Or, use 4/l_/&/_' buttons to highlight your selection, then press ENTER.

Title Menu

1 Press TOP MENU.

If the current title has a menu, the menu will appear on the screen. Otherwise, the disc menu may appear.

2 The menu can list camera angles, spoken language and subtitle options, and chapters for the title.

3 To remove the title menu, press TOP MENU again.

Disc Menu

1 Press DISC MENU.

The disc menu is displayed.

2 To remove the disc menu, press DISC MENU again.

Camera Angle

If the disc contains sequences recorded from different camera angles, the angle icon appears for a short while on the TV screen. You can then change the camera angle if you wish.

•

Press ANGLE repeatedly during playback to select a desired angle.

The number of the current angle appears on the display.

Changing

the Audio Language

i i EN_ i_ DDO

Press AUDIO repeatedly during playback to hear a different audio language or audio track.

Changing

Video Mode

• With certain discs, the playback picture may be flickering or Dot Crawl is shown on straight lines. That means Vertical interpolation or De-interlace is not perfectly matched with the disc. In this case, the picture quality may be improved by changing the video mode.

• To change the video mode, press and hold

DISPLAY about 3 seconds during disc playback. The new video mode selected is displayed on the TV screen. Check whether the video quality has improved. If not, repeat the above procedure until picture quality is improved.

• Video mode sequence:

Auto -_ Film -_ Video -_ Auto

• If you turn off the power, the video mode will return to initial default state (Auto).

Detailed Description of each Video Mode

Auto : The source material of the DVD video (film material or video material) is determined from disc information.

Film : Suitable for playing film based content or video based material recorded by the progressive scan method.

Video : Suitable for playing video based content with comparatively little motion.

Note

The video mode setting only works when the Progressive Scan mode is set to "On" in the Setup menu.

Changing

the Audio

Channel

Press AUDIO repeatedly during playback to hear a different audio channel (STER., LEFT or RIGHT).

Subtitles _ , i

Press SUBTITLE repeatedly during playback to see the different subtitle languages.

Note

If Q appears, the feature is not available on the disc.

Screen Saver

The screen saver picture appears when you leave the

DVDNCR Receiver in Stop mode for about five minutes.

Playingan Audio CD and MP3NVMA

Discs

The DVD/VCR Receiver can play MP3/WMA formatted recordings on CD-ROM, CD-R or CD-RW discs.

Before playing MP3/WMA discs, read the notes on

MP3/WMA Recordings on right.

Insert a disc and close the tray.

Audio CD: Audio CD menu appears on the TV screen. Go to step 4.

MP3/WMA disc: The MP3/WMA-JPEG choice menu appears on the TV screen. Go to step 2.

Use _ to select the MP3/WMA then press

ENTER.

The MP3/WMA menu appears on the TV screen.

Press RETURN to move to the MP3/WMA-JPEG choice menu.

Use _ to select a folder then press ENTER.

A list of files in the folder appears.

Use _ to select a track then press PLAY or

ENTER.

Playback starts.

During playback, the current track's elapsed playing time will appear on the display window and menu.

Playback will stop at the end of the disc.

Press TOP MENU to move to the next page.

Press DISC MENU to move to the previous page.

Audio CD Menu

MP3/WMA Menu

Tip

If you are in a File List and want to return to the Folder

List, use the _ to highlight -. and press ENTER to return to the previous menu screen.

5. To stop playback at any other time, press

STOP.

Notes on MP3/WMA Recordings

About MP3

• An MP3 file is audio data compressed by using the

MPEG1 audio layer-3 file-coding scheme. We call files that have the ".rap3" file extension "MP3 files".

• The DVD/VCR Receiver can not read an MP3 file that has a file extension other than ".mp3".

About

WMA (Windows

Media Audio)

Files

• An WMA file is a Microsoft audio compression technology.

• WMA(Windows Media Audio) offers double audio compression of the MP3 format.

MP3/WMA Disc compatibility limited as follows: with this player

1. Sampling Frequency/only at 44.1kHz (MP3),

22.05 - 44.1 kHz (WMA)

Bit rate / within 32 - 320kbps (MP3),

32 - 128kbps (WMA)

3. CD-R physical format should be "ISO 9660"

If you record MP3/WMA files using the software which cannot create a FILE SYSTEM, for example

"Direct-CD" etc., it is impossible to playback

MP3/WMA files. We recommend that you use "Easy-

CD Creator", which creates an ISO9660 file system.

5. A single session disc requires MP3/WMA files in the first track. If there is no MP3/WMA file in the 1st track, it cannot playback MP3/WMA files. If you wish to playback MP3/WMA files, format all the data in the disc or use a new one.

File names should be named using 8 letters or less and must incorporate ".mp3" or ".wma" extension e.g. '.........

.MP3" or ..........

.WMA".

Do not use special letters such as "/: * ? " < >" etc.

8. Total number of files on the disc should be less than

650.

This DVDNCR Receiver requires discs/recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards.

There are many different types of recordable disc formats (including CD-R containing MP3/WMA files). Because this area of technology is still evolving, Toshiba cannot guarantee that all recordable discs will produce optimal playback quality. The technical criteria set forth in this owner's manual are meant only as a guide.

Please be advised that you must obtain permission from the applicable copyright owners to download copyrighted content, including music files, in any format, including the MP3 and WMA formats, prior to the downloading thereof.

Toshiba has no right to grant and does not grant permission top download any copyrighted content.

Microsoft, Windows Media, and the

Windows Logo are trademarks or registered trademarks of Microsoft

Corporation in both the United States and other countries

Windows

Designed for

Pause ql_D ql_ qi_

1 Press PAUSE/STEP during playback.

2 To return to playback, press PLAY or press

PAUSE/STEP again.

Moving to another Tracks qI_DC]_)(_)

• Press SKIP (14<1 or IH_I) briefly during playback to go to the next track or to return to the beginning of the current track.

• Press SKIP (144) twice in quick succession to step back to the previous track.

• On Audio CDs, to go directly to any track, enter the track number using the numbered buttons (0-9) during playback.

Search ql_D ql_D qi_;_

Press REW (44) or FWD (ll,,-I_) during playback.

The player will now go into SEARCH mode.

Each press of the REW (4<1) or FWD (1=,,_)button will increase the speed of the search <t<IX2, <t<IX4,

<t4X8

(backward) or I=,,_X2, I=,,_X4, I=,,_X8 (forward).

Search speed and direction are indicated on the menu screen.

3 To exit SEARCH mode, press PLAY.

Random tied €]_)

4_:_

1 Press RANDOM during playback or in Stop mode.

The unit automatically begins Random Playback and

"RAND." appears on the menu screen.

2 To return to normal playback, press RANDOM repeatedly until "RAND." disappears from the menu screen.

Note

RANDOM only works in File List of MP3 and WMA discs.

Repeat A-B

To repeat a sequence.

1 During disc playback, press REPEAT A-B at your chosen starting point.

The Repeat icon and "A * " appears on the menu screen.

2 Press REPEAT A-B again at your chosen end point.

The Repeat icon and "A B" appears on the menu screen, and the sequence begins to play repeatedly.

3 To exit the sequence and return to normal play, press

REPEAT A-B again.

The Repeat icon and "OFF" appears on the menu screen.

3D Surround |

1 Press SOUND MODE to select "3D SUR" during playback.

2 To turn off the 3D Surround effect, press SOUND MODE again to select "BYPASS".

Changing the Audio Channel

Press AUDIO repeatedly during playback to hear a different audio channel (STER., LEFT, or RIGHT).

Repeat Track/All/Off

qB_lDql:_)(_

1 To repeat the track currently playing, press REPEAT.

The Repeat icon and "TRACK" appears on the menu screen.

2 To repeat all tracks on a disc, press REPEAT a second time.

The Repeat icon and "ALL" appears on the menu screen.

3 To cancel Repeat mode, press REPEAT a third time.

The Repeat icon and "OFF" appears on the menu screen.

Viewing JPEG Files on a Disc

This DVDNCR Receiver can play discs with JPEG files.

Before playing JPEG files, read the notes on JPEG

Files on right.

1. Insert a disc and close the tray.

The MP3/WMA-JPEG choice menu appears on the

TV screen.

Selecting other Files

Press SKIP (1_1 or I_1_1) once while viewing a picture to advance to the next file or to the previous file.

Still Picture

1 Press PAUSE/STEP during slide show.

The player will now go into PAUSE mode.

2 To return to the slide show, press PLAY or press

PAUSE/STEP again.

To flip the picture

Press A/T while showing a picture to flip the picture horizontally or a vertically.

Use A/V to select the JPEG then press ENTER.

The JPEG menu appears on the TV screen.

To rotate picture

Press _/1_ while showing a picture to rotate the picture clockwise or counter clockwise.

Use _ to select a folder, and ENTER.

A list of files in the folder appears.

Press RETURN to move to the MP3/WMA-JPEG choice menu.

Tip

If you are in a file list and want to return to the Folder list, use the AT buttons on the remote to highlight

" cJ.." and press ENTER to return to the previous menu screen.

If you want to view a particular file, use _

to highlight the file and press ENTER or PLAY.

Viewing the file function starts.

While viewing a file, press RETURN to move to the previous menu (JPEG menu).

Press TOP MENU to move to the next page.

Press DISC MENU to move to the previous page.

Notes on JPEG Files

• Depending upon the size and number of the JPEG files, it could take a long time for the DVD player to read the disc's contents.

If you don't see an onscreen display after several minutes, some of the files are too big -reduce the resolution of the JPEG files to less than 3072x2048 pixels and burn another disc.

• Total number of files and folders on the disc should be less than 650.

• Some disc may be incompatible due to different recording format or condition of disc.

• When you are using software such as "Easy CD

Creator" to burn the jpeg files into the CD-R, ensure that all the selected files have the ".jpg" extensions when copying into the CD layout.

• If the files have ".jpe" or ".jpeg" extensions, please rename them as ".jpg" files.

• File names without ".jpg" extension will not be able to be read by this DVD/VCR Receiver, even though the files are shown as JPEG image files in windows explorer.

Tip

There are three viewing Slide Speed options: Fast,

Normal, Slow, and Off. Use _/_ to highlight the Slide

Speed then use A/v to select the option you want to use, and press ENTER.

5. To stop viewing at any other time, press STOP.

The JPEG menu appears.

Programmed Playback with Audio CDs and MP3/WMA Discs

The Program function enables you to store your favourite tracks from any disc in the player memory.

Program can contain 30 tracks.

1. Press PROGRAM during playback or in the Stop

mode to enter the Program Edit mode.

The [] mark will appear to the right of the word Program on the right side of the menu screen.

Note

Press PROGRAM to exit the Program Edit mode; the [] mark will disappear.

2. Select a track, then press ENTER to place the

selected track on the Program list.

3. Repeat step 2 to place additional tracks on the

Program list.

Audio CD menu MP3/WMA menu

4. Press •.

The programmed track you selected last is highlighted on the program list.

5. Use _ to select the track you want to start playing.

Press TOP MENU to move to the next page.

Press DISC MENU to move to the previous page.

6. Press PLAY or ENTER to start.

Playback begins in the order in which you programmed the tracks and "PROG." appears on the menu screen.

Playback stops after all of the tracks on the Program list have played once.

7. To resume normal playback from programmed playback, press PROGRAM.

Select a track of CD (or MP3/WMA) list and then press ENTER or PLAY.

"PROG" indicator disappears from the display window.

Programmed Playback with Video

CD

Note

On a Video CD with PBC, you must set PBC to Off on the setup menu to use the Program function. See page 22.

1. Insert Video CD and close the tray.

2. Press PROGRAM while playback is stopped.

The VCD Program menu will appear.

Note

Press RETURN,PROGRAMor PLAYto exit the Programmenu.

3. Follow steps 2-6 of "Programmed Playback with

Audio CD and MP3/WMA disc" on left.

Press PLAY (1=,_)or ENTER to start.

Playback begins in the order in which you programmed the tracks. "PROGRAM" indicator will appear briefly on the TV screen.

Playback stops after all of the tracks on the Program list have played once.

5. To resume

normal

playback

from programmed playbacl_, press PROGRAM.

"NORMAL" indicator will appear briefly on the TV screen.

Repeat Programmed Tracks

•

To repeat the track currently playing, press REPEAT.

The Repeat icon and "TRACK" appears on the menu screen.

•

To repeat all tracks on the program list, press

REPEAT a second time.

The Repeat icon and "ALL" appears on the menu screen.

•

To cancel Repeat mode, press REPEAT a third time.

The Repeat icon and "OFF" appears on the menu screen.

Note

For Video CD, the Repeat icon will only appear briefly on the screen.

Erasing

a Track

from Program

List

1 Press PROGRAM during playback (Audio CD and

MP3/WMA disc only) or stop to enter the Program

Edit mode.

The [] mark will appear.

2 Press • to move to the Program list.

3 Use A/V to select the track that you wish to erase from the Program list.

4 Press CLEAR.

The track will be erased from the Program list.

Erasing the whole Program

List

1 Follow steps 1-2 of "Erasing a Track from Program

List" as above.

2 Use _ to select "Clear All", then press ENTER.

The complete Program for the disc will be erased.

Notes

• The programs are cleared when the disc is removed.

• The programs are cleared when another function mode

(VCR, radio etc.) is selected.

Adjust the following settings for the built-in 5.1 channel surround decoder.

Distance

If you connected speakers to your DVD/VCR Receiver, setting the Distance lets the speakers know how far the sound has to travel to reach your set listening point.

This allows the sound from each speaker to reach the listener at the same time. (1-20 ft, 1 ft = 0.30 m)

Note

You can not set the distance of subwoofer speaker.

1. Select "5.1 Speaker Setup" using the A/V

buttons on the setup menu.

2. While "5.1 Speaker Setup" is selected, press •

button.

Press I_ buttons to select the desired speaker.

4. Adjust options by using AT4

I_ buttons.

Test

Press ENTER to test the signals of each speaker.

Adjust the volume to match the volume of test signals memorized in the system.

•

Front Left (L) -_ Centre -_ Front Right (R) -_

Rear Right (R) -_ Rear Left (L) -_ Subwoofer

Speaker selection

Select a speaker that you want to adjust. ((Front speakers (Left), Centre Speaker, Front speakers (Right), Rear speakers (Left), Rear speakers (Right), or Subwoofer))

Note

Certain speaker settings are prohibited by the Dolby

Digital licensing agreement.

Return

Press ENTER to return to the previous menu.

Volume

Press 4 / I_ to adjust the output level of the selected speaker. (-6dB - 6dB)

Size

Since the speaker settings are fixed, you cannot change the settings.

•

Subwoofer's size is fixed "Large" and the other speaker's size are fixed "small".

I

Presetting the Radio Stations

You can preset 50 stations for FM and AM. Before tuning, make sure that you have turned clown the volume.

1. Press FM/AM on the remote control or RADIO on the front panel until the frequency band appears on the display and TV screen.

_720kHz

600kHz

1400kHz lO00kHz

Listening to the Radio

Preset radio stations in the DVDNCR Receiver memory first (see "Presetting Radio Stations" on the left).

Press FM/AM on the remote control or RADIO on the front panel until the frequency band appears on the display and TV screen.

The last received station is tuned in.

Use A/V on the remote control repeatedly to

select the preset station you want.

Each timeyou press the button, the DVDNCR Receiver tunes in one preset station at a time.

3. Adjust the volume by rotating VOLUME on the

front panel or by pressing VOLUME (A or T) on

the remote control repeatedly.

Use A_'

on the remote control or

CH/PRESET

(/_ / _/) front panel to select the

desired Station.

If you select a blank column, R-SKIP appears in the display window.

To Clear the Stored Radio Stations

Press FM/AM on the remote control or on the front panel until the frequency band appears on the display and TV screen.

FM 87.5MHz

FM 106. OMHz

FM 98,0MHz

...._'_'!_'_ i i

1720kHz

600kHz

1400kHz

Press FM/AM on the remote control or front

panel to select the desired band.

Hold down TUNING (/_,/V)

on the front panel or

TUNING (A/V) remote control for 1 or 2 seconds,

and a station is searched for automatically.

Press MEMORY on the remote control.

The station is stored.

Use A/_' on the remote control to select your

desired station.

FM 87.5MHz

FM 106.0MHz

/_1_1_

6. Repeat steps 2 to 5 to store other stations.

Press CLEAR the remote control to clear the stored radio station.

FM 87. OMHz

Note

While record or record pause mode, the CLEAR function may not be operated.

I

Tuning into a Station Manually

1. Press FM/AM on the remote control until the frequency band appears on the display and TV screen.

Press FM/AM on the remote control to select the desired band.

Press TUNING (JJv) on the remote control to tune in the desired station.

For your reference

Weak FM stations

"ST" may flash when a weak FM stereo signal is received, select another station or realign the antenna.

To turn off the radio

Press POWER (I/V) to turn the DVD/VCR Receiver off or select another function mode (DVD or VCR).

Tuning into a Station Automatically

Hold down TUNING (A/V) on the remote control for 1 or 2 seconds, and a station is searched for automatically.

Note

The search may not stop at a station with a very weak signal.

Labeling Stations

1. Press •

to move to the station name column.

FM 87 : 5MHz

FM 98.0MHz

Use the A/V buttons to select the character then

use the <_

buttons to shift to the next or previous character.

Press ENTER to confirm the station name.

Press ENTER on the remote control.

The station name is stored.

The remote control can be compatible with various brands of TV by setting their control codes. The TOSHI-

BA code has initially been set to control TOSHIBA TVs.

Setting TV Control Codes

1. Press TV to set the remote control operating your TV.

2. While holding down PROGRAM button, enter the two digits of your TV's brand code (listed on page 41) using number buttons.

3. Release PROGRAM.

By pressing

TV POWER

CH/TRK (V/A)

VOLUME (V/A)

INPUT

You can

Turn the TV on or off.

To select TV channels in the upper or lower direction.

Adjust the volume of the TV.

Switch the TV's input source between the TV and other input sources.

Important

Some TV's may not respond to all the operations above, or may not be operated at all with this remote control. In this case, operate your TV with its own remote control.

Notes

• For some brands, several control codes (brand codes) are allocated. Try each of them until the buttons work on your TV.

• If you replace the remote control's batteries, set the brand code again.

TV POWER

POWER

C3 C3 C3

FM/AM

AUX MOD_ EJEOr

Ci3 E2] [?_

INPUT

--PROGRAM

ANGLE SUBIITLE AUDIO

DISpLAy

I UNING SEARCH

@o@ eVOLUME

SET UP

VOLUME

CH_RK

TV/VCR

SLOW

STOP PAUSE!STEP

MUTE

PLAY

R W FWD SKIP

REO/ITR aEP_T_-B REPEAt RANDOM

_J CD C3 C_

SP/SLP

TOSHIBA

___jJ

Table of TV Brand Codes

06, 11

04, 09, 11

04, 11

02, 07, 14

04, 11

01, 11

07, 10, 15

01, 02, 07, 11, 12

07, 15

09, 11, 13

Brand Code

09, 12

09, 11

02, 07, 11

01, 02, 09, 10, 11

Megatron

Memorex

MGA

Midland

Mitsubishi

Motorola

MTC

NAD

Nikko

Optimus

Optonica

Panasonic

Penney

Philco

Philips

Pioneer

Princeclub

Prism

Proscan

Proton

Pulser

Quasar

Radio Shack

RCA

Realistic

Brand name of your TV

Toshiba

Bell & Howell

Carver

Celebrity

Citizen

Curtis Mathes

Dumont

Electro band

Emerson

Fisher

Gibraiter

Goldstar

Hallmark

Hitachi

Infinity

JBL

JCB

JVC

LXI

Magnavox

Marantz

Brand name of your TV

Runco (NEC)

Samsung

Sanyo

Scotch

Scott

Sears

Sharp

Sony

Soundesign

Supreme

Sylvania

Tandy

Technics

Techwood

Teknika

TMK

Victor

Vidikron

Vidtech

Wards

Zenith

Brand Code

11,12

01, 02, 09, 10, 11

08, 13

07, 15

04, 10, 12

10, 11, 13

I I m

Check the following guide for the possible cause of a problem before contacting service.

Symptom

No power.

Cause

• The power cord is disconnected.

The power is on, but the • No disc is inserted.

DVD/VCR Receiver does not work.

No picture.

• No tape is inserted,

• The TV is not set to receive DVDNCR

Receiver signal output,

Solution

• Plug the power cord into the wall outlet securely.

• Insert a disc or tape. (Check that the disc or tape indicator in the display window is lit.)

• Select the appropriate video input mode on the TV so the picture from the

DVDNCR Receiver appears on the TV screen.

No sound.

The remote control does not work properly,

• TVNCR mode for DVD/VCR Receiver is • Press the TV/VCR button on the remote set to TV MODE.

control repeatedly to choose VCR mode. VCR MODE appears in the display window.

• The video cable is not connected securely.

• Connect the video cable securely.

• The connected TV power is turned off.

• The equipment connected with the audio cable is not set to receive

DVDNCR Receiver signal output,

• The audio cables are not connected securely.

• The power of the equipment connected with the audio cable is turned off.

• Turn on the TV.

• Select the correct input mode on the audio receiver so you can listen to the sound from the DVDNCR Receiver.

• Connect the audio cable securely.

• Turn on the equipment the audio cable.

connected with

• The audio connecting cord is damaged.

The playback picture is • The disc is dirty.

poor.

• Tape heads are dirty.

• Tape is a rental or was recorded on another VCR.

The DVDNCR Receiver • No disc is inserted.

does not start playback.

• No tape is inserted,

• An unplayable disc is inserted.

• The disc is placed upside down.

• The disc is not placed within the guide.

• The disc is dirty.

• The Rating level is set.

• The remote control is not pointed at the remote sensor of the DVDNCR

DVDNCR Receiver.

Receiver.

• The remote control is too far from the

• There is an obstacle in the path of the remote control and the DVDNCR

Receiver.

• Replace it with new one.

• Clean the disc.

• Clean video heads.

• Use CH/TRK (A/T) for manual tracking adjustment while tape is playing.

• Insert a disc or tape. (Check that the disc or tape indicator in the display window is lit.)

• Insert a playable disc. (Check the disc type, color system, and Regional code.)

• Place the disc with the playback side down.

• Place the disc on the disc tray correctly inside the guide.

• Clean the disc.

• Cancel the Rating function or change the rating level.

• Point the remote control at the remote sensor of the DVD/VCR Receiver.

• Operate the remote control within 23 ft

(7 m).

• Remove the obstacle.

• The batteries in the remote control are exhausted.

• This remote control use the same buttons for VCR and DVD functions

(ex. PLAY).

• Replace the batteries with new ones.

• When using a VCR, first press the VCR button. When using a DVD, first press the DVD button.

Symptom Cause

INPUT, VOLUME (_hJ_') • Incorrect mode (e.g. Remote control in and 4/_.,/Am' buttons on TV mode), remote control cannot operate.

Some channels are skipped over when using

CH/TRK (A/T)

• Those channels were deleted with the

CH. ADD/DEL option.

Picture and sound of broadcasting channel are weak or missing.

• Antenna or cables are loose.

• Wrong CHANNEL SOURCE option is being used.

• Press DVD/CD, VCR or FM/AM to select the correct mode on the remote control.

Solution

• Use CH. ADD/DEL to restore channels.

See "Channel Selection" on page 18.

• Tighten connections or replace cable.

Camcorder image is not • Camcorder is off.

shown,

Camcorder

TV screen.

image via

AN input to DVDNCR

Receiver is not shown on

• DVDNCR Receiver INPUT SELECT is not set to LINEI(L1) or LINE2(L2).

Timer recording is not possible,

Stereo Audio Record and/or Playback is not present,

• Clock in DVDNCR Receiver is not set to correct time.

• Timer has been programmed incorrectly.

•

Q indicator light does not appear after programming timer.

• TV is not Stereo-compatible.

• Broadcast program is not in stereo format.

• Try all CHANNEL SOURCE options.

See "Channel Selection" on page 18 for details.

• Turn camcorder on and operate properly.

• Press INPUT to select LINE input channel (LINEI(L1) or LINE2(L2)).

• Set clock to correct time. See "Setting the Clock" on page 19.

• Reprogram Timer. See "Timer

Recording" on pages 25 and 26.

• Reprogram Timer.

• No action is possible.

• DVDNCR Receiver AN Out jacks are not connected to TV AN In jacks,

• Make AN connections.

Stereo is available only via A/V output from

DVD/VCR Receiver.

Severe hum or noise is heard,

• DVDNCR Receiver AudioNideo Out is not selected for viewing at the TV.

• DVDNCR Receiver BROADCAST

TYPE mode is set to SAP or MONO.

• The plugs and jacks are dirty.

• Select AUX or A/V source as TV input.

• Set BROADCAST TYPE mode to

STEREO. See "VCR Setup Menu

Option" on page 18.

• Wipe them with a cloth slightly moistened with alcohol.

• Clean the disc.

Radio stations cannot be tuned in.

• The disc is dirty.

• The speakers and components connected poorly.

• The DVDNCR close to the TV.

are

Receiver is located too

• Connect the speakers and components securely.

• Move your TV away from the audio components.

• The antenna is positioned or connected poorly.

• Connect the antenna securely.

• Adjust the antennas and connect an external antenna if necessary.

• The signal strength of the stations is too • Tune in the station manually.

weak (when tuning in with automatic tuning).

• No stations have been preset or preset stations have been cleared (when tuning by scanning preset stations).

• Preset the stations (page 38).

No sound from DIGITAL • DVDNCR Receiver source is not set to • Select OPTICAL by pressing AUX once.

AUDIO IN (OPTICAL).

DIGITAL AUDIO IN (OPTICAL).

I

Enter the appropriate code number for the initial settings "Disc Audio", "Disc Subtitle" and/or "Disc Menu"

(See page 21).

Language

Abkhazian

Afar

Afrikaans

Albanian

Amharic

Arabic

Armenian

Assamese

Aymara

Azerbaijani

Bashkir

Basque

Bengali; Bangla

Bhutani

Bihari

Breton

Bulgarian

Burmese

Byelorussian

Cambodian

Catalan

Chinese

Corsican

Croatian

Czech

Danish

Dutch

English

Esperanto

Estonian

Faeroese

6588

6590

6665

6985

6678

6890

6672

6682

6671

7789

8381

6577

6582

7289

6583

Code

6566

6565

6570

6779

7282

6783

6865

7878

6869

7577

6765

9072

6978

6979

6984

7079

Language

Fiji

Finnish

French

Frisian

Galician

Georgian

German

Greek

Greenlandic

Guarani

Gujarati

Hausa

Hebrew

Hindi

Hungarian

Icelandic

Indonesian

Interlingua

Irish

Italian

Japanese

Javanese

Kannada

Kashmiri

Kazakh

Kirghiz

Korean

Kurdish

Laothian

Latin

Latvian, Lettish

7185

7265

7387

7273

7565

6869

8976

7576

7178

Code

7074

7073

7082

7089

7176

7285

7383

7378

7365

7165

7384

7589

7579

7585

7679

7665

7886

7465

7487

7578

7583

7575

Language

Lingala

Lithuanian

Macedonian

Malagasy

Malay

Malayalam

Maltese

Maori

Marathi

Moldavian

Mongolian

Nauru

Nepali

Norwegian

Oriya

Panjabi

Pashto, Pushto

Persian

Polish

Portuguese

Quechua

Rhaeto-Romance

Remanian

Russian

Samoan

Sanskrit

Scots Gaelic

Serbian

Serbo-Croatian

Shona

Sindhi

7778

7865

7869

7879

7982

8065

8083

7065

8076

8377

8365

7168

8382

8084

8185

8277

8279

8285

8372

8378

8368

7771

7783

7776

7784

7773

7782

7779

Code

7678

7684

7775

Tagalog

Tajik

Tamil

Tatar

Telugu

Thai

Tibetan

Language

Singhalese

Slovak

Slovenian

Somali

Spanish

Sudanese

Swahili

Swedish

Volap_k

Welsh

Wolof

Xhosa

Yiddish

Yoruba

Zulu

Tigrinya

Tonga

Turkish

Turkmen

Twi

Ukrainian

Urdu

Uzbek

Vietnamese

6983

8385

8387

8388

Code

8373

8375

8376

8379

8478

8471

8465

8484

8469

8472

6879

8879

6789

8779

8872

7473

8979

9085

8473

8479

8482

8475

8487

8575

8582

8590

8673

I

Enter the appropriate code number for the initial setting "Area Code List" (See page 23).

Code Area

AD Andorra

United Arab Emirates

Afghanistan

Antigua and Barbuda

Anguilla

Albania

Armenia

Netherlands Antilles

Angola

Antarctica

Argentina

American Samoa

Austria

Australia

Chile

Cameroon

China

Colombia

Costa Rica

Former Czechoslovakia

Cuba

Cape Verde

Christmas Island

Cyprus

Czech Republic

Germany

Djibouti

Denmark

Dominica

Dominican Republic

Algeria

Ecuador

Estonia

Egypt

Western Sahara

Aruba

Azerbaidjan

Bosnia-Herzegovina

Barbados

Bangladesh

Belgium

Burkina Faso

Bulgaria

Bahrain

Burundi

Benin

Bermuda

Brunei Darussalam

Bolivia

Brazil

Bahamas

Bhutan

Bouvet Island

Botswana

Belarus

Belize

Canada

Cocos (Keeling) Islands

Central African Republic

Congo

Switzerland

Ivory Coast

Cook Islands

Code Area

ER Eritrea

Spain

Ethiopia

Finland

Fiji

Falkland Islands

Micronesia

Faroe Islands

France

France (European

Territory)

Gabon

Great Britain

Grenada

Georgia

French Guyana

Ghana

Gibraltar

Greenland

Gambia

Guinea

Guadeloupe (French)

Equatorial Guinea

Greece

S. Georgia & S. Sandwich

Isls.

Guatemala

Guam (USA)

Guinea Bissau

Guyana

Hong Kong

Heard and McDonald

Islands

Honduras

Croatia

Haiti

Hungary

Indonesia

Ireland

Israel

India

British Indian Ocean

Territory

Iraq

Iran

Iceland

Italy

Jamaica

Jordan

Japan

Kenya

Kyrgyzstan

Cambodia6

Kiribati

Comoros

Saint Kitts & Nevis Anguilla

North Korea

South Korea

Kuwait

Cayman Islands

Kazakhstan

Laos

Lebanon

Code Area

LC Saint Lucia

Liechtenstein

Sri Lanka

Liberia

Lesotho

Lithuania

Luxembourg

Latvia

Libya

Morocco

Monaco

Moldavia

Madagascar

Marshall Islands

Macedonia

Mali

Myanmar

Mongolia

Macau

Northern Mariana Islands

Martinique (French)

Mauritania

Montserrat

Malta

Mauritius

Maldives

Malawi

Mexico

Malaysia

Mozambique

Namibia

New Caledonia (French)

Niger

Norfolk Island

Nigeria

Nicaragua

Netherlands

Norway

Nepal

Nauru

Niue

New Zealand

Ornan

Panama

Peru

Polynesia (French)

Papua New Guinea

Philippines

Pakistan

Poland

Saint Pierre and Miquelon

Pitcairn Island

Puerto Rico

Portugal

Palau

Paraguay

Qatar

Reunion (French)

Romania

Russian Federation

Rwanda

Saudi Arabia

Solomon Islands

Code Area

SC Seychelles

Sudan

Sweden

Singapore

Saint Helena

Slovenia

Svalbard and Jan Mayen

Islands

Slovak Republic

Sierra Leone

San Marino

Senegal

Somalia

Suriname

Saint Tome and Principe

Former

Syria

Chad

USSR

El Salvador

Swaziland

Turks and Caicos

French Southern

Territories

Togo

Thailand

Tadjikistan

Tokelau

Islands

Turkmenistan

Tunisia

Tonga

East Tirnor

Turkey

Trinidad and Tobago

Tuvalu

Taiwan

Tanzania

Ukraine

Uganda

United Kingdom

USA Minor Outlying

Islands

United States

Uruguay

Uzbekistan

Vatican City State

Saint Vincent &

Grenadines

Venezuela

Virgin Islands (British)

Virgin Islands (USA)

Vietnam

Vanuatu

Wallis and Futuna Islands

Samoa

Yemen

Mayotte

Yugoslavia

South Africa

Zambia

Zaire

Zimbabwe

General

Power requirements

Power consumption

Dimensions (approx.)

Mass (approx.)

Operating temperature

Operating humidity

Signal system

Inputs

ANTENNA IN

VCR VIDEO IN

VCR AUDIO IN

FM ANTENNA IN

AM ANTENNA IN

DIGITAL AUDIO IN

Outputs

VIDEO OUT

S-VIDEO OUT

COMPONENT VIDEO OUT

(PROGRESSIVE SCAN)

Audio output (analog audio)

RF OUT

VCR Specifications

Head system

Timer

Tape speed

Tape width

Maximum recording time

Rewind time

Antenna

Channel coverage

Frequency range

Signal-to-noise ratio

Dynamic range

Channel separation

DVD Specifications

Laser system

Frequency response

Signal-to-noise ratio

Harmonic distortion

Dynamic range

AC 120V, 60 Hz

110W

430 X 81 X 360 mm (17 x 3.2 x 14.2 inches) (w x h x d)

7.2 kg (15.8 Ibs)

5°C to 35°C (41°F to 95°F)

5 % to 90 %

NTSC

Antenna or CATV input, 75 ohms

1 V (p-p) 75 ohms, sync negative, RCA jack x 2

-6.0 dBm more than 47 kohms, RCA jack (L, R) x 2

FM antenna input, 75 ohms

AM antenna input, 300 ohms

Optical connector x 1

1 V (p-p) 75 ohms, sync negative

(Y) 1.0 V (p-p), 75 ohms, sync negative, Mini DIN 4-pin x 1

(Y) 1.0 V (p-p), 75 ohms, sync negative, RCA jack x 1

(Pb)/(Pr) 0.7 V (p-p), 75 ohms, RCA jack x 2

2.0 Vrms (1 KHz, 0 dB), 330 ohms, RCA jack (L, R) x 1

Channel 3 or 4 (Adjustable)

4 head helical scan azimuth system

12-hour display type with AM, PM

SP: 33.35 mm/sec, LP: 16.67 mm/sec, SLP: 11.12 mm/sec

12.7 mm

SP: 2 HOURS (T-120), SLP: 6 HOURS (T-120)/8 HOURS (T-160)

About 180 seconds (T-120)

75 ohms (VHF/UHF)

VHF: 2-13, UHF: 14-69, CATV: 1-125 (4A, A-W, W+I - W+84, A-5 -A-l)

20Hz to 20kHz

More than 43dB

More than 85 dB (AUDIO OUT jacks)

More than 55 dB (AUDIO OUT jacks)

Semiconductor laser, wavelength 650 nm

DVD (PCM 48 kHz): 20 Hz to 20 kHz, CD: 20 Hz to 20 kHz

More than 80 dB (AUDIO OUT jacks)

Less than 0.4%

More than 80 dB (AUDIO OUT jacks)

FM Tuner

Tuning Range

Intermediate Frequency

87.5 - 108.0 MHz

10.7 MHz

AM Tuner

Tuning Range

Intermediate Frequency

Amplifier

Stereo mode

Surround mode

530 - 1,720 kHz

450 kHz

Inputs

70W + 70W (60. at 1 kHz, THD 10 %)

Front: 70W + 70W (60. at 1 kHz, THD 10 %)

Center*: 70W (60` at 1 kHz, THD 10 %)

Surround*: 70W + 70W (60. at 1 kHz, THD 10 %)

Subwoofer*: 150W (40` at 30 Hz, THD 10 %)

*Dependingonthe soundmodesettingsandthe source,there may be no soundoutput.

LINE 1, LINE 2, OPTICAL IN

Speakers

Type

Impedance

Frequency Response

Sound Pressure Level

Rated Input Power

Max. Input Power

Net Dimensions (W x H x D)

Net Weight

Accessories:

Video cable ..................................

Audio cable ..................................

Ferrite core ...................................

RF 75-ohm Coaxial Cable ........................

Speakers ....................................

Speaker cables ................................

AM loop antenna ..............................

FM antenna ..................................

Remote control ................................

Batteries .....................................

Satellite Speaker

2 Way 2 Speaker

6 0`

110 - 40,000 Hz

83 dB/W (lm)

90 W

180 W

120 x 170 x 107 mm

0.94 kg

Center Speaker

2 Way 2 Speaker

6 0`

110 - 40,000 Hz

83 dB/W (lm)

90 W

180 W

120 x 252 x 107 mm

1.07 kg

Passive Subwoofer

1 Way 1 Speaker

4 0`

40 - 1,500 Hz

82 dB/W (lm)

150 W

300 W

200 x 400 x 381 mm

7.0 kg

• This model complies with the above specifications.

• Designs and specifications are subject to change without notice.

• This model may not be compatible with features and/or specifications that may be added in the future.

Manufactured under license from Dolby Laboratories.

"Dolby", "Pro Logic", and the double-D symbol are trademarks of Dolby

Laboratories.

J "DTS" and "DTS Digital Surround" are registered trademarks of Digital Theater Systems, Inc.

Limited

United States

Warranty

for DVDiVCF Home Theater System

Toshiba America Consumer Products, EL.C. ("TACP") makes the foilowing limited warranties to original consumers in the United States. THESE LIMITED WARRANTIES EXTEND TO THE ORIGINAL CONSUMER PURCHASER

OR ANY PERSON RECEIVING THIS DVD/VCR HOME THEATER SYSTEM AS A GIFT FROM THE ORIGINAL

CONSUMER PURCHASER AND TO NO OTHER PURCHASER OR TRANSFEREE.

DVDNCR HOME THEATER SYSTEMS PURCHASED IN THE U.S.A. AND USED ANYWHERE OUTSIDE OF THE

U.S.A, iNCLUDiNG, WITHOUT LiMiTATiON, CANADA AND MEXICO, ARE NOT COVERED BY THESE WARRANTIES.

DVD/VCR HOME THEATER SYSTEMS PURCHASED ANYWHERE OUTSIDE OF THE U.S.A, iNCLUDiNG,

WITHOUT LiMITATiON, CANADAAND MEXICO, AND USED iN THE U.S.A, ARE NOT COVERED BY THESE

WARRANTIES.

Limited Ninety (90) Day Warranty on Labor

TACP warrants this DVD/VCR Home Theater System and its parts against defects in materials or workmanship for a period of ninety (90) days after the date of original retail purchase.

DURING THiS PERIOD, TACP

WILL, AT TACP'S OPTION, REPAIR OR REPLACE A

DEFECTIVE PART WiTH A NEW OR REFURBISHED

PART WITHOUT CHARGE TO YOU FOR PARTS OR

LABOR.

Limited One (1) Year Warranty on Parts

TACP further warrants the parts in this DVD/VCR Home

Theater System against defects in materials or workmanship for a period of one (1) year after the date of original retail purchase.

DURING THiS PERIOD, TACP

WILL, AT TACP'S OPTION, REPAIR OR REPLACE A

DEFECTIVE PART WiTH A NEW OR REFURBISHED

PART WITHOUT CHARGE TO YOU FOR THE PART,

PROVIDED THAT iF A DEFECTIVE PART iS

REPAIRED OR REPLACED AFTER NINETY (90) DAYS

AFTER THE DATE OF ORiGiNAL RETAIL PURCHASE,

YOU MUST PAY ALL LABOR CHARGES iN CONNEC-

TiON WiTH THE REPAIR OR REPLACEMENT

THEREOR

*Renta_ Units

The warranty' for DVD/VCR Home Theater System rental units begins on the date of the first rental or thirty

(30) days after the date of shipment to the rental firm, whichever comes first.

*Limited Warranty for Commercia_ Units

TACP warrants DVD/VCR Home Theater Systems that are sotd and used for commercial purposes as fol!ows: all parts are warranted against defects in materials or workmanship for a period of ninety (90) days after the date of originat retaiI purchase.

DURING THiS PERIOD,

TACP WILL, AT TACP'S OPTION, REPAIR OR

REPLACE A DEFECTIVE PART WiTH A NEW OR

REFURBISHED PART WITHOUT CHARGE TO YOU.

Owner's Manua_ and Product Registration Card

Read this owner's manuaI thoroughly before operating this DVD/VCR Home Theater System.

Complete and mail the enclosed product registration card or register your DVDNCR Home Theater System online at www.tacp.toshiba.com/service as soon as possible. By registering your DVD/VCR Home Theater

System you will enable TACP to bring you new products specifically designed to meet your needs and help us to contact you in the unlikely event a safety notification is required under the U.S. Consumer Product Safety Act.

Failure to complete and return the product registration card does not diminish your warranty rights.

Your Responsibility

THE ABOVE WARRANTIES ARE SUBJECT TO THE

FOLLOWING CONDiTiONS:

(1) You must retain your originaI bill of sale or provide other proof of purchase.

(2) All warranty servicing of this DVD/VCR Home

Theater System must be performed by an

Authorized TACP Service Station.

(3) The warranties from TACP are effective only if this

DVD/VCR Home Theater System is purchased and operated in the ContinentaI U.S.A. or Puerto Rico.

(4) Labor service charges for set installation, setup, adjustment of customer controls and installation or repair of antenna systems are not covered by this warranty. Reception problems caused by inadequate antenna systems are your responsibility.

(5) Warranties extend only to defects in materials or workmanship as limited above, and do not extend to any DVD/VCR Home Theater System or parts that have been Iost or discarded by you or to damage to the DVD/VCR Home Theater System or parts caused by fires, misuse, accident, Acts of God (such as Iightning or fluctuations in eIectric power), improper installation, improper maintenance, or use in violation of instructions furnished by TACP; use or malfunction through simultaneous use of this

DVD/VCR Home Theater System and connected

equipment;

or to units that have been modified or had the seriaI number removed, altered, defaced, or rendered illegible.

How to Obtain Warranty Service

If, after following all of the operating instructions in this manual and reviewing the section entitled

"Troubleshooting," you find that service is needed:

(1)

(2)

To find the nearest TACP Authorized Service

Station, visit TACP's website at www.tacp.toshiba.com/service or contact TACP's

Consumer Solution Center toll free at 1-800-631-

3811.

You must present your original biil of sale or other proof of purchase to the TACP Authorized Service

Station. You must deliver the entire DVD/VCR

Home Theater System to a TACP Authorized

Service Station. You must pay for all transportation and insurance charges for the DVDNCR Home

Theater System to and from the TACP Authorized

Service Station.

For additional information, visit TACP's website: www.tacp.toshiba.com

THIS WARRANTY GIVES YOU SPECIFIC LEGAL

RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS

WHICH MAY VARY FROM STATE TO STATE IN THE

U.S.A. SOME STATES OF THE U.S.A. DO NOT

ALLOW LIMITATIONS ON THE DURATION OF AN

IMPLIED WARRANTY, WHEN AN ACTION MAY BE

BROUGHT, OR THE EXCLUSION OR LIMITATION OF

INCIDENTAL OR CONSEQUENTIAL DAMAGES.

THEREFORE, THE ABOVE PROVISIONS MAY NOT

APPLY TO YOU UNDER SUCH CIRCUMSTANCES.

ALL WARRANTIES IMPLIED BY THE LAW OF ANY

STATE OF THE U.S.A., INCLUDING THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS

FOR A PARTICULAR PURPOSE, ARE EXPRESSLY

LIMITED TO THE DURATION OF THE LIMITED WAR-

RANTIES SET FORTH ABOVE. WITH THE EXCEP-

TION OF ANY WARRANTIES IMPLIED BY THE LAW

OF ANY STATE OF THE U.S.A. AS HEREBY LIMITED,

THE FOREGOING WARRANTY IS EXCLUSIVE AND

IN LIEU OF ALL OTHER WARRANTIES, GUARAN-

TEES, AGREEMENTS, AND SIMILAR OBLIGATIONS

OF TACP WITH RESPECT TO THE REPAIR OR

REPLACEMENT OF ANY PARTS.

IN NO EVENT SHALL TACP BE LIABLE FOR CONSE-

QUENTIAL OR INCIDENTAL DAMAGES (INCLUDING,

BUT NOT LIMITED TO, LOST PROFITS, BUSINESS

INTERRUPTION, OR MODIFICATION OR ERASURE

OF RECORDED DATA CAUSED BY USE, MISUSE OR

INABILITY TO USE THIS DVDNCR HOME THEATER

SYSTEM).

No person, agent, distributor, dealer or company is authorized to change, modify or extend the terms of these warranties in any manner whatsoever.

The time within which an action must be commenced to enforce any obligation of TACP arising under the warranty or under any statute, or law of the United States or any state thereof, is hereby limited to ninety (90) days from the date you discover or should have discovered, the defect. This limitation does not apply to implied warranties arising under the law of any state of the U.S.A.

P/NO : 3834RH0074C

ColorStream and ColorStream Pro are registered trademarks of Toshiba

America Consumer Products, L.L.C.

Printed in Indonesia.
