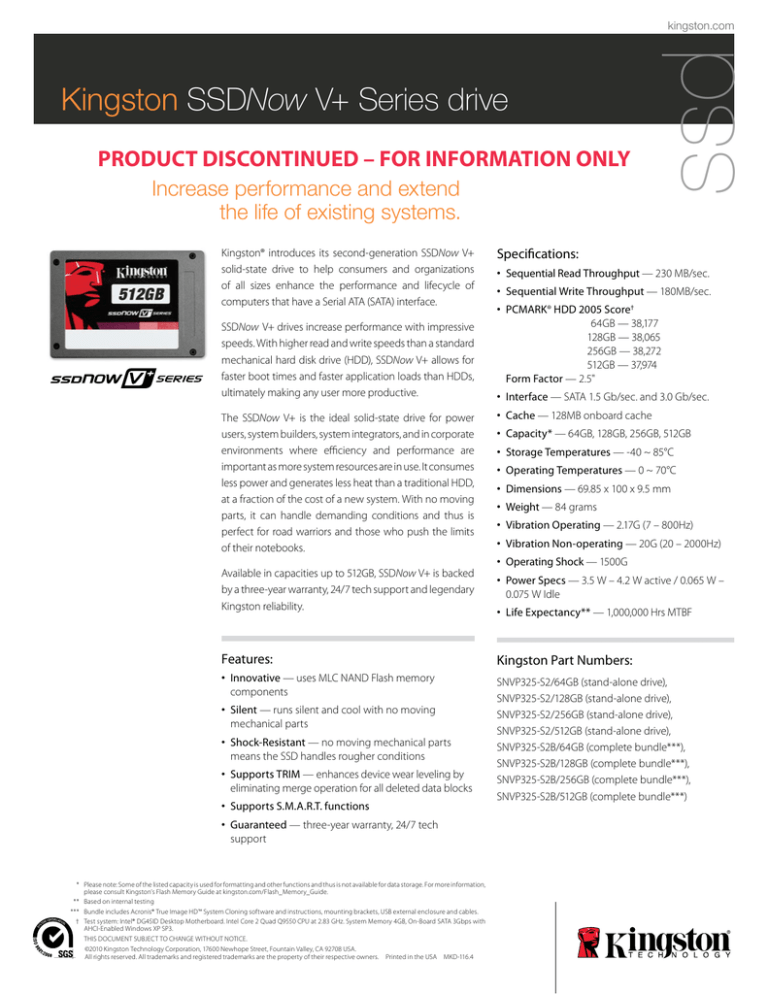

Kingston SSDNow V+ Series drive
Kingston SSDNow V+ Series drive
PRODUCT DISCONTINUED – FOR INFORMATION ONLY
Increase performance and extend
the life of existing systems.
Kingston® introduces its second-generation SSDNow V+
solid-state drive to help consumers and organizations
of all sizes enhance the performance and lifecycle of
computers that have a Serial ATA (SATA) interface.
SSDNow V+ drives increase performance with impressive
speeds. With higher read and write speeds than a standard
mechanical hard disk drive (HDD), SSDNow V+ allows for
faster boot times and faster application loads than HDDs,
ultimately making any user more productive.
The SSDNow V+ is the ideal solid-state drive for power
users, system builders, system integrators, and in corporate
environments where efficiency and performance are
important as more system resources are in use. It consumes
less power and generates less heat than a traditional HDD,
at a fraction of the cost of a new system. With no moving
parts, it can handle demanding conditions and thus is
perfect for road warriors and those who push the limits
of their notebooks.
Available in capacities up to 512GB, SSDNow V+ is backed
by a three-year warranty, 24/7 tech support and legendary
Kingston reliability.
Features:
•• Innovative — uses MLC NAND Flash memory
components
•• Silent — runs silent and cool with no moving
mechanical parts
•• Shock-Resistant — no moving mechanical parts
means the SSD handles rougher conditions
•• Supports TRIM — enhances device wear leveling by
eliminating merge operation for all deleted data blocks
•• Supports S.M.A.R.T. functions
•• Guaranteed — three-year warranty, 24/7 tech
support
* Please note: Some of the listed capacity is used for formatting and other functions and thus is not available for data storage. For more information,
please consult Kingston’s Flash Memory Guide at kingston.com/Flash_Memory_Guide.
** Based on internal testing
*** Bundle includes Acronis® True Image HD™ System Cloning software and instructions, mounting brackets, USB external enclosure and cables.
† Test system: Intel® DG45ID Desktop Motherboard. Intel Core 2 Quad Q9550 CPU at 2.83 GHz. System Memory 4GB, On-Board SATA 3Gbps with
AHCI-Enabled Windows XP SP3.
THIS DOCUMENT SUBJECT TO CHANGE WITHOUT NOTICE.
©2010 Kingston Technology Corporation, 17600 Newhope Street, Fountain Valley, CA 92708 USA.
All rights reserved. All trademarks and registered trademarks are the property of their respective owners. Printed in the USA MKD-116.4
ssd
kingston.com
Specifications:
•• Sequential Read Throughput — 230 MB/sec.
•• Sequential Write Throughput — 180MB/sec.
•• PCMARK® HDD 2005 Score†
64GB — 38,177
128GB — 38,065
256GB — 38,272
512GB — 37,974
Form Factor — 2.5"
•• Interface — SATA 1.5 Gb/sec. and 3.0 Gb/sec.
•• Cache — 128MB onboard cache
•• Capacity* — 64GB, 128GB, 256GB, 512GB
•• Storage Temperatures — -40 ~ 85°C
•• Operating Temperatures — 0 ~ 70°C
•• Dimensions — 69.85 x 100 x 9.5 mm
•• Weight — 84 grams
•• Vibration Operating — 2.17G (7 – 800Hz)
•• Vibration Non-operating — 20G (20 – 2000Hz)
•• Operating Shock — 1500G
•• Power Specs — 3.5 W – 4.2 W active / 0.065 W –
0.075 W Idle
•• Life Expectancy** — 1,000,000 Hrs MTBF
Kingston Part Numbers:
SNVP325-S2/64GB (stand-alone drive),
SNVP325-S2/128GB (stand-alone drive),
SNVP325-S2/256GB (stand-alone drive),
SNVP325-S2/512GB (stand-alone drive),
SNVP325-S2B/64GB (complete bundle***),
SNVP325-S2B/128GB (complete bundle***),
SNVP325-S2B/256GB (complete bundle***),
SNVP325-S2B/512GB (complete bundle***)
