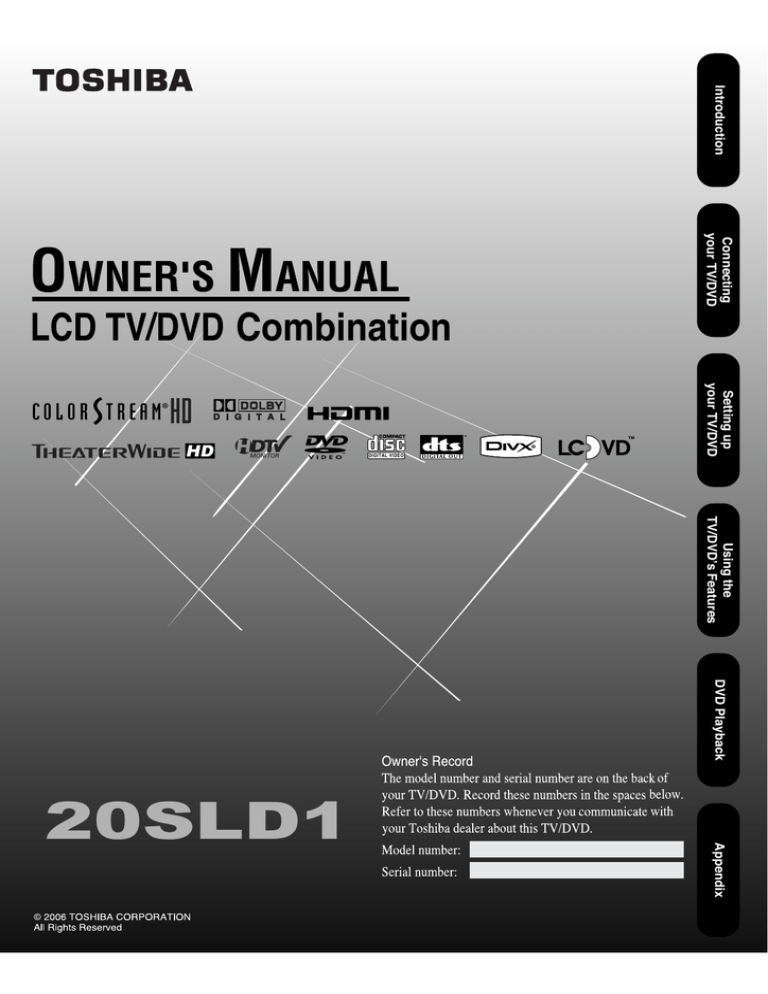

20SLD1 User Manual

Introduction
Connecting
your TV/DVD
Combination
Using the
TV/DVD’s Features
DVD Playback
Appendix
20SLD1
Setting up
your TV/DVD
DIGITAL VIDEO
Introduction
Always read and understand the PRODUCT WARNINGS and
USER DIRECTIONS that are contained in this manual before
attempting to use your television, to help ensure its safe use.
Always store this manual near your television for convenient
future reference.
Child Safety
It Makes A Difference
Where Your TV Stands
Dear Customer,
Thank you for purchasing this Toshiba television.
You must carefully read and understand all of the safety
instructions contained in this manual before you attempt to
use this product in order to avoid potential hazards that
could cause bodily injury or property damage or could
damage your Television.
We hope that you are completely satisfied with your
Toshiba television and that it will give you long and
enjoyable service. We look forward to providing you with
additional Toshiba products to serve all of your
entertainment needs in the future.
Congratulations on your purchase!
As you enjoy your new TV, keep these safety tips in mind:
The Issue
If you are like most consumers, you have a TV in your home. Many
homes, in fact, have more than one TV.
The home theater entertainment experience is a growing trend, and
larger TVs are popular purchases; however, they are not always
supported on the proper TV stands.
Sometimes TVs are improperly secured or inappropriately
situated on dressers, bookcases, shelves, desks, audio
speakers, chests, or carts. As a result, TVs may fall over,
causing unnecessary injury.
Safety Precautions
Toshiba Cares!
WARNING:
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
The consumer electronics industry isCcommitted to
making home entertainment enjoyable and safe.
The Consumer Electronics Association formed the
Home Entertainment Support Safety Committee,
comprised of TV and consumer electronics furniture
manufacturers, to advocate children’s safety and educate
consumers and their families about television safety.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Tune Into Safety
CAUTION:
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK.)
One size does NOT fit all! Use appropriate furniture large enough to
support the weight of your TV (and other electronic components).
Use appropriate angle braces, straps, and anchors to secure your
furniture to the wall (but never screw anything directly into the TV).
Carefully read and understand the other enclosed instructionsCfor
proper use of this product.
Do not allow children to climb on or play with furniture andCTVs.
Avoid placing any item on top of your TV (such as a VCR, remote
control, or toy) that a curious child may reach for.
Remember that children can become excited while watching
aCprogram and can potentially push or pull a TV over.
Share our safety message about this hidden hazard of the home
with your family and friends. Thank you!
NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may
be of sufficient magnitude toCconstitute a risk of
electric shock to persons.
The exclamation point within an equilateral
triangle, is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
WARNING: If you decide to wall mount this television, always
use a UL-approved wall bracket appropriate for the size and
weight of this television. The use of any wall bracket other than
a UL-approved wall bracket appropriate for the size and weight
of this television for wall mounting this television could result in
serious bodily injury and/or property damage.
2
Connecting
your TV/DVD
The rating sheet and the safety caution are on the rear of the unit.
Introduction
Location of the required Marking
CAUTION:
THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM.
TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ
THIS OWNER'S MANUAL CAREFULLY AND RETAIN FOR
FUTURE REFERENCE. SHOULD THE UNIT REQUIRE
MAINTENANCE, CONTACT AN AUTHORIZED SERVICE
LOCATION.
USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE
OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT
TRY TO OPEN THE ENCLOSURE. VISIBLE LASER RADIATION
MAY BE PRESENT WHEN THE ENCLOSURE IS OPENED. DO
NOT STARE INTO BEAM.
ON DISPOSAL
Setting up
your TV/DVD
This product contains mercury. Disposal of mercury may be regulated due to environmental
considerations. For disposal or recycling information, please contact your local authorities or the
Electronic Industrial Alliance: www.eiae.org.
Using the
TV/DVD’s Features
DVD Playback
Appendix
3
Introduction
IMPORTANT SAFEGUARDS
Important Safety Instructions
1)
2)
3)
4)
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
5)
Do not use this apparatus near water.
6)
Clean only with dry cloth.
7)
8)
9)
Installation, Care, and Service
Installation
Follow these recommendations and precautions and heed
all warnings when installing your TV:
15)
DANGER: RISK OF SERIOUS
PERSONAL INJURY, DEATH, OR
EQUIPMENT DAMAGE! Never place the
TV on an unstable cart, stand,
or table. The TV may fall, causing serious
Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
personal injury, death, or serious damage
to the TV.
Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
16) Always place the
Sturdy tie (as short as possible)
TV on the floor or
Clip
a sturdy, level,
Hooks
stable surface that
can support the
Screw
weight of the unit.
Use a sturdy tie
between the TV’s TV side
Band TV top
rear hook and the
rear wall, pillar, etc., to secure the TV. If you use a TV
stand, fix the TV by using the attached band.
Protect the power cord from being
walked on or pinched, particularly at
plugs, convenience receptacles, and
the point where they exit from the
apparatus.
10) Only use attachments/accessories specified by
the manufacturer.
11) Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
17) Never block or cover the slots or
openings in the TV cabinet back,
bottom, and sides.
Never place the TV:
• on a bed, sofa, rug, or similar
surface;
• too close to drapes, curtains, or
walls; or
• in a confined space such as a bookcase, built-in
cabinet, or any other place with poor ventilation.
12) Unplug this apparatus during
lightning storms or when unused
for long periods of time.
The slots and openings are provided to protect the TV
from overheating and to help maintain reliable
operation of the TV. Leave a space of at least 4
inches around the TV.
13) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
18) Always place the back of the television at least one (1)
inch away from any vertical surface (such as a wall) to
allow proper ventilation.
19) Never allow anything to rest on or roll over the power
cord, and never place the TV where the power cord is
subject to wear or abuse.
20) Never overload wall outlets and extension cords.
13a)CAUTION: If the TV is dropped and the cabinet or
enclosure surface has been damaged or the TV does
not operate normally, take the following precautions:
• ALWAYS turn off the TV and unplug the power cord
to avoid possible electric shock or fire.
• To prevent personal injury, never handle the
damaged television.
• ALWAYS contact a service technician to inspect
the TV any time it has been damaged or dropped.
21) Always operate the TV with the power source
indicated on the rating label.
21a)For models provided with AC Adapter and/or Car
Adapter.
• Always use the adapter type specified by Toshiba.
22)
14) The apparatus shall not be exposed to dripping or
splashing and that no objects filled with liquids, such
as vases, shall be placed on the apparatus.
4
DANGER: RISK OF SERIOUS
PERSONAL INJURY OR DEATH!
• Use extreme care to make sure you are
never in a position where your body (or any item you
are in contact with, such as a ladder or screwdriver)
can accidentally touch overhead power lines. Never
locate the antenna near overhead power
lines or other electrical circuits.
• Never attempt to install any of the
following during lightning activity: a) an
antenna system; or b) cables, wires, or any
home theater component connected to an antenna or
phone system.
33) Possible Adverse Effects on TV display if a fixed(nonmoving) pattern or image remains on the TV display for
extended periods of time, the image can become
permanently ingrained in the display of the TV and cause
subtle but permanent ghost images.
This type of damage is NOT COVERED BY YOUR
WARRANTY.
Never leave the TV on for extended periods of time while
it is displaying the following images or formats:
For better performance and safer operation of your
TOSHIBA TV, follow these recommendations and
precautions:
24)
WARNING: RISK OF ELECTRIC SHOCK!
Never spill liquids or push objects of any
kind into the TV cabinet slots.
25) While it is thundering, do not touch the connecting
cables or apparatus.
26) For added protection of your TV from lightning and
power surges, always unplug the power cord and
disconnect the antenna from the TV if you leave the TV
unattended or unused for long periods of time.
27) During normal use, the TV may
make occasional snapping or
popping sounds. This is normal,
especially when the unit is being
turned on or off. If these sounds
become frequent or continuous,
unplug the power cord and
contact a Toshiba Authorized Service Center.
Service
34)
29) When you use headphones, keep the volume at a
moderate level. Using headphones continuously at a
high volume may cause hearing damage.
30) Do not look into the opening of the disc slot or ventilation opening of the product to see the source of the
laser beam. Doing so may cause sight damage.
35) If you have the TV serviced:
• Ask the service technician to use only replacement
parts specified by the manufacturer.
• on completion of service, ask the service technician
to perform routine safety checks to determine that
the TV is in safe operating condition.
31) Do not use a cracked, deformed, or repaired disc.
These discs are easily broken and may cause serious
personal injury and product malfunction.
36) When the TV reaches the end of its useful life, ask a
qualified service technician to properly dispose of the
TV.
DVD Playback
32) Do not press on or jolt the LCD panel. Doing so may
cause the LCD panel glass to break and injury may
occur. Should the LCD panel be broken and liquid
leaks out, do not inhale or swallow it. Doing so may
cause poisoning. If you have got it into your mouth,
wash it out and consult your doctor. If your hands or
clothes have touched it, wipe them with alcohol and a
cleaning cloth and then wash them well.
Using the
TV/DVD’s Features
28) Keep your fingers well clear of the disc slot as it is
closing. Failure to do so may cause serious personal
injury.
WARNING: RISK OF ELECTRIC SHOCK!
Never attempt to service the TV yourself.
Opening and removing the covers may
expose you to dangerous voltage or other hazards.
Refer all servicing to a Toshiba Authorized Service
Center.
Setting up
your TV/DVD
• Fixed(non-moving) images, including but not
limited to PIP/POP windows, closed captions, video
game patterns, TV station logos, stock tickers, and
websites.
• Special formats that do not use the entire screen,
including but not limited to
widescreen or letterbox format
media viewed on a 4:3 aspect
ratio diaplay (with gray or black bars at the top and
bottom of the screen) and 4:3 aspect ratio format
media viewed on a widescreen/16:9 aspect ratio
display(with gray or black bars on the left and right
sides of screen.)
Connecting
your TV/DVD
23) Always unplug the TV before cleaning.
Wipe the display panel surface gently using only the
supplied wiping cloth or a soft cloth (cotton, flannel,
etc.) A hard cloth may damage the surface of the panel.
Avoid contact with alcohol, thinner, benzene, acidic or
and alkaline solvent cleaners, abrasive cleaners, or
chemical cloths, as the surface may be impaired.
Introduction
Care (cont. from previous column)
Care
Appendix
5
Introduction
Precautions
Important notes about your LCD TV
Notes on moisture condensation
The following symptoms are technical limitations of
LCD Display technology and are not an indication of
malfunction. Therefore, Toshiba is not responsible for
perceived defects resulting from these symptoms.
Moisture condensation damages the unit. Please read
the following carefully.
Moisture condensation occurs, for example, when you
pour a cold drink into a glass on a warm day and drops of
water form on the outside of the glass. In the same way,
moisture may condense on this unit’s internal optical pickup lens, one of the most crucial internal parts of the unit.
1) An afterimage (ghost) may appear on the screen if a
fixed, nonmoving image is displayed for a long period of
time. The afterimage is not permanent and will
disappear in a short period of time.
2) The LCD panel contained in this TV is manufactured using
an extremely high level of precision technology;
however, there may be an occasional pixel (dot of light)
that does not operate properly (does not light, remains
constantly lit, etc.). This is a structural property of LCD
technology, is not a sign of malfunction, and is not
covered under your warranty. Such pixels are not visible
when the picture is viewed from a normal viewing
distance.
Note: Interactive video games that involve shooting a
“gun” type of joystick at an on-screen target may not
work on this TV.
le of mo
Examp ensat isture
ion!
cond
Optical pick-up
lens
■ Moisture condensation may occur in the following
situations:
• When you move the unit from a cold area to a warm
area.
• When you use the unit in a room in which the heat was
just turned on.
• When you use the unit in an area where cold air from an
air conditioner directly hits the unit.
• When you use the unit in a humid area.
Notes on handling
■ Do not subject the LCD panel to physical shock, such as
dropping it. It may cause unit damage and malfunction.
■ When shipping the unit, the original shipping carton and
packing materials come in handy. For fully protection,
repack the unit as it was originally packed at the factory.
■ Do not use volatile liquids, such as insecticide, near the
unit. Do not leave rubber or plastic products in contact
with the unit for prolonged periods of time. Doing so will
leave marks on the finish.
■ The top and rear panels of the unit may become warm
after a long period of use. This is not a malfunction.
■ When the unit is not in use, always remove the disc and
turn off the power.
■ If you do not use the unit for a long period, the unit may
not function properly in the future. Turn on and use the
unit occasionally.
■ Never use the unit when moisture condensation
may occur.
Notes on locating the unit
■ When you place this unit near a TV, radio, or VCR, the
playback picture may become poor and the sound may
be distorted. In this case, place the unit away from the
TV, radio, or VCR.
■ To avoid damage to this product, never place or store
the TV/DVD in direct sunlight; hot, humid areas; or
areas subject to excessive dust or vibration.
Using the unit when moisture condensation exists may
damage discs and internal parts. Remove the disc,
connect the power cord of the unit to the wall outlet, turn
on the unit, and leave it for two or three hours. After two
or three hours, the unit will have warmed up and
evaporated any moisture. Keep the unit connected to
the wall outlet and moisture condensation will seldom
occur.
Wa
it!
Wall outlet
Note on cleaning
Use a soft, dry cloth for cleaning.
• Do not use any type of solvent, such as thinner and
benzine, as they may damage the surface of the unit.
6
On handling discs
• Do not touch the playback side of the disc.
For example, handle the disc so that it is shown in
figure below.
Normally, DVD video discs are divided into titles, and the
titles are sub-divided into chapters. Video CDs and Audio
CDs are divided into tracks.
Introduction
Notes on discs
DVD video disc
DVD video disc
Title 1
Title 2
Chapter 2
Chapter 1
Chapter 2
Chapter 3
Playback side
• Do not attach paper or tape to discs.
Video CD/Audio CD
Video CD/Audio CD
Track 1
Track 2
Track 3
Track 4
Track 5
• Fingerprints and dust on the disc cause picture and sound
deterioration. Wipe the disc from the center outwards with
a soft cloth. Always keep the disc clean.
Notes on copyright
This product incorporates copyright protection technology
that is protected by method claims of certain U.S. patents
and other intellectual property rights owned by
Macrovision Corporation and other rights owners. Use of
this copyright protection technology must be authorised by
Macrovision Corporation, and is intended for home and
other limited viewing uses only unless otherwise
authorised by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
• Do not use any type of solvent such as thinner, benzine,
commercially available cleaners or antistatic spray for vinyl
LPs. It may damage the disc.
On storing discs
DVD Playback
• Do not store discs in a place subject to direct sunlight or
near heat sources.
• Do not store discs in places subject to moisture and
dust such as a bathroom or near a humidifier.
• Store discs vertically in a case. Stacking or placing
objects on discs outside of their case may cause
warping.
Using the
TV/DVD’s Features
The unauthorized recording, use, distribution, or
revision of television programs, video tapes, DVDs,
and other materials is prohibited under the Copyright
Laws of the United States and other countries, and
may subject you to civil and criminal liability.
Setting up
your TV/DVD
Each title, chapter or track is assigned a number, which is
called “title number”, “chapter number” or “track number”
respectively.
Some discs may not have these numbers.
On cleaning discs
Connecting
your TV/DVD
Chapter 1
Appendix
7
Introduction
About this owner’s manual
Playable discs
This owner’s manual explains the basic instructions of this
unit. Some DVD video discs are produced in a manner
that allows specific or limited operation during playback.
As such, the unit may not respond to all operating
commands. This is not a defect in the unit. Refer to
instruction notes of discs.
This unit can play the following discs.
Disc Mark
The following symbol may appear on the TV screen during
operation.
It means that the operation is not permitted by the TV/DVD
or the disc.
For example, sometimes it is unable to stop the playback
of copyright message of the disc when the STOP ( )
button is pressed. Alternatively, this symbol may also
indicate that the feature is not available for the disc.
Maximum
playback time
Approx. 4 hours
(single sided disc)
Audio
+
Video
(moving
pictures)
12 cm
Video
CDs
Audio
+
Video
(moving
pictures)
12 cm
Approx. 74 minutes
(single sided disc)
Audio
12 cm
Approx. 74 minutes
(single sided disc)
Audio
CDs
The region number of this unit is 4. If region numbers,
which stand for their playable area, are printed on your
DVD video disc and you do not find 4 or ALL , disc
playback will not be allowed by the player. (In this case,
the unit will display a message on-screen.)
Some DVDs that have no region code label may still be
subject to area restrictions and therefore are not playable.
Disc
Size
DVD
video
discs
DIGITAL VIDEO
Notes on region numbers
Contents
Approx. 8 hours
(double sided disc)
The following discs are also available.
• DVD-R/RW discs of DVD video or DivX® format.
• CD-R/CD-RW discs of CD-DA, Video CD, MP3,
WMA, JPEG or DivX® format.
• Kodak Picture CD and FUJICOLOR CD format
Some of these discs may be incompatible.
On Video CDs
• You cannot play discs other than those listed above.
• You cannot play discs of DVD-RAM, DVD-ROM, Photo CD,
etc., or non standardized discs even if they may be labeled as
above.
• Some CD-R/RWs cannot be played back depending on the
recording conditions.
• This unit uses the PAL color system, and cannot play DVD
video discs recorded in any other color system
( NTSC, SECAM, etc.).
• This unit cannot play an 8cm disc. Please do not use a disc
adapter. It may cause trouble.
• Please do not insert any disc of an irregular shape into the
unit, as it may interfere with the function of the unit. You may
not be able to remove it.
• Please do not use after market accessories, such as a ring
protector, as this may cause trouble with the operation of the
unit.
The DVD player contained in this LCD TV supports
Video CDs equipped with the PBC (Version 2.0) function.
(PBC is the abbreviation of Playback Control.) You can
enjoy two playback variations depending on types of
discs.
• Video CD not equipped with PBC function
(Version 1.1)
Sound and movie can be played on this DVD in the
same way as an audio CD.
• Video CD equipped with PBC function
(Version 2.0)
In addition to operation of a Video CD not equipped with
the PBC function, you can enjoy playback of interactive
software with search function by using the menu
displayed on the TV screen (Menu Playback). Some of
the functions described in this owner’s manual may not
work with some discs.
Because of problems and errors that can occur during the
creation of DVD and CD Software and/or the manufacture of DVD
and CD discs, Toshiba cannot assure that the DVD player
contained in this TV will successfully play every disc bearing the
DVD and CD logos. If you happen to experience any difficulty
playing a DVD and/or CD disc on the DVD player contained in
this TV, please contact Toshiba Customer Service.
is a trademark of DVD Format/Logo Licensing corporation.
8
Introduction............................................................. 2
Using the TV/DVD’s features............................... 28
IMPORTANT SAFEGUARDS ...................................... 4
Precautions ..................................................................6
Notes on discs.............................................................. 7
Contents....................................................................... 9
Exploring your new TV/DVD.......................................10
Selecting a location for the TV/DVD............................ 11
Connecting your TV/DVD..................................... 11
Setting up your TV/DVD....................................... 21
DVD Playback
Appendix
9
Using the
TV/DVD’s Features
Using the remote control............................................ 21
Installing the remote control batteries.................. 21
Learning about the remote control....................... 22
Starting setup............................................................. 23
To turn the TV on/off............................................. 23
Video input source................................................ 23
Changing the on-screen display language........... 23
To Watch TV programs............................................... 24
Using the Channel Number buttons......................24
Using CH / .....................................................24
To adjust sound volume........................................24
Using MPX............................................................24
To switch between two channels
(Channel Return)................................................. 24
Tuning in.................................................................... 25
To preset channels(Auto Scan)............................ 25
To set sound system.............................................25
To edit channels manually.................................... 26
To exchange channels.....................................26
To skip a position number................................26
To program channels manually........................27
AFC(Auto Fine Tuning).................................... 27
Fine Tune.........................................................27
Setting up
your TV/DVD
Connecting a VCR.......................................................11
Connecting a cable converter box or Antenna............12
Connecting a satellite receiver and a VCR.................13
Connecting a DVD player with ColorStream®
(component video) and a VCR................................... 14
Connecting a DTV receiver/set-top box with
ColorStream® (component video) and a VCR.............15
Connecting a camcorder.............................................16
Connecting an HDMI™ or a DVI device..................... 17
Connecting an amplifier equipped with a Dolby®
Digital decoder............................................................18
Connecting an amplifier equipped with a DTS
decoder.......................................................................18
Connecting an amplifier equipped with an MPEG
audio decoder.............................................................19
Connecting an amplifier equipped with a digital
audio input.................................................................. 19
Connecting a PC (personal computer)....................... 20
Connecting
your TV/DVD
Adjusting the picture...................................................28
To select the picture modes................................... 28
To adjust the picture quality................................... 28
Selecting the color temperature............................. 29
Changing the picture scale.................................... 29
Adjusting the backlight........................................... 29
Adjusting the sound................................................... 30
Muting the sound................................................... 30
To select the sound modes.................................... 30
Adjusting the sound quality.................................... 30
Adjusting the advance setting.................................... 31
Setting the sleep timer........................................... 31
Information............................................................. 31
To reset the menu settings..................................... 31
Using the 3D NR.................................................... 32
Adjusting the system menu........................................ 33
To select OSD language........................................ 33
To adjust OSD H-POSITION.................................. 33
To adjust OSD V-POSITION.................................. 33
To adjust OSD DURATION.................................... 33
To adjust OSD HALFTONE.................................... 33
Using the PC setting feature....................................... 34
To adjust the PC settings....................................... 34
Picture/ Audio adjustments in PC mode................ 35
Viewing Teletext......................................................... 36
DVD Playback............................................................. 37
Playing a disc............................................................. 37
Playing in fast reverse or fast forward directions........39
Locating a chapter or track......................................... 39
Zooming..................................................................... 40
Direct play.................................................................. 40
Repeat playback........................................................ 41
Random playback...................................................... 41
Program playback...................................................... 42
Title selection............................................................. 43
DVD menu................................................................. 43
Changing soundtrack language................................. 44
Subtitles..................................................................... 44
OSD(ON-SCREEN DISPLAY)................................... 45
To turn off the PBC..................................................... 47
MP3/WMA/JPEG/DivX® and Audio CD operation...... 48
MP3/WMA CD and Audio CD playback................ 49
JPEG CD playback............................................... 50
Slide show playback............................................. 50
DivX® CD playback................................................51
Playing DivX® VOD content.................................. 51
Repeat and random playback using file browser........52
Repeat playback .................................................. 52
Random playback................................................. 52
Filelist playback.................................................... 52
Locating desired track........................................... 52
DVD function setup.....................................................53
Customizing the function settings......................... 53
Temporary cancel the rating level by DVD disc.... 56
Appendix...................................................................... 57
Language code list..................................................... 57
Troubleshooting..........................................................58
Specifications............................................................. 60
Introduction
Contents
You can operate your TV/DVD by using the buttons on the top panel or the remote control. The back panel provide the
terminals to connect other equipment to your TV/DVD.
The STARTING SETUP feature appears
the first time you turn on the TV/DVD. See
page 23 for details.
PL
A
ST Y
O
P
SK
IP
EJ
EC /
T
Top panel
PO
W
ER
M
EN
VO U
LU
C ME
H
AN +
/
TV NE –
L
/V
ID
EO /
Introduction
Exploring your new TV/DVD
The volume and channel buttons on the top panel
can be used as / and / buttons while the TV
menu is displayed on screen.
Approx 5˚
Approx 10˚
Remote control
Top
Right side
Front
You can adjust
the angle of the
TV screen 5˚
forward or 10˚
backward from
vertical. Hold the
base of the TV/
DVD while
adjusting the
angle.
Disc slot
POWER indicator
Remote sensor
Back
Back panel
240V/50Hz
240V/50Hz
VIDEO 1 IN
PC IN
VIDEO 2 IN
HDMI IN Antenna jack
OPTICAL DIGITAL
TAL AUDIO OUT
HEADPHONE jack
Power jack
ColorStream
(Y, PB, PR) HD IN
10
Introduction
Selecting a location for the TV/DVD
• Place the TV/DVD on the floor or on a sturdy platform in a location
where light does not directly hit the screen.
• Place the TV/DVD far enough from the walls to allow proper
ventilation. Inadequate ventilation may cause overheating, which
may damage the TV/DVD.
Connecting your TV/DVD
Connecting
your TV/DVD
NOTE: DO NOT CONNECT A
PC USING THE HDMI INPUT.
ALWAYS use the VGA port provided to connect a PC.
Setting up
your TV/DVD
• A RF cable is the standard cable that comes in from your antenna
or cable converter box.
• Standard A/V (audio/video) cables are usually color coded according to use: yellow for video and red and white for audio. The red
audio cable is for the stereo right channel, and the white audio
cable is for the stereo left (or mono) channel. If you look at the rear
panel of the TV/DVD, you will see that the terminals are color
coded in the same manner as the cables.
• S-video cables provide better picture performance than standard
video cables. S-video cables can only be used with S-video
compatible components.
• Component video cables provide better picture performance than
S-video cables. Component video cables can only be used with
component video compatible components.
• Optical cables can only be used with optical compatible
components.
• HDMI (High Definition Multimedia Interface) cable is for use with
video equipment that has HDMI output (see page 17).
S-Video
Cable
ANTENNA
RF Cable
AUDIO
Cables
Component video
Cables
HDMI
Cable
OPTICAL
Cable
Connecting a VCR
This connection allows you to watch local channels and video programs,
play or record on the VCR while watching TV, and record from one
channel while watching another channel.
TV/DVD back panel
IN
IN from ANT
OUT to TV
VIDEO
L
AUDIO
R
Stereo VCR
11
Appendix
The unauthorized recording, use, distribution or revision of television programs,
videotapes, DVDs, and other materials is
prohibited under the Copyright Laws of the
United States and other countries, and may
subject you to civil and criminal liability.
OUT
CH 3
CH 4
Note:
If using a mono VCR, connect L/Mono to
VCR Audio OUT using only one audio cable.
For better picture quality, if your VCR has Svideo, you can use an S-video cable instead
of the standard video cable. Do not connect a
standard video cable and an S-video cable to
VIDEO-1 simultaneously.
DVD Playback
Cable Lead-in
from cable box
or antenna
You will need:
• two RF cables
• one set of standard A/V cables
Using the
TV/DVD’s Features
VIDEO
Cable
Connecting a cable converter box or Antenna
This television has an extended tuning range and can tune most cable
channels without using a cable company supplied converter box. Some
cable companies offer "premium pay channels" in which the signal is
scrambled. Descrambling these signals for normal viewing requires the
use of a descrambler device, which is generally provided by the cable
company.
Connecting
your TV/DVD
Option 1: For Subscribers to Basic Cable TV Service
For basic cable service not requiring a Converter/Descrambler box,
connect the incoming 75 ohm RF Cable directly to the Antenna Jack on
the back of the television.
Option 2: For Subscribers to Scrambled Cable TV Service
If you subscribe to a cable service that requires the use of a Converter/
Descrambler box, connect the incoming cable to the Converter/
Descrambler box and connect the output of the box to the Antenna
Jack on the back of the television. Follow the connections shown
below. Set the television to the output of the Converter/Descrambler
box and use the Converter/Descrambler box to select channels.
Note:
When you use a converter box with your TV/
DVD, there may be features that you cannot
program using the remote control, such as
labeling channels, blocking channels, and
programming your favorite channels.
TV/DVD back panel
240V/50Hz
From Cable
Option 1:
Option 2:
Cable Box
12
This connection allows you to watch satellite, VCR, or TV programs.
You can record from the satellite receiver and TV, as well as record
one TV channel while watching another channel.
VIDEO
OUT to T V
L
AU DIO
R
OUT
S-VIDEO
Connecting
your TV/DVD
Note:
You can use a standard video cable instead
of the S-video cable, but the picture quality
will decrease. If you use an S-video cable
between the TV/DVD and DVD player/
satellite receiver, make the audio connections
but remove the standard video cable. Do not
connect both an S-video and a standard
video cable to VIDEO1 at the same time or
the picture performance will be unacceptable.
From satellite
Satellite Receiver
Satellite IN
You will need:
• three RF cables
• two sets of standard A/V cables
• one S-video cable
Introduction
Connecting a satellite receiver and a VCR
Stereo VCR
IN
IN from ANT
OUT to T V
OUT
CH 3
CH 4
VIDEO
L
AU DIO
R
TV/DVD back panel
Setting up
your TV/DVD
The unauthorized recording, use, distribution or revision of television programs,
videotapes, DVDs, and other materials is
prohibited under the Copyright Laws of the
United States and other countries, and may
subject you to civil and criminal liability.
Using the
TV/DVD’s Features
DVD Playback
Appendix
13
Connecting a DVD player with ColorStream®
(component video) and a VCR
Connecting
your TV/DVD
This connection allows you to watch DVD, VCR, or TV programs and
record TV programs. You can record from one source while watching a
program from another source. Your TV/DVD is capable of using
ColorStream (component video). Connecting your TV/DVD to a
component video compatible DVD player, such as a Toshiba DVD
player with ColorStream®, can greatly enhance picture quality and
performance.
You will need:
• two RF cables
• one set of standard A/V cables
• one set of component video cables
• one pair of standard audio cables
Note:
The ColorStream HD jacks can be used with
Progressive (480p,576p, 720p) and Interlaced
(480i, 576i,1080i) scan systems. A 1080i
signal will provide the best picture
performance.
The unauthorized recording, use, distribution or revision of television programs,
videotapes, DVDs, and other materials is
prohibited under the Copyright Laws of the
United States and other countries, and may
subject you to civil and criminal liability.
DVD player with Component video
OUT
L
COMPONENT VIDEO
Y
R
VIDEO
AUDIO
S-VIDEO
OUT
TV/DVD back panel
From
antenna
IN
IN from ANT
OUT to TV
OUT
CH 3
CH 4
VIDEO
L
AUDIO
R
Stereo VCR
14
This connection allows you to watch DTV (digital TV), VCR, and TV
programs, and record DTV and TV programs.
Your TV/DVD has ColorStream® (component video) inputs. Connecting
your TV/DVD to a DTV receiver with component video can greatly
enhance picture quality and realism.
You will need:
• three RF cables
• two sets of standard A/V cables
• one set of standard audio cables
• one set of component video cables
From Antenna
Stereo VCR
IN
IN from ANT
OUT to TV
OUT
CH 3
CH 4
VIDEO
L
AUDIO
R
TV/DVD back panel
Using the
TV/DVD’s Features
From DTV
Antenna
AUDIO
OUT
Y
S-VIDEO
COMPONENT VIDEO
VIDEO
OUT
L
R
L
R
The unauthorized recording, use,
distribution, or revision of television
programs, videotapes, DVDs, and other
materials is prohibited under the
Copyright Laws of the United States and
other countries, and may subject you to
civil and criminal liability.
Setting up
your TV/DVD
The ColorStream HD jacks and HDMI jacks
can be used with Progressive (480p, 576p,
720p) and Interlaced (480i, 576i, 1080i) scan
systems.
If your DTV receiver does not have component video, use the S-video and standard
audio connections instead. Do not connect
both an S-video and a standard video cable
to VIDEO1 at the same time or the picture
performance will be unacceptable.
For an HDMI connection, see page 17.
Connecting
your TV/DVD
Note:
Introduction
Connecting a DTV receiver/set-top box with
ColorStream® (component video) and a VCR
DTV Receiver with Component video
DVD Playback
Appendix
15
Connecting a camcorder
This connection allows you to watch videos recorded on a camcorder.
You will need:
• one set of standard AV cables
VHS Camcorder
VIDEO
AUDIO
Connecting
your TV/DVD
L
R
OUT
TV/DVD back panel
You will need:
• one S-video cable
• one pair of standard audio cables
S-VHS Camcorder
S-VIDEO
VIDEO
Note:
For better picture quality, if your camcorder
has S-video, you can use an S-video cable
(plus the standard audio cables) instead of a
standard video cable.
Do not connect both a standard video cable
and an S-video cable at the same time, or the
picture performance will be unacceptable.
AUDIO
L
R
OUT
TV/DVD back panel
16
The HDMI input on your TV receive digital audio and
uncompressed digital video from an HDMI source device, or
uncompressed digital video from a DVI (Digital Video Interface)
source device.
[1] EIA/CEA-861/861B compliance covers the
transmission of uncompressed digital video with highbandwidth digital content protection, which is being
standardized for reception of high-definition video
signals.
Because this is an evolving technology, it is possible
that some devices may not operate properly with the
TV.
This input is designed to accept HDCP (High-Bandwidth DigitalContent Protection) program material in digital form from EIA/
CEA-861/861B-compliant[1] consumer electronic devices (such
as a set-top box or DVD player with HDMI or DVI output).
NOTE: DO NOT CONNECT A PC USING
THE HDMI INPUT.
ALWAYS use the VGA port provided to connect a PC.
To ensure that the HDMI or DVI device is reset
properly, it is recommended that you follow these
procedures:
• When turning on your electronic components, turn on
the TV/DVD first, and then the HDMI or DVI device.
• When turning off your electronic components, turn off
the HDMI or DVI device first, and then the TV/DVD.
To connect an HDMI device, you will need:
• one HDMI cable (type A connector)
To connect a DVI device, you will need:
• one HDMI–to–DVI adapter cable
(HDMI type A connector)
HDMI cable transfers both video and audio. Separate
analog audio cables are not required (see illustration
below).
For proper operation, the length of an HDMI-to-DVI
adapter cable should not exceed 9.8 ft (3m). The
recommended length is 6.6 ft (2m).
Setting up
your TV/DVD
For proper operation, it is recommended that you use
as short an HDMI cable as possible. You should not
encounter difficulty if you use an HDMI cable that is
shorter than 16.4 ft (5m).
Connecting
your TV/DVD
The HDMI input is designed for best performance with high
definition video signals. They will accept and display 480i,
480p, 720p and 1080i signals.
Introduction
Connecting an HDMI™ or a DVI device
• one pair of standard analog audio cables
DVI device
HDMI device
VIDEO
VIDEO
AUDIO
L
R
IN
DVI
OUT
AUDIO
L
R
IN
HDMI
OUT
Using the
TV/DVD’s Features
An HDMI-to-DVI adapter cable transfers only video.
Separate analog audio cables are required (see
illustration below).
OUT
OUT
TV/DVD back panel
TV/DVD back panel
DVD Playback
17
Appendix
HDMI, the HDMI logo, and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI
Licensing, LLC.
Connecting
your TV/DVD
Connecting an amplifier equipped with a
Dolby® Digital decoder
Dolby Digital
Dolby Digital is the surround sound technology used in theaters
showing the latest movies, and is now available to reproduce this
realistic effect in the home. You can enjoy motion picture and live
concert DVD video discs encoded via the Dolby Digital recording
system with this dynamic realistic sound by connecting the TV/DVD to
a 6 channel amplifier equipped with a Dolby Digital decoder or Dolby
Digital processor. If you have a Dolby Surround Pro Logic decoder, you
will obtain the full benefit of Pro Logic from the same DVD movies that
provide full 5.1-channel Dolby Digital soundtracks, as well as from titles
with the Dolby Surround mark.
TV/DVD back panel
To OPTICAL
DIGITAL AUDIO OUT
Amplifier equipped with a
Dolby Digital decoder
To OPTICAL
type digital
audio input
Connecting an amplifier equipped with a DTS
decoder
Digital Theater Systems (DTS)
DTS is a high quality surround technology used in theaters and now
available for home use, on DVD video discs or audio CDs.
If you have a DTS decoder or processor, you can obtain the full benefit
of 5.1 channel DTS encoded sound tracks on DVD video discs or audio
CDs.
You will need:
• one optical cable
Notes:
• DO NOT connect the OPTICAL jack of the
TV/DVD to the AC-3 RF input of a Dolby
Digital Receiver. This input on your A/V
Receiver is reserved for Laserdisc use only
and is incompatible with the OPTICAL jack
of the TV/DVD.
• Connect the OPTICAL jack of the TV/DVD
to the “OPTICAL” input of a Receiver or
Processor.
• Refer to the owner’s manual of the
connected equipment as well.
• The output sound of the TV/DVD has a wide
dynamic range. Be sure to adjust the
receiver’s volume to a moderate listening
level. Otherwise, the speakers may be
damaged by a sudden high volume sound.
• Turn off the amplifier before you connect or
disconnect the TV/DVD’s power cord. If you
leave the amplifier power on, the speakers
may be damaged.
Manufactured under license from Dolby
Laboratories. Dolby and the double-D
symbol are trademarks of Dolby
Laboratories.
Confidential unpublished works .
Copyright 1992-1997 Dolby Laboratories.
All rights reserved.
You will need:
• one optical cable
Notes:
• Connect the OPTICAL jack of the TV/DVD
to the “OPTICAL” input of a Receiver or
Processor.
• Refer to the owner’s manual of the
connected equipment as well.
• The output sound of the TV/DVD has a wide
dynamic range. Be sure to adjust the
receiver’s volume to a moderate listening
level. Otherwise, the speakers may be
damaged by a sudden high volume sound.
• Turn off the amplifier before you connect or
disconnect the TV/DVD’s power cord. If you
leave the amplifier power on, the speakers
may be damaged.
TV/DVD back panel
To OPTICAL
DIGITAL AUDIO OUT
Amplifier equipped with
a DTS decoder
To OPTICAL
type digital
audio input
DTS and DTS Digital Out are trademarks of
DTS, Inc.
18
MPEG2 sound
You can enjoy motion picture and live concert DVD video discs
encoded via the MPEG2 recording system with dynamic realistic sound
by connecting an amplifier equipped with an MPEG2 audio decoder or
MPEG2 audio processor.
TV/DVD back panel
Setting up
your TV/DVD
Amplifier equipped with a
MPEG2 audio decoder
Notes:
• Connect the OPTICAL jack of the TV/DVD
to the “OPTICAL” input of a Receiver or
Processor.
• Refer to the owner’s manual of the
connected equipment as well.
• The output sound of the TV/DVD has a wide
dynamic range. Be sure to adjust the
receiver’s volume to a moderate listening
level. Otherwise, the speakers may be
damaged by a sudden high volume sound.
• Turn off the amplifier before you connect or
disconnect the TV/DVD’s power cord. If you
leave the amplifier power on, the speakers
may be damaged.
Connecting
your TV/DVD
To OPTICAL
DIGITAL AUDIO OUT
You will need:
• one optical cable
Introduction
Connecting an amplifier equipped with an
MPEG audio decoder
To OPTICAL
type digital
audio input
2 channel digital stereo
You can enjoy the dynamic sound of 2 channel digital stereo by
connecting an amplifier equipped with a digital audio input and speaker
system (right and left front speakers).
You will need:
• one optical cable
TV/DVD back panel
To OPTICAL
DIGITAL AUDIO OUT
Amplifier equipped with a
Digital audio input
Appendix
To OPTICAL
type digital
audio input
DVD Playback
Notes:
• PCM audio is limited to DVD or CD
playback.
• Connect the OPTICAL jack of the TV/DVD
to the “OPTICAL” input of a Receiver or
Processor.
• Refer to the owner’s manual of the
connected equipment as well.
• The output sound of the TV/DVD has a wide
dynamic range. Be sure to adjust the
receiver’s volume to a moderate listening
level. Otherwise, the speakers may be
damaged by a sudden high volume sound.
• Turn off the amplifier’s before you connect
or disconnect the TV/DVD’s power cord. If
you leave the amplifier power on, the
speakers may be damaged.
Using the
TV/DVD’s Features
Connecting an amplifier equipped with a
digital audio input
19
Connecting
your TV/DVD
Connecting a PC (personal computer)
Before you connect this TV/DVD to your PC, change the adjustment of
your PC’s Resolution and Refresh rate. See “Monitor display modes”
on right.
Connect one end of a (male to male) VGA cable to the video card of
the computer and the other end to the VGA connector PC at the side of
the TV/DVD. Fix the connectors firmly with the screws on the plug. In
case of a Multimedia computer, connect the audio cables to the audio
outputs of your Multimedia computer and to the AUDIO L and R
connectors of the PC IN jacks of the TV/DVD.
Set the video input source to PC mode (see “Video input source” on
page 23 and “Picture/Audio adjustments in the PC mode” on page 35).
The TV/DVD can be used as a computer monitor.
TV/DVD
back panel
Computer
You will need:
• one VGA (15-pin) computer cable
• one PC audio cable
Monitor display modes
Mode
VGA
VGA
WVGA
SVGA
XGA
WXGA
WXGA
WXGA
Resolution
640x480
720x400
848x480
800x600
1024x720
1024x768
1024x768
1360x768
Refresh rate
60Hz
70Hz
60Hz
60Hz
60Hz
60Hz
60Hz
60Hz
Notes:
• Some PC models cannot be connected to
this TV.
• An adapter is not needed for computers with a
DOS/V compatible mini D-sub 15-pin terminal.
• The on-screen displays will have a different
appearance in PC mode than in TV mode.
NOTE: DO NOT CONNECT A
PC USING THE HDMI INPUT.
ALWAYS use the VGA port provided to connect a PC.
Audio
output
Audio cable
Conversion adapter (if necessary)
20
Using the remote control
Caution:
• Never throw batteries into a fire.
Installing the remote control batteries
To install the batteries:
1. Open the battery cover on the back of the remote control.
Setting up
your TV/DVD
Using the
TV/DVD’s Features
3. Close the battery cover on the remote control until the lock snaps.
Connecting
your TV/DVD
2. Install two “AAA” size batteries. Match the + and – signs on the
batteries to the signs on the battery compartment.
Notes:
• Be sure to use AAA size batteries.
• Dispose of batteries in a designated
disposal area.
• Batteries should always be disposed of with
the environment in mind. Always dispose of
batteries in accordance with applicable
laws and regulations.
• If the remote control does not operate
correctly, or if the operating range becomes
reduced, replace batteries with new ones.
• When necessary to replace batteries in the
remote control, always replace both
batteries with new ones. Never mix battery
types or use new and used batteries in
combination.
• Always remove the batteries from the
remote control if they are dead or if the
remote control is not to be used for an
extended period of time. This will prevent
battery acid from leaking into the battery
compartment.
Introduction
Setting up your TV/DVD
DVD Playback
Appendix
21
Learning about the remote control
POWER turns the TV/DVD on and off
EJECT ejects a disc
TV/DVD Set the remote control between TV and DVD mode
If the red light flashes when pressed, the buttons for TV operations
work. If the green light flashes when pressed, the buttons for DVD
operations work
TV changes to TV mode directly
POWER
DVD
TV
DVD changes to DVD mode directly
TV/DVD
VIDEO
P.MODE
S.MODE
TV MENU allows access to programming menus
CHANNEL/ NUMBER(0-10,+10) allows direct access to channels,
input setting or enter a security code
NUMBER BUTTONS
CH ! / ! !!cycles through programmed channels
FREEZE
MPX
VOL + / – adjusts the volume level
OK sets programmed menu information
VOL +/-
TT
CH Ĥ/ĥ
VIDEO selects the video input source
FLASHBACK in TV mode, allows to return to the previous channel
Setting up
your TV/DVD
FREEZE allows to freeze the image being played; press again to
resume playback
OSD displays status information on-screen or access the OSD menu
when DVD/Video disc is played
MUTE turns off the sound
MUTE
TV MENU
CURSOR BUTTONS
OK
DVD TITLE
STOP
MPX selects the sound multiplex mode
PC-AUTO/DPMS in PC mode, auto adjustment for PC signals. In other
mode, use to turn off the backlight
P.MODE cycle through the four picture mode: User, Standard, Movie
and Vivid
FLASHBACK
PREV SKIP
NEXT SKIP
FR SERACH
FF SERACH
PC-AUTO/DPMS
PLAY MODE
DVD MENU
PLAY/PAUSE
OSD
SETUP
ZOOM
REPEAT
AUDIO
EJECT
SUBTITLE
VIEW MODE
COLORED KEYS
S.MODE cycle through the four sound mode: User, Standard, News
and Music
VIEW MODE cycle through the five scale: Full, Zoom1, Zoom2, Zoom3
and Normal
TT allows access to viewing Normal Text
Colored keys allows access to corresponding text pages
Note:
If the remote control does not operate, press
the “TV/DVD” button on the remote control
and try again.
DVD TITLE allows access to DVD title menu
DVD MENU allows access to DVD menu
PLAY MODE sets Random or program playback
SUBTITLE sets subtitle
AUDIO switches the sound of TV/DVD and changes sound track
languages
REPEAT repeats playback
ZOOM allows to zoom in or out on the frame image
SETUP allow access to DVD setup menu
FF fast forwards a DVD, VCD, CD Audio, forward playback
FR fast reverses a DVD, VCD, CD Audio, reverse playback
• Aim the remote control at the TV/DVD’s
remote sensor (see Illustration below)
and press the buttons to operate.
• Operate the remote control within a 30
degree on either side of the remote
sensor, up to a distance of approx. 16 ft.
(5m).
PREV skips to the previous chapter or track
Remote
Sensor
NEXT skips to the next chapter or track
STOP stops a DVD, VCD, CD Audio; press STOP once to display a
thumbnail for JPEG; press STOP twice to display a file browser
screen for JPEG
PLAY/PAUSE plays/pauses a DVD, VCD, CD Audio
22
Approx. 5 meters
Introduction
Starting Setup
To turn the TV on/off
Top
panel
/
+/ EL O
/
E
ER U ME NN ID
Y P IP ECT
W EN LU HA /V
A
O
PL ST SK EJ
PO M VO C TV
Top
Front
Video input source
Rig
Connecting
your TV/DVD
1. Press POWER button on the TV or on the remot control.
The Power indicator will light up in green and the picture will appear.
2. To switch to the standby mode, press POWER button.
The Power indicator will light up in red.
Notes:
• When the TV is turned off but remains plugged into the electrical outlet,
a minute amount of current is still consumed.
• When the TV is not be used for a long period of time, such as during
vacation or travel, remove the power plug from the electrical outlet.
Press VIDEO on the remote control or TV/VIDEO on the TV unit
repeatedly to view a signal coming from another device connected to
your TV, such as a VCR or video camera.
SOURCE
AV1
AV2
POWER
indicator
YPBPR
DVD
PC
Setting up
your TV/DVD
TV
HDMI
POWER
VIDEO
Using the
TV/DVD’s Features
Changing the on-screen display language
You can choose English or Chinese for the on screen displays.
Adjustment menus and messages will appear in the language
of your choice.
To select a language
1. Press TV MENU, then press
or
to highlight SYSTEM icon.
TV MENU
or
DVD Playback
2. Press
to highlight OSD LANGUAGE.
SYSTEM
OSD LANGUAGE
OSD H-POSITION
OSD V-POSITION
OSD DURATION
OSD HALFTONE
ENGLISH
ALWAYS
Appendix
3. Press or to select your desired language.
4. Press OK repeatedly until TV menu disappear.
23
To Watch TV programs
You can watch TV programs being
broadcast on the preset channels.
Using the Channel Number buttons
• To select a one-digit channel number:
Press number from among 1-9.
• To select a two-digit channel number:
Press one of the buttons from 1-9 for the decimal position and the next
number from among 0-9.(10-99)
Number
buttons
Using CH! /
Press CH!! to select lower position numbers; CH!! to
select higher ones. Your TV will change only on the channels
you program into the TV’s channel memory.
For how to add channels to TV’s memory, see “To preset
channels(AUTO SCAN)” on page 25 for details.
MPX
VOL+/-
CH
/
FLASHBACK
Setting up
your TV/DVD
To adjust sound volume
To adjust sound volume, press VOL+/- on the TV
or on the remote control to increase or decrease
respectively.
Using MPX
Press MPX button on the remote control to select a MPX mode:
1. When stereo TV signal is received, press MPX button to shift among:
MONO, NICAM MONO and STEREO.
2. When Mono TV signal is received, press MPX button to shift between:
MONO and NICAM MONO.
3. When dual language TV signal is received, press MPX button to shift
among: MONO, DUAL AB, DUAL A, DUAL B.
To switch between two channels (Channel Return)
The channel return feature allows you to switch between channels
without entering an actual channel number each time.
1. Select the first channel you want to view.
2. Select a second channel using the number buttons.
3. Press FLASHBACK. The previous channel will be displayed.
Pressing FLASHBACK switches the TV between the last two
channels that were selected.
24
Introduction
Tuning in
• First, use the AUTO SCAN function to preset all active channels in
your area automatically.Then, arrange the preset channels with the
SKIP and EXCHANGE functions so that you can tune into only desired
channels.
• Use the manual programme function if desired channels cannot be
preset with the AUTO SCAN or if you would like to preset channels to
specific position numbers one by one.
To preset channels(AUTO SCAN)
To program channels automatically
1. Press TV MENU and press
or
CH
/
to highlight the TV-CHANNEL icon.
TV MENU
Connecting
your TV/DVD
Your TV/DVD can automatically detect all active channels and store
them in its memory.
TV- CHANNEL
AUTO SCAN
MANUAL PROGRAM
SOUND SYSTEM
OK
I
Setting up
your TV/DVD
2. Press or
to highlight AUTO SCAN , then press or to start
auto-programming.
The TV will automatically cycle through all the TV and Cable channels,
and store all active channels in the channel memory.
TV- CHANNEL
BG
3. Press OK to return to the TV-CHANNEL menu, press TV MENU to
exit.
After searching
To set sound system
1. Press TV MENU and press or to highlight the TV-CHANNEL
icon.
2. Press or to highlight SOUND SYSTEM.
DVD Playback
Check the stored channels by pressing CH / .
If the picture or sound of a certain channel is not good,
fine tune the channel using the Manual Fine Tuning function.
If the sound is abnormal when receiving certain channel,
the sound system setting may be incorrect.
Using the
TV/DVD’s Features
AUTO SCAN
MANUAL PROGRAM
SOUND SYSTEM
TV- CHANNEL
AUTO SCAN
MANUAL PROGRAM
SOUND SYSTEM
BG
Appendix
3. Then press or to select the sound system.
4. Press OK repeatedly until TV menu disappear.
25
To edit channels manually
After you have programmed the channels automatically, you can edit
channels manually.
• Channel Exchange
• Skip
• Manual Search
• Auto Fine Tuning
• Manual Fine Tuning
To exchange channels
1. In the TV-CHANNEL menu, press
MANUAL PROGRAM, and press
MANUAL PROGRAM page.
or
or
to highlight
to display the
Number
buttons
TV- CHANNEL
Setting up
your TV/DVD
CURRENT CHANNEL
TARGET CHANNEL
EXCHANGE
SKIP
SEARCH NEXT
AFC
FINE TUNE
CH
1
1
TV MENU
ON
2. Press or
to highlight CURRENT CHANNEL,
press or
to select a current channel number
you wish to change.
3. Press or
to highlight TARGET CHANNEL, press or
to
select a target channel number you wish to change.
4. Then press or
to highlight EXCHANGE, press or
to confirm.
The current channel and the target channel will be swaped.
5. Press OK repeatedly with TV menu disappear.
To skip a position number
1. Use the Number buttons to select a channel you wish to skip.
2. On the MANUAL PROGRAM menu, press or
to highlight SKIP.
TV- CHANNEL
CURRENT CHANNEL
TARGET CHANNEL
EXCHANGE
SKIP
SEARCH NEXT
AFC
FINE TUNE
/
OFF
1
1
OFF
ON
3. Press or to select ON.
4. Press OK repeatedly with TV menu disappear. The channel number
will then be skipped when you search for channels with CH / .
To restore a skipped number
1. Use the Number buttons to select a skipped channel you wish to
restore.
2. On the MANUAL PROGRAM menu with SKIP highlighted.
3. Press or to select OFF.
26
OK
Introduction
To program channels manually
1. Use the Number buttons to select a channel.
2. On the MANUAL PROGRAM menu, press
or
SEARCH NEXT.
to highlight
TV- CHANNEL
1
1
Number
buttons
OFF
ON
3. Press
or
to activate this function.
4. Press
or
each time, this unit will search to the signal channel
automatically and play the channel image.
5. Press OK to save the searched TV programs.
Repeat the above method to search the other TV programs.
6. Press OK to return and press TV MENU to exit.
AFC(Auto Fine Tuning)
Connecting
your TV/DVD
CURRENT CHANNEL
TARGET CHANNEL
EXCHANGE
SKIP
SEARCH NEXT
AFC
FINE TUNE
TV MENU
OK
1. Use the Number buttons to select a channel you want to auto fine
tune.
2. On the MANUAL PROGRAM menu, press
or
to highlight AFC.
Setting up
your TV/DVD
• The Auto Fine Tuning function automatically corrects slight
fluctuation when receiving signals.
TV- CHANNEL
1
1
OFF
ON
3. Press
or
to select ON.
4. Press OK to return and press TV MENU to exit.
Note: Only when “AFC” is set to “OFF” then “FINE TUNE” is available.
FINE TUNE(Manual Fine Tuning)
Using the
TV/DVD’s Features
CURRENT CHANNEL
TARGET CHANNEL
EXCHANGE
SKIP
SEARCH NEXT
AFC
FINE TUNE
1. Use the Number buttons to select a channel you want to fine tune.
2. On the MANUAL PROGRAM menu, press
or
to highlight
FINE TUNE, then press
or
.
DVD Playback
TV- CHANNEL
CURRENT CHANNEL
TARGET CHANNEL
EXCHANGE
SKIP
SEARCH NEXT
AFC
FINE TUNE
1
1
OFF
OFF
3. Press
or
to adjust.
4. Press OK to return and press TV MENU to exit.
27
Appendix
Note:
The FINE TUNE adjustment is not necessary under normal conditions.
However, in areas of inferior broadcast conditions where adjustment is
necessary for a better picture, adjust the tuning with Fine Tune. You
can also use AFC function. Refer to AFC for details.
Using the TV/DVD’s Features
Adjusting the Picture
You can select your desired picture type from the picture preset
modes or manually adjust the picture quality to you preference.
To select the picture modes
P.MODE
You can select four picture modes-User, Standard, Movie and
Vivid-as described in the following table.
Mode
Picture Quality
USER
Your personal preference
STANDARD
Standard picture setting
MOVIE
Movie-like picture setting
VIVID
Vivid picture setting
TV MENU
Using direct selection button
Press P.MODE button to display the current picture mode.
To change the picture mode, press P.MODE button repeatedly
until your desired mode is selected.
Using the On-Screen Display(OSD) menu
1. Press TV MENU and press
or
to highlight the PICTURE icon.
2. Press
or
to highlight PICTURE MODE.
Using the
TV/DVD’s Features
USER
PICTURE MODE
CONTRAST
BRIGHTNESS
TINT
SATURATION
SHARPNESS
COLOR TEMP
SCALE
BACKLIGHT
NORMAL
FULL
BRIGHT
3. Press
or
select the desired picture mode.
4. Press OK until TV menu disappear.
To adjust the picture quality
1. Press TV MENU , then press or to highlight the PICTURE
icon.
2. Press
or
until the item you want to adjust is highlighted, then
press or .
PICTURE MODE
CONTRAST
BRIGHTNESS
TINT
SATURATION
SHARPNESS
COLOR TEMP
SCALE
BACKLIGHT
3. Press
or
USER
NORMAL
FULL
BRIGHT
to adjust the level.
Item
Pressing
CONTRAST
weaker
stronger
BRIGHTNESS
darker
brighter
TINT
purplish
greenish
SATURATION
softer
sharper
SHARPNESS
softer
sharper
4. Press OK repeatedly until TV menu disappear.
28
OK
Introduction
Selecting the color temperature
Change the picture quality by selecting from three preset color
temperatures-cool, normal, warm-as described in the following table:
Mode
Picture Quality
COOL
Blueish
NORMAL
Neutral
WARM
Reddish
Connecting
your TV/DVD
To adjust color temperature
1. Press TV MENU , then press or to highlight the PICTURE
icon.
2. Press
or
to highlight COLOR TEMP.
TV MENU
USER
PICTURE MODE
CONTRAST
BRIGHTNESS
TINT
SATURATION
SHARPNESS
COLOR TEMP
SCALE
BACKLIGHT
NORMAL
FULL
BRIGHT
OK
Setting up
your TV/DVD
3. Press
or
to select the mode you prefer.
4. Press OK repeatedly until TV menu disappear.
Changing the picture scale
You can select five picture scales- Full, Zoom1, Zoom2, Zoom3, Normal.
VIEW MODE
Using direct selection button
Press VIEW MODE button to display the current picture scale.
To change the picture scale, press VIEW MODE button repeatedly
until your desired scale is selected.
1. Press TV MENU and press
or
to highlight the PICTURE icon.
2. Press
or
to highlight SCALE.
USER
PICTURE MODE
CONTRAST
BRIGHTNESS
TINT
SATURATION
SHARPNESS
COLOR TEMP
SCALE
BACKLIGHT
Using the
TV/DVD’s Features
Using the On-Screen Display(OSD) menu
NORMAL
FULL
BRIGHT
Adjusting the backlight
1. Press TV MENU, then press or to highlight the PICTURE
icon.
2. Press or
to highlight BACKLIGHT.
DVD Playback
3. Press
or
select the desired picture scale.
4. Press OK repeatedly until TV menu disappear.
USER
NORMAL
FULL
BRIGHT
Appendix
PICTURE MODE
CONTRAST
BRIGHTNESS
TINT
SATURATION
SHARPNESS
COLOR TEMP
SCALE
BACKLIGHT
3. Press or to select the mode you prefer.
4. Press OK repeatedly until TV menu disappear.
29
Adjusting the sound
Muting the sound
Press MUTE to temporarily turn off the sound.
While the sound is off, the TV screen will display
“MUTE” on the screen. To store the sound, press MUTE again.
S.MODE
To select the sound modes
You can select four sound modes- User, Standard,
News and Music-as described in the following table.
Mode
USER
STANDARD
Sound quality
Your personal preference
Standard sound setting
NEWS
News-like sound setting
MUSIC
Music-like sound setting
MUTE
TV MENU
Using direct selection button
Press S.MODE button to display the current sound mode.
To change the sound mode, press S.MODE button repeatedly
until your desired mode is selected.
Using the On-Screen Display(OSD) menu
1. Press TV MENU and press
or
to highlight the SOUND icon.
2. Press
or
to highlight SOUND MODE.
Using the
TV/DVD’s Features
SOUND
SOUND MODE
BASS
TREBLE
BALANCE
USER
3. Press
or
select the desired sound modes.
4. Press OK repeatedly until TV menu disappear.
Adjusting the sound quality
You can change the sound quality of your TV/DVD by adjusting the bass,
treble and balance.
To adjust the sound quality
1. Press TV MENU, then press
or
to highlight the SOUND icon.
2. Press
or
to highlight the item you want to adjust, then
press or .
SOUND
SOUND MODE
BASS
TREBLE
BALANCE
USER
3. Press
or
to adjust the level.
•
makes the sound quality weaker or increases left speaker volume,
depending on the item selected.
•
makes the sound quality stronger or increases right speaker volume,
depending on the item selected.
30
OK
Introduction
Adjusting the Advance settings
Setting the sleep timer
You can turn the TV/DVD off at a set time.
To set the sleep timer:
1. Press TV MENU and press
or
to highlight the ADVANCE icon.
2. Press ▲ or ▼ to highlight SLEEP TIME.
ADVANCE
OFF
LOW
TV MENU
3. Press or
to determine the time before the TV switches to
standby mode.
4. Press OK repeatedly until TV menu disappear.
OK
To cancel the sleep timer:
Set SLEEP TIME to OFF in step 3 above.
You can refer to the information about the current input source.
1. Press TV MENU and press
or
to highlight the ADVANCE icon.
2. Press
or
to highlight INFORMATION.
ADVANCE
Setting up
your TV/DVD
Information
SLEEP TIME
INFORMATION
MEMORY RECALL
3D NR
Connecting
your TV/DVD
SLEEP TIME
INFORMATION
MEMORY RECALL
3D NR
OFF
LOW
Using the
TV/DVD’s Features
3. Press
or
display the information page.
Example:In TV mode
4. Press OK repeatedly until TV menu disappear.
DVD Playback
To reset the menu settings
1. Press TV MENU and press
or
to highlight
the ADVANCE icon.
2. Press
or
to highlight MEMORY RECALL.
ADVANCE
SLEEP TIME
INFORMATION
MEMORY RECALL
3D NR
OFF
LOW
31
Appendix
3. Press
or to reset the menu settings to the default values.
4. Press OK repeatedly until TV menu disappear.
Using the 3D NR
Noise Reduction reduce visible interference in your TV/DVD picture.
This is useful when receiving a broadcast with a weak signal
(especially a cable channel) or playing a video cassette or disc
damaged by repeated use.
To turn on the 3D NR feature:
1. Press TV MENU and press or
2. Press or
to highlight 3D NR.
to highlight the ADVANCE icon.
ADVANCE
SLEEP TIME
INFORMATION
MEMORY RECALL
3D NR
OFF
LOW
TV MENU
3. Press or
to select the items you want.
4. Press OK repeatedly until TV menu disappear.
OK
Using the
TV/DVD’s Features
To turn off the 3D NR feature:
Select OFF in step 3.
32
Introduction
Adjusting the system menu
To select OSD language
1. Press TV MENU, then press or to highlight the SYSTEM icon.
2. Press ▲ or ▼ to highlight OSD LANGUAGE.
SYSTEM
OSD LANGUAGE
OSD H-POSITION
OSD V-POSITION
OSD DURATION
OSD HALFTONE
ENGLISH
ALWAYS
Connecting
your TV/DVD
3. Press or to select a language you want.
4. Press OK repeatedly until TV menu disappear.
To adjust OSD H-POSITION
1. Press TV MENU, then press or to highlight the SYSTEM icon.
2. Press ▲ or ▼ to highlight OSD H-POSITION.
TV MENU
SYSTEM
OSD LANGUAGE
OSD H-POSITION
OSD V-POSITION
OSD DURATION
OSD HALFTONE
ENGLISH
ALWAYS
OK
To adjust OSD V-POSITION
1. Press TV MENU, then press or to highlight the SYSTEM icon.
2. Press ▲ or ▼ to highlight OSD V-POSITION.
Setting up
your TV/DVD
3. Press or to adjust.
4. Press OK repeatedly until TV menu disappear.
SYSTEM
ENGLISH
ALWAYS
3. Press or to adjust.
4. Press OK repeatedly until TV menu disappear.
To adjust OSD DURATION
1. Press TV MENU, then press or to highlight the SYSTEM icon.
2. Press ▲ or ▼ to highlight OSD DURATION.
Using the
TV/DVD’s Features
OSD LANGUAGE
OSD H-POSITION
OSD V-POSITION
OSD DURATION
OSD HALFTONE
SYSTEM
ENGLISH
ALWAYS
3. Press or to select the display time of the OSD menu.
4. Press OK repeatedly until TV menu disappear.
To adjust OSD HALFTONE
DVD Playback
OSD LANGUAGE
OSD H-POSITION
OSD V-POSITION
OSD DURATION
OSD HALFTONE
1. Press TV MENU, then press or to highlight the SYSTEM icon.
2. Press ▲ or ▼ to highlight OSD HALFTONE, then press or .
SYSTEM
ENGLISH
ALWAYS
Appendix
OSD LANGUAGE
OSD H-POSITION
OSD V-POSITION
OSD DURATION
OSD HALFTONE
3. Press or to adjust .
4. Press OK repeatedly until TV menu disappear.
33
Using the PC setting feature
You can adjust the PC settings at one time by
using the Auto function in the PC setting menu
or adjust them one by one by using ▲ or ▼ on the
remote control.
VIDEO
Before using the PC setting menu
(1)Confirm a PC is connected.
(2)Repeatedly press VIDEO to select PC input mode.
To adjust the PC settings
1. Press TV MENU, then press
or
to highlight the GEOMETRY icon.
TV MENU
OK
2. Press ▲ or ▼ to highlight AUTO.
GEOMETRY
Using the
TV/DVD’s Features
H-POSITION
V-POSITION
H-SIZE
PHASE
AUTO
3. Press or to confirm. The TV will automatically adjust the
horizontal/vertical picture position, H-size, phase
(to remove horizontal noise and sharpen the picture.)
If you are not satisfied with the result, you can manually
adjust every function provided in the same menu.
4. To adjust the horizontal/vertical picture position,
press ▲ or ▼ to highlight H-POSITION or V-POSITION,
and then press or to change the H-POSITION or
V-POSITION values.
GEOMETRY
H-POSITION
V-POSITION
H-SIZE
PHASE
AUTO
GEOMETRY
5. To adjust the display clock frequency (to minimize vertical
stripes on the screen) , press ▲ or ▼ to highlight H-SIZE,
and then press or to adjust the H-SIZE values.
6. To adjust the display clock phase (to remove horizontal noise
or sharpen the picture),
press ▲ or ▼ to highlight PHASE, and then
press or to adjust the PHASE values.
34
H-POSITION
V-POSITION
H-SIZE
PHASE
AUTO
GEOMETRY
H-POSITION
V-POSITION
H-SIZE
PHASE
AUTO
Introduction
Picture/Audio Adjustments in PC mode
There are a number of picture/audio settings you
can adjust to optimize the performance of the TV/DVD in PC mode.
PICTURE MENU
FULL
Ś
COLOR TEMP
R
G
B
USER
SOUND MENU
TV MENU
Connecting
your TV/DVD
CONTRAST
BRIGHTNESS
COLOR TEMP
SCALE
SOUND
SOUND MODE
BASS
TREBLE
BALANCE
USER
OK
Note:
CONTRAST: To adjust the contrast of PC Monitor screen.
BRIGHTNESS: To adjust the brightness of PC Monitor screen.
COLOR TEMP (R/G/B): To adjust the color temperature of PC Monitor
screen.
SCALE: To select the scale of PC Monitor screen.
Also you can press PC-AUTO on the
remote control to activate the auto
adjustment.
Using the
TV/DVD’s Features
PICTURE menu settings:
PC-AUTO
Setting up
your TV/DVD
Example: Adjust the contrast
1. In PC mode, press TV MENU, then press or to highlight the
PICTURE icon.
2. Press ▲ or ▼ to highlight CONTRAST.
3. Press or to display the contrast menu, and press or to adjust
the contrast level.
4. Press OK repeatedly until TV menu disappear.
SOUND menu settings:
DVD Playback
SOUND MODE:To select the sound mode of PC mode.
BASS/TREBLE/BALANCE: To adjust the sound quality of PC mode.
Appendix
35
Viewing Teletext
Viewing Normal Text/Use of the teletext buttons
To display a page of text
1. Select a TV station with the text service.
2. Press TT. The index page will appear.
3. Enter the 3-digit page number using the Number buttons(0-9).
(Ex. Page 100: press 1,0 and 0.) The number is displayed
top left, the counter turns and then the page is displayed.
Repeat this operation to view another page.
Note: If the page you selected is not available, the screen will
only display the date/time and the number of the page.
TT
CH
To display an index/initial page
1. Press CH
2. Press CH
Number
buttons
to switch to the previous page.
to switch to the next page.
/
TV MENU
To stop a page of text
Press OK to stop sub page acquisition. “
” icon will display
top left on the screen.
The sub-pages will scroll through automatically when you
press OK again to release it.
OK
DVD MENU
DVD TITLE
To return to the Normal TV mode
Press TT repeatedly until the text disappears.
Enlarge a page
Using the
TV/DVD’s Features
The UP/DOWN button allow you to display the top or bottom part
of the page and then return to normal size.
Direct access to the items
Colored areas are displayed at the bottom of the screen.
The four colored buttons are used to access the items or
corresponding pages.
To return to the content page
Press DVD MENU to return to the content page.
(usually page 100)
Press DVD TITLE to change to transparent mode.
36
COLORED BUTTONS
CAUTION
Keep your fingers well clear of the disc slot
when disc is loading or unloading.
Neglecting to do so may cause serious
personal injury.
Playing a disc
This section shows you the basics on how to play a disc.
Basic playback
DVD
VCD
Introduction
DVD Playback
CD
Preparations: When connecting to other equipment, turn the power off.
DVD
Connecting
your TV/DVD
1. Press POWER on the unit or on the remote control to turn on the
unit.
The Power indicator will light.
• When using an amplifier, switch on the amplifier.
2. Press DVD on the remote control to select DVD mode.
The DVD startup screen will appear on the screen. (If DVD disc
has already loaded, playback will start automatically.)
POWER
VOL +/–
OK
4. On the TV screen, “Open” changes to “Loading” and then
playback commences.
Open
STOP
PLAY/PAUSE
Loading
Note:
Static electricity may affect the TV/DVD’s
operation and cause it not to work properly. If
this happens, turn OFF the POWER,
disconnect and then reconnect the AC power
cord, and turn ON the unit again.
Using the
TV/DVD’s Features
• A menu screen will appear on the TV screen if the disc has a
menu feature.
Press / or / to select title, then press OK. Title is
selected and play commences.
5. Press VOL + or – to adjust the volume.
DVD Playback
VOLUME
Setting up
your TV/DVD
3. Load a disc in the disc slot with the
label side facing forward. (If the disc
has a label.) Hold the disc without
touching either of its surfaces, align it
with the guides and place it in position.
10
6. Press STOP to end playback.
37
Appendix
Resume feature
• Depending on the disc you are playing, when you press STOP once,
the TV/DVD remembers the scene that was playing (“Press
to continue” appears on screen). Press PLAY/PAUSE to resume
playback from the stopped scene.
• If you press STOP again, the unit will clear the stopped scene (only
“Ŗ” will appear on screen).
About
DVD
VCD
CD
The DVD VCD CD icons on the heading bar show the playable discs
for the function described under that heading.
DVD : You can use this function with DVD video discs.
VCD : You can use this function with Video CDs.
CD : You can use this function with Audio CDs and CD-R/RW discs.
To start playback in the stop mode
Press PLAY/PAUSE.
To pause playback (still mode)
Press PLAY/PAUSE during playback.
To resume normal playback, press PLAY/PAUSE.
• The sound is muted during still mode.
To stop playback
Press STOP.
To remove the disc
Press EJECT.
Remove the disc after the disc comes
out.
STOP
PLAY/PAUSE
EJECT
DVD Playback
Notes:
• If a non-compatible disc is loaded, “Wrong region” or “Parental violation” will appear on the TV screen according to the type
of loaded disc. In this case, check your disc again (see pages 8 and 55).
• Some discs may take a minute or so to start playback.
• When you set a single-faced disc label downwards (ie. the wrong way up), “Loading” will appear on the display for a few
minutes and then the disc will eject out from the disc slot.
• Some discs may not resume playing the same scene after stopping.
• Resume play is activated when you play a PBC-featured Video CD while the PBC is on.
• Some playback operations of DVDs may be intentionally fixed by software producers. Since this unit plays DVDs
according to the disc contents the software producers designed, some playback features may not be available. Also refer
to the instructions supplied with the DVDs.
• Do not move the unit during playback. Doing so may damage the disc.
• Use EJECT button to unload and eject the disc.
• Do not put any objects other than discs in the disc slot. Doing so may cause the unit to malfunction.
• There may be a slight delay between the button is pressed and the function activates.
• The display still show “Open” after the disc is removed from the disc slot or no disc is in the slot.
38
Introduction
Playing in fast reverse or fast forward directions
DVD
VCD
CD
Press FR or FF during playback.
FR:
Fast reverse playback
FF:
Fast forward playback
Each time you press FR or FF, the playback speed changes.
PLAY/PAUSE
To resume normal playback
Press PLAY/PAUSE.
DVD
VCD
CD
Press PREV
or NEXT
repeatedly to display the chapter or
track number you want.
Playback starts from the selected chapter or track.
NEXT
:To locate succeeding chapters or tracks.
PREV
: Playback starts from the beginning of the current
chapter or track. When you press twice in quick
successions, playback starts from the beginning of the
preceding chapter or track.
Note:
A Prohibited symbol “ ” may appear on the
upper left of the screen. This symbol means
either the feature you tried is not available on
the disc, or the TV/DVD cannot access the
feature at this time. This does not indicate a
problem with the TV/DVD.
Using the
TV/DVD’s Features
Locating a chapter or track
Setting up
your TV/DVD
Notes:
• The TV/DVD mutes sound during reverse
and forward scan of DVD and Video CD
discs. However, the TV/DVD plays sound
during fast forward or fast reverse play of
audio CDs.
• The playback speed may differ depending
on the disc.
Connecting
your TV/DVD
FF
FR
DVD Playback
Appendix
39
Zooming
DVD
VCD
This unit will allow you to zoom in or out on the frame image. You can
then make selections by switching the position of the frame.
1. While a disc is playing, press ZOOM repeatedly
to select the following:
2X-Enlarge picture twice.
3X-Enlarge picture three times.
4X-Enlarge picture four times.
1/2-Reduce picture by half.
1/3-Reduce picture by three times.
1/4-Reduce picture by four times.
2X
2. Press / / / to view a different part of the
enlarged picture.
You may move the frame from the center position to UP, DOWN,
LEFT or RIGHT direction.
3. In the zoom mode, press ZOOM repeatedly to return to a 1:1 view .
ZOOM
Notes:
• You can select the Pause or Search
playback in the zoom mode.
• Some discs may not respond to zoom
feature.
Direct play
CD
You can select a desired track using number buttons.
To select track number smaller than 10
1. Press Number buttons(1-9) to select the desired track.
2. Then press OK.
Number
buttons
DVD Playback
To select track number greater than 10
1. Press Number button(+10) once and Number buttons(1-10) to
select the desired track.
2. Then press OK.
OK
40
DVD
Introduction
Repeat playback
VCD
Repeat playback allows you to repeat a title, chapter or track.
1. Press REPEAT during playback.
Chapter
Title
[Video CD]
Press REPEAT repeatedly to select “
Track”
or “
Disc”.The unit automatically starts repeat
playback after finishing the current track.
• If you set the repeat mode during stop mode,
press PLAY/PAUSE to start Repeat playback.
REPEAT
Connecting
your TV/DVD
2. [DVD]
Press REPEAT repeatedly to select
“
chapter”, “
Title” or “
Disc”.
The unit automatically starts repeat playback
after finishing the current title or chapter.
Disc
[Audio CD and MP3/WMA CD]
Please see “Repeat playback” on page 52.
Setting up
your TV/DVD
Notes:
• You may not be able to set Repeat during
certain scenes of the DVD.
• Some disc may not work with the repeat
operation.
• The REPEAT does not work when PBC is
on.
To resume normal playback
Press REPEAT again.
DVD
VCD
The unit plays titles(or chapters) and tracks at random play mode.
For Audio CD and MP3/WMA CD, please see “Random playback” on
page 52.
1. Press PLAY MODE repeatedly to select Random mode
during playback.
2. To cancel random playback, press STOP twice.
STOP
Using the
TV/DVD’s Features
Random playback
PLAY MODE
DVD Playback
Appendix
41
Program playback
You can arrange the playback order of titles, chapters or tracks on the
disc.
You can program up to 20 titles (chapters) or tracks.
Number
buttons
DVD
1. Press PLAY MODE repeatedly to show the program menu.
2. Use Number buttons(0-9) to input the
titles, then press OK to confirm.
Next, input the chapter number then
press OK to confirm.
Example: to input chapter 1 of title 8
3. Continue adding the title (or chapter)
numbers until your program is completed.
Highlight “Start” on the program menu
and press OK to start a program play.
Program: TT(20)/CH(--)
01 TT:
6 02 TT:
6 03 TT:
6 04 TT:
6 05 TT:
6 06 TT:
6 07 TT:
CH:
CH:
CH:
6 08 TT:
6 09 TT:
CH:
6 10 TT:
CH:
CH:
CH:
6 Exit
CH:
CH:
CH:
6
OK
Program: TT(20)/CH(--)
6 01 TT: 08
6 02 TT:
6 03 TT:
6 04 TT:
6 05 TT:
6 06 TT:
6 07 TT:
CH:
CH:
CH:
6 08 TT:
6 09 TT:
CH:
6 10 TT:
CH:
6 Start
6
CH: 01
CH:
CH:
6 Exit
CH:
CH:
STOP
PLAY MODE
4. To stop program plalyback, press STOP once.
To cancel the program playback
Press STOP twice during program playback.
To change the program
1. Press / / / to select the title/chapter number you want
to change, then press OK.
2. Press Number buttons(0-9) to overwrite the new title/chapter
number.
Notes:
• The program is canceled when you eject
the disc or turn the power off.
• Use
or
button or highlight
or
then press OK to jump to
next/previous program list page.
VCD
1. Press PLAY MODE repeatedly to show the program menu.
Program: Track(01-20)
2. Use Number buttons(0-9) to input the track
DVD Playback
numbers, then press OK to confirm.
Example: to input track 8
6 01
6 06
6 02
6 07
6 03
6 08
6 04
6 09
6 05
6 10
6 Exit
3. Continue adding the track numbers until
your program is completed.
Highlight “Start” on the program menu
and press OK to start a program play.
6
Program: Track(01-20)
6 01 08
6 06
6 02
6 07
6 03
6 08
6 04
6 09
6 05
6 10
6 Exit
6 Start
4. To stop program plalyback, press STOP once.
To cancel the program playback
Press STOP twice during program playback.
To change the program
1. Press / / / to select the track number you want
to change, then press OK.
2. Press Number buttons(0-9) to overwrite the new track number.
42
6
Introduction
Title selection
Two or more titles are recorded on some discs. If the title menu is
recorded on the disc, you can select the desired title.
1. Press DVD TITLE during playback.
Title menu appears on the screen.
2. Press / / / to select the desired title.
3. Press OK or PLAY/PAUSE.
The playback of the selected title will start.
DVD TITLE
Connecting
your TV/DVD
OK
PLAY/PAUSE
Setting up
your TV/DVD
Note:
Depending on the DVD, you may not be able
to select the title. Depending on the DVD, a
“title menu” may simply be called a “menu” or
“title” in the instructions supplied with the disc.
DVD menu
OK
DVD MENU
DVD Playback
Note:
Depending on the DVD, you may not be able
to resume playback from the scene point
when you pressed DVD MENU.
Using the
TV/DVD’s Features
Some DVDs allow you to select the disc contents using the menu.
When you playback these DVDs, you can select the subtitle language
and soundtrack language, etc. using the menu.
1. Press DVD MENU during playback.
The DVD menu appears on the screen.
• Press DVD MENU again to resume playback at the scene when
you pressed DVD MENU.
2. Press / / / to select the desired item.
3. Press OK.
The menu continues to another screen. Repeat steps 2 and 3 to set
the item completely.
Appendix
43
Changing soundtrack language
DVD
VCD
You can select the language when you play a multilingual disc.
1. Press AUDIO during playback.
Audio 1 /2 : Dolby D 3/2.1CH Chinese
The current soundtrack language will
appear.
2. Press AUDIO repeatedly until
the desired language is selected.
• The on screen display will disappear
after a few seconds.
Audio 2 /2 : Dolby D 3/2.1CH English
AUDIO
In case of Video CD playback
Audio type changes as follows each time you press AUDIO.
Left
Right
Mono
Stereo
Notes:
• If the desired language is not heard after
pressing the button several times, the
language is not recorded on the disc.
• The selected soundtrack language is
canceled when you eject the disc. The initial
default language or available language will
be heard if the disc is played back again.
• If you select DTS in playing DTS-encoded
disc, no sound will be heard from the TV/
DVD’s speakers.
Subtitles
When playing back a disc recorded with subtitles, you can select the
subtitle language or turn the subtitle off.
1. Press SUBTITLE repeatedly during playback Subtitle 01/02: Chinese
until the desired language selected.
2. To turn off the subtitle, press SUBTITLE until
“Turn off subtitles” appears.
• The on screen display will disappear after
a few seconds.
Turn off subtitles
DVD Playback
SUBTITLE
Notes:
• Depending on the DVD, you may not be
able to change subtitles, or to turn subtitles
on or off.
• While playing a DVD, the subtitle may
change when you loaded or eject the disc.
• In some cases, a selected subtitle language
may not be changed immediately.
44
DVD
Introduction
OSD (ON-SCREEN DISPLAY)
VCD
The On-Screen Display (OSD) consists of many playback features.
1. While a disc is playing, press OSD to display the OSD menu.
The OSD will be displayed on the top of the screen. Each
feature is illustrated with an icon.
2. Press or to select the desired icons.
3. Press or to scroll through the choices displayed in the text box
below the icons.
4. Press OSD to exit the OSD menu.
Notes:
DVD-Video
T
0:00:36
C
Title 01/02 Chapter 01/01
Note:
• Some discs only have one title.
• When you change the title, playback starts from chapter 1 of the
selected title.
DVD Playback
To Select a Title
Some discs consists more than one title. You can select a specific title
by using the TITLE feature in the DISPLAY menu.
1. While a disc is playing, press OSD to display the OSD menu.
2. Press or to select the TITLE icon, T .
3. Press or to select the previous or next title.
4. Press OSD to exit the OSD menu.
Using the
TV/DVD’s Features
DVD
DVD discs have the following playback features: TITLE, CHAPTER,
AUDIO, SUBTITLE, ANGLE and REPEAT.
Setting up
your TV/DVD
• You can only access the OSD menu when you are playing
a disc.
• The OSD features are only available if the disc was
created with that particular feature.
• A prohibited symbol “ ” may appear if the operation is invalid
when you press a button.
• Icon that is in gray indicates that OSD feature is not available
for the currently playing disc.
Connecting
your TV/DVD
OSD
Appendix
45
To Select a Chapter
A title can be divided into chapters. You can skip to a
specific chapter by using the CHAPTER feature in the
OSD menu.
1. While a disc is playing, press OSD to display the
OSD menu.
2. Press or to select the CHAPTER icon, C .
3. Press or to select the previous or next chapter.
4. Press OSD to exit the OSD menu.
Notes:
To Change the Camera Angle
If the disc was created with multiple angles of particular
scene or sequence, you can use the OSD menu to select
the desired angle.
1. While a disc is playing, press OSD to display the
OSD menu.
2. Press or to select the ANGLE icon,
. The
ANGLE icon will be displayed with number of angles
available.
3. Press or to scroll through the angles
available on the disc until you reached the desired
viewing angle.
4. Press OSD to exit the OSD menu.
Note:
• The CHAPTER feature will not work if the disc is not
created with chapters.
• You can skip to the next or previous chapter by pressing
PREV
or NEXT
.
To Change the Audio Language
If the disc was created with multiple audio languages, you
can use the OSD menu to change the player’s audio
language.
1. While a disc is playing, press OSD to display the OSD
menu.
2. Press or to select the AUDIO icon,
. The current
audio language appears in the text box below the icons.
3. Press or to scroll through the audio languages
available on the disc until the audio language you want
to use appears in the text box. Audio will be played in
that language.
4. Press OSD to exit the OSD menu.
Notes:
DVD Playback
• The AUDIO feature only works if the disc was created
with multiple audio languages.
• When you choose an audio language from the OSD
menu, you only override the audio language setting in
DVD setup menu temporarily.
• The audio language can also be changed by pressing
AUDIO or through DVD setup menu.
• If the disc was created with only one angle, the ANGLE
feature will not be available.
To Repeat Playback
You can repeat a title, chapter or disc. The REPEAT
options are:
Chapter-repeats the currently playing chapter.
Title-repeats the currently playing title.
Disc-repeats the currently playing disc.
1. While a disc is playing, press OSD to display the
OSD menu.
2. Press or to select the REPEAT icon,
.
3. Press or to scroll through the REPEAT
options until the REPEAT option you want is displayed
in the text box.
4. Press OSD to exit the OSD menu.
Notes:
• The default mode for REPEAT is Off.
• The selected REPEAT option will loop repeatedly until
you turn REPEAT off.
To Cancel Repeat Playback
There are three ways to cancel REPEAT.
• Press STOP button twice.
• Select REPEAT icon in the OSD menu and select
Off.
• Eject the disc.
To Select the Subtitle Language
If the disc was created with multiple subtitles, you can use
the OSD menu to change the subtitle language.
1. While a disc is playing, press OSD to display the OSD
menu.
2. Press or to select the SUBTITLE icon,
.
3. Press or to scroll the subtitle languages
available on the disc until the subtitle language you want
to use appears in the text box. The subtitle will be shown
in that language.
4. Press OSD to exit the OSD menu.
Notes:
VCD
VCD discs have the following playback features: TRACK,
L/R and REPEAT.
• Change the subtitle language through the OSD menu
will only affect the currently playing disc. When the disc is
removed or the unit is turned off, the subtitle language will
be reverted to the language setting specified through
DVD setup menu.
• The subtitle language can also be changed by pressing
SUBTITLE or through DVD setup menu.
46
VCD 2.0 PBC on
00:08
T
Track 02/16
To Select a Track
1. While a disc is playing, press OSD to display the
OSD menu.
2. Press or to select the TRACK icon, T .
3. Press or to scroll through the tracks numbers until
you reached the desired number.
4. Press OSD to exit the OSD menu.
Introduction
To Change the Audio Channel Output
If you are playing a stereo disc, you can change the audio
channel output from the unit.
1. While a disc is playing, press OSD to display the
OSD menu.
2. Press or to select the L/R icon,
.
3. Press or to scroll through the audio channel
output options: Left, Right, Mono, Stereo.
4. Press OSD to exit the OSD menu.
Connecting
your TV/DVD
To Repeat Playback
You can repeat a track or disc. The REPEAT options are:
Track-repeats the currently playing track.
Disc-repeats the currently playing disc.
1. While a disc is playing, press OSD to display the
OSD menu.
2. Press or to select the REPEAT icon,
.
3. Press or to scroll through the REPEAT
options until the REPEAT option you want is displayed
in the text box.
4. Press OSD to exit the OSD menu.
Notes:
Setting up
your TV/DVD
• The default mode for REPEAT is Off.
• The selected REPEAT option will loop repeatedly until
you turn REPEAT off.
• The repeat does not work when PBC is on.
• The REPEAT does not work when PBC is on.
Number
buttons
Using the
TV/DVD’s Features
To turn off the PBC
VCD
In stop mode, press Number buttons (0-9) to select
any track number, then press OK. "PBC off"
appears on the screen.
OK
DVD MENU
To turn on the PBC
OSD
STOP
DVD Playback
Press STOP repeatedly until "PBC on" appears on the screen.
When PBC is on, press DVD MENU to return to the PBC menu
during playback.
Note:
47
Appendix
• You can see the PBC information by
pressing OSD.
• Depending on the VCD, you may not be
able to return to the PBC menu when you
pressed DVD MENU.
MP3/WMA/JPEG/DivX® and Audio CD operation
This player can playback the MP3/WMA/JPEG/DivX®-data which has been recorded on CD-R/RW. To produce the MP3/WMA/JPEG/DivX®-data,
you need a Windows-PC with CD-RW drive and a MP3/WMA/JPEG/DivX®-encoding Software (not supplied). The Apple-HFS-System cannot be
played.
This player requires discs/recordings to meet certain technical standards in order to achieve optimal playback quality.
There are many different types of recordable disc formats (including CD-R containing MP3/WMA files). Not all recordable discs will produce
optimal playback quality. The technical criteria set forth in this owner's manual are meant only as a guide. Use of CD-RW for MP3 files is
not recommended.
You must obtain any required permission from copyright owners to download or use copyrighted content.
Toshiba cannot and does not grant such permission.
MP3/WMA/JPEG/DivX® CD information
CD
®
Limitations on MP3/WMA/JPEG/DivX CD playback
• MP3/WMA/JPEG/DivX® CD is the disc that is standardized by ISO9660, its file name must include 3-digits extension
letters, “.mp3”, “.wma”, “.jpg”, “.div”, “.divx”, “.avi”.
• MP3/WMA/JPEG/DivX® CD must be correspond to the ISO standardized files.
• This unit can read 600 files per disc. If one directory has more than 600 files, it reads up to 600 files, the remaining files
will be omitted.
• The unit is able to recognize up to a maximum of 50 directories per disc.
• MP3/WMA/JPEG/DivX® CDs cannot be used for the purpose of recording.
• If the CD has both CDA audio tracks and MP3/WMA/JPEG/DivX® files, only the CDA audio tracks will be played.
• It may take more than one minute for this unit to read MP3/WMA/JPEG/DivX® files depending on its structure.
• Music recorded by “Joliet Recording Specification” can be played back, the file name is displayed (within 15 letters) on
the screen. Long file names will be condensed.
• The music files recorded by “Hierarchical File System” (HFS) cannot be played.
Limitations on display
• The maximum number for display is 15 letters.
Available letters for display are the following:
capital or small alphabets of A through Z, numbers of 0 through 9, and _ (under score).
• Other letters than those above are replaced in hyphen.
Notes on MP3/WMA/JPEG/DivX® files
To playback MP3/WMA/JPEG/DivX® CD in the recorded order,
1. Use MP3/WMA/JPEG/DivX® software that records data alphabetically or numerically.
2. Name each file including two-digit or three-digit number (ex. “01” “02” or “001” “002”).
3. Refrain from making too many sub-folders.
DVD Playback
CAUTION:
• Some MP3/WMA/JPEG/DivX® CDs cannot be played back depending on the recording conditions.
• The CD-R/RW that has no music data or non MP3/WMA/JPEG/DivX® files cannot be played back.
Standard, sampling frequency, and the bit rate:
MP3
MPEG-1 Audio
32kHz, 44.1kHz, 48kHz
32kbps ~ 320kbps (constant bit rate or variable bit rate)
The recommend recording setting for a high-quality sound is 44.1kHz of sampling frequency and 128kbps of constant bit
rate.
WMA
WMA version 7, and 8
32kHz/48kbps, 44.1kHz/48kbps~192kbps, 48kHz/128kbps~192kbps
The file recorded by mono, 48kHz, 48 kbps is not available to this unit.
DivX® video
DivX® version: DivX® 3, 4, 5 (specifically 3.1.1, 4.1.2, 5.0.2, 5.0.5, 5.1.1, 5.2.1 at Home Theater profile).
Audio format: MPEG1 Layer2 (MP2), MPEG1 Layer3 (MP3)
Sampling frequencies: 32kHz, 44.1kHz, 48kHz
Bit rate: 32kbps ~ 320kbps
Resolution: Max 720 x 576 (at 25fps), Max 720 x 480 (at 30fps)
Microsoft, Windows Media, and Windows Logo are either registered trademarks or trademarks of Microsoft Corporation in
the United States and/or other countries.
DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.
Apple is a registered trademark of Apple Computer, Inc.
48
Introduction
MP3/WMA CD and Audio CD playback
CD
1. Load an Audio CD or a disc on which MP3 or WMA files have been
recorded in the disc slot.
2. A file browser screen will appear on the
screen.
Press /
to select folder and then
press OK.
00:00
A/V
MP3
AVI
VI
3. Press / to select the desired file.
• In case the folder includes more than
8 files, press or to display next
file list.
• To see contents in folder, select the
folder and then press OK. To return
to the upstairs directory, select “
..
” then press OK.
00:00
A/V
MP3
017/027
Normal
Folder
JPEG Preview
00:00
Folder-3
folder-1
folder-2
Track-1
mp3-2
wma-1
wma-2
picture-1
picture-2
017/027
Normal
Folder
OK
JPEG Preview
PLAY/PAUSE
STOP
Setting up
your TV/DVD
• When PLAY/PAUSE is pressed after the file browser displayed,
playback begins automatically starting from the first file. In this
case, if the first file is an MP3/WMA file, only MP3/WMA files are
played back in order. If the first file is a JPEG file, the first JPEG
file is played back. If the first file is a DivX® file, the first DivX® file
is played back. If there is no file at a root directory, playback does
not begin automatically.
4. Press OK.
The selected file starts playing back.
About file menu
Elapsed time
00:00
MP3
File list
AVI
VI
AVI
VI
00:00
Folder-1
Track-1
mp3-2
wma-1
wma-2
picture-1
picture-2
movie-1
movie-2
017/027
Normal
Folder
Tool kit
window
JPEG Preview
Cursor
DVD Playback
A/V
Operation status
Notes:
• You can use Repeat (File or Folder),
Random functions for MP3/WMA/JPEG/
DivX® CD playback (See page 52).
• The thumbnail menu is displayed by
pressing STOP once when the
FUJICOLOR CD or the Kodark Picture CD
are played.
• In the case of a CD containing a mixture of
MP3, WMA, JPEG and DivX® files, the files
are playback by selecting them from the file
menu.
• MP3 or WMA file on the Kodak Picture CD
is not recognized on this unit.
Using the
TV/DVD’s Features
5. Press STOP to end playback.
• If you press STOP or unload the disc, the unit will clear the
stopped point.
track time
Connecting
your TV/DVD
AVI
VI
00:00
Folder-1
Track-1
mp3-2
wma-1
wma-2
picture-1
picture-2
movie-1
movie-2
Preview window
File type
: Indicates Music file (MP3)
MP3
A/V
Appendix
AVI
VI
: Indicates Music file (WMA)
: Indicates Picture file (JPEG)
: Indicates Movie file (DivX video)
: indicates Music file(Audio)
49
JPEG CD playback
CD
You can select your desired JPEG file on the file menu. The selected
JPEG file is automatically adjusted to the TV screen. (When the aspect
ratio of a JPEG file is different from that of the TV screen, the black
bars will appear at the top, bottom, and/or sides of the TV screen.)
1. Load a JPEG disc in the disc slot.
2. A file browser screen will appear on the
screen.
00:00
00:00
Folder-1
picture-1
picture-2
picture-3
picture-4
picture-5
picture-6
picture-7
picture-8
017/027
Normal
Folder
3. Press / to select the desired file.
To display a thumbnail list, press STOP once during JPEG
playback.(To return to a file browser, press STOP twice.)
Press / / / to select the desired file.
• When PLAY is pressed after displaying the file browser, playback
begins automatically starting from the first file. In this case, if the
first file is a JPEG file, the first JPEG file is played back. If the first
file is a DivX® file, the first DivX® file is played back. If the first file is
an MP3/WMA file, only MP3/WMA files are played back in order.
If there is no file at a root directory, playback does not begin
automatically.
4. Press OK or PLAY/PAUSE. The selected
picture appears on the screen.
OK
PLAY/PAUSE
STOP
ZOOM
/
Rotating an image
You can rotate an image by 90 degrees.
Pressing / / / during playback of
the image.
: Each time it is pressed, it will rotate 180° .
: Each time it is pressed, the picture will swap position, from left to
right or vice versa.
: Each time it is pressed, it will rotate 90° anti-clockwise.
: Each time it is pressed, it will rotate 90° clockwise.
To Zoom and Pan a Picture
Press ZOOM button to turn on ZOOM mode.Press FR or FF button
to select the desired zoom ratio.
• Press / / / buttons to pan the zoomed picture.
• To resume to slide show, press ZOOM button again.
DVD Playback
5. Press STOP to end playback.
During playback, press STOP once to display the thumbnail list.
Press STOP twice to end playback, and the file browser appears
on the screen.
If you want to watch the other file, repeat steps 3 ~ 4.
Slide show playback
CD
The slide show enables you to view pictures (files) one after another
automatically.
OK
Preparation:
• Set “JPEG Interval” setting to “5s”, “10s” or “15s”. (See page 54.)
1. Select your desired starting file for the slide show in step 3 on the
above.
2. Press OK or PLAY/PAUSE to start slide show from the selected file.
• If you press PLAY/PAUSE during the slide show, the slide show
stops temporarily. “ ” appears briefly on the screen.
If the picture appears upside down or sideways, press
repeatedly until it’s right side up.
Press PLAY/PAUSE or NEXT
again to resume the slide show.
• When slide show playback is finished, the file browser appears.
• Press STOP once to display the thumbnail list.
• Press STOP twice to end playback, and the file browser appears
on the screen.
50
PLAY/PAUSE
STOP
DVD
Introduction
DivX® CD playback
CD
1. Load a DivX® disc in the disc slot.
2. A file browser screen will appear on the
screen.
00:00
AVI
VI
AVI
VI
AVI
VI
AVI
VI
AVI
VI
AVI
VI
AVI
VI
AVI
VI
00:00
Folder-1
movie-1
movie-2
movie-3
movie-4
movie-5
movie-6
movie-7
movie-8
017/027
Normal
Folder
JPEG Preview
4. Press OK or PLAY/PAUSE. The selected DivX® movie will be
played back on the screen.
Connecting
your TV/DVD
3. Press / to select the desired file.
When PLAY/PAUSE has been pressed after displaying the file
browser, playback begins automatically starting from the first file.
In this case, if the first file is a JPEG file, the first JPEG file is
played back. If the first file is a DivX® file, the first DivX® file is
played back. If the first file is an MP3/WMA file, only MP3/WMA file
are played back in order. If there is no file at a root directory,
playback does not begin automatically.
OK
PLAY/PAUSE
STOP
Setting up
your TV/DVD
5. Press STOP to end playback.
The file browser appears on the screen. If you want to watch the
other file, repeat steps 3 ~ 4.
Playing DivX® VOD content
DivX® VOD content is protected by DRM (Digital Rights Management)
system. This restricts playback of content to specific registered devices.
View DivX® VOD Rental
This rental has 5 views left.
Do you want to use one
of your 5 views now?
Yes
No
• If the number of plays goes over the limit, then “Rental Expired” will
be displayed, in this case the file will not be played.
Note:
• In order to play DivX® VOD content on this
unit, you first need to register the unit with
registration code. See page 55.
• When playing a DivX® CD, resume function
is not available.
Using the
TV/DVD’s Features
If the incorrect DRM file is loaded,
“Authorization Error This player is not
authorized to play this video.” will appear
on the screen.
When you attempt to play DivX® VOD, the
number of plays is limited and the right
message will appear on the screen. If you
wish to play it, select “Yes”.
DVD Playback
Appendix
51
Repeat and Random playback using file browser
Repeat playback CD
During playback, press REPEAT repeatedly until “
File ”
or “
Folder” appear on the right of the screen.
File-Repeats the currently playing file.
Folder-Repeats the currently playing
00:11
04:30
128
folder.
Track-1
A/V
A/V
Track-2
mp3-1
mp3-2
mp3-3
wma-1
wma-2
wma-3
MP3
To resume normal playback
Press REPEAT repeatedly during playback
until “Normal” appear on the screen.
Random playback
MP3
MP3
Number
buttons
017/027
File
Filelist
JPEG Preview
CD
During playback, press PLAY MODE
repeatedly until “Random” appear
on the screen.
00:11
A/V
A/V
MP3
MP3
MP3
To resume normal playback
Press PLAY MODE repeatedly during playback
until “Normal” appear on the screen.
04:30
128
Track-1
Track-2
mp3-1
mp3-2
mp3-3
wma-1
wma-2
wma-3
017/027
Random
filelist
OK
JPEG Preview
/
REPEAT
PLAY MODE
Filelist playback
CD
1. In stop mode, press PLAY MODE repeatedly, “Filelist” and
“Folder” will appear on the screen.
Folder:The file browser shows only the files in the selected folder.
Filelist: The file browser shows all the files.
2. Press or to select the file which you want to play, then
press OK.
Locating desired track
CD
1. Press Number buttons(0-9) to input the track number.
DVD Playback
Select
---
2. Press OK. Playback starts.
• Some discs may not work in the above operation.
52
Notes:
• The Repeat and Random function are
canceled when you eject the disc or turn the
power off.
•
or
is not available when
file repeat function is activated.
Introduction
DVD function setup
Customizing the function settings
You can change the default settings of the DVD mode to customize
performance to your preference.
Setting procedure
DVD
VCD
CD
1. Press SETUP during stop mode.
The following on-screen display appears.
: Off
ENG
QSound
TV
Disc
Screen
Menu
Set Password
: 4:3
On
ENG
Output
Display
Subtitle
: Interlace
On
ENG
OK
Picture Mode
Audio
DivX(R) :VOD
Auto
ENG
JPEG Interval
: 5 Seconds
Screen Saver
: On
2.
3.
4.
5.
Press
or
to select the desired section, then press .
Press
or
to select the desired option.
Then press
or OK. The selectable settings will appear.
Change the selection using
or , by referring to the corresponding pages 54 to 55.
Press OK to save the setting.
• Repeat steps 3 and 5 to change other option.
• To select another section, go back to step 2 by pressing
repeatedly.
6. To clear SETUP screen, press SETUP or repeatedly.
SETUP
Setting up
your TV/DVD
Note:
If the selection in the menu is grayed out, that means the feature is not
available or not possible to change at the current state.
Section
Details
To select the language of on-screen display.
To select the language of “Disc Menu”, “Subtitle” and
“Audio” if more than one language are available on the
disc.
To select a picture size according to the aspect ratio
of your TV.
Display
To turn On or Off the operational status display on the
screen.
JPEG Interval
To select a preferred setting for the slide show playback.
Picture Mode
To select a preferred picture mode from “Video”, “Film”
or “Auto”.
54
DVD Playback
TV Shape
D.R.C
Page
Using the
TV/DVD’s Features
Option
On-screen
Disc Menu
Subtitle
Audio
To select On or Off for D.R.C (Dynamic Range Control).
To select the output sound format corresponding to
Digital audio out your system connection.
To select a preferred parental level for the parental
setting.
Password
Change a new user password.
DivX(R) VOD
To display your 8-character registration code.
Default
Some function setting will be reset to the factory
setting.
53
55
Appendix
Parental
Connecting
your TV/DVD
Parental
DRC
E.B.L.
On-screen
Setting details
Parental
DRC
E.B.L.
On-screen
Language
: Off
ENG
QSound
TV
Disc
Screen
Menu
Set Password
: On
4:3
ENG
Output
Display
Subtitle
: Interlace
On
ENG
Picture Mode
Audio
DivX(R) :VOD
Auto
ENG
JPEG Interval
: 5 Seconds
Screen Saver
: On
On-Screen
You can change the On-screen language in English, French or
Spanish.
Disc Menu, Subtitle, Audio
You can select the language of “Disc Menu”, “Subtitle” and
“Audio” if more than one language is recorded onto the
disc.
English, French, Spanish:
The selected language will be heard or seen.
Others:
Other language can be selected (see “Language
code list” page 57).
OFF (Subtitle):
Subtitles do not appear.
Note:
If the selected language is not recorded on the disc, the
first priority language is selected.
Display
You can switch the on screen display on or off.
ON: On screen displays appear when you press the
buttons (factory setting).
OFF: On screen displays do not appear when you press
any buttons.
JPEG Interval
You can continuously playback all JPEG files automatically.
After the setting below, the disc will start playback on which
JPEG files have been recorded.
OFF:
Plays back one file at a time.
5s:
Plays back images in the form of a slide show with 5
seconds interval between the processing of each
picture.
10s:
Plays back images in the form of a slide show with
10 seconds interval between the processing of each
picture.
15s:
Plays back images in the form of a slide show with
15 seconds interval between the processing of each
picture.
Note:
Depending on the file size, the playback interval maybe
different from the selected time interval.
Picture Mode
Parental
DRC
Menu
TV
Shape
:u:
Off
Ei
LB
QSoundSet Password
Audio
:ON
On
English
Display
Output
JPEG Interval
:OFF
Interlace
DivX(R) VOD
Picture Mode
Auto
There are two types of source content in pictures recorded in
DVD video discs: film content (pictures recorded from films at
24 frames per second) and video content (video signals
recorded at 30 frames per second). Make this selection
according to the type of content being viewed.
DVD Playback
TV shape
You have the following screen sizes to choose from:
4:3 Normal:
It displays the wide picture on the whole screen with
left and right edges automatically cut off.
Auto: Select this position normally.
The DVD player automatically detects source
content, film or video of playback source, and
converts that signal in the progressive output
format in an appropriate method.
4:3 Letterbox:
Select this mode when connecting to a conventional
TV.
When playing back a wide screen-DVD disc, it
displays the wide picture with black bands at the top
and bottom of screen.
Film: The DVD player converts film content pictures in
the progressive output format appropriately.
Suitable for playback of film content pictures. The
progressive output feature will be most effective
under this selection.
16:9 Wide:
A wide screen picture is displayed full size.
Note:
The displayable picture size is preset on the DVD video
disc. Therefore, the playback picture of some DVD video
disc may not conform to the picture size you select.
Video: The DVD player filters video signal, and converts it
Note:
Depending on the dics, pictures may be cut off or doubled.
In this case, select “Video” .
54
Sound
D.R.C.
E.B.L.
Parental
Menu
: English
Off ON
Notes:
Digital
audio
out
D-out
TV
Subtitle
Screen
Set
Password
: 4:3
English
Output
Audio
Display
• Depending on the discs, the unit cannot limit
playback.
• Some discs may not be encoded with specific rating level
information though its disc jacket says “adult.” For those
discs, the age restriction will not work.
• The password is required every time when you change
the parental level.
: English
Interlace
On
Picture Mode
DivX(R) :VOD
Auto
JPEG Interval
: 5 Seconds
Screen Saver
: On
Notes:
• This function works only during playback of Dolby Digital
recorded discs.
• The level of Dynamic Range Reduction may differ
depending on DVD video disc.
Digital audio out
You can select the output sound format corresponding to
your system connection.
Preference
E.B.L.
DRC
Menu
Parental
: Off
English
08
TV
QSound
Subtitle
Screen
Password
: 4:3
On
English
Display
Audio
DivX(R)VOD
: On
English
DefaultMode
: Auto
JPEG Interval
: 5 Seconds
Screen Saver
: On
Notes:
• Both the factory password and user password can be
used.
• If you forget your password, you can enter the factory
password.
DivX(R) VOD
In order to play DivX® VOD (Video On Demand) content on
this unit, you first need to register the unit with your DivX®
VOD content provider. You do this by generating a DivX®
VOD registration code which you submit to your provider.
Default
Press or to select “Default”, then press OK. “Reset” is
highlighted. Press OK and some function settings will be
reset to the factory setting.
DVD Playback
Note:
If each setup (pages 54 to 55) has completed, the unit can
always work under the same condition (especially with DVD
discs).
Each setup will be retained in the memory even if you turn
the power off.
55
Appendix
Parental
Some discs are specified as not suitable for children. Such
discs can be limited not to playback with the unit.
1) Press or to select “Parental”, then press
OK.
2) Press or to select the parental level. The
limitation will be more severe as the level number is
lower.
Then press OK. “Password” screen will
appear. Press “55555” using Number buttons(0-9).
(Please note, this is pre-setting password of this unit).
Then press OK.
• Level 8: Virtually all DVD software can be playback.
• Level 1: DVD software for adults cannot be played
back.
Press or to select “DivX(R) VOD”. Then press OK.
"DRM code" is highlighted. Press OK.
Your 8-character registration code is displayed. Make a
note of the code as you will need it when you register
with a DivX® VOD provider.
Then press OK to select Done.
Using the
TV/DVD’s Features
Analog 2ch: Select when connected to a TV or stereo
system via the analog audio jacks.
Bitstream: Select when connected to an amplifier
equipped with a Dolby Digital,DTS,MPEG1 or
MPEG2 decoder. The player outputs digital
audio signal in the bitstream format when you
play a DVD video disc recorded in the Dolby
Digital,DTS, MPEG 1 or MPEG-2 recording
system.
PCM:
Select when connected to a 2 channel digital
stereo amplifier. The player outputs sounds in
the PCM 2ch format when you play a DVD
video disc recorded on the Dolby Digital,
MPEG1 or MPEG2 recoding system.
Setting up
your TV/DVD
Set the new password
1) Press or to select “Password”, then press OK.
“Change” is highlighted, then press OK. “Change
Password” menu will appear.
2) Press Number buttons (0-9) to input the old password.
(If the password has not been set yet after you purchase
this unit, it is “55555”).
3) The cursor will move to the “New password” column.
Press Number buttons (0-9) to input the new password.
4) The cursor will move to the “Confirm password”
column. Press Number buttons(0-9) to input the new
password again.
5) “OK” is highlighted. Press OK. Now your new
password has been set.
Connecting
your TV/DVD
D.R.C
D.R.C (Dynamic Range Control) enables you to control the
dynamic range so as to achieve a suitable sound for your
equipment.
ON: Loud sound such as explosion is toned down
slightly when played back. This is suitable when it
is connected to a stereo.
OFF:It plays back at the recording level on the disc.
Introduction
Setting details
Temporary cancel the rating level by DVD disc
Depending on the DVD disc, the disc may try to temporarily cancel the
parental level that you have set.
It is up to you to decide whether to cancel the rating level or not.
Number
buttons
1. Load a DVD disc.
2. If the DVD disc has been designed to temporarily cancel the
Rating level, the screen which follows the “Loading” screen will
change, depending on which disc is played. If you select “YES”
with the OK button, password input screen will then appear.
• If “NO” is selected, press EJECT to remove the disc.
OK
3. Enter the password with Number buttons (0–9). Then press OK
Please enter password
EJECT
4. Playback will commence if the entered password is correct.
DVD Playback
Note:
This temporary cancellation of rating level will
be kept until the disc is ejected.
When the disc is ejected, the original parental
rating level will be set again automatically.
56
Introduction
Appendix
Language code list
Enter the appropriate code number for the initial settings “Disc Menu”, “Subtitle” and/or “Audio.” See page 54.
Language Name Code
Language Name Code
Language Name Code
Language Name Code
Lingala
2224
Singhalese
2919
Afar
1111
Finnish
1619
Lithuanian
2230
Slovak
2921
Afrikaans
1116
French
1628
Macedonian
2321
Slovenian
2922
Albanian
2927
Frisian
1635
Malagasy
2317
Somali
2925
Amharic
1123
Galician
1722
Malay
2329
Spanish
1529
Arabic
1128
Georgian
2111
Malayalam
2322
Sundanese
2931
Armenian
1835
German
1415
Maltese
2330
Swahili
2933
Assamese
1129
Greek
1522
Maori
2319
Swedish
2932
Aymara
1135
Greenlandic
2122
Marathi
2328
Tagalog
3022
Azerbaijani
1136
Guarani
1724
Moldavian
2325
Tajik
3017
Bashkir
1211
Gujarati
1731
Mongolian
2324
Tamil
3011
Basque
1531
Hausa
1811
Nauru
2411
Tatar
3030
Bengali; Bangla
1224
Hebrew
1933
Nepali
2415
Telugu
3015
Bhutani
1436
Hindi
1819
Norwegian
2425
Thai
3018
Bihari
1218
Hungarian
1831
Oriya
2528
Tibetan
1225
Breton
1228
Icelandic
1929
Panjabi
2611
Tigrinya
3019
Bulgarian
1217
Indonesian
1924
Pashto, Pushto
2629
Tonga
3025
Burmese
2335
Interlingua
1911
Persian
1611
Turkish
3028
Byelorussian
1215
Irish
1711
Polish
2622
Turkmen
3021
Cambodian
2123
Italian
1930
Portuguese
2630
Twi
3033
Catalan
1311
Japanese
2011
Quechua
2731
Ukrainian
3121
Chinese
3618
Javanese
2033
Rhaeto-Romance
2823
Urdu
3128
Corsican
1325
Kannada
2124
Romanian
2825
Uzbek
3136
Croatian
1828
Kashmiri
2129
Russian
2831
Vietnamese
3219
Czech
1329
Kazakh
2121
Samoan
2923
Volapük
3225
Danish
1411
Kirghiz
2135
Sanskrit
2911
Welsh
1335
Dutch
2422
Korean
2125
Scots Gaelic
1714
Wolof
3325
English
1524
Kurdish
2131
Serbian
2928
Xhosa
3418
Esperanto
1525
Laothian
2225
Serbo-Croatian
2918
Yiddish
2019
Estonian
1530
Latin
2211
Shona
2924
Yoruba
3525
Faroese
1625
Latvian, Lettish
2232
Sindhi
2914
Zulu
3631
DVD Playback
1620
Using the
TV/DVD’s Features
Fiji
Setting up
your TV/DVD
1112
Connecting
your TV/DVD
Abkhazian
Appendix
57
Appendix
Troubleshooting
Before calling a service technician, please check the following table for a possible cause of the symptom and some solutions.
Symptom
Solution
TV will not turn on
• Make sure the AC cord is connected securely and then press POWER.
• The remote control batteries may be dead. Replace the batteries.
No picture, no sound
• Check the antenna/cable connections.
No sound, picture OK
•
•
•
•
Poor sound, picture OK
• The station may have broadcast difficulties. Try another channel.
• Select correct sound system in TV-CHANNEL menu.
Poor picture, sound OK
• Check the antenna connections.
• The station may have broadcast difficulties. Try another channel.
• Adjust the PICTURE menu.
Poor reception of broadcast channels
• The station may have broadcast difficulties. Try another channel.
• Check the antenna connections.
Multiple images
• The station may have broadcast difficulties. Try another channel.
• Use a highly directional outdoor antenna.
Poor color or no color
• The station may have broadcast difficulties. Try another channel.
• Adjust the TINT and/or SATURATION in the PICTURE menu.
The remote control does not operate
• Remove all obstructions between the remote control and the TV.
The sound may be muted. Press VOL +/–.
The station may have broadcast difficulties. Try another channel.
Select correct sound system in TV-CHANNEL menu.
The headphones may be plugged in.
• The remote control batteries may be dead. Replace the batteries.
Telext programs
• Check the antenna connections.
• Good performance of text depends on a good strong broadcast
signal.
Some pixels of the screen do not light up
The brightness of the screen comes
down, or flickers of the screen are
caused, or some parts of the screen
do not light up.
level of precision technology, however, sometimes some pixels
of the screen may be missing picture elements or have luminous
spots. This is not a sign of a malfunction.
• When you just buy and start to use this TV, a flickering may
be caused in the screen. In this case, switch off the TV, then
switch it on again to cure the condition.
• The cold cathode fluorescent lamp used for the back light on
this TV has longevity. When the brightness of the screen
comes down, or the flickers of the screen are caused, or
some parts of the screen do not light up, it may reach the end of
its life. Contact a service technician.
• If you switch the TV on at 0°C and below, wait until it warm up.
Appendix
The picture brightness varies when
you switch on the TV.
• The LCD display panel is manufactured using an extremely high
58
No picture
• TV/DVD selector is not set correctly.
No sound
• Make sure the input selector of the amplifier is set properly.
• The unit is in the special playback mode.
• Select the correct Audio Output/Input position on AV amplifier.
Picture is distorted during fast
reverse/forward playback
• The picture will be distorted occasionally.
Stopping playback, search, repeat
play or program play, etc.
cannot be performed
• Some discs may not perform certain system.
No on-screen display
• Set Display to ON.
No surround sound
• The setup does not match your stereo system.
The unit or remote operation key is not
functioning
• Turn off the unit and unplug the AC power cord for several minutes,
then replug it.
Playback does not start when the title is
selected
• Check the Parental level setup.
Audio soundtrack and/or subtitle language
is not changed when you playback a DVD
• Multilingual language is not recorded on the DVD disc.
No subtitle
• Some discs have no subtitles.
• Subtitles are turned off. Press SUBTITLE.
Angle cannot be changed
• Multi-angles are not recorded on the DVD discs.
“
• The function is prohibited with the unit or the disc.
” appears on the screen
Using the
TV/DVD’s Features
• No disc is loaded.
• The disc may be dirty. Clean the disc.
• The unit cannot play CD-ROMs, etc.
Setting up
your TV/DVD
Solution
Playback doesn’t start
Connecting
your TV/DVD
Symptom of DVD
Introduction
Troubleshooting (continued)
DVD Playback
Appendix
59
Specifications
Notes:
• This model complies with the specifications listed below.
• Designs and specifications are subject to change without notice.
• This model may not be compatible with features and/or specifications that may be added in the future.
Television
LCD panel
Display method
Number of pixels
Television system
Tuner type
Channel coverage
Antenna input
Power source
Power consumption
Audio power
Speaker type
Video/Audio terminals
Dimensions
Weight
Supplied accessories
20.04 inches (508.9 mm diagonal) (approx.)
(Screen size is approximate.)
Color TFT LCD
1366 (Horizon) x 768 (Vertical)
PAL standard
F-Synth
System
Channel
VHF
UHF
CATV
PAL (BG)
CCIR
2-12
21-69
X~Z+2, S1~S41
PAL (I)
UK
—
21-69
—
PAL (DK)
CHINA
1-12
13-57
Z1~Z38
VHF/UHF 75 ohm
240V AC, 50 Hz
68 W (typ)
3W+3W
1.6 x 3.8 inches (41 x 96mm), 8 ohm x 2
S-VIDEO INPUT
Y-INPUT:
1V (p-p), 75 ohm, negative sync., Mini DIN 4pin x 1
C-INPUT:
0.286V (p-p) (burst signal), 75 ohm
VIDEO/AUDIO INPUT
VIDEO:
1V (p-p), 75 ohm, negative sync., pin jack x 2
AUDIO:
–8dBm, 50k ohm, negative sync., pin jack (L/R) x 4
ColorStream® (component video) INPUT
Y:
1V (p-p), 75 ohm
PR:
0.7V (p-p), 75 ohm
PB:
0.7V (p-p), 75 ohm
DIGITAL AUDIO OUTPUT (Optical) DVD mode only
HEADPHONE
Ø3.5mm stereo mini jack x 1
HDMI INPUT: HDMI compliant (type A connector)
HDCP compliant
E-EDID* compliant
Suggested scan rates: 1080i, 480p, 480i, 720p
HDMI Audio: 2-channel PCM
32/44.1/48 kHz sampling frequency
16/20/24 bits per sample
PC Monitor Input
Mini-Dsub 15pin x 1
Width: 21.8 inches (554 mm)
Height: 17.6 inches (448 mm)
Depth: 8.8 inches (223 mm)
23.5 Ibs. (10.65 kg)
Remote control (RC-32M) with two size “AAA” batteries
Owner’s Manual (This booklet)
DVD/CD Player
Signal system
Applicable disc
Pickup
PAL
1. DVD (12cm)
2. CD (12cm)
1-Lens, 2-Beams System
Appendix
* E-EDID = Enhanced-Extended Display Identification.
WARNING: If you decide to wall mount this television, always use a UL-approved wall bracket appropriate for the size
and weight of this television. The use of any wall bracket other than a UL-approved wall bracket appropriate for the size
and weight of this television for wall mounting this television could result in serious bodily injury and/or property damage.
60
Introduction
MEMO
Connecting
your TV/DVD
Setting up
your TV/DVD
Using the
TV/DVD’s Features
DVD Playback
Appendix
61
Appendix
MEMO
62
Introduction
MEMO
Connecting
your TV/DVD
Setting up
your TV/DVD
Using the
TV/DVD’s Features
DVD Playback
Appendix
63
ColorStream and TheaterWide are registered trademarks of Toshiba America Consumer Products, L.L.C.
is trademarks of Toshiba America Consumer Products, L.L.C..
Printed in China
72

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
