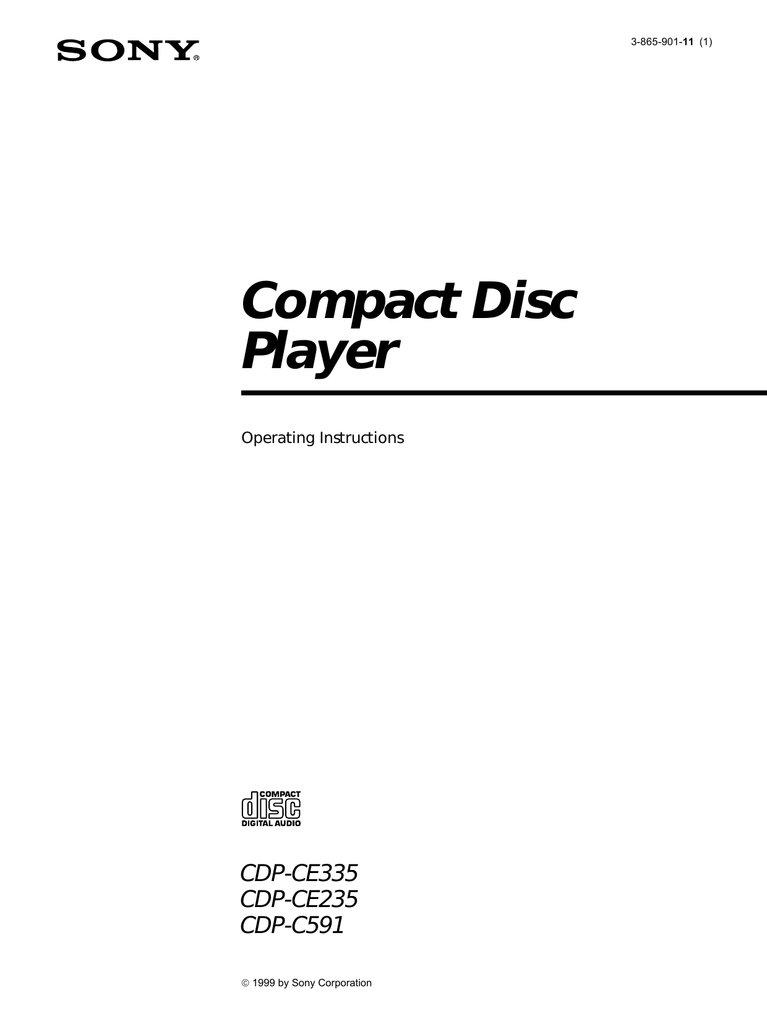

3-865-901-11 (1)
Compact Disc
Player
Operating Instructions
CDP-CE335
CDP-CE235
CDP-C591
 1999 by Sony Corporation
WARNING
To prevent fire or shock
hazard, do not expose
the unit to rain or
moisture.
To avoid electrical shock,
do not open the cabinet.
Refer servicing to
qualified personnel only.
For the customers in the United States
This symbol is intended to alert
the user to the presence of
uninsulated “dangerous voltage”
within the product’s enclosure
that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert
the user to the presence of
important operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.
INFORMATION
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses, and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or
television reception, which can be
determined by turning the equipment off
and on, the user is encouraged to try to
correct the interference by one or more of
the following measures:
– Reorient or relocate the receiving
antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
– Consult the dealer or an experienced
radio/TV technician for help.
CAUTION
You are cautioned that any changes or
modification not expressly approved in
this manual could void your authority to
operate this equipment.
Owner’s Record
The model and serial numbers are
located at the rear of the unit.
Record the serial number in the space
provided below. Refer to them whenever
you call upon your Sony dealer
regarding this product.
Model No. _________________________
Serial No.
2
_________________________
Getting Started
Welcome!
Thank you for purchasing the Sony
Compact Disc Player. Before operating
the unit, please read this manual
thoroughly and retain it for future
reference.
About This Manual
The instructions in this manual are for
models CDP-CE335, CDP-CE235 and
CDP-C591. The CDP-CE335 is the model
used for illustration purposes, unless
otherwise mentioned. Any difference in
operation is clearly indicated in the text,
for example, “CDP-CE335 only.”
Conventions
• Instructions in this manual describe
the controls on the player.
You can also use the controls on the
remote if they have the same or
similar names as those on the player.
• The following icons are used in this
manual:
Indicates that you can do the
task using the remote.
(Note that the CDP-CE235 and
CDP-C591 cannot do the tasks
marked with this icon.)
Indicates hints and tips for
making the task easier.
TABLE OF CONTENTS
Getting Started
Unpacking ........................................................................................................ 4
Hooking Up the System ................................................................................. 4
Playing a CD ........................................................................................................ 6
Playing CDs
Using the Display ........................................................................................... 8
Replacing Discs While Playing a Disc ......................................................... 9
Locating a Specific Disc ................................................................................. 9
Locating a Specific Track or a Particular Point in a Track ...................... 10
Playing Repeatedly ....................................................................................... 11
Playing in Random Order (Shuffle Play) .................................................. 11
Creating Your Own Program (Program Play) .......................................... 12
Recording From CDs
Recording Your Own Program ................................................................... 14
Recording a CD by Specifying Tape Length (Time Edit) ........................ 14
Fading In or Out ............................................................................................ 15
Adjusting the Recording Level (Peak Search) .......................................... 16
Additional Information
Precautions .................................................................................................... 17
Notes on CDs ................................................................................................. 17
Troubleshooting ............................................................................................ 18
Specifications ................................................................................................. 18
Index
Index ............................................................................................................... 19
3
Getting Started
Unpacking
Check that you received the following items:
• Audio connecting cord (1)
• Remote commander (remote) (1) (CDP-CE335 only)
• R6 (size AA) batteries (2) (CDP-CE335 only)
Hooking Up the System
Overview
This section describes how to hook up the CD player to
an amplifier. Be sure to turn off the power of each
component before making the connections.
Inserting batteries into the remote (CDPCE335 only)
CD player
You can control the player using the supplied remote.
Insert two R6 (size AA) batteries by matching the +
and – on the batteries. When using the remote, point it
at the remote sensor g on the player.
Line output
(R)
Line output
(L)
To an AC outlet
Audio input
(L)
Audio input
(R)
Amplifier
When to replace batteries
With normal use, the batteries should last for about six
months. When the remote no longer operates the player,
replace all the batteries with new ones.
Notes
• Do not leave the remote near an extremely hot or humid
place.
• Do not drop any foreign object into the remote casing,
particularly when replacing the batteries.
• Do not expose the remote sensor to direct sunlight or
lighting apparatuses. Doing so may cause a malfunction.
• If you don’t use the remote for an extended period of time,
remove the batteries to avoid possible damage from battery
leakage and corrosion.
4
: Signal flow
To an AC outlet
What cords will I need?
Audio cord (supplied) (1)
White
(L)
Red
(R)
White
(L)
Red
(R)
Getting Started
Hookups
When connecting an audio cord, be sure to match the
color-coded cord to the appropriate jacks on the
components: Red (right) to Red and White (left) to
White. Be sure to make connections firmly to avoid
hum and noise.
CD player
Amplifier
LINE
OUT
INPUT
Setting the voltage selector (voltage
selector equipped models only)
Check that the voltage selector on the rear panel of the
player is set to the local power line voltage. If not, set
the selector to the correct position using a screwdriver
before connecting the AC power cord to a wall outlet.
220 - 240 V
110 - 120 V
CD
L
L
R
R
You can adjust the output level to the amplifier (CDPCE335 only)
Press LINE OUT LEVEL +/– on the remote. You can
reduce the output level up to –20 dB.
When you reduce the output level, “ATT.” appears in the
display.
When you turn off the player, the output level
automatically returns to the maximum level.
Note
If you press the LINE OUT LEVEL +/– buttons on the
remote while recording, the recording level will change
even when it is preset on the tape deck, etc.
Connecting the AC power cord
Connect the AC power cord to a wall outlet.
Transporting the player
Before transporting the player, follow the procedure
below to return the internal mechanisms back to their
original position.
1 Remove all the discs from the disc tray.
2 Press § OPEN/CLOSE to close the disc tray.
“no dISC” appears in the display.
3 Wait for 10 seconds, then press 1/u (Power) to
turn off the player.
• If you have a digital component such as a digital
amplifier, D/A converter, DAT or MD
Connect the component via the DIGITAL OUT (OPTICAL)
connector using the optical cable (not supplied). Take off
the cap and plug in the optical cable.
Note that you cannot use fading in or out (page 15) and
Time Fade (page 15) functions when making this
connection.
POC-15
Optical cable (not supplied)
CD player
Digital component
DIGITAL
OUT
DIGITAL
INPUT
OPTICAL
OPTICAL
Note
When you connect via the DIGITAL OUT (OPTICAL)
connector, noise may occur when you play CD software other
than music, such as a CD-ROM.
5
Basic Operations
Playing a CD
25
6
CONTINUE
SHUFFLE
PROGRAM
DISC 1
DISC 2
DISC 3
REPEAT
43
DISC CHECK
OPEN/CLOSE
EX
CHANGE
DISC 4
DISC
SKIP
DISC 5
AMS
PUSH ENTER
TIME
• See pages 4 – 5 for the hookup
information.
EDIT/
TIME FADE
PEAK
SEARCH
1
2
3
CHECK
MUSIC SCAN
FADER
Turn on the amplifier and select the CD player position so that
you can listen to the sound from this player.
Press 1/u (Power) to turn on the player.
Press § OPEN/CLOSE, and place a disc on the disc tray.
With the label side up
4
CLEAR
Disc number
To place other discs, press DISC SKIP and place the discs in the
order you want to play.
Each time you press the button, the disc tray turns and you can
place the discs in the empty disc compartments. The player
plays the disc in front of you first.
5
Press CONTINUE to select ALL DISCS or 1 DISC Continuous
Play mode.
Each time you press the CONTINUE button, “ALL DISCS” or
“1 DISC” appears in the display.
6
When you select
The player plays
ALL DISCS
All discs in the player consecutively in the order of
disc number
1 DISC
Only the disc you’ve selected
Basic Operations
You can select the disc you
want to start playing first
Press one of the DISC 1 – 5
buttons.
You can adjust the output
level to the amplifier (CDPCE335 only)
Press LINE OUT LEVEL +/–
on the remote. You can
reduce the output level up to
–20 dB.
When you reduce the output
level, “ATT.” appears in the
display.
When you turn off the
player, the output level
automatically returns to the
maximum level.
Press ·.
The disc tray closes and the player plays all the tracks once
(Continuous Play). Adjust the volume on the amplifier.
To stop playback
Press p.
DISC 1 – 5
CONTINUE
SHUFFLE
PROGRAM
DISC 1
DISC 2
DISC 3
REPEAT
· P p DISC SKIP
DISC CHECK
OPEN/CLOSE
EX
CHANGE
DISC 4
DISC
SKIP
DISC 5
AMS
PUSH ENTER
TIME
EDIT/
TIME FADE
PEAK
SEARCH
CHECK
CLEAR
MUSIC SCAN
≠ AMS ±
FADER
§ OPEN/CLOSE
To
You need to
Pause
Press P
Resume play after pause
Press P or ·
Go to the next track
Turn ≠ AMS ± clockwise
Go back to the preceding track
Turn ≠ AMS ± counterclockwise
Go to the next disc
Press DISC SKIP
Select a disc directly
Press DISC 1 – 5
Stop play and remove the CD
Press § OPEN/CLOSE
Basic Operations
Note
If you press the LINE OUT
LEVEL +/– buttons on the
remote while recording, the
recording level will change
even when it is preset on the
tape deck, etc.
6
7
Playing CDs
Display information while playing a disc
Using the Display
While playing a disc, the display shows the current
disc number, track number, playing time of the track
and the music calendar.
You can check information about the disc using the
display.
Current disc number
ALL DISCS
1
Playing time
2
DISC
TRACK
1
1
3
4
5
MIN
SEC
2
3
4
7
8
9 10
5
1 56
Music calendar
Current track number
TIME
1
6
The track numbers in the music calendar disappear
after they are played.
Checking the total number and playing
time of the tracks
Checking the remaining time
Press TIME before you start playing.
The display shows the current disc number, the total
number of tracks, total playing time and music
calendar.
Current disc number
ALL DISCS
DISC
1
TRACK
1 10
Total playing time
2
3
4
MIN
5
SEC
1
2
3
4
6
7
8
9 10
5
45 28
Total number of tracks
Music calendar
Each time you press the TIME button while playing a
disc, the display changes as shown in the chart below.
Playing time and
number of the
current track
ALL DISCS
1
2
DISC
TRACK
1
1
3
4
MIN
5
SEC
1
2
3
4
6
7
8
9 10
5
1
2
3
4
6
7
8
9 10
1 56
Press TIME.
Remaining time
on the current
track
The information also appears when you press the
§ OPEN/CLOSE button to close the disc tray.
The tracks numbered over 20 cannot be displayed in
the music calendar.
ALL DISCS
1
2
DISC
TRACK
1
1
3
4
MIN
5
SEC
5
-1 5 7
If the track number exceeds 24,
“– – . – –” appears instead of the
remaining time.
Press TIME.
Notes on the disc number indications
• The red circle around a disc number indicates the disc is
ready to be played.
• When all the tracks on a disc have been played, the semicircle around the disc number disappears.
• When a disc compartment is recognized as empty, the semicircled disc number disappears.
Remaining time
on the disc
ALL DISCS
DISC
1
1
2
TRACK
MIN
4
5
SEC
1
2
3
4
6
7
8
9 10
5
-4 3 3 2
This information is available only in
Continuous Play mode.
Press TIME.
8
3
Playing CDs
Replacing Discs While Playing
a Disc
Locating a Specific Disc
You can locate any disc before or while playing a disc.
You can open the disc tray while playing a disc so that
you can check what discs are to be played next and
replace discs without interrupting playback of the
current disc.
DISC 1 – 5
DISC CHECK
· DISC SKIP
EX-CHANGE DISC SKIP
1
2
3
Press EX-CHANGE.
The disc tray opens and two disc compartments
appear. Even if the player is playing a disc, it
doesn’t stop playing.
Replace discs in the compartments with new ones.
The player plays the disc on the left side
compartment after the current disc, and then the
one on the right side compartment.
Press DISC SKIP.
The disc tray turns and other two disc
compartments appear.
4
Replace discs in the compartments with new ones.
5
Press EX-CHANGE.
The disc tray closes.
To locate
Press
The next disc
DISC SKIP while playing a disc
A specific disc directly
DISC 1 – 5
A disc while checking the
labels
DISC CHECK while the disc
tray is open. The disc tray turns
to show you each disc label.
When the disc you want comes
in front of you, press · to
start playing.
A disc by scanning the first
track of each disc for 10
seconds
DISC CHECK before you start
playing while the disc tray is
closed. When you find the disc
you want, press · to start
playing.
You can extend the playing time during scanning the
discs
Press DISC CHECK repeatedly until the playing time
you want (10, 20 or 30) appears in the display. Each time
you press the button, the playing time changes cyclically.
Notes
While the disc tray is open by pressing the EX-CHANGE
button
• If the playback of the current disc ends, the player stops
playing. If the disc is played in 1 DISC Repeat Play mode
(see page 11), the current disc starts playing again.
• In ALL DISCS Shuffle Play mode (see page 11), tracks are
reshuffled on the current disc.
• In Program Play mode (see page 12), only the tracks on the
current disc are played.
• Do not push the disc tray to close it in Step 5, as you may
damage the player.
• When you press the DISC CHECK button, the play mode
automatically changes to ALL DISCS Continuous Play
mode.
• When you’ve opened the disc tray by pressing the
EX-CHANGE button, you cannot use the DISC CHECK
function.
• Even if you press the DISC CHECK button while
“REPEAT” appears in the display (see page 11), the player
stops after scanning all the discs once.
9
Playing CDs
Locating a Specific Track or a
Particular Point in a Track
You can quickly locate any track while playing a disc
using the AMS (Automatic Music Sensor) control or
number buttons on the remote. You can also locate a
specific point in a track while playing a disc.
·
≠ AMS ±
When you directly locate a track numbered over 10
(CDP-CE335 only) Z
Press >10 first, then the corresponding number buttons
on the remote. To enter “0,” use button 10/0.
Example: To play track number 30
Press >10 first, then 3 and 10/0.
You can extend the playing time during Music Scan
Press MUSIC SCAN repeatedly until the playing time
you want (10, 20 or 30) appears in the display. Each time
you press the button, the playing time changes cyclically.
Note
If “
” appears in the display, the disc has reached the end
while you were pressing the ) button. Press 0 or turn
≠ AMS ± counterclockwise to go back.
0/)
MUSIC SCAN
(CDP-CE335 only)
Number buttons
>10
·
=/+
0/)
To locate
You need to
The next or
succeeding tracks
Turn ≠AMS ± clockwise until
you find the track. When using the
remote, press + repeatedly until you
find the track.
The current or
preceding tracks
Turn ≠AMS ± counterclockwise
until you find the track. When using
the remote, press = repeatedly until
you find the track.
A specific track
directly (CDPCE335 only) Z
Press the number button of the track
on the remote
A track by scanning
each track for 10
seconds
(Music Scan)
Press MUSIC SCAN before you start
playing. When you find the track you
want, press · to start playing.
Press ) (forward) or 0 (backward)
A point while
monitoring the sound and hold down until you find the
point
Press ) (forward) or 0 (backward)
A point quickly by
observing the display and hold down until you find the
point. You will not hear the sound
during pause
during the operation.
10
Playing CDs
Playing Repeatedly
You can play discs/tracks repeatedly in any play
mode.
REPEAT
Playing in Random Order
(Shuffle Play)
You can have the player “shuffle” tracks and play in a
random order. The player shuffles all the tracks on all
discs or on the disc you’ve specified.
SHUFFLE
DISC 1 – 5
·
Press REPEAT while playing a disc.
“REPEAT” appears in the display. The player repeats
the discs/tracks as follows:
Shuffle Play on all discs
When the disc is played in
The player repeats
Continuous Play
(ALL DISCS) (page 6)
All the tracks on all discs
Continuous Play
(1 DISC) (page 6)
All the tracks on the current
disc
Shuffle Play
(ALL DISCS) (page 11)
All the tracks on all discs in
random orders
Shuffle Play
(1 DISC) (page 12)
All the tracks on the current
disc in random orders
Program Play (page 12)
The same program
You can play all tracks on all discs in a random order.
1
Press SHUFFLE repeatedly until “ALL DISCS”
appears in the display.
2
Press · to start ALL DISCS Shuffle Play.
The
indication appears while the player is
“shuffling” the tracks.
To cancel Shuffle Play
Press CONTINUE.
To cancel Repeat Play
Press REPEAT repeatedly until “REPEAT” disappears from
the display.
Repeating the current track
You can repeat only the current track while the disc is
played in any play mode.
While the track you want is being played, press
REPEAT repeatedly until “REPEAT 1” appears in the
display.
You can start Shuffle Play while playing
Press SHUFFLE, and Shuffle Play starts from the current
track.
You can specify discs during Shuffle Play (Select
Shuffle Play)
You can specify discs during ALL DISCS Shuffle Play
mode, and the tracks on the specified discs are played in
a random order.
Press DISC 1 – 5 to specify the discs after Step 1.
Semi-circles appear around the specified disc numbers in
the display. To cancel the selected discs, press DISC 1 – 5
again. The semi-circles disappear.
To return to ALL DISCS Shuffle Play, press SHUFFLE
twice.
11
Playing CDs
Shuffle Play on one disc
You can play all tracks on the specific disc in a random
order.
1
Press SHUFFLE repeatedly until “1 DISC” appears
in the display.
2
Press DISC 1 – 5 to start 1 DISC Shuffle Play on
the selected disc.
The
indication appears while the player is
“shuffling” the tracks.
Creating Your Own Program
(Program Play)
You can arrange the order of the tracks on the discs
and create your own program. The program can
contain up to 32 “steps” — one “step” may contain a
track or a whole disc.
PROGRAM
DISC 1 – 5
· ≠ AMS ±
To cancel Shuffle Play
Press CONTINUE.
You can start Shuffle Play while playing
Press SHUFFLE, and Shuffle Play starts from the current
track.
CLEAR
CHECK
1
Press PROGRAM.
“PROGRAM” appears in the display.
If a program is already stored, the last step of the
program appears in the display. When you want to
erase the whole program, hold down CLEAR until
“ALL CLr” appears in the display (see page 13).
2
Press DISC 1 – 5 to select the disc.
PROGRAM
DISC
1
2
3
TRACK
1 AL
4
MIN
5
A
SEC
1
2
3
4
6
7
8
9 10
5
42 11
“AL” in the display stands for “all” tracks.
When you want to program the whole disc as one
step, skip Steps 3 to 4, and go to Step 5.
3
Turn ≠ AMS ± until the track number you
want appears in the display.
The track number being programmed flashes and
the total plying time including the track appears in
the display.
Total playing time
PROGRAM
12
1
DISC
TRACK
1
5
2
3
MIN
4
5
SEC
13 18
Track number
being programmed
2
A
5
8
Playing CDs
4
The program remains until you erase it or turn off the
player
Push ≠ AMS ± to select the track.
If you replace discs, the programmed disc and track
numbers remain. So, the player plays only the existing
disc and track numbers. However, the disc and track
numbers that aren’t found in the player or on the disc are
deleted from the program, and the rest of the program is
played in the programmed order.
Last programmed Playing order
track
PROGRAM
1
2
DISC
TRACK
1
5
3
4
5
2
A
5
8
STEP
3
Programmed tracks
After one second
PROGRAM
1
2
DISC
TRACK
1
5
3
4
MIN
5
2
A
SEC
5
8
13 18
Note
The total playing time doesn’t appear when:
—You have programmed a track whose number exceeds 20.
—The total playing time of the program exceeds 200 minutes.
Checking the track order
Total playing time
If you’ve made a mistake
You can check your program before or after you start
playing.
Press CLEAR, then repeat Steps 3 and 4.
5
6
To program other discs or tracks, do the following:
To program
Repeat Step(s)
Other discs
2
Other tracks on the same disc
3 and 4
Other tracks on other discs
2 through 4
Press · to start Program Play.
To cancel Program Play
Press CHECK.
Each time you press this button, the display shows the
track (the disc and track numbers) or the disc (the disc
number and “AL” indication) of each step in the
programmed order. After the last step in the program,
the display shows “End” and returns to the original
display. If you check the order after you start playing,
the display shows only the remaining steps.
Changing the track order
You can change your program before you start playing.
Press CONTINUE.
To
You need to
You can create your program while checking the disc
labels
Erase a track
While the disc tray is open, follow Steps 1 to 6 with
pressing the DISC SKIP button to check the disc labels. If
you close the disc tray before Step 6, the total playing
time appears in the display after a while.
Note that, if the programmed track number isn’t found
on the disc, that step is automatically erased.
Press CHECK until the track
you don’t want appears in
the display, then press
CLEAR
Erase the last track in the
program
Press CLEAR. Each time you
press the button, the last
track will be cleared.
Add tracks to the end of the
program
Follow Steps 2 through 4 of
the programming procedure
The program remains even after the Program Play
ends
Change the whole program
completely
Hold down CLEAR until
“ALL CLr” appears in the
display. Create a new
program following the
programming procedure.
When you press the · button, you can play the same
program again.
13
Recording From CDs
Recording Your Own Program
You can record the program you’ve created on a tape,
etc. The program can contain up to 32 steps.
By inserting a pause during programming, you can
divide the program into two for recording on both
sides of a tape.
PROGRAM
DISC 1 – 5
·P
Recording a CD by Specifying
Tape Length (Time Edit)
You can have the player create a program that will fit
the length of the tape.
The player automatically creates a program, keeping
the original order of the disc.
The program can contain up to 32 steps (a pause
inserted between steps is counted as one step).
Note that tracks numbered over 20 cannot be
programmed automatically.
·P
DISC SKIP
≠ AMS ±
1
Create your program (for side A when recording
on a tape) while checking the total playing time
indicated in the display.
Follow Steps 1 to 5 in “Creating Your Own
Program” on page 12.
The
indication appears in the display.
A
2
When you record on both sides of the tape, press
P to insert a pause.
The “P” and
indications appear in the display
and the playing time is reset to “0.00.”
When you record on one side of the tape, skip this
step and go to Step 4.
A
EDIT/TIME FADE
1
Press DISC SKIP to select the disc.
2
Press EDIT/TIME FADE repeatedly before you
start playing until “EDIT” appears and “A” in the
indication flashes in the display.
A
B
3
A pause is counted as one step
You can program up to 31 steps when you insert a pause.
3
4
5
Repeat Steps 2 to 5 in “Creating Your Own
Program” on page 12 to create the program for
side B.
Start recording on the deck and then press · on
the player.
When you record on both sides of the tape, the player
pauses at the end of the program for side A.
4
Press EDIT/TIME FADE to have the player create
the program.
The display shows the tracks to be recorded. “B” in
the
indication flashes in the display.
B
5
When you record on both sides of the tape, press
EDIT/TIME FADE again.
The player inserts a pause, then creates the
program for side B. The display shows the
programmed tracks.
When you record on one side of the tape, skip this
step.
6
Start recording on the deck and then press · on
the player.
When you record on both sides of the tape, the
player pauses at the end of the program for side A.
To check and change your program
14
Press 0 or ) to specify the tape length.
Each time you press these buttons, the display
changes as shown below, with the tape length of
one side following each indication.
n C-46 ˜ C-54 ˜ C-60 ˜ C-74 ˜ C-90 ˜ - -. - - N
(23.00) (27.00) (30.00) (37.00) (45.00)
When you record on side B, reverse the tape and
press · or P on the player to resume playing.
See page 13.
A
The
indication appears while checking the program
B
for side A and
while checking the program for side
B.
0/)
Recording From CDs
7
Reverse the tape to side B and press · or P on
the player to resume playing the remaining tracks.
To cancel Time Edit
Press CONTINUE.
You can program the tracks you want in advance
Fading In or Out
You can manually fade in or out to prevent tracks from
starting or ending abruptly.
Note that you cannot use this effect when you use the
DIGITAL OUT (OPTICAL) connector.
Select the tracks before doing the above procedure. The
player creates a program from the remaining tracks.
·P
You can freely specify the tape length
Set the tape length using the ≠ AMS ± control.
Example: When the tape length of one side is 30 minutes
and 15 seconds
1 To set the minutes, turn ≠ AMS ± until
“30” appears in the display, then push
≠ AMS ±.
2 To set the seconds, turn ≠ AMS ± until
“15” appears in the display, then push
≠ AMS ±.
You can check and change the program
See page 13.
0/) FADER
EDIT/TIME FADE*
To
Press FADER
Start play fading in
During pause.
lights up in the
display and the Q indication flashes.
The play fades in.
End play fading out
When you want to start fading out.
FADE
lights up in the display and the
q indication flashes. The play fades
out and the player pauses.
FADE
Note
Fading lasts for about 5 seconds. However, when you press
the FADER button during Music Scan (see page 10), the play
fades out for about 2 seconds.
Fading out at the specified time
(Time Fade)
You can have the player fade out automatically by
specifying the playing time. Once you set the Time
Fade, it works twice, that is, the play fades out at the
end of both sides of a tape.
1
2
Press EDIT/TIME FADE repeatedly before you
start playing until
and “A” in the
indication appear in the display.
TIME
FADE
A
Press 0 or ) to specify the playing time.
Each time you press these buttons, the display
changes as shown below, with the playing time of
one side following each indication.
n C-46 ˜ C-54 ˜ C-60 ˜ C-74 ˜ C-90 ˜ - -. - - N
(23.00) (27.00) (30.00) (37.00) (45.00)
(Continued)
15
Recording From CDs
3
Press · to start playing.
At the specified time the play fades out and the
player pauses. “B” in the
indication appears
in the display.
B
4
Reverse the tape to side B and press · or P on
the player to resume playing the remaining tracks.
Again, the play fades out at the specified time.
Adjusting the Recording Level
(Peak Search)
The player locates the highest level among the tracks to
be recorded to let you adjust the recording level before
you start recording.
PEAK SEARCH
p
To cancel Time Fade
Press EDIT/TIME FADE.
You can freely specify the playing time
See “You can freely specify the tape length” on page 15.
You can change discs during Time Fade
1
Before you start playing, press PEAK SEARCH.
“PEAK” flashes in the display and the player
repeats the portion of the highest level.
After scanning all the tracks, the player repeats the
portion with the highest peak level.
2
Adjust the recording level on the deck.
3
Press p on the player to stop Peak Search.
“PEAK” disappears from the display.
If the play ends before the specified fade-out time, (for
example, when you record CD-singles on a tape) change
the disc. The specified fade-out time is counted only
during playing.
You can fade in to resume playing in Step 4
After you reverse the tape, press FADER.
Note
If you press the 0 or ) button during Time Fade Play,
Time Fade will be cancelled.
Notes
• The portion with the highest level may differ every time
you try the adjustment on the same disc. The difference is,
however, so slight that you won’t find any problem in
adjusting the recording level precisely.
• Peak Search does not operate while you open the disc tray
by pressing the EX-CHANGE button.
16
Additional Information
Additional Information
Precautions
On safety
• Caution — The use of optical instruments with this product
will increase eye hazard.
• Should any solid object or liquid fall into the cabinet,
unplug the player and have it checked by qualified
personnel before operating it any further.
Notes on CDs
On handling CDs
• To keep the disc clean, handle the disc by its edge. Do not
touch the surface.
• Do not stick paper or tape on the disc.
On power sources
• Before operating the player, check that the operating
voltage of the player is identical with your local power
supply. The operating voltage is indicated on the
nameplate at the rear of the player.
• The player is not disconnected from the AC power source
(mains) as long as it is connected to the wall outlet, even if
the player itself has been turned off.
• If you are not going to use the player for a long time, be
sure to disconnect the player from the wall outlet. To
disconnect the AC power cord (mains lead), grasp the plug
itself; never pull the cord.
• AC power cord must be changed only at the qualified
service shop.
• Do not expose the disc to direct sunlight or heat sources
such as hot air ducts, nor leave it in a car parked in direct
sunlight as there can be considerable rise in temperature
inside the car.
• Do not use any commercially available stabilizer. If you do,
the disc and the player may be damaged.
• After playing, store the disc in its case.
On placement
On cleaning
• Place the player in a location with adequate ventilation to
prevent heat build-up in the player.
• Do not place the player on a soft surface such as a rug that
might block the ventilation holes on the bottom.
• Do not place the player in a location near heat sources, or in
a place subject to direct sunlight, excessive dust or
mechanical shock.
• Before playing, clean the disc with a cleaning cloth. Wipe
the disc from the center out.
On operation
• If the player is brought directly from a cold to a warm
location, or is placed in a very damp room, moisture may
condense on the lenses inside the player. Should this occur,
the player may not operate properly. In this case, remove
the disc and leave the player turned on for about an hour
until the moisture evaporates.
• Do not use solvents such as benzine, thinner, commercially
available cleaners or anti-static spray intended for vinyl
LPs.
On adjusting volume
• Do not turn up the volume while listening to a portion with
very low level inputs or no audio signals. If you do, the
speakers may be damaged when a peak level portion is
played.
On cleaning
• Clean the cabinet, panel and controls with a soft cloth
slightly moistened with a mild detergent solution. Do not
use any type of abrasive pad, scouring powder or solvent
such as alcohol or benzine.
If you have any questions or problems concerning your
player, please consult your nearest Sony dealer.
17
Additional Information
Troubleshooting
Specifications
If you experience any of the following difficulties while
using the player, use this troubleshooting guide to help
you remedy the problem. Should any problem persist,
consult your nearest Sony dealer.
Compact disc player
There’s no sound.
/Check that the player is connected securely.
/Make sure you operate the amplifier correctly.
/Adjust the playback level using the LINE OUT
LEVEL +/– buttons on the remote (CDP-CE335
only).
The CD does not play.
/There’s no CD inside the player (“no dISC”
appears). Insert a CD.
/Place the CD with the label side up on the disc
tray correctly.
/Clean the CD (see page 17).
/Moisture has condensed inside the player.
Remove the disc and leave the player turned on
for about an hour (see page 17).
/Place the CD in the correct position on the disc
tray.
The remote does not function. (CDP-CE335 only)
/Remove the obstacles in the path of the remote
and the player.
/Point the remote at the remote sensor g on the
player.
/Replace all the batteries in the remote with new
ones if they are weak.
The player functions incorrectly.
/The microcomputer chips may be operating
incorrectly. Turn the power off, then turn it
back on to reset the player.
Laser
Semiconductor laser (λ = 780 nm)
Emission duration: continuous
Laser output
Max 44.6 µW*
* This output is the value measured at
a distance of 200 mm from the
objective lens surface on the Optical
Pick-up block with 7 mm aperture.
Frequency response
2 Hz to 20 kHz ± 0.5 dB
Signal-to-noise ratio
More than 102 dB
Dynamic range
More than 98 dB
Harmonic distortion
Less than 0.0045%
Output
Jack
type
Maximum
output
level
Load
impedance
LINE OUT
Phono
jacks
2V
(at 50 kilohms)
Over 10 kilohms
DIGITAL OUT
(OPTICAL)
Optical
–18dBm
output
connector
Wave length: 660nm
General
Power requirements
Where purchased
Power requirements
USA
120 V AC, 60 Hz
Australia
240 V AC, 50/60 Hz
Power consumption
14 W
Dimensions (approx.)
(w/h/d)
430 × 120 × 385 mm
(17 × 4 3/4 × 15 1/4 in.) incl. projecting
parts
Mass (approx.)
5.4 kg (11 lbs 15 oz)
Supplied accessories
Audio cord (2 phono plugs – 2 phono plugs) (1)
Remote commander (remote) (1) (CDP-CE335 only)
R6 (size AA) batteries (2) (CDP-CE335 only)
Design and specifications are subject to change without notice.
18
Additional Information
Index
Scanning. See Music Scan
Searching. See Locating
Select Shuffle Play 11
Shuffle Play 11
A, B
AMS 10
Automatic Music Sensor. See
AMS
T
Time Edit 14
Time Fade 15
Total playing time 8
Troubleshooting 18
C, D
Connecting 4
Continuous Play 6
E
U, V, W, X, Y, Z
Editing. See Recording
Unpacking 4
Voltage Selector 5
F, G
Fading 15
Time Fade
Names of controls
S
Index
15
H, I, J, K
Handling CDs 17
Hookups 4
overview 4
L
Locating
by monitoring 10
by observing the
display 10
by scanning 10
directly 10
using AMS 10
while checking the labels
Buttons
CHECK 13
CLEAR 13
CONTINUE 6
DISC 1 – 5 9
DISC CHECK 9
DISC SKIP 7
EDIT/TIME FADE 14, 15
EX-CHANGE 9
FADER 15
LINE OUT LEVEL +/– 5
MUSIC SCAN 10
Number 10
§ OPEN/CLOSE 6
PEAK SEARCH 16
PROGRAM 12
REPEAT 11
SHUFFLE 11
TIME 8
· 7
P 7
p 7
0/) 10
=/+ 10
> 10 10
Switch
1/u (Power)
6
Control
9
M, N, O
Music Scan 10
≠ AMS ± 7
Others
Disc tray 6
Display 8
g 4
P, Q
Peak search 16
Playback
Continuous Play 6
Program Play 12
Repeat Play 11
Shuffle Play 11
Program 12
changing 13
checking 13
for recording 14
R
Recording 14
a program 14
using Time Edit 14
Remaining time 8
Remote control 4
Repeating 11
Replacing discs while playing
a disc 9
19
Additional Information
20
Sony Corporation Printed in China
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
