HP Pro Slate10 EE G1 and HP Pro Tablet 10 EE G1
QuickSpecs
HP Pro Slate10 EE G1 and HP Pro Tablet 10 EE G1
Accessories

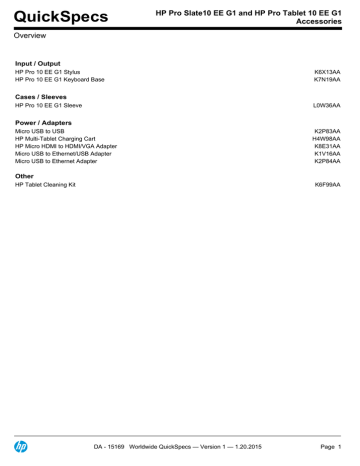

Overview
Input / Output
HP Pro 10 EE G1 Stylus
HP Pro 10 EE G1 Keyboard Base
K6X13AA
K7N19AA
Cases / Sleeves
HP Pro 10 EE G1 Sleeve
L0W36AA
Power / Adapters
Micro USB to USB
HP Multi-Tablet Charging Cart
HP Micro HDMI to HDMI/VGA Adapter
Micro USB to Ethernet/USB Adapter
Micro USB to Ethernet Adapter
K2P83AA
H4W98AA
K8E31AA
K1V16AA
K2P84AA
Other
HP Tablet Cleaning Kit
K6F99AA
DA - 15169 Worldwide QuickSpecs — Version 1 — 1.20.2015
Page 1
QuickSpecs
HP Pro Slate10 EE G1 and HP Pro Tablet 10 EE G1
Accessories
Technical Specifications
Input / Output
HP Pro 10 EE G1 Stylus
Dimensions (H x L x W)
Weight
Color
Materials
System requirements
Functionality
Kit contents
Compatibility
3.98 x 0.26 in (101.09 x 6.79 mm)
0.137 oz (3.9 g)
Grey
TIP: conductive plastic; BODY : aluminum; TAIL: nylon; TETHER: nylon
Windows 8, Windows 8.1 or
Andriod™4.4.4 KitKat
Use the pen to write onscreen or interact with your touch applications.
Attach the pen to your tablet with the included tether, and store it in the tablet's handy garage
compartment when not in use.
Stylus, lanyard, and documentation
HP Pro Slate10 EE G1, HP Pro Tablet 10 EE G1
HP Pro 10 EE G1 Keyboard Base
Dimensions (H x L x W)
Weight
Keyboard Connection
Kit contents
Compatibility
11.5 x 8.6 x 0.75 in (292 x 219 x 18.97mm)
22.9 oz (650 g)
Hardwired
HP Pro 10 EE G1 Keyboard Base, documentation
HP Pro Slate 10 EE G1, HP Pro Tablet 10 EE G1
Cases / Sleeves
HP Pro 10 EE G1 Sleeve
Unpackaged
Dimensions (H x W x
D)
Unpackaged Weight
Materials
Exterior color
Interior color
Compatibility
9.0 x 11.8 x 1.8 in (229 x 302 x 46 mm)
13.8 oz (391.2 g)
Exterior material
Polyester
Interior material
Microsuede
Dark Grey
Blue
HP Pro Slate 10 EE G1, HP Pro Tablet 10 EE G1, HP ElitePad 1000 G1, HP Pro Tablet 610 G1
Power / Adapters
DA - 15169 Worldwide QuickSpecs — Version 1 — 1.20.2015
Page 2
QuickSpecs
HP Pro Slate10 EE G1 and HP Pro Tablet 10 EE G1
Accessories
Technical Specifications
Micro USB to USB
Host Interface
Device interface
Connectors
Micro USB 2.0
USB 2.0 Type A Female
Signal output: USB 2.0 Type A female
Host input: Micro USB 2.0 B male connector
Operating Temperature0-35°C (32-95°F)
Storage Temperature -20~60°C (4~140°F)
Mechanical
Dimensions (H x W x L)
Weight
Unpackaged: 8.50mm x 16.0mm x 657mm
Unpackaged: 0.677 oz (19.3 g)
HP Multi-Tablet Charging Cart
Power
External: HP 65 Watt AC Adapter with 5.9 ft (1.8 m) cable; included
Internal: 10 country-specific outlets for charging tablets factory pre-installed.
NOTE: AC adapters for powering each tablet are customer-supplied and installed.
NOTE: Module AC input is filtered and protected by two 15- or 10-amp (according to region)
circuit breakers and then distributed to each tablet's AC adapter and the 65-watt 19-volt AC
distribution power supply.
Cooling
Two 12-volt DC fans; Perforated front doors, rear ventilation panel, and tablet dividers provide
additional ventilation.
Cable Wrap Tray
Cable wrap tray allows the user to neatly store excess power adapter cable length and feed the
tablet power connector through the pass-through holes to the tablet in the slots below.
Operating Temperature0° to 30° C (32° to 86° F)
Relative Humidity
5% to 95% (non-condensing)
(storage)
Mechanical
Dimensions (H x W x L)
18.1 x 21.7 x 12.5 in (460 x 551.5 x 316.6 mm)
Weight
31 lb (14.1 kg)
Environmental
RoHS, REACH, WEEE, UL 60950-1, CAN/CSA C22.2 No. 60950, ICES-003 Issue 4, Class A,
FCC Part 15 Class A, IEC 60950-1, GOST-R, KCC, EN55022, EN55024
HP Micro HDMI to HDMI/VGA Adapter (not compatible with HP Pro Slate 10 EE G1)
Mechanical
1.66 x 0.57 x 7.9 in (42.3 x 14.7 x 202.2 mm)
Dimensions (H x W x L)
Unpackaged
Unpackaged Weight
1.8 oz (51.2g)
Host interface
HDMI 1.4
Device interface
Micro HDMI
Device Input
Micro HDMI male connector
Device Output
HDMI female
VGA female
Operating Temperature5-35°C (41-95°F)
DA - 15169 Worldwide QuickSpecs — Version 1 — 1.20.2015
Page 3
QuickSpecs
HP Pro Slate10 EE G1 and HP Pro Tablet 10 EE G1
Accessories
Technical Specifications
Micro USB to Ethernet/USB Adapter (not compatible with HP Pro Slate 10 EE G1)
Host Interface
Device interface
Connectors
Micro USB 2.0
RJ45, USB2.0 Type A Female, Micro USB type AB
Signal output: RJ45, USB2.0 Type A Female, Micro USB type AB
Host input: Micro USB2.0 B male Connector
Operating Temperature32° to 95° F (0° to 35° C)
Storage Temperature 4° to 140° F (-20° to 60° C)
System Requirements Windows 8.1, Android 4.4.4
Software
Mechanical
Dimensions (H x W x L)
14.1mm x 52.8mm x 144mm
Unpackaged
Weight
Unpackaged: 1.358 oz (38.5 g)
HP Micro USB to Ethernet Adapter (not compatible with HP Pro Slate 10 EE G1)
Host Interface
Micro USB 2.0
Device interface
Connectors
RJ45
Signal output: RJ45 female connector
Host input: Micro USB 2.0 B male connector
Operating Temperature0-35°C (32-95°F)
Storage Temperature -20~60°C (4~140°F)
System Requirements Windows 8.1, Android 4.4.4
Software
Mechanical
Dimensions (H x W x L)
Weight
Unpackaged: 14.8 x 20.8 x 150 mm
Unpackaged: 0.712 oz (20.2 g)
Other
HP Tablet Cleaning Kit
Dimensions (H x L x W) 6.30 x 2.17 x 2.17 in (160 x 55 x 55 mm)
Weight
0.49 lb (225 g )
Materials
Kit contents
Compatibility
Plastic Spray bottle
Microfiber cleaning cloth
PVC Carrying pouch
Cleaning gel in spray bottle
Double-sided cleaning cloth
Carrying pouch
Documentation
HP Tablets and Notebooks
DA - 15169 Worldwide QuickSpecs — Version 1 — 1.20.2015
Page 4
QuickSpecs
HP Pro Slate10 EE G1 and HP Pro Tablet 10 EE G1
Accessories
Technical Specifications
Service and support
Each accessory carries a one-year limited warranty. Technical support is available seven days a week, 24 hours a day, by
phone, as well as online support forums. Certain restrictions and exclusions apply.
Copyright © 2014 Hewlett-Packard Development Company, L.P. All rights reserved.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind.
The warranties for HP products are set forth in the express limited warranty statements accompanying such products.
Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein. All other trademarks are the property of their respective owners.
DA - 15169 Worldwide QuickSpecs — Version 1 — 1.20.2015
Page 5
