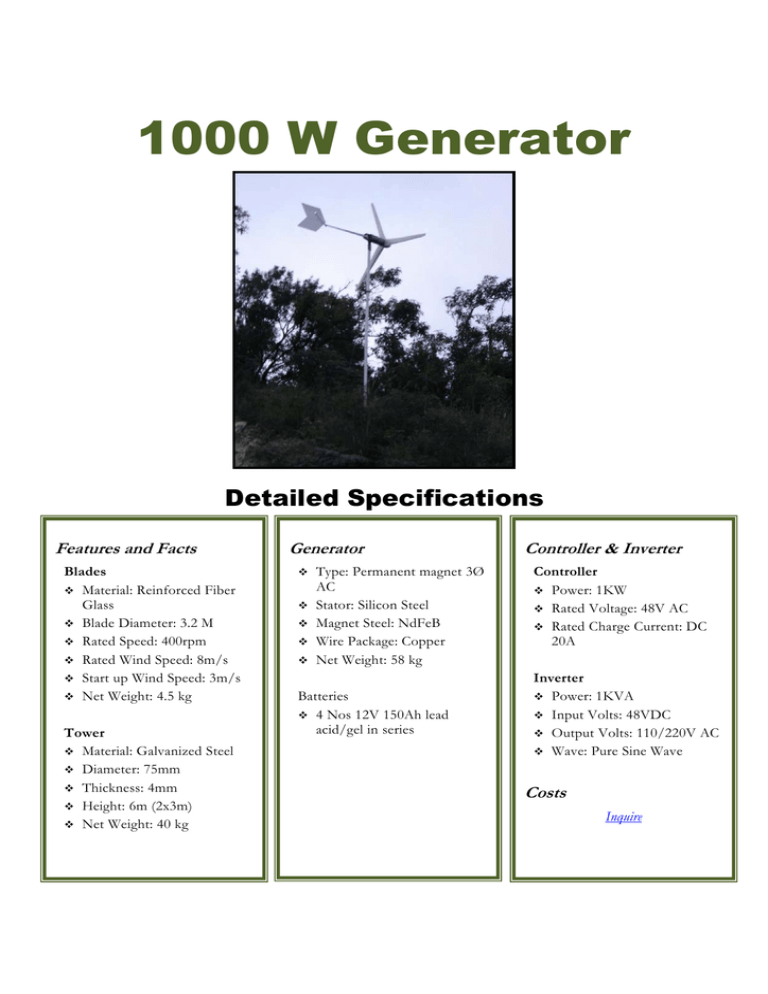

1000 W Generator
1000 W Generator
Detailed Specifications
Features and Facts
Blades
™ Material: Reinforced Fiber
Glass
™ Blade Diameter: 3.2 M
™ Rated Speed: 400rpm
™ Rated Wind Speed: 8m/s
™ Start up Wind Speed: 3m/s
™ Net Weight: 4.5 kg
Tower
™ Material: Galvanized Steel
™ Diameter: 75mm
™ Thickness: 4mm
™ Height: 6m (2x3m)
™ Net Weight: 40 kg
Generator
™
™
™
™
™
Type: Permanent magnet 3Ø
AC
Stator: Silicon Steel
Magnet Steel: NdFeB
Wire Package: Copper
Net Weight: 58 kg
Batteries
™ 4 Nos 12V 150Ah lead
acid/gel in series
Controller & Inverter
Controller
™ Power: 1KW
™ Rated Voltage: 48V AC
™ Rated Charge Current: DC
20A
Inverter
™ Power: 1KVA
™ Input Volts: 48VDC
™ Output Volts: 110/220V AC
™ Wave: Pure Sine Wave
Costs
Inquire
