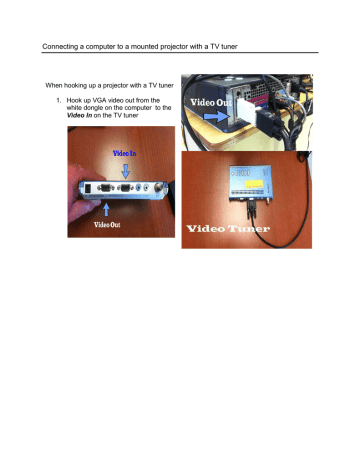

When hooking up a projector with a TV tuner
1. Hook up VGA video out from the
white dongle on the computer to the
Video In on the TV tuner
2. Use the special cable below to connect
the Video Out on the tuner to the Video
In on the splitter.
3. Use a standard VGA cable to connect
the Video Out from the splitter to the
monitor.
4. Connect the other Video Out
from the splitter to the Wall
Connection using a standard VGA
cable.
5. Connect the Coaxial cable shown
below to the Ant In on TV Tuner
6. To connect the audio, insert the mini 8
(headphone looking end) of the audio
cable in the Ant Out of the TV tuner. The
Red and White RCA jacks are then plugged
into the wall connection.
7. Connect the Audio In to the headphone
jack on the back of the computer with a
standard 3.5mm male male cable shown
below.
