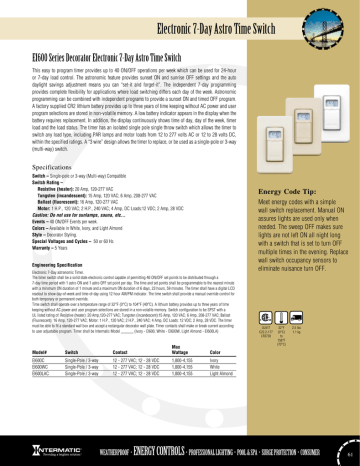

EI600 Series Decorator Electronic 7-Day Astro Time Switch
This easy to program timer provides up to 40 ON/OFF operations per week which can be used for 24-hour
or 7-day load control. The astronomic feature provides sunset ON and sunrise OFF settings and the auto
daylight savings adjustment means you can “set-it and forget-it”. The independent 7-day programming
provides complete flexibility for applications where load switching differs each day of the week. Astronomic
programming can be combined with independent programs to provide a sunset ON and timed OFF program.
A factory supplied CR2 lithium battery provides up to three years of time keeping without AC power and user
program selections are stored in non-volatile memory. A low battery indicator appears in the display when the
battery requires replacement. In addition, the display continuously shows time of day, day of the week, timer
load and the load status. The timer has an isolated single pole single throw switch which allows the timer to
switch any load type, including PAR lamps and motor loads from 12 to 277 volts AC or 12 to 28 volts DC,
within the specified ratings. A “3 wire” design allows the timer to replace, or be used as a single-pole or 3-way
(multi-way) switch.
Specifications
Switch – Single-pole or 3-way (Multi-way) Compatible
Switch Rating –
Resistive (heater): 20 Amp, 120-277 VAC
Tungsten (incandescent): 15 Amp, 120 VAC; 6 Amp, 208-277 VAC
Ballast (fluorescent): 16 Amp, 120-277 VAC
Motor: 1 H.P., 120 VAC; 2 H.P., 240 VAC; 4 Amp, DC Loads:12 VDC; 2 Amp, 28 VDC
Caution: Do not use for sunlamps, sauna, etc...
Events – 40 ON/OFF Events per week.
Colors – Available in White, Ivory, and Light Almond
Style – Decorator Styling.
Special Voltages and Cycles – 50 or 60 Hz.
Warranty – 5 Years
Energy Code Tip:
Engineering Specification
Electronic 7-Day astronomic Timer.
The timer switch shall be a solid state electronic control capable of permitting 40 ON/OFF set points to be distributed through a
7-day time period with 1 astro ON and 1 astro OFF set point per day. The time and set points shall be programmable to the nearest minute
with a minimum ON duration of 1 minute and a maximum ON duration of 6 days, 23 hours, 59 minutes. The timer shall have a digital LCD
readout to show day-of-week and time-of-day using 12 hour AM/PM indicator. The time switch shall provide a manual override control for
both temporary or permanent override.
Time switch shall operate over a temperature range of 32°F (0°C) to 104°F (40°C). A lithium battery provides up to three years of time
keeping without AC power and user program selections are stored in a non-volatile memory. Switch configuration to be SPST with a
UL listed rating of: Resistive (heater): 20 Amp,120-277 VAC; Tungsten (incandescent):15 Amp, 120 VAC; 6 Amp, 208-277 VAC; Ballast
(Fluorescent): 16 Amp, 120-277 VAC; Motor: 1 H.P., 120 VAC; 2 H.P., 240 VAC; 4 Amp, DC Loads: 12 VDC; 2 Amp, 28 VDC. The timer
must be able to fit a standard wall box and accept a rectangular decorator wall plate. Timer contacts shall make or break current according
to user adjustable program. Timer shall be Intermatic Model ______ (Ivory - EI600, White - EI600W, Light Almond - EI600LA)
Model#
Switch
Contact
Max
Wattage
Color
EI600C
EI600WC
EI600LAC
Single-Pole / 3-way
Single-Pole / 3-way
Single-Pole / 3-way
12 - 277 VAC; 12 - 28 VDC
12 - 277 VAC; 12 - 28 VDC
12 - 277 VAC; 12 - 28 VDC
1,800-4,155
1,800-4,155
1,800-4,155
Ivory
White
Light Almond
Meet energy codes with a simple
wall switch replacement. Manual ON
assures lights are used only when
needed. The sweep OFF makes sure
lights are not left ON all night long
with a switch that is set to turn OFF
multiple times in the evening. Replace
wall switch occupancy sensors to
eliminate nuisance turn OFF.
UL917
C22.2-177
LR3730
32°F
(0°C)
to
158°F
(70°C)
2.5 lbs
1.1 kg
