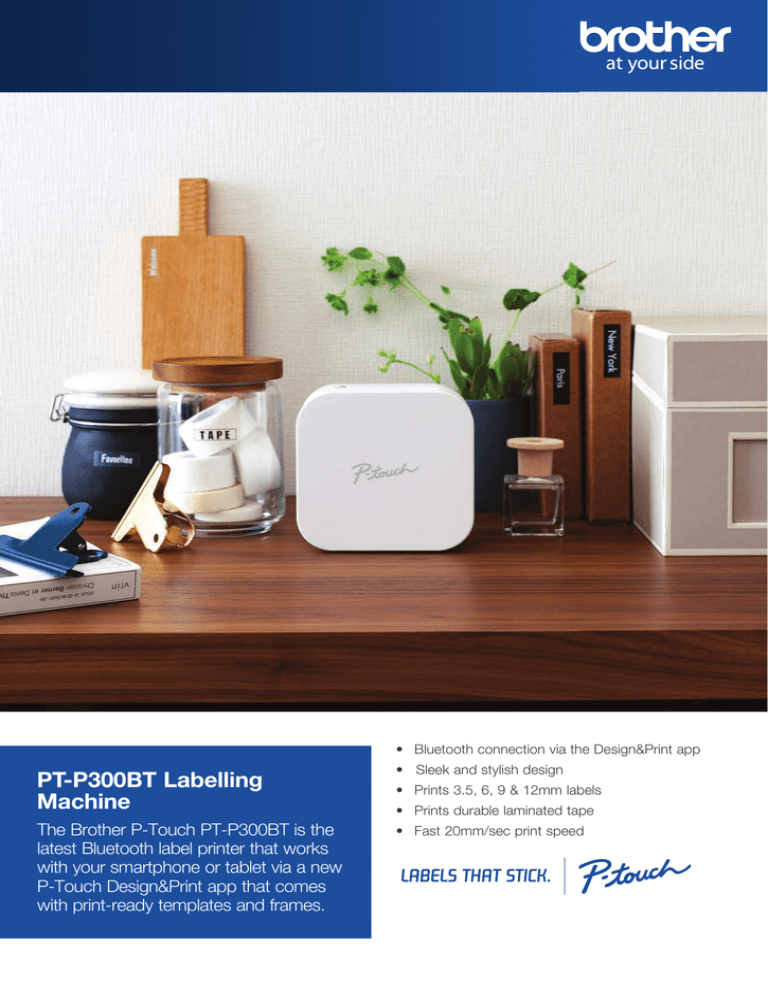

PT-P300BT
• Bluetooth connection via the Design&Print app
PT-P300BT Labelling
Machine
• Sleek and stylish design
The Brother P-Touch PT-P300BT is the
latest Bluetooth label printer that works
with your smartphone or tablet via a new
P-Touch Design&Print app that comes
with print-ready templates and frames.
• Fast 20mm/sec print speed
• Prints 3.5, 6, 9 & 12mm labels
• Prints durable laminated tape
LABELS THAT STICK.
Organise your home with style with the P-touch P300BT
Try out the useful templates with pre-made labels and pattern designs. From labeling file folders, cables
and wires, to making gift tags and scrapbook pages, there are more uses than ever for the PT-P300BT.
Print anywhere, anytime
Use the Design&Print app
and design labels from your
smartphone
AC Adapter Slot:
Uses 6 AAA-sized
batteries^ “or an (optional)
9V power adapter.”
(Note: “adaptor” acceptable).
P-touch Design&Print App
Tested to work with Android* and
Apple iOS*, the PT-P300BT app
allows customisation and selection
of fonts, designs and material to
suit your preferences.
The app can even display the
actual text and background colours
in print preview mode!
*Operating systems: Android (4.2 or newer) and
Apple iOS (9 or newer) ^Batteries not included
High Speed Printing:
The fastest thermal label
printer in its class with
20mm/sec print speed
Compact And Portable
Design: Built to fit into any
home or office environment.
Weighing only 380g, is
lighter and smaller than any
other similar products in the
market today
Expand your creativity with a great range of tapes
With a great range of different tapes to choose from the possiblities are endless. Create stylish ribbon,
decorative and laminated durable tapes that will add extra flair to your home or office.
Ribbon Tape Range
Select from four choices of premium quality, beautiful
satin ribbons. The gold characters on the ribbons
are printed using thermal (heat transfer) technology
meaning they do not fade or fall off, and can be
integrated into clothing.
Decorative Pattern Tape Range
Add a personal touch with the durable and unique
pattern tapes. With four options to choose from, your
gifts will stand out from the rest.
TZe Tape Range
Brother P-touch laminated TZe tapes consist of seven
layers of materials, resulting in a thin yet extremely
strong label. The thermal transfer ink is sandwiched
between two protective layers of PET (polyester film),
which protects the text against the effects of liquids,
abrasion, temperature, chemicals and sunlight.
As the labels have been tested to the extreme, you
can be confident of a professional quality label that has
been designed to last.
PT-P300BT
Clearly identify items with a durable P-touch label! Around the home, office, school, shop and other
places of work, there are many uses for long lasting, durable TZe P-touch labels as well as creative
ways to label with the Ribbon and Decorative Tape ranges.
Technical Specifications
Print Speed
20mm/sec
Print Resolution
180DPI
Cutter
Manual cutter
Print Method
Direct thermal
Power supply
6 x AAA (not included),
AD-50000ES Adaptor (sold separately)
Tape type
TZe tape: 3.5, 6, 9, 12mm
Min. / Max. label length
30mm / 300mm
Interface
Bluetooth
Contents
PT-P300BT Labeller
Dimensions
115mm(W) x 68.58mm(H) x 115(D)
Weight
0.38kg
Tape Cassette (Included)
TZe-231 4M
Contact:
facebook.com/brotheraustralia
www.brother.com.au
Label images shown are for illustrative purposes only and some aspects may not be reproducable on this model.
Product specifications may be subject to change.
