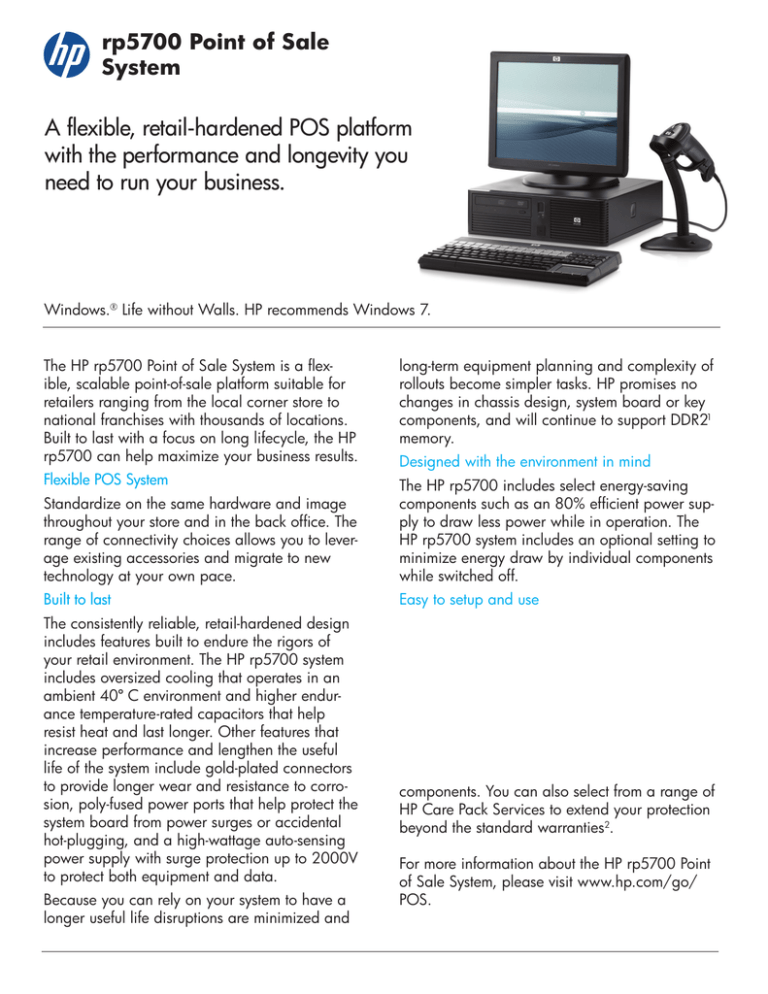

rp5700 Point of Sale System

rp5700 Point of Sale System
rp5700 Point of Sale
A flexible, retail-hardened POS platform
with the performance and longevity you
need to run your business.
Windows.® Life without Walls. HP recommends Windows 7.
The HP rp5700 Point of Sale System is a flexible, scalable point-of-sale platform suitable for
retailers ranging from the local corner store to
national franchises with thousands of locations.
Built to last with a focus on long lifecycle, the HP
rp5700 can help maximize your business results.
long-term equipment planning and complexity of
rollouts become simpler tasks. HP promises no
changes in chassis design, system board or key
components, and will continue to support DDR21
Flexible POS System
Standardize on the same hardware and image
throughout your store and in the back office. The
range of connectivity choices allows you to leverage existing accessories and migrate to new
technology at your own pace.
The HP rp5700 includes select energy-saving
components such as an 80% efficient power supply to draw less power while in operation. The
HP rp5700 system includes an optional setting to
minimize energy draw by individual components
while switched off.
Built to last
Easy to setup and use
The consistently reliable, retail-hardened design
includes features built to endure the rigors of
your retail environment. The HP rp5700 system
includes oversized cooling that operates in an
ambient 40º C environment and higher endurance temperature-rated capacitors that help
resist heat and last longer. Other features that
increase performance and lengthen the useful
life of the system include gold-plated connectors
to provide longer wear and resistance to corrosion, poly-fused power ports that help protect the
system board from power surges or accidental
hot-plugging, and a high-wattage auto-sensing
power supply with surge protection up to 2000V
to protect both equipment and data.
Because you can rely on your system to have a
longer useful life disruptions are minimized and
Designed with the environment in mind
components. You can also select from a range of
HP Care Pack Services to extend your protection
beyond the standard warranties2.
For more information about the HP rp5700 Point
of Sale System, please visit www.hp.com/go/
rp5700 POS System
Windows.® Life without Walls.
HP recommends Windows 7.
Operating system
Genuine Windows® 7 Professional 32-bit3;;
Genuine Windows Vista® Business 32-bit*;
Windows Embedded POSReady 2009, Windows Embedded for Point of Service (WEPOS)
Intel® CoreTM2 Duo E7400, 2.8 GHz, 3 MB L2 Cache, 1066 MHz FSB
Dual-core Intel® Pentium® E2160 processor, 1.80 GHz, 1 MB L2 cache, 800 MHz FSB
Intel® Celeron® 440, 2.0 GHz, 512K L2 Cache, 800 MHz FSB
Intel Q963 Express Chipset
Four DIMMs, dual-channel; Standard Non ECC memory from 1-GB to 4-GB DDR2 Synch DRAM
PC5300 (667 MHz)
NOTE: Dual channel memory configurations supported for enhanced performance. When memory is
labeled DDR 800 MHz, it will clock down to run at 667 MHz system speed.
Internal storage8
160, 250, 500 GB, or 1 TB SATA 3.0GB/s hard drive (7200 rpm); RAID 0, 1 (available for HP factory); available 64 GB Solid State Drive
Removable storage9,10
16X/48X DVD-ROM, HP 16X SATA Super Multi LightScribe Drive (DVD+/RW)
Expansion bays and
Two internal 3.5-inch ATA hard drives, one external 5.25-inch optical; Two full-height PCI , one low
profile PCI-E x1, and one low profile SDVO/ADD2
Integrated Intel Graphics Media Accelerator 3000
audio line in and out; 1 VGA port (Dual-display via optional card)
Integrated Broadcom NetXtreme Gigabit Ethernet NIC
Ports and connectors
Six USB 2.0, two power-configurable RS232 serial/COM, two PS/2, one each: parallel, RJ-45, VGA,
line in and line out; on some models: four additional USB + power, two additional RS232 serial/COM
Power supply
Active Power Factor Correcting (PFC) 240-watt
Input device(s)
PS/2 or USB keyboard and PS/2, USB, or optical scroll mouse
HP Client Management Solutions, HP Backup & Recovery Manager, HP Insight Diagnostics, McAfee
Total Protection8, PDF Complete, HP Client Automation Agent (Windows 7 and Windows XP only),
Corel WinDVD (select models), Roxio Creator Business (select models); not all software is available on
all models.
Kensington lock support (optional), security loop (standard), keyed security lock (optional), integrated
TPM 1.2 (available with Windows Vista)
Dimensions WxHxD
3.94 x 13.4 x 15 in (10 x 34 x 38 cm)
19.6 lb (8.9 kg)
Standard limited 3/3/3 parts and labor and on-site service, two-year manufactured lifecycle but
support available up to five additional years on parts, OS support for 90 days; quick restore solution
included (requires external optical drive/not included) Optional HP Care Pack Services are extended
service contracts which go beyond your standard warranties1. For more details visit: http://www.
Windows.® Life without Walls.
HP recommends Windows 7.
rp5700 POS System
16X/48X DVD-ROM or HP 16X
SATA SuperMulti LightScribe Drive
2 full-height PCI slots (4-port powered
USB & 2-port powered serial card
Low profile
ADD2 slot Low profile
PCI-e x1 slot
4 USB 2.0
Front USB 2.0
2 RS232 Serial
VGA port
Rotational logo
moves for horizontal
or vertical orientation
Power plug for 240W 80PLUS
Active PFC power supply
PS/2 mouse and keyboard connectors
rp5700 POS System
Windows.® Life without Walls.
HP recommends Windows 7.
*Certain Windows Vista product features require advanced or additional hardware. See www.microsoft.com/windowsvista/getready/
hardwarereqs.mspx and www.microsoft.com/windowsvista/getready/capable.mspx for details. Windows Vista Upgrade Advisor can
help you determine which features of Windows Vista will run on your computer. To download the tool, visit www.windowsvista.com/
upgradeadvisor. Windows Vista Business disk may also be included for future upgrade if desired.
1. Dual Channel is only supported when the system is configured with DDR2 symmetric memory (i.e. 2 x 256).
2. To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at www.hp.com/go/lookuptool.
Additional HP Care Pack Services information by product is available at www.hp.com/hps/carepack. Service levels and response
times for HP Care Packs may vary depending on your geographic location. Service starts on date of hardware purchase. Restrictions
and limitations apply. For details, visit www.hp.com/go/carepack.
3. This system may require upgraded and/or separately purchased hardware and/or a DVD drive to install the Windows 7 software
and take full advantage of Windows 7 functionality. See http://www.microsoft.com/windows/windows-7/ for details.
4. This system requires a separately purchased 64-bit operating system and 64-bit software products to take advantage of the 64-bit
processing capabilities of the Intel Core 2 Duo processor. Given the wide range of software applications available, performance of a
system including a 64-bit operating system will vary.
5. Dual-Core is designed to improve performance of multithreaded software products and hardware-aware multitasking operating
systems and may require appropriate operating system software for full benefits; check with software provider to determine suitability;
Not all customers or software applications will necessarily benefit from use of these technologies.
6. Intel’s numbering is not a measurement of higher performance.
7. Above 3 GB, all memory may not be available due to system resource requirements.
8. For hard drives, 1 GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 8 GB of hard drive (or system
disk) is reserved for the system recovery software (XP and XP Pro). Up to 12 GB of system disk is reserved for system recovery software.
9 Double Layer discs can store more data than single layer discs. However, double-layer discs burned with this drive may not be compatible with many existing single-layer DVD drives and players.
10 LightScribe creates a grayscale image similar to a black and white photograph. LightScribe media required and is not included.
11 The term “10/100/1000” or “Gigabit” Ethernet indicates compliance with IEEE standard 802.3ab for Gigabit Ethernet, and does
not connote actual operating speed of 1 Gb/sec. For high speed transmission, connection to a Gigabit Ethernet server and network
infrastructure is required.
© 2010 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only
warranties for HP products and services are set forth in the express warranty statements accompanying such products and services.
Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors
or omissions contained herein. Microsoft, Windows and Windows Vista are trademarks of the Microsoft group of companies. Intel,
Celeron, Core and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the U.S. and other
countries. To learn more, visit www.hp.com
June 2010
