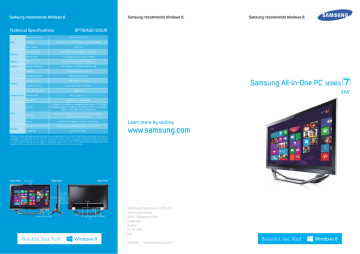

SAMDS10004 DP700A3D
Samsung recommends Windows 8.
Samsung recommends Windows 8.
Technical Specifications
DP700A3D-S01UK
Operating System
Base
Windows 8 (64-bit)
Intel® Core™ i5-3470T Processor (2.90 GHz, 3 MB)
Processor
Intel® H77
Main Chipset
Memory
6GB (DDR3 1600MHz/4GB X 1+2GB X 1)
System Memory
Memory Slot
Display
LCD
Graphic
Graphic Processor
2 SODIMMs (Total 2 Slots) for DDR3
23.6" LED Full HD (1920 x 1080) 16:9
AMD Radeon™ HD7690M GDDR5 1GB
Speaker
14 W Stereo Speaker (7 W x 2)
Integrated Camera
Storage
720p HD Web Camera
Hard Disk Drive
1TB (5400rpm SATA2)
Optical Disk Drive
Super Multi Dual layer (SATA)
Wired Ethernet LAN
Communication
802.11abgn (2 x 2)
Bluetooth V4.0 High Speed
I/O Port
1 x HDMI-in, 1 X HDMI-out, Headphone-out, Mic-in, 1 X USB 3.0
(Chargeable USB), 1 X USB 3.0, 3 X USB 2.0, 3-in-1 (SD, SDHC,
SDXC), RJ45 (LAN), DC-In (Power Port)
Security
BIOS Boot-up Password, HDD Password, Security Slot,
Samsung Recovery Solution
Power
Physical
23.6”
Gigabit LAN
Wireless LAN
Bluetooth
Others
90 Watts AC Adapter / 120 Watt AC Adapter
Dimension (W x D x H mm)
574.2 x 189.9 x 438.8mm (22.6" x 7.4" x 17.27")
Weight (kg)
8.5 Kg (18.73 lbs)
* Based on factory specifications. Specifications may vary depending on the model. Product design specifications and colours
are subject to change without notice and may vary from those shown. Errors and omissions excepted. Battery life based on
MobileMark test scores that will vary based on configuration. Warranty service availability and response times may vary from
country to country and may also be subject to registration requirements in the country of purchase. OS reveals lower HDD
capacity than the specification as the difference of the calculation way and recovery partition.
Front View
Samsung recommends Windows 8.
Right View
Webcam Mic
ODD
Monitor Menu Power
3-in-1 Multi
Card Slot
USB 3.0 x 2
(Chargeable x 1)
Microphone
Headphone
Learn more by visiting
www.samsung.com
Back View
Power
TV* LAN HDMI USB 2.0 HDMI-in
-out
Samsung Electronics (UK) Ltd
Samsung House
1000 Hillswood Drive
Chertsey
Surrey
KT16 0PS
UK
Website: www.samsung.com
Samsung recommends Windows 8.
Samsung recommends Windows 8.
Samsung recommends Windows 8.
Samsung All-In-One
Smart usability
Premium style
AIO SERIES 7 23.6” (700A3D)
Almighty home entertainer
recognising your senses
Enjoy a more convenient and exciting home
entertainment experience with the Samsung AllIn-One’s innovative sense recognition functions,
including hand gesture and 10-finger multi-touch.
You can even enjoy master chef Jamie Oliver’s
recipes, which have been optimized for these
innovative sense recognition functions.
Control your PC by hand
Designed to enhance any home
Five simple hand gesture recognition functions
conveniently let you issue commands and stay in
control with just a flick of the wrist from 0.5 ~ 1 meter
away, while enjoying home entertainment or cooking.
Accentuate your home with a modern, space-saving
design featuring a uniquely premium metallic arch
stand, ultra slim display with a durable metal edge
and an edge to edge glossy black screen.
Even more control at your fingertips
Zero bezel for maximum usability
An advanced 10-finger multi-touch capability
provides a technological leap in interactivity and
control. So you can enjoy the full capabilities of the
latest entertainment applications and do complicated
editing with complete ease.
Windows 8’s enhanced touch experience includes
swiping the screen’s edge to call-up the system or
application menu. So a fully flat screen with a zero
depth bezel ensures the perfect touch experience.
A recipe for easier cooking
An ergonomic keyboard without numeric keys makes
typing much easier and more comfortable by providing
extra space. Useful Windows 8 hot keys also provide
faster access to frequently used functions.
Using hand gesture technology and a large screen,
following world-class chef Jamie Oliver’s recipes*
has never been more convenient and enjoyable.
No more wet hands on keyboards or enlarging
recipes on a smartphone.
* Available as a pre-installed application on Start screen mode.
High quality multimedia
A clearer picture almost anywhere
Innovative wide viewing angle technology ensures
consistently superior picture clarity from any angle
within 170 degrees horizontally and 160 degrees
vertically without any colour distortion, so you can
watch from virtually anywhere in the room.
Rich & immersive sound
14 watt speakers with Tweeter and Dolby sound
bring you rich, realistic sound that’s perfect for home
entertainment. The Tweeter plays high frequency
sounds, while Dolby sound generates movie theater
like sound quality.
Windows 8 has been reimagined to be all about you. Put what
matters most right on your Start screen, and get instant access
to your people, apps, sites and more, so you can spend less
time searching and more time doing.
The key to getting more done
