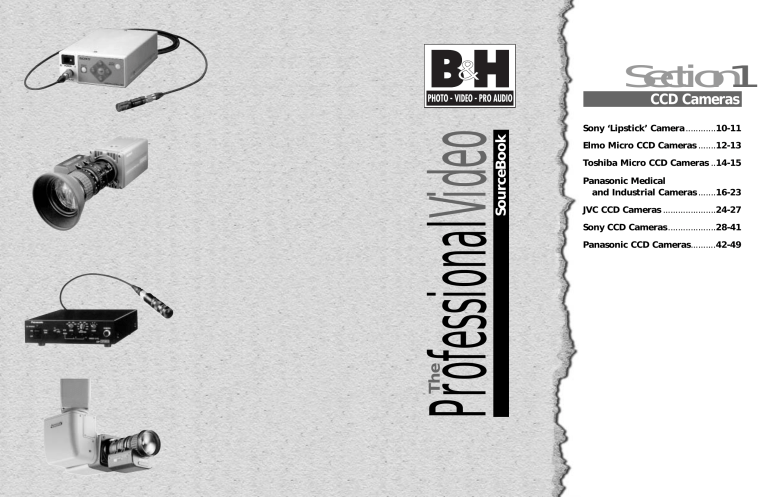

#1 Cameras (10-49) FINAL!!!!

PHOTO - VIDEO - PRO AUDIO

Section

1

CCD Cameras

Sony ‘Lipstick’ Camera ............10-11

Elmo Micro CCD Cameras .......12-13

Toshiba Micro CCD Cameras ..14-15

Panasonic Medical

and Industrial Cameras .......16-23

JVC CCD Cameras .....................24-27

Sony CCD Cameras ...................28-41

Panasonic CCD Cameras..........42-49

S O N Y

DXC-LS1

1/4-inch CCD Color ‘Lipstick’ Camera

Designed for applications where space is at a premium, the DXC-LS1 offers a compact camera head, and a separate Camera Control

Unit (CCU) which provides access to all camera functions.

Despite its remarkably small size, the DXC-LS1 comes with a host of advanced features that cannot be found in many larger cameras, plus convenient controls that make shooting virtually automatic. It also includes an

RS-232 interface for remote PC control of all camera functions, as well as an on-screen character generator. The supplied CCU incorporates membrane switches for easy control of the on-screen menu functions.

Applications Include:

Industrial Outstanding portability and an assortment of optional accessories make the DXC-LS1 an invaluable tool in hazardous and hard-to-reach environments.

Microscopy With a computer interface and a variety of image enhancement features, the DXC-LS1 gives you the precision necessary for critical microscopy applications.

Security The DXC-LS1 can be installed in elevators, hotel lobbies, shop windows, or any place where unobtrusive, high-quality surveillance is required.

Sports – Revitalize coverage of sports and other live events with shots from striking new angles.

High Performance

Consisting of a camera head and CCU, the DXC-LS1 is a marvel of technology and miniaturization. In a camera head only 35mm long and 12mm in diameter is an IT Hyper HAD

CCD sensor packed with 380,000 pixels. The CCU incorporates a powerful DSP (Digital

Signal Processor) which provides enhanced picture quality, plus the automatic adjustment functions that make the camera so easy to use.

Offers 470 lines of horizontal resolution, signal-to-noise ratio of 46 dB and sensitivity of f/5.6 at 2000 lux for outstanding brightness and excellent all-around performance.

Color Matrix Technology

■ Completely automatic white balance, plus advanced color matrix technology, sets this camera apart. Color matrix technology allows you to adjust colors individually (adjust the R, G,

B colors independently without changing the overall white balance) while viewing the monitor. For a vivid lifelike reproduction, the picture is easily adjusted until the object on the screen looks exactly like the one in front of you.

Interchangeable Camera Head

In case the camera head accidentally gets damaged, only the camera head has to be exchanged – there is no need to purchase a whole new unit.

Advanced DSP Functions

CCD IRIS function, combined with

AGC (Automatic Gain Control), to provide automatic control over incoming light. If the object in front of the lens is too bright, the camera automatically switches to a higher shutter speed. If the object is too dark, it automatically increases the gain. The AE (Automatic

Exposure) level can be finely adjusted from -60 to +60. The result — pictures that are always perfectly exposed.

The DXC-LS1 can distinguish backlit scenes from front lit scenes and compensates by automatically adjusting exposure.

The camera can measure light and make exposure adjustments in five different areas (whole picture, small area at center, large area at center, small slit and large slit). Objects in these areas are always appropriately lit, regardless of the brightness of surrounding objects.

24 Hour Fax: 800-947-9003 212-444-5001

S O N Y

DXC-LS1

Specialized Functions

Electronic zoom provides enlargements from 1.00x to 3.00x. This is especially important due to the fact that large zoom lenses cannot be used with a camera as small as the DXC-LS1.

Long Term Exposure mode allows you to set the shutter speed manually to

1/60 of a second or more and to specify from 2 to 512 fields when shooting very dark objects. Longer shutter allows more light to accumulate on the CCD, giving you remarkable sensitivity. Shutter speeds range from 1/60 to 1/40,000 of a second.

Variable gamma function lets you increase the contrast in lighter or darker parts of the picture, for a clear view of specific details.

While viewing the monitor, an Outline

Enhancer function allows you to emphasize outlines in the vertical and horizontal directions, for excellent results in image analysis applications.

Displays Color Bars in three different sizes: Low, Hi and Full mode. The Low and Hi-Screen modes allow adjustments to be made while comparing objects on the screen against color bars.

Unique flicker elimination cancels the flicker of fluorescent lights by automatically adjusting gain, freeing the electronic shutter for other uses.

■ Negative and positive modes for shooting negative scenes as positive, or vice-versa.

Black and White mode when you need sharp images free from color noise.

On-Screen Menu

An on-screen menu gives you access to all of the built-in features. Most times you will have no need for the menu. Just press the

Display button on the CCU to call up your favorite settings, and begin shooting. For special situations, you can save up to two sets of menu selections, and call them up at any time. By displaying menus one line at a time, adjustments can also be made while viewing the actual picture on the screen.

Flexible Configurations

RS-232 serial interface makes it possible to control all the camera’s functions from a computer.

■ Genlock input allows the camera to be synchronized with other equipment in professional production environments.

Has two composite video outputs

(BNC and a 12-pin multi-connector), as well as an S-Video output.

DXC-LS1 System and Accessories

DXC-LS1 Lipstick camera with CCU, 3 meter camera cable and tripod adapter............999.95

CCMC-16P10 10 Meter 16-pin to 20-pin camera cable ................................................429.95

LO-UCMT C-Mount Adapter ............34.95

VCL-04UVM 4mm f/1.4 Lens..........335.95

CMA-D2 Camera Adapter ................174.95

AC-E90HG AC Adapter ......................21.95

VCL-12UVM 12mm Ultra Mount Lens ........................................................................329.95

12-pin to 4-pin DC Cables

CCDC-5 5 meter cable......................49.95

CCDC-25 25 meter cable................109.95

CCDC-10 10 meter cable ..................69.95

CCDC-50A 50 meter cable ..............184.50

CCDC-100A 100 meter cable........................................................................................354.95

12-pin to 12-pin Multi Cables

CCMC-12PO2 2 meter cable ..........109.95

CCMC-12PO5 5 meter cable ..........159.95

CCMC-12P10 10 meter cable ........204.95

CCMC-12P25 25 meter cable ..........369.95

DXC-LS1 SPECIFICATIONS

Power Source:

12v DC (From CMA-D2)

9v DC (From AC-E90HG)

Image Device:

1⁄4˝ 768 x 493 pixel IT CCD

Resolution:

470 Horizontal Lines

S/N Ratio:

46 dB

Minimum Lux:

10 Lux

Sensitivity:

F5.6 at 2000 lux

Phase Control:

H: (0 to +255)

SC: (0/180/, 0 to+255)

Video Output:

Composite and S-Video

Gain Control:

AGC, 0 to +12 dB

(in 1 dB Steps)

ADJUSTMENTS:

White Balance:

ATW, AWB, 5600k, 3200k

(R/B Paint: -128 to 0 to +128)

Master Pedestal:

-10 to 0 to +40

H/V Enhancer:

-16 to 0 to +15

Gamma:

-16 to 0 to +15

Color Mode:

On/Off Switchable

Menu Memory:

2 Pages

Baud Rate:

4800, 9600, 19200

Zoom:

On (x1.00 to x3.00),

Off, Switchable

Flicker Canceller:

Auto/Off Switchable

Dimensions:

4 3 ⁄

8 x 2 x 6 3 ⁄

8

˝ (W x H x D)

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

E L M O

UN-411E

Ultra-Micro 1/3-inch Color CCD Camera

An incredibly ultra-compact sized camera, the UN-411E has a diameter of only 12mm x 36mm and weighs less than one-third of an ounce without the lens. Yet, despite its diminutive size, the camera incorporates specially designed image enhancement circuitry that combines with digital signal processing to reproduce images that are more real than ever imagined. With broadcast quality from a camera so small, the list of applications - like machine vision, covert surveillance, medical and non-destructive testing - are endless.

410,000 pixel CCD delivers 470 lines of horizontal resolution with simultaneous composite and S-Video outputs. Signalto-noise ratio is 46 dB.

■ Digital signal processing converts the video signal from the CCD to 10-bit digital data, resulting in a superior video signal with superb color reproduction.

A host of optional lenses are available, including specialized lenses for robotics and machine vision applications.

Auto white balance, AGC and Int/Ext sync with automatic changeover for integration into the simplest or most complex systems.

■ The camera head is remote from the

CCU, enabling you to monitor and record in areas never thought possible.

The head can be extended up to 98´ from the CCU which is only 3

5

16

˝ wide. Six optional camera cables are available allowing you to customize your installation.

Three mode electronic shutter: Auto,

Manual and Off. In Auto Mode, the camera automatically adjusts the shutter speed from 1/60 to 1/10000 of a second, depending on the available light. For capturing high speed objects, such as moving parts on an assembly line, the Manual

Mode allows adjustment in nine steps, again from 1/60 to 1/10000 of a second.

In Off mode, the camera defaults to 1/60 of a second shutter speed.

UN-411E Camera and Camera Cables

UN-411E 1/3˝ CCD Ultra Micro Color Camera (Includes Head and CCU) ........1599.95

EMC-02D

2 meter cable (Cat# 9810) ............259.95

EMC-10D

10 meter cable (Cat# 9810-3) ......499.95

EMC-03D

3 meter cable (Cat# 9810-1) ........289.95

EMC-05D

5 meter cable (Cat# 9810-2) ........319.95

EMC-20D

20 meter cable (Cat# 9810-4) ......839.95

EMC-30D

30 meter cable (Cat# 9810-5) ....1099.95

Shown with Optional Lens and Camera Cable

Lens (Cat #)

TT-203

(9289)

TT-1655

(9283)

TT-2011

(9288)

TT-3318

(9295)

Broadcast Quality Lenses for the UN-411E

Focal Length Angle of View Object Distance

3mm /F2.0

69° x 91°

5.5mm /F1.6

11mm /F2.0

18mm /F.3.3

38° x 50°

18.1° x 24.9°

11.6° x 15.5°

20mm to ∞

20mm to ∞

90mm to ∞

230mm to ∞

Price

339.95

179.95

229.95

299.95

Lens

(Cat #)

TT-426MA

(9800)

TT-426MB

(9801)

TT-426MC

(9802)

Macro lenses For Robotic And Machine Vision Applications

Focal Length Magnification Object Distance

26mm

26mm

26mm x 0.25 to x 0.4

x 0.4 to x 0.7

x 0.7 to x 1.0

134mm ~ 95mm

95mm ~ 67.2mm

67.2mm ~ 56mm

Price

439.95

439.95

439.95

We are on the web at: www.bhphotovideo.com

E L M O

QN42H/MN42H/CN42H

Remote-Head CCD Camera Systems

ELMO's remote-head camera system offers four types of high resolution camera heads to suit many different applications. These include the QN-42H/QN-42HL Super Micro at 7mm, the thinnest CCD camera available today, the MN-42H, the bestcost performance miniature camera (only 17mm in diameter) and the CN-42H, which can be used with most C-mount lenses.

Each one of the heads can be used with the CC-421E CCU.

Model QN42H/QN42HL

Image Sensor

Resolution

Minimum Illumination

Lens Mount

1/4˝ IT-CCD (410,000 Pixels)

470 Lines

20 lux

Special Mount

Camera Cable Length

3.5m/15m cable (attached)

Weight

2.4 oz. including cable

Dimensions (without lens)

7mm x 42mm

Price

1169.95/1319.95

MN42H CN42H

1/2˝ IT-CCD (410,000 Pixels) 1/2˝ IT-CCD (410,000 Pixels)

470 Lines

5 lux

Special Mount

470 Lines

3 lux

C-Mount

2 to 30 meters (optional)

0.6 oz.

17mm x 44.9mm

449.95

2 to 30 meters (optional)

2.8 oz.

38mm x 32mm x 33.8mm

439.95

CC421E

DSP Camera Control Unit (CCU)

Accepts QN24H/MN24H/CN42H camera heads without requiring readjustment

Convenient measurement area for White

Balance, AGC and Auto Shutter settings

Screen File stores two menu settings for immediate recall

Automatic and manual shutter speed settings up to 1/10000 of a second

Composite, S-Video outputs plus genlock

Measures 40 x 85 x 15.6mm (H x W x D)

CC421E ........................................639.95

Lens (Cat #)

QT282AS

(9821)

QT254

(9812)

QT288

(9813)

QT3515

(9831)

T183

(8771)

T204D

(9264)

T1675F

(9250)

T2015D

(9265)

T3124

(9266)

T4536

(9819)

For QN42H

Focal Length

2.2mm

4mm

8mm

15mm

F-Stop

2.8

2.5

2.8

3.5

For MN42H

3mm

4mm

7.5mm

15mm

24mm

36mm

Optional Lenses and Camera Cables

1.8

2.0

1.6

2.0

3.1

4.5

Price

369.95

279.95

279.95

369.95

469.95

369.95

174.95

224.95

334.95

469.95

EMC-02H 2 meter camera cable (Cat# 9833) ............214.95

EMC-03H 3 meter camera cable (Cat# 9833-1)..........259.95

EMC-05H 5 meter camera cable (Cat# 9833-2)..........329.95

Macro Lenses for Machine Vision (for MN-42H)

Lens (Cat #)

T3425M

(8797)

T3425MB

(8797-1)

T3425MC

(8797-2)

T416MA

(9271)

T416MB

(9271-1)

T416M

(9271-2)

QT3515K

(For the QN-42H)

Focal Length

25mm

25mm

25mm

16mm

16mm

16mm

15mm

Magnification

x0.38~x0.49

x0.33~x0.67

x0.66~x1.00

x1.60~x2.50

x1.10~x1.60

x1.41~x1.57

x0.30

Price

439.95

439.95

439.95

489.95

489.95

489.95

369.95

EMC-12H 12 meter camera cable (Cat# 9833-3) ......399.95

EMC-20H 20 meter camera cable (Cat# 9833-4)........749.95

EMC-30H 30 meter camera cable (Cat# 9833-5) ....1049.95

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

T O S H I B A

IK-7XD

1/2-inch Machine Vision Remote-Head

B/W Progressive Scan Camera

The IK-7XD is a unique 1/2˝ CCD remote head progressive camera that offers true

60 frames-per-second output. Ideal for bar-code reading, on-line inspection, gauging and character recognition, it offers a trigger mode that allows you to have it sync-reset, sync-non-reset or trigger by external VD. Also features shutter speeds up to 1/100,000 of a second, 2 lux minimum illumination and almost

500 lines of horizontal resolution.

■ Remote camera head accepts all 1/2˝

C-Mount lenses to address the widest variety of optical solutions.

Square pixels (659 horizontal by 494 vertical) provide sharp image detail, regardless of camera orientation.

■ Ultra-fast 1/60-1/100,000 second electronic shutter to capture the fastest moving objects without blur.

■ 1/60 interlaced; 1/60 non-interlaced;

1/30N non-interlaced image output.

60 frame-per-second output is ideal for high-speed on-line inspection.

Delivers almost 500 lines of horizontal resolution, 56 dB signal-to-noise ratio and minimum illumination of 2 lux.

■ Asynchronous continuously variable electronic shutter allows precise exposure for random events.

One Pulse-Trigger Mode: Sync-Reset,

Sync-Non-Reset, Trigger (external VD).

Removable IR (Infrared) filter

IK-7XD Progressive Scan Camera Head with CCU and 2 meter cable ..........................1349.95

EXC-7XD5 5m Extension Cable .......279.95 JK-K7XD Tripod Base........................59.95

IK-M43 SERIES

Micro-Miniature CCD Camera System with

Optional 1/2-inch or 1/4-inch Camera Heads

The IK-M43A is the first economically priced micro-camera system that does not economize on features. It uses a 1/2˝ 410,000 pixel CCD with advanced microlens technology to provide the ultimate performance. It delivers 470 lines of horizontal resolution with accurate color reproduction in all lighting conditions. It offers on-board RS-232 input and allows interchangeability of 1/2˝ and 1/4˝ camera heads. Just twist and click. No modifications or hassles.

Accepts either 1/2˝ lipstick or C-Mount heads, as well as 1/4˝ camera head.

Automatic selection circuit for internal and external sync.

Electronic shutter with nine selectable speeds (1/60 to 1/10,000 of a second).

Auto shutter mode with Toshiba’s exclusive IC allows light control to 1/50,000 of a second.

Minimum illumination of 3 lux on 1/2˝ and 10 lux on 1/4˝ head.

Automatic tracking white balance, plus manual control.

IK-SM43H

1/4˝ Camera Head and 3 meter cable..........................1199.95

IK-SM45H

1/4˝ Camera Head and 15 meter cable........................1349.95

IK-M43H

1/2˝ Lipstick Camera Head ..........................................449.95

IK-C43H

1/2˝ C-Mount Camera Head ......................................419.95

IK-CU43A

Digital CCU..................................................................699.95

*

Lenses for 1/2 ˝ camera head are on the next page

*Lenses for 1/4˝ Camera Head

JK-L02S 2.2mm Lens ....................339.95 JK-L04S 4mm Lens..........................259.95

JK-L08S 8mm Lens......................................................................................................269.95

Camera Cables for 1/2˝ Camera Heads

EXC-4302 2 meter cable ......................169.95

EXC-4303 3 meter cable ......................229.95

EXC-4305 5 meter cable ......................349.95

EXC-4312 12 meter cable ....................449.95

EXC-4320 20 meter cable ....................569.95

EXC-4330 30 meter cable ....................749.95

All Toshiba cameras require the Toshiba ACM-412 12v DC Power Supply............................................................119.95

Corporate Accounts Are Welcome

T O S H I B A

IK-M41MA/IK-M41MR

High Resolution 1/2-inch Monochrome CCD Micro Cameras

Lightweight, monochrome micro cameras designed specifically for pattern recognition, providing accurate control and interface signals in assembly line applications. High-density, compact design makes them easy to mount on machines.

1/2˝ CCD with 410,000 pixels delivers

570 Lines of horizontal resolution, 56 dB

S/N ratio and super sensitive 1.8 lux.

Automatic selection for Int/Ext sync

Gamma compensation switch

Reset/restart function

Nine selectable shutter speeds (1/60 to

1/10,000 of a second) and Auto Shutter

Mode up to 1/30,000 of a second.

■ Camera head measures 11/16˝ x 9/16˝

(diameter x length) and weighs only half an ounce without lens.

IK-M41MA

Camera head and analog CCU ........1149.95

IK-M41MR

Same camera head and analog CCU, without IR cut filter ........................1099.95

Lenses for 1/2˝ M41 B&W and M43 Color Camera Heads

JK-L03M

3mm Lens ......................................................................439.95

JK-L04M2 4mm Lens ......................................................................319.95

JK-L75M 7.5mm Lens....................................................................169.95

JK-L15M2 15mm Lens ....................................................................219.95

JK-L24M2 24mm Lens ....................................................................319.95

CMAM-40 C-Mount Adapter ............................................................59.95

Camera Cables for IK-M41MA/M41MR Camera Heads

EXC-4302 2 meter camera cable ........................................169.95

EXC-4303 3 meter camera cable ........................................229.95

EXC-4305 5 meter camera cable ........................................349.95

EXC-4312 12 meter camera cable ......................................449.95

EXC-4320 20 meter camera cable ......................................569.95

EXC-4330 30 meter camera cable ......................................749.95

IK-TU40A

1/2-inch 3-CCD Remote-Head Camera

The IK-TU40A utilizes a 10-bit DSP architecture in combination with three

410,000 pixel CCDs to deliver 750 lines of resolution and 62dB S/N ratio for the brightest, sharpest video in the industry. In addition to broadcast-quality from an ice-cube sized camera head, its remote head design allows it to be mounted virtually anywhere for an entirely new perspective. The IK-TU40A accepts C-mount lenses and has component,

RGB and S-Video outputs. It offers 10´, 20´ or 30´ detachable cables and an RS-232 interface for total control of all camera functions from a PC.

Ideal for use in industrial applications, such as pattern recognition, mechanical manipulation and measurement.

■ Three 1/3˝ 410,000 pixel IT CCDs for over 750 lines of resolution.

64-Zone DSP for Auto White Balance

(AWB) and automatic shutter functions.

10-bit RGB and DSP circuitry delivers

62 dB signal-to-noise ratio.

■ 10 lux minimum illumination

■ Digital Gamma control, including Black

Gamma

On-Screen programming for all camera functions, 3-user memories for camera setup.

■ Digital Detail Enhancement, Digital

Shading Correction.

Advanced image processing modes include: Negative Video, One-Pulse

Trigger and Multi-Frame Integration.

IK-TU40A 3-CCD camera head and Digital CCU ..................3899.95

TF4DA-8 4mm Lens ..................................................................329.95

TF15DA-8 15mm Lens ..............................................................369.95

EXC-T403 3 meter camera cable ................................................249.95

EXC-T406 6 meter camera cable ................................................399.95

EXC-T410 10 meter camera cable ..............................................579.95

All Toshiba cameras require the Toshiba ACM-412 12v DC Power Supply............................................................119.95

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

P A N A S O N I C

MEDICAL & INDUSTRIAL CAMERA SYSTEMS

When your imaging applications demand more than just a general purpose camera, look to Panasonic’s extensive line of industrial CCD cameras for a solution. Whether your application is microscopy, robotics, surface mount inspection, medical, factory automation, quality control, machine vision or high speed analysis, there is a camera with the combination of features and performance to meet your requirements. There are 3-CCD cameras for exceptional clarity and color reproduction, a selection of color and B&W micro-cameras as small as 8.6mm in diameter, and Digital Signal

Processing (DSP) cameras with advanced electronic features for fast setup. There are also computer compatible cameras with square pixels and multiple signal outputs, including RGB.

GP-KS162

1/2-inch CCD Color Micro Camera

A breakthrough in micro-cameras, the GP-KS162 allows you to swap heads, virtually eliminating down-time in the event of camera head malfunction. Accepting 1⁄2˝ and 1⁄4˝ head modules, it is ideal for virtually any conceivable micro-camera application. With a camera head only 2/3˝ in diameter and 1

3

8

˝ long (with 1/2˝ head module – even smaller with GP-

KS462HM), the GP-KS162 is ideal for endoscopic vision, non-destructive analysis and surface mount inspection. RGB

Digital Signal Processing (DSP), S-Video output, 480 lines of resolution,

Shown here with optional lens and cable

50dB S/N ratio and superb color reproduction, all make this the ideal camera for numerous medical and industrial applications. Optional camera cables allow extended CCU connection of up to 33 feet.

Accepts a C-mount adapter, as well as a variety of optional lenses.

Digital Signal Processing

An analog to digital (A-D) converter in the camera (or CCU) converts an analog signal to digital (0’s and 1’s). The video signal remains digital for processing within the camera until it finally passes through a digital to analog (D-A) converter for video output.

The advantage of DSP over conventional analog processing is that DSP provides for lossless maintenance of the video signal during processing. Analog signals are subject to variation, and as a result, to video noise (signal degradation). DSP eliminates the possibility of video noise by encoding the incoming video signal with values that remain unchanged during processing within the camera.

GP-KS1000

1/2-inch CCD Color Micro Camera

The GP-KS1000 is a single-CCD camera that performs like it has three!

With 900,000 pixels, it approaches 3-CCD like color saturation, delivers 560 lines of horizontal resolution and offers a high S/N ratio of 54 dB. This is accomplished with a high density CCD (830 x 970 effective pixel) array and through the innovative use of RGB filtering technology. And like the

GP-KS162, the GP-KS1000 is equipped with RGB Digital Signal Processing for superb color reproduction.

Most Orders Shipped Within 24 Hours

Shown here with optional lens and cable

They Both Feature:

Electronic Light Control (ELC):

Many micro-cameras have lenses with a fixed iris. ELC compensates for this by properly exposing the image electronically, as opposed to an adjustable iris which controls light by physically opening and closing the aperture.

Automatic Gain Control (AGC):

Automatically increases or decreases the video signal level to properly expose an image.

Auto Control White (AWC):

Registers a value for white, in order to accurately attribute luminance and chrominance values to the entire video signal.

Auto White Tracing (ATW):

Maintains White Balance in relation to continuous changes in lighting conditions and color temperature.

Manual White Balance:

Independent control of Red and Blue levels allows for painting of the video image (white balance manipulation).

Video Level Control:

Choose between a factory preset level, or manually adjust shutter and gain whenever an optical iris is not available – like in medical applications, such as endoscopic use.

P A N A S O N I C

GP-KS162/GP-KS1000

GP-KS162 Exclusive Features:

Horizontal resolution of 480 lines,

50dB S/N ratio and low light capability down to 3 lux.

Composite and S-Video outputs for flexible system configurations.

An e-prom built into each camera head communicates with the CCU for instant setup calibration, enabling interchange of camera heads and immediate shooting.

Accommodates

1

2

˝ and

1

4

˝ camera heads for unparalleled flexibility.

Backlight compensation with three factory preset exposure zones. The three patterns are: Small sensing zone, Wide sensing zone and Auto Detective sensing zone.

The Auto Detective zone is especially ideal for use with the endoscope, which provides a picture with optical shading.

Camera Cables for the GP-KS162

GP-CA162/2 2 meter camera cable

GP-CA162/3 3 meter camera cable

GP-CA162/38 3.8 meter camera cable

GP-CA162/10 10 meter camera cable

WV-PS12 12v DC Power Supply (13.7v DC, 0.55A)

Optional Lenses:

GP-LM3TA 3mm Super Wide Angle Lens

GP-LM7TA 7mm Wide Angle Lens

GP-LP12TA 12mm Pinhole Lens

GP-LM15TA 15mm Telephoto Lens

GP-LM24TA 24mm Telephoto Lens

GP-AD22TA C-Mount Adapter

WV-PS12 12v DC Power Supply

● C-Mount Lens* (N/A Panasonic)

● Fiber Scope* (N/A Panasonic)

● Bore Scope* (N/A Panasonic)

*Requires Adapter

GP-KS1000 Exclusive Features:

■ 900,000 pixel CCD and DSP technology achieves 560 lines of horizontal resolution, 54 dB S/N ratio and 5 lux minimum illumination. Unlike 3-CCD cameras, the GP-KS1000 does not use a prism – images will therefore, not be affected by shock. An increased number of on-CCD filters increase color saturation, even under extreme variations in lighting conditions.

■ Composite, S-Video and RGB video outputs offer maximum integration flexibility.

Built-in full-field Color Bar Generator helps facilitate monitor setup.

Adjustable Aperture Level, Chroma Gain,

Pedestal Level, White Balance. User files enable later recall of settings which are stored in the camera’s memory.

Built-in electronic shutter for exposure control. Shutter speeds can be set from 1/100 to 1/8000 of a second in eight increments.

Genlock input permits configuration into a multiple camera setup.

Camera Cables for the GP-KS1000

GP-CA1K/2 2 meter camera cable

GP-CA1K/3 3 meter camera cable

GP-CA1K/38 3.8 meter camera cable

GP-CA1K/10 10 meter camera cable

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

P A N A S O N I C

GP-KR222

Industrial 1/2-inch Color CCD Camera

The GP-KR222 is perfectly suited for medical monitoring, microscopy, robotics and surface mount inspection. Utilizing RGB Digital Signal Processing, video signals are internally processed, and digitized RGB signals are separated, resulting in color reproduction that is well-balanced - critical in microscopic applications. A single 1/2˝ CCD camera with selectable C- or CS-lens mount, it offers 480-lines of horizontal resolution, 50dB S/N ratio and low light capability of just 3 lux. Dimensions are 67 x 65 x 123 mm (W x H x D).

Selectable C- or CS-lens mount

Backlight compensation(BLC) and automatic gain control (AGC)

Composite and S-Video outputs

Automatic White Control (AWC)

■ Auto Tracing White Balance (ATW)

R/B control for fine adjustment, even when ATW is activated. This allows better color reproduction, even under severe lighting conditions.

Electronic Light Control (ELC) equivalent to a variable shutter speed between 1/60 and 1/15,700 of a second.

Selectable Soft/Sharp Aperture Level.

Artificial aperture (‘On’ mode) is for the human eye to monitor. ‘Off ’ mode for machine vision applications (accuracy of measurement).

Requires optional 12v DC power supply

(WV-PS12).

GP-KS462HM 1/4-inch DSP Color CCD Super-Micro Camera Head Module

The GP-KS462 is a super-micro CCD camera module that is amazingly small, yet delivers 480 lines of horizontal resolution and 50dB signal-to-noise ratio.

Weighing under one gram and measuring only 6.7mm in diameter by

39.3mm in length, the GP-KS462HM allows separation of the CCD from the circuit board for specialty design applications. This makes it ideal for OEM

(Original Equipment Manufacturing), allowing adaptation into virtually any design requiring 1/4˝ CCD technology, without the laborious task of having to disassemble a camera head housing to acquire its head module. A jig is sold separately to test each head module for proper operation before modification. (Requires custom modification for cable and lens.)

The GP-KS462HM is fully compatible with the GP-KS162CCD camera control unit.

Suitable for curved scopes, the image pick-up portion and the circuit board of the module can be easily cut to a specified size. Length can be extended up to 150mm.

External electrode pads are provided on the surface of the circuit board, exclusively for cable connection, to afford wiring accomplishment with ease.

The octagonal CCD metal case realizes smaller diameter and provides for minimum spaces for optical fiber.

Features when connected with CCU

— RGB processed DSP, EVR Serial

Interface

— Auto White Balance, ELC, AGC and Backlight Compensation

— Composite, S-Video Output

Camera Head and Accessories

GP-KS462HM

1/4˝ Micro Camera Head Module

GP-KS162CUD Camera Control Unit (CCU)

GP-LM4R5T4 4.5mm Wide Angle Lens

GP-CA162/2 2 meter camera cable

GP-CA162/3 3 meter camera cable

GP-CA162/38 3.8 meter camera cable

GP-CA162/10 10 meter camera cable

Equipment Leasing Available

P A N A S O N I C

GP-US532H/GP-US522H

1/3-inch and 1/2-inch DSP Color 3-CCD C-Mount Cameras

Incorporating 10-bit DSP and Panasonic’s digital noise reduction system, the GP-US532H (1/3˝) and GP-US522H (1/2˝) are 3-CCD cameras that offer extremely high sensitivity and life-like color reproduction. Ideal for use in research and medical applications, they can be used on the production line as well.

FEATURES

High Sensitivity

To produce clear images of areas that are typically lost in the darkness, particularly during endoscopy, they offer high sensitivity of F11 (US522) and

F8 (US532) at 2000 lux and 5 and 9 lux minimum illumination. Both provide over 62 dB S/N ratio.

Life-Like Reproductions

■ Gamma Correction function allows optimum contrast settings to be selected in bright and dark areas to prevent blurring and to achieve a clear picture.

Make optimum color adjustments with their 6-Axis Color Matrix

Control. This function allows each color to be adjusted separately, without changing the white balance of the whole image. For Red, very fine adjustment is provided - particularly useful for medical applications.

High Resolution

The US532H delivers 750 lines of horizontal resolution, the US522 over

800 lines, and they both feature upgraded Contour Correction. This is a high-band aperture function that increases resolution by amplifying the high frequency. Horizontal and vertical contour adjustments are made separately, ensuring good image clarity.

■ Frame Integration is available to provide a picture with high vertical resolution. Important for applications like microscopy work.

Camera Adjustments

An on-screen menu makes adjustment of highly advanced functions simple and efficient. These adjustments are made while looking at the object image with a list of the functions of each camera superimposed on the monitor screen. Simply select the appropriate presets, and press buttons in order to complete the setting of the Color Matrix

Control, Red Enhancement, Gamma

Correction and other functions.

Two scene files containing your settings can be stored in the memory. For example, when using an endoscopic camera, the settings for internal organ photography can be stored in Scene File 1 and those for joint photography in Scene File 2.

A sensing area from five presets can be selected - All, Center, Circle (small), Circle

(med) and Circle (large) - when AGC or

ELC is selected, or set an area manually.

Useful in Microscopy, or whenever the subject area cannot be illuminated uniformly.

■ On/Off 2D Low-Pass Filter to prevent moire and improve image clarity.

SMPTE Color Bar Generator

System Expandability

Both camera heads work with a single CCU

(GP-US522CU). Single CCU compatibility allows complete head interchangeability.

Either of the two heads can be used for different quality or cost requirements.

The CCU (Camera Control Unit) has an

RS-232 connector for external control of the cameras’ setup menu parameters. You can set each parameter for every shot, or select one of the setting information files stored in the memory.

■ CCU offers an RGB (9-pin), S-Video and two composite video outputs.

For connecting either head to the CCU, a

13´ (4m) cable is available. Can support up to 100´ (custom cables required).

Additional Features

Synchro-Scan is available for shooting computer monitors without flicker.

ELC (Electric Light Control) as well as a

7-step electronic shutter (1/100 to 1/10000 sec)

■ AWB (Automatic White Balance), ATW

(Auto Tracing White Balance) and manual.

GP-US532H 1/3˝ 3-CCD Camera

GP-US522H 1/2˝ 3-CCD Camera

GP-US522CU Camera Control Unit for (GP-US532H/US522H)

GP-CA522/4 4m camera cable for GP-US522H/US532H

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

P A N A S O N I C

GP-MF130/GP-MF622

1/3˝ and 1/2˝ CCD B/W Machine Vision Cameras

Lightweight, compact and highly sensitive machine vision cameras, both the

GP-MF130 and GP-MF622 are designed to withstand strong vibration and are shock resistant. They also feature a high speed electronic shutter up to an incredible 1/96,000 of a second for capture of the fastest moving objects – making them ideal for inspection on any high speed production line, as well as SMT, PCB and wafer inspection. Besides CCD size, they are identical in every respect, except that the GP-MF622 has a newly-developed Super-Reset Shutter Trigger function built in.

570 lines of horizontal resolution and

56dB signal-to-noise ratio.

Long lens mount base design allows a wide range of lenses to be used.

Removable IR-Cut Filter

Variable electronic shutter from 1/60 to

1/96000 of a second (11 steps)

Two composite video outputs

Selectable Field/Frame integration

Minimum scene illumination of 1 lux

Ultra-compact and lightweight, they weigh only 0.19 lbs. (86kg)

Super-Reset Shutter Trigger function built in (GP-MF622 only)

Super-Reset Shutter Trigger Function

Reset

GP-MF130/GP-MF602

Time

Image scanning start

Max 1H = 63.5 , 1 sec delay occur to start Video scanning after reset

Date error can occur due to delay

GP-MF622

Reset

Delay=0

Image scanning start

Image scanning starts quickly after reset. 1H=0.5 sec fixed

Time

Catch all data on high speed moving object.

No delay after reset.

Super-Reset Function

Super-Reset function is a sub-set of the conventional Reset function. A camera with Reset function (also known as Asynchronous

Vertical Reset) immediately resets its scanning from the beginning upon receiving an external trigger. This allows fast-moving objects to be captured instantaneously for quality inspection. Typical applications include inspection on any mass produced object on an assembly line: Parts, bottles, cans, printed circuit boards, ICs, labels, etc.

Generally, a camera with Reset function is used in conjunction with an image capture board inside a PC. Super-Reset just does it better, with virtually no delay after the trigger signal.

Competitive cameras may have up to 1 field (262H) delay, while current Panasonic cameras like the MF-602 and the new GP-

MF130 have only a one line (1H) delay, and the GP-MF622 has virtually no delay.

Notes about Panasonic Cameras

All cameras, except the GP-KS1000, GP-US522H/GP-US532H and GP-MF852, can be used with the Panasonic WV-PS12 AC adapter. The above mentioned cameras require a DC, 12v 1 amp power supply, not sold by Panasonic.

All cameras use standard C-mount lenses, while the GP-US522H needs special C-Mount lenses. The special C-Mount has exactly the same diameter and thread pitch as a conventional C-mount, but the number of threads are limited because the camera does not allow a larger than 3.5mm protrusion – 3.6 mm is the absolute limit. If it is longer than that, the lens threads will hit and break the prism. Call us for a list of available lenses.

We Exhibit At NAB, Infocomm, and Siggraph

P A N A S O N I C

GP-MF602

1/2-inch CCD B/W Machine Vision Camera

The GP-MF602 is an extremely durable, high resolution C-mount

CCD camera, built to withstand the rigors of harsh industrial environments.

Operating temperature range of 14-122° and terrific rejection to shock and vibration make it ideal for high speed production line analysis, machine vision, image processing or virtually any high-speed motion application requiring high quality imaging under adverse conditions.

Featuring Field/Frame Integration mode, Frame Reset/Electronic Shutter

Trigger modes and Sensor Gate Control, the GP-MF602 provides complete control over video image capture. Measures 44mm x 29mm x 72mm (W x H x D).

FEATURES

Highest Quality

570 lines of horizontal resolution, 56 dB signal-to-noise ratio and 0.5 lux minimum scene illumination at f/1.4.

Non-interlace Scanning

In Field mode, non-interlace scanning is possible with the introduction of a Non-

Interlace External VD (Vertical Drive) signal. (The required VD range is 256, 262 horizontal lines.)

Frame Reset Mode

Frame Reset mode is utilized primarily in high speed assembly line production. In this mode, an external frame grabber, synchronized with a strobe light, triggers the camera to capture crystal clear jitterfree video.

Pedestal Level Control

Manual control of the pedestal allows for raising or lowering the video signals black level.

Field/Frame Integration

Allows users the choice of capturing still images in either Field mode (offers lower overall resolution of 380 vertical lines, but rock solid steadiness for high motion video), or Frame mode (which offers highest resolution of 485 vertical lines) and is best used for still video imaging applications.

Shutter Trigger Mode

In Field Integration Reset modes, Shutter

Trigger mode is an asynchronous strobe effect used in high speed video acquisition.

Externally triggered, the Shutter Trigger mode effectively shutters the odd fields of video to produce crystal clear jitter-free video.

Electronic Shutter

High speed electronic shutter speeds, from

1/125 to 1/10000 of a second. Also offers manual Gain Control and switchable

Gamma of 1.0 or 0.6.

Genlockable

Provides a means for synchronizing the timing of various video components.

Horizontal and Vertical Drive inputs further provide an interface for an asynchronous trigger system used in high speed assembly line production.

Sensor Gate Control

Sensor Gate Control is whereby the charges on the photo diodes are transferred to the V-CCD by the sensor gate pulse.

(SG status is externally controllable.)

Sensor Gate Control offers 2 applications:

Asynchronous Strobe Light: Since it is prohibited to fire the strobe light at the timing of SG, the Sensor Gate Control enables the use of an asynchronous strobe light, with the control of the video output timing generated by the strobe.

Extended Exposure: A shutter speed longer than 1/30 of a second can be acquired with the Sensor Gate Control.

This is useful for increasing sensitivity.

Optional Accessories For GP-MF130/602/622

GP-CA33

5m (16´) 2x12 Pin Hirose Connector Cable

GP-CA34

5m (16´) 1x12 Pin Hirose and 3-BNC Connector Cable

GP-CA39

10m (33´) 2x12 Pin Hirose Connector Cable

WV-PS12

12v DC Power Supply

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

P A N A S O N I C

GP-MF802

1/3-inch CCD B/W Progressive Scan Camera

Utilized in high speed machine vision applications, this Full-Frame

Progressive Scan camera has four selectable scanning modes to choose from, offering the user maximum flexibility in video acquisition. The

GP-MF802 incorporates square pixel technology — an adjustment of the aspect ratio is not required when the image is captured and manipulated in a computer. Extremely durable, it also incorporates many of the features of the Panasonic machine vision camera line, including Electronic Shutter mode and Asynchronous Non-

Interlaced Full-Frame Reset mode. Measures 44mm x 29mm x 82mm (W x H x D).

Progressive Scan Technology

Progressive Scan technology outputs all the electric charges accumulated (on the CCD) sequentially, to provide a complete frame of video.

At double speed 60 frames per second, this translates to extremely high resolution, blur-free, crystal clear video (even with fast moving objects) without a mechanical shutter.

GP-MF852PT

2/3-inch B/W CCD Double Speed Progressive Scan Camera

Utilized in high speed machine vision applications, this Full-Frame Double Speed camera will acquire 60 full frames at high resolution for crystal clear, blur-free video capture, or up to 600 partial frames per second in Partial Scan mode using

Asynchronous VD-Reset. 2/3˝ CCD delivers over 500 lines of horizontal resolution,

56 dB S/N ratio and 485 lines of vertical resolution (Progressive Scan Mode).

GP-MF802

1/3˝ CCD with Square pixels

Full-Frame Progressive Scan System

Dual output – allows 60 fps operation

Asynchronous non-interlaced Full-Frame Reset Mode

Pixel-Clock Out

Minimum illumination of 6.5 lux at f/1.4

Electronic shutter mode up to 1/16,000 of a second

Strong vibration and shock resistant

GP-MF852PT

2/3˝ Progressive Scan CCD

56 dB signal-to-noise ratio

Over 500 lines of horizontal resolution

Double Speed–60 Full Frames/Second–Progressive

Partial Scan: Asynchronous VD-Reset from 60 Full Frames to 600 Partial Frames /Second

Readout Inhibit

Electronic Shutter Trigger – 5 Steps

Optional Accessories For GP-MF802/852

GP-CA81

5m (16´) 1x12-pin Hirose and 5 BNC Connector Cable

GP-CA82

5m (16´) 2x12-pin Hirose Connector Cable

GP-CA83

10m (33´) 2x12-pin Hirose Connector Cable

WV-PS12

12v DC Power Supply (only works with the GP-MF802)

®

®

P A N A S O N I C

MEDICAL & INDUSTRIAL CAMERAS COMPARED

Cameras

GP-MF852

GP-MF802

GP-MF602

GP-MF622

GP-MF130

Machine Vision Cameras

Horizontal

Resolution

500 Lines

480 Lines

570 Lines

570 Lines

570 Lines

S/N

Ratio

Chip

Size

Minimum Lens

Illumination Mount Power Features

56 dB

2/3˝ 5 Lux

768 x 485 (f/1.4, +6 dB)

56 dB

1/3˝ 659 x 494 6.5 Lux

Square pixels (f/1.4 Gain max)

56 dB

1/2˝ 0.5 Lux

768 x 494 (f/1.4 Gain max)

56 dB

1/2˝ 1 Lux

768 x 494 (f/1.4 Gain max)

56 dB

1/3˝ 0.5 Lux

768 x 494 (f/1.4 Gain max)

C-Mount

C-Mount

C-Mount

C-Mount

C-Mount

12v

500mA

12v

190mA

12v

190mA

12v

170mA

12v

170mA

Double Speed Full-Frame Progressive Scan, Partial Scan.

Frame Reset, Shutter, Trigger, R/I Control

Progressive Scan, Frame Reset,

Trigger & Direct Shutter Control

Asynchronous Frames Reset, Shutter Trigger,

Sensor Gate Control, Gamma correction.

Asynchronous Frames Reset, Shutter Trigger,

Super Reset Function, Direct Shutter Control

External HD/VD Sync, 1/96000 shutter

Selectable Field/Frame Integration

Cameras

GP-US522

GP-US532

GP-KS1000

560 Lines

GP-KS162

GP-KS462

GP-KR222

Medical, Industrial and Microscopy Cameras

Horizontal S/N Chip Minimum Lens

Resolution Ratio Size Illumination Outputs Mount Power Features

800 Lines

750 Lines

480 Lines

480 Lines

480 Lines

62 dB

62 dB

1/2˝ x 3

768 x 494

5 Lux

(f/2.8,+ 18 dB)

Composite x2 Special

RGB, Y/C

1/3˝ x 3 9 Lux Composite x2

768 x 494 (f/2.2,+ 18 dB) RGB, Y/C

C-Mount

C-Mount

12v DC RS-232 Control,

8.4w

2 User Files

12v DC RS-232 Control,

8.4w

2 User Files

54 dB

1/2˝ 3 Lux Composite x2 Special Mount 12v DC Micro-Sized Camera Head

50 dB 768 x 494 (f/1.4, AGC on) Y/C C-Mount 300mA Head Interchangeability

Optional Acc.

50 dB

1/2˝

830 x 970

1/4˝

768 x 494

5 Lux

6 Lux

Composite

RGB, Y/C

Special Mount 12v DC 900,000 pixel head with DSP

C-Mount 650mA 4 User Files

Optional Acc.

Composite x2 Requires

(f/1.4, AGC on) Y/C Custom

Housing

12v DC Super micro camera head module

300mA compatible with GP-KS162CCU

1/2˝ 3 Lux

50 dB 768 x 494 (f/1.4)

Composite

Y/C

Selectable Aperture Level

C/CS-mount 12v DC Back Light Compensation

Adjustable R/B, DSP

For a selection of C-mount lenses for single 1/2-inch and 2/3-inch cameras (GP-KR222, GP-MF602,

GP-MF622, GP-MF852) see page 29. For single 1/3-inch and 3-CCD cameras (GP-MF130, GP-MF802,

GP-US522 and GP-US532) call for our selection of Canon, Fujinon and Cosmicar C-mount lenses.

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

J V C

TK-C400/TK-C420

1/3-inch Color C-Mount Cameras

The TK-C400 and TK-C420 are economical, yet high-performance CCD cameras that deliver sharp images over a wide range of lighting conditions. Identical, except for their resolution, they feature a built-in

Digital Signal Processor, Auto Tracing White Balance, backlight compensation, automatic electronic shutter, AGC function and composite video output.

Both are equipped with high quality 1/3˝

IT CCDs for accurate color reproduction and crisp pictures with no image lag. The

TK-C400 has a 250,000 pixel (effective)

CCD, the TK-C420 a 380,000 pixel

CCD. S/N ratio is 48 dB.

Built-in Digital Signal Processor (DSP) automatically adjusts camera parameters to ensure sharp, natural pictures with 330 lines of resolution (C400) and 470 lines

(C420) — in near total darkness.

They provide wide-ranging horizontal and vertical detail correction, dual-edged with 2H line memory.

Automatic electronic shutter adjusts speed to provide correct exposure, even when using a manual iris lens.

For pictures at just 0.9 lux (C400) and

1.5 lux (C420) at f1.2, AGC (automatic gain control) increases their sensitivity as ambient light levels fall.

Switchable internal and line lock synchronization (60Hz regions only).

Backlight compensation function enhances dark subjects illuminated from behind.

TTL Auto Tracking White Balance with manual override automatically corrects color temperature from indoors to outdoors.

They operate on 12v DC or 24v AC, allowing flexible installation.

TK-C1380

1/2-inch Color C-Mount Camera

A full featured color video capture camera, the TK-C1380 is equipped with DSP technology to ensure high resolution and high sensitivity, as well as excellent reproduction of even the most subtle colors when shooting in light levels under 1 lux. It also offers camera

ID capability, full genlock, S-Video output and AC/DC operation.

1/2˝ Interline Transfer (IT) CCD and an innovative Digital Signal Processor (DSP) deliver sharp natural pictures with 470 lines of horizontal resolution – even in low light situations down to 0.95 lux.

And with a high signal-to-noise ratio of

48 dB, it produces images with precise color reproduction.

Composite (BNC) and S-Video output

High-speed electronic shutter from 1/60 to 1/10000 of a second.

Full genlock with connectors for blackburst or composite video sync input.

Camera ID capability permits a remotecontrolled multi-camera system to be configured quickly and easily.

■ Easy-to-use menu lets you set a wide range of operational parameters, including

Contour Level, Hue, Iris, ATW and AGC.

High light inverter function ensures superb overall image quality when part of a subject is under especially strong lights.

Three-Dimensional Detect Auto-Tracking

White Balance (ATW) dynamically optimizes white balance by responding to changing light conditions in real-time.

Comprehensive Contour Correction – horizontal and vertical, dual-edged with

2H line memory.

■ Backlight compensation function creates a sense of depth around a foreground subject by filling in the background and thereby prevent silhouetting.

C-mount lens compatibility allows selection from the widest possible range to fit your particular application.

The camera can be powered via 24v AC or 12v DC. An optional AC adapter is available (AA-P700).

Used Equipment Bought, Sold and Traded

J V C

TK-1270

1/2-inch Color C-Mount Camera

The TK-1270 is a compact high-performance camera well-suited for computer imaging applications such as lab analysis, as well as for layout and editing in the design, apparel and beauty industries. Offers composite, S-Video and RGB outputs, full genlock capability, high speed shutter and low-light capability of 3 lux. Ruggedly built to ensure continuous and reliable operation, even in the most hostile environments.

1/2˝ CCD delivers 470 lines of horizontal resolution and 50 dB signal-to-noise ratio with excellent color reproduction.

Composite video output (BNC), as well as RGB (D-sub 9-pin) for direct connection to image capture board.

High speed electronic shutter from 1/60-

1/10,000 second.

Minimum illumination required is only

3 lux at f/1.2.

Three mode Auto White Balance. Select from TTL Auto which provides for color consistency in varying lighting conditions by continuously monitoring and adjusting white registration through the lens; manual and preset indoor (3200°K).

Internal/external sync allows use standalone or integrated into any video system.

The camera automatically switches to external sync when an external reference signal is detected.

Changeable C/CS lens mount allows selection from a wide range of lenses.

Optional Accessories:

AA-P700 AC Adapter

VC-451-2

9-pin to RGB (5 BNCs) Breakout Cable

VC-452-4

9-pin to 9-pin RGB Cable (4m)

TK-N1100

Twin CCD Color Surveillance Camera

The TK-N1100 has two 1/3˝ CCDs – one for high resolution color, and one for

B&W with infrared illumination. Incorporating JVC’s revolutionary Self-selecting Color/IR system technology, a 1/3˝ color IT CCD image sensor delivers 470 lines of horizontal resolution with a low light sensitivity of 2 lux. The IR mode is automatically triggered when the video signal drops to a pre-determined level, thus providing crisp monochrome images down to 0 lux under infrared illumination. The result is a camera that is ideal for 24-hour surveillance with sharp, vibrant, full color video under normal lighting conditions and high definition B&W images when things go dark.

Offers 470 lines of horizontal resolution and 50dB signal-to-noise ratio.

Self-selecting Color/IR System senses available light and intelligently switches

(automatically) from Full Color mode to

Monochrome Infrared mode when ambient light falls below 2 lux (or a predetermined level). An LED indicator lights when the B&W mode is set.

Built-in infrared illumination of up to ten feet.

AGC function automatically increases sensitivity when ambient light drops below a preset level.

High-speed electronic shutter from 1/60-

1/10,000 second.

TTL Auto Tracking White Balance provides for color consistency in varying lighting conditions by continuously monitoring and adjusting white registration through the lens. Also offers manual white balance.

Internal/external sync allows use in a stand-alone configuration, or integrated into any video system. The camera automatically switches to external sync when an external reference signal is detected.

Uses a C-mount to give the widest choice of lenses.

The camera can be powered via 24v AC or 12v DC. An optional AC adapter is available (AA-P700).

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

J V C

KY-F32/KY-F55B

1/2-inch and 1/3-inch 3-CCD Cameras

The KY-F32 is an advanced 3-CCD camera engineered for a broad range of applications, ranging from surveillance and microscopy in factories or laboratories to computer-based image processing. Features 750 lines of horizontal resolution, high sensitivity of F9.5 at 2000 lux and a 1/2˝ bayonet lens mount for compatibility with a wide variety of high quality lenses. Designed for broadcast applications, the KY-F32 is ideal for use in helicopters and remote operation in sporting events, weather observation, etc. Multiple video outputs including composite, S-Video, component and RGB, add to its versatility.

A masterpiece of miniaturization, this 1/3˝ 3-CCD camera delivers 750 lines of horizontal resolution and 480 lines of vertical resolution with highly accurate color reproduction.

The KY-F55B is suitable for many applications, including image processing, microscopy, remote camera, and surface mount inspection. Packed with features such as Slow Shutter, enhanced Automatic Level Control, and High-Resolution mode, this versatile micro-camera excels at producing crystal clear, vibrant, color rich video.

FEATURES

3-CCD Image Sensors

Equipped with three CCDs with 380,000 pixels each, both the KY-F32 (1/2˝ IT

CCDs) and the KY-F55B (1/3˝ IT CCDs).

feature 750 lines of horizontal resolution and superb 60dB S/N ratio. More sensitive, the KY-F32 offers sensitivity of F9.5 at 2000 lux and minimum illumination of 6 lux.

The KY-F55B offers sensitivity of F5.6 at

2000 lux and 15 minimum illumination.

High Resolution Mode

When special applications, like shooting tiny alphabetics, densely detailed graphics, or small components on a production line are called for, the cameras can switch from normal to high resolution mode, in which vertical resolution is increased 1.4 times to 480 lines.

Normal mode delivers field storage, whereas the High Resolution mode features frame storage and individually read lines.

Internal/External Sync

Automatic internal/external sync switching system is useful when switching camera images in multi-camera systems, or for system integration.

Full-Time Auto Operation

For accurate color reproduction under changing lighting conditions, the Full-Time Auto

White Balance system makes continuous automatic adjustments over a wide range to ensure stable and correct white balance. In addition, they continuously adjust for changes in light levels with their ALC function, which automatically increases the gain when the light level is low, and the EEI function which automatically reduces the sensitivity through a variable electronic shutter when scenes are very bright. The combination of Full-Time Auto White, ALC and EEI means you can shoot continuously without interruption.

Variable Speed Shutter

Shutter speeds are adjustable up to 1/2000 of a second. Variable Scan function also makes them ideal for shooting high-speed motion analysis and images on computer monitors.

SMPTE Color Bar Generator

They incorporate a SMPTE Color Bar generator for fine-tuning your monitor.

Wide Range of Outputs

Both include RS-232 interface for external control from a PC.

The KY-F55B has composite, S-Video, RGB and composite sync output. The RGB output supports computer graphic, motion analysis, video microscope and other image processing applications.

The KY-F32 adds component video output to all of the above.

Corporate Accounts Are Welcome

J V C

KY-F32 Only

1/2˝ Bayonet Mount

By incorporating an industry-standard 1/2˝ bayonet lens mount, the camera can accept a wide range of manual and motorized zoom lenses for specific applications.

Menu-Driven

A menu can be called up, which will superimpose characters over video to allow for user adjustment of all camera settings.

Negative Video Function

Further enhancing its applications, the KY-F32 provides a negative video function for direct viewing of negative film.

Memory Function

A convenient remote data memory function stores settings via an optional remote control unit for computer interface. Data remains stored even when the camera is switched off.

KY-F55B Only

C-Mount Compatibility

Using highly refractive optical glass and advanced optical technology, the KY-55B allows use of high quality

C-mount lenses for a broad range of applications.

Random Trigger

Can collect images in response to an external trigger transmitted with random timing. That means the KY-

F55B, when hooked up to a sensor, can capture an image of a specific part of a moving item (even on a fast moving production line).

Slow Shutter

Originally engineered to collect images for photomicrographs, the slow shutter makes it possible to shoot static images for long periods boosting sensitivity 90 times.

Accessories for the KY-F32 and KY-F55B

RM-LP57 Remote Control Unit

The RM-LP57 is a rack mountable remote control unit for the KY-

F32 and KY-F55B. Switch between camera and color bar signals, make

SC and H.Phase adjustments, control Contour and Gain, White

Balance, Shutter, White Paint, Iris and Master Pedestal. A 5 meter remote control cable is available separately, as well as third party extension cables up to 200’.

AA-P700

AC Adapter

(Uses the DC cable supplied with the KY-F32 or KY-F55B)

VC-P893 RS-232 Serial Interface Cable Kit for PC

VC-P894 RS-232 Serial Interface Cable Kit for Macintosh

RM-LP55 Remote Control Unit

The RM-LP55 lets you control all of the KY-F32 or KY-F55B camera functions. Using the Setup Menu Function, inputting camera settings on the LCD menu cannot be simpler. It takes only seconds to set the eight menu items: Camera Mode,

Contour Detail Mode, SC Fine Coarse, H. Phase, Gamma

On/Off, Auto Iris Detection Mode, Title Display and Title

Edit. The display is also backlit, making it easy to operate under all lighting conditions. Data transferred with the remote control to the camera stays in the camera even if the remote is disconnected. The RM-LP55 also has a memory for storing two sets of camera set-up (scene files) which can be readily recalled. Includes a 16.4’ remote control cable.

Accessories for the KY-F32 Only

RM-713MD Lens Remote Control Unit

For use with the Fujinon S14X7.5BMD, it gives you control of focus, zoom and iris. Also requires the RM-LP57 Camera Remote Control.

Canon YH13X7.5BKTS

13:1 (7.5-105 mm) motorized (zoom, focus and iris) lens

Fujinon S14X7.5BMD

14:1 (7.5-97.5mm) motorized (zoom, focus and iris) lens

Fujinon S16X6.7BMDD4M

16:1 (6.7-107.2mm) teleconferencing lens (requires the RM-D2

Remote Controller

Accessories for the KY-F55B Only

JVC HZ-610MD

10:1 (6-60mm) motorized zoom lens (including zoom, focus and iris)

JVC HZ-6350

Variable (3.5 to 8mm) wide angle manual focal lens with motorized iris

HZ-M161

Nikon microscope adapter

(for use with X2 series microscopes)

HZ-M162

Olympus microscope adapter

(for use with BH2 series microscopes)

HZ-M163

Zeiss microscope adapter

(for use with AX 10 series microscopes)

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

S O N Y

DXC-107A

1/2-inch CCD C-Mount Camera

With a cost-effective, yet excellent operational design, the compact DXC-

107A is an ideal choice for a broad range of industrial video applications. It offers high sensitivity for clear and finely detailed pictures in low light conditions, while its CCD-Iris function provides optimized automatic exposure control under difficult lighting situations.

1/2˝ IT (Interline Transfer) HyperHAD

CCD with 380,000 pixels delivers high resolution of 470 horizontal lines, S/N ratio of 48 dB and a minimum illumination of 4.5 lux for high quality picture acquisition in low light situations.

Small (5˝ long) and lightweight

(12 oz.), the camera installs anywhere.

For use in documentation and multiple camera operation, the DXC-107A can generate and superimpose a 4-digit ID on the picture. Each digit is selected by four rotary switches on the side panel.

In addition to composite output from the camera, composite or S-Video is selectable through the optional CMA-D2.

With the optional CMA-D7 Camera

Adapter, only a single RG-6 coax cable is required to transmit video and sync signals up to 1000 feet (with cable compensation). Alternatively, with just the

CMA-D7 or CMA-D2 Camera Adapter, a multi-core cable can be used for transmission up to 125 feet.

Shared Features of the DXC-107A and the DXC-151A

CCD-Iris enables automatic exposure by adjusting the shutter speed with three selectable modes - Backlight, Spotlight and

Standard. In Backlight mode, the Iris function raises the picture level to optimize the exposure of a shaded area. Spotlight conversely lowers the picture level to prevent halation effects.

Variable high-speed shutter from 1/100 to 1/10,000 of a second for clear capture of moving objects.

Each has four White Balance modes to meet a wide range of lighting conditions. Two auto modes: AWB (Auto White

Balance), where the adjusted white balance is held in memory and ATW (Auto Tracing White Balance), where a dynamic control optimizes white balance in response to varying light conditions. A side panel switch offers selection of two preset white balance modes, indoor (3200K) or outdoor (5600K).

DXC-151A

2/3-inch CCD C-Mount Camera

The DXC-151A combines a 2/3˝ CCD with a primary color filter to deliver high resolution, high S/N ratio and excellent color fidelity. Its CCD

Iris function ensures high quality images under various lighting conditions, while RGB output makes it the ideal input source for image processing systems, such as computer graphics, motion analysis and video microscopy.

2/3˝ IT (Interline Transfer) HyperHAD

CCD with 380,000 pixels provides sensitivity of f/5.6 at 2000 lux and a minimum illumination of 13 lux at f/1.4.

S/N ratio is 48 dB. The high density

CCD combines with a primary color G stripe R/B sequential filter to deliver 460 lines of horizontal resolution with superior color reproduction.

In addition to composite video, the

DXC-151A is equipped with 9-pin and

12-pin connectors for multiple signal output. The 9-pin outputs RGB, allowing high quality image processing to be performed with excellent color reproduction.

S-Video is output through the 12-pin multi-connector, using the optional

CMA-D2 Camera Adapter.

SC/H (Sub Carrier/Horizontal) Phase

Adjustment Control

Genlock capability for synchronization with video or blackburst signals from other equipment.

■ Variable speed shutter with speeds from

1/100 to 1/10000 of a second.

Overnight Shipping Available

S O N Y

DXC-107A/DXC-151A

LENS

VCL-SO3XM

Mfg

Sony

VCL-SO3XEA

Sony

PH6MM

Canon

1/2˝ C-MOUNT LENSES FOR DXC-107A

Focal

Length

3.6mm

3.6mm

6mm

Zoom Maximum

Ratio Aperture

-

-

-

1.6

1.6

1.2

Iris

Control

Manual

Auto

Manual

Focus

Control

Manual

Manual

Manual

Minimum

Focus

7.9˝

(20cm)

Weight

2.3oz.

(80g)

Filter

Size

34mm

SKU # Price

SOVCLSO3XM

164.95

SOVCLSO3XEA

314.95

SOPH6MM

249.95

VCL-SO6XM

Sony

VCL-SO6XEA

Sony

VCL-S12XM

VCL-S12XEA

PH6x8/1

Sony

Sony

Canon

6mm

6mm

12mm

12mm

8-48mm

-

-

-

-

1.2

1.2

1.2

1.2

1.0

Manual

Auto

Manual

Auto

Manual

Manual

Manual

Manual

Manual

Manual 52mm

SOVCLSO6XM

94.95

SOVCLSO6XEA

274.95

SOVCLS12XM

99.95

SOVCLS12XEA

264.95

SOPH6X81

799.95

PH6x8R/II

PH6X8REAIA/1 Canon 8-48mm

PH10X8R/1

Canon 8-48mm 6-1

6-1

Canon 8-80mm 10-1

PH10X8REAIA/1 Canon 8-80mm 10-1

1.0

1.0

1.2

1.2

Manual Servo

Auto

Manual

Auto

Servo

Servo

Servo

1.7´

(.5m)

3.3´

(1m)

3.3´

(1m)

3.9´

(1.2m)

3.9´

(1.2m)

14oz.

(395g)

17.7oz.

(500g)

17.7oz.

(500g)

24.7oz.

(700g)

24.7oz.

(700g)

52mm

52mm

62mm

62mm

SOPH6X8RDN

1789.95

SOPH6X8REAIA

2069.95

SOPH10X8R1

2308.50

SOPH10X8REA1

2669.95

2/3˝ C-MOUNT LENSES FOR DXC-151A

LENS Mfg

Focal

Length

HF-48BSND41

Fujinon 4.8mm

Zoom

Ratio

-

Max Iris Focus

Aperture Control Control

1.8

Auto Fixed

Min.

Focus

3.9˝

(10cm)

Weight

3.2oz.

(90g)

Filter

Size SKU # Price

62mm SOHF48BSND41

184.95

SCL-1613AI

VCL-1206A

SH6X125R

Computar 16mm -

Cosmicar 12.5-75mm 6-1

Fujinon 12.5-75mm 6-1

1.3

1.8

1.2

Auto Manual

Manual Manual

Manual Manual 52mm

SOSCL1613AI

SOVCL1206A

SOSH6X125R

209.95

324.95

229.95

J6X11/1

J6X1R/1

J6X11REA1

J6X11REAIA1

J10X10R/1

J10X10REA/1

J10X10REAIA/1

Canon 11-70mm

Canon 11-70mm

Canon 11-70mm

Canon 11-70mm

Canon 10-100mm

6-1

H6X115C-SND

Fujinon 11.5-69mm 6-1

6-1

6-1

6-1

6-1

Canon 10-100mm 10-1

Canon 10-100mm 10-1

1.4

1.2

1.4

1.4

(Built-In AMP)

1.4

1.4

1.4

Manual Manual

Auto

Remote

Servo

Servo

Auto Servo

Remote

Auto

Auto

Servo

Servo

Servo

3.3´

(1m)

3.3´

(1m)

3.9´

(1.2m)

3.9´

(1.2m)

3.9´

(1.2m)

3.3´

(1m)

1.2´

(.5m)

3.3´

(1m)

3.3´

(1m)

14.5oz.

(410g)

14.5oz.

(410g)

17.3oz.

(490g)

17.7oz.

(500g)

17.7oz.

(500g)

17.7oz.

(500g)

24.5oz.

(700g)

24.5oz.

(700g)

24.5oz.

(700g)

46mm CAJ6X112

374.95

55mm SOH6X115CSND

814.95

52mm

52mm

52mm

62mm

SOJ6X11R1

SOJ6X11REA1

SOJ6X11REAIA

1549.95

SOJ10X10R

1189.95

1334.95

1709.95

62mm SOJ10X10REAR

1934.95

62mm SOJ10X10REAR

2184.95

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

S O N Y

DXC-950

1/2-inch 3-CCD Color Video Camera

A successor to the popular DXC-930 camera, the DXC-950 has all the same features, plus it adds improved technology and innovative functions to make it even more versatile. Already ideal for industrial video applications such as computer imaging, scientific research, video conferencing and industrial inspection, the DXC-950 incorporates new functions like

Flash Synchronization and a Three-Pattern Light Metering System for photo-proofing and microscope applications. Other features include

Power HAD CCD sensors for superior picture quality of 750 horizontal lines and 60 dB signal-to-noise ratio. There are multiple component, RGB, composite and S-Video signal outputs, and all functions can be easily controlled from the camera’s rear panel. The camera can also be controlled via the optional

RM-C950 Remote Control, CCU-M5 or by computer via the RS-232 port.

FEATURES

Superior Picture Quality

■ The DXC-950 incorporates 1/2˝ IT

(Interline Transfer) Power HAD CCDs with 380,000 pixels to achieve a high sensitivity of F9.5 at 2000 lux, while drastically reducing the smear level by 20 dB.

This permits the highest quality image capture, even in very difficult lighting conditions.

High resolution of 750 lines is obtained with the DXC-950’s high density CCDs and accurate spatial offset, while the combination of Power HAD technology, improved electronic circuitry and advanced video processing results in an excellent signal-to-noise ratio of 60 dB.

CCD Iris Function

■ CCD Iris function automatically controls exposure by electronically adjusting for incoming light levels. This function is equivalent to six F-stops in lens iris and is effective in microscope applications. It enables the DXC-950 to adjust the incoming light level automatically, even when using a less costly microscope adapter without Auto Iris level control.

When the CCD Iris function is used with an auto iris lens and AGC (Automatic

Gain Control) function, an even wider range of incoming light levels can be accommodated.

CCD Integration Modes

■ Switch between Field or Frame CCD

Integration modes using the function menu buttons on the camera, or by using the optional RM-C950 Controller.

Field Integration is effective for capturing moving objects. Since the charge is only integrated over one field (1/60 of a second), motion blur is reduced. Frame

Integration mode on the other hand, integrates the charge of each horizontal pixel line for 1/30 of a second, resulting in higher vertical resolution than Field

Integration. Frame Integration mode is ideal for use in still image capture.

Multiple Signal Outputs

In addition to a composite (BNC) output, the DXC-950 has a 9-pin connector for component and RGB output. S-Video and composite are also simultaneously available from the 9-pin and can be selected via the Menu Control buttons or with the RM-C950. A sync signal can also be added onto the G output signal, so that an image processing or analysis system without a separate sync signal input can be used. The flexibility provided by the DXC-950’s multiple outputs makes it easy to install into a wide range of system configurations and facilitates image capture by a computer or VCR.

Variable Speed Shutter

■ Variable high speed shutter for clear, blurfree capture of fast moving objects. In addition to conventional shutter speed selection (1/100 to 1/10,000 of a second), functions like Long Term Exposure and

Clear Scan are available by manually selecting shutter speeds in 1 frame or 1 H steps respectively.

Long Term Exposure -shutter speed

(charge accumulation time) is selectable from 1 to 255 frames (field mode) or 2 to

256 frames (frame mode) in one frame steps. This provides remarkable enhancement in sensitivity by accumulating the charge on the CCDs over a longer time than normal, allowing dark objects to be clearly recorded. In addition, synchronizing the timing of the camera signal output with an external memory, like Sony’s

DKR-700, makes Long Term Exposure very effective in image processing or image analysis applications.

Clear Scan allows shutter speeds to be changed from 260/525 to 1/525 H in 1H

(63.5us) steps, or by an eight-step speed selection — ideal for shooting computer monitors without flicker scrolling across the screen. Clear Scan enables the

DXC-950 to match its shutter speed with the computer monitor’s scanning frequency.

We Ship Worldwide

Precise Picture Controls

The DXC-950 provides precise camera control with advanced functions, such as

Linear Matrix, Shading Compensation,

Master Pedestal, Gamma Selection and

Detail level, ensuring reproduction of optimal image color and contrast – whatever the situation might be. Master

Pedestal, Detail and Gain are easily adjusted with the optional RM-C950 remote control unit, without having to display the menu screen to make changes.

Linear Matrix function provides sophisticated electronic adjustments for accurate color reproduction. Can be used to color match two or more cameras.

Shading Compensation provides uniformed brightness for images displayed on the screen.

Detail level allows adjustment of the sharpness of object outlines in the reproduced picture.

Selectable Knee Position - In addition to the normal position, two knee positions are available (Lower Knee Point and

Gentle Knee) for an area of highlight in the picture to be reproduced more clearly.

White Balance Control

The DXC-950 has three white balance control modes: AWB, ATW and Manual (R/B

Gain). AWB and ATW can be readjusted more precisely with R/B Paint function.

AWB (Auto White Balance): For easy setup, automatically white balances the camera and memorizes adjusted settings.

R/B Paint: When you are not content with the automatic white balance adjustments from the AWB or ATW mode, the white balance can be readjusted more precisely using the Red and Blue level controls.

ATW (Auto Tracing White Balance):

Adjusts the white balance automatically, in response to the varying light conditions.

Manual (R/B Gain): White balance can be adjusted manually using the Red and

Blue Gain level controls in accordance

S O N Y

DXC-950

Master/Slave Synchronization —

Film and Electronics in Perfect Sync

In the past, integrating film photography with video capture was an exercise in futility and exhaustion. Detailed and accurate information were needed regarding the film camera’s shutter, as well as board-level expertise with a computer. With the DXC-

950, Sony makes it effortless. Compact and lightweight, the DXC-950 can be mounted together with your camera and sees what the film sees. This makes syncing to your film camera’s strobes easier, cleaner and more cost-effective than ever.

In Slave mode, you use your film camera like you normally would, while an optical sensor attached to the DXC-950 automatically detects your strobe and simultaneously triggers a frame capture. In Master mode, you use the DXC-950 to trigger strobe, film camera and video frame grabber.

Whether you choose Master or Slave mode, there is no physical connection to bother with. Its integration is simple, and you always get the same superb picture quality.

Flash Synchronization

Ideal for photo proofing or machine inspection, the DXC-950’s dual mode flash synchronization (master/slave) enables external light sources to be synchronized to the DXC-950, without using costly external timing circuits

Three-Pattern Metering

When you want to observe a spot, it is possible to concentrate light onto a specific area of the CCD for evaluation.

Depending on the size of the object being evaluated, three-pattern light metering areas-–large (75%), medium (50%) and spot (25%)–can be chosen. This enables better capture of images in an area and is ideal for microscope applications.

On-Screen Menu

Camera control functions are easily set by the Menu/Function/Data buttons on the camera, the RM-C950 Remote Control or an external computer. The menu can be displayed on a monitor via component,

Y/C, RGB or composite outputs.

■ Menu screens are divided into four groups for easy setup: Exposure, Color, General and System. You can preset two patterns menus (A or B) respectively and choose with the Memory Bank function.

Video Print Function

■ A print button located on the DXC-950

(and the RM-C950) sends a print command to a connected video printer. Ideal for one man operation, you can even print from another room. As proofs, video prints help you sell faster and more effectively while the moment is fresh — great revenue opportunity for theme parks, resorts and catering halls.

Additional Features

RS-232 interface allows remote control from an external computer.

Generates SMPTE Color Bars for system and monitor adjustment.

Genlock capability for synchronization with video or blackburst signals from other equipment. Includes SC/H Phase adjustment control.

● Accepts 1/2˝ bayonet mount lenses. Dual hot-shoe connection eliminates the need for a lens-to-camera cable. 2/3˝ lenses can also be used by connecting the optional

LO-32BMT Lens Adapter. Also accepts microscope adapters.

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

S O N Y

DXC-9000

1/2-inch Progressive Scan 3-CCD Color Camera

Equipped with Progressive Scan technology, the revolutionary

DXC-9000 captures high speed moving objects clearly with high horizontal and vertical resolution. The camera also has a built-in memory, providing three types of output signals including VGA, while Field and Frame output signals allow the camera to maintain complete system compatibility with existing video equipment.

Other unique feature include the utilization of square pixels, making the DXC-9000 ideal for computerized image processing. To significantly enhance operational convenience, the camera offers special features, such as Freeze Control, long term exposure and an external trigger shutter function. And like the DXC-950, all DXC-9000 functions are easily controlled from the camera’s rear panel; the optional RM-C950

Remote Control Unit; the CCU-M5; or by an external computer via the RS-232 interface.

With outstanding picture performance and a unique feature set, the DXC-9000 is ideal for computer imaging, scientific research, distance learning, video microscopy and industrial inspection (amusement parks, highways, etc.).

FEATURES

3-CCDs With Square Pixels

Three 1/2˝ IT Hyper HAD 330,000 pixel

CCDs, each with spatial offset technology provide 700 lines of horizontal resolution, sensitivity of F 5.6 at 2000 lux and a 58 dB

S/N ratio. The CCDs use square pixels, thus eliminating the necessity to adjust aspect ratio when images are captured and manipulated in a computer.

Progressive Scan CCDs

Using Progressive Scan CCDs, the DXC-

9000 outputs all electric charges accumulated every 1/60 of a second, providing a complete frame. Conventional CCDs use half of the electric charges taken from one image every 1/60 of a second to form an odd field, and half the electric charges taken from the next image 1/60 of a second later, to form one frame. As a result, using the Progressive

Scan CCDs in combination with a frame memory, the DXC-9000 can capture full frame image in 1/60 of a second to provide a high vertical and dynamic resolution image. This enables the camera to provide blur-free, clear images of fast-moving objects without a mechanical shutter.

Three Types of Outputs

The DXC-9000 has a built-in memory enabling a frame (two fields) image to be stored.

By selecting or combining the image data in the memory, the following outputs are available.

2:1 Interlace Scanning:

Normal Mode

(RGB, Composite/S-Video):

The odd field is taken from the first image

1/60 of a second, and the even field is provided from the next image 1/60 of a second later. The odd and even field are output one after another, then interlaced together to form one frame. This is the traditional scanning method used in NTSC color cameras.

Frame Shutter Mode

(RGB, Composite/S-Video):

Both the odd and even field are taken from the same image in 1/60 of a second. The even field is placed in the memory and output after the odd field, then interlaced together in accordance with the 2:l interlace scanning system. Even when a high-speed moving object is shot, each frame image is clear, because both the odd field and the following even field are from the same image.

Non-Interlace Scanning:

VGA Mode (640 x 480) RGB only

A VGA signal using RGB output can be used with computer display devices in a non-interlace scanning system. In VGA mode, both the odd and even field are output from the DXC-9000 within 1/60 of a second. This is made possible by increasing the horizontal scan rate. With the VGA output, high-quality pictures without blur are displayed on multi-scan monitors and multi-scan printers. The sharpness and clearness of VGA output is especially obvious, for example, when shooting small letters typed on a piece of paper, or when capturing a still image of a fast-moving object. VGA is ideal for motion analysis or monitoring images on a projector.

24 Hour Fax: 800-947-9003

212-444-5001

Frame Memory Capability

Freeze Function:

A moving image can be captured as a still image by pressing the Freeze button on the camera's rear panel or the RM-C950. Pressing the Source button cancels the freeze, and a live image is output. If necessary, still images can be automatically output by setting the onscreen menu. Two modes are provided:

Continuous Freeze Mode

: Still images captured in memory are continuously output.

Source/Freeze Mode:

Still images and live images are alternately output. (The cycle can be set within a range of 2 frames to 10 minutes. If an external pulse is used, the image can be changed every time the pulse is input.)

Long Term Exposure:

The shutter speed (charge accumulation time) can be selected from 1 to 255 frames in one-frame steps or 15 steps from 0.1 to 8.0 seconds.* The charge accumulation on the CCDs over a longer period than normal provides a remarkable enhancement in sensitivity.

This feature is especially ideal for microscope and surveillance applications, because objects in the dark can be clearly captured.

*0.1, 0.2, 0.3, 0.5, 1.0, 1.5, 2.0, 2.5,

3.0, 4.0, 4.5, 5, 6, 7 and 8.0 seconds.

S O N Y

DXC-9000

Additional Features

These are the same as the DXC-950, see previous page for descriptions

1/2˝ bayonet lens mount with dual hot shoe connection

Multiple video outputs

● Three White Balance Modes:

AWB, ATW and Manual (R/B Gain).

● High speed shutter up to 1/10000 of a second

Clear Scan Function (1H-Step Selection)

CCD Iris and AGC Functions

Three Pattern Light Metering System

On-Screen Menu

● Built-in RS-232 Interface

● Genlock capability and Full-Field color bar generator

1/2˝ BAYONET LENSES FOR DXC-950 & DXC-9000

Lens

Mfg.

Zoom Ratio

Extender

Focal Length

Max Aperture (F-Stop)

Angular Field of View

Minimum Object Distance

Macro

Filter Size

Inner Focus

Weight

S14x7.3WMD

Fujinon

14 X

7.3mm ~ 102mm

1.9 at 69.7

2.1 at 102

47° 20´ x 36° 24´

3° 36´ x 2° 42´

1 m

Yes

Ø 62mm P=0.75

0.85 kg

S17x6.6MD

Fujinon

17 X

6.6mm ~ 112mm

1.4 at 90mm

1.9 at 112mm

51° 44´ x 39° 58´

3° 16´ x 2° 27´

0.9m

Yes

Ø 82mm P=0.75

Yes

1.15kg

S19x6.5BMD

Fujinon

19 X

6.5mm ~ 123mm

1.4 at 91mm

1.9 at 123mm

52° 25´ x 40° 32´

2° 59´ x 2° 14´

0.9m

Yes

Ø 82mm P=0.75

Yes

1.4kg

S19x6.5BEMD

YH14x7.3KTS

YH18X6.7KTS

Fujinon Canon Canon

19 X 14 X 18 X

2X

6.5mm ~ 246mm

1.4 at 91mm

1.9 at 123mm

52° 25´ x 40° 32´

12° 59´ x 2° 14´

0.9m

Yes

Ø 82mm P=0.75

Yes

1.5kg

7.3mm ~ 102mm

1.4 at 80.3mm

1.8 at 102mm

47.9° x 36.2°

3.6° x 2.7°

1.0m

Yes

Ø 72mm P=0.75

0.92kg

6.7mm ~ 121mm

1.4 at 91 mm

1.85 at 121mm

51.1° x 39.4°

3.03° x 2.27°

0.9m

Yes

Ø 82mm P=0.75

Yes

1.4kg

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

S O N Y

DXC-950/9000 SYSTEM CONFIGURATIONS

Computer Image Processing (DXC-950)

Multiple Cameras (DXC-950)

Photo-Proofing Flash Master Mode (DXC-950)

DXC-9000

DC 12V

CCDC Cable

(Max. 100m)

Video Microscopy (DXC-9000)

RGB

RGB

RS-232C

We are on the web at: www.bhphotovideo.com

Lens Mount

Image Device

Pixels

Scanning System

Horizontal Frequency

Horizontal Resolution

Vertical Resolution

Internal/External Sync with

Sync-on-Green

Sensitivity

Minimum Illumination

S/N Ratio

Gain Control

Electronic Shutter

CCD Iris F-Stop Equivalents

AE Window

Color Temperature

White Balance (3-mode)

Color Bar Generator

Master Pedestal

Detail

H. Phase/SC Phase

Gamma

User Preset

User Protect

Baud Rate (RS-232 Interface)

External Trigger Shutter

Freeze Control

Flash Mode

Video Output

Connectors

Power Requirements

Power Consumption

Weight

S O N Y

DXC-9000/DXC-950 SPECIFICATIONS

DXC-9000 DXC-950

1/2˝, 38mm Bayonet

1/2˝ HyperHAD CCD (x3) IT

659 (H) x 494 (V) Square pixels

2:1 Interlaced (NTSC)

Non-Interlaced 640 x 480, 1/60 (VGA)

15.734k Hz (NTSC)

31.469k Hz (VGA)

700 Lines

480 Lines

VBS, BS, VS, SYNC or HD/VD

On/Off Switchable f/5.6 @2000 Lux

15 Lux AT f/1.4

58 dB

AGC/0-18 dB (1 dB steps)

ISO (400, 800, 1600) Switchable

Off/Step/Variable/CCD Iris

4

Large/Med/Spot (peak average switchable)

3200k/5600k

ATW/AWB (R/B Paint: -10 to 0 +10)

Manual (R/B Gain: -127 to 0 +127)

4-1515 Field

-99 to 0 +99

-99 to 0 +99

-99 to 0 to +99

On/Off Switchable

A/B Switchable

On/Off Switchable

9600, 4800, 2400, 1200

On/Off Switchable

Internal/External Control Switchable

RGB, VGA (RGB only), S-Video

Lens (6-pin), RGB/Sync (9-pin)DC In/VBS (12-pin),

Video out (BNC) CCU (20-pin), Remote (8-pin),

External Control (BNC), Hot Shoe (14-pin)

DC 12v (supplied from CMA-D2 or CCU-M5)

11.5 watts

1 lb. 11oz.

1/2˝, 38mm Bayonet

1/2˝ PowerHAD CCD (x3) IT

768 (H) x 494 (V)

2:1 Interlaced, 525 Lines (NTSC)

15.734k Hz (NTSC)

750 Lines

400 Lines

VBS or BS

On/Off Switchable f/9.5 @2000 Lux

5 Lux AT f/1.4

60 dB

AGC/0-18 dB (1 dB steps)

Off/Step/Long Exposure/Clear Scan

6

Large/Med/Spot

3200k/5600k

ATW/AWB (R/B Paint: -7 to 0 +7)

Manual (R/B Gain: -99 to 0 +99)

SMPTE

-99 to 0 +99

-99 to 0 +99

-99 to 0 to +99

On/Off Switchable

A/B Switchable

On/Off Switchable

9600, 4800, 2400, 1200

Yes (Off/Master/Slave)

VBS, RGB, S-Video, Component

Lens (6-pin), RGB/Sync (9-pin), Genlock In (BNC)

DC In/Remote (12-pin) Video out (BNC) CCU (20-pin),

Flash (Synchronous socket), Remote (8-pin)

DC 12v (supplied from CMA-D2 or CCU-M5)

7.8 watts

1 lb. 8oz.

DXC-9000

Rear Panel

DXC-950

Rear Panel

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

S O N Y

DXC-H10

High Definition 2/3-inch 3-CCD Color Video Camera

The DXC-H10 is a small HDVS (High Definition Video System) camera.

Weighing only 1.2kg it incorporates high definition technology to deliver

1000 TV lines of resolution and to provide images that are clear, detailed and true-to-life accurate. Ideal for installation where space is at a premium, the DXC-H10 can capture images from locations that were previously difficult or impossible for other bulkier high definition cameras. The DXC-

H10 is suitable for microscope, photo and portrait, and surveillance applications. Affordably priced and portable, the DXC-H10 can be used to complement or even substitute existing camera systems, making its potential uses almost limitless.

FEATURES

HDVS Resolution

■ HDVS (High Definition Video System) is different from conventional video transmission systems, such as NTSC or

PAL. It contains five times more information than conventional TV systems

(2,000,000 pixels compared to roughly

410,000 pixels), enabling it to produce very detailed and life-like images.

The DXC-H10 incorporates three newly developed 2/3˝ IT (Interline Transfer)

Hyper HAD (Hole Accumulated Diode)

CCDs with 2,000,000 effective picture elements, producing a horizontal resolution of 1000 TV lines. Hyper HAD

CCDs provide sensitivity of up to f/8.0 at

2,000 lux, while drastically reducing the vertical smear level. This enables images of very high quality to be captured in difficult lighting conditions.

Precise Picture Controls

Provides precise camera control with functions such as Linear Matrix Circuit, Vertical

Shading Compensation, Advanced Detail, Master Pedestal and Negative/Positive mode.

– Linear Matrix (On/Off): Provides electronic adjustments for accurate color reproduction.

– Vertical Shading Compensation (Manual):

Electronically compensates for color shading to provide uniform brightness.

– Advanced Detail Control (Manual):

Adjusts sharpness of object outlines with minimal noise, using digital filter technology.

– Knee (Auto/High/Low): Makes bright and non-defined areas become more clearly visible and defined.

– Master Pedestal: Enables Black/dark area of the picture to be seen more clearly.

– Negative/Positive Mode: Negative scenes can be shot positive, or vice-versa.

Three different white balance settings are also available, in order to meet a variety of shooting conditions.

AWB (Auto White Balance): Memorizes the adjusted white balance value.

ATW (Auto Tracing White Balance):

Adjusts white balance automatically in response to varying light conditions. This mode is used when the light source frequently changes.

Flash Synchronization

Function

Flash synchronization is possible by directly connecting a flash unit to the camera. Flash synchronization enables the

DXC-H10 to be used in portrait applications. When synchronizing a flash with the DXC-H10 and connecting it with a monitor or printer, every shot can be immediately identified. When pushing the trigger button on the camera’s rear panel or remote control unit, the connected external flash unit detects the synchronization pulse and fires a flash (Flash

Meter mode).

Advanced Auto Exposure Modes

AE automatically adjusts incoming light, combining the CCD Iris function, AGC

(Automatic Gain Control) function, and Auto Iris function of the lens. When shooting in the AE mode, you can choose from four different light metering methods: Multi, Average,

Spot, and Peak mode.

Multi Mode: Divides the screen into nine sections and adjusts auto exposure according to the luminance level in each section. This mode continuously adjusts the incoming light for a bright uniform picture.

Average Mode: Adjusts the light based on the average brightness of the whole picture.

Spot Mode: Makes light adjustments based on the brightness of the central area of the picture.

Peak Mode: Makes light adjustments based on the brightest part of the picture.

®

®

Electronic Shutter Functions:

CCD Iris function automatically controls exposure by electronically adjusting incoming light levels and is equivalent to seven F-stops in a lens iris. The CCD Iris function is particularly effective in microscope applications, as it enables the DXC-H10 to adjust the incoming light level automatically, even when using a basic microscope adapter which does not have auto iris level control.

Variable speed electronic shutter makes it possible to capture blur-free, clear pictures of the fastest moving objects. Ten different speeds are available: 1/100 (flickerless mode) up to an astounding 1/100,000 of a second.

■ Clear Scan function enables a computer display screen to be shot without horizontal lines appearing across the display screen. To use the Clear Scan function, simply match the DXC-H10 shutter speed with the scanning frequency of the computer display.

Long Term Exposure function: The charge accumulation time can be selected from 1 to 255 frames (Field mode) or 2 to 256 frames (Frame mode) in one-frame steps. This provides higher sensitivity by accumulating the charge on the CCDs over a longer period than normal. This feature is ideal for microscope and surveillance applications, because objects in the dark and other nonilluminated objects can be clearly captured.

Other electronic shutter functions include External

Trigger Shutter, LTR (Long Term Reset), RR (Restart).

S O N Y

DXC-H10

Optional Accessories

RM-C950 Remote Control Unit: Offers easy remote control of the DXC-H10’s frequently used camera functions, such as Gain, Detail, Master Pedestal and

Red and Blue Gain. Particularly useful in microscope applications, because you can adjust the image while concentrating on the pictures. (See next page

for complete description).

MVA-690 Microscope Adapter: Specially designed for use with the DXC-H10 and Zeiss microscopes. You have the option of using two supplied lenses:

The attached 85mm f/6.8 lens or the 70mm F5.6 lens. You can also use the

MVA-20 and MVA-31/33. (See page 40 for description).

DSC-1024HD Digital Scan Converters: This versatile upward and downward digital scan converters makes it possible to convert HD video signals to other conventional signals, allowing the total integration of video signals.

Features include adjustable aspect ratios and on-screen display for adjustment and operation. (See full description at the end of the projector section.)

CMA-H10 Camera Adapter: Allows camera operation up to 330 feet away.

DXC-H10 SPECIFICATIONS

IMAGE SYSTEM

Image Device:

Three 2/3˝ IT Hyper HAD

CCDs

Picture Elements:

1920 x 1035

Lens Mount:

2/3˝ Bayonet Type

VIDEO SYSTEM

Synchronization:

Internal/External Sync

Automatic Switching

Signal Format:

HD Format (conforms to

BTA Standard)

Horizontal Resolution:

1000 TV Lines

Minimum Illumination:

16 Lux

Sensitivity:

2000 Lux (F8, 3,200K)

Signal-to-Noise Ratio:

50 dB

Gain Control:

Fixed: 0/6/12 dB Selectable

AGC:

Automatically adjusted within range of 0 dB to 12 dB

Color Temperature:

3200K/5600K Switchable

Electronic Shutter:

CCD IRIS: Automatic

Exposure Control

(within range of 1/60-1/10000 seconds)

Step: 1/100 to 1/100,000s

Manual: 2 to 256 Frames

(Low Speed Mode Frame),

1 to 56H (High Speed Mode)

External Trigger Shutter:

RR (Restart Reset), EXT.

TRIG, LTR

(Long-Term Reset)

AE Mode:

Multi, Average, Spot, Peak,

Hi, Low, Auto

Knee:

Hi, Low, Auto

Linear Matrix:

On/Off Switchable

Gamma Compensation:

On/Off Switchable

Negative/Positive Mode:

On/Off Switchable

Accumulation Mode:

Field/Frame Switchable

Detail Compensation:

On/Off Switchable

Flash Synchronization:

On/Off Switchable

Inputs/Outputs:

Y/R/G/B output: 1 Vp-p (75Ω)

PB/PR output: 0.7 Vp-p (75Ω)

HD/VD in/out: 1 Vp-p (75Ω)

SYNC in/out 0.6 Vp-p (trilevel, 75Ω), 0.3 Vp-p (bi-level)

WEN pulse:TTL level, negative

External Sync Input:

SYNC or HD/VD Switched

Automatically

External Trigger Input:

TTL Level, Negative

Pulse Width: More than 3H

I/O Connectors:

Monitor: D-sub 9-pin

Camera Adapter: 26-pin

Lens Iris: 12-pin

Lens Control: 12-pin

Flash: Small Coaxial Type

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

S O N Y

DXC-SERIES ACCESSORIES

CMA-D2

Camera Adapter for the DXC-107A/151A/950/9000

• 19-inch rack mountable

• Supplies DC power with a CCDC cable to the camera

• Transmits DC power and video/sync signals between the camera and the

CMA-D2 adapter with CCMC 12-pin cable

• Maximum cable length: 100 meters with CCDC-100A cable

25 meters with CCMC-12P25 cable

CMA-D7

Camera Adapter for the DXC-107A

• Transmits DC power and video/sync signals between the camera and the adapter with a single co-axial cable or a CCMC 12-pin cable.

• Maximum cable length: 25 meters with CCMC-12P25 cable

300 meters with RG-6A/U (5C-2V) co-axial cable (with cable compensation).

RM-C950

Remote Control Unit for the DXC-950/9000

The RM-C950 operates all functions on the DXC-950 and DXC-9000’s rear panel, along with Zoom, Focus and Iris functions from up to 10´ away, via the RS-232 interface on the cameras. The supplied cable is 3 meters (if control from a further distance is required, the Sony CCU-M5 Camera

Control Unit can be used with a maximum cable length of 300 meters.)

Frequently used camera functions, such as Gain, Detail, Master Pedestal and Red and Blue Gain, are easily controlled by simply turning a knob

(there is no need to display the menu screen on a monitor).

The RM-C950 is especially useful in microscope applications, because you can adjust the image while concentrating on the pictures. A Freeze button is provided to capture a still image of moving objects.

CCZ-A 26-pin to 26-pin Camera Adapter Cables (For DXC-H10 and CMA-H10)

CCZ-A2 2 meter (6´) cable...............................................249.95 CCZ-A25 25 meter (82´) cable..........................................699.95

CCZ-A5 5 meter (16´) cable..............................................373.95

CCZ-A10 10 meter (33´) cable..........................................494.95

CCZ-A50 50 meter (165´) cable......................................1047.95

CCZ-A100 100 meter (330´) cable .................................1579.95

RMM-D2 Rack Mount Kit for the CMA-D2 or CMA-H10 ..........................................................................................................109.95

7-Day Customer Satisfaction Guarantee

S O N Y

DXC-SERIES ACCESSORIES

RGB Cables for DXC-151A/950/9000

CCXC-9DBUS 5m (16´) RGB Cable:

9-pin D-sub to 5 BNC’s (RGB, Sync, Video) ......................................119.95

CCXC-9DDUS 5m (16´) RGB Cable:

9-pin D-sub to 9-pin D-sub ..............................................................114.95

CCMC-9DSUS 5m (16´) RGB Cable:

9-pin D-sub to 4 BNC’s (RGB, Sync) and Y/C ..................................114.95

CCXC-9DB

CCMC12P 12-pin Multi Cables

12-pin male to 12-pin female cable carries video, 12v DC power and HD/VD external sync between the DXC-107A/151/A/950/9000 camera and adapter.

When used with the DXC-107A, requires the CMA-D7 Power Supply and with the DXC-151A, requires the CMA-D2 Power Supply. When used with the DXC-950/9000, requires the RMC-950 Remote Control.

CCMC-12P02 2 meter (6´) cable ....................................................109.95

CCMC-12P05 5 meter (16´) cable ....................................................19.95

CCMC-12P10 10 meter (33´) cable ................................................204.95

CCMC-12P25 25 meter (82´) cable ................................................369.95

CCU Cables for DXC-950/9000 and CCU-M5

CCTZ-3RGB 3m (10´) 20-pin/26-pin camera cable for RGB output in a DXC-950/9000 and CCU-M5 system. Includes CCZZ-1E interconnection adapter. ....................................................................404.95

CCTZ-3YC 3m (10´) 20-pin/26-pin camera cable for Y/C output in a DXC-950/9000 and CCU-M5 system. Includes CCZZ-1E interconnection adapter. ....................................................................384.95

CCTQ-3RGB 3m (10´) 20-pin/14-pin camera cable for RGB output in a DXC-950/9000 and CCU-M5 system. Includes CCQQ-1 interconnection adapter. ......................................................................259.95

CCDC DC Power Cables

12-pin female to 4-pin male cables, transmits 12v DC power between the

DXC-107A/151/A/950/9000 cameras and the CMA-D2 Camera Adapter.

CCDC5 5 meter (16´) cable ................................................................49.95

CCDC10 10 meter (33´) cable ..........................................................69.95

CCDC25 25 meter (82´) cable ........................................................109.95

CCDC50 50 meter (164´) cable ......................................................184.95

CCDC100A 100 meter (328´) cable ................................................354.95

CCMC-12P02

CCTZ-3YC

CCTZ-3RGB

CCDC5

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

S O N Y

DXC-SERIES ACCESSORIES

MICROSCOPE ADAPTERS

MVA-12

Microscope adapter for C-Mount cameras (DCX-151A) in conjunction with their couplers...........................814.95

MVA-41A

Relay magnification is 0.4 times and optimized for 1/2˝ 3-CCD cameras with the

38mm bayonet mount. Provides approximately a 100% image of the microscope on the video monitor when using an eyepiece of the field number 20. (Requires microscope coupler)................................1399.95

MVA-40

Same as MVA-40, plus auto/manual iris control allows you to control the light level, while having no effect on the color temperature. ..............2699.95

MVA-40

MVA-41A

MVA-185/2NC

1/2˝ adapter with 1.85x magnification factor designed to work with Nikon optiphot, labophot, diaphot and SMZ-2Tl compound microscopes. Designed without an iris to take advantage of the CCD iris feature on the DXC-950/9000 ........................679.95

MVA-31

Microscope adapter with 2/3˝ bayonet mount for DXC-755. ....................1079.95

MVA-33

High quality microscope adapter with 2/3˝ bayonet mount for DXC-755........1594.95

MVA-20

High quality microscope adapter with

Auto/Manual Iris for DXC-755.....2819.95

MVAC-33/N

MVAC-33/O

MICROSCOPE COUPLERS

MVAC-33/N

Microscope coupler for Nikon’s microscope

(V, X, Y, series). Connects MVA-Series adapters (MVA12/20/31/33/40/41A) and the Nikon microscope ....................204.95

MVAC-33/O

Microscope coupler for Olympus’ microscope

(BH-2, AH series). Connects MVA-Series adapters (MVA12/20/31/33/40/41A) and the Olympus microscope ................289.95

MVAC-33SM

MVAC-33SM

Microscope coupler designed for use when combining a SMZ-10 Nikon stereo zoom microscope with a video camera. Can also be used with a microscope adapter, such as the MVA-12/20/33/40/41A. ..........239.95

Bay/Coupler

Microscope coupler for Nikon microscopes with a TV tube adapter and DXC-151,

DXC-755 camera with MVA-20/33. Can also be used with DXC-950/9000 with

MVA-40/41 microscope adapters. (Provides full field of view). ............................904.95

BHB/Coupler

For Olympus BH series microscopes and bayonet/C-Mount type cameras. Requires

MVA20/33 for 2/3˝ mount cameras and

MVA-40/41A for 1/2˝ cameras. MVA-12 is required for C-mount cameras. Can also be used with Leitz, Wild, Carl Zeiss and Nikon microscopes ....................................234.50

LB/Coupler

For Wild and Leitz microscope, 2/3˝ bayonet camera. Requires MVA-20,

MVA-31 or MVA-33 ......................234.95

GCoupler

For microscopes with 30mm diameter tube and a C-mount camera. Use with Leitz,

Wild, Carl Zeiss, Nikon and Olympus microscopes. (MVA-12 not needed — provides limited field of view) ........379.95

ZCoupler

For Carl Zeiss microscope, C-mount camera ............................................409.95

*SCoupler

For microscopes with 23.2mm diameter tube and a C-mount camera............164.95

*SMCoupler

For SM-10 Nikon microscope and bayonet/

C-mount cameras..............................238.50

*UCoupler

For a microscope with 23.2 diameter tube and bayonet/C-mount cameras........354.95

*Requires MVA-20, MVA-33 for 2/3˝ bayonet cameras and MVA-40/41A for

1/2˝ cameras. MVA-12 is required for

C-Mount cameras.

24 Hour Fax: 800-947-9003 212-444-5001

S O N Y

DKR-700

Digital Still Recorder (For use with the DXC-950 Only)

The DKR-700 is a high resolution, digital still image recorder that can store up to 1000 digital images from a variety of analog and digital sources onto a data MiniDisc (MD). With the ability to handle both digital and analog signals, along with its superior picture quality, high capacity and ease-of-use, the versatile DKR-700 is an ideal solution for applications ranging from photo studios to industrial microscopy. With it, you can capture images from virtually any device, store them efficiently, edit them on a computer

FEATURES

MD Data Media

MD media provides 140 MB of storage capacity, allowing the DKR-700 to store and play back up to 1000 images of standard video stills on a single disc. And like its musical counterpart, MD is durable and can be written to, thousands of times without degradation. The DKR-700 uses both JPEG compression and the Picture

MD format for global compatibility.

Four Recording Modes

The DKR-700 offers a choice of four recording modes. All modes feature 480 lines of horizontal resolution for superior picture quality. Chroma resolution power is at least 3 MHz and 24-bit sampling.

– Non-Compression Mode: Allows 100

TIFF images at the highest resolution on a single mini disc.

– Fine Mode: 500 images in 5:1 JPEG format

– Normal Mode: 700 images in 8:1 JPEG

– Quick Mode: 1000 images at the lowest resolution in 8:1 Picture MD format.

Inputs/Outputs

For optimum connectivity, the recorder is equipped with composite, S-Video and analog RGB inputs and outputs. It also incorporates both an RS-232 and SCSI port, allowing sophisticated recording control from a computer and the ability to quickly and easily transfer images to and from computers for manipulation, transfer and storage.

Quick Playback

Finding stored images is easy with the DKR-700. Its quick playback accesses an image in less than 0.5

seconds, and a special image search displays 25 thumbnail images at a time. In addition, each image can be tagged with a unique ID number, a file name and date, as well as comments, such as exposure data.

Auto Record/Playback

Function

The Auto Record/Playback function allows sequential playback or recording of all images. Each image can be played back for a specific time, and the interval between images can also be identified — an ideal advantage for shop displays, product presentations, security applications or when proofing images quickly.

Foot Switch

A three-option foot switch (FS-30) allows you to input an image; save an image to memory; or switch between a saved image and input image — all hands free. In addition, the optional

RM-C700, a wired remote control unit, offers enhanced control functions, such as a choice of recording mode, direct track access, recording and ID number and image title.

DKR-700/DXC-950 Combo

Combine the DKR-700 with the DXC-950 for increased versatility. The camera’s long exposure function (up to 8.5 seconds) can be synchronized with the DKR-700 to optimize capture of images in low light situations. Particularly useful when shooting objects under a low-illumination fluorescence microscope. And the camera can be instructed to begin recording by a signal from the recorder, resulting in optimum recording timing.

The DKR-700/DXC-950 can be automatically triggered by an optional external strobe sensor unit. Synchronized exposures with virtually any strobe unit fired by a film camera offers clear advantages in applications like easy photo proofing in a photo studio, pre-press proofing and industrial inspection.

Optional Accessories

RMC-700 Remote Control Unit

..............

287.95

FS-20 Foot Switch

.........................................................

24.95

FS-30 Foot Switch

.........................................................

79.95

RM-91 Remote Control Unit

..........................

29.95

MMD-140 MD Disc

..........................................

13.95 ea.

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

P A N A S O N I C

AW-E300/AW-E600

1/3-inch and 1/2-inch CCD ‘Convertible’

Cameras

The AW-E300 and AW-E600 are DSP “convertible”color cameras — the industry's first cameras to incorporate Panasonic's exclusive "open slot architecture”. Representing a breakthrough in DSP technology, the open slot architecture permits the use of various “plug and shoot” feature cards, allowing you to select only those functions appropriate for your application. With a host of customized cards to choose from, a single camera can be used for a variety of production purposes, while at the same time dramatically reducing cost and providing a hedge against obsolescence. With 10-bit DSP, the AW-

E300 offers the best performance of any camera in its class– 800 lines of resolution, 63 dB S/N ratio, sensitivity of F8 at 2000 lux and 2.5 lux minimum illumination. The AW-E600 offers

850 lines of resolution, 65 dB S/N ratio (DNR on), sensitivity of F11 at 2000 lux and 0.25 lux (quarter of a lux) minimum illumination. and improved vertical smear of -115 dB.

The AW-E300 and AW-E600 put the power of full-sized DSP cameras in remarkably small, multi-purpose packages.

With virtually no performance compromises made, they are well suited for many applications. These include classroom, courtroom, traffic monitoring, high end surveillance, indoor sports, studio point of view, high-quality graphics, video-

FEATURES

Four selectable operating modes of operation to suit a wide range of shooting situations. Each of the modes has a main menu, and each item of the main menu has a submenu which consists of several settings. Settings have been preset to the optimum values to suit each mode and can be changed from the camera or RCU to suit actual conditions.

Halogen Lighting Mode — For indoor shooting under halogen lights (weddings, parties, lectures, meetings, etc.)

Outdoor Mode — For shooting outdoors

Fluorescent Lighting Mode — For indoor shooting under fluorescent lighting

User Mode — Allows you to set camera functions by using a detailed menu

Main Menu and Sub-Menu of Halogen, Fluorescent and Outdoor Modes

BRIGHTNESS SET

Picture Level

Light PEAK/AVG

Light Area

Auto ND (ELC)

Auto Gain Up

Manual Gain Up

Pedestal

Contrast (Gamma)

COLOR SET

Chroma Level

Flesh Tone

White Balance

Highlight Chroma

G/L. COLOR BAR SET

H Phase

SC Coarse

SC Fine

Color Bar Set

SHARPNESS SET

DTL Select

Level

Noise Suppress

Clean DNR

DTL Flesh Tone

OTHER SET

Shutter Speed

Synchro Scan

V Resolution

Baud Rate

Neg/Pos

Most Orders Shipped Within 24 Hours

P A N A S O N I C

AW-E300/AW-E600

Sub-Menu Adjustments for AW-E300/AW-600’s Halogen, Fluorescent and Outdoor Modes

Brightness Set

■ Picture level or video level adjustment: Convergence level of

Auto Iris/AGC/ELC can be adjusted (-50 to +50)

■ Light PEAK/AVG: The ratio of Auto Iris/AGC/ ELC detected peak to average can be adjusted with a predetermined average

(P50 –A50)

■ Light Area: Photometric measurement method can be selected for Auto Iris/AGC/ELC. D etect light masked five different ways:

All – the whole screen area is measured

Center – the screen is measured in the center area

Top Cut – about one-third of the top part of the screen is excluded from measurement

Bottom Cut – about one-third of the bottom portion of the screen is excluded from measurement

Right/Left Cut – about one-third of both the right and left portions of the screen are excluded from measurement

Auto Gain Up: Three settings for automatic Gain-Up control. Low (up to +18dB), High (up to +30dB) and Off.

Manual Gain Up: Select up +30 dB gain in 1dB increments

Pedestal: Black level of the luminance signal can be set (-30 to +30) – used in adjusting the black levels of two or more cameras

Contrast (Gamma): Increasing gamma increases overall contrast, decreasing gamma stretches blacks and improves low light performance – gamma can be adjusted to any of three levels

Color Set

Chroma Level: Can be increased or decreased to any of three levels each

Skin Tone (Flesh Tone): Skin color can be increased or decreased to any of three levels each

White Balance Settings: ATW, AWC A, AWC B, P Set

3200K, P Set 5600K

– Auto Tracing White Balance (ATW): White balance is continuously adjusted — ideal for unattended applications

– White Balance setting can be selected from one of two memories (AWC A, AWC B), fine adjustment of white balance can be made after AWC by R/B Gain via the Painting function

– P Set 3200K: WB is adjusted to 3200K

– P Set 5600K: WB is adjusted 5600K

■ Highlight Chroma Setting: At low or high, the color dynamic range widens to prevent highlighted white portions from suppression.

G/L Color Bar Set

Horizontal Phase Adjustment: H. Phase can be adjusted (-206 to +49) when a genlock signal is supplied

Sub Carrier Phase Coarse Adjustment: Coarse adjustment (1, 2, 3, 4) of SC Phase can be made when a genlock signal is supplied

Sub Carrier Fine Phase Adjustment: Fine adjustment (-511 to +511) of SC Phase can be made when a genlock signal is supplied

Detail Level Setting (Low/High/Off ) creates a clear picture with very fine detail in accordance with formats: 3/4˝ or VHS are set at low,

S-VHS/Betacam are set at high

Color Bar Setup: Color Bars can be adjusted for 0 IRE or 7.5 IRE

Sharpness Set

■ Detail Select Setting (Sharpness/Super Hard): If contour correction is not sufficient at the Sharpness position when Detail level setting is set to Low or High, select the Super Hard position.

Noise Suppress Level Setting (Low/High/Off ) reduces screen noise

Clean DNR (Low/High/Off )

■ Detail Flesh Tone Level Settings: Low (skin color coarseness is suppressed), Mid (standard), High (skin color is emphasized)

Other Set

■ Electronic Shutter modes (Step, ELC, Synchro Scan):

– 7-Speed Selectable: 1/100,1/250, 1/500 1/1000, 1/2000, 1/4000 and

1/10,000 of a second

– Synchro Scan: For shooting computer monitors without vertical scan lines. Shutter speeds adjustable in 1H steps up to 1/253.2 of a second

Auto ND (ELC-Electric Light Control):

Shutter speed is automatically controlled to regulate picture level ( luminance) . Use for applications with a fixed iris lens or a lens without an iris, like a microscope.

On/Off selectable

Vertical Resolution (Normal/Fine):

– Normal: CCD storage will be by field storage (normal image)

– Fine: Vertical resolution is increased by using frame storage and 1/60 second shutter speed

■ Baud Rate: Select a communication speed in controlling the camera from the computer (1200/

2400/4800/9600 bps)

■ Negative/Positive: Select if you want image shown as a normal positive, or reversed in darkness and color (negative)

Rear view

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

P A N A S O N I C

AW-E300/AW-E600

The AW-E300 and AW-E600 can be used with or without feature cards.

Currently there are several cards available, with many more on the way.

AW-PB301 Combo Studio/RGB Card: Combines both RGB and Studio functions

AW-PB302 RGB Card: Outputs RGB, component, composite, S-Video and sync

AW-PB303 High Sensitivity Card: Minimum illumination (Still mode) of .0025 lux

AW-PB304 SDI Card: Output SMPTE 259M D-1 signals

AW-PB305 Studio Card: For use with 5˝ viewfinder. Includes RCU capability, intercom input/output and tally output. Offers composite and S-Video output

Future cards include:

• IEEE1394 card • Scan Converter Card • Time/Date and Title Card •PC Scan Card

The camera's studio feature card can be connected to current RCU units (WV-RC550 and RC700A), as well as Panasonic's new AWP-PH300 Pan/Tilt system, which uses a CCU-controlled Multiplex

Hybrid Control Panel to control up to five cameras with pan/tilt, camera and lens control. Many other feature cards are under development to facilitate versatile production uses of the AW-E300/AW-E600.

Various “convertible” feature cards will allow a wide range of professional uses from the same camera.

Imaging Elements

Lens Mount

Standard Brightness

Minimum Brightness

S/N

Horizontal Resolution

Color Bar

White Balance

Shutter Speed

Gain

Iris

Video Output

Feature Cards

AW-E300

AW-E300

1/3˝ IT type 3-CCD System (410,000 pixels)

AW-E600

AW-E600

1/2˝ IT type 3-CCD System (410,000 pixels)

1/3˝ C Mount

2000 lux at F8

1.5 lux (F1.4 night eye mode)

1/2˝ Standard Bayonet mount

2000 lux at F11

0.25 lux (F1.4 night eye HIGH-mode)

63 dB (DNR On)

800 Lines (High Band DTL On)

65 dB (DNR On)

850 Lines (High Band DTL On)

SMPTE color bar (0/7.5% IRE)

Self adjust A/B 2-memory, manual fine adjust, ATW, 3200K, 5600K.

OFF, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000, synchro-scan ELC: Variable target level

AGC Low/High, 0dB-30dB night eye

Auto (manual control is only possible when using RCU or control panel)

Composite (BNC) and S-Video (50-Pin D-Sub Connector)

Optional Lenses for AW-E300/AW-E600

1/3-inch Lenses for AW-E300

Fujinon AW-LZ14MD55: 14:1 Motorized (zoom, focus and iris) lens

Fujinon AW-LZ14ST55: 14:1 Servo zoom lens (for studio use)

Fujinon AW-LZ10MD6: 10:1 Motorized (zoom, focus and iris) wide angle lens

Canon TZ1705SSB/P: 17:1 Motorized (zoom, focus and iris) lens

*Motorized zoom lenses are for use with AW-PH300 Pan/Tilt system

1/2-inch Lenses for AW-E600

Canon AW-LZ14ST73: 14:1 Servo zoom lens (for studio use)

Fujinon S14x7.5BRM4: 14:1 Servo zoom lens (for studio use)

Canon YH18x6.7BKRS: 18:1 Servo zoom lens (for studio use)

Fujinon S19x6.5BRM4: 19:1 Servo zoom lens (for studio use)

Canon YH18x6.7KTS: 18:1 Motorized (zoom, focus and iris) lens

Fujinon S19x6.5BMD: 19:1 Motorized (zoom, focus and iris) lens

Equipment Leasing Available

P A N A S O N I C

Sample AW-E300/AW-E600 Configurations

Broadcast D1 Output for CS/CATV Stations

• AW-E600 Camera body ..................x1

• AW-S14xBMD 14x Zoom Lens ......x1

• AW-PH300 Indoor Pan/Tilt Unit ....x1

• AW-RP501 Hybrid control panel ....x1

• AW-CA50T15 Pan/Tilt Unit cable ..x1

• NTSC Video Monitor ......................x2

• SDI Equipped VCR..........................x1

• AW-PS300 AC adapter f/pan/tilt ....x1

• AW-PS301 AC adapter f/AW-RP501 x1

• AW-PB304 SDI Card ......................x1

Inserting an SDI card allows connection to digital equipment without loss of image quality.

Ideal for one-person studios for CATV stations and businesses that require high picture quality.

Inserting the AW-PB305 Studio Card creates a compact and simple-to-use studio camera.

Simple Cost-Effective

System for Studios

• AW-E300 Camera body ....................x1

• AW-LZ10MD6 Zoom Lens............ x1

• AW-PB305Studio Card ....................x1

• WV-RC550 Remote Control Unit ..x1

• WV-FVF65B 5” Studio Viewfinder x1

• AW-Q40 Viewfinder Mount ............x1

• AW-LK30 Lens Control Kit ............x1

• AW-CA50A26 RCU Cable ..............x1

For Graphic Work With

Both PC and RGB Output

• AW-E300 Camera body ..................x1

• Manual Macro Zoom Lens ..............x1

• AW-PS505 AC adapter ....................x1

• AW-PB302 RGB Card ....................x1

• AW-CA50T6 RGB Cable ................x1

• AW-CA4T1 DC power cable ..........x1

Inserting the AW-PB302 RGB Card allows shooting while the camera is mounted on a copy stand. It can be used for reading in text graphics, and for image processing input. The RGB card is compatible with both output to PCs and RGB output.

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

P A N A S O N I C

AW-E300/AW-E600

Accessories for AW-E300/AW-E600

Power Cable

AW-CAT41: 3 meter power cable from AW-PS505 or AG-B640 AC

Adapters

RCU Cables

VW-CA50A26: 50-ft. 50-pin to 26-pin studio (multicore) cable.

For use with RCU (WV-RC700A or RC550) to AW-E300/E600

WV-CA26U15: 15 meter 26-pin to 26-pin multicore cable used for extension of AW-E300/E600 from RCU (Requires WV-CA26T26 cable joint adapter).

WV-CA26U30: 30 meter 26-pin to 26-pin multicore cable

WV-CA26U100: 100 meter 26-pin to 26-pin multicore cable

Pan/Tilt Cable

AW-CA50T15: 0.5m 50-pin to 15-pin cable for use with AW-PH300

Pan/Tilt Head to AW-E300/E600

RGB Cables

AW-CA50T6: 5 meter 50-pin to RGB breakout cable (5 BNC and

S-Video) for connection to RGB monitor or projector from the AW-

E300/E600.

WV-CA9T9: 9-pin to 9-pin video/RGB output cable

WV-CA9T5: 9-pin to 5 BNC video/RGB output cable

Studio Viewfinder

WV-F65B: 5-inch Studio Viewfinder

AW-Q40: Viewfinder bracket for WV-F65B

RCB Cables

WV-CA50T10: 10´ 50-pin to 10-pin RCB cable.

For use with RCB (WV-CB700A) to AW-E300/E600

WV-CA10B02: 2 meter 10-pin to 10-pin RCB cable used for extension of AW-E300/E600 from WV-CB700A.

WV-CA10B25: 25 meter 10-pin to 10-pin RCB cable

WV-CA10B50: 50 meter 10-pin to 10-pin RCB cable

Lens Control Kits

WV-LK35: Rear zoom/focus control kit for Canon 1/2-inch lenses

WV-LK36: Rear zoom/focus control kit for Fujinon 1/2-inch lenses

WV-LK50: Rear zoom/focus control kit for Fujinon 1/3-inch lenses

WV-LK30: Hand-held lens control kit for Fujinon motorized zoom lenses (AW-LZ10MD6, AW-S14 X BMD, S19-6.5BMD)

RS-232 Cables

AWCA50T9: 3 meter 50-pin to 9-pin serial cable for computer control of AW-E300/E600

AWCA28T9: 3 meter 28-pin to 9-pin serial cable for computer control of AW-PH300 Pan/Tilt Head

AWCA50A15: 50-pin to 15-pin CCU cable. Combines Pan/Tilt and

CCU control (AWCA28T9 cable is also required)

Multicore Cable Control Systems with WV-RC700A or WV-RC550 RCUs

WV-RC700A

Using the WV-RC700A or WV-RC550 Remote

Control Units with 26-pin multicore cables allows remote camera control up to a distance of 1000 feet.

(Full function with component video output with the

WV-RC700A.) The WV-CB700A (not shown) is a compact size RCB (remote control box) that can control the camera head directly or through the WV-RC700A.

WV-RC550

AW-S300: Basic Studio Kit for AW-E300

• AW-LZ10MD6 10:1 Motorized Wide Angle Lens

• WV-LK30 Lens Control Kit

• WV-RC550 RCU • AW-CA50A26 Cable

• W-PB305 Studio Card

• WV-VF65B 5˝ Viewfinder • AW-Q40 Viewfinder Bracket

AW-S301: Studio Kit for AW-E300

• AW-LZ14ST55 14:1 Servo Zoom

• WV-LK50 Zoom Focus Controller

• WV-CA12T12A 12-Pin Lens Control Cable Extension

• WV-RC550 RCU • AW-CA50A26 Cable

• W-PB305 Studio Card

• WV-VF65B 5˝ Viewfinder • AW-Q40 Viewfinder Bracket

We Exhibit At NAB, Infocomm, and Siggraph

P A N A S O N I C

PROFESSIONAL PAN-TILT CONTROL SYSTEM

The traditional production pan-tilt system required separate controllers for the camera, lens and the pan-tilt mechanism. Now, a production-use camera turntable control system can be created with the quiet, high-speed AW-PH300 turntable. The compact body allows taping without anyone being aware of its presence. Used in conjunction with the AW-RP501 Hybrid Control Panel, you can control the camera, lens and pan-tilt mechanism, allowing single-person operation from one station. The AW-

RP501 enables remote control of camera functions, including white/black balance, gain, shutter speed and selection of preset scene files, in addition to lens and turntable control.

ATW, A/B white balance can also be preset for each position, as well as zoom, focus and iris positions (up to 10 patterns).

Systems can be configured to suit production purposes. These include systems

(using the AW-RP505 Multi-Hybrid Control Panel) for controlling five cameras, lenses and turntable sets using one unit in combination with the AW-

HB505 Multi-Port Hub. Systems for controlling cameras and turntables using an RCU can also be configured (using the AW-RP301 Pan-Tilt Control Panel or AW-RP305 Multi-Pan Tilt Control Panel).

System Components

AW-PH300 Indoor Pan-Tilt Mechanism

■ Wide control range allows panning over a 300° field and tilting over a 190° field. Also offers high speed control of 25° per second of panning and 20° per second of tilting.

■ Soft landing control function ensures smooth starts and stops.

■ Exceptionally quiet operation with a noise level of less than NC30.

■ Camera and lens weighing up to a maximum of 8.8 lbs. (4kg) can be mounted.

Requires the AW-PS300 AC Adapter

AW-RP505 Multi-Hybrid Control Panel

■ Same features as the AW-RP501, except it provides simultaneous control of 5 distinct sets of cameras, lenses and AW-PH300 Pan-

Tilt mechanisms, in conjunction with the AW-HB505 Multi-Port

Hub. Requires the AW-PS301 AC Adapter.

AW-HB505 Multi-Port Hub

■ Used in conjunction with AW-RP505 to allow simultaneous control of 5 distinct sets of cameras, lenses and AW-PH300 Pan-Tilt mechanisms. Requires the AW-PS505 AC Adapter.

AW-RP501 Hybrid Control Panel

Conventional presets enable you to easily switch between your most frequently used settings for zoom, focus and the AW-PH300.

Settings for white balance (ATW, A, or B) can also be stored in presets. (Up to 10 setting patterns or “snapshots” can be memorized)

Camera functions can be controlled from the control panel.

Speed-select switch

Logically arranged operation levers, preset selection switches, and other controls.

Connector panel can be mounted either to the back or on the bottom of the Hybrid Control Panel unit.

Requires the AW-PS301 AC Adapter

AW-RP301 Pan-Tilt Control Panel

For control of a single AW-PH300. Exactly the same control functions as the AW-RP501, without camera control. For camera control, an RCU (either the WV-RC700A or WV-RC550) is needed.

Requires the AW-PS301 AC Adapter.

AW-RP305 Multi Pan-Tilt Control Panel

For simultaneous control of 5 AW-PH300 Pan-Tilt mechanisms.

Exactly the same control functions as the AW-RP505, without camera control. For camera control, an RCU (either the WV-RC700A or WV-RC550) is needed. Requires the AW-PS301 AC Adapter.

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

P A N A S O N I C

PROFESSIONAL PAN-TILT CONTROL SYSTEM

Accelerated

Pan Tilt Operation

Speed scrolling 25° per second horizontally and 20° per second vertically. Speed control facilitates pinpoint positioning.

Control Panel

White Balance

ATW Select Switch

Preset Position

Select Switch Array

Camera

Control

Section

Quiet Operation

Silent operation distracting noise mechanism. Shoot without worrying about disturbing the atmosphere of the installation site.

Pan-Tilt

Mechanism and Lens

Control

Section

Preset Built-In Function

Stores the settings for Zoom, Focus and the Pan-Tilt mechanism for instant recall. A maximum of 10 setting patterns can be stored in memory.

Speed Select

Switch

Zoom Control

Lever

Focus Adjustment

Lever

Pan-Tilt

Operation Lever

Panasonic

AW-PH300

Fujinon

CPT-1A-10D

Telemetrics

PT-CP-M

Panasonic

AW-PH300

Fujinon

CPT-1A-10D

Telemetrics

PT-CP-M

Application

Production

Production

Production

Pan Range

300°

300°

360°

Competition Comparison

CCU Control Cameras Noise

Yes

No

No

5

4

4

Under NC 30

Under NC 40

N/A

Stop Accuracy

± 5 Minutes

± 10 Minutes

± 15 Minutes

Speed

25°/Sec

15°/Sec

12°/Sec

Tilt Range Max. Distance Operation Weight Capacity Preset Memory

±95° 500m Servo+Speed 4kg 10/30

300m 32 ±95°

360°

Servo

Servo

4kg

6.8kg

®

®

P A N A S O N I C

PROFESSIONAL PAN-TILT CONTROL SYSTEM

Broadcast Point of

View, Newsrooms

Using the AW-RP301 Pan-

Tilt Control Panel or AW-

RP305 Multi-Pan-Tilt

Control Panel, recording of programs can be controlled by a single person. The use of an RCU enables camera functions to be fine-tuned.

A tally LED is mounted on the Pan/Tilt mechanism.

Education—Long

Distance Learning

A system consisting of the

AW-RP505 Multi-Hybrid

Control Panel with the AW-

HB505 HUB is ideal for use in classrooms or conference halls where a large number of people gather together.

The system’s 300° pan capability allows an entire auditorium to be viewed by near end and far end viewers. The whole view of the lecture hall can also be captured.

Sporting Events

Using just the AW-RP501

Hybrid Control Panel, this system is also suitable for indoor sports in gymnasiums or auditoriums. The system’s speed scrolling capability gives you the control you need to capture the fast action of basketball players, for example. Install near the court so you won’t miss the dramatic winning shot.

PHOTO - VIDEO - PRO AUDIO

THE PROFESSIONAL’S SOURCE (212) 444-6601

FAX: (212) 444-5001

1 • 8 0 0 • 9 4 7 • 9 9 0 1

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
