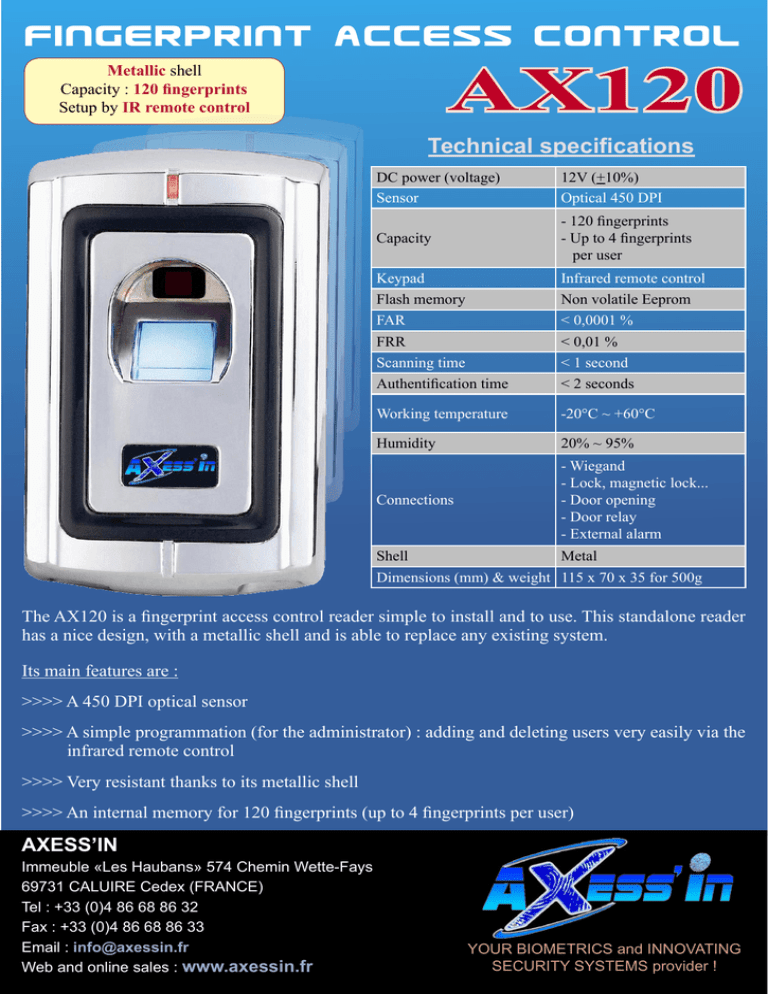

fingerprint access control

fingerprint access control
fingerprint access control
AX120
Metallic shell
Capacity : 120 fingerprints
Setup by IR remote control
Technical specifications
DC power (voltage)
Sensor
12V (+10%)
Optical 450 DPI
Capacity
- 120 fingerprints
- Up to 4 fingerprints
per user
Keypad
Flash memory
FAR
FRR
Scanning time
Authentification time
Infrared remote control
Non volatile Eeprom
< 0,0001 %
< 0,01 %
< 1 second
< 2 seconds
Working temperature
-20°C ~ +60°C
Humidity
20% ~ 95%
Connections
- Wiegand
- Lock, magnetic lock...
- Door opening
- Door relay
- External alarm
Shell
Metal
Dimensions (mm) & weight 115 x 70 x 35 for 500g
The AX120 is a fingerprint access control reader simple to install and to use. This standalone reader
has a nice design, with a metallic shell and is able to replace any existing system.
Its main features are :
>>>> A 450 DPI optical sensor
>>>> A simple programmation (for the administrator) : adding and deleting users very easily via the
infrared remote control
>>>> Very resistant thanks to its metallic shell
>>>> An internal memory for 120 fingerprints (up to 4 fingerprints per user)
AXESS’IN
Immeuble «Les Haubans» 574 Chemin Wette-Fays
69731 CALUIRE Cedex (FRANCE)
Tel : +33 (0)4 86 68 86 32
Fax : +33 (0)4 86 68 86 33
Email : [email protected]
Web and online sales : www.axessin.fr
YOUR BIOMETRICS and INNOVATING
SECURITY SYSTEMS provider !
