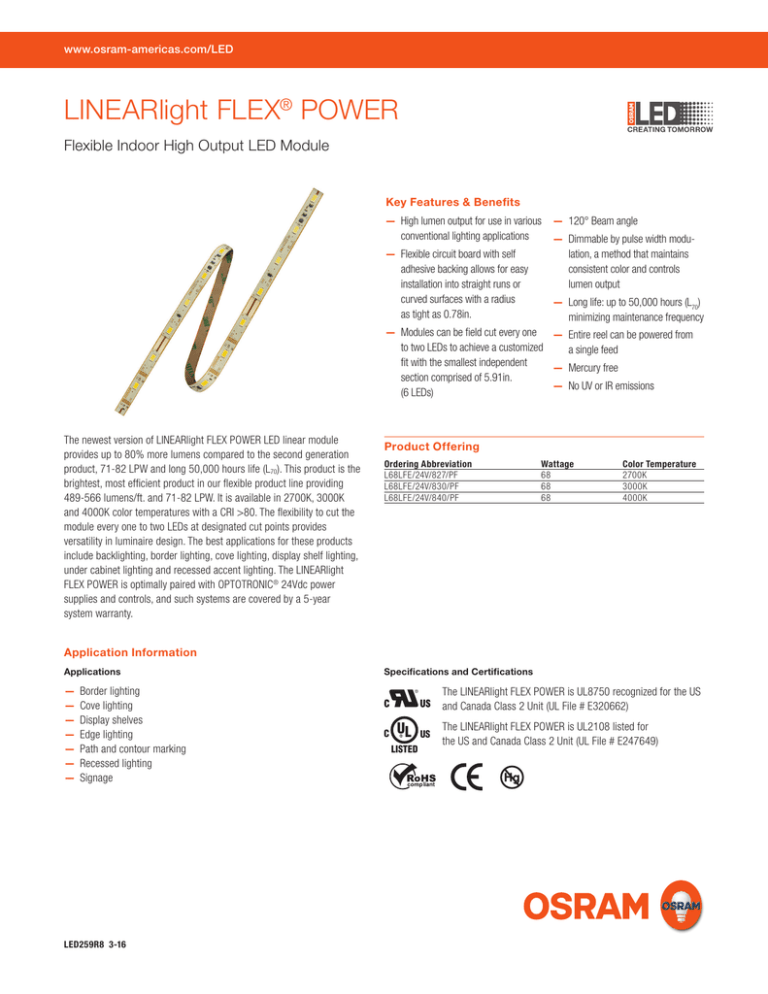

LINEARlight FLEX® POWER
Flexible Indoor High Output LED Module
Key Features & Benefits
—— High lumen output for use in various —— 120° Beam angle
conventional lighting applications
—— Dimmable by pulse width modu­
—— Flexible circuit board with self
lation, a method that maintains
adhesive backing allows for easy
consistent color and controls
installation into straight runs or
lumen output
curved surfaces with a radius
—— Long life: up to 50,000 hours (L70)
as tight as 0.78in.
minimizing maintenance frequency
—— Modules can be field cut every one —— Entire reel can be powered from
to two LEDs to achieve a customized
a single feed
fit with the smallest independent
—— Mercury free
section comprised of 5.91in.
—— No UV or IR emissions
(6 LEDs)
The newest version of LINEARlight FLEX POWER LED linear module
provides up to 80% more lumens compared to the second generation
product, 71-82 LPW and long 50,000 hours life (L70). This product is the
brightest, most efficient product in our flexible product line providing
489-566 lumens/ft. and 71-82 LPW. It is available in 2700K, 3000K
and 4000K color temperatures with a CRI >80. The flexibility to cut the
module every one to two LEDs at designated cut points provides
versatility in luminaire design. The best applications for these products
include backlighting, border lighting, cove lighting, display shelf lighting,
under cabinet lighting and recessed accent lighting. The LINEARlight
FLEX POWER is optimally paired with OPTOTRONIC® 24Vdc power
supplies and controls, and such systems are covered by a 5-year
system warranty.
Product Offering
Ordering Abbreviation
L68LFE/24V/827/PF
L68LFE/24V/830/PF
L68LFE/24V/840/PF
Wattage
Color Temperature
682700K
683000K
684000K
Application Information
Applications
—— Border lighting
—— Cove lighting
—— Display shelves
—— Edge lighting
—— Path and contour marking
—— Recessed lighting
—— Signage
LED259R8 3-16
Specifications and Certifications
The LINEARlight FLEX POWER is UL8750 recognized for the US
and Canada Class 2 Unit (UL File # E320662)
C
UL
LISTED
US
The LINEARlight FLEX POWER is UL2108 listed for
the US and Canada Class 2 Unit (UL File # E247649)
Specification Data
Catalog #
Type
Project
Comments
Prepared by
Ordering Information
Item Ordering European
Number Abbreviation
Part Number
71329 L68LFE/24V/827/PF
LF06P2-W5F-827 71328 L68LFE/24V/830/PF
LF06P2-W5F-830 71327 L68LFE/24V/840/PF
LF06P2-W5F-840 Module
Length No. of Power
(feet)
LEDs
(W)
9.8 120 68 9.8 120 68 9.8 120 68 Input
Voltage
(Vdc)
24 24 24 Current
Draw
(Amps)
2.8 2.8 2.8 Color
Temperature
2700K 3000K 4000K Lumens
(lm) 4792 5168 5544 Lumens
per foot
489 525 566 Watts
per foot
6.9 6.9 6.9 LPW
70.5
76.0
81.5
Notes:
All data is related to the entire module. Data reflects statistical mean values. Actual data may differ depending on variances in the manufacturing process.
Beam angle = 120°
Ordering Guide
L
Technology
L=LED
68
Power
68 = 68 Watts
LFE
/ 24V /8
Type
Voltage
CRI
LFE=Linear Flexible Engine
>80
27
/
Color Temperature
27 = 2700K
PF
POWER FLEX
Power Supply Information
Max. Number of Modules and Max. Length per Power Supply
OT20 OT50 OT75OT96
(51804)
(51598)
(51514)
(51520, 51522, 51626)
OT240*
(51627)
All Item Numbers
4c = 1.9'
19c = 9.3'
12c = 5.9'
18c = 8.8'
23c (1.5r) = 11.3'
Notes:
1. In the above chart, “c” = coupon, “r” = reel
2. A coupon (Smallest Electrical Unit – SEU) is a sub-section of the module containing 6 LEDs and at a length of 5.9". Reference this bulletin’s “Assembly Diagram” for details.
3. These numbers are calculated based on maximum power values 82.5W.
4. The module is designed to work with Constant Voltage power supplies only. Reference the Power Supply PIB # ECS050 for product specific information.
5. To accurately determine the maximum LED load for the application refer to “Remote Mounting Distances” Application Note (LED126). This document can be found at www.sylvania.com/led.
6. The OT240 has 3 channels at 80W each. Values represented in chart are “per channel”.
7. Parallel runs may be required to achieve the numbers listed above. Please reference this bulletin’s “Wiring Diagram” for product specific wiring instructions.
Minimum and Maximum Ratings
ParameterValues
Operating Temperature at Tc point-20 to +75°C (-4 to +167°F)
Storage Temperature Range-20 to +75°C (-4 to +167°F)
Voltage Range
23 – 25Vdc
Reverse Voltage
25Vdc
Notes:
1. Exceeding maximum ratings for operating and storage temperature will reduce expected lifetime or destroy the LED module.
2. Exceeding maximum ratings for operating voltage will cause hazardous overload and will likely destroy the LED module.
3. T he temperature of the LED module must be measured at the Tc point according to EN60598-1 in a thermally constant status with a temperature sensor or a temperature sensitive label.
For example location of Tc point, see drawing on next page.
Accessories
Item
Ordering
Number
Abbreviation
Track Accessories
72356
LAC-T/STS/7FT
72357
LAC-M/STS/CLIP
72360
LAC-T/STS-COV/C/7FT
72358
LAC-T/STS-COV/D/7FT
72359
LAC-S/STS/ENDCAP
European
Part Number
Description
Length CaseOrder
(inches) Qty. Qty.
LF-LTS-2100
LF-LTS-MB
LF-LTS-COVER-CLEAR
LF-LTS-COVER-DIFFUSE
LF-LTS-ENDCAP
83
1.1
83
83
0.8
Indoor Accessories
71428
LAC-C/TP/TERMCAP
LF-2TERM FLEX
Termination Cap-
200 10
72671
LF-CONN Flex SC
LF-CONN Flex SC Board to board connector piece
0.35
250 25
72947*
LF-WIRE-30 FLEX SC
LF-WIRE-30 FLEX SC
30mm connector wire
1.1
10,000 100
72948*
LF-WIRE-150 FLEX SC
LF-WIRE-150 FLEX SC
150mm connector wire
5.9
5000 50
72946
LF-2PIN Flex SC
LF-2PIN Flex SC
Input connector
20
250 10
*Use with 72671
6.9' aluminium track
Optional mounting bracket for track
6.9' clear cover for track
6.9' diffused cover for track
End cap used only with 72358
40
280
40
40
160
Assembly Diagram
0.1 2.5
118.1 3000
5.91 150
4.91 124.6
3.92 99.6
.49 12.5
.31 8
.99 25.1
"X1" Cut Point
If Cut Here, Attach Termination Cap
SEU Cut Point
If Cut Here, DO NOT attach Termination Cap
"X2" Cut Point
If Cut Here, Attach Termination Cap
Dimensions: Inches [mm]
Size of Entire Module (L x W x H)
118.1" x 0.31" x 0.1"
Wiring Diagram
The maximum operable length on a single feed is 1 full reel (9.8ft.).
Remaining load must be connected on subsequent power feeds.
Reference the “Power Supply Information” section of this PIB for
module load per power supply requirements.To help reduce the effects
of any potential voltage drop, if possible, it is best to locate the power
supply near the middle of the run.
1
35
1
1
20
Safety Information
WARNING: ONLY QUALIFIED PERSONNEL SHOULD PERFORM INSTALLATION. TO AVOID ELECTRICAL SHOCK OR COMPONENT DAMAGE, DISCONNECT
POWER BEFORE ATTEMPTING INSTALLATION OF THE POWER SUPPLIES AND/OR MODULES.
Failure to install the power supplies and/or LED modules in accordance with the National Electric Code (NEC), all applicable Federal, State and local electric codes as well
as the specific Underwriters Laboratories (UL) safety standards for the installation, location and application may cause serious personal injury, death, property
damage and/or product malfunction.
1. T he LED module itself and all its components shall not be subjected to mechanical stress and assembly must not damage or destroy conducting paths on
the circuit board.
2. O
bserve correct electrical polarity, incorrect polarity may destroy the module. (Depending on the product, incorrect polarity may lead to emission of red or
no light.)
3. Ensure the power supply is of adequate power to operate the total load.
4. Electrostatic Discharge (ESD) precautions shall be incorporated when handling or installing the module. (For more information, reference document
# LED093 ESD Protection for LED Systems.)
5. Installation of LED modules shall be made with regard to all applicable electrical and safety standards. Only qualified personnel should be allowed to
perform installations.
6. Modules may be hot to the touch. Use caution when handling.
7. D
amage by corrosion and improper heat sinking will not be honored as a materials defect claim. It is the user’s responsibility to ensure adequate heat sink
and protection against corrosive agents such as moisture, condensation and other harmful elements.
8. A void looking directly into the light beam as the high brightness may damage eyes.
9. T he module, as manufactured, has no conformal coating and therefore offers no inherent protection against corrosion. The ability to customize the length
of the module by cutting at specifically marked points is a key feature of the product and hence the reason for no factory installed conformal coating.
For these reasons, it is recommended that the user complete all module modification first (cutting, wiring) and then apply a conformal coating in the final
stages of installation.
Assembly Information
1. The LINEARlight FLEX® POWER must be mounted on an appropriate metal heat sink.
2. The Smallest Electrical Unit can be removed by cutting with scissors before or after the designated solder pad.
3. The module may also be cut at points X1 or X2 (reference “Assembly Diagram” for locations). The following must be observed when making cuts at
these locations:
a. Observe the correct orientation of the module: The power feed must come from the side indicated in the technical drawing.
b. The module must not be cut before the first two LEDs, which have the Tc Point in between them. This part would emit no light.
c. To operate the desired subunits, the termination LF-2TERM must be applied. Disengage the terminations locking mechanism, slide it over
the open contacts and press the locking mechanism back in place.
4. The mounting of the module is facilitated by means of the double-sided adhesive on the back-surface of the module. Care must be taken to provide a clean
and dry mounting surface, free of oils or silicone coatings as well as dirt particles. The mounting substrate must have sufficient structural integrity. Take care
to completely remove the adhesive backing. Once the module is appropriately positioned, press on the module with about 20N/cm2 (refer to application
techniques of 3M adhesive transfer tapes).
5. S older connections should only be performed on designated solder pads (marked “24V +/-”). During soldering, do not exceed the maximum
soldering time of 10 seconds and the maximum soldering temperature of 260°C.
6. C
onnecting soldered wires to an un-mounted module: Solder pads must not be pre-tinned. However, the wires must be pre-tinned at a max. 4 sec. at 300°C.
Allow solder points to completely cool down before performing the next soldering. Prevent shear, or peel forces.
7. C
onnecting soldered wires to a module mounted on a heat sink: Pre-tin solder pads and wires and solder for max. 3 sec. at 350°C. Allow
solder points to completely cool down before performing the next soldering. Prevent shear, or peel forces.
8. For applications involving exposure to humidity and dust, the module must be protected by a fixture, or housing with a suitable protection class.
9. The module can be protected against condensation by treatment with an appropriate circuit board grade conformal coating. The conformal coating should have
the following features:
a. Optical transparency
b. UV – resistance
c. Thermal expansion matching the thermal expansion of the module 15-30 x 10^-6cm/cm/K
d. Low permeability of steam for all climate conditions
e. Resistance against corrosive environment
Note: Since this module’s connectors are “Dry Location Only” rated, they must not be used as a connection means when conformal coating becomes necessary.
Soldered wires are the appropriate connection means used in conjunction with conformal coating. Any of the necessary steps 2, 3, 5, 6, & 7 must be completed
before conformal coating can be applied.
Assembly Information (Continued)
10. The minimum bending radius is 0.78 in. The module may be bent over a smaller radius but only in regions of the circuit board containing
no electronic components. Such bends should be made only once and fixed in position to avoid cyclic fatigue.
11. The thermal expansion coefficient along the length of the module is 17 x 10^-6cm/cm/K. When installing in environments with large variations in
temperature (e.g. outdoor applications) and operating length of more than 2m, the use of metallic mounting surfaces is necessary. Otherwise it is
advisable to use an additional thicker adhesive tape to absorb the stress of any mismatch in expansion coefficients.
12. Parallel connection is highly recommended as safe electrical mode. Serial connection is not recommended. Unbalanced voltage drop can cause hazardous
overload and damage the LED module.
13. The maximum length of a coherently operable unit is one full reel. By two-pole feed in the middle or from both ends the length can be doubled.
14. When mounting on metallic or otherwise conductive surfaces, there needs to be electrical isolation at soldering points between module and
mounting surface.
Warranty
OSRAM LED products are covered by our LED Module, OPTOTRONIC ® Power Supply or Control Warranty.
The LINEARlight FLEX® POWER is covered under warranty as long as the temperature at the Tc point does not exceed 75°C; exceeding this temperature will void all warranties.
For additional information or to download the warranty registration form, refer to the latest version of the warranty available in the Literature section of www.osram-americas.com/LED.
Module Warranty: 3 years
System Warranty: 5 years
Americas Headquarters
OSRAM SYLVANIA Inc.
200 Ballardvale Street
Wilmington, MA 01887 USA
Phone 1-800-LIGHTBULB (1-800-544-4828)
www.osram-americas.com
OSRAM, OPTOTRONIC, LED CREATING TOMORROW and LINEARlight FLEX are registered trademarks of OSRAM GmbH.
Specifications subject to change without notice.
© 2016 OSRAM
