Panasonic recommends Windows.

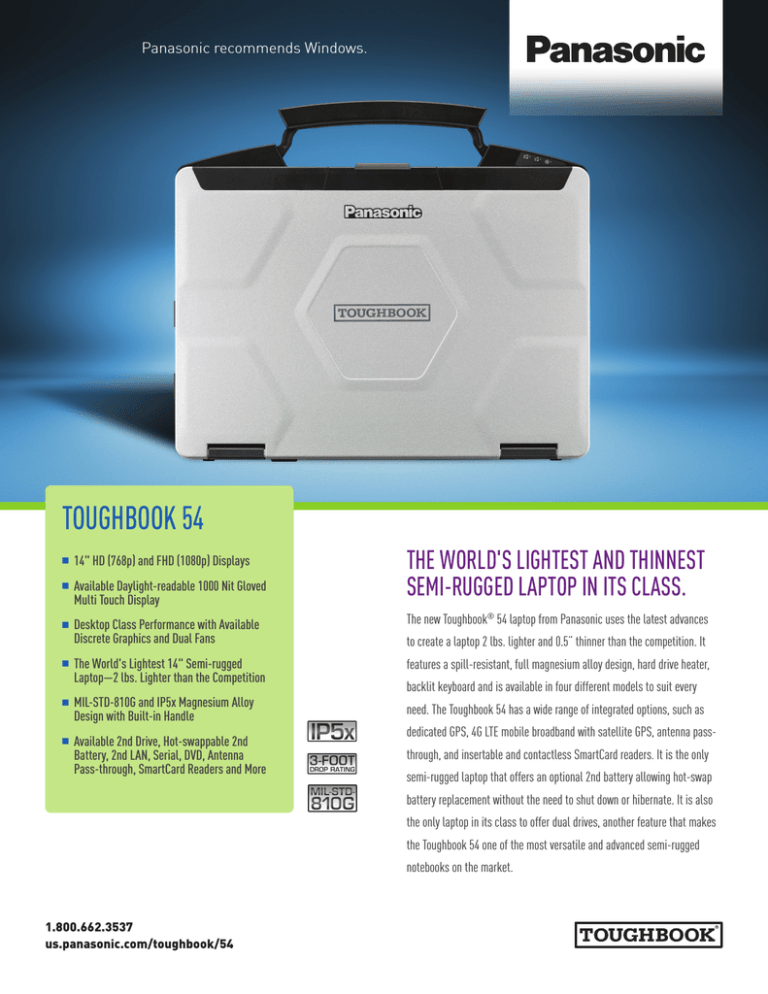

TOUGHBOOK 54
THE WORLD'S LIGHTEST AND THINNEST
SEMI-RUGGED LAPTOP IN ITS CLASS.
n
14" HD (768p) and FHD (1080p) Displays
n
A vailable Daylight-readable 1000 Nit Gloved
Multi Touch Display
n
D esktop Class Performance with Available
Discrete Graphics and Dual Fans
The new Toughbook® 54 laptop from Panasonic uses the latest advances
n
T he World's Lightest 14" Semi-rugged
Laptop—2 lbs. Lighter than the Competition
features a spill-resistant, full magnesium alloy design, hard drive heater,
n
IL-STD-810G and IP5x Magnesium Alloy
M
Design with Built-in Handle
need. The Toughbook 54 has a wide range of integrated options, such as
n
A vailable 2nd Drive, Hot-swappable 2nd
Battery, 2nd LAN, Serial, DVD, Antenna
Pass-through, SmartCard Readers and More
to create a laptop 2 lbs. lighter and 0.5” thinner than the competition. It
backlit keyboard and is available in four different models to suit every
dedicated GPS, 4G LTE mobile broadband with satellite GPS, antenna passthrough, and insertable and contactless SmartCard readers. It is the only
semi-rugged laptop that offers an optional 2nd battery allowing hot-swap
battery replacement without the need to shut down or hibernate. It is also
the only laptop in its class to offer dual drives, another feature that makes
the Toughbook 54 one of the most versatile and advanced semi-rugged
notebooks on the market.
1.800.662.3537
us.panasonic.com/toughbook/54
TOUGHBOOK 54
Panasonic recommends Windows.
SOFTWARE
n
n
indows® 8.1 Pro, Windows® 7 Professional
W
Panasonic Utilities (including Dashboard), Recovery Partition
POWER MANAGEMENT
DURABILITY
n
IL-STD-810G design (3' drop, shock, vibration, dust, altitude, high/low temperature,
M
temperature shock, humidity)
IP5x dust protected design
Spill-resistant keyboard
Magnesium alloy case with handle
Hard drive heater
Shock-mounted flex-connect hard drive with quick-release
Dual fans (Performance model)
Pre-installed replaceable screen film (Gloved Multi Touch model)
SECURITY FEATURES
Intel® Core™ i5-5300U vPro™ Processor1
– 2.3GHz with Turbo Boost up to 2.9GHz
– 3MB cache
WARRANTY
n
n
n
n
n
n
n
CPU
n
STORAGE & MEMORY
n
n
n
DISPLAY
n
Memory (RAM)
- Performance model2: 8GB or 16GB SDRAM (DDR3L-1600MHz)
- Other models:
4GB, 8GB or 16GB3 SDRAM (DDR3L-1600MHz)
Primary Hard Drive (quick-release)
- 500GB HDD (5400rpm Lite model; 7200rpm other models)4,5
- Optional 128GB SSD, 256GB SSD, 1TB 7200rpm HDD4,5
- Hard drive heater
- Shock-mounted with flex-connect
Optional Second Drive (onboard)3
- 128GB SSD or 256GB SSD4,5
- Hard drive heater
- Trained technician removable
n
n
n
n
n
n
n
n
Intel® high-definition audio compliant
Integrated speakers
Keyboard volume and mute controls
n
n
n
n
n
n
ouch, gestures and stylus pen (Gloved Multi Touch model)
T
2 user-definable keys (A1/A2)
Dashboard
87-key with dedicated Windows® key
Emissive backlit keyboard3
Electrostatic touchpad with multi touch support
AUDIO
KEYBOARD & INPUT
DVD DRIVE
CAMERAS
EXPANSION SLOTS
Optional DVD Super MULTI Drive6
n
Optional 1080P webcam with mic and camera on/off indicator3
n
n
ptional PC card Type II2,3,6
O
SD card (SDXC UHS-II)
n
n
n
n
n
n
n
n
n
n
ocking Connector
D
HDMI
Optional VGA
Headphones/Mic
Optional Serial (True)
USB 3.0 (x 3)
Optional USB 2.0 (x 1)
Rugged Fischer® USB (Core Series)
10/100/1000 Ethernet
10/100/1000 2nd LAN (Ethernet)
n
n
n
n
n
n
n
n
n
ptional integrated 4G LTE multi carrier mobile broadband with satellite GPS
O
Optional dedicated GPS (u-blox NEO M8N)3,7
Optional dual high-gain antenna pass-through3
Optional contactless SmartCard/NFC reader2,3,8
Intel® Dual Band Wireless-AC 7265 802.11a/b/g/n/ac
Intel® Wireless Display (WiDi)
Bluetooth® v4.0 + EDR (Class 1)
Security
– Authentication: LEAP, WPA, 802.1x, EAP-TLS, EAP-FAST, PEAP
– Encryption: CKIP, TKIP, 128-bit and 64-bit WEP, Hardware AES
Slide on/off switch
POWER
n
INTERFACE
WIRELESS
n
n
n
n
n
n
n
n
Li-Ion battery pack9:
– Lightweight battery (standard on Lite model): 10.8V, typical 3220mAh, min. 3050mAh
– Long life battery (standard on other models): 11.1V, typical 4200mAh, min. 4080mAh
– Media bay 2nd battery6:
11.1V, typical 2960mAh, min. 2860mAh
Battery operation9:
– Lite model:
8 hours (15 hours with opt. 2nd battery)
– Other models:
11 hours (18 hours with opt. 2nd battery)
Hot-swap with optional media bay 2nd battery
Battery charging time9:2.5 hours (each battery)
AC Adapter: AC 100V-240V 50/60Hz, auto sensing/switching worldwide power supply
Battery status and battery hot-swap LED indicators
1.800.662.3537
us.panasonic.com/toughbook/54
Panasonic is constantly enhancing product specifications and accessories. Specifications subject to change without notice. Trademarks are property of their respective owners.
©2015 Panasonic Corporation of North America. All rights reserved. Toughbook 54 Spec Sheet_02/15
assword Security: Supervisor, User, Hard Disk Lock
P
Kensington cable lock slot
Trusted platform module (TPM) security chip v.1.2
Computrace® theft protection agent in BIOS10
Optional fingerprint reader3,8
Optional insertable SmartCard reader (bottom)
Optional 13.56MHz contactless SmartCard/NFC reader2,3,8
- ISO 14443 A/B compliant
3-year limited warranty, parts and labor
0.7"(L) x 13.6"(W) x 1.2"(H)11
1
4.2 lbs. (Lite model), 4.4 lbs. (Prime model)
4.6 lbs. (Performance and Gloved Multi Touch models)
INTEGRATED OPTIONS12
n
n
n
n
n
n
n
n
n
n
n
G LTE multi carrier mobile broadband with satellite GPS
4
Dual antenna pass-through3
Dedicated GPS (u-blox) or 2nd LAN or 4th USB (2.0) or rugged Fischer USB2,3
PC Card2,3 or DVD drive or media bay 2nd battery
Contactless SmartCard/NFC or fingerprint readers3
Insertable SmartCard reader (bottom)
Serial3
VGA
1080p webcam and mic3
Primary hard drive (quick-release):
- 128GB SSD, 256GB SSD and 1TB 7200rpm HDD with heaters
2nd hard drive (onboard)3:
- 128GB SSD and 256GB SSD with heaters
SELECT ACCESSORIES12
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
24-pin
Type A
D-sub 15-pin
Mini-jack stereo
D-sub 9-pin3
Type A
Type A3,7
5-pin2,3,7
RJ-45
RJ-452,3,7
Suspend/Resume Function, Hibernation, Standby, ACPI BIOS
DIMENSIONS & WEIGHT
n
n
n
n
n
n
n
n
n
n
isplay Size and Resolution
D
- Gloved Multi Touch model: 14.0" FHD 1920 x 1080 (1000 nit)
- Performance model2:
14.0" FHD 1920 x 1080
- Prime and Lite models:
14.0" HD 1366 x 768
IPS with direct bonding on FHD displays
Anti-reflective3 and anti-glare screen treatments
Graphics
- Intel® HD Graphics 5500 (all models)
- AMD FirePro™ M5100 (Performance model)
Dual monitor support through HDMI and/or optional VGA
Concealed mode (configurable)
n
C Adapter (3-prong)
A
Long Life Battery Pack Lightweight Battery Pack Media Bay 2nd Battery Pack6 Battery Charger LIND Car Adapter 120W ToughMate Always-on 54 Case ToughMate ComUniversal Carrying Case
ToughMate Backpack
Memory Card 4GB
Memory Card 8GB
Desktop Dock
Vehicle Cradle (no electronics)
- Gamber-Johnson
- Havis
Vehicle Docks (no pass-through)
- Gamber-Johnson with LIND Power Supply - Havis with LIND Power Supply
Vehicle Docks (dual pass-through)
- Gamber-Johnson with LIND Power Supply - Havis with LIND Power Supply
Gloved Multi Touch Replacement Stylus
14.0" Gloved Multi Touch LCD Protective Film
CF-AA5713AM
CF-VZSU0PW
CF-VZSU0LW
CF-VZSU0KW
CF-VCBTB2W
CF-LNDDC120
TBC54A0CS-P
TBCCOMUNV-P
TBCBPK-P
CF-WMBA1304G
CF-WMBA1308G
CF-VEB541U
7160-0578-00
DS-PAN-423
7170-0250-P
DS-PAN-422
7170-0251-P
DS-PAN-422-2
FZ-VNPM11U
CF-VPF29U
Please consult your reseller or Panasonic representative before purchasing.
1
An Intel® Core™ i7 processor is also available on Prime, Performance and Gloved Multi Touch models.
2
Performance model available early summer. On all models, delayed availability on select options (2nd LAN, rugged
Fischer USB, Contactless SmartCard/NFC and PC Card).
3
Not available on Lite model.
4
Total usable memory will be less depending upon actual system configuration.
5
1GB = 1,000,000,000 bytes.
6
DVD, PC Card and Media Bay 2nd Battery are mutually exclusive.
7
Dedicated GPS (u-blox), 4th USB (2.0), rugged Fischer USB and 2nd LAN are mutually exclusive.
8
Contactless SmartCard/NFC and fingerprint readers are mutually exclusive.
9
Approximate time. Battery performance features such as charge time and life span can vary according to the
conditions under which the computer and battery are used. Battery operation and recharge times will vary based on
many factors, including screen brightness, applications, features, power management, battery conditioning and other
customer preferences. Battery testing results from MobileMark 2007.
10
Requires software and activation to enable theft protection.
11
1.5" height on Performance model and all models with the following integrated options: insertable SmartCard
(bottom), 2nd LAN, 4th USB (2.0), rugged Fischer USB, VGA and Serial.
12
Accessories and Integrated Options may vary depending on your notebook configuration. Not all items are currently
available. Visit Panasonic website for more accessories and details.
