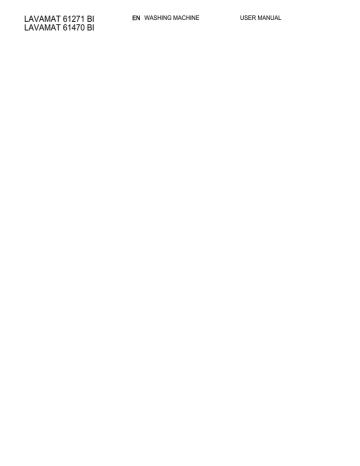

LAVAMAT 61271 BI
LAVAMAT 61470 BI
EN WASHING MACHINE
USER MANUAL
2
www.aeg.com
CONTENTS
4
5
7
8
11
14
14
15
18
20
24
27
33
SAFETY INFORMATION
TECHNICAL INFORMATION
PRODUCT DESCRIPTION
CONTROL PANEL
WASHING PROGRAMMES
FIRST USE
DAILY USE
SETTING AND STARTING A PROGRAMME
HELPFUL HINTS AND TIPS
CARE AND CLEANING
TROUBLESHOOTING
INSTALLATION
BUILDING IN
ENVIRONMENT CONCERNS
Recycle the materials with the symbol . Put the packaging in applicable containers to
recycle it.
Help protect the environment and human health and to recycle waste of electrical and
electronic appliances. Do not dispose appliances marked with the symbol with the
household waste. Return the product to your local recycling facility or contact your
municipal office.
VISIT OUR WEBSITE FOR:
- Products
- Brochures
- User manuals
- Trouble shooter
- Service information
www.aeg.com
LEGEND
Warning - Important Safety information.
General information and tips
Environmental information
Subject to change without notice.
ENGLISH
3
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler – features you might not find on ordinary appliances. Please spend
a few minutes reading to get the very best from it.
ACCESSORIES AND CONSUMABLES
In the AEG webshop, you’ll find everything you need to keep all your AEG
appliances looking spotless and working perfectly. Along with a wide range of
accessories designed and built to the high quality standards you would expect, from
specialist cookware to cutlery baskets, from bottle holders to delicate laundry bags…
Visit the webshop at:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available. The
information can be found on the rating plate.
Model
PNC
Serial Number
4
www.aeg.com
SAFETY INFORMATION
Before the installation and use, read this
manual carefully:
• For your safety and the safety of your
property
• To help the environment
• For the correct operation of the appliance.
Always keep these instructions with the
appliance also if you move or give it to a
different person.
The manufacturer is not responsible if an
incorrect installation and use causes damage.
CHILDREN AND VULNERABLE
PERSON SAFETY
• Do not let persons, children included,
with reduced physical sensory, reduced
mental functions or lack of experience
and knowledge use the appliance. They
must have supervision or instruction for
the operation of the appliance by a person who is responsible for their safety.
Do not let children play with the appliance.
• Keep all packaging away from children.
There is the risk of suffocation or injury.
• Keep all detergents away from children.
• Keep children and pets away from the
appliance when the door is open.
• Before you close the appliance door,
make sure that children and pets are
not into the drum.
• If the appliance has a child safety device, we recommend to activate it.
CHILD SAFETY DEVICE
• When you activate this device, you cannot close the door. This prevents children or pets to be closed in the drum.
To activate the device, turn it clockwise,
until the groove is horizontal. To deactivate the device, turn it counterclockwise, until the groove is vertical.
GENERAL SAFETY
• Do not use the appliance for professional use. The appliance is only for domestic use.
• Do not change the specifications of this
appliance. There is the risk of injury and
damage to the appliance.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
Risk of explosion or fire.
• Obey the safety instructions on the detergent packaging to prevent burns to
eyes, mouth and throat.
• Make sure that you remove all metal
objects from the laundry. Hard and
sharp material can cause damage to
the appliance.
• Do not touch the glass of the door
while a programme operates. The glass
can be hot (only for front-loading appliances).
CARE AND CLEANING
• Deactivate the appliance and disconnect the mains plug from the mains
socket.
• Do not use the appliance without the
filters. Make sure that the installation of
the filters is correct. An incorrect installation causes water leakages.
INSTALLATION
• The appliance is heavy, be careful when
you move it.
• Do not transport your appliance without the transit bolts, you can damage
internal components and cause leakages or malfunctions.
ENGLISH
• Do not install and connect a damaged
appliance.
• Make sure to remove all packaging and
transport bolts.
• Make sure that the mains plug is disconnected from the mains socket during installation.
• Only a qualified person must do the
electrical installation, the plumbing and
the installation of the appliance. This to
prevent the risks of structural damage
or injury.
• Do not install or use the appliance
where the temperature is less than 0 °C.
• When you install the appliance on a
carpet floor, make sure that there is air
circulation between the appliance and
the carpet. Adjust the feet to have the
necessary space between the appliance
and the carpet.
Water connection
• Do not connect the appliance with old
hoses already used. Only use new hoses.
• Make sure not to cause damage to the
water hoses.
• Do not connect the appliance to new
pipes or pipes not used for a long time.
Let the water flow for some minutes,
then connect the inlet hose.
• The first time you use the appliance,
make sure that the water hoses and the
couplings do not have leakages.
Electrical connection
• Make sure that the appliance is earthed.
• Make sure that the electrical information on the rating plate agrees with the
power supply.
• Always use a correctly installed shockproof socket.
5
• Do not use multiple plugs and extension cables. There is a risk of fire.
• Do not replace or change the mains cable. Contact the service centre.
• Make sure not to cause damage to the
mains plug and cable.
• Connect the mains plug to the mains
socket only at the end of the installation. Make sure that there is access to
the mains plug after the installation.
• Do not pull the mains cable to disconnect the appliance. Always pull the
mains plug.
• Only for UK and Ireland. The appliance
has a 13 amp mains plug. If it is necessary to change the fuse in the mains
plug, use a 13 amp ASTA (BS 1362)
fuse.
• Permanent connection. To connect
the appliance permanently, install a
double-pole isolating switch between
the appliance and the electricity supply.
It must have a minimum distance of 3
mm between the switch contacts and it
must be the correct type for the necessary load. It must agree with the last
electrical legislation. The switch must
not break the yellow and green ground
cable.
Only a qualified electrician must install
this type of device.
DISCARD THE APPLIANCE
Disconnect the mains plug from the
mains socket.
2. Cut off the mains cable and discard it.
3. Discard the door catch. This prevents
children or pets to be closed in the
appliance. There is a risk of suffocation (only for front-loading appliances).
1.
TECHNICAL INFORMATION
Dimensions
Width / Height / Depth
Total depth
600 / 820 / 630 mm
640 mm
6
www.aeg.com
Electrical connection:
Voltage
Overall power
Fuse
Frequency
Level of protection against ingress of solid particles
and moisture ensured by the protective cover, except
where the low voltage equipment has no protection
against moisture
Water supply pressure
230-240 V
2050 W
13 A
50 Hz
IPX4
Minimum
0,5 bar (0,05 MPa)
Maximum
8 bar (0,8 MPa)
Cold water
Water supply 1)
Maximum load
Cotton
Spin speed
Maximum
1) Connect the water inlet hose to a water tap with a 3/4'' thread.
7 kg
1200 rpm (L 61271 BI)
1400 rpm (L 61470 BI)
ENGLISH
7
PRODUCT DESCRIPTION
1
2
7
8
9
3
4
5
6
10
1 Detergent dispenser
6 Feet for the appliance level
2 Control panel
3 Door handle
7 Water drain hose
4 Rating plate
9 Water inlet hose
10 Feet for the appliance level
8 Mains cable
5 Drain pump
ACCESSORIES
1
2
1 Spanner
To remove the transit bolts.
2 Plastic caps
4
3
To close the holes on the rear side of
the cabinet after the removal of the
transit bolts.
3 Anti-flood inlet hose
To prevent possible leakage
4 Plastic hose guide
To connect the drain hose on the
edge of a sink.
8
www.aeg.com
CONTROL PANEL
1
2
3
4
5
6 7 8
9
10
A
B
C
1 Programme selector dial
7 Display
2 TEMPERATURE button
8 START/PAUSE button
3 SPIN button
9 DELAY START button
10 Indicator pilot lights:
•
Rinse hold position
4 STAIN button
5 EXTRA RINSE button
6 TIME SAVE button
• A – Washing phase
• B – Door locked
• C – Extra Rinse
DISPLAY
The display shows the following information:
Duration of the set programme
When you set a programme, the display shows the duration in
hours and minutes (for example 2.05).
The duration is calculated automatically on the maximum load for
each type of fabric.
After the programme has started, the time remaining is updated
every minute.
Alarm codes
In the event of operating problems, some alarm codes can be dis(see chapter «Troubleshooting»).
played, for example
ENGLISH
9
End of programme
When the programme has finished, the display shows a blinking
zero .
The DOOR light B, the WASHING light A and the light of button 8
go out.
The door can be opened.
Incorrect option selection
If you set an option which is not compatible with the wash programme, the display shows the message Err for some seconds.
The yellow pilot light of button 8 light starts blinking.
Delay Start
When you press the relevant button to set the delay (20 hours
max), it appears for some seconds, then the display shows the duration of the set programme.
The delay time value decreases by one unit every hour. When only
1 hour remains, the time decreases every minute.
Delay Start symbol
This symbol comes on when you set the delay time.
Child safety lock
This symbol comes on when you activate the child lock function.
INDICATOR PILOT LIGHTS
A
B
C
After you have pressed the button 8, the
WASHING light (A) comes on.
The machine is operating.
The DOOR light (B) indicates when the
door can be opened:
• light on: the door cannot be opened
• light blinking: the door is opening in
some minutes
• light off: the door can be opened
When the appliance is performing additional rinses The EXTRA RINSE light (C)
comes on.
ACOUSTIC SIGNALS
CHILD SAFETY LOCK
The machine is provided with an acoustic
device, which sounds in the following cases:
• at the end of the cycle
• in the event of operating problems.
By pressing the 3 and 4 buttons simultaneously for some seconds, the acoustic
signal is deactivated (except for the
events of operating problems). By pressing these two buttons again, the acoustic
signal is reactivated.
This device permits you to leave the appliance unsupervised and not to worry
that children might be injured by or cause
damage to the appliance.
This function remains able also when the
washing machine is not working.
There are two different ways to set this
option:
• Before pressing button 8: it will be impossible to start the machine.
• after pressing button 8: it will be impossible to change any other programme
or option.
To enable or disable this option press simultaneously for about 6 seconds buttons
10 www.aeg.com
4 and 5 until the symbol
comes on or
disappears from the display.
ENGLISH
WASHING PROGRAMMES
Programme
Maximum and Minimum Temperature
Type of Laundry
Maximum Load
Cycle Description
Options
Cottons
Main wash
95° - Cold
Rinses
Max. load 7 kg - Reduced load 3 kg
Long spin
White and coloured cotton (normally soiled
items).
SPIN REDUCTION
RINSE HOLD
STAIN1)
TIME SAVE2)
EXTRA RINSE
Cottons + Prewash3)
95° - Cold
Max. load 7 kg - Reduced load 3 kg
White and coloured cotton
(normally soiled items).
Prewash
Main wash
Rinses
Long spin
SPIN REDUCTION
RINSE HOLD
STAIN1)
TIME SAVE2)
EXTRA RINSE
Synthetics
60° - Cold
Max. load 3 kg - Reduced load 2 kg
Synthetic or mixed fabrics: underwear, coloured garments, non-shrink shirts, blouses.
Main wash
Rinses
Short spin
SPIN REDUCTION
RINSE HOLD
STAIN 1)
TIME SAVE2)
EXTRA RINSE
Easy Iron
Main wash
60° - Cold
Rinses
Max. load 1 kg
Short spin
Synthetic fabrics to be gentle washed and
spun.
The laundry is gently washed and spun to
avoid any creasing. Furthermore the machine
will perform additional rinses.
SPIN REDUCTION
RINSE HOLD
EXTRA RINSE
Delicates
40° - Cold
Max. load kg 3 - Reduced load kg 2
Delicate fabrics: acrylics, viscose, polyester.
Main wash
Rinses
Short spin
SPIN REDUCTION
RINSE HOLD
STAIN1)
TIME SAVE2)
EXTRA RINSE
Wool/Silk
Main wash
40° - Cold
Rinses
Max. load 2 kg
Short spin
Machine washable wool as well as for hand
washable woollens and delicate fabrics.
Note: A single or bulky item may cause imbalance. If the appliance doesn’t perform the
final spin phase, add more items, redistribute
the load manually and then select the spinning programme.
SPIN REDUCTION
RINSE HOLD
Sport Intensive
40° - Cold
Max. load 3 kg
Synthetic fabric items with normal soil.
SPIN REDUCTION
RINSE HOLD
EXTRA RINSE
Main wash
Rinses
Short spin
11
12 www.aeg.com
Programme
Maximum and Minimum Temperature
Type of Laundry
Maximum Load
Cycle Description
Options
Spin
Max. load 7 kg
Separate spin for hand washed cotton garments and after programmes with the Rinse
hold option set.
Turn the programme dial to Off before setting this programme.
Reduce the spin speed if needed.
Drain
Long spin
SPIN REDUCTION
Drain
Max. load 7 kg
For emptying out the water of the last rinse
in programmes with the Rinse hold option
set.
Draining of
water
Delicate Rinses
Max. load 7 kg
Programme for rinsing and spinning items
which have been washed by hand. The machine performs some rinses, followed by a final spin. The spin speed can be reduced.
Rinses
Long spin
SPIN REDUCTION
RINSE HOLD
EXTRA RINSE
Jeans
60° - Cold
Max. load 3 kg
All items in jeans. Jersey made items with hitech materials.
Main wash
Rinses
Short spin
SPIN REDUCTION
RINSE HOLD
Refresh
30°
Max. load 3 kg
Quick wash for sport items, or cotton and
synthetic items lightly soiled or worn once.
Main wash
Rinses
Short spin
SPIN REDUCTION
Super Eco
Cold
Max. load 3 kg
Mixed fabrics (cotton and synthetic items)4).
Main wash
Rinses
Short spin
SPIN REDUCTION
RINSE HOLD
EXTRA RINSE
Economy
60°
Max. load 7 kg
White and fast coloured cotton.
Normally soiled cotton items.
The appliance decreases the temperature
and extends the washing time to obtain a
good washing efficiency so saving energy.
Main wash
Rinses
Long spin
SPIN REDUCTION
RINSE HOLD
STAIN
EXTRA RINSE
ENGLISH
Programme
Maximum and Minimum Temperature
Type of Laundry
Maximum Load
Cycle Description
Economy
40°
Max. load 7 kg
Fast coloured cotton.
Slightly soiled cotton items.
The appliance decreases the temperature
and extends the washing time to obtain a
good washing efficiency so saving energy.
Main wash
Rinses
Long spin
13
Options
SPIN REDUCTION
RINSE HOLD
STAIN
EXTRA RINSE
Off
For cancelling the running programme or to
switch the machine off .
1) Stain option can be selected only at the temperature of 40°C or higher.
2) If you select the Super Quick option by pressing button 6, we recommend that you reduce
the maximum load as indicated. Full loading is possible however with somewhat reduced
cleaning results.
3) If using liquid detergents, a programme without PREWASH must be selected.
4) Use a special detergent for very low temperature
CONSUMPTION VALUES
Programme1)
Energy consumption
(KWh)2)
Water consumption (litre)2)
White Cottons 95 °C
2.20
72
Cottons 60 °C
1.35
67
Cottons 40 °C
0.85
67
Synthetics 40 °C
0.55
42
Delicates 40 °C
0.55
63
Wool/ Handwash 30 °C
0.25
55
1) Refer to the display for the programme time.
2) The consumption information shown in this chart is indicative. It can vary depending on the
quantity and the type of laundry, on the temperature of the water supply and on the
ambient temperature.
Standard programmes for the
Energy Label consumption
values
The cotton 60 °C economy and cotton 40
°C economy are the standard cotton programmes for normally soiled cotton laundry. They are suitable to clean normally
soiled cotton laundry and they are the
most efficient programmes in terms of
combined energy and water consumption
for washing that type of cotton laundry.
They agree with EN60456.
The actual water temperature may
differ from the declared cycle
temperature.
14 www.aeg.com
FIRST USE
To activate the drain system, put 2 litre of water in the main wash compartment of the detergent dispenser.
2. Put a small quantity of detergent in
the main wash compartment of the
detergent dispenser. Set and start a
programme for cotton at the highest
temperature without laundry. This removes all possible dirt from the drum
and the tub.
1.
DAILY USE
1.
2.
Open the appliance door.
Put the laundry in the drum, one item
at a time. Shake the items before you
put them in the appliance. Make sure
not to put too much laundry in the
drum.
3. Close the door.
Make sure that no laundry stays between
the seal and the door. There is a risk of
water leakage or damage to the laundry.
FILLING THE DETERGENT AND ADDITIVES
MAX
The detergent compartment for the prewash phase, the soak programme and for the stain function.
Add the detergent for prewash, soak and stain remover before
the start of the programme.
The detergent compartment for the washing phase.
If you use a liquid detergent, put it immediately before you start
the programme.
Liquid additives compartment (fabric conditioner, starch).
Put the product in the compartment before you start the programme.
ENGLISH
15
This is the maximum level for the quantity of liquid additives.
Always obey the instructions that you find on the packaging of the detergent products.
SETTING AND STARTING A PROGRAMME
SETTING THE PROGRAMME
(KNOB 1 )
SETTING THE SPIN SPEED
(BUTTON 3)
Turn the programme selector dial to the
required programme.
The programme dial determines the type
of washing cycle (e.g. water level, drum
movement, number of rinses) and the
washing temperature according to the
type of laundry.
The pilot light of button 8 starts blinking.
The programme dial can be turned either
clockwise or anticlockwise.
= Reset programme / switching OFF
of the machine
When you set the programme, the appliance automatically proposes the maximum spin speed allowed by that programme.
Press this button repeatedly to change
the spin speed. The relevant light will
light up.
RINSE HOLD : the water of the last rinse is
not emptied out to prevent the fabrics
from creasing. When the programme has
finished the display shows a blinking .
The DOOR pilot light goes on.
The pilot light of button 8 is off. The door
is blocked to indicate that the water must
be emptied out.
To empty the water out please read
chapter «At the end of the programme».
If you turn the programme dial to
another programme when the appliance is working, the yellow pilot
light of button 8 blinks 3 times.
The display shows the message
Err to indicate a wrong selection.
The machine will not perform the
new set programme.
SETTING THE TEMPERATURE
(BUTTON 2)
When setting a programme, the
appliance automatically proposes
the default temperature provided
for that programme.
Press the button 2 repeatedly to increase
or decrease the temperature, if you want
your laundry to be washed at a different
temperature.
The wash with cold water is indicated with
.
For the maximum and the minimum available wash water temperature, see «Washing programmes».
SETTING THE STAIN OPTION
(BUTTON 4)
Set this option to treat heavily soiled or
stained laundry with stain remover
The appliance extends the main wash
phase and intensifies the stain action
phase. The relevant light illuminates.
This option is not available with a
temperature lower than 40°C.
If you wish to perform a programme with
the stain option, pour stain remover into
.
compartment
SETTING THE EXTRA RINSE
OPTION (BUTTON 5)
This appliance is designed for saving water.
However, for people with a very delicate
skin (allergic to detergents) it may be necessary to rinse the laundry using an extra
quantity of water (extra rinse).
16 www.aeg.com
The appliance will perform some additional rinses.
SETTING PERMANENTLY THE
EXTRA RINSE OPTION
If you wish to activate this option permanently press simultaneously buttons 2 and
3 for some seconds: the light C is on. If
you wish to cancel it press the same buttons until the symbol disappears.
SETTING THE TIME SAVING
OPTION (BUTTON 6)
This option allows you to modify the
washing time, automatically proposed by
the appliance.
Press button 6
once
DAILY
The relative pilot light
comes on.
The washing duration will be
reduced to wash daily soiled
laundry.
Press button 6 twice
SUPER
QUICK
The relative pilot light remains lit.
The washing duration will be
reduced to wash lightly
soiled laundry or items used
or worn for a short time.
The display shows the decreased washing
time.
STARTING THE PROGRAMME
(BUTTON 8)
Press the button 8 to start the programme. The corresponding red pilot
light stops blinking.
The pilot light A is on to indicate that the
appliance starts operating.
The pilot light B is on to indicate the door
is locked.
Press the button 8 to interrupt a programme which is running. The corresponding red pilot light starts blinking.
Press the button 8 again to restart the
programme from the point at which it was
interrupted
If you have chosen a delayed start with
button 9, the machine will begin the
countdown.
If you set an incorrect option, the yellow
pilot light of the button 8 blinks for 3
times. The display shows the message Err
for some seconds.
SETTING THE DELAY START
(BUTTON 9)
Press this button again an again to set the
required delay.
The display shows the set delay time value (up to 20 hours) for some seconds,
then it shows the duration of the programme again.
Set the delay before you press the button
8.
You can delay the wash programme can
be delayed from 30 min - 60 min - 90 min,
2 hours and then by 1 hour up to a maximum of 20 hours.
Adding items after you have set the delay (throughout the delay time the door
will be locked):
• Press the button 8 to put the machine
in pause
• Add the laundry, close the door .
• Press the button 8 again.
Setting the delayed start:
• Set the programme and the required
options.
• Set the delay start.
• Press the button 8: the appliance starts
its hourly countdown.
The programme will start after the selected delay has expired.
Cancelling the delayed start:
• Press the button 8 to set the washing
machine to PAUSE;
• Press the button 9 once until the display shows the symbol ’;
• Press the button 8 again to start the
programme.
You can change the set delay only
after you set the washing programme again.
The Delay Start can not be selected with
DRAIN programme.
ENGLISH
17
ALTERING AN OPTION OR A
RUNNING PROGRAMME
again. Press button 8 to start the programme again.
It is possible to change some options before the programme carries it out. Before
you make any change, you must press the
button 8 to pause the appliance.
Changing a running programme is possible only by resetting it.
and then
Turn the programme dial to
to the new programme position.
Press the 8 button again to start the new
programme. The washing water in the tub
will not emptied out.
CANCELLING A PROGRAMME
INTERRUPTING A
PROGRAMME
Press the button 8 to interrupt a programme which is running, the corresponding light starts blinking. Press the
button again to restart the programme.
OPENING THE DOOR
When the machine is working and
through the delay time, the door is
locked.
If, for any reason, it is necessary to open
it, firstly press the button 8 to set the machine to pause
If the light B after a few minutes goes off,
the door can be opened.
If the light B stays on and the door remains locked, this means that the machine is already heating or that the water
level is too high. In this case the door can
not be opened.
If you cannot open the door but you need
to open it, turn the programme dial to
to switch the machine off. After a few minutes the door can be opened (pay attention to the water level and temperature !) .
After closing the door, it is necessary to
set the programme and the options
Stand by : once the programme has finished after a few minutes the energy saving system will be enabled. The brightness of the display is reduced. By pressing
any button the appliance will come out of
the energy saving status.
Turn the selector dial to
to cancel a
programme which is running. Now you
can select a new programme.
AT THE END OF THE
PROGRAMME
The machine stops automatically. The pilot light of button 8, the pilot lights A and
B go off. A blinking will appear on the
display.
If you have set a programme or an option
that ends with water in the tub, the light B
remains lit. The door is locked. The water
must be emptied out before opening the
door. During this time the drum continues
to turn at regular intervals until water
drain.
Follow the below instructions to empty
out the water:
• Turn the programme selector dial to
•
•
•
•
Set the DRAIN or SPIN programme
Reduce the spin speed, if needed
Press the button 8
When the programme has finished the
display shows a blinking . The pilot
light B goes off. The door can be
opened.
Turn the programme selector dial to
to switch the machine off.
Remove the laundry from the drum and
carefully check that the drum is empty. If
you do not intend to carry out another
wash, close the water tap. Leave the door
open to prevent the formation of mildew
and unpleasant smells.
18 www.aeg.com
HELPFUL HINTS AND TIPS
THE LAUNDRY LOAD
DETERGENTS AND ADDITIVES
• Divide the laundry in: white, coloured,
synthetics, delicates and wool.
• Obey the washing instructions that are
on the laundry care labels.
• Do not wash together white and coloured items.
• Some coloured items can discolour with
the first wash. We recommend that you
wash them separately for the first times.
• Button up pillowcases, close zippers,
hooks and poppers. Tie up belts.
• Empty the pockets and unfold the
items.
• Turn inside out multilayered fabrics,
wool and items with painted illustrations.
• Remove hard stains.
• Wash with a special detergent heavy
soil stains.
• Be careful with the curtains. Remove
the hooks or put the curtains in a washing bag or pillowcase.
• Do not wash in the appliance :
– Laundry without hems or with cuts
– Underwired bras.
– Use a washing bag to wash small
items.
• A very small load can cause balance
problems with the spin phase. If this occurs, adjust manually the items in the
tub and start the spin phase again.
• Only use detergents and additives specially made for washing machines.
• Do not mix different types of detergents.
• To help the environment, do not use
more than the correct quantity of detergent.
• Obey the instructions that you find on
the on packaging of these products.
• Use the correct products for the type
and colour of the fabric, the programme temperature and the level of
soil.
• If you use liquid detergents, do not set
the prewash phase.
• If your appliance has not the detergent
dispenser with the flap device, add the
liquid detergents with a dosing ball.
STUBBORN STAINS
For some stains, water and detergent is
not sufficient.
We recommend that you remove these
stains before you put the items in the appliance.
Special stain removers are available. Use
the special stain remover that is applicable to the type of stain and fabric.
WATER HARDNESS
If the water hardness in your area is high
or moderate, we recommend that you use
a water softener for washing machines. In
areas where the water hardness is soft it is
not necessary to use a water softener.
To know the water hardness in your area,
contact your local water authority.
Obey the instructions that you find on the
packaging of the products.
Equivalent scales measure the water hardness:
• German degrees (°dH).
• French degrees (°TH).
• mmol/l (millimol for each litre - international unit for the hardness of water).
• Clarke degrees.
Water hardness table
Level
Type
1
soft
Water hardness
°dH
°T.H.
mmol/l
Clarke
0-7
0-15
0-1.5
0-9
ENGLISH
Level
Type
2
Water hardness
°dH
°T.H.
mmol/l
Clarke
medium
8-14
16-25
1.6-2.5
10-16
3
hard
15-21
26-37
2.6-3.7
17-25
4
very hard
> 21
> 37
>3.7
>25
19
20 www.aeg.com
CARE AND CLEANING
WARNING!
Disconnect the appliance from the mains
supply before you clean it.
DESCALING
The water we use contains limescale. If it
becomes necessary, use a water softener
to remove limescales.
Use a special product made for washing
machines. Obey the instructions that you
find on the packaging of the manufacturer.
Do this separately from the laundry wash.
EXTERNAL CLEANING
Clean the appliance only with soap and
warm water. Fully dry all the surfaces.
CAUTION!
Do not use alcohol, solvents or
chemical products.
DOOR SEAL
Regularly examine the seal and remove all
objects from the inner part.
DRUM
Regularly examine the drum to prevent
limescale and rust particles.
Only use special products to remove rust
particles from the drum.
To do this:
• Clean the drum with special product for
stainless steel.
• Start a short programme for cotton at
the maximum temperature with a small
quantity of detergent.
DETERGENT DISPENSER
To clean the dispenser:
1.
2.
1
MAX
2
Press the lever.
Pull the dispenser out.
ENGLISH
3.
4.
21
Remove the top part of the liquid additive compartment.
Clean all the parts with water.
MAX
5.
6.
WARNING!
Before unscrewing the pump cover, switch the appliance off and
remove the mains plug from the
socket.
DRAIN PUMP
The pump should be inspected regularly
and particularly if:
• the appliance does not empty and/or
spin;
• the appliance makes an unusual noise
during draining due to objects such as
safety pins, coins etc. blocking the
pump;
• a problem with water draining is detected (see chapter “Troubleshooting” for
more details).
A
Clean the dispenser recess with a
brush.
Put back the dispenser in the recess.
Proceed as follows:
1. Unplug the appliance.
2. If it is necessary, wait until the water
has cooled down.
3.
Place a container close to the pump
to collect any spillage.
4.
Release the emergency emptying
hose (B), place it in the container and
remove its cap cover.
B
22 www.aeg.com
5.
When no more water comes out, unscrew the pump cover (A) by turning
it anti-clockwise and remove the filter. Use pliers, if necessary.
Always keep a rag nearby to dry up
any water spillages when removing
the cover. Clean the filter under a
tap, to remove any traces of fluff.
6.
Remove foreign bodies and fluff from
the filter seat and from the pump impeller.
7.
Check carefully whether the pump
impeller rotates (it rotates jerkily). If it
doesn’t rotate, please contact your
Service Centre.
8.
Put the cap back on the emergency
emptying hose and place the latter
back in its seat.
Replace the filter into the pump by
inserting it correctly into the special
guides. Screw the pump cover firmly
by turning it clockwise.
9.
WARNING!
When the appliance is in use and depending on the programme selected there can
be hot water in the pump.
Never remove the pump cover during a
wash cycle, always wait until the appliance
has finished the cycle, and is empty.
When refitting the pump cover, ensure it
is securely re-tightened so as to stop
leaks and young children being able to remove it.
THE INLET HOSE FILTER AND
THE VALVE FILTER
It could be necessary to clean the filters
when:
• The appliance does not fill with water.
• The appliance fills with the water for a
long time.
• The indicator of button 8 flashes and
the display shows the related alarm. Refer to 'Troubleshooting'.
WARNING!
Disconnect the mains plug from
the mains socket.
ENGLISH
23
To clean the water inlet filters:
1.
2.
Close the water tap.
Remove the water inlet hose from the
water tap.
3. Clean the filter in the inlet hose with a
stiff brush.
4.
5.
6.
7.
20°
Remove the inlet hose behind the
appliance.
Clean the filter in the valve with a stiff
brush or a towel.
Install again the inlet hose. Make sure
that the couplings are tight to prevent leakages.
Open the water tap.
45°
EMERGENCY EMPTYING OUT
FROST PRECAUTIONS
If the water is not discharged, proceed as
follows to empty out the appliance:
1. pull out the plug from the power
socket;
2. close the water tap;
3. if necessary, wait until the water has
cooled down;
4. place a bowl on the floor;
5. place the end of the emergency emptying hose into the bowl;
6. Remove its cap. The water should
drain by gravity into the bowl. When
the bowl is full, put the cap back on
the hose. Empty the bowl;
Repeat the procedure until water
stops flowing out;
7. clean the pump if necessary as previously described;
8. replace the emergency emptying
hose in its seat after having plugged
it;
9. screw the pump again.
If the machine is installed in a place where
the temperature could drop below 0°C,
proceed as follows:
1. close the water tap;
2. unscrew the water inlet hose from the
tap;
3. place the end of the emergency emptying hose and that of the inlet hose
in a bowl placed on the floor. Let water drain out;
4. screw the water inlet hose back on;
5. put the cap on the emergency emptying hose again;
6. reposition the emergency emptying
hose.
By doing this, any water remaining in the
machine is removed, avoiding ice forming
and consequently damage to the appliance.
When you use the machine again, make
sure that the ambient temperature is
above 0°C.
24 www.aeg.com
TROUBLESHOOTING
Certain problems are due to lack of simple maintenance or oversights, which can
be solved easily without calling out an engineer. Before contacting your local Service Centre, please carry out the checks listed below.
During machine operation it is possible
that the yellow pilot light of button 8
blinks, one of the following alarm codes
appears on the display and at the same
time some acoustic signals sound every
20 seconds to indicate that the machine is
not working:
•
: problem with the water supply
•
: problem with the water draining
•
: door open
•
: anti-flooding system has activated
Once the problem has been eliminated,
press the button 8 to restart the programme. If after all checks, the problem
persists, contact your local Service Centre.
Problem
Possible cause/Solution
The washing machine
does not start:
The door has not been closed.
• Close the door firmly.
The plug is not properly inserted in the power socket.
• Insert the plug into the power socket.
There is no power at the socket.
• Please check your domestic electrical installation.
The main fuse has blown.
• Replace the fuse.
The programme dial is not correctly positioned and
the button 8 has not been pressed.
• Please turn the programme dial and press the button 8 again.
The delay start has been set.
• If the laundry is to be washed immediately, cancel
the delay start.
The Child safety lock has been activated.
• Deactivate this device.
The machine does not
fill:
The water tap is closed.
• Open the water tap.
The inlet hose is squashed or kinked.
• Check the inlet hose connection.
The filter in the inlet hose or the inlet valve filter are
blocked.
• Clean the water inlet filters. (See "Cleaning the water inlet filters" for more details)
The door is not properly closed.
• Close the door firmly.
The machine fills then
empties immediately:
The end of the drain hose is too low.
• Refer to relevant paragraph in «Water drainage»
section.
ENGLISH
25
Problem
Possible cause/Solution
The machine does not
empty and/or does not
spin:
The drain hose is squashed or kinked.
• Check the drain hose connection.
The drain filter is clogged.
• Clean the drain filter.
You have set an option or a programme that ends with
the water still in the tub or a that eliminates all the
spinning phases.
• Set the draining or the spinning programme.
The laundry is not evenly distributed in the drum.
• Redistribute the laundry.
There is water on the
floor:
Too much detergent or unsuitable detergent (creates
too much foam) has been used.
• Reduce the detergent quantity or use another one.
Check whether there are any leaks from one of the inlet hose fittings. It is not always easy to see this as the
water runs down the hose; check to see if it is damp.
• Check the water inlet hose connection.
The drain or the inlet hose is damaged.
• Replace it with a new one.
The cap on the emergency emptying hose has not
been replaced or the filter has not been properly
screwed in after cleaning action.
• Refit the cap on the emergency emptying hose or
screw the filter fully in.
Unsatisfactory washing
results:
Too little detergent or unsuitable detergent has been
used.
• Increase the detergent quantity or use another one.
Stubborn stains have not been treated prior to washing.
• Use commercial products to treat the stubborn
stains.
The correct temperature was not selected.
• Check if you have selected the correct temperature.
Excessive laundry load.
• Reduce the laundry load.
The door will not open:
The programme is still running.
• Wait the end of washing cycle.
The door lock has not been released.
• Wait until the DOOR light has gone off.
There is water in the drum.
• Select drain or spin programme to empty out the
water.
26 www.aeg.com
Problem
Possible cause/Solution
The transit bolts and packing have not been removed.
• Check the correct installation of the appliance.
The support feet have not been adjusted
The machine vibrates or • Check the correct levelling of the appliance.
is noisy:
The laundry is not evenly distributed in the drum.
• Redistribute the laundry.
Maybe there is very little laundry in the drum.
• Load more laundry.
Spinning starts late or
the machine does not
spin:
The electronic unbalance detection device has cut in
because the laundry is not evenly distributed in the
drum. The laundry is redistributed by reverse rotation
of the drum. This may happen several times before
the unbalance disappears and normal spinning can resume. If, after some minutes, the laundry is still not
evenly distributed in the drum, the machine will not
spin.
• The laundry load is perhaps to little, add more
items, redistribute the load manually and then select the spinning programme.
The machine makes an
unusual noise:
The machine is fitted with a type of motor which
makes an unusual noise compared with other traditional motors. This new motor ensures a softer start
and more even distribution of the laundry in the drum
when spinning, as well as increased stability of the machine.
No water is visible in
the drum:
Machines based on modern technology operate very
economically using very little water without affecting
performance.
The display shows the
alarm code
:
Anti-flooding system has activated.
• Pull out the plug from the power socket, close the
water tap and contact the Service Force Centre.
ENGLISH
27
INSTALLATION
UNPACKING
1.
Use the gloves. Remove the external
film. If necessary, use a cutter.
2.
3.
Remove the cardboard top.
Remove the polystyrene packaging
materials.
4.
Remove the internal film.
5.
Open the door. Remove the polystyrene piece from the door seal and all
the items from the drum.
28 www.aeg.com
6.
Put one of the polystyrene packaging
elements on the floor behind the appliance. Carefully put down the appliance with the rear side on it. Make
sure not to damage the hoses.
7.
Remove the polystyrene protection
from the bottom.
Pull up the appliance in vertical position.
8.
1
2
9.
Remove the power supply cable and
the drain hose from the hose holders.
10. Remove the three bolts. Use the key
supplied with the appliance.
11. Pull out the plastic spacers.
ENGLISH
29
12. Put the plastic caps in the holes. You
can find these caps in the user manual bag.
WARNING!
Remove all the packaging and the
transit bolts before you install the
appliance.
We recommend that you keep the
packaging and the transit bolts for
when you move the appliance.
POSITIONING AND LEVELLING
• Install the machine on a flat hard floor.
• Make sure that air circulation around
the machine is not impeded by carpets,
rugs etc.
• Carefully level by screwing the adjustable feet in or out.
• After having levelled the appliance,
tighten the lock nuts.
• The appliance must be level and stable.
Never place cardboard, wood or
similar materials under the machine to compensate for any unevenness in the floor.
If it is impossible to avoid positioning the
machine next to a gas cooker or coalburning stove, an insulating panel covered
with aluminium foil on the side facing the
cooker or stove, must be inserted between the two appliances.
Before placing it on small tiles, apply a
rubber coating.
The water inlet hose and the drain hose
must not be kinked.
CAUTION!
The machine must not be installed
in rooms where the temperature
can drop below 0°C.
30 www.aeg.com
THE INLET HOSE
• Connect the hose to the appliance.
Turn the inlet hose only left or right.
Loose the ring nut to set it in the correct position.
20
O
45
O
• Connect the water inlet hose to the
cold water tap with 3/4 thread.
CAUTION!
Make sure that there are no leaks
from the couplings.
Do not use an extension hose if
the inlet hose is too short. Contact
the service centre for the replacement of the inlet hose.
Water-stop device
The inlet hose has a water stop device.
This device prevents water leaks in the
hose because of its natural ageing. The
red sector in the window «A» shows this
fault .
If this occur, close the water tap and contact the service centre to replace the
hose.
A
WATER DRAINAGE
There are different procedures to connect
the drain hose:
ENGLISH
31
With the plastic hose guide.
• On the edge of a sink.
• Make sure that the plastic guide cannot
move when the appliance drains. Attach the guide to the water tap or the
wall.
• To a stand pipe with vent-hole.
Refer to the illustration. Directly into a
drain pipe at a height of not less than
60 cm (23.6”) and not more than 100 cm
(39.3”). The end of the drain hose must
always be ventilated , i.e. the inner diameter of the drainpipe (min. 38 mm —
min. 1.5”) must be larger than the external diameter of the drain hose.
• If the end of the drain hose is this (see
the drawing), you can push it directly into the stand pipe.
32 www.aeg.com
Without the plastic hose guide.
• To a sink spigot.
Refer to the illustration. Put the drain
hose in the spigot and tighten it with a
clip. Make sure that the drain hose
makes a loop to prevent that remaining
particles go in the appliance from the
sink.
• Directly to a built-in drain pipe in the
room wall and tighten it with a clip.
You can extend the drain hose to
maximum 400 cm. Contact the
service centre for the other drain
hose and the extension.
IN THE INTEREST OF THE ENVIRONMENT
• Connect the appliance to the FOUL system for the drain water. The sewage
works keeps the drain water for the
treatment before to release safely it into a river. Do not connect this appliance
to the surface drain system of the water
because it releases the drain water directly into a river or stream without a
treatment and this can cause of pollution. Contact your local water authority
to have more information.
ENGLISH
33
BUILDING IN
OVERVIEW
• This appliance has been designed to
be built into the kitchen furniture. The
recess should have the dimensions
shown in Fig 1.
600 mm
min.
596 mm
560 mm
555 mm
min.
820 mm
818 mm
75 mm
60 mm
100 mm
170 mm
Fig.1
Preparation and assembly of the door
• The machine is originally pre-arranged
for the assembly of a door opening
from right to left (Fig. 2).
Fig. 2
16-22 mm
X
Ø 35 mm
416
mm
22±1,5 mm
14 mm
595-598 mm
Fig. 3
• Door
The dimensions of the door should be:
– width 595-598 mm
– thickness 16-22 mm
– the height X depends on the height
of the adjacent furniture's base (Fig.
3).
34 www.aeg.com
1
2
• Hinges
To mount the hinges it is necessary to
drill two holes (dia. 35 mm, depth
12.5-14 mm depending on the depth of
door furniture) on the inner side of the
door. The distance between the holes
hobs fixing centres must be 416 mm.
The distance from upper edge of the
door to the centre of the hole depends
on the adjacent furniture's dimensions.
The hinges will be fixed to the door by
means of screws for wood 1 and 2 (Fig.
4) supplied with the appliance.
Fig. 4
• Mounting the door
Fix the hinges to the appliance by
means of the M5x15 screws . The hinges can be adjusted to compensate for
possible uneven thickness of the door.
To align the door perfectly it is necessary to loosen the screw , adjust the door
and tighten the screw A again (Fig. 5).
A
Do not remove the screw B (Fig.
5.
B
Fig. 5
• Counter-magnet
The appliance is prearranged for a
magnetic closure of the door. To enable a correct operation of this device, it
is necessary to screw the counter-magnet A (steel disk + rubber ring) into the
inner side of the door.
Its position must correspond to the
magnet B on the appliance (Fig. 6).
A
B
C
Do not remove the screw C.
Fig. 6
D
A
C
E
B
If the door has to be opened from left to
right, invert the position of the plates E ,
the magnet D and the plate C. Mount the
counter-magnet D and the hinges A as
previously described (Fig. 7 )
CAUTION!
Do not remove the screw B.
ENGLISH
Fig. 7
35
www.aeg.com/shop
132927080-A-022012
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
