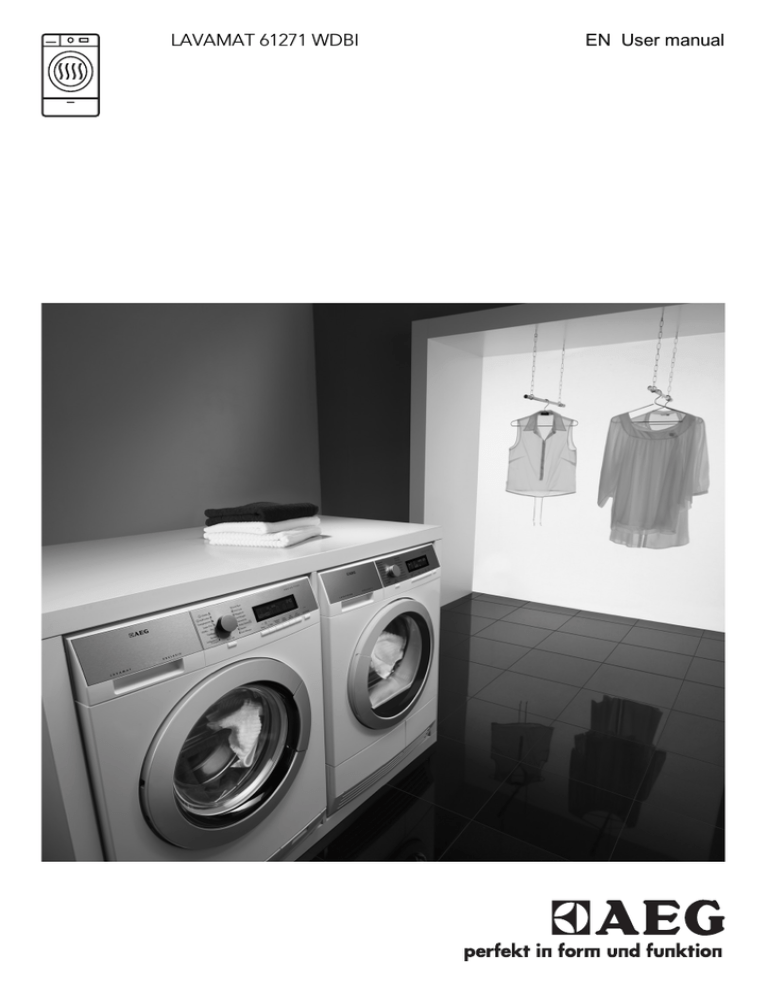

LAVAMAT 61271 WDBI
EN User manual
2
www.aeg.com
CONTENTS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
TECHNICAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
WASHING PROGRAMMES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
CONSUMPTION VALUES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
FIRST USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
HELPFUL HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you impeccable
performance for many years, with innovative technologies that help make life simpler –
features you might not find on ordinary appliances. Please spend a few minutes reading to get
the very best from it.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.aeg.com
Register your product for better service:
www.aeg.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
ENGLISH
3
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is
not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions
with the appliance for future reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep all detergents away from children.
• Keep children and pets away from the appliance door
when it is open.
• If the appliance has a child safety device, we recommend you activate it.
• Cleaning and user maintenance shall not be made by
children without supervision.
1.2 General Safety
• Before maintenance, deactivate the appliance and
disconnect the mains plug from the mains socket.
• Do not change the specification of this appliance.
• Obey the maximum load volume of 7 kg (refer to the
“Programme chart” chapter).
4
www.aeg.com
• If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The operating water pressure (minimum and maximum) must be between 0,5 bar (0,05 MPa) and 8 bar
(0,8 MPa)
• The ventilation openings in the base (if applicable)
must not be obstructed by a carpet.
• The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
2.
SAFETY INSTRUCTIONS
Electrical connection
2.1 Installation
• Remove all the packaging and the
transit bolts.
• Keep the transit bolts. When you
move the appliance again you must
block the drum.
• Do not install or use a damaged appliance.
• Do not install or use the appliance
where the temperature is less than 0
°C or where it is exposed to the
weather.
• Obey the installation instruction supplied with the appliance.
• Make sure that the floor where you install the appliance is flat, stable, heat
resistant and clean.
• Do not install the appliance where the
appliance door can not be fully
opened.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Make sure that there is air circulation
between the appliance and the floor.
• Adjust the feet to have the necessary
space between the appliance and the
carpet.
WARNING!
Risk of fire and electrical shock.
• The appliance must be earthed.
• Make sure that the electrical information on the rating plate agrees with
the power supply. If not, contact an
electrician.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the appliance power supply
cable need to be replaced, this must
be carried out by our Service Centre.
• Connect the mains plug to the mains
socket only at the end of the installation. Make sure that there is access to
the mains plug after the installation.
• Do not pull the mains cable to disconnect the appliance. Always pull the
mains plug.
• Do not touch the mains cable or the
mains plug with wet hands.
• This appliance complies with the
E.E.C. Directives.
ENGLISH
Water connection
• Make sure not to cause damage to the
water hoses.
• The appliance is to be connected to
the water mains using the new supplied hose-sets. Old hose sets must
not be reused.
• Before you connect the appliance to
new pipes or pipes not used for a long
time, let the water flow until it is clean.
• The first time you use the appliance,
make sure that there is no leakage.
2.2 Use
WARNING!
Risk of injury, electrical shock,
fire, burns or damage to the appliance.
• Use this appliance in a household only.
• Do not change the specification of this
appliance.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the glass of the door
while a programme operates. The
glass can be hot.
• Make sure that you remove all metal
objects from the laundry.
• The final part of the drying cycle occurs without heat (cool down cycle) to
ensure that the items will not be damaged.
If you stop the appliance before the
end of the drying cycle, immediately
remove and spread out all items, so
that the heat can dissipate.
• If you use detergent, fabric softener or
similar products, obey the instructions
on the packaging.
• Wipe away lint that has accumulated
around the appliance.
• Do not dry the damaged items which
contain padding or fillings .
• Do not dry items such as foam rubber
(latex foam), shower caps, waterproof
textiles and rubber backed articles.
• Before drying items that have been in
contact with substances such as cooking oil, acetone, alcohol , petrol, kero-
•
•
•
•
•
•
5
sene, spot removers, turpentine, waxes and wax removers, wash them in
hot water with an extra amount of detergent.
Do not dry items if industrial chemicals
have been used for cleaning.
Make sure that no gas lighters or
matches have been left in the pockets
of the clothing.
Only dry fabrics which are applicable
to dry in the tumble dryer. Follow the
instructions on the fabric label.
Do not dry not washed items in the
appliance.
If you have washed your laundry with a
stain remover start an extra rinse cycle
before you start the appliance.
Plastic items are not heat resistant.
– If you use a detergent ball, remove
it before you set the drying programme.
– Do not use a detergent ball when
you set a non-stop programme.
WARNING!
Risk of injury or damage to the
appliance.
• Do not sit or stand on the open door.
• Obey the maximum load volume.
• Do not dry dripping wet clothes in the
appliance.
2.3 Care and Cleaning
WARNING!
Risk of injury or damage to the
appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal objects.
2.4 Disposal
WARNING!
Risk of injury or suffocation.
6
www.aeg.com
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
3. TECHNICAL INFORMATION
Dimensions
Width / Height / Depth
Total depth
Electrical connection:
Voltage
Overall power
Fuse
Frequency
Level of protection against ingress of solid particles
and moisture ensured by the protective cover, except where the low voltage equipment has no protection against moisture
Water supply pressure
600 / 820 / 630 mm
640 mm
230-240 V
2050 W
13 A
50 Hz
IPX4
Minimum
0,5 bar (0,05 MPa)
Maximum
8 bar (0,8 MPa)
Cold water
Water supply 1)
Maximum wash load
Cotton
7 kg
Maximum dry load
Cotton
3 kg
Cotton big capacity
4 kg
Synthetics
2 kg
Maximum
1200 rpm
Spin speed
1) Connect the water inlet hose to a water tap with a 3/4'' thread.
ENGLISH
7
4. PRODUCT DESCRIPTION
1
2
7
8
9
3
4
5
6
1 Detergent dispenser
10
children or pets to be closed in the
drum. To activate the device, turn it
clockwise, until the groove is horizontal. To deactivate the device, turn it
counterclockwise, until the groove is
vertical.
2 Control panel
3 Door handle
4 Rating plate
5 Drain pump
6 Feet for the appliance level
7 Water drain hose
8 Mains cable
9 Water inlet hose
10 Feet for the appliance level
4.1 Child safety device
• When you activate this device, you
cannot close the door. This prevents
4.2 Accessories
1
2
1 Spanner
To remove the transit bolts.
2 Plastic caps
4
3
To close the holes on the rear side
of the cabinet after the removal of
the transit bolts.
3 Anti-flood inlet hose
To prevent possible leakage
4 Plastic hose guide
To connect the drain hose on the
edge of a sink.
8
www.aeg.com
5. CONTROL PANEL
1
2
3
4
5
6 7 8
9
10
A
B
C
1 Programme selector dial
7 Display
2 SPIN button
8 START/PAUSE button
•
Rinse hold position
3 STAIN button
4 TIME SAVE button
5 EXTRA RINSE button
6 DRYING TIME button
9 DELAY START button
10 Indicator pilot lights:
• A – Washing phase
• B – Drying phase
• C – Door locked
5.1 Display
The display shows the following information:
Duration of the set programme
When you set a programme, the display shows the duration in
hours and minutes (for example 2.05).
The duration is calculated automatically on the maximum load
for each type of fabric.
After the programme has started, the time remaining is updated
every minute.
Set drying time
when you set a drying programme, the display shows the drying
time in minutes and/or hours (see paragraph «Drying»).
After the programme has started, the appliance updates the remaining time every minute.
ENGLISH
9
Alarm codes
In the event of operating problems, some alarm codes can be
(see chapter «Troubleshooting»).
displayed, for example
End of programme
When the programme has finished, the display shows a blinking
zero .
The DOOR light C, the WASHING light A (or the DRYING light B)
and the light of button 8 go out.
The door can be opened.
Incorrect option selection
If you set an option which is not compatible with the wash programme, the display shows the message Err for some seconds.
The yellow pilot light of button 8 light starts blinking.
Delay Start
When you press the relevant button to set the delay (20 hours
max), it appears for some seconds, then the display shows the
duration of the set programme.
The delay time value decreases by one unit every hour. When
only 1 hour remains, the time decreases every minute.
Delay Start symbol
This symbol comes on when you set the delay time.
Child safety lock
This symbol comes on when you activate the child lock function.
5.2 Indicator pilot lights
A
B
C
After you have pressed the button 8, the
WASHING light (A) comes on.
The machine is operating.
When you set a drying programme, the
DRYING light (B) illuminate and stays on
during the drying phase.
The DOOR light (C) indicates when the
door can be opened:
• light on: the door cannot be opened
• light blinking: the door is opening in
some minutes
• light off: the door can be opened
5.3 Acoustic signals
5.4 Child safety lock
The machine is provided with an acoustic device, which sounds in the following
cases:
• at the end of the cycle
• in the event of operating problems.
By pressing the 3 and 4 buttons simultaneously for some seconds, the acoustic
signal is deactivated (except for the
events of operating problems). By pressing these two buttons again, the acoustic signal is reactivated.
This device permits you to leave the appliance unsupervised and not to worry
that children might be injured by or
cause damage to the appliance.
This function remains able also when the
washing machine is not working.
There are two different ways to set this
option:
• Before pressing button 8: it will be impossible to start the machine.
10 www.aeg.com
• after pressing button 8: it will be impossible to change any other programme or option.
To enable or disable this option press simultaneously for about 6 seconds but-
comes
tons 4 and 5 until the symbol
on or disappears from the display.
6. WASHING PROGRAMMES
Programme
Maximum and Minimum Temperature
Type of Laundry
Maximum Load
Cycle Description
Cottons
95° - 30°
Max. load 7 kg - Reduced load 3 kg
White and coloured cotton
Normally soiled items.
Main wash
Rinses
Long spin
at maximum speed
SPIN REDUCTION
RINSE HOLD
STAIN1)
TIME SAVE2)
EXTRA RINSE
Cotton Economy
40°
Max. load 7 kg
White and fast coloured cotton
Slightly or normally soiled cotton items.
The appliance decreases the temperature
and extends the washing time to obtain a
good washing efficiency so saving energy.
Main wash
Rinses
Long spin
at maximum speed
SPIN REDUCTION
RINSE HOLD
STAIN
EXTRA RINSE
Cottons + Prewash3)
95° - 40°
Max. load 7 kg - Reduced load 3 kg
White and coloured cotton
(Very soiled items).
Prewash
Main wash
Rinses
Long spin
at maximum speed
SPIN REDUCTION
RINSE HOLD
STAIN
TIME SAVE2)
EXTRA RINSE
Synthetics
60° - 30°
Max. load 3 kg - Reduced load 2 kg
Synthetic or mixed fabrics: underwear,
coloured garments, non-shrink shirts, blouses.
Main wash
Rinses
Short spin
at 1200 rpm
SPIN REDUCTION
RINSE HOLD
STAIN 1)
TIME SAVE2)
EXTRA RINSE
Easy Iron
40°
Max. load 1 kg
Synthetic fabrics to be gentle washed
and spun.
The laundry is gently washed and spun to
avoid any creasing. Furthermore the machine will perform additional rinses.
Main wash
SPIN REDUCTION
Rinses
RINSE HOLD
Short spin
EXTRA RINSE
Spin at 1200
rpm
Options
ENGLISH
Programme
Maximum and Minimum Temperature
Type of Laundry
Maximum Load
Delicates
40° - 30°
Max. load kg 3 - Reduced load kg 2
Delicate fabrics: acrylics, viscose, polyester.
Wool/Silk
30° - Cold
Max. load 2 kg
Machine washable wool as well as for hand
washable woollens and delicate fabrics.
Note: A single or bulky item may cause imbalance. If the appliance doesn’t perform
the final spin phase, add more items, redistribute the load manually and then select
the spinning programme.
Cycle Description
Main wash
Rinses
Short spin
at 1200 rpm
11
Options
SPIN REDUCTION
RINSE HOLD
STAIN1)
TIME SAVE2)
EXTRA RINSE
Main wash
SPIN REDUCTION
Rinses
RINSE HOLD
Short spin
at 1200 rpm
Delicate Rinses
Max. load 7 kg
Programme for rinsing and spinning items
which have been washed by hand. The machine performs some rinses, followed by a
final spin. The spin speed can be reduced.
Rinses
SPIN REDUCTION
Long spin
RINSE HOLD
Spin at 1200 EXTRA RINSE
rpm
Drain
Max. load 7 kg
For emptying out the water of the last rinse
in programmes with the Rinse hold option
set.
Draining of
water
Spin
Max. load 7 kg
Separate spin for hand washed cotton garments and after programmes with the Rinse
Hold option set.
before
Turn the programme dial to
setting this programme.
Reduce the spin speed if needed.
Drain
Long spin
Spin at the
maximum
speed
SPIN REDUCTION
Drying — Syntetics
Drying synthetic programme.
DRYING TIME selection.
Drying — Cottons
Drying cotton programme.
DRYING TIME selection.
Refresh
30°
Max. load 3 kg
Quick wash for sport items, or cotton and
synthetic items lightly soiled or worn once.
Main wash
SPIN REDUCTION
Rinses
Short spin
Spin at 1200
rpm
12 www.aeg.com
Programme
Maximum and Minimum Temperature
Type of Laundry
Maximum Load
Cotton Economy
60°
Max. load 7 kg
White and fast coloured cotton.
Slightly or normally soiled cotton items.
The appliance decreases the temperature
and extends the washing time to obtain a
good washing efficiency so saving energy.
Cycle Description
Main wash
Rinses
Long spin
Spin at the
maximum
speed
Options
SPIN REDUCTION
RINSE HOLD
STAIN
EXTRA RINSE
For cancelling the running programme or to switch the machine off .
1) Stain option can be selected only at the temperature of 40°C or higher.
2) If you select the Super Quick option by pressing button 4, we recommend that you
reduce the maximum load as indicated. Full loading is possible however with somewhat
reduced cleaning results.
3) If using liquid detergents, a programme without PREWASH must be selected.
ENGLISH
13
6.1 Drying programmes
Timed programmes
Degree of Drying
Type of Fabric
EXTRA DRY
Cotton and linen
Ideal for towelling mate- (bathrobes, bath
rials
towels, etc)
Cotton and linen
(bathrobes, bath
towels, etc)
CUPBOARD DRY1)
Suitable for items to put
away without ironing
Suitable for items to put
away without ironing
IRON DRY
Suitable for ironing
Drying
Load
4 kg
1200
180 200
3 kg
1200
120 130
1.5 kg
1200
85 - 95
4 kg
1200
170 190
3 kg
1200
110 120
1.5 kg
1200
75 - 85
900
100 110
900
60 - 70
4 kg
1200
140 160
3 kg
1200
90 - 100
1.5 kg
1200
60 - 70
Synthetics and
2 kg
mixed fabrics
(jumpers, blouses,
underwear, house- 1 kg
hold linen)
Cotton and linen
(sheets, tablecloths, shirts, etc.)
Spin
Speed
Suggested
drying
time
Minutes
1) In compliance with EC directive EN 50229 the cotton reference programme for the
data entered in the Energy Label must be tested dividing the maximum washing load by
two equal parts and drying with DRYING TIME each of them.
14 www.aeg.com
7. CONSUMPTION VALUES
Programme
Energy consumption
(KWh)
Water consumption
(litres)
White Cottons 95°
2.2
72
Cottons 60°
1.35
67
Cotton Energy Saving Programme 60° 1)
1.05
49
Cottons 40°
0.85
67
Synthetics 40°
0.55
42
Delicates 40°
0.55
63
Wool/ Handwash 30°
0.25
55
Programme
duration
(minutes)
For the duration of the
programmes,
please refer
to the display on the
control panel.
1) «Cotton Energy Saving programme » at 60°C with a load of 7 kg is the reference
programme for the data entered in the energy label, in compliance with EEC 92/75
standards.
The consumption data shown on
this chart is to be considered
purely indicative, as it may vary
depending on the quantity and
type of laundry, on the inlet water temperature and on the ambient temperature.
8. FIRST USE
1.
To activate the drain system, put 2 litre of water in the main wash compartment of the detergent dispenser.
2. Put a small quantity of detergent in
the main wash compartment of the
detergent dispenser. Set and start a
programme for cotton at the highest
temperature without laundry. This
removes all possible dirt from the
drum and the tub.
9. DAILY USE
9.1 Loading the laundry
1.
2.
Open the appliance door.
Put the laundry in the drum, one
item at a time. Shake the items be-
fore you put them in the appliance.
Make sure not to put too much laundry in the drum.
3. Close the door.
ENGLISH
15
Make sure that no laundry stays between
the seal and the door. There is a risk of
water leakage or damage to the laundry.
9.2 Filling the detergent and additives
MAX
The detergent compartment for the prewash phase, the soak
programme and for the stain function.
Add the detergent for prewash, soak and stain remover before
the start of the programme.
The detergent compartment for the washing phase.
If you use a liquid detergent, put it immediately before you start
the programme.
Liquid additives compartment (fabric conditioner, starch).
Put the product in the compartment before you start the programme.
This is the maximum level for the quantity of liquid additives.
Always obey the instructions that you find on the packaging of the detergent products.
9.3 Setting the programme
(knob 1 )
Turn the programme selector dial to the
required programme.
The programme dial determines the
type of washing cycle (e.g. water level,
drum movement, number of rinses) and
the washing temperature according to
the type of laundry.
The pilot light of button 8 starts blinking.
The programme dial can be turned either clockwise or anticlockwise.
= Reset programme / switching
OFF of the machine
16 www.aeg.com
If you turn the programme dial to
another programme when the
appliance is working, the yellow
pilot light of button 8 blinks 3
times. The display shows the
message Err to indicate a wrong
selection. The machine will not
perform the new set programme.
9.4 Setting the SPIN speed
(button 2)
When you set the programme, the appliance automatically proposes the maximum spin speed allowed by that programme.
Press this button repeatedly to change
the spin speed. The relevant light will
light up.
RINSE HOLD : the water of the last rinse
is not emptied out to prevent the fabrics
from creasing. When the programme
has finished the display shows a blinking
.
The DOOR pilot light goes on.
The pilot light of button 8 is off. The
door is blocked to indicate that the water must be emptied out.
To empty the water out please read
chapter «At the end of the programme».
9.5 Setting the STAIN option
(button 3)
Set this option to treat heavily soiled or
stained laundry with stain remover
The appliance extends the main wash
phase and intensifies the stain action
phase. The relevant light illuminates.
This option is not available with
a temperature lower than 40°C.
If you wish to perform a programme with
the stain option, pour stain remover into
.
compartment
9.6 Setting the TIME SAVING
option (button 4)
This option allows you to modify the
washing time, automatically proposed
by the appliance.
Press button 4
once
DAILY
The relative pilot light
comes on.
The washing duration will
be reduced to wash daily
soiled laundry.
Press button 4 twice
SUPER The relative pilot light reQUICK mains lit.
The washing duration will
be reduced to wash lightly
soiled laundry or items
used or worn for a short
time.
The display shows the decreased washing time.
9.7 Setting the EXTRA RINSE
option (button 5)
This appliance is designed for saving water.
However, for people with a very delicate
skin (allergic to detergents) it may be
necessary to rinse the laundry using an
extra quantity of water (extra rinse).
The appliance will perform some additional rinses.
9.8 Starting the programme
(button 8)
Press the button 8 to start the programme. The corresponding red pilot
light stops blinking.
The pilot light A is on to indicate that
the appliance starts operating.
The pilot light C is on to indicate the
door is locked.
Press the button 8 to interrupt a programme which is running. The corresponding red pilot light starts blinking.
Press the button 8 again to restart the
programme from the point at which it
was interrupted
If you have chosen a delayed start with
button 9, the machine will begin the
countdown.
If you set an incorrect option, the yellow
pilot light of the button 8 blinks for 3
times. The display shows the message
Err for some seconds.
ENGLISH
9.9 Setting the DELAY START
(button 9)
Press this button again an again to set
the required delay.
The display shows the set delay time value (up to 20 hours) for some seconds,
then it shows the duration of the programme again.
Set the delay before you press the button 8.
You can delay the wash programme can
be delayed from 30 min - 60 min - 90
min, 2 hours and then by 1 hour up to a
maximum of 20 hours.
Adding items after you have set the
delay (throughout the delay time the
door will be locked):
• Press the button 8 to put the machine
in pause
• Add the laundry, close the door .
• Press the button 8 again.
Setting the delayed start:
• Set the programme and the required
options.
• Set the delay start.
• Press the button 8: the appliance
starts its hourly countdown.
The programme will start after the selected delay has expired.
Cancelling the delayed start:
• Press the button 8 to set the washing
machine to PAUSE;
• Press the button 9 once until the display shows the symbol ’;
• Press the button 8 again to start the
programme.
17
and
Turn the programme dial to
then to the new programme position.
Press the 8 button again to start the new
programme. The washing water in the
tub will not emptied out.
9.11 Interrupting a
programme
Press the button 8 to interrupt a programme which is running, the corresponding light starts blinking. Press the
button again to restart the programme.
9.12 Cancelling a programme
Turn the selector dial to
to cancel a
programme which is running. Now you
can select a new programme.
9.13 Opening the door
The Delay Start can not be selected with
DRAIN programme.
When the machine is working and
through the delay time, the door is
locked.
If, for any reason, it is necessary to open
it, firstly press the button 8 to set the
machine to pause
If the light C after a few minutes goes
off, the door can be opened.
If the light C stays on and the door remains locked, this means that the machine is already heating or that the water
level is too high. In this case the door
can not be opened.
If you cannot open the door but you
need to open it, turn the programme dito switch the machine off. After
al to
a few minutes the door can be opened
(pay attention to the water level and
temperature !) .
After closing the door, it is necessary to
set the programme and the options
again. Press button 8 to start the programme again.
9.10 Altering an option or a
running programme
9.14 At the end of the
programme
It is possible to change some options
before the programme carries it out. Before you make any change, you must
press the button 8 to pause the appliance.
Changing a running programme is possible only by resetting it.
The machine stops automatically. The pilot light of button 8, the pilot lights A
and C go off. A blinking will appear on
the display.
If you have set a programme or an option that ends with water in the tub, the
light C remains lit. The door is locked.
You can change the set delay only after you set the washing programme again.
18 www.aeg.com
The water must be emptied out before
opening the door. During this time the
drum continues to turn at regular intervals until water drain.
Follow the below instructions to empty
out the water:
• Turn the programme selector dial to
•
•
•
•
Set the DRAIN or SPIN programme
Reduce the spin speed, if needed
Press the button 8
When the programme has finished the
display shows a blinking . The pilot
light C goes off. The door can be
opened.
Turn the programme selector dial to
to switch the machine off.
Remove the laundry from the drum and
carefully check that the drum is empty. If
you do not intend to carry out another
wash, close the water tap. Leave the
door open to prevent the formation of
mildew and unpleasant smells.
Stand by : once the programme has finished after a few minutes the energy saving system will be enabled. The brightness of the display is reduced. By pressing any button the appliance will come
out of the energy saving status.
9.15 Drying only
The recommended load size is 3 kg for
cottons and linen, and 2 kg for synthetic
items.
It is also possible to dry up to 4
kg of cotton items (see the «Drying Programme » table).
The water tap must be open and the
drain hose must be positioned in the
sink or connected to the drain pipe.
1. Load the laundry.
2. Select a spin cycle at the maximum
spin speed allowed for the type of
laundry in order to obtain the best
drying performances.
3. Set the drying programme for Cottons or Synthetic in the Drying sector of the programme dial.
4. Press button 6 to set the drying
time. Press this button again and
again until the time you want appears on the display.
For Cottons you can set a drying
time from 10 minutes to 250 minutes
(hours 4.10).
For Synthetic you can select a drying
time from 10 minutes to 130 minutes
(hours 2.10).
Every time you press this button the
drying time increases by 5 minutes.
Note! The programme time will automatically increase by a few minutes.
5. Press button 8 to start the programme.
After the programme has started,
the time remaining is updated every
minute.
If you set only 10 minutes of drying phase with the timed drying
button, the appliance performs
only a cooling phase.
6. At the end of the drying programme, some acoustic signals
sound. A blinking
appears on the
display.
The pilot light B, and C and the light
of the button 8 go off.
At this point, begins an anti-crease
phase, which lasts for about 10 minutes. During this time the light C is
on. The door cannot be opened.
If you need to open the door before or during the anti-crease
phase or to interrupt it, press any
button or turn the programme
dial to any programme position
(except O.
The door can be opened after
some minutes. (In any case do
not try to open the door if it is
locked!) .
7. Turn the selector dial to the O position to switch the machine off.
8. Remove the laundry.
Note!
The different type of cottons (towelling,
sheets, shirts, and so on) or any laundry
items rolling up during the spinning
phase may result in partial dryness.
In the exceptional case that at the end of
the cycle the laundry remains slightly
wet, we suggest that you unfold the rolled up items, redistribute them evenly in
ENGLISH
the drum and select an additional drying
cycle of 20-30 minutes.
9.16 NON-STOP programme:
Washing and Timed drying
The recommended load size is 3 kg for
cotton and 2 kg for synthetic.
It is also possible to dry up to 4
kg of cotton items (see the «Drying Programme » table).
CAUTION!
Do not use a dosing device/ball
when carrying out a washing
and drying programme.
1.
2.
3.
Load the laundry.
Add detergent and fabric softener.
Switch the machine on: turn the selector dial to the required washing
programme/fabric.
4. Press the relevant buttons to set the
required options.
If possible, do not set a spin
speed lower than that proposed
by the appliance to avoid too
long a drying time therefore saving energy. In any case the lowest values you can select are 900
r.p.m. for cottons and synthetics
and 700 r.p.m. for delicate fabrics. The reduction of the spin
speed is only possible after selecting drying.
5. Press the button 6 to set the drying
time. When selecting a «non-stop
programme» the pilot lights A and B
illuminate.
The DRYING TIME value appears on
the display for some seconds, then
the entire duration of the washing
and drying cycle appears.
19
If you set a washing programme
and only 10 minutes of drying cycle by pressing the button 6, the
total duration of the cycles displayed includes also the unrolling and the cooling phase.
6. Press the button 8 to start the programme. After the programme has
started, the time remaining is updated every minute.
7. At the end of the programme, follow
the indications given in the previous
chapter. Then, turn the selector to
the O position to switch the machine
off.
8. Remove the laundry.
9.17 Fluff in the garments
During the WASHING AND/OR DRYING
PHASE, certain types of fabric, as
sponge-cloth, wool, sweatshirt, could release fluff.
The released fluff could stick to the fabrics during the next cycle.
This drawback increases with technical
fabrics.
To prevent the lint in your clothes, it is
recommended:
• To do not wash dark fabrics after you
washed and dried light colored fabrics
(new sponge, wool, sweatshirt especially) and vice versa.
• To air-dry this type of fabrics when
they are washed the first time.
• To clean the filter.
• Perform one or more rinse cycles to
wash the drum between the washing
and drying of fabrics with different colors.
• After the drying phase, thoroughly
clean the empty drum, the gasket and
the door with a wet rag.
10. HELPFUL HINTS AND TIPS
10.1 The laundry load
• Divide the laundry in: white, coloured,
synthetics, delicates and wool.
• Obey the washing instructions that are
on the laundry care labels.
• Do not wash together white and coloured items.
• Some coloured items can discolour
with the first wash. We recommend
that you wash them separately for the
first times.
20 www.aeg.com
• Button up pillowcases, close zippers,
hooks and poppers. Tie up belts.
• Empty the pockets and unfold the
items.
• Turn inside out multilayered fabrics,
wool and items with painted illustrations.
• Remove hard stains.
• Wash with a special detergent heavy
soil stains.
• Be careful with the curtains. Remove
the hooks or put the curtains in a
washing bag or pillowcase.
• Do not wash in the appliance :
– Laundry without hems or with cuts
– Underwired bras.
– Use a washing bag to wash small
items.
• A very small load can cause balance
problems with the spin phase. If this
occurs, adjust manually the items in
the tub and start the spin phase again.
10.2 Stubborn stains
For some stains, water and detergent is
not sufficient.
We recommend that you remove these
stains before you put the items in the
appliance.
Special stain removers are available. Use
the special stain remover that is applicable to the type of stain and fabric.
10.3 Detergents and additives
• Only use detergents and additives
specially made for washing machines.
• Do not mix different types of detergents.
• To help the environment, do not use
more than the correct quantity of detergent.
• Obey the instructions that you find on
the on packaging of these products.
• Use the correct products for the type
and colour of the fabric, the programme temperature and the level of
soil.
• If you use liquid detergents, do not set
the prewash phase.
• If your appliance has not the detergent dispenser with the flap device,
add the liquid detergents with a dosing ball.
10.4 Water hardness
If the water hardness in your area is high
or moderate, we recommend that you
use a water softener for washing machines. In areas where the water hardness is soft it is not necessary to use a
water softener.
To know the water hardness in your area,
contact your local water authority.
Obey the instructions that you find on
the packaging of the products.
Equivalent scales measure the water
hardness:
• German degrees (°dH).
• French degrees (°TH).
• mmol/l (millimol for each litre - international unit for the hardness of water).
• Clarke degrees.
Water hardness table
Water hardness
Level
Type
°dH
°T.H.
mmol/l
Clarke
1
soft
0-7
0-15
0-1.5
0-9
2
medium
8-14
16-25
1.6-2.5
10-16
3
hard
15-21
26-37
2.6-3.7
17-25
4
very hard
> 21
> 37
>3.7
>25
10.5 Drying hints
Prepare the drying cycle
• Open the water tap.
• Do a check if the connection of the
drain hose is correct. Refer to installation chapter for more information.
ENGLISH
• For the maximum laundry load of the
drying programmes, refer to the drying programmes table.
Do no not set a drying programme for
this laundry:
– Very delicate items.
– Synthetic curtains.
– Woollen and silk items.
– Pieces of clothing with metal inserts.
– Nylon stockings.
– Quilts.
– Bed covers.
– Duvets.
– Anoraks.
– Sleeping bags
– Fabrics with residue of hair sprays, nail
solvents or similar.
– Garments with foam-rubber or materials similar to foam-rubber.
10.6 Garment labels
When you dry ther laundry, obey the indications on the labels of the manufacturers:
•
= The item can be tumble dried
•
= The drying cycle is at high temperature
•
= The drying cycle is at reduced
temperature
•
= The item can not be tumble
dried.
21
10.7 Drying cycle duration
The drying time can change depending
on:
• speed of the last spin
• dryness level
• type of laundry
• weight of the load size
GENERAL TIPS
Refer to the «Drying programmes» table
to find the average drying times.
The experience will help you to dry the
laundry in a more correct way. Take note
of the duration drying time of the cycles
done before.
To avoid the static charge at the end of
the drying cycle:
• Use fabric conditioner in the washing
cycle.
• Use special fabric conditioner for tumble dryers.
When the drying programme is completed remove the laundry in a short time.
10.8 Additional drying
If, at the end of the drying programme,
the laundry is still damp, set a short drying cycle again.
WARNING!
To avoid creases of fabrics or
shrinks of the clothing do not
over dry the laundry.
11. CARE AND CLEANING
WARNING!
Disconnect the appliance from the mains
supply before you clean it.
11.1 Descaling
The water we use contains limescale. If it
becomes necessary, use a water softener
to remove limescales.
Use a special product made for washing
machines. Obey the instructions that you
find on the packaging of the manufacturer.
Do this separately from the laundry
wash.
11.2 External cleaning
Clean the appliance only with soap and
warm water. Fully dry all the surfaces.
CAUTION!
Do not use alcohol, solvents or
chemical products.
22 www.aeg.com
11.3 Door seal
Regularly examine the seal and remove
all objects from the inner part.
11.4 Drum
Regularly examine the drum to prevent
limescale and rust particles.
Only use special products to remove rust
particles from the drum.
To do this:
• Clean the drum with special product
for stainless steel.
• Start a short programme for cotton at
the maximum temperature with a
small quantity of detergent.
11.5 Detergent dispenser
To clean the dispenser:
1
1.
2.
Press the lever.
Pull the dispenser out.
3.
Remove the top part of the liquid
additive compartment.
Clean all the parts with water.
MAX
2
4.
MAX
5.
6.
Clean the dispenser recess with a
brush.
Put back the dispenser in the recess.
ENGLISH
WARNING!
Before unscrewing the pump
cover, switch the appliance off
and remove the mains plug from
the socket.
11.6 Drain pump
The pump should be inspected regularly
and particularly if:
• the appliance does not empty and/or
spin;
• the appliance makes an unusual noise
during draining due to objects such as
safety pins, coins etc. blocking the
pump;
• a problem with water draining is detected (see chapter “Troubleshooting” for more details).
A
23
Proceed as follows:
Unplug the appliance.
If it is necessary, wait until the water
has cooled down.
1.
2.
3.
Place a container close to the pump
to collect any spillage.
4.
Release the emergency emptying
hose (B), place it in the container
and remove its cap cover.
5.
When no more water comes out,
unscrew the pump cover (A) by turning it anti-clockwise and remove the
filter. Use pliers, if necessary.
Always keep a rag nearby to dry up
any water spillages when removing
the cover. Clean the filter under a
tap, to remove any traces of fluff.
6.
Remove foreign bodies and fluff
from the filter seat and from the
pump impeller.
B
24 www.aeg.com
7.
Check carefully whether the pump
impeller rotates (it rotates jerkily). If
it doesn’t rotate, please contact
your Service Centre.
8.
Put the cap back on the emergency
emptying hose and place the latter
back in its seat.
Replace the filter into the pump by
inserting it correctly into the special
guides. Screw the pump cover firmly
by turning it clockwise.
9.
WARNING!
When the appliance is in use and depending on the programme selected
there can be hot water in the pump.
Never remove the pump cover during a
wash cycle, always wait until the appliance has finished the cycle, and is empty. When refitting the pump cover, ensure it is securely re-tightened so as to
stop leaks and young children being
able to remove it.
• The appliance does not fill with water.
• The appliance fills with the water for a
long time.
• The indicator of button 8 flashes and
the display shows the related alarm.
Refer to 'Troubleshooting'.
WARNING!
Disconnect the mains plug from
the mains socket.
11.7 The inlet hose filter and
the valve filter
It could be necessary to clean the filters
when:
To clean the water inlet filters:
1.
2.
Close the water tap.
Remove the water inlet hose from
the water tap.
3. Clean the filter in the inlet hose with
a stiff brush.
ENGLISH
4.
5.
6.
7.
20°
25
Remove the inlet hose behind the
appliance.
Clean the filter in the valve with a
stiff brush or a towel.
Install again the inlet hose. Make
sure that the couplings are tight to
prevent leakages.
Open the water tap.
45°
11.8 Emergency emptying out
11.9 Frost precautions
If the water is not discharged, proceed
as follows to empty out the appliance:
1. pull out the plug from the power
socket;
2. close the water tap;
3. if necessary, wait until the water has
cooled down;
4. place a bowl on the floor;
5. place the end of the emergency
emptying hose into the bowl;
6. Remove its cap. The water should
drain by gravity into the bowl. When
the bowl is full, put the cap back on
the hose. Empty the bowl;
Repeat the procedure until water
stops flowing out;
7. clean the pump if necessary as previously described;
8. replace the emergency emptying
hose in its seat after having plugged
it;
9. screw the pump again.
If the machine is installed in a place
where the temperature could drop below 0°C, proceed as follows:
1. close the water tap;
2. unscrew the water inlet hose from
the tap;
3. place the end of the emergency
emptying hose and that of the inlet
hose in a bowl placed on the floor.
Let water drain out;
4. screw the water inlet hose back on;
5. put the cap on the emergency emptying hose again;
6. reposition the emergency emptying
hose.
By doing this, any water remaining in the
machine is removed, avoiding ice forming and consequently damage to the appliance.
When you use the machine again, make
sure that the ambient temperature is
above 0°C.
12. TROUBLESHOOTING
Certain problems are due to lack of simple maintenance or oversights, which
can be solved easily without calling out
an engineer. Before contacting your local Service Centre, please carry out the
checks listed below.
26 www.aeg.com
During machine operation it is possible
that the yellow pilot light of button 8
blinks, one of the following alarm codes
appears on the display and at the same
time some acoustic signals sound every
20 seconds to indicate that the machine
is not working:
•
: problem with the water supply
•
•
: door open
•
: anti-flooding system has activa-
ted
Once the problem has been eliminated,
press the button 8 to restart the programme. If after all checks, the problem
persists, contact your local Service Centre.
: problem with the water draining
Problem
Possible cause/Solution
The washing machine
does not start:
The door has not been closed.
• Close the door firmly.
The plug is not properly inserted in the power socket.
• Insert the plug into the power socket.
There is no power at the socket.
• Please check your domestic electrical installation.
The main fuse has blown.
• Replace the fuse.
The programme dial is not correctly positioned and
the button 8 has not been pressed.
• Please turn the programme dial and press the button 8 again.
The delay start has been set.
• If the laundry is to be washed immediately, cancel
the delay start.
The Child safety lock has been activated.
• Deactivate this device.
The machine does not
fill:
The water tap is closed.
• Open the water tap.
The inlet hose is squashed or kinked.
• Check the inlet hose connection.
The filter in the inlet hose or the inlet valve filter are
blocked.
• Clean the water inlet filters. (See "Cleaning the
water inlet filters" for more details)
The door is not properly closed.
• Close the door firmly.
The machine fills then
empties immediately:
The end of the drain hose is too low.
• Refer to relevant paragraph in «Water drainage»
section.
ENGLISH
Problem
27
Possible cause/Solution
The drain hose is squashed or kinked.
• Check the drain hose connection.
The drain filter is clogged.
The machine does not • Clean the drain filter.
empty and/or does not You have set an option or a programme that ends
with the water still in the tub or a that eliminates all
spin:
the spinning phases.
• Set the draining or the spinning programme.
The laundry is not evenly distributed in the drum.
• Redistribute the laundry.
There is water on the
floor:
Too much detergent or unsuitable detergent (creates too much foam) has been used.
• Reduce the detergent quantity or use another
one.
Check whether there are any leaks from one of the
inlet hose fittings. It is not always easy to see this as
the water runs down the hose; check to see if it is
damp.
• Check the water inlet hose connection.
The drain or the inlet hose is damaged.
• Replace it with a new one.
The cap on the emergency emptying hose has not
been replaced or the filter has not been properly
screwed in after cleaning action.
• Refit the cap on the emergency emptying hose or
screw the filter fully in.
Too little detergent or unsuitable detergent has
been used.
• Increase the detergent quantity or use another
one.
Stubborn stains have not been treated prior to washing.
Unsatisfactory washing
• Use commercial products to treat the stubborn
results:
stains.
The correct temperature was not selected.
• Check if you have selected the correct temperature.
Excessive laundry load.
• Reduce the laundry load.
The door will not
open:
The programme is still running.
• Wait the end of washing cycle.
The door lock has not been released.
• Wait until the DOOR light has gone off.
There is water in the drum.
• Select drain or spin programme to empty out the
water.
28 www.aeg.com
Problem
Possible cause/Solution
The machine vibrates
or is noisy:
The transit bolts and packing have not been removed.
• Check the correct installation of the appliance.
The support feet have not been adjusted
• Check the correct levelling of the appliance.
The laundry is not evenly distributed in the drum.
• Redistribute the laundry.
Maybe there is very little laundry in the drum.
• Load more laundry.
Spinning starts late or
the machine does not
spin:
The electronic unbalance detection device has cut in
because the laundry is not evenly distributed in the
drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning
can resume. If, after some minutes, the laundry is still
not evenly distributed in the drum, the machine will
not spin.
• The laundry load is perhaps to little, add more
items, redistribute the load manually and then select the spinning programme.
The machine does not
dry or does not dry
properly:
The drying time has not been selected.
• Select the drying time.
The water tap is not turned on.
• Open the water tap.
The drain filter is clogged.
• Clean the drain filter.
The machine is overloaded.
• Reduce the laundry load.
The selected drying time or dryness degree was not
suitable for the laundry.
• Select the suitable drying time or the dryness degree for the laundry.
The machine makes an
unusual noise:
The machine is fitted with a type of motor which
makes an unusual noise compared with other traditional motors. This new motor ensures a softer start
and more even distribution of the laundry in the
drum when spinning, as well as increased stability of
the machine.
No water is visible in
the drum:
Machines based on modern technology operate
very economically using very little water without affecting performance.
The display shows the
alarm code
:
Anti-flooding system has activated.
• Pull out the plug from the power socket, close the
water tap and contact the Service Force Centre.
ENGLISH
29
Problem
Possible cause/Solution
The laundry is full of
different colored fluff:
The fabrics washed in the previous cycle released
fluff of a different colour.
• The drying phase helps to eliminate some fluff.
• Clean the clothes with a fluff remover.
In case of an excessive amount of fluff in the
drum repeat the following procedure twice:
• Thoroughly clean the empty drum, the gasket and
the door with a wet rag.
• Perform a rinse cycle.
• Put a wool or piled fabric rag inside the drum.
• Perform a drying cycle of 10 minutes.
• Remove the old wool cloth.
Now you can wash other garments.
13. INSTALLATION
13.1 Unpacking
1.
Use the gloves. Remove the external
film. If necessary, use a cutter.
2.
3.
Remove the cardboard top.
Remove the polystyrene packaging
materials.
30 www.aeg.com
4.
Remove the internal film.
5.
Open the door. Remove the polystyrene piece from the door seal
and all the items from the drum.
6.
Put one of the polystyrene packaging elements on the floor behind
the appliance. Carefully put down
the appliance with the rear side on
it. Make sure not to damage the hoses.
7.
Remove the polystyrene protection
from the bottom.
Pull up the appliance in vertical position.
8.
1
2
ENGLISH
9.
31
Remove the power supply cable and
the drain hose from the hose holders.
10. Remove the three bolts. Use the key
supplied with the appliance.
11. Pull out the plastic spacers.
12. Put the plastic caps in the holes.
You can find these caps in the user
manual bag.
WARNING!
Remove all the packaging and
the transit bolts before you install
the appliance.
We recommend that you keep
the packaging and the transit
bolts for when you move the appliance.
32 www.aeg.com
13.2 Positioning and levelling
• Install the machine on a flat hard floor.
• Make sure that air circulation around
the machine is not impeded by carpets, rugs etc.
• Carefully level by screwing the adjustable feet in or out.
• After having levelled the appliance,
tighten the lock nuts.
• The appliance must be level and stable.
Never place cardboard, wood or
similar materials under the machine to compensate for any unevenness in the floor.
If it is impossible to avoid positioning
the machine next to a gas cooker or
coalburning stove, an insulating panel
covered with aluminium foil on the side
facing the cooker or stove, must be inserted between the two appliances.
Before placing it on small tiles, apply a
rubber coating.
The water inlet hose and the drain hose
must not be kinked.
CAUTION!
The machine must not be installed in rooms where the temperature can drop below 0°C.
13.3 The inlet hose
• Connect the hose to the appliance.
Turn the inlet hose only left or right.
Loose the ring nut to set it in the correct position.
20
O
45
O
ENGLISH
33
• Connect the water inlet hose to the
cold water tap with 3/4 thread.
CAUTION!
Make sure that there are no leaks
from the couplings.
Do not use an extension hose if
the inlet hose is too short. Contact the service centre for the replacement of the inlet hose.
Water-stop device
The inlet hose has a water stop device.
This device prevents water leaks in the
hose because of its natural ageing. The
red sector in the window «A» shows this
fault .
If this occur, close the water tap and
contact the service centre to replace the
hose.
A
13.4 Water drainage
There are different procedures to connect the drain hose:
With the plastic hose guide.
34 www.aeg.com
• On the edge of a sink.
• Make sure that the plastic guide cannot move when the appliance drains.
Attach the guide to the water tap or
the wall.
• To a stand pipe with vent-hole.
Refer to the illustration. Directly into a
drain pipe at a height of not less than
60 cm (23.6”) and not more than 100
cm (39.3”). The end of the drain hose
must always be ventilated , i.e. the inner diameter of the drainpipe (min. 38
mm — min. 1.5”) must be larger than
the external diameter of the drain
hose.
• If the end of the drain hose is this (see
the drawing), you can push it directly
into the stand pipe.
Without the plastic hose guide.
• To a sink spigot.
Refer to the illustration. Put the drain
hose in the spigot and tighten it with a
clip. Make sure that the drain hose
makes a loop to prevent that remaining particles go in the appliance from
the sink.
ENGLISH
35
• Directly to a built-in drain pipe in the
room wall and tighten it with a clip.
You can extend the drain hose to
maximum 400 cm. Contact the
service centre for the other drain
hose and the extension.
13.5 In the interest of the environment
• Connect the appliance to the FOUL
system for the drain water. The sewage works keeps the drain water for
the treatment before to release safely
it into a river. Do not connect this appliance to the surface drain system of
the water because it releases the drain
water directly into a river or stream
without a treatment and this can cause
of pollution. Contact your local water
authority to have more information.
13.6 Building in
• This appliance has been designed to
be built into the kitchen furniture. The
recess should have the dimensions
shown in Fig 1.
600 mm
min.
596 mm
560 mm
555 mm
min.
820 mm
818 mm
75 mm
60 mm
100 mm
Fig.1
170 mm
36 www.aeg.com
Preparation and assembly of the door
• The machine is originally pre-arranged
for the assembly of a door opening
from right to left (Fig. 2).
Fig. 2
16-22 mm
X
Ø 35 mm
416
mm
• Door
The dimensions of the door should be:
– width 595-598 mm
– thickness 16-22 mm
– the height X depends on the height
of the adjacent furniture's base (Fig.
3).
22±1,5 mm
14 mm
595-598 mm
Fig. 3
1
Fig. 4
2
• Hinges
To mount the hinges it is necessary to
drill two holes (dia. 35 mm, depth
12.5-14 mm depending on the depth
of door furniture) on the inner side of
the door. The distance between the
holes hobs fixing centres must be 416
mm.
The distance from upper edge of the
door to the centre of the hole depends on the adjacent furniture's dimensions.
The hinges will be fixed to the door by
means of screws for wood 1 and 2
(Fig. 4) supplied with the appliance.
ENGLISH
37
• Mounting the door
Fix the hinges to the appliance by
means of the M5x15 screws . The hinges can be adjusted to compensate for
possible uneven thickness of the door.
To align the door perfectly it is necessary to loosen the screw , adjust the
door and tighten the screw A again
(Fig. 5).
A
B
Do not remove the screw B (Fig.
5.
Fig. 5
• Counter-magnet
The appliance is prearranged for a
magnetic closure of the door. To enable a correct operation of this device,
it is necessary to screw the countermagnet A (steel disk + rubber ring) into the inner side of the door.
Its position must correspond to the
magnet B on the appliance (Fig. 6).
A
B
C
Do not remove the screw C.
Fig. 6
D
A
If the door has to be opened from left to
right, invert the position of the plates E ,
the magnet D and the plate C. Mount
the counter-magnet D and the hinges A
as previously described (Fig. 7 )
CAUTION!
Do not remove the screw B.
C
E
B
Fig. 7
15. ENVIRONMENT CONCERNS
Recycle the materials with the
symbol . Put the packaging in
applicable containers to recycle it.
Help protect the environment and
human health and to recycle waste
of electrical and electronic
appliances. Do not dispose
appliances marked with the symbol
with the household waste. Return the
product to your local recycling
facility or contact your municipal
office.
38 www.aeg.com
ENGLISH
39
132927191-A-032012
www.aeg.com/shop
Download PDF

advertising
