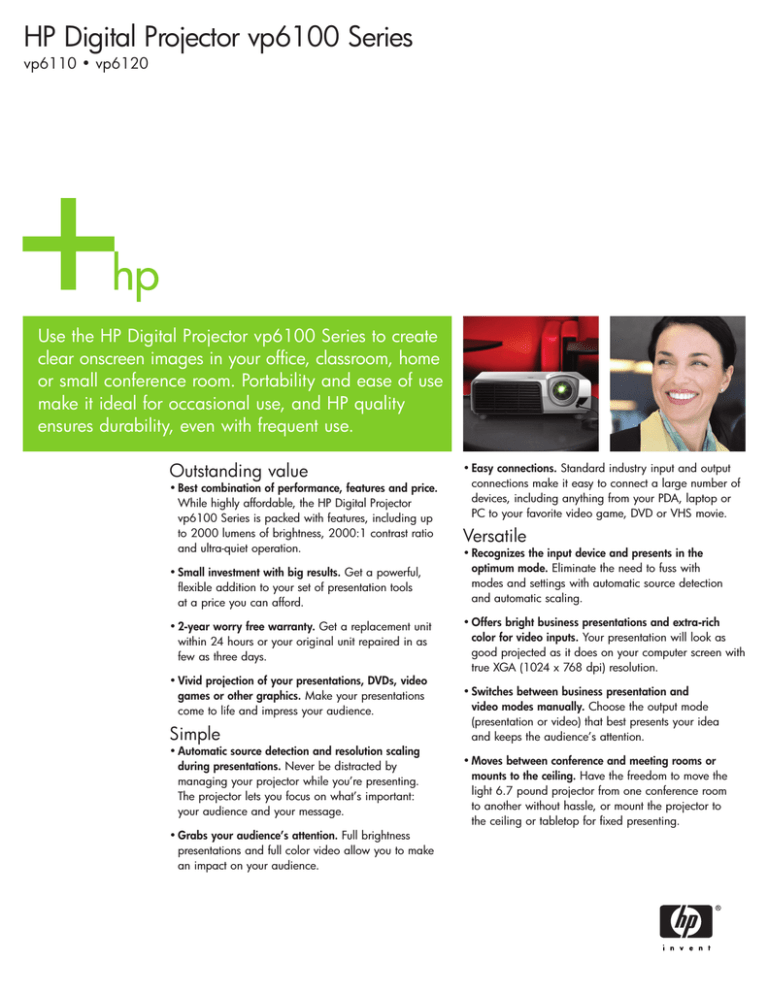

HP Digital Projector vp6100 Series
vp6110 • vp6120
Use the HP Digital Projector vp6100 Series to create
clear onscreen images in your office, classroom, home
or small conference room. Portability and ease of use
make it ideal for occasional use, and HP quality
ensures durability, even with frequent use.
Outstanding value
• Best combination of performance, features and price.
While highly affordable, the HP Digital Projector
vp6100 Series is packed with features, including up
to 2000 lumens of brightness, 2000:1 contrast ratio
and ultra-quiet operation.
• Small investment with big results. Get a powerful,
flexible addition to your set of presentation tools
at a price you can afford.
• 2-year worry free warranty. Get a replacement unit
within 24 hours or your original unit repaired in as
few as three days.
• Vivid projection of your presentations, DVDs, video
games or other graphics. Make your presentations
come to life and impress your audience.
• Automatic source detection and resolution scaling
during presentations. Never be distracted by
managing your projector while you’re presenting.
The projector lets you focus on what’s important:
your audience and your message.
• Grabs your audience’s attention. Full brightness
presentations and full color video allow you to make
an impact on your audience.
• Easy connections. Standard industry input and output
connections make it easy to connect a large number of
devices, including anything from your PDA, laptop or
PC to your favorite video game, DVD or VHS movie.
• Recognizes the input device and presents in the
optimum mode. Eliminate the need to fuss with
modes and settings with automatic source detection
and automatic scaling.
• Offers bright business presentations and extra-rich
color for video inputs. Your presentation will look as
good projected as it does on your computer screen with
true XGA (1024 x 768 dpi) resolution.
• Switches between business presentation and
video modes manually. Choose the output mode
(presentation or video) that best presents your idea
and keeps the audience’s attention.
• Moves between conference and meeting rooms or
mounts to the ceiling. Have the freedom to move the
light 6.7 pound projector from one conference room
to another without hassle, or mount the projector to
the ceiling or tabletop for fixed presenting.
HP Digital Projector vp6100 Series
TI DLP™ quality and life-long
image reliability
USB slot for connecting remote
Infrared (IR) receiver windows—
front and rear of projector
Kensington lock slot
3-watt speaker
Ceiling mount, tabletop mount
and rear mount ready
Dual mode output for
optimized colors
1. 15-pin VGA input connector
2. Composite input (RCA jack)
3. S-video connector
(mini-DIN 4-pin connector)
HP Digital Projector vp6120 shown
4. Audio RCA jack
(3.5 mm mini jack)
5. Universal asynchronous
receiver-transmitter (UART)
mini-DIN 8-pin connector
6. B-type USB terminal for
mouse port
7. 15-pin VGA output connector
8. HDTV ready—component
video inputs
3 4 5
Inputs (side view shown)
Product highlights
• Presentation and video mode—With super bright
PowerPoint slides and deep video colors in a single
projector, you no longer need to agonize over colors
and brightness tradeoffs when selecting a projector.
• Image sharpness—Keep your audience engaged
and entertained with clear, crisp, accurate images
and text. The 2000:1contrast ratio means no more
eyestrain to read what is being projected.
• Large number of input and output connections—
Use the versatile connection options to seamlessly
integrate components you want (PDA, PC, DVD,
video and audio) into your presentation.
• Signal detection—Don’t waste time trying to get the
projector to recognize the source. These projectors
automatically detect the source and scale the
resolution accordingly.
• Monitor pass through—View your presentation
on a strategically placed external laptop or PC
monitor, giving you the confidence and power to
communicate effectively.
• Home and business use—Enjoy the projector’s
amazing versatility while watching DVDs in the
comfort of your home or while presenting critical
fiscal information to colleagues and managers.
Maximize your presentation with
versatile accessories from HP.
Lamp module
HDTV component
cable (RGB)
60-inch mobile screen
6-foot S-video cable
Carrying case
Premium wireless
remote control
with USB
Ceiling mount connector
Always have a
back-up lamp module
for your presentations.
Easily connect your
HP projector to your
DVD and VCR for
the ultimate home
theater experience.
Lightweight and
easy to carry with a
built-in handle, this
mobile screen sets
up easily anywhere
you need it.
Easily connect to a
wide range of video
equipment, from a
VCR to a camcorder.
The lightweight and
sturdy design allows
you to take it wherever
you need to present.
Built-in mouse ball
and laser pointer
allow you to easily
control every detail
of your presentation.
Position your
projector to achieve
the optimal image
size for your screen
or viewing surface.
Low-cost, easy-to-use
solution for your
data- and videoprojection needs
Imagine a versatile and affordable digital projector
that lets you give an easy-to-read accounting workshop
early in the morning, a product rollout presentation filled
with realistic images and vivid colors after lunch, and
an initial screening of the company’s latest commercial
with stunning video and audio before quitting time—
the HP Digital Projector vp6100 Series gives you all
of this and more.
Powerful performance at a reasonable price
The versatile HP Digital Projector vp6100 Series offers
superior presentation features in an affordable and
compact projector. Equipped with Texas Instruments
Digital Light Processing (DLP)™ technology, the projector
offers amazing contrast and long-term picture reliability.
Expect crisp, sharp, detailed projections. Enjoy
easy-to-read text, precise graphics and realistic images.
Even numbers in complex spreadsheets and tables are
easy to see and read.
And, the video and presentation modes let you
effortlessly switch between your presentation and
video—regardless of the input device.
The high lumens in the HP Digital Projector vp6100
Series give you greater flexibility in where and when
you make your presentations, allowing you to leave the
lights on or the curtains open.
Additionally, you’ll enjoy simple, easy-to-understand
settings that get you up and running more quickly.
Concentrate on your presentation instead of which
button to push or what switch to toggle. With the
HP Digital Projector vp6100 Series, the source is
automatically detected and the resolution is
automatically scaled.
All the connections you could ask for
The HP Digital Projector vp6100 Series lets you:
• Connect any device from PCs, DVDs and video
games to your projector with component, VGA, RGA,
composite and S-video.
• View an external monitor to keep track of your
presentations, letting you check the status of your
presentations and manage events with confidence
and control.
Lightweight design—Put the projector where you want it.
The HP Digital Projector vp6100 Series is lightweight
and easy to transport at only 6.7 pounds, making it light
enough to carry from room to room or venue to venue.
Simply slip the projector into a carrying case and be
on your way.
It’s also easy to mount on the ceiling, letting you optimize
your presentation space. If you have a week of intensive
training classes, mount the projector to the ceiling and
don’t worry about setup and storage.
Worry-free projector—Focus on your presentation.
Giving relaxed and effective presentations is hard
work, and the last thing you need to worry about is your
projector. You want a projector that is flexible and robust
enough to meet your needs, regardless of how much light
is in the room or how sophisticated your presentation is.
If you’ve put time into coordinating audio, video, slides
and graphics, you want the projector to handle it without
any issues.
HP Digital Projector vp6100 Series
Technical specifications
HP Digital Projector vp6110 (Product number: L1595A)
Image contrast
Lamp life
Projected image size
Throw distance
Display technology
Resolutions supported
through scaling
Projector lens
Keystone correction
Noise level
Video capability
Lamp type
Video composite input
Signal interface
1500 lumens
800 x 600 True SVGA
HP Digital Projector vp6120 (Product number: L1596A)
2000 lumens
1024 x 768 True XGA
2000:1 contrast ratio full on/off
2,000 hours standard mode, 3,000 hours in lamp saver mode
6.7 lb
29.3 to 187.5 in (diagonal)
37.5 to 240 in (diagonal)
4.9 to 26.2 ft
Texas Instruments DLP™
Scales up from VGA (640 x 480) and scales down
Scales up from SVGA (800 x 600) and scales down
from XGA (1024 x 768)
from SXGA (1280 x 1024)
F/2.6, f=23.2 to 28.38 mm with 1.2:1 manual zoom and manual focus
± 7º (14º total) except 1080i/1035i
35 dB(A) under 25º C, 32dB(A) in lamp saving mode
S-video, composite, component, HDTV (up to 1080i)
250-watt UHP projector bulb
One 3-watt speaker
Composite: RCA jack (yellow); S-video: mini-DIN 4-pin connector; component (HDTV): RCA jack (green/red/blue)
15-pin VGA input connector, YPbPr RCA jack (green/red/blue), video RCA jack (yellow), audio RCA jack (white/red), 3.5 mm stereo mini
jack, S-video connector, UART mini-DIN 8-pin connector; output: B-type USB terminal for mouse port, 15-pin VGA output connector
Resizing of images to full screen
Detection of computer signal input
Image synchronization
Remote control
Wireless IR remote control
Mounting capability
Ceiling and tripod mountable
Environment humidity
10 to 90% RH, 50 to 95º F (10 to 35º C)
Dimensions (w x d x h)
12 x 9.5 x 4.5 in
What’s in the box
HP Digital Projector vp6110, user manual on CD, Quick Set-up
HP Digital Projector vp6120, user manual on CD, Quick Set-up
Guide, warranty information, video port instruction card,
Guide, warranty information, video port instruction card,
power cord, VGA cable, RCA cable, PC audio cable, remote control
power cord, VGA cable, RCA cable, PC audio cable, remote control
Ordering information
Onscreen languages
English, French, German, Spanish, Italian, Traditional Chinese, Simplified Chinese, Japanese,
Korean, Brazilian Portuguese, Danish
Environmental ranges
Operating temperatures:
50 to 95º F (10 to 35º C)
Storage temperatures:
14 to 140º F (0 to 40° C)
Power requirements
Input voltage 100 to 240 VAC (± 10%), 50/60 Hz (± 3 Hz)
Power consumption
330 watts
Power certification
Safety certifications:
USA/Canada (cULus), Mexico (NOM-1-NYCE)
Electromagnetic compatibility:
USA FCC part 15, Canada (DoC)
2-year repair and return or express exchange on the projector,
and 90 days warranty on lamp
Product number
Service and support
HP Care Pack, 1-year post warranty
express exchange
Supplies and accessories
Lamp module (both vp6110, vp6120)
Remote control, credit card
Ceiling mount kit (both vp6110, vp6120)
Premium wireless remote control with USB cable
60-inch mobile screen
Carrying case
HP recommends Microsoft® Windows® XP Professional for mobile computing.
Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation.
© 2003, 2004 Hewlett-Packard Development Company, L.P. The information contained herein is subject to
change without notice. The only warranties for HP products and services are set forth in the express warranty
statements accompanying such products and services. Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
For more information visit our website at www.hp.com
5981-7519ENUC, 02/17/2004
HP product
HP Digital Projector vp6110
HP Digital Projector vp6120
Cable, VGA
Cable, RCA (composite, 3-head
Cable, audio (2-head green/blue)
Cable, HDTV (RGB) component
Cable, S-video, 6-ft
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
