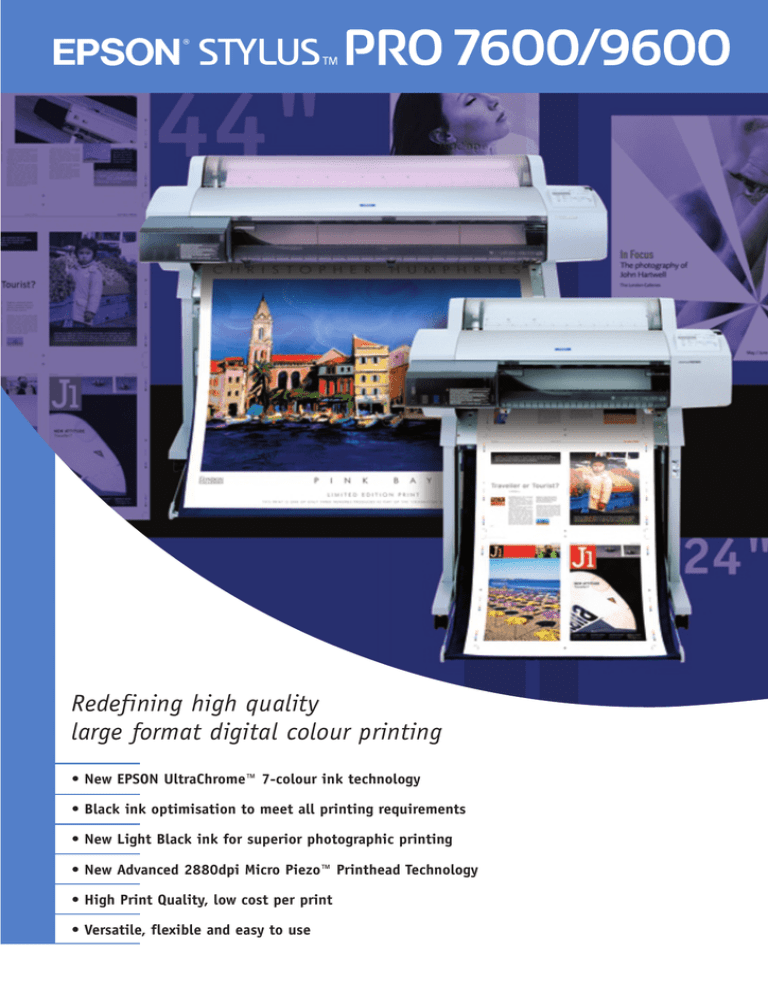

Redefining high quality
large format digital colour printing
• New EPSON UltraChrome™ 7-colour ink technology
• Black ink optimisation to meet all printing requirements
• New Light Black ink for superior photographic printing
• New Advanced 2880dpi Micro Piezo™ Printhead Technology
• High Print Quality, low cost per print
• Versatile, flexible and easy to use
The highest quality, most flexible, graphic arts printer available
today, putting you in complete control of your output
EPSON’s new advanced Micro Piezo™ printhead technology and 7-colour UltraChrome™ ink system continues
to set the standards in large format graphic arts printing. The STYLUS PRO 7600 (24") and the STYLUS PRO
9600 (44") offer unparalleled output quality with the highest
resolution available at 2880 dpi, and its low running costs deliver
cost effective prints every time.
Print quality is unbeatable with the widest colour gamut ever. The seven individual
UltraChrome™ ink set includes Light Black - a world first. The new Light Black enhances
the grey scale gradations, therefore producing smoother tonal variations in colour and
greyscale images. Choose between three different Black ink modes to optimise black
ink density for various media types and printing applications. These large format
printers are the first of their kind to offer true border-free printing on all four sides
of the sheet.
Integrating seamlessly into a digital workflow, these new EPSON printers are supported
by a wide choice of third party RIP software and comprehensive software utilities,
providing complete control of the final print output.
Utilising the very latest in large format inkjet printer
technology to produce extremely high quality digital
photographic prints, exceeding that of the traditional
analogue methods.
The new EPSON 7 colour UltraChrome ink set offers
vibrant colour and black & white prints, with
lightfastness in excess of 75 years. Extremely smooth
tonal gradations in colour and monochrome are also
achieved, with the introduction of a third light colour
ink, light black.
EPSON Stylus PRO 7600
The ability to change between Photo Black & Matte
Black very easily and quickly, ensures the maximum
image quality not only on EPSON’s range of
photographic specialist media, but
also on our range of Matte & Fine
Art medias where high density
black is required.
• Interchangeable black 7 colour
EPSON UltraChrome™ ink set
• Lightfast in excess of 75 years
• Edge to edge printing
• Range of speciality media up
to 1.5mm in thickness
• Low cost per print
• EPSON Grey Balancer
utility software
Produce high quality display and signage prints up to 44"
wide, easily and with great versatility, at a low
investment cost. Effortlessly output premium point-ofsale material, exhibition graphics, signage and banners at
a very low cost per print.
EPSON’s new UltraChrome ink set offers a wide colour
gamut, and produce high quality images on a wide range
of substrates from the standard gloss and semi gloss
medias, to the more specialist Synthetic, Tyvec, Vinyl
materials. Very fast dry times allow for very fast turn
around of prints for finishing. High capacity ink
cartridges also allow high quantity print runs to be
achieved with the minimum of operator intervention.
• High quality prints on variety of
specialist media
• EPSON UltraChrome™ ink set for fast
print turn around
• Optional automatic take up reel unit
for unattended printing
• Lightfastness up to 75 years
• High capacity ink cartridges
A combination of leading edge inkjet technologies produce
the most complete colour and monochrome printing solution
available. EPSON hardware, software, media and inks combine
to produce the ultimate in perfect image reproduction.
The life-long EPSON Micro Piezo™ print head propels perfectly
formed ink droplets onto the page with absolute precision,
producing the virtually invisible 4 picolitre EPSON Ultra Micro
Dots™ for high quality reproduction.
This incredibly fine resolution is achieved due to the highly
advanced Micro Piezo™ printhead. It enables improved tonal
gradation, the widest colour gamut and exceptional overall
print quality.
The EPSON Stylus PRO 7600 and Stylus PRO 9600 are
ideal for printing on demand Limited Edition ‘Giclee’
prints. The 7 colour EPSON UltraChrome™ ink set with
interchangeable blacks guarantees maximum print
quality on high quality fine art printing stocks. This
improved way of producing colour and black & white
printing, allows a truly neutral greyscale image with
no colour ‘cross over’ effects, as well as producing
warm or cold greyscale prints using all seven colours.
These printers also offer a straight paper path with
automatic print head adjustment, ensuring the
maximum print quality is obtained on heavy fine art
media up to 1.5mm in thickness.
• Versatile media handling including 2”/3” roll
feed spindle
• Interchangeable black 7 colour UltraChrome™
ink set
• Lightfast in excess of 75 years
• Range of speciality fine art media
• Printing on media up to 1.5mm in thickness
• Low cost per print
• EPSON Grey Balancer Utility Software
Features at a Glance:
Highest Print Quality
The new EPSON Stylus PRO 7600 and Stylus PRO 9600
will produce high quality and consistent inkjet
contract quality proofs on demand, and at a fraction of
the cost of more traditional methods.
Astonishing Colour
Using the new EPSON UltraChrome ink set, these
printers are able to easily reproduce the colour gamut
of the printing press and also match the industry
proofing standards, therefore providing the closest
match to these standards from any inkjet printer
available on the market today.
Our range of Stylus PRO printers have become the
‘printer of choice’ for proofing solutions.
• Colour gamut equivalent to industry standard
press & proofing standards
• Very high colour stability
• Supported by all leading RIP vendors
• Very high image quality
• Optimised for use with a wide range of
proofing media
• Breathtaking picture quality is achieved by EPSON’s
industry leading 2880 dpi print resolution and
4pl Ultra Micro Dot™
• Life-like skin tones and the finest details with
EPSON’s expanded 7 colour UltraChrome™ ink set
Ultimate Halftones
• Complete control over grey scale gradations and
neutral tones with dual black ink cartridges, three
different black ink configurations and unique ‘Grey
Balancer’ software utility
Media Matching
• Maximise output quality by matching gloss or matte
media with new Matte or Photo Black inks. ‘White
glove’ cartridge changing enables you to configure
black inks in just 10 minutes
Image Longevity
• Printed images with a lightfastness up to 75 years
(indoor) with EPSON UltraChrome™ inks
Complete User Control
• Comprehensive utility software featuring executable
maintenance, diagnostic tools, error-correction and
user installable firmware upgrades
Minimum Finishing
• Output edge to edge, borderless prints to a specified
range of widely used substrate dimensions
Flexible Connectivity
• Effortlessly connects to USB 2.0, Parallel and
Firewire ports
EPSON Stylus PRO 9600
Optimum speed and detail is achieved by utilising different sized
ink droplets – small dots for areas of fine detail and large dots for
areas of block colour.
The new 7-colour EPSON UltraChrome™ ink system is the first
ink technology to offer Light Black ink for superior photographic
prints with the widest colour gamut. The inks are durable and
lightfast*, and are compatible with a wide range of media types.
For improved output and functionality, these cartridges feature an
integral IC memory chip that precisely tracks and communicates
ink usage back to the user. They also feature a resealable valve to
enable removal and installation for future use.
*Please refer to lightfast test conditions on reverse
Environmental Operating Conditions
• Model Name: EPSON Stylus Pro 7600 / Stylus Pro 9600
• Temperature:
50 - 95° F (10 -35°C)
• Humidity:
20 – 80 %RH
Printing Technology
• Drop On demand Ink Jet Technology
• Resolution:
2880 x 1440; 1440 x 720dpi; 720 x 720dpi;
720 x 360dpi; 360 x 360dpi; 360 x 180dpi
• EPSON Variable Sized Droplet Technology:
Minimum droplet size, 4 picoliter
Variable droplet technology produces up to 3 different
sizes per print line
• Nozzle Configuration:
Colour & Monochrome Heads, 96 nozzles x 7
• 7 colour (CcMmYKk) UltraChrome™ Inks:
Photo Black Ink Cartridge
T543100 / T544100*
Cyan Ink Cartridge
T543200 / T544200*
Magenta Ink Cartridge
T543300 / T544300*
Yellow Ink Cartridge
T543400 / T544400*
Light Cyan Ink Cartridge
T543500 / T544500*
Light Magenta Ink Cartridge
T543600 / T544500*
Light Black Ink Cartridge
T543700 / T544700*
Matte Black Ink Cartridge
T543800 / T544800*
*(available in 220ml size for Stylus Pro 9600)
• Black Ink Mode Configurations:
UltraChrome™ Ink: Photo-K +Light-K or Matte-K +
Light-K or Dual Matte -K
• EPSON Ink cartridge yield: 110ml x 7 colours
*(available in 220ml size for Stylus Pro 9600)
• Ink cartridge shelf life:
2 years from printed production date OR 6 months
after opening
Media Handling
• Media Input:
Single Roll (up to 24" wide) (up to 44" wide)**
• Cut sheet size:
Auto Loading (up to 24" wide ) (up to 44" wide)**
• Media core compatability:
Handles both 2" and 3" cored media
• Maximum Roll Media Diameter:
4" (2" core) OR 6" (3" core)
• Weight:
12 Lb bond (up to 1.5mm cardboard)
• Built-in Media cutter for automatic or manual cutting
• Optional Manual Media Cutter
(usage on very thick media)
Printable Area
• Maximum Paper width:
24" 44.16"**
• Print Margins (Left & Right):
0 or 3mm (0.24" total)
• Maximum Printable width:
24.16" 44.16"**
• Maximum Printable Length:
up to 100" (limited by roll length and
software application)
BorderFree™ Printing
• Left & right borderless "bleed" printing for the
following size media: 8", 10", 12", 16", 20", 24",
(plus 36" and 44"**). Top & bottom edges can be
automatically cut three different ways during printing.
• Total print volume:
20,000 pages (720 x 360dpi, A1 for SP 7600
B0 for SP 9600)
• Print Head Life:
46 billlion shots per nozzle
• Cutter Life:
2,000 times (coated media)
Print Engine Speed
• Print engine speeds will vary from 8ft2 to a maximum
of 190ft2 per hour (depends on print mode in use)
• Everyday ‘production quality’ print speeds are
typically 44 to 87ft2 per hour (depends on print job)
• You can produce better than photo lab quality results
at 16ft2 per hour
• USB 2.0, Parallel (IEEE-1284 ECP Mode) and one
EPSON Type-B Expansion slot for installing the
optional 10/100BaseT or IEEE1394 Firewire™
Expansion cards
SP7600/9600– 1GB
Noise Level: Approx 50dBA (ISO 7779)
Power consumption: Approx 140 Watts
Voltage: 220 – 240 V (90 - 264 V)
Frequency: 50 – 60Hz
Current: 1.4 – 0.7A
• 96lb 185lb (with legs)**
• 43.3" (W) x 22" (H) x 22.5" (D)*
63.9" (W) x 46.4"(H) x 28.2" (D)**
29.2" (H) with optional printer stand
EPSON ESC/P Raster Photographic Drivers Standard
Microsoft® Windows® 95, 98, Me, NT 4.x, 2000 and XP
Macintosh OS® 8.5.1 – 9.x (OS X supported via RIP)
Extensive support of leading RIP manufacturers
External server based on Adobe Postscript 3 with
optional software RIP
• Buffer Memory 24": 32MB
44": 64MB
System Requirements
• Minimum Recommended System Requirements:
Windows 95/98/NT 4.0: Pentium 2 300MHz, 128MB
(30% free memory)
Hard Disc: AO 750MB, BO+ 1.2GB
System Environment:
Macintosh: Power PC 604e 300MHz 7.5.1 or later,
Foreground memory >21MB,
Background memory >34MB,
Hard disc: AO 750MB, BO+ 1.2GB
Extended Warranties
• To ensure you continue to enjoy complete
confidence in the EPSON Stylus Pro 7600 and
Stylus Pro 9600 printer range, they are supported
by a 1 year on-site warranty. For additional peace
of mind, optional on site extended warranties are
available at the time of purchase or up to 90 days
Contact your EPSON dealer for details.
• One Year On site
• Optional extended warranties available - contact your
EPSON dealer for details.
Manual Cutter Unit **
Manual Cutter Spare Blade
Roll Feed spindle 2 inch †
Roll Feed spindle 3 inch †
Roll Feed spindle 2 inch (high tension) †
Roll Feed spindle 3 inch (high tension) †
EpsonNet 10/100 Base Tx Int Print Server 2
EpsonNet 10/100 Base Tx Int Print Server 2
EpsonNet 10/100 Base Tx Int Print Server 2
Type-B IEEE 1394 Interface Card
Stand †
Manual Cutter Unit †
2/3 inch Dual Roll Feed Spindle **
2/3 inch Dual Roll Feed Spindle
(high tension) **
2/3 inch Dual Roll Feed Spindle †
Maintenance Tank
Auto Cutter Spare Blade
EPSON Gray balancer Reference Chart
Auto Take Up Reel **
Test Conditions as follows: (Indoor Display Condition)*
Light source: Fluorescent Light
Intensity: 70,000 lux.
Temperature: 24ºC
Humidity: 60%RH
Glass Mount: 2mm, Soda Lime
Fade Criteria: Pure YMC 30% loss at OD=1
Display Life Calculation: Total illuminance/
(500 lux x 10 hours x 365 days = 1 year)
Campus 100, Maylands Avenue,
Hemel Hempstead, Hertfordshire HP2 7TJ.
Telephone: +44 (0) 1442 261144
Fax: +44 (0) 1442 227227
E-mail: [email protected]
Home Page:
ISO 14001 Certification Number 80679
Specifications subject to change.
All manufacturers trademarks acknowledged.
† Applies to the Stylus Pro 7600 only
* The data is calculated by EPSON’s accelerated test
and it does not mean EPSON guarantee periods.
Test developed and conducted by EPSON.
** Applies to the Stylus Pro 9600 only
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
