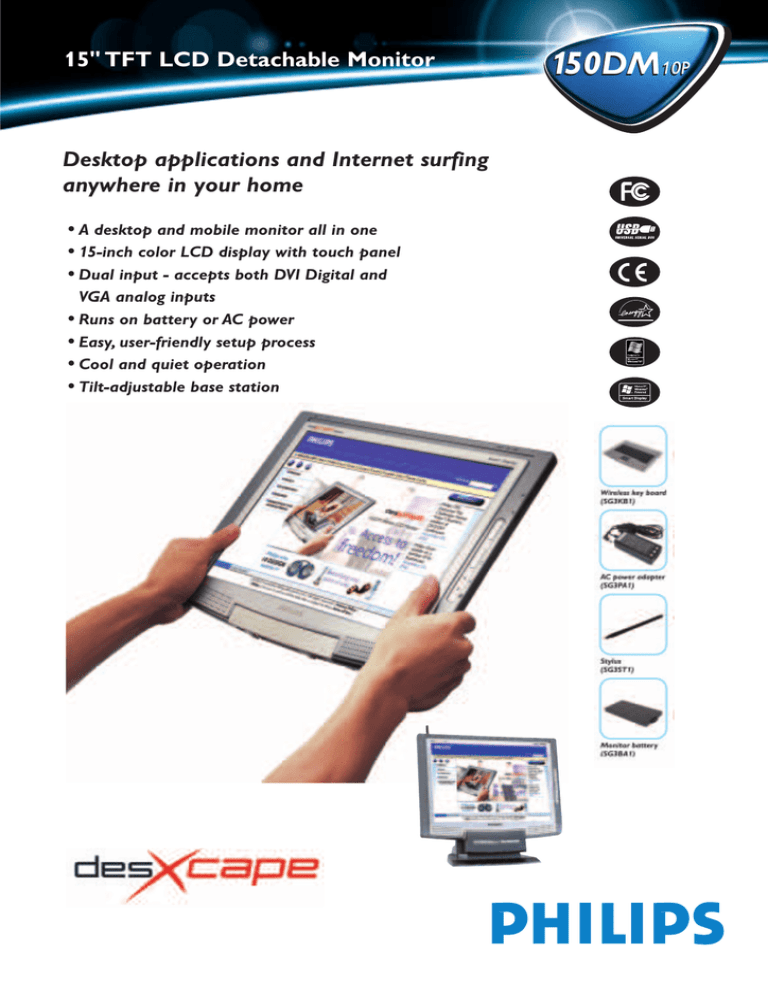

15" TFT LCD Detachable Monitor
Desktop applications and Internet surfing
anywhere in your home
• A desktop and mobile monitor all in one
• 15-inch color LCD display with touch panel
• Dual input - accepts both DVI Digital and
VGA analog inputs
• Runs on battery or AC power
• Easy, user-friendly setup process
• Cool and quiet operation
• Tilt-adjustable base station
150DM10P
15" TFT LCD Detachable Monitor
150DM10P
Specifications
Embedded system
• CPU
• Memory
• Flash ROM
Intel® Xscale™ Application Processor; 400MHz
64MB SDRAM (on board)
32MB
Operating System
Included Accessories
• Microsoft® Windows® CE for Smart Displays
• Battery
Wireless Communications
• AC-Adapter
• 802.11b wireless LAN (built in)
•
•
•
•
•
•
•
LCD panel
•
•
•
•
Type
Screen size
Pixel pitch
LCD panel type
TFT LCD
15 inch / 38.1 cm
0.297 x 0.297mm
1024 x 768 pixels,
Internal removable smart Li-ion
battery pack, upto 5 hours battery life.
AC 90V~ 265V, 47~63Hz input,
19V DC, 3.16A output, 60W
Stylus x 2
Base station
USB B to A cable x 2
VGA cable
Mini VGA cable
Audio cable
USB Wireless network adaptor
Touch panel
Optional Accessories
• 12-bit A/D converter ; 100 samples per second
Video
• Dual input interface
Both Analog (D-Sub) and DVI-D are
available and user selectable
Panel optical characteristics
• Contrast ratio
• Brightness
• Viewing angle
(C/R >5)
250 (typ.)
170 cd/m2
Upper
Lower
Left
Right
(with touch panel)
30°(typ.)
60°(typ.)
50°(typ.)
50°(typ.)
Complies with EPA Energy Star
Buttons and controls
•
•
•
•
•
•
•
•
TÜV
FCC-B, UL, CSA
SEMKO
CE Mark
Energy Star
USB Logo
Microsof® Windows® XP Pro LOGO
Microsoft® Windows® CE for Smart Displays LOGO
Physical specifications
• On display
Power on/off
Brightness
Volume
Dashboard
Input panel
Hardware reset
Software reset
R/F keyboard reset
-slide switch
- VR dial
- VR dial
- launch button
- launch button
- push button
- push button
- push button
• OSD
OK
Auto
Up / Down
Left / Right
- Tact
- Tact
- Tact
- Tact
Switch
Switch
Switch
Switch
I/O
• On Base station
RF Key board (88 Keys) with Touch Pad
Extra AC adapter
Stylus 3-pack
Extended battery
Regulatory approvals
Power management
• On display
•
•
•
•
VGA (mini jack) out
USB; type A (*2 ; for keyboard and mouse)
Headphone jack
DC-in jack
Base station connector
Dual integral stereo 16 bit
AC 97 2.0 compliant speaker*2
DC-in jack
DVI-D (digital)
15-pin Dsub (analog)
USB type B (for connection to PC)
USB; type A (*2 ; for keyboard and mouse)
Audio-in jack
Audio-out jack
• Display dimension
(WxHxD)
375 x 309 x 28.5 mm (min. height)
• Base station dimension
(WxHxD)
200 x 205 x 227 mm
• Tilt
-3°~25°
• Display weight
2.4 Kg
• Base station weight
2.2 Kg
• Temperature (operating)+5°C to +35°C
• Temperature (storage) -20°C to +60°C
• Relative humidity
20% to 80%
We recommend using 1024 x 768 at 60Hz non-interlaced mode
for the best picture quality
All data subject to change without notice
Release date: December 2002
