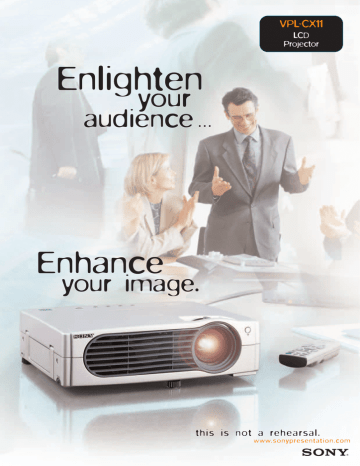

VPL-CX11
LCD
Projector
Enlighten
your
audience …
Enhance
your image.
this is not a rehearsal.
w w w.sonypresentation.com
Impact and
Style
T
he VPL-CX11 projector is ideal for various
types of in-house meetings and presentations.
It is portable but can also be installed. It is quick
to set up and easy to give effective presentations
thanks to the supplied software and remote control.
Image quality is outstanding and its bright output
(1,500 ANSI lumens) means that it can be used
in large rooms even with the lights on. It is stylishly
designed, looking smart even when seen from
the back. Handy features provide extra versatility
and maximum quality at all times.
RM-PJM10
4-times Digital Zoom
Digital Keystone Adjustment
Keystone distortion caused by the projection angle can
be electronically corrected, up to ±15 degrees, via the
on-screen menu. You will be able to project square and
detailed images on to the screen even with limited setup
space.
Quiet Operation
With an innovative cooling structure using a sirocco fan,
the VPL-CX11 operates with a low noise level. The
projector provides undisturbed, smooth presentations.
Simple Setup
Bright and Compact
Multi-Purpose Projector
The VPL-CX11 offers an excellent light output of
1,500 ANSI lumens. It comes in a small package
and is easy to carry with a carrying handle. You can
also use this in a variety of installation situations –
for ceiling, floor or rear projection – so you can project your images in any setting.
High Image Quality
The VPL-CX11 provides true XGA (1024 x 768)
resolution, utilising three 0.9-inch LCD panels.
The details of the original images are maintained,
while rich and natural colours are reproduced.
Remote Control Function
The supplied RM-PJM10 remote control unit has
an integrated mouse function for point-and-click
control of your connected computer. You can
also control the 4-times Digital Zoom function
with this remote control unit, zooming in on
a section of the presentation for more detail.
Advanced APA
Dot phase and image size or shift can be automatically adjusted to their optimal settings just by pressing the APA (Auto Pixel Alignment) button.
Setting up the VPL-CX11 with a computer is very simple.
The rear panel cover reveals only the cable connectors
needed for typical computer presentations (AC cable
connector and D-sub 15-pin connector) while covering up
the rest of the connectors. Also, 37 preset signal formats
cover all video formats used worldwide and PC signals
up to SXGA, eliminating the trouble of complex adjustments.
On-screen Display
The on-screen display menu comes in seven languages:
English, French, Spanish, German, Italian, Japanese and
Chinese.
Stereo Speakers
The VPL-CX11 comes fully equipped with stereo
speakers, to complement your presentation visuals.
USB Compatibility
and PROJECTOR STATION
Software
The VPL-CX11 is USB-ready, and it serves as a USB
hub for daisychain connection of multiple devices. With
the USB connection the projector can be controlled by
a computer, using the PROJECTOR STATION* USB
application software. The software also helps you organise your presentation materials for quick access - you can
open the files registered in the software with the function
keys on the remote control unit.
* PROJECTOR STATION version 3.0 software requirements:
Microsoft® Windows® 98, Windows® 98 SE, Windows Me
or Windows® 2000 operating system.
Digital Keystone Adjustment
Projector Station version 3.0
Preset Data of Input Signals
Specifications
VPL-CX11
OPTICAL
Projection system
LCD panel
Memory
No.
3 LCD panels, 1 lens projection system
0.9-inch p-Si TFT LCD panel with Micro Lens Array
2,359,296 pixels (786,432 pixels x 3)
1.3 times zoom lens, F1.7 to 2.2, f33.6 to 42 mm
132 W UHP lamp
40 to 300 inches (viewable area, measured diagonally)
1500 ANSI lumens*1
Projection lens
Lamp
Screen coverage
Light output
Throwing distance
40-inch
60-inch
80-inch
100-inch
120-inch
150-inch
200-inch
300-inch
1470 to 1770 mm
2230 to 2680 mm
3000 to 3600 mm
3760 to 4510 mm
4530 to 5430 mm
5670 to 6800 mm
7590 to 9090 mm
11410 to 13660 mm
SIGNALS
Colour system
Resolution
NTSC, PAL, SECAM, NTSC4.43, PAL-M, PAL-N
VIDEO: 750 TV lines,
RGB: 1024 x 768 pixels
Acceptable signals
RGB (fH: 15 to 91 kHz, fV: 43 to 85 Hz),
15 kHz component 50/60 Hz system, composite video, Y/C video
GENERAL
Cabinet colour
Speaker
Power requirements
Power consumption
Operating temperature
Operating humidity
Dimensions*2
Mass
Heat dissipation
Silky Silver
Max. 0.5 W x 2 (stereo)
AC 100 to 240 V, 50/60 Hz
Max. 200 W, Standby approx. 5 W
0 to 35 °C (32 to 95 °F)
35 to 85%
285 (W) x 76 (H) x 249.5 (D) mm (11 1⁄4 x 3 x 9 7⁄ 8 inches)
Approx. 3.3 kg (7 lb 4 oz)
682.5 BTU
INPUTS/OUTPUTS
VIDEO IN
Composite
Y/C IN
Y
C
INPUT A
Analogue RGB/Component
R/R-Y
G
G with Sync/Y
B/B-Y
SYNC/HD
Composite sync
Horizontal sync
VD
Vertical sync
MOUSE IN
USB HUB
AUDIO IN
Phono type, 1.0 Vp-p ±2 dB, sync negative, 75 Ω
Mini DIN 4-pin
1.0 Vp-p ±2 dB, sync negative, 75 Ω
Burst 0.286 Vp-p ±2 dB (NTSC), 75 Ω or 0.3 Vp-p ±2 dB (PAL), 75 Ω
HD D-sub 15-pin (female)
0.7 Vp-p ±2 dB, positive, 75 Ω
0.7 Vp-p ±2 dB, positive, 75 Ω
1.0 Vp-p ±2 dB, sync negative, 75 Ω
0.7 Vp-p ±2 dB, positive, 75 Ω
1.0 to 5.0 Vp-p, high impedance positive/negative
1.0 to 5.0 Vp-p, high impedance positive/negative
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
Preset Signal
Video 60 Hz
Video 50 Hz
15 K RGB/Component 60 Hz
15 K RGB/Component 50 Hz
640 x 350
640 x 400
640 x 480
800 x 600
832 x 624
1024 x 768
1152 x 864
1152 x 900
1280 x 960
1280 x 1024
VGA mode 1
VGA VESA 85 Hz
PC-9801 Normal
VGA mode 2
VGA VESA 85 Hz
VGA mode 3
Macintosh 13"
VGA VESA 72 Hz
VGA VESA 75 Hz
VGA VESA 85 Hz
SVGA VESA 56 Hz
SVGA VESA 60 Hz
SVGA VESA 72 Hz
SVGA VESA 75 Hz
SVGA VESA 85 Hz
Macintosh 16"
XGA VESA 43 Hz
XGA VESA 60 Hz
XGA VESA 70 Hz
XGA VESA 75 Hz
XGA VESA 85 Hz
SXGA VESA 70 Hz
SXGA VESA 75 Hz
SXGA VESA 85 Hz
Sunmicro LO
Sunmicro HI
SXGA VESA 60 Hz
SXGA VESA 75 Hz
SXGA VESA 43 Hz
SGI-5
SXGA VESA 60 Hz
SXGA VESA 75 Hz
SXGA VESA 85 Hz
Suspension Support
PSS-610
Signal Cables
SMF-400
(HD D-sub 15-pin to
5 BNC, for RGB signal)
SMF-410
(HD D-sub 15-pin to HD
D-sub 15-pin, for RGB signal)
*1 ANSI lumens is a measuring method of the American National Standards Institute IT7.228.
*2 Excluding protruding parts.
Connectors (with cover open)
70.086
P/N
85.080
P/N
56.416
N/N
70.086
N/P
85.080
N/P
59.940
N/N
66.667 S on G
72.809
N/N
75.000
N/N
85.008
N/N
56.250
P/P
60.317
P/P
72.188
P/P
75.000
P/P
85.061
P/P
74.550
N/N
43.479
P/P
60.004
N/N
70.069
N/N
75.029
P/P
84.997
P/P
70.016
P/P
75.000
P/P
85.057
P/P
65.960
N/N
76.047 C Neg
60.000
P/P
75.000
P/P
43.436
P/P
50.062 S on G
60.013
P/P
75.025
P/P
85.024
P/P
Optional Accessories
cUL1950, EN60950, UL1950, CCIB, FCC class B, IC class B, CE, C-Tick, VCCI B
Remote Commander RM-PJM10, Signal Cable SMF-410 (2 m): HD D-sub
15-pin to D-sub 15-pin, PS/2 Mouse Cable (2 m), Audio Visual Cable (2 m),
USB Cable (2 m): A type to B type, USB Application Software PROJECTOR
STATION version 3.0, AA size Battery (2), Air Filter, AC Power Cord, Operation
Manual, Quick Reference Sheet, Lens Cap
31.469
37.861
24.823
31.469
37.861
31.469
35.000
37.861
37.500
43.269
35.156
37.879
48.077
46.875
53.674
49.724
35.524
48.363
56.476
60.023
68.677
63.995
67.500
77.487
61.795
71.713
60.000
75.000
46.433
53.516
63.974
79.976
91.146
than the above are input.
SMF-402
(HD D-sub 15-pin to phono x 3,
for component signal)
SUPPLIED ACCESSORIES
fV
H/V
(Hz) Polarity
59.940
N/N
50.000
N/N
59.940 S on G
50.000 S on G
* Images may not be reproduced correctly when signals other
1.0 to 5.0 Vp-p, high impedance positive/negative
6-pin (female)
Up (B type female) x 1, Down (A type female) x 1
INPUT A: Stereo mini jack, 500 mV rms, impedance more than 47 kΩ
VIDEO: Stereo mini jack, 500 mV rms, impedance more than 47 kΩ
SAFETY REGULATIONS
fH
(kHz)
15.734
15.625
15.734
15.625
50-inch Portable Screen
VPS-50C*
Projector Lamp
(for replacement)
LMP-C160
* Not available in some areas.
For details, please contact
your nearest Sony office.
LMP-C160
Control Panel
Distributed by
1
2
3
4
5
6
1 USB connector
(USB B-plug for upstream)
2 USB connector
(USB A-plug for downstream)
3 CONTROL S PLUG IN POWER
7
8
9
10
VIDEO IN
4 AUDIO
5 VIDEO
6 S VIDEO
INPUT A
7 MOUSE
8 AUDIO
9 Input A
10 AC 100 V / 240 V
© 2001 Sony Corporation. All rights reserved. Reproduction in whole or in part without permission is prohibited.
Features and specifications are subject to change without notice. All non-metric weights and measures are approximate.
Sony is a registered trademark of Sony Corporation. Macintosh is a registered trademark of Apple Computer, Inc. Microsoft
and Windows are registered trademarks of Microsoft Corporation.
CA VPL-CX11/GB- / /2001
