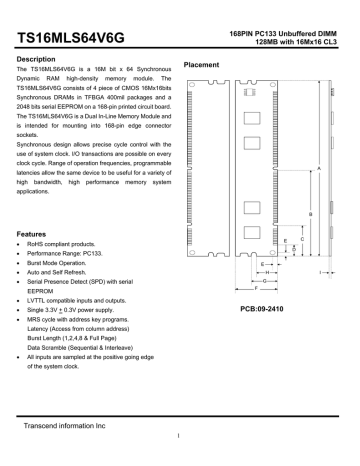

168PIN PC133 Unbuffered DIMM
128MB with 16Mx16 CL3
TS16MLS64V6G
Description
Placement
The TS16MLS64V6G is a 16M bit x 64 Synchronous
Dynamic
RAM
high-density
memory
module.
The
TS16MLS64V6G consists of 4 piece of CMOS 16Mx16bits
Synchronous DRAMs in TFBGA 400mil packages and a
2048 bits serial EEPROM on a 168-pin printed circuit board.
The TS16MLS64V6G is a Dual In-Line Memory Module and
is intended for mounting into 168-pin edge connector
sockets.
Synchronous design allows precise cycle control with the
use of system clock. I/O transactions are possible on every
clock cycle. Range of operation frequencies, programmable
A
latencies allow the same device to be useful for a variety of
high
bandwidth,
high
performance
memory
system
applications.
B
Features
•
RoHS compliant products.
•
Performance Range: PC133.
•
Burst Mode Operation.
•
Auto and Self Refresh.
•
Serial Presence Detect (SPD) with serial
D
E
H
G
F
EEPROM
•
LVTTL compatible inputs and outputs.
•
Single 3.3V + 0.3V power supply.
•
MRS cycle with address key programs.
PCB:09-2410
Latency (Access from column address)
Burst Length (1,2,4,8 & Full Page)
Data Scramble (Sequential & Interleave)
•
C
E
All inputs are sampled at the positive going edge
of the system clock.
Transcend information Inc
1
I
168PIN PC133 Unbuffered DIMM
128MB with 16Mx16 CL3
TS16MLS64V6G
Dimensions
Pin Identification
Side
Millimeters
Inches
A
133.35±0.40
5.250±0.016
A0~A12
Address inputs
B
65.67000
2.585000
BA0~BA1
Select Bank
C
23.49000
0.925000
DQ0~DQ63
Data inputs/outputs
D
8.89000
0.350000
E
3.00000
0.118000
CLK0, CLK2
Clock Input
F
22.225±0.200
0.875±0.00800
CKE0
Clock Enable Input
G
19.8000
0.788000
/CS0, /CS2
Chip Select Input
H
15.80
0.622
/RAS
Row address strobe
I
1.27±0.10
0.050±0.004
/CAS
Column address strobe
/WE
Write Enable
DQM0~7
DQM
Vcc
Power Supply
Vss
Ground
SDA
Serial Address / Data I/O
SA0~2
Address in EEPROM
WP
Write protection
SCL
Serial Clock
NC
No Connection
Symbol
Transcend information Inc
2
Function
168PIN PC133 Unbuffered DIMM
128MB with 16Mx16 CL3
TS16MLS64V6G
Block Diagram
DQ0~DQ63
A0~A12,
BA0,BA1
DQ0~DQ15
A0~A12,
BA0,BA1
DQ0~DQ15
A0~A12,
BA0,BA1
DQ0~DQ15
A0~A12,
BA0,BA1
DQ0~DQ15
/RAS
/RAS
/RAS
/RAS
/RAS
/CS
/CS
CLE0
CLE
CKE0
CKE
CLE
CKE
DQM4
DQM0
DQM5
DQM1
CLE
CKE
DQM6
DQM2
/CAS
CLE
CKE
16Mx16
SDRAM
UDQM
/CS
UDQM
/CS
LDQM
/CS0
UDQM
/WE
/CAS
LDQM
16Mx16
/CAS
SDRAM
/WE
UDQM
16Mx16
/CAS
SDRAM
/WE
LDQM
/WE
16Mx16
/CAS
SDRAM
/WE
LDQM
A0~A12,BA0,BA1
DQM7
DQM3
/CS2
CLE2
SCL
Serial
EEPROM
SCL
SDA
A0
WC
A1 A2
SDA
WP
SA0 SA1 SA2
This technical information is based on industry standard data and tests believed to be reliable. However, Transcend makes no
warranties, either expressed or implied, as to its accuracy and assumes no liability in connection with the use of this product.
Transcend reserves the right to make changes in specifications at any time without prior notice.
Transcend information Inc
3
168PIN PC133 Unbuffered DIMM
128MB with 16Mx16 CL3
TS16MLS64V6G
Pinouts:
Pin
Pin
Pin
Pin
No
Name
No
Name
01
Vss
43
Vss
02
DQ0
44
NC
03
DQ1
45
/CS2
04
DQ2
46
DQM2
05
DQ3
47
DQM3
06
Vcc
48
NC
07
DQ4
49
Vcc
08
DQ5
50
NC
09
DQ6
51
NC
10
DQ7
52
*CB2
11
DQ8
53
*CB3
12
Vss
54
Vss
13
DQ9
55
DQ16
14
DQ10
56
DQ17
15
DQ11
57
DQ18
16
DQ12
58
DQ19
17
DQ13
59
Vcc
18
Vcc
60
DQ20
19
DQ14
61
NC
20
DQ15
62
*Vref
21
*CB0
63
*CKE1
22
*CB1
64
Vss
23
Vss
65
DQ21
24
NC
66
DQ22
25
NC
67
DQ23
26
Vcc
68
Vss
27
/WE
69
DQ24
28
DQM0
70
DQ25
29
DQM1
71
DQ26
30
/CS0
72
DQ27
31
NC
73
Vcc
32
Vss
74
DQ28
33
A0
75
DQ29
34
A2
76
DQ30
35
A4
77
DQ31
36
A6
78
Vss
37
A8
79
*CLK2
38
A10/AP
80
NC
39
BA1
81
NC
40
Vcc
82
SDA
41
Vcc
83
SCL
42
CLK0
84
Vcc
* Please refer Block Diagram
Pin
No
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
Transcend information Inc
4
Pin
Name
Vss
DQ32
DQ33
DQ34
DQ35
Vcc
DQ36
DQ37
DQ38
DQ39
DQ40
Vss
DQ41
DQ42
DQ43
DQ44
DQ45
Vcc
DQ46
DQ47
*CB4
*CB5
Vss
NC
NC
Vcc
/CAS
DQM4
DQM5
*/CS1
/RAS
Vss
A1
A3
A5
A7
A9
BA0
A11
Vcc
*CLK1
*A12
Pin
No
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
Pin
Name
Vss
CKE0
*/CS3
DQM6
DQM7
*A13
Vcc
NC
NC
*CB6
*CB7
Vss
DQ48
DQ49
DQ50
DQ51
Vcc
DQ52
NC
*Vref
*REGE
Vss
DQ53
DQ54
DQ55
Vss
DQ56
DQ57
DQ58
DQ59
Vcc
DQ60
DQ61
DQ62
DQ63
Vss
*CLK3
NC
SA0
SA1
SA2
Vcc
168PIN PC133 Unbuffered DIMM
128MB with 16Mx16 CL3
TS16MLS64V6G
ABSOLUTE MAXIMUM RATINGS
Parameter
Symbol
Value
Unit
Voltage on any pin relative to Vss
VIN, VOUT
-1.0~4.6
V
Voltage on VDD supply relative to Vss
VDD, VDDQ
-1.0~4.6
V
°C
Storage temperature
TSTG
-55~+150
Power dissipation
PD
4
W
Short circuit current
LOS
50
mA
°C
Operating Temperature
TA
0~70
Note: Permanent device damage may occur if ABSOLUTE MAXIMUM RATINGS are exceeded.
Functional operation should be restricted to recommended operating condition.
Exposure to higher than recommended voltage for extended periods of time could affect device reliability.
DC OPERATING CONDITIONS AND CHARACTERISTICS
Recommended operating conditions (Voltage referenced to Vss = 0V, TA = 0 to 70 °C)
Parameter
Symbol
Min
Typ
Max
Unit
Supply voltage
VDD
3.0
3.3
3.6
V
Input high voltage
VIH
2.0
3.0
VDD+0.3
V
Input low voltage
VIL
-0.3
0
0.8
V
Output high voltage
VOH
2.4
V
Output low voltage
VOL
0.4
V
Input leakage current
ILI
-10
10
uA
Note:
Note
1
2
IOH = -2mA
IOL = 2mA
3
1. VIH (max) = 5.6V AC. The overshoot voltage duration is < 3ns.
2. VIL (min) = -2.0V AC. The undershoot voltage duration is < 3ns.
3. Any input 0V ≤ Vin ≤VDDQ. Input leakage currents include Hi-Z output leakage for all bi-directional buffers
with Tri-state output.
CAPACITANCE (VDD = 3.3V, TA = 23℃, f = 1MHz, VREF = 1.4V ± 200mV)
Parameter
Symbol
Min
Max
Unit
CADD
15
25
pF
CIN
15
25
pF
Input capacitance (CKE)
CCKE
15
25
pF
Input capacitance (CLK)
CCLK
10
13
pF
Input capacitance (/CS)
CCS
10
15
pF
Input capacitance (DQM0~DQM7)
CDQM
8
10
pF
Data input/output capacitance (DQ0~DQ63)
COUT
9
12
pF
Input capacitance (A0~A12, BA0~BA1)
Input capacitance (/RAS, /CAS, /WE)
DC CHARACTERISTICS
(Recommended operating condition unless otherwise noted, TA = 0 to 70°C)
Transcend information Inc
5
168PIN PC133 Unbuffered DIMM
128MB with 16Mx16 CL3
TS16MLS64V6G
Parameter
Operating Current
(One Bank Active)
Symbol
ICC1
ICC2P
Precharge Standby Current
ICC2PS
in power-down mode
ICC2N
Test Condition
Burst Length =1
tRC≥tRC(min)
IOL=0mA
CKE≤VIL(max), tCC=10ns
Value
Unit
Note
400
mA
1
8
CKE & CLK≤VIL(max), tCC=∞
8
CKE≥VIH(min), /CS≥VIH(min), tCC=10ns
80
mA
Input signals are changed one time during 20ns
Precharge Standby Current
in non power-down mode
ICC2NS CKE≥VIH(min), CLK≤VIL(max), tCC=∞
mA
40
Input signals are stable
Active Standby Current
in power-down mode
ICC3P
CKE≤VIL(max), tCC=10ns
24
ICC3PS
CKE & CLK≤VIL(max), tCC=∞
24
CKE≥VIH(min), /CS≥VIH(min), tCC=10ns
120
ICC3N
Active Standby Current
in non power-down mode
(One Bank Active)
Input signals are changed one time during 20ns
ICC3NS
CKE≥VIH(min), CLK≤VIL(max), tCC=∞
mA
mA
100
Input signals are stable
IOL= 0 mA
Page Burst
tccD = 2CLKs
560
Icc5
tRC ≤ tRC(min)
800
ICC6
CKE≤0.2V
12
Operating Current
(Burst Mode)
ICC4
Refresh current
Self Refresh Current
mA
1
mA
2
mA
Note: Module IDD was calculated on the basis of component IDD and can be differently measured according to DQ
loading cap.
Transcend information Inc
6
168PIN PC133 Unbuffered DIMM
128MB with 16Mx16 CL3
TS16MLS64V6G
AC OPERATING TEST CONDITIONS (VDD = 3.3V±0.3V, TA = 0 to 70°C)
Parameter
AC Input levels (VIH/VIL)
Input timing measurement reference level
Input rise and fall time
Output timing measurement reference level
Output load condition
Value
2.4/0.4
1.4
tr/tf=1/1
1.4
See Fig. 2
Vtt=1.4V
3.3V
50 Ohm
1200 Ohm
Output
VOH (DC)=2.4V, IOH=-2mA
VOL (DC)=0.4V, I OL=2mA
Output
Z0=50 Ohm
50pF
50pF
870 Ohm
Unit
V
V
ns
V
(Fig. 2) AC Output Load Circuit
(Fig. 1) DC Output Load Circuit
OPERATING AC PARAMETER (AC operating conditions unless otherwise noted)
Parameter
Symbol
Row active to row active delay
/RAS to /CAS delay
Row precharge time
Row active time
@Operation
Row cycle time
Last data in to new col. address delay
Last data in to row precharge
Last data in to burst stop
Col. address to col. address delay
Number of valid output data
Value
Unit
Note
tRRD(min)
tRCD(min)
tRP(min)
tRAS(min)
tRAS(max)
15
20
20
45
100
ns
ns
ns
ns
us
1
1
1
1
tRC(min)
65
ns
1
tCDL(min)
tRDL(min)
tBDL(min)
tCCD(min)
CAS latency=3
1
2
1
1
CLK
CLK
CLK
CLK
2
2
2
3
2
ea
4
CAS latency=2
Note: 1. The minimum number of clock cycles is determined by dividing the minimum time required with
clock cycle time, and then rounding off to the next higher integer.
2. Minimum delay is required to complete write.
3. All parts allow every cycle column address change.
4. In case of row precharge interrupt, auto precharge and read burst stop.
Transcend information Inc
7
168PIN PC133 Unbuffered DIMM
128MB with 16Mx16 CL3
TS16MLS64V6G
AC CHARACTERISTICS (AC operating conditions unless otherwise noted)
Refer to the individual component, not the whole module.
Parameter
Symbol
Value
Min
Max
Note
1000
ns
1
5.4
ns
1, 2
CLK cycle time
tCC
CLK to valid
output delay
tSAC
Output data
hold time
tOH
3
ns
2
CLK high pulse width
CLK low pulse width
Input setup time
Input hold time
CLK to output in Low-Z
tCH
tCL
tSS
tSH
tSLZ
2.5
2.5
1.5
0.8
1
ns
ns
ns
ns
ns
3
3
3
3
2
CLK to output
in Hi-Z
tSHZ
Note:
7.5
Unit
5.4
ns
1. Parameters depend on programmed CAS latency.
2. If clock rising time is longer than 1ns, (tr/2-0.5)ns should be added to the parameter.
3. Assumed input rise and fall time (tr & tf)= 1ns.
If tr & tf is longer than 1ns, transient time compensation should be considered,
i.e., [(tr + tf)/2-1]ns should be added to the parameter.
Transcend information Inc
8
168PIN PC133 Unbuffered DIMM
128MB with 16Mx16 CL3
TS16MLS64V6G
SIMPLIFIED TRUTH TABLE
COMMAND
Register
Mode Register Set
CKEn-1
CKEn
/CS
/RAS
/CAS
/WE
DQM
H
X
L
L
L
L
X
OP CODE
L
L
L
H
X
X
L
H
H
H
X
X
H
X
X
X
Auto Refresh
Entry
Refresh
Self
Refresh
Exit
Bank Active & Row Addr.
Read &
A10/AP
Auto Precharge Enable
Write &
Auto Precharge Disable
Column Address
Auto Precharge Enable
Burst Stop
L
L
H
Both Banks
Clock Suspend or
Active Power
Down
X
L
L
H
H
X
V
H
X
L
H
L
H
X
V
H
X
L
H
L
L
X
V
H
X
L
H
H
L
X
H
X
L
L
H
L
X
H
X
X
X
L
V
V
V
X
X
X
X
H
X
X
X
L
H
H
H
H
X
X
X
Exit
L
H
H
L
Precharge Power
Down Mode
Exit
L
H
L
DQM
No Operation Command
V
X
V
H
X
X
L
H
H
H
X
V
H
9
Column
Address
(A0~A8)
H
X
V
L
X
H
4
4, 5
4
4, 5
6
X
X
X
X
X
X
X
V
X
X
X
X
H
H
(V=Valid, X=Don’t Care, H=Logic High, L=Logic Low)
1. OP Code : Operand Code
A0~A12, BA0~BA1 : Program keys. (@MRS)
2. MRS can be issued only at all banks precharge state.
A new command can be issued after 2 CLK cycles of MRS.
3. Auto refresh functions are as same as CBR refresh of DRAM.
The automatical precharge without row precharge command is meant by “Auto”.
Auto/self refresh can be issued only at all banks precharge state.
4. BA0~BA1: Bank select address.
If both BA0 and BA1 are “Low” at read, write, row active and precharge, bank A is selected.
If both BA0 is “Low” and BA1 is “High” at read, write, row active and precharge, bank B is selected.
If both BA0 is “High” and BA1 is “Low” at read, write, row active and precharge, bank C is selected.
If both BA0 and BA1 are “High” at read, write, row active and precharge, bank D is selected.
If A10/AP is “High” at row precharge, BA0 and BA1 are ignored and all banks are selected.
5. During burst read or write with auto precharge, new read/write command can not be issued.
Another bank read/write command can be issued after the end of burst.
New row active of the associated bank can be issued at tRP after the end of burst.
6. Burst stop command is valid at every burst length.
7. DQM sampled at positive going edged of a CLK masks the data-in at the very CLK (Write DQM latency is 0),
but makes Hi-Z state the data-out of 2 CLK cycles after. (Read DQM latency is 2)
Transcend information Inc
3
Column
Address
(A0~A8)
L
L
3
Row Address
L
H
Entry
1,2
3
H
Entry
Note
3
Bank Selection
Precharge
A11~A12,
A0~A9
H
H
Auto Precharge Disable
Column Address
Note:
BA0,1
7
168PIN PC133 Unbuffered DIMM
128MB with 16Mx16 CL3
TS16MLS64V6G
Serial Presence Detect Specification
Serial Presence Detect
Byte No.
Standard Specification
Vendor Part
0
# of Bytes Written into Serial Memory
Function Described
128bytes
80
1
Total # of Bytes of S.P.D Memory
256bytes
08
2
Fundamental Memory Type
SDRAM
04
3
# of Row Addresses on this Assembly
A0~A12
0D
4
# of Column Addresses on this Assembly
A0~A8
09
5
# of Module Banks on this Assembly
1 bank
01
6
Data Width of this Assembly
64bits
40
7
Data Width Continuation
0
00
8
Voltage Interface Standard of this Assembly
LVTTL3.3V
01
9
SDRAM Cycle Time (highest CAS latency)
7.5ns
75
10
SDRAM Access from Clock (highest CL)
5.4ns
54
11
DIMM configuration type (non-parity, ECC)
DIMM
00
12
Refresh Rate Type
7.8us/Self Refresh
82
13
Primary SDRAM Width
X16
10
14
Error Checking SDRAM Width
0
00
15
Min Clock Delay Back to Back Random Address
1 clock
01
16
Burst Lengths Supported
1,2,4,8 & Full page
8F
17
Number of banks on each SDRAM device
4 bank
04
18
CAS # Latency
2&3
06
19
CS # Latency
0 clock
01
20
Write Latency
0 clock
01
21
SDRAM Module Attributes
Non Buffer
00
22
SDRAM Device Attributes : General
Prec All, Auto Prec, R/W Burst
0E
nd
23
SDRAM Cycle Time (2 highest CL)
10ns
A0
24
SDRAM Access from Clock (2nd highest CL)
6ns
60
-
00
-
00
25
rd
SDRAM Cycle Time (3 highest CL)
rd
26
SDRAM Access from Clock (3 highest CL)
27
Minimum Row Precharge Time
20ns
14
28
Minimum Row Active to Row Activate
15ns
0F
29
Minimum RAS to CAS Delay
20ns
14
30
Minimum RAS Pulse Width
45ns
2D
31
Density of Each Bank on Module
128MB
20
32
Command/Address Setup Time
1.5ns
15
33
Command/Address Hold Time
0.8ns
08
34
Data Signal Setup Time
1.5ns
15
35
Data Signal Hold Time
0.8ns
08
-
00
36-61
Superset Information
Transcend information Inc
1
0
168PIN PC133 Unbuffered DIMM
128MB with 16Mx16 CL3
TS16MLS64V6G
62
SPD Data Revision Code
JEDEC Ver.2
02
63
Checksum for Bytes 0-62
AB
AB
Transcend
7F, 4F
64-71
72
Manufacturers JEDEC ID Code per JEP-108E
Manufacturing Location
T
54
54 53 31 36 4D 4C
73-90
Manufacturers Part Number
TS16MLS64V6G
53 36 34 56 36 47
20 20 20 20 20 20
91-92
Revision Code
-
0
93-94
Manufacturing Date
By Manufacturer
Variable
95-98
Assembly Serial Number
By Manufacturer
Variable
99-125
Manufacturer Specific Data
-
0
100MHz
64
CL=2&3 Clock=0,2
A6
Open
FF
126
Intel Specification Frequency
127
Intel Specification CAS# Latency/Clock Signal Support
128~
Unused Storage Locations
Transcend information Inc
1
1
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
