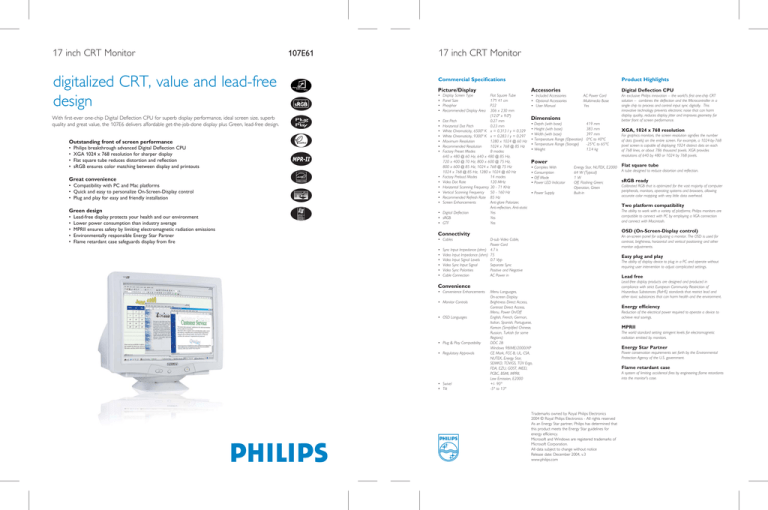

17 inch CRT Monitor
digitalized CRT, value and lead-free
design
With first-ever one-chip Digital Deflection CPU for superb display performance, ideal screen size, superb
quality and great value, the 107E6 delivers affordable get-the-job-done display plus Green, lead-free design.
Outstanding front of screen performance
• Philips breakthrough advanced Digital Deflection CPU
• XGA 1024 x 768 resolution for sharper display
• Flat square tube reduces distortion and reflection
• sRGB ensures color matching between display and printouts
Great convenience
• Compatibility with PC and Mac platforms
• Quick and easy to personalize On-Screen-Display control
• Plug and play for easy and friendly installation
Green design
• Lead-free display protects your health and our environment
• Lower power consumption than industry average
• MPRII ensures safety by limiting electromagnetic radiation emissions
• Environmentally responsible Energy Star Partner
• Flame retardant case safeguards display from fire
107E61
17 inch CRT Monitor
Commercial Specifications
Product Highlights
Picture/Display
Accessories
•
•
•
•
• Included Accessories
• Optional Accessories
• User Manual
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Display Screen Type
Panel Size
Phosphor
Recommended Display Area
Flat Square Tube
17"/ 41 cm
P22
306 x 230 mm
(12.0" x 9.0")
Dot Pitch
0.27 mm
Horizontal Dot Pitch
0.23 mm
White Chromaticity, 6500º K x = 0.313 / y = 0.329
White Chromaticity, 9300º K x = 0.283 / y = 0.297
Maximum Resolution
1280 x 1024 @ 60 Hz
Recommended Resolution
1024 x 768 @ 85 Hz
Factory Preset Modes
8 modes:
640 x 480 @ 60 Hz, 640 x 480 @ 85 Hz,
720 x 400 @ 70 Hz, 800 x 600 @ 75 Hz,
800 x 600 @ 85 Hz, 1024 x 768 @ 75 Hz
1024 x 768 @ 85 Hz, 1280 x 1024 @ 60 Hz
Factory Preload Modes
14 modes
Video Dot Rate
120 MHz
Horizontal Scanning Frequency 30 - 71 KHz
Vertical Scanning Frequency
50 - 160 Hz
Recommended Refresh Rate 85 Hz
Screen Enhancements
Anti-glare Polarizer,
Anti-reflection, Anti-static
Digital Deflection
Yes
sRGB
Yes
GTF
Yes
Digital Deflection CPU
AC Power Cord
Multimedia Base
Yes
Dimensions
•
•
•
•
•
•
Depth (with base)
419 mm
Height (with base)
383 mm
Width (with base)
397 mm
Temperature Range (Operation) 0°C to 40°C
Temperature Range (Storage)
-25°C to 65°C
Weight
13.4 kg
Power
•
•
•
•
Complies With
Consumption
Off Mode
Power LED Indicator
• Power Supply
Energy Star, NUTEK, E2000
64 W (Typical)
1W
Off, Flashing Green;
Operation, Green
Built-in
• Plug & Play Compatibility
• Regulatory Approvals
• Swivel
• Tilt
A tube designed to reduce distortion and reflection.
sRGB ready
Calibrated RGB that is optimized for the vast majority of computer
peripherals, monitors, operating systems and browsers, allowing
accurate color mapping with very little data overhead.
An on-screen panel for adjusting a monitor. The OSD is used for
contrast, brightness, horizontal and vertical positioning and other
monitor adjustments.
Easy plug and play
The ability of display device to plug in a PC and operate without
requiring user intervention to adjust complicated settings.
Lead free
Convenience
• OSD Languages
Flat square tube
OSD (On-Screen-Display control)
D-sub Video Cable,
Power Cord
Sync Input Impedance (ohm) 4.7 k
Video Input Impedance (ohm) 75
Video Input Signal Levels
0.7 Vpp
Video Sync Input Signal
Separate Sync
Video Sync Polarities
Positive and Negative
Cable Connection
AC Power in
• Monitor Controls
For graphics monitors, the screen resolution signifies the number
of dots (pixels) on the entire screen. For example, a 1024-by-768
pixel screen is capable of displaying 1024 distinct dots on each
of 768 lines, or about 786 thousand pixels. XGA provides
resolutions of 640 by 480 or 1024 by 768 pixels.
The ability to work with a variety of platforms; Philips monitors are
compatible to connect with PC by employing a VGA connection
and connect with Macintosh.
• Cables
• Convenience Enhancements
XGA, 1024 x 768 resolution
Two platform compatibility
Connectivity
•
•
•
•
•
•
An exclusive Philips innovation -- the world's first one-chip CRT
solution -- combines the deflection and the Microcontroller in a
single chip to process and control input sync digitally. This
innovative technology prevents electronic noise that can harm
display quality, reduces display jitter and improves geometry for
better front of screen performance.
Menu Languages,
On-screen Display
Brightness Direct Access,
Contrast Direct Access,
Menu, Power On/Off
English, French, German,
Italian, Spanish, Portuguese,
Korean (Simplified Chinese,
Russian, Turkish for some
Regions)
DDC 2B
Windows 98/ME/2000/XP
CE Mark, FCC-B, UL, CSA,
NUTEK, Energy Star,
SEMKO, TÜV/GS, TÜV Ergo,
FDA, EZU, GOST, MEEI,
PCBC, BSMI, MPRII,
Low Emission, E2000
+/- 90°
-5° to 13°
Trademarks owned by Royal Philips Electronics
2004 © Royal Philips Electronics - All rights reserved
As an Energy Star partner, Philips has determined that
this product meets the Energy Star guidelines for
energy efficiency.
Microsoft and Windows are registered trademarks of
Microsoft Corporation.
All data subject to change without notice
Release date: December 2004, v.3
www.philips.com
Lead-free display products are designed and produced in
compliance with strict European Community Restriction of
Hazardous Substances (RoHS) standards that restrict lead and
other toxic substances that can harm health and the environment.
Energy efficiency
Reduction of the electrical power required to operate a device to
achieve real savings.
MPRII
The world standard setting stringent levels for electromagnetic
radiation emitted by monitors.
Energy Star Partner
Power conservation requirements set forth by the Environmental
Protection Agency of the U.S. government.
Flame retardant case
A system of limiting accidental fires by engineering flame retardants
into the monitor's case.
