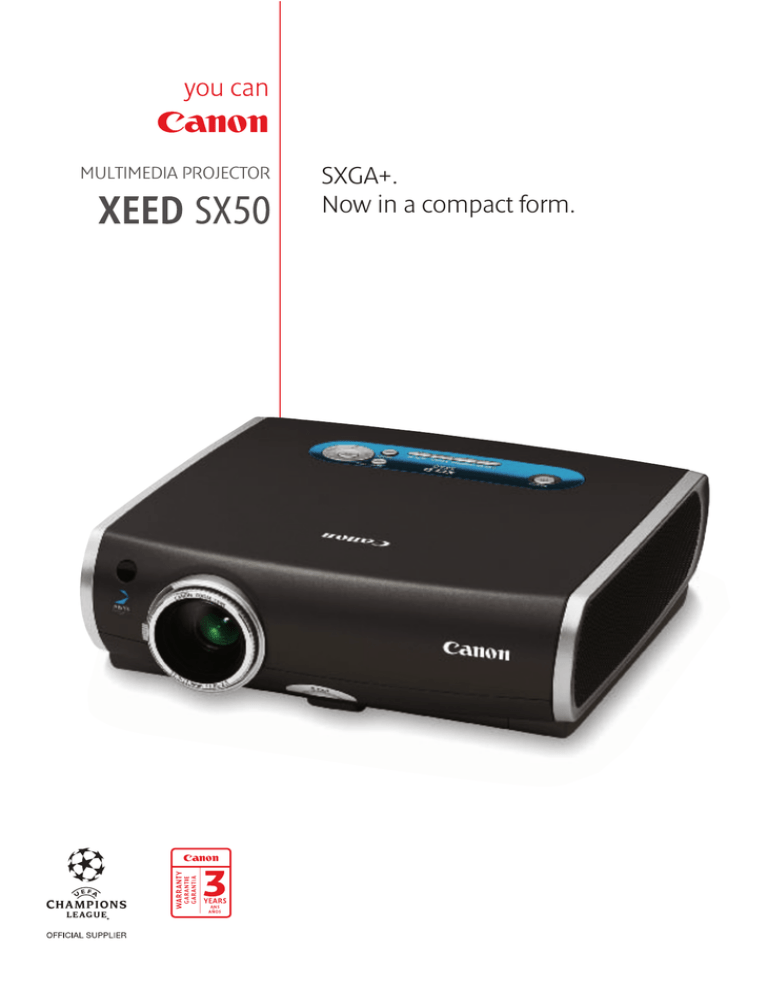

MULTIMEDIA PROJECTOR
SXGA+.
Now in a compact form.
Project your business.
Breakthrough resolution. Breakthrough brightness and contrast. Breakthrough
size. More than 60 years of Canon optical heritage distilled into a single defining
moment. The extraordinary SXGA+ XEED SX50 – setting a new standard in
projector technology.
QUALITY – WITHOUT COMPROMISE
SEAMLESS MOVING IMAGES
Canon’s XEED SX50 defies convention.
Traditional LCOS projector technology has
always forced a compromise between
brightness, contrast and size. With the
development of XEED SX50’s revolutionary
AISYS (Aspectual Illumination System)
technology, Canon’s engineers put an
end to concession, delivering outstanding
SXGA+ resolution, 2,500 lumens and a
1000:1 contrast ratio – all in an incredibly
compact body.
LCOS panels operate at a double frame
speed to deliver flicker free, high quality,
seamless movie and video viewing.
READ THE FINE PRINT
Professional presentations demand
professional levels of fine detail, which is
why XEED SX50 boasts SXGA+ resolution.
Generally only found in much larger,
heavier, fixed projectors, SXGA+ can display
3.1 times more pixels than SVGA and
1.9 times more than XGA. This makes
it possible to clearly display highly detailed
images, such as CAD drawings, technical
data, designs, accounting data and
multiple windows.
WHEN RESOLUTION
IS NOT ENOUGH
Outstanding resolution is crucial to show the
level of fine detail your audience deserves.
But regardless of pixel density, excessive
gaps between pixels will give your picture
a granular appearance; as if covered in a
fine mesh. Unlike conventional LCD
projectors, XEED SX50 uses LCOS (Liquid
Crystal on Silicon) panels. With virtually no
gap between pixels, they help the XEED SX50
to reproduce beautifully faithful, superb
quality images.
BRIGHTER PROJECTION
Canon combines leading-edge technologies
to deliver 2,500 lumens brightness – more
than enough power to show midday
presentations and movies without having
to draw the curtains, and perfect for large
screen projection. Canon’s unique AISYS
technology optimises the light path to
prevent lamp-light loss, while the projector
lens elements have special coatings to limit
harmful reflections that can wash out
images. Canon’s LCOS panels are also super
efficient, reflecting appreciably more light
toward the screen than conventional
transmission type panels.
1
2
OUTSTANDING CONTRAST
Key to the quality of any projected image
is contrast – the ratio between light and dark
areas. Low contrast images look washed
out and flat. A drawback of traditional
LCOS technology is its tendency to produce
low contrast results. With its supremely
efficient AISYS technology, the XEED SX50
overcomes this limitation to deliver an
incredible 1000:1 contrast ratio for rich,
deep tones, true blacks in dark areas
and stunning detail in light areas.
1. LCD technology
2. XEED LCOS technology
XGA (Transmissive LCD)
XEED SXGA+ (LCOS)
Behind every
great presentation…
…IS MORE THAN 60 YEARS OF
CANON OPTICAL HERITAGE
COLOURS AS YOU SEE THEM
For more than 60 years, Canon’s optical engineers have
been at the forefront of imaging and lens development,
relentlessly pursuing advances in optical technologies.
As well as the XEED SX50’s new AISYS optical system,
this commitment to research has led to a new projection
lens. Its 1.7x zoom achieves strong magnification with
little distortion throughout the zoom range, while two
aspherical elements eliminate aberrations, for high
corner-to-corner contrast.
A key component of the revolutionary AISYS optical
system is Canon’s Pure Colour Processing. It optimises
the design of the optical system components to
accurately separate light into its three primary colours –
Red, Green and Blue – and to then faithfully process
each colour individually, using three dedicated LCOS
panels. The result is fantastically clear and true colours,
reproduced with high contrast and exceptional
colour balance.
COMPACT, LIGHT AND ECONOMICAL
By combining its own AISYS technologies and LCOS
panels, Canon has been able to create an exceptionally
small SXGA+ projector, with a price tag to match its
diminutive size.
1
2
3
Focal distance
Focal distance
1/2/3.
Canon’s advanced AISYS technology dramatically
shortens the requisite focal distance. The focal
distance of competing manufacturers’ systems
is more than twice as long. The AISYS system
keeps distances between components shorter
and component sizes smaller making it more
efficient and improving on the light intensity.
*Polarization Beam Splitter
AISYS
illumination system
Competing manufacturer’s
illumination system
4
XEED SX50’s
optical system
XEED SX50’s PBS* (left) and
competing manufacturer's PBS*
5
Comparison with competing
manufacturer's
SXGA+ optical system
6
Comparison with competing
manufacturer's
SXGA+ model
4/5/6.
Advances in optical technologies have more
than halved the required distances between
components. This allows a major reduction in
overall size and weight, while dramatically
improving performance and image quality.
Making life easy.
The XEED SX50’s ‘Human Centred Design’ is integral to the
projector. Every aspect of the menu structure is designed with
the user in mind for fast, instinctive operation. You won’t
need a degree in computer science to get your presentations
working just the way you want them. Even the air exhaust
points away from the audience so they won’t be distracted
while you get your point across.
THE PERFECT ANGLE
FOR YOUR PRESENTATION
The XEED SX50 can be tilted up or down
with one hand, and Keystone correction
of +/- 20 degrees both horizontally and
vertically can be made easily. The 1.7x
zoom lens not only allows for flexible
placement, its wide-angle projection
capability permits large image projection,
even in small spaces.
QUIET PLEASE
The XEED SX50 is a lot quieter too, due
to a more efficient illumination system,
which means less cooling is required.
BE IN TOTAL CONTROL
The remote control is designed to make
ease-of-use a top priority. Its illuminated
buttons are grouped for simple operating
and even includes a spotlight function
to draw the audience’s attention to a
specific place on the presentation screen.
Intelligent images.
Whatever presentations you have in mind the
image modes available with the XEED SX50
will help bring them to life.
1
2
3
PRESENTATION MODES
PROGRESSIVE SCANNING
To provide you with the best balance
of image settings for each style of
presentation, the XEED SX50 has easily
selectable modes. Standard Mode
provides the perfect balance of settings
for every-day use. Dynamic Mode outputs
the maximum light quantity possible
with respect to the other projector
settings. Cinema Mode is perfectly suited
for enjoying movies, ‘stretching’ the black
end of the gamma curve to bring out
more detail in the dark areas, and shifting
white balance to provide a warmer hue.
The final of the four modes available is
sRGB, which sets colours to the standard
sRGB colours. As a standard colour
space, sRGB provides consistency
with other sRGB compliant systems,
so you can be confident colours are
reproduced accurately.
Progressive Scanning will help you
produce a vivid picture and give
your audience optimum viewing.
By creating smoother movement, clear
diagonal lines and super-sharp titles,
it is perfect for film, video and even
High Definition images.
CUSTOMISE YOUR COLOURS
The Customisable Image Registration
enables you to manually control specific
hues of colour while keeping images
razor sharp. 6-axis colour adjustment
enables individual adjustment for each
of RGB and CMY colours, for precise
and complete control over colour
specification – a must for any
design company.
4
1. Image before using colour adjustment
2. 6-Axis Colour Adjustment Function
3. Image after using colour adjustment
5
4. Interlaced Scanning
5. Flicker-free Progressive Scanning
Complete Connectivity.
The advanced connectivity available with the XEED SX50
means you can easily connect and project.
The advanced connectivity available with the XEED SX50
means you can easily connect and project information
from just about any device you might think of – whether
it is your laptop, a VCR, DVD player or any other multimedia device. HD is supported through both the DVI
and the Component Video connectors found on the side
1. S-terminal mini DIN4
S-video
2. RCA 1
Composite video
3. DVI-I (29-pin)
Digital RGB
Analogue RGB
4. Mini Dsub15
Analogue RGB
Component video
Analogue RGB output
of the unit. XEED SX50 will project a full 720p HD
without the need for image compression. The analogue
RGB Out is ideal for external monitor connection and
projection. You can also customise your XEED SX50
to project your own personal logo at the start of your
session, for a professional start to every presentation.
1
3
4
6
CONTROL
5. Service Port
Projector control
6. USB Port
Mouse control
AUDIO
(The built-in speaker
provides only mono output.)
7. Mini-pin jack (in)
Stereo
2
Accessories.
5
7
OPTIONAL ACCESSORIES
Canon’s genuine projector accessories include a remote
control unit and various input and output cables for
connection to different devices or for use with the
wireless mouse function. An optional Ceiling Attachement
is also available for more permanent projector installation.
Replacement Lamp
Ceiling Attachment
INBOX ACCESSORIES
Remote
Controller
Soft Case
Computer
Connection Cable
Component
Cable
USB Cable
Specifications XEED SX50
TYPE
Product Type
Product Class
Imaging Device
LCD PANEL
Driving System
Size, Number
Number of Pixels
OPTICS
System
Light Source
Projection Lens Configuration
F Number, Focal Length
Zoom, Focus
Lens Shift
IMAGES
Brightness
Uniformity
Contrast Ratio
Projection Distance Coverage
Screen Size
Digital Zoom
Keystone Correction Range
IMAGES SIGNALS
Digital RGB
Analog RGB
Composite/S-video
IMAGES SIGNALS
Component
Scan Frequency
Projector
Ultra portable
Reflective LCD panel
MECHANICS
Adjustment Foot
Built-in Speaker
Active matrix
0.7 type, aspect ratio 4:3, 3 panels
1,470,000 (1400 x 1050, SXGA+)
CONNECTORS
DVI-I
DVI HDCP
Mini D-sub15
Dichroic mirror/PBS colour separating and mixing
200 W UHP
11 groups 12 elements
F1.85 – 2.5, f=22.0 – 37.0mm
1.7x hand-operated, hand-operated
9:1 fixed
RCA x1 (for image)
S Terminal (mini DIN4)
Stereo Mini Jack
USB Connector
Service Port (mini DIN8)
1080i/1035i/720p/575p/575i/480p/480i
H: 15 to 100 kHz, V: 50 to 100 Hz, Dot clock: 170 MHz
To slant body with max 10°
1 W, monaural
Analogue RGB input /Digital RGB input
NO
Analogue RGB input/Component input/
Analogue RGB output
Composite input
S-video input
Stereo audio input
Mouse control
Projector control
2500 Lumens (Quiet Mode 2000 Lumens)
85%
1000:1 (all white: all black)
1.2 to 9.0m (100": 3.0 to 5.1 m)
40" (0.81 x 0.61m) to 300" (6.10 x 4.57m)
1– x144 (area ratio)
±20 degrees up/down direction
±20 degrees right/left direction
RATING
Dimensions
Mass
Rated Supply Voltage
Power Consumption
Noise
Ambient Temperature Range
Storage Temperature Range
Warranty
D-SXGA+/D-SXGA/D-XGA/D-SVGA/D-VGA
UXGA (compressed)/SXGA+/SXGA/XGA/SVGA/VGA
NTSC/PAL/SECAM/NTSC4.43/PAL-M/PAL-N
Some images are simulated for clarity of reproduction. All data is based on Canon’s standard testing methods.
Specifications are subject to change without notice. ™ and ®: All company and/or product names are trademarks
and/or registered trademarks of their respective manufacturers in their markets and/or countries.
W:284mm, D:286mm, H:96mm
3.9kg
AC100 to 240 V; 50/60 Hz
280W (Quiet Mode 220W)
37dBA (Quiet Mode 34dBA)
5 to 35°C
-10 to 60°C
3 years (90 days for lamp)
Throwing Distance 9.0m
TRUE THROWING DISTANCE
Screen Size
inches
cm
40"
81 x 61
100"
203 x 152
150"
305 x 229
176"
358 x 268
200"
406 x 305
300"
610 x 457
3.0m
Projection
Distance
Max Zoom
1.2m
3.0m
4.5m
Zoom max
2.0m
5.1m
7.7m
9.0m
–
–
H1
55cm
137cm
206cm
241cm
274cm
411cm
H2
6cm
15cm
23cm
27cm
31cm
46cm
Canon Inc
www.canon.com
Canon Europa N.V.
www.canon-europe.com
5.3m
6.0m
Canon (UK) Ltd
Woodhatch
Reigate
Surrey
RH2 8BF
Tel 08705 143723
© Canon Europa NV 2004
English-UK Edition
300"
9.0m
www.canon.co.uk
Minimum Zoom
100"
H1
ze
Si
1.2m
en
re
Sc
Zoom min
40"
H2
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
