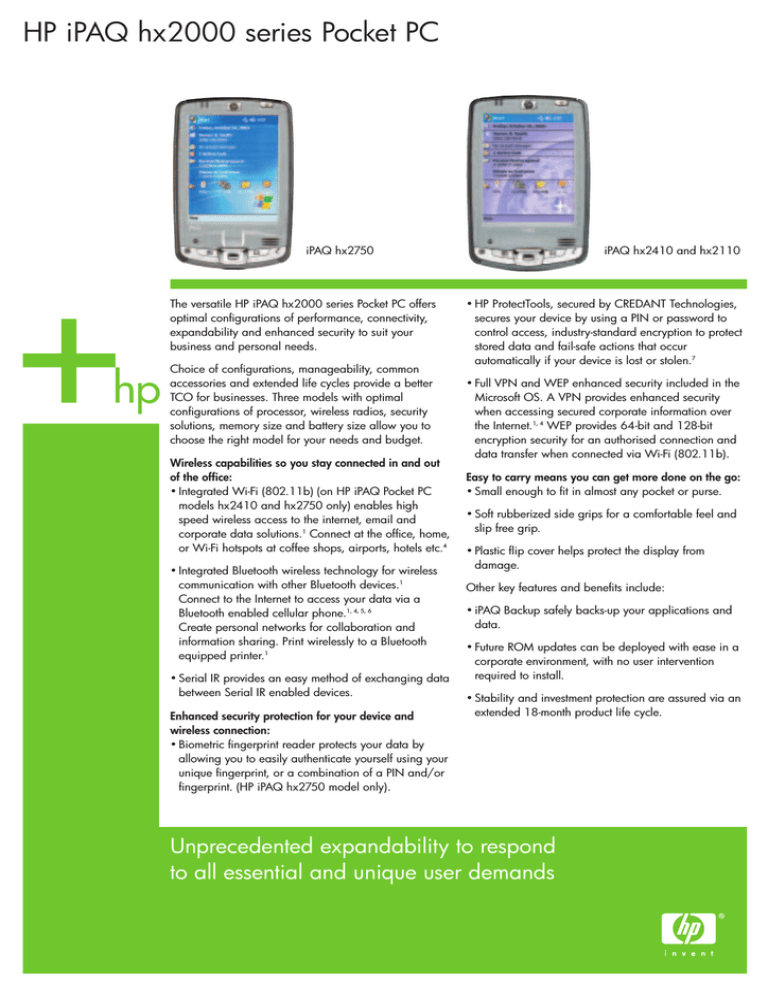

HP iPAQ hx2000 series Pocket PC
iPAQ hx2750
The versatile HP iPAQ hx2000 series Pocket PC offers
optimal configurations of performance, connectivity,
expandability and enhanced security to suit your
business and personal needs.
Choice of configurations, manageability, common
accessories and extended life cycles provide a better
TCO for businesses. Three models with optimal
configurations of processor, wireless radios, security
solutions, memory size and battery size allow you to
choose the right model for your needs and budget.
Wireless capabilities so you stay connected in and out
of the office:
• Integrated Wi-Fi (802.11b) (on HP iPAQ Pocket PC
models hx2410 and hx2750 only) enables high
speed wireless access to the internet, email and
corporate data solutions.1 Connect at the office, home,
or Wi-Fi hotspots at coffee shops, airports, hotels etc.4
• Integrated Bluetooth wireless technology for wireless
communication with other Bluetooth devices.1
Connect to the Internet to access your data via a
Bluetooth enabled cellular phone.1, 4, 5, 6
Create personal networks for collaboration and
information sharing. Print wirelessly to a Bluetooth
equipped printer.1
• Serial IR provides an easy method of exchanging data
between Serial IR enabled devices.
Enhanced security protection for your device and
wireless connection:
• Biometric fingerprint reader protects your data by
allowing you to easily authenticate yourself using your
unique fingerprint, or a combination of a PIN and/or
fingerprint. (HP iPAQ hx2750 model only).
iPAQ hx2410 and hx2110
• HP ProtectTools, secured by CREDANT Technologies,
secures your device by using a PIN or password to
control access, industry-standard encryption to protect
stored data and fail-safe actions that occur
automatically if your device is lost or stolen.7
• Full VPN and WEP enhanced security included in the
Microsoft OS. A VPN provides enhanced security
when accessing secured corporate information over
the Internet.1, 4 WEP provides 64-bit and 128-bit
encryption security for an authorised connection and
data transfer when connected via Wi-Fi (802.11b).
Easy to carry means you can get more done on the go:
• Small enough to fit in almost any pocket or purse.
• Soft rubberized side grips for a comfortable feel and
slip free grip.
• Plastic flip cover helps protect the display from
Other key features and benefits include:
• iPAQ Backup safely backs-up your applications and
• Future ROM updates can be deployed with ease in a
corporate environment, with no user intervention
required to install.
• Stability and investment protection are assured via an
extended 18-month product life cycle.
Unprecedented expandability to respond
to all essential and unique user demands
HP iPAQ hx2000 series Pocket PC
HP iPAQ Pocket PC features Windows Mobile™ software
Integrated wireless1, 2, 3, 4
Wi-Fi (802.11b), Bluetooth, Serial IR
Operating system
Microsoft® Windows Mobile™ 2003 Second Edition software for Pocket PC Pocket versions of Microsoft software are included
(Outlook, Word, Excel and Internet Explorer for Pocket PC)
Intel® PXA270 Processor 624 MHz*
Bluetooth, Serial IR
Intel® PXA270 Processor 520 MHz
Intel® PXA270 Processor 312 MHz
NOTE: Intel´s processor numbering is not a measurement of higher performance
256 MB total memory (128 MB ROM and
128 MB SDRAM)Up to 214 MB user available
memory that includes 93 MB iPAQ File Store
128 MB total memory
(64 MB ROM and 64 MB SDRAM)
Up to 88 MB user available memory
that includes 31 MB iPAQ File Store
128 MB total memory (64 MB ROM and 64 MB
SDRAM)Up to 88 MB user available memory
that includes 31 MB iPAQ File Store
Security 5
Biometric fingerprint reader HP ProtectTools
secured by CREDANT Technologies
HP ProtectTools secured by CREDANT
HP ProtectTools secured by CREDANT
3.5" transflective TFT QVGA colour, 64K colours, LED backlight with power save mode; portrait and landscape mode
4.71 x 3.01 x 0.65 in (119.4 x 76.6 x 16.3 mm)
(5.8 oz) 164.4 g
LED 1 – Power
Solid amber LED (right) – battery in unit fully charged Flashing amber LED (right) – battery in unit
is chargingFlashing green LED (right) – event alarm/notification
LED 2 – Wireless
Flashing blue LED (left) – Wireless Radio enabled
Removable/Rechargeable 1440 mAh
Removable/Rechargeable 920 mAh Lithium-lon
Optional extended removable/rechargeable
2880 mAh Lithium-lon battery available
for purchase
Optional extended removable / rechargeable
1440 mAh or 2880 mAh Lithium-lon batteries
available for purchase
AC Power
AC Input: 100~240 Vac, 50/60 Hz, AC Input current: 0.3 A max; Output Voltage:
5Vdc (typical), Output Current: 2A (typical)
NOTE: Battery run time varies based on the usage pattern of an individual user and the configuration of the handheld. Use of some internal
wireless capabilities and backlight will significantly decrease battery run time.
Integrated Compact Flash Type II (CF) and Secure Digital (SDIO) slot – Supports SD/MMC type standard, SDIO ready
Integrated microphone, receiver, speaker and one 3.5 mm stereo headphone jack, MP3 stereo (through headphone jack)
HP exclusive applications1, 2, 5, 6
HP ProtectTools secured by CREDANT Technologies: secure your data and your device; Bluetooth Phone Manager: connect to a Bluetooth enabled
phone and browse the Internet; iPAQ Wireless: manage wireless connections, HP Profiles: set and name profiles to be used at different times for
different functions, such as ring type, volume, brightness and wireless settings; HP Mobile Printing: print to network and Bluetooth printers without
any additional software; Bluetooth Manager: manage your Bluetooth connections and settings; iPAQ File Store: non-volatile storage in flash ROM;
iPAQ Backup: Backup and restore your data to Main Memory, Memory Card or iPAQ File Store; iTask: launch and switch between tasks and
application; HP Image Zone for Pocket PC: application to view images and create slide shows; Utilities: Self Test, iPAQ Audio, Power Status
Design features
4 programmable application quick-launch buttons, 5-way navigation button, rechargeable/removable battery, touch-sensitive display for stylus or
fingertip, voice record button, microphone and speaker; rubber sides for comfortable grip
Biometric fingerprint reader
In the box
USB desktop synchronization cradle
Not Applicable
Not Applicable
HP iPAQ hx2000 series Pocket PC, removable/rechargeable Lithium-lon battery, AC adapter, charger adapter, stylus, protective plastic flip cover,
Getting Started Guide, HP iPAQ Pocket PC Companion CD, and How Do I…? Guide
USB desktop synchronization cradle
USB synchronization cable
One-year parts and labour in most regions (2110); Two-year parts and labour in most regions (2410/2750); 90 days technical support for software
in most regions. Additional offers may vary by region.
A standard Wi-Fi infrastructure, other Bluetooth-enabled devices, separately purchased equipment, and a service contract with a wireless airtime provider may be required for applicable wireless
communication. Wireless Internet use requires a separately purchased service contract. Check with service provider for availability and coverage in your area. Not all web content available.
Wireless cards and options are available at additional costs
Requires separately purchased third party enterprise management application and supporting IT infrastructure. ROM upgrades are available on an as needed basis
Wireless access point required and is not included. Availability of public wireless access points limited. Wireless Internet use requires separately purchased Internet service contract.
Requires Bluetooth enabled mobile, separately purchased wireless carrier/Internet service plan(s) and supporting IT infrastructure.
Telephone service requires separately purchased contract with a telephone service provider with coverage in your service area.
User must have HP Protect Tools features enabled.
© 2004 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change
without notice. The only warranties for HP products and services are set forth in the express warranty
statements accompanying such products and services. Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Microsoft, Windows, and the Windows Logo are trademarks or registered trademarks of Microsoft
Corporation in the United States and/or other countries. Intel is a registered trademark of Intel Corporation
in the U.S. and/or other countries.
For more information on HP products and solutions, visit our website at: www.hp.com
5982-8633EEE. October 2004
