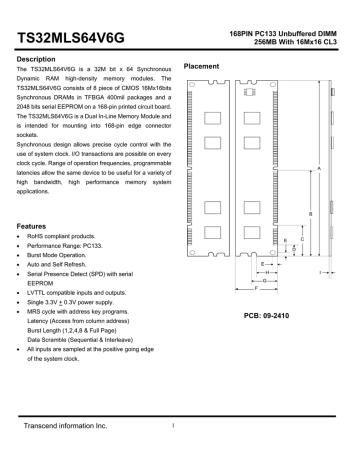

168PIN PC133 Unbuffered DIMM
256MB With 16Mx16 CL3
TS32MLS64V6G
Description
Placement
The TS32MLS64V6G is a 32M bit x 64 Synchronous
Dynamic
RAM
high-density
memory
modules.
The
TS32MLS64V6G consists of 8 piece of CMOS 16Mx16bits
Synchronous DRAMs in TFBGA 400mil packages and a
2048 bits serial EEPROM on a 168-pin printed circuit board.
The TS32MLS64V6G is a Dual In-Line Memory Module and
is intended for mounting into 168-pin edge connector
sockets.
Synchronous design allows precise cycle control with the
use of system clock. I/O transactions are possible on every
clock cycle. Range of operation frequencies, programmable
A
latencies allow the same device to be useful for a variety of
high
bandwidth,
high
performance
memory
system
applications.
B
Features
•
RoHS compliant products.
•
Performance Range: PC133.
•
Burst Mode Operation.
•
Auto and Self Refresh.
•
Serial Presence Detect (SPD) with serial
D
E
H
G
EEPROM
•
LVTTL compatible inputs and outputs.
•
Single 3.3V + 0.3V power supply.
•
MRS cycle with address key programs.
F
PCB: 09-2410
Latency (Access from column address)
Burst Length (1,2,4,8 & Full Page)
Data Scramble (Sequential & Interleave)
•
All inputs are sampled at the positive going edge
of the system clock.
Transcend information Inc.
C
E
1
I
168PIN PC133 Unbuffered DIMM
256MB With 16Mx16 CL3
TS32MLS64V6G
Pin Identification
Dimensions
Symbol
Function
Side
Millimeters
A
133.35±0.40
5.250±0.016
A0~A12
Address inputs
B
65.67000
2.585000
BA0, BA1
Select Bank
C
23.49000
0.925000
D
8.89000
0.350000
DQ0~DQ63
Data inputs/outputs
E
3.00000
0.118000
CLK0~3
Clock Input
F
22.225±0.200
0.875±0.00800
G
19.8000
0.788000
H
15.80
0.622
I
1.27±0.10
(Refer Placement)
Transcend information Inc.
Inches
CKE0, CKE1 Clock Enable Input
0.050±0.004
2
/CS0~3
Chip Select Input
/RAS
Row address strobe
/CAS
Column address strobe
/WE
Write Enable
DQM0~7
DQM
Vcc
Power Supply
Vss
Ground
SDA
Serial Address / Data I/O
SA0~2
Address in EEPROM
WP
Write protection
SCL
Serial Clock
NC
No Connection
168PIN PC133 Unbuffered DIMM
256MB With 16Mx16 CL3
TS32MLS64V6G
Pinouts:
Pin
Pin
Pin
No
Name
No
01
Vss
43
02
DQ0
44
03
DQ1
45
04
DQ2
46
05
DQ3
47
06
Vcc
48
07
DQ4
49
08
DQ5
50
09
DQ6
51
10
DQ7
52
11
DQ8
53
12
Vss
54
13
DQ9
55
14
DQ10
56
15
DQ11
57
16
DQ12
58
17
DQ13
59
18
Vcc
60
19
DQ14
61
20
DQ15
62
21
*CB0
63
22
*CB1
64
23
Vss
65
24
NC
66
25
NC
67
26
Vcc
68
27
/WE
69
28
DQM0
70
29
DQM1
71
30
/CS0
72
31
NC
73
32
Vss
74
33
A0
75
34
A2
76
35
A4
77
36
A6
78
37
A8
79
38
A10/AP
80
39
BA1
81
40
Vcc
82
41
Vcc
83
42
CLK0
84
*Please refer Block Diagram
Transcend information Inc.
Pin
Name
Vss
NC
/CS2
DQM2
DQM3
NC
Vcc
NC
NC
*CB2
*CB3
Vss
DQ16
DQ17
DQ18
DQ19
Vcc
DQ20
NC
*Vref
*CKE1
Vss
DQ21
DQ22
DQ23
Vss
DQ24
DQ25
DQ26
DQ27
Vcc
DQ28
DQ29
DQ30
DQ31
Vss
*CLK2
NC
NC
SDA
SCL
Vcc
3
Pin
No
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
Pin
Name
Vss
DQ32
DQ33
DQ34
DQ35
Vcc
DQ36
DQ37
DQ38
DQ39
DQ40
Vss
DQ41
DQ42
DQ43
DQ44
DQ45
Vcc
DQ46
DQ47
*CB4
*CB5
Vss
NC
NC
Vcc
/CAS
DQM4
DQM5
*/CS1
/RAS
Vss
A1
A3
A5
A7
A9
BA0
A11
Vcc
*CLK1
*A12
Pin
No
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
Pin
Name
Vss
CKE0
*/CS3
DQM6
DQM7
*A13
Vcc
NC
NC
*CB6
*CB7
Vss
DQ48
DQ49
DQ50
DQ51
Vcc
DQ52
NC
*Vref
*REGE
Vss
DQ53
DQ54
DQ55
Vss
DQ56
DQ57
DQ58
DQ59
Vcc
DQ60
DQ61
DQ62
DQ63
Vss
*CLK3
NC
SA0
SA1
SA2
Vcc
168PIN PC133 Unbuffered DIMM
256MB With 16Mx16 CL3
TS32MLS64V6G
Block Diagram
DQ0~DQ63
A0~A12,
BA0,BA1
DQ0~DQ15
A0~A12,
BA0,BA1
DQ0~DQ15
A0~A12,
BA0,BA1
DQ0~DQ15
A0~A12,
BA0,BA1
DQ0~DQ15
/RAS
/RAS
/RAS
/RAS
/RAS
/CS
/CS
CLK0
CLK
CKE0
CKE
CLK
CKE
CLK
CKE
/CAS
CLK
CKE
16Mx16
SDRAM
UDQM
/CS
UDQM
/CS
LDQM
/CS0
UDQM
/WE
/CAS
LDQM
16Mx16
/CAS
SDRAM
/WE
UDQM
16Mx16
/CAS
SDRAM
/WE
LDQM
/WE
16Mx16
/CAS
SDRAM
/WE
LDQM
A0~A12,BA0,BA1
DQM4
DQM0
DQM5
DQM1
DQM6
DQM2
DQM7
DQM3
A0~A12,
BA0,BA1
A0~A12,
BA0,BA1
A0~A12,
BA0,BA1
A0~A12,
BA0,BA1
DQ0~DQ15
DQ0~DQ15
DQ0~DQ15
DQ0~DQ15
/RAS
/RAS
/RAS
/RAS
/CS2
CLK2
/CS
CLK1
CLK
CKE1
CKE
CLK
CKE
DQM5
DQM1
DQM4
DQM0
CLK
CKE
DQM6
DQM2
CLK
CKE
16Mx16
SDRAM
UDQM
/CS
/CAS
LDQM
/CS
UDQM
/CS
LDQM
/CS1
UDQM
/WE
LDQM
16Mx16
/CAS
SDRAM
/WE
UDQM
16Mx16
/CAS
SDRAM
/WE
LDQM
16Mx16
/CAS
SDRAM
/WE
DQM7
DQM3
/CS3
CLK3
Serial
EEPROM
SCL
SCL
A0
SDA
WC
A1 A2
SDA
WP
SA0 SA1 SA2
