Cisco 7304 G100 Datasheet

DATA SHEET
CISCO 7300 SERIES ROUTER—CISCO 7304 CHASSIS
Flexible, Modular, Compact Chassis for Edge Routing with Scalable IP/MPLS Service Delivery
CISCO 7304 CHASSIS
®
Cisco 7300 Series routers are optimized for flexible, scalable, high-performance IP and Multiprotocol Label Switching (MPLS) services at the
service provider and enterprise network edge. Providing powerful processing, a broad set of interfaces, and a compact form factor, Cisco 7300 Series
routers are ideal for feature-rich, multigigabit network applications.
The Cisco 7304 Router is a midrange, price-performance optimized router with a compact (4-rack-unit [RU]), modular (4-slot) form factor (Figure
1). It delivers high-performance services in IP/MPLS networks and is optimized for the network edge, where the service provider meets the
enterprise. Targeted applications include service provider edge and IP edge routing, service provider managed service customer premises equipment
(CPE), and enterprise Internet gateway and enterprise WAN aggregation.

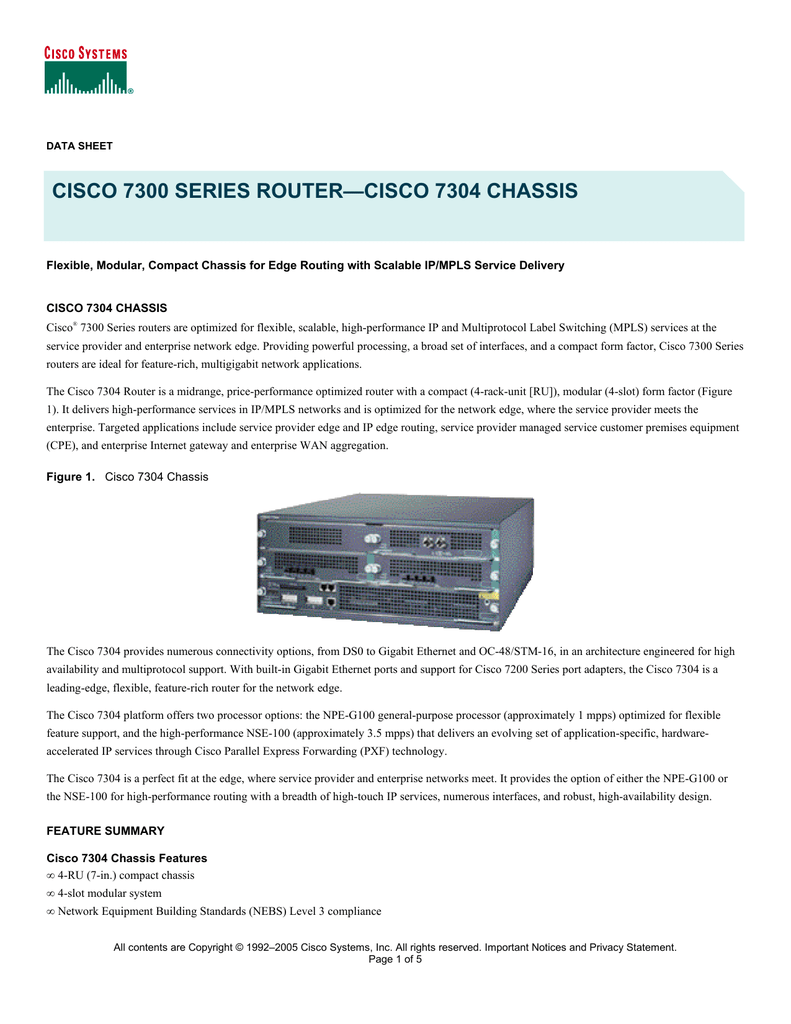

Figure 1. Cisco 7304 Chassis
The Cisco 7304 provides numerous connectivity options, from DS0 to Gigabit Ethernet and OC-48/STM-16, in an architecture engineered for high
availability and multiprotocol support. With built-in Gigabit Ethernet ports and support for Cisco 7200 Series port adapters, the Cisco 7304 is a
leading-edge, flexible, feature-rich router for the network edge.
The Cisco 7304 platform offers two processor options: the NPE-G100 general-purpose processor (approximately 1 mpps) optimized for flexible
feature support, and the high-performance NSE-100 (approximately 3.5 mpps) that delivers an evolving set of application-specific, hardwareaccelerated IP services through Cisco Parallel Express Forwarding (PXF) technology.
The Cisco 7304 is a perfect fit at the edge, where service provider and enterprise networks meet. It provides the option of either the NPE-G100 or
the NSE-100 for high-performance routing with a breadth of high-touch IP services, numerous interfaces, and robust, high-availability design.
FEATURE SUMMARY
Cisco 7304 Chassis Features
• 4-RU (7-in.) compact chassis
• 4-slot modular system
• Network Equipment Building Standards (NEBS) Level 3 compliance
All contents are Copyright © 1992–2005 Cisco Systems, Inc. All rights reserved. Important Notices and Privacy Statement.
Page 1 of 5
• Redundant route processor (NSE-100 or NPE-G100)
• Redundant power supplies (AC or DC)
• Front-to-back airflow for optimal cooling
• Rack density
Table 1.
Cisco 7304 Quick-Look Summary
Cisco 7304 Chassis
Cisco 7304 Rack Density
4 Slots for Line Cards; 2 Gigabit Ethernet Ports per NSE-100 and 3 Ethernet/Fast Ethernet/Gigabit
Ethernet Ports per NPE-G100
11 chassis per rack
ORDERING INFORMATION
To order, visit: http://www.cisco.com/public/ordering_info.shtml
Table 2 lists part numbers for ordering purposes. Please note that “=” denotes a spare order (for example, 7300-PWR-DC= is the spare part number
for the DC power supply).
Table 2.
Cisco 7304 Chassis Ordering Information
Part Number
Description
CISCO7304
Cisco 7304, 4-slot chassis, NSE-100, 1 AC or DC power supply, 512-MB default memory
CISCO7304-G100
Cisco 7304, 4-slot chassis, NPE-G100, 1 AC or DC power supply, 1-GB default memory
7300-PWR-DC
Cisco 7304 DC power supply option
7300-PWR-DC=
Cisco 7304 DC power supply option (spare)
7300-PWR-AC
Cisco 7304 AC power supply option
7300-PWR-AC=
Cisco 7304 AC power supply option (spare)
7300-PWR/2-DC
Cisco 7304 redundant DC power supply option
7300-PWR/2-AC
Cisco 7304 redundant AC power supply option
7300-FANMODULE
Cisco 7304 fan module
7300-FANMODULE=
Cisco 7304 fan module (spare)
7300-4RU/RCKBRKT=
Cisco 7304 chassis rack-mount bracket (spare)
7300-CNTR-SPTUM=
Cisco 7304 center septum (spare)
Table 3.
Cisco 7304 Chassis Ordering Information
Part Number
Description
7300-HALFSLOTBLNK
Cisco 7304 half-slot blank line card
7300-HALFSLOTBLNK=
Cisco 7304 half-slot blank line card (spare)
© 2005 Cisco Systems, Inc. All rights reserved.
Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com.
Page 2 of 6
TECHNICAL SPECIFICATIONS
Physical Specifications
• 4-RU (7-in.) chassis 4 line-card slots per chassis
• Dimensions (H x W x D): 7 x 17.2 x 20.5 in.
• Weight: 28 lb (without power supply; power supplies 8 lb each)
Power Requirements
AC Input Power Supply/Chassis
AC input voltage: 100 to 240 VAC
AC Input Current
8A at Vin = 100 VAC and maximum load (540W)
4A at Vin = 200 VAC and maximum load (540W)
DC Input Power Supply/Chassis
DC input voltage: –48 to –60 VDC
DC Input Current
16A at Vin = –48 VDC and maximum load (540W)
Mean time between failure (MTBF): 5.5 years for system configuration
Environmental Conditions
Operating Condition
Temperature: 32 to 104°F (0 to 40°C)
Altitude: 6500ft (2000 m)
Humidity: 10 to 85 percent noncondensing
Storage Condition
Temperature: –4 to 149°F (–20 to 65’C)
Humidity: 5 to 95 percent noncondensing
Regulatory Compliance
CE Marking
Safety
UL 60950
CAN/CSA C22.2 No. 950-00
EN 60825-1 Laser Safety (Class 1) 21CFR 1040 Laser Safety
© 2005 Cisco Systems, Inc. All rights reserved.
Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com.
Page 3 of 6
EN60950
IEC 60950
TS 001
AS/NZS 60950
EMC
FCC Part 15 (CFR 47) Class A
VCCI Class A
EN55022 Class A
CISPR 22 Class A
AS/NZS 3548 Class A
EN61000-3-2
EN61000-3-3
EN55024
EN50082-1
ETS300386
NEBS Level 3 Compliance per Telecordia SR-3580
GR-1089-Core—Electromagnetic Compatibility and Electrical Safety, GR-63-CORE—NEBS: Physical Protection
ETSI Compliance
ETS-300386-2 Switching Equipment
ETSI Environmental
ETS 300 019 Part 1-1 Class 1.1
ETS 300 019 Part 1-2 Class 2-3
ETS 300 019 Part 1-3 Class 3.1
© 2005 Cisco Systems, Inc. All rights reserved.
