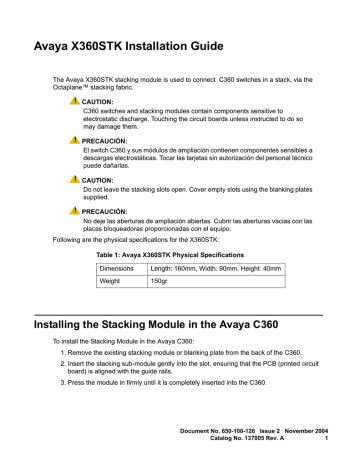

Avaya X360STK Installation Guide
The Avaya X360STK stacking module is used to connect C360 switches in a stack, via the
Octaplane™ stacking fabric.
! CAUTION:
C360 switches and stacking modules contain components sensitive to
electrostatic discharge. Touching the circuit boards unless instructed to do so
may damage them.
CAUTION:
! PRECAUCIÓN:
PRECAUCION:
El switch C360 y sus módulos de ampliación contienen componentes sensibles a
descargas electrostáticas. Tocar las tarjetas sin autorización del personal técnico
puede dañarlas.
! CAUTION:
Do not leave the stacking slots open. Cover empty slots using the blanking plates
supplied.
CAUTION:
! PRECAUCIÓN:
PRECAUCION:
No deje las aberturas de ampliación abiertas. Cubrir las aberturas vacias con las
placas bloqueadoras proporcionadas con el equipo.
Following are the physical specifications for the X360STK:
Table 1: Avaya X360STK Physical Specifications
Dimensions
Length: 160mm, Width: 90mm, Height: 40mm
Weight
150gr
Installing the Stacking Module in the Avaya C360
To install the Stacking Module in the Avaya C360:
1. Remove the existing stacking module or blanking plate from the back of the C360.
2. Insert the stacking sub-module gently into the slot, ensuring that the PCB (printed circuit
board) is aligned with the guide rails.
3. Press the module in firmly until it is completely inserted into the C360.
Document No. 650-100-126 Issue 2 November 2004
Catalog No. 137005 Rev. A
1
Avaya X360STK Installation Guide
! CAUTION:
Ensure that the screws on the module are properly aligned with the holes in the
chassis before tightening them.
CAUTION:
4. Tighten the two screws on the side panel of the stacking module by turning the screws.
Cabling
The following cables are connected to the stacking modules:
N
Short Octaplane cable (X330SC) – ivory-colored, used to connect adjacent switches
(Catalog No. CB0223) or switches separated by a BUPS unit. This cable is 30 cm long.
N
Long/Extra Long Octaplane cable (X330LC/X330L-LC) – ivory-colored, used to connect
switches from two different physical stacks, or switches separated by a BUPS unit
(Catalog No. CB0225/CB0270). The long cable is 2 m long; the extra-long cable is 8 m
long.
N
Redundant/Long Redundant Octaplane cable (X330RC/X330L-RC) – black, used to
connect the top and bottom switches of a stack (Catalog No. CB0222/CB0269). The long
cable is 2 m long; the extra-long cable is 8 m long
Tip:
Tip:
You may use the same cables with P330 and P330-ML switches.
! CAUTION:
CAUTION:
Do not cross connect two switches with two Octaplane (light-colored) cables. If
you wish to cross-connect for redundancy, use one light-colored Octaplane cable
and one black redundancy cable. The black cable will then serve as a redundant
connection.
! CAUTION:
CAUTION:
To prevent EMI, cover any unused ports on the stacking modules using the grey
plugs provided. Insert the plug labelled "left" into the lower port; insert the plug
labelled "right" into the upper port. See Figure 2.
! CAUTION:
CAUTION:
Ensure that the screws on the cable are properly aligned with the holes in the
stacking module before tightening them. Do not use excessive force when
tightening the screws.
2 Installation Guide Avaya X360STK
X360STK Front Panel
X360STK Front Panel
Figure 1 shows the front panel of the X360STK stacking module.
Figure 1: X360STK Front Panel
1
2
3
Figure notes:
1. OPR LED
2. “U” LED
3. “L” LED
Figure 2: Plug for Unused Stacking Ports
Table 2: Avaya X360STK LED Descriptions
LED
Name
Description
LED Status
OPR
Operating
Status
ON – X360STK is correctly inserted in the
switch
OFF – X360STK is incorrectly inserted or
not inserted in the switch
1 of 2
Document No. 650-100-126 Issue 2 November 2004
Catalog No. 137005 Rev. A
3
Avaya X360STK Installation Guide
Table 2: Avaya X360STK LED Descriptions (continued)
LED
Name
Description
LED Status
U
Upper
ON – there is a physical connection from
the C360 switch to the switch above it or to
the X330RC cable if the switch is at the
top of the stack
OFF – No connection
L
Lower
ON – there is a physical connection from
the C360 switch to the switch below it or to
the X330RC cable if the switch is at the
bottom of the stack
OFF – No connection
2 of 2
If the LEDs on both sides of the cable connection are OFF, ensure that the Cable connectors
are correctly inserted and that the X360STK is correctly and completely inserted in its slot.
NVRAM Initialization
If you wish to perform a hardware NVRAM initialization, then perform the following steps:
! CAUTION:
C360 switches and stacking modules contain components sensitive to
electrostatic discharge. Touching the circuit boards unless instructed to do so
may damage them.
CAUTION:
! PRECAUCIÓN:
PRECAUCION:
El switch C360 y sus módulos de ampliación contienen componentes sensibles a
descargas electrostáticas. Tocar las tarjetas sin autorización del personal técnico
puede dañarlas.
1. Remove the bridge from the jumper labelled "SPARE JUMPER" on the PCB.
2. Bridge the NVRAM INIT jumper before inserting the X360STK module.
- See Figure 3 for the location of the jumpers.
4 Installation Guide Avaya X360STK
NVRAM Initialization
Figure 3: Location of the NVRAM INIT Jumpers
2
1
Figure notes:
1. SPARE JUMPER
2. NVRAM INIT Jumper
3. Insert the X360STK module into the C360 switch where you wish to perform the NVRAM
initialization. Refer to Installing the Stacking Module in the Avaya C360 for further
information.
Tip:
Refer to the Avaya C360 Reference Guide for further information on the NVRAM
initialization
Tip:
4. The NVRAM initialization process starts. When you receive a CLI message on to remove
the stacking module, you can remove the X360STK from the switch.
5. Remove the bridge from the NVRAM INIT jumper and return it to the SPARE JUMPER.
!
Important:
Important:
You must remove the bridge from the NVRAM INIT jumper before you can use
the X360STK as a stacking module.
Document No. 650-100-126 Issue 2 November 2004
Catalog No. 137005 Rev. A
5
Avaya X360STK Installation Guide
