Philips 32PF7320 Datasheet

Philips 32PF7320 Datasheet

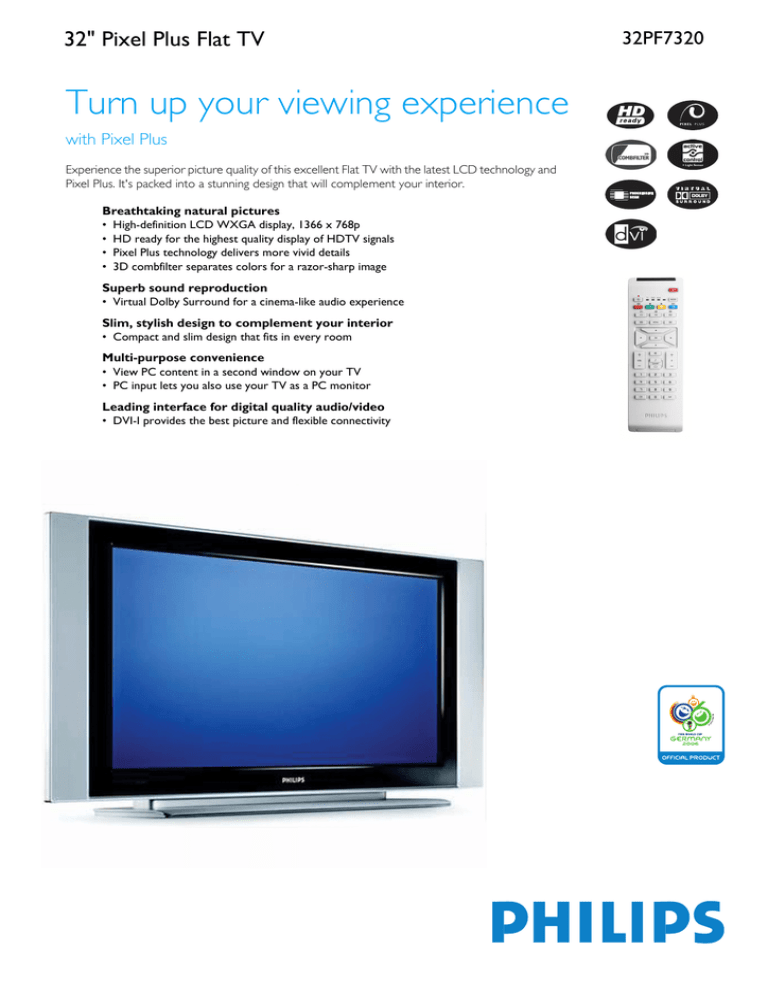

32" Pixel Plus Flat TV
32PF7320/10
32PF7320
continued
32" Pixel Plus Flat TV
Turn up your viewing experience
with Pixel Plus
Experience the superior picture quality of this excellent Flat TV with the latest LCD technology and
Pixel Plus. It's packed into a stunning design that will complement your interior.
Breathtaking natural pictures
High-definition LCD WXGA display, 1366 x 768p
HD ready for the highest quality display of HDTV signals
Pixel Plus technology delivers more vivid details
3D combfilter separates colors for a razor-sharp image
•
•
•
•
Superb sound reproduction
• Virtual Dolby Surround for a cinema-like audio experience
Slim, stylish design to complement your interior
• Compact and slim design that fits in every room
Multi-purpose convenience
• View PC content in a second window on your TV
• PC input lets you also use your TV as a PC monitor
Leading interface for digital quality audio/video
• DVI-I provides the best picture and flexible connectivity
32PF7320
32" Pixel Plus Flat TV
32PF7320/10
Technical specifications
Product highlights
Picture/Display
•
•
•
•
•
•
•
•
•
•
Aspect ratio: 16:9, Widescreen
Brightness: 500 cd/m²
Contrast ratio: 600:1
Diagonal screen size: 32 inch / 80 cm
Display screen type: LCD WXGA Active Matrix
TFT
Picture enhancement: Pixel Plus™, Digital
Crystal Clear, Contrast Plus, Progressive Scan,
3D Combfilter, Active Control + Light sensor, 3/
2 - 2/2 motion pull down, Digital Noise
Reduction, Jagged Line Suppression, Luminance
Transient Improver
Screen enhancements: Anti-Reflection coated
screen
Viewing angle (H / V): 176 / 176 degree
Panel resolution: 1366 x 768p
Response time: 18 ms
Supported Display Resolution
Resolution
• Computer formats
640 x 480
800 x 600
1024 x 768
• Video Formats
640 x 480i
640 x 480p
720 x 576i
720 x 576p
1280 x 720p
1920 x 1080i
Refresh rate
60, 67, 72, 75Hz
56, 60, 72, 75Hz
60, 70, 75Hz
1Fh
2Fh
1Fh
2Fh
3Fh
2Fh
Sound
• Sound Enhancement: Dynamic Bass
Enhancement
• Sound System: Virtual Dolby Surround, Stereo
• Output power (RMS): 2 x 15 W
• Equalizer: 5-bands
Convenience
• Ease of Installation: Auto Programme Naming,
Automatic Channel Install(ACI), Automatic
Tuning System (ATS), Autostore, Fine Tuning,
Plug & Play, Program Name, Sorting
• Ease of Use: Auto Volume Leveller (AVL),
Graphical User Interface, Program List, Smart
Picture Control, Smart Sound Control
• Remote control type: RCFE05SPS00
• Teletext: 10 page Smart Text
• Teletext enhancements: Program information
Line
• Picture in Picture: Picture in graphics, Twin page
text
• Remote Control: Amp, DVD, TV, Multifunctional
• Screen Format Adjustments: 4:3, Movie expand
14:9, Movie expand 16:9, Subtitle Zoom, Super
Zoom, Widescreen
• Clock: Sleep Timer
• VESA Mount: 200 x 100 mm
Tuner/Reception/Transmission
•
•
•
•
•
•
Tuner bands: Hyperband, S-Channel, UHF, VHF
TV system: PAL, SECAM
Video Playback: NTSC, PAL, SECAM
Aerial Input: 75 Ohm coaxial (IEC75)
Tuner Display: PLL
Number of Preset Channels: 100
Connectivity
•
•
•
•
Ext 1 Scart: Audio L/R, CVBS In/Out, RGB
Ext 2 Scart: Audio L/R, CVBS In/Out, S-video in
Other connections: Antenna IEC75
Front / Side connections: CVBS in, Headphone
out, S-video in, Audio left/right in
• AV 3: DVI with HDCP, Audio L/R In
Power
• Power Consumption: 120 W Normal
Operation W
• Standby power consumption: 1 W <
Date of issue 2005-05-31
Version: 5.0
12 NC: 8670 000 21913
EAN: 87 10895 89259 9
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2005 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
LCD WXGA display, 1366 x 768p
This WXGA display with state-of-the-art LCD screen
technology gives you widescreen HD resolution of 1366
x 768p pixels. It produces brilliant flicker-free
progressive scan pictures with optimum brightness and
superb colors. This vibrant and sharp image will provide
you with an enhanced viewing experience.
HD Ready
Enjoy the exceptional picture quality of a true High
Definition TV signal and be fully prepared for HD
sources like HDTV broadcast, Blu-ray DVD or HDVD.
HD ready is a protected label that offers picture quality
beyond that of progressive scan. It conforms to strict
standards laid out by EICTA to offer a HD screen that
displays the benefits of resolution and picture quality of
a High Definition TV signal. It has a universal connection
for both analog YPbPr and uncompressed Digital
connection of DVI or HDMI, supporting HDCP. It can
display 720p, and 1080i signals at 50 and 60Hz.
Pixel Plus
This set uses the power of the Pixel Plus processor to
increase the number of lines and the number of pixels.
The result is razor sharp pictures with incredible detail
and dept, every time from any source.
3D Combfilter
The 3D comb filter separates brightness and color
signals better in 3D domain to eliminate cross-color,
cross-luminance and dot-crawl distortion - all of which
detract from your viewing pleasure. The 3D digital
comb filter performs field-by-field comparisons of the
television image to accurately separate the color from
the black-and-white information and remove both
horizontally and vertically hanging dots, as well as dot
crawl. The result is a razor sharp image.
Virtual Dolby Surround
Incredible Surround is an audio technology from Philips
that dramatically magnifies the sound field to immerse
you in the audio. Using state-of-the-art electronic phase
shifting, Incredible Surround mixes sounds from left and
right in such a way that it expands the virtual distance
between the two speakers. This wider spread greatly
enhances the stereo effect and creates a more natural
sound dimension. Incredible Surround means you
experience total surround with greater depth and width
of sound without the use of additional speakers.
32" Pixel Plus Flat TV
32PF7320/10
Technical specifications (continued)
• Ambient temperature: +5 -/+ 40 C
Dimensions
• Product weight: 18.2 kg
• Weight incl. Packaging: 22 kg
• Dimensions (with base) (W x H x D):
924 x 550 x 222 mm
• Color cabinet: Silver Frost
• Set dimensions (W x H x D):
924 x 511 x 118 mm
• Box dimensions (W x H x D):
1000 x 690 x 240 mm
Accessories
• Included Accessories: Power cord, Quick-StartGuide, Registration card, Remote Control, User
Manual, DVI-VGA adapter, Batteries for remote
control, VGA to YPbPr-Cinch cable, Table top
stand
Loudspeakers
• Built-in speakers: 2
Date of issue 2005-05-31
Version: 5.0
12 NC: 8670 000 21913
EAN: 87 10895 89259 9
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2005 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
