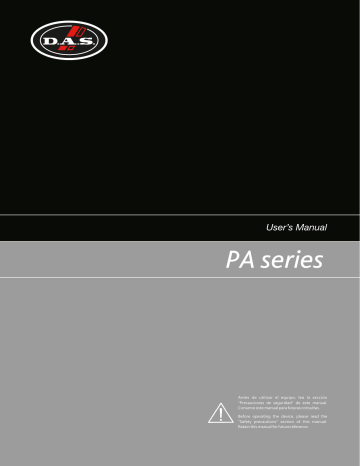

User’s Manual

PA series

Antes de utilizar el equipo, lea la sección

“Precauciones de seguridad” de este manual.

Conserve este manual para futuras consultas.

Before operating the device, please read the

“Safety precautions” section of this manual.

Retain this manual for future reference.

CONTENTS

SAFETY PRECAUTIONS

WARRANTY

DECLARATION OF CONFORMITY

INTRODUCTION

FRONT PANEL DESCRIPTION

Power switch

Power LED

Level controls

Clip LED

Protection LED

Signal LED

Cooling air grilles

BACK PANEL DESCRIPTION

Speaker outputs

Inputs

Mode switch

Sensitivity mode

Circuit breaker

Power outlet

Cooling air outlet grilles

INSTALLATION

Racking

Input connection

Speaker connection

Mains connection

ON / OFF

Clip LED

Level controls

CONNECTIONS ACCORDING TO OPERATION MODE

SPECIFICATIONS

6

7

8

9

4

5

2

3

5

Manual de Usuario de Amplificadores

/ PA series / User’s Amplifier Manual

PA series

Amplificadores de Potencia / Power Amplifiers

Conserve y lea todas estas instrucciones.

Siga todas las advertencias.

El signo de exclamación dentro de un triángulo indica la existencia de componentes internos cuyo reemplazo puede afectar a la seguridad.

Aparato de Clase I.

El signo del rayo con la punta de flecha, alerta contra la presencia de voltajes peligrosos no aislados. Para reducir el riesgo de choque eléctrico, no retire la cubierta.

Los signos de rayo cerca de los terminales de salida del amplificador alertan del riesgo de choque eléctrico en condiciones normales de uso (terminales peligrosos al tacto). No toque dichos terminales mientras el amplificador esté encendido.

El cableado exterior conectado a estos terminales requiere de su instalación por una persona instruida o el uso de cables flexibles ya preparados.

Este símbolo indica que el presente producto no puede ser tratado como residuo doméstico normal, sino que debe entregarse en el correspondiente punto de recogida de equipos eléctricos y electrónicos.

La posición de encendido está indicada en el interruptor mediante los correspondientes símbolos normalizados (IEC

60417-1:1998 y IEC 60417-2:1998) y dos LEDs verdes encendidos cerca del interruptor.

Si el aparato es conectado permanentemente, la instalación eléctrica del edificio debe incorporar un interruptor multipolar con separación de contacto de al menos 3mm en cada polo.

No exponga este equipo a la lluvia o humedad. No use este aparato cerca del agua (piscinas y fuentes, por ejemplo). No exponga el equipo a salpicaduras ni coloque sobre él objetos que contengan líquidos, tales como vasos y botellas. Equipo IP-

20.

Limpie con un paño seco. No use limpiadores con disolventes.

No instale el aparato cerca de ninguna fuente de calor como radiadores, estufas u otros aparatos que produzcan calor. Debe instalarse siempre sin bloquear la libre circulación de aire a través de sus rejillas de ventilación. Tenga en cuenta que el aire circula de la parte posterior a la frontal.

Equipo diseñado para funcionar entre 15ºC y 35ºC con una humedad relativa máxima del 75%.

Desconecte este aparato durante tormentas eléctricas, terremotos o cuando no se vaya a emplear durante largos periodos.

Tenga en cuenta que la tensión nominal de alimentación es el valor indicado en la etiqueta, con un rango ±10% de ese valor

(según IEC 60065:2001).

Si el cable o enchufe de alimentación está dañado, debe ser sustituido por un cable o conjunto especial a suministrar por el fabricante o por su servicio postventa.

No existen partes ajustables por el usuario en el interior de este equipo. Cualquier operación de mantenimiento o reparación debe ser realizada por personal cualificado. Es necesario el servicio técnico cuando el aparato se haya dañado de alguna forma, tal como que haya caído líquido o algún objeto en el interior del aparato, haya sido expuesto a lluvia o humedad, no funcione correctamente o haya recibido un golpe.

Manual de Usuario de Amplificadores

/ PA series / User’s Amplifier Manual

2

Precauciones de Seguridad

Safety Precautions

Keep these instructions.

Heed all warnings. Follow all instructions.

The exclamation point inside an equilateral triangle indicates the existence of internal components whose substitution may affect safety.

Class I device.

The lightning and arrowhead symbol warns about the presence of uninsulated dangerous voltage. To reduce the risk of electric shock, do not remove the cover.

The lightning and arrowhead symbol near the output terminals of the amplifier alert of the risk of electric shock in normal conditions of use (terminal dangerous to the tact). Do not touch these terminals while the amplifier is working.

The connected outer wiring to these terminals requires of its installation by an instructed person and the use of a flexible the cable already prepared.

This symbol on the product indicates that this product should not be treated as household waste. Instead it shall be handed over to the appicable collection point for the recycling of electrical and electronic equipment.

The ON position is indicated in the switch by means of the corresponding standardized symbols (IEC 60417-1:1998 and

IEC 60417-2:1998) and two green LEDs located near the switch.

If the apparatus is connected permanently, the electrical system of the building must incorporate a multipolar switch with a separation of contact of at least 3mm in each pole.

Do not expose this device to rain or moisture. Do not use this apparatus near water (for example, swimming pools and fountains). Do not place any objects containing liquids, such as bottles or glasses, on the top of the unit. Do not splash liquids on the unit. IP-20 equipment.

Clean only with a dry cloth. Do not use any solvent based cleaners.

Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus that produce heat.

The circulation of air on the fan inlet grills must not be blocked.

The air stream circulates from back to front.

Working temperature ranges from 15ºC to 35ºC with a relative humidity of 75%.

Unplug this apparatus during ligtning storms, earthquakes or when unused for long periods of time.

Take into account that the nominal AC voltage is the value shown in the equipment ±10% (according to IEC 60065:2001).

If the cable or the mains plug are damaged they must be replaced. Contact the manufacturer to provide you with the necessary spare parts.

No user serviceable parts inside. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally or has been dropped.

GARANTÍA

Todos nuestros productos están garantizados por un periodo de 24 meses desde la fecha de compra.

Las garantías sólo serán válidas si son por un defecto de fabricación y en ningún caso por un uso incorrecto del producto.

Las reparaciones en garantía pueden ser realizadas, exclusivamente, por el fabricante o el servicio de asistencia técnica autorizado.

Otros cargos como portes y seguros, son a cargo del comprador en todos los casos.

Para solicitar reparación en garantía es imprescindible que el producto no haya sido previamente manipulado e incluir una fotocopia de la factura de compra.

WARRANTY

All D.A.S. products are warrantied against any manufacturing defect for a period of 2 years from date of purchase.

The warranty excludes damage from incorrect use of the product.

All warranty repairs must be exclusively undertaken by the factory or any of its authorised service centers.

To claim a warranty repair, do not open or intend to repair the product.

Return the damaged unit, at shippers risk and freight prepaid, to the nearest service center with a copy of the purchase invoice.

Manual de Usuario de Amplificadores

/ PA series / User’s Amplifier Manual

3

DECLARACIÓN DE CONFORMIDAD

DECLARATION OF CONFORMITY

4

D.A.S. Audio, S.A.

C/ Islas Baleares, 24 - 46988 - Pol. Fuente del Jarro - Valencia. España

(Spain).

Declara que la

serie PA:

Declares that

PA series:

Cumple con los objetivos esenciales de las Directivas:

Abide by essential objectives relating Directives: l

Directiva de Baja Tensión (Low Voltage Directive) l

Directiva de Compatibilidad Electromagnética (EMC) l

Directiva RoHS l

Directiva RAEE (WEEE)

2006/95/CE

2004/108/CE

2011/65/CE

2002/96/CE

Y es conforme a las siguientes Normas Armonizadas Europeas:

In accordance with Harmonized European Norms: l

EN 60065:2002 Audio, video and similar electronic apparatus. Safety requirements.

l

EN 55103-1:2009 Electromagnetic compatibility.

Product family standard for audio, video, audio- for professional use. Part 1:Emission.

visual and entertainment lighting control apparatus l

EN 55103-2:2009 Electromagnetic compatibility.

Product family standard for audio, video, audio- visual and entertainment lighting control apparatus for professional use. Part 2:Immunity.

Manual de Usuario de Amplificadores

/ PA series / User’s Amplifier Manual

INTRODUCTION

General

Thank you for purchasing a D.A.S. power amplifier. It has been built with the most advanced modular technology, and has been designed through the use of computer-aided design for both the electronic and mechanical parts.

Features

!

Efficient linear power supply.

!

Dual balanced XLR inputs.

!

Speakon output connections.

!

Variable speed front to back fan cooling.

!

Front located volume controls.

!

Input sensitivity switchable between 0.775V and 1.4V.

!

Circuit breaker protection.

!

Stereo, parallel and bridge operation modes.

!

Protection against output short-circuits, overloading and overheating.

!

Power, Clip, protection and signal LED indicators.

FRONT PANEL DESCRIPTION

CH 1

-oo 0

FLT

CLIP

SIG

-oo

CH 2

0

POWER

E

POWER

C F

D

Model

B

A

G

Power switch (A) and power LED (B)

Turns the amplifier on/off when the push button is pressed. When turned on, the power

LED lights blue color.

Level controls (C)

Use to set the output level of each channel. The maximum gain is achieved when the

LEVEL rotary potentiometer is turned fully clockwise.

CLIP

FLT

Clip LED (D)

When the output signal distortion of the corresponding channel exceeds 1%, the LED will light, due to the signal level being is too high.

Protection LED (E)

When circuit protection works, the LED will light, especially when the heat-sinks overheat or detect the DC voltage in the amplifier. Also, turn on the amplifier and within three seconds, the amplifier is ready to work, the LED will shine. When startup is complete or the problem is removed, the LED will extinguish, and resume working normally.

SIG

Signal LED (F)

When there is an input signal, the LED will light. If not, please check the gain settings. If necessary, the gain can be increased. Check the input connection and signal audio source. If the Clip LED shines a little or shows no signal, check the output wire whether it is in short-circuit or not.

Cooling air grilles (G)

Fan cooling permits airflow through the most vital parts of the amplifier. Since the airflow finds its way out through these grilles, keep them as clean and dust-free as possible to assure proper cooling.

Manual de Usuario de Amplificadores

/ PA series / User’s Amplifier Manual

5

6

BACK PANEL DESCRIPTION

E

Model

RESET

CH 2

CH 2 CH 2 CH 1 CH 1

CH 1

OUTPUT

LOCK LOCK

230V~50/60Hz 150W

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

ATTENTION

DANGER D’ELECTROCUTION

NE PAS OUVRIR

CH 2 CH 1

BRIDGE

INPUT

CH 1

SENSITIVITY

0.775V

1.4V

BRIDGE

MODE

STEREO

INPUT

CH2

F

A

G D B

C

OUTPUT

LOCK LOCK

CH 2

INPUT C H 1

CH 1

Speaker outputs (A)

Connecting speakers to each output it is done through Speakon-type connectors whose pin assignments are:

Channel 1 (stereo and parallel modes) :

Channel 2 (stereo and parallel modes) :

Channel 1 (bridge mode) : pin +1 = positive / pin -1 = negative pin +1 = positive / pin -1 = negative pin +1 = positive / pin +2 = negative

Inputs (B)

CH1 and CH2 are directly connected to the mixer, the input and output connectors of the respective channel are put together, to provide fixed connection, and no need to consider the power switch setting.

The nominal input impedance of 20kohms and 10kohms balanced mode in non-balanced mode.

The pin assignment is according to the standard AES14-1992 (ANSI S4.48-1992):

Pin 1 (XLR) : GND (Ground)

Pin 2 (XLR) : (+) Non-inverted signal

Pin 3 (XLR) : (-) Inverted signal

BRIDGE

PARALLEL

MODE

STEREO

SENSITIVITY

0.775V

1.4V

Mode switch (C)

STEREO mode makes the two channels work independently, CH1 input signal by CH1 output, CH 2 input by CH2 output.

BRIDGE mode makes CH1 input signals from the BRIDGE output socket, output must use CH1 volume control to adjust the volume.

PARALLEL mode makes CH1 input signal by CH1 and CH2 output socket output.

The input socket of Ch2 has no effect. Channel's volume can be adjusted independently.

Sensitivity mode (D)

This switch allows to set the sensitivity between 0.775V or 1.4V.

RESET

220V~50/60Hz

Circuit breaker (E):

When amplifier is overloaded (caused by the small load impedance of the amplifier or the continuous input signal), the button of the circuit breaker will upspring immediately, and will be cutoff power automatically to protect the amplifier. You must exclude overload condition, and then press the button of the circuit breaker, and the power amplifier will resume to normal operation.

Power outlet (F)

The amplifier is provided with a socket IEC320-C14. When using the amplifier, one should check whether the selected voltage is correct or not. If the voltage is wrong, it could damage the amplifier. Please ensure that the device is connected to the power supply with ground to use.

Cooling air outlet grilles (G)

Fan cooling permits airflow through the most vital parts of the amplifier. Since the airflow finds its way out through these grilles, keep them as clean and dust-free as possible to assure proper cooling.

Manual de Usuario de Amplificadores

/ PA series / User’s Amplifier Manual

INSTALLATION

Racking

All amplifiers are 19-inch rack mount width and are 2U DIN in height.

Four front-panel mounting holes are provided for use with M5 or M6 or 1/4” screws. To avoid bending the chassis in rack mounting applications where the rack will be transported, mount the amplifiers to the back of the rack using the rear mounting holes. Alternatively, place the bottom amplifier against the base of the rack and pile the amplifiers with no clearance in between.

A fan cools the aluminum heat sinks from front to back.

Fan cooling permits airflow through the most vital parts of the amplifier.

When mounting the unit onto a 19-inch rack, a rack cooling system is not required, since the air is exhausted out through the front grille.

However, the rack must not be sealed, and it should at least have a large enough ventilation grille to allow air into the rack.

ON / OFF

The main power switch is a push button that turns the amplifier on/off.

When the amplifier turns on, the power LED and protection LED are illuminated. After a few seconds, when the start is finished the

PROTECTION LED will go out and the amplifier will be ready for use.

To turn the amplifier off, push the button. At that moment the main power supply voltage and the secondary power supply voltage will turn off internally.

Switch your sound system on from back to front. Thus, switch on the amplifiers last on your sound system. Switch sound sources (CDs, turntables) first, then your mixer, then your processors and crossovers and finally the amplifiers. If you have more than one amplifier, switch them on sequentially, one at a time or use a sequencer.

Follow the reverse order when switching off, and switch off the amplifiers before any other element on your sound system.

Clip LED

The clip LED should never be on continuously.

This will distort the signal and may damage the speakers. In fact, severe clipping is an easy way of burning a speaker's voice coil.

The amplifiers feature an automatic limiting system that impedes prolonged saturation, but the dynamic nature of music signals stops it from being a brick wall protection. Thus at most, the clip light could be lit occasionally.

Input connection

A balanced connection is recommended with

XLR connectors, but an unbalanced connection can also be used.

Speaker connection

Connect speakers at one or two output

Speakon connectors. See the rear panel instructions.

Speakon connectors offer quick connection for portable applications. To enable a Speakon connection, plug the male connector into the outlet and rotate it clockwise. It will then lock into place and be ready for use.

Mains connection

Should check whether the selected voltage is correct or not. If the voltage is wrong, it could damage the amplifier.

The230 V AC version has a nominal voltage plus minus 10%, i.e., the amplifier can operate from 207 V to 253 V AC.

Similarly, the 115 V AC version has a nominal voltage plus minus 10%, i.e., the amplifier can operate from 103 V to 127 V AC.

In both cases the operating voltage will be indicated on the back panel.

Level controls

The level rotary potentiometer is used for changing the input gain. Although related to output power, it is not a direct representation of it. Thus, we can have maximum output power with the gain at mid position. Similarly, we may have the gain controls at maximum and not have maximum output if our source signal is not strong enough.

One way to use the volume controls is to set them such that when the mixer's faders are at their maximum level, we are just below clipping level on the amplifier or clipping very occasionally.

Manual de Usuario de Amplificadores

/ PA series / User’s Amplifier Manual

7

CONNECTIONS ACCORDING TO OPERATION MODE

Stereo connection

RESET

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

ATTENTION

DANGER D’ELECTROCUTION

NE PAS OUVRIR

CH 2

CH 2

CH 2 CH 1 CH 1

CH 1

OUTPUT

LOCK LOCK

CH 2 CH 1

BRIDGE

230V~50/60Hz 150W

INPUT

CH 1

SENSITIVITY

0.775V

BRIDGE

1.4V

MODE

STEREO

INPUT

CH2

Horn

:

+ to PIN 1 +

Horn

:

- to PIN 1 -

2-

2+

1-

1+

+

B

+

A

Mono connection

RESET

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

ATTENTION

DANGER D’ELECTROCUTION

NE PAS OUVRIR

CH 2

CH 2

CH 2 CH 1 CH 1

CH 1

OUTPUT

LOCK LOCK

CH 2 CH 1

BRIDGE

230V~50/60Hz 150W

INPUT

CH 1

SENSITIVITY

0.775V

BRIDGE

1.4V

MODE

STEREO

INPUT

CH2

Horn

:

+ to PIN 1 +

Horn

:

- to PIN 1 -

2-

2+

1-

1+

+

+

B

A

Bridge connection

RESET

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

ATTENTION

DANGER D’ELECTROCUTION

NE PAS OUVRIR

CH 2

CH 2

CH 2 CH 1 CH 1

CH 1

OUTPUT

LOCK LOCK

CH 2 CH 1

BRIDGE

230V~50/60Hz 150W

+

A

INPUT

CH 1

SENSITIVITY

0.775V

BRIDGE

1.4V

MODE

STEREO

INPUT

CH2

Horn

:

Horn

:

+ to PIN 1 +

- to PIN 2+

2-

2+

1-

1+

8

Manual de Usuario de Amplificadores

/ PA series / User’s Amplifier Manual

SPECIFICATIONS

Rated power /model

1kHz(HIA)with0.5%THD

PA-500 PA-900 PA-1500 PA-2700

4Ω stereo(per channel)

8Ω stereo(per channel)

2

50W

150W

500W

450W

350W

900W

750W

500W

1500W

1350W

1000W

2700W

8Ω bridge mono

Performance

Frequency Response(at 1 Watt) 20Hz-20KHz,+0-1dB

Total Harmonic Distortion(THD)

Intermodulation Distortion60Hz

and 7KHz at 4:1from full rated output to -30dB

Slew Rate

<0.5%,20Hz-20kHz

=/<0.35%

>10V/us

Voltage Gain

Damping Factor(8ohms)10Hz-

400Hz

Signal-to-Noise Ratio (below rated power,20Hz to 20kHz.

A-weighted)

27dB 31dB 33dB

>200

>100dB

36dB

Crosstalk(below rated power)

At 1kHz

At 20kHz

Input Sensitivity for full

rated power at 8Ω

Input impedance(nominal)

Balanced

Unbalanced

Construction

Protection

-75dB

-58dB

0.775V or 1.4V

20K ohms

10k ohms

Protection against short circuits, no-load, on/off muting, RF interference.

Ventilation

Cooling

Power cord specification

Flow-through ventilation from front to back

Internal heat sinks with forced air. Fan cooled, speed regulated, thermal protection

Plug

:10A,250V Wire: 3x1.0mm

2

Chassis size( unit mm)

Net weight

10.1kg

482x227x88

12.7kg

13.5kg

482x294x88

19.5kg

Manual de Usuario de Amplificadores

/ PA series / User’s Amplifier Manual

9

www.dasaudio.com

D.A.S. AUDIO, S.A.

C/. Islas Baleares, 24

46988 Fuente del Jarro

Valencia, SPAIN

Tel. +34 96 134 0860

D.A.S. AUDIO OF AMERICA, INC.

6900 NW 52th Street

Miami, FL. 33166 - U.S.A.

TOLL FREE: 1 888 DAS 4 USA

D.A.S. AUDIO ASIA PTE. LTD.

3 Temasek Avenue, Centennial Tower #34-36

Singapore 039190

Tel. +65 6549 7760

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
