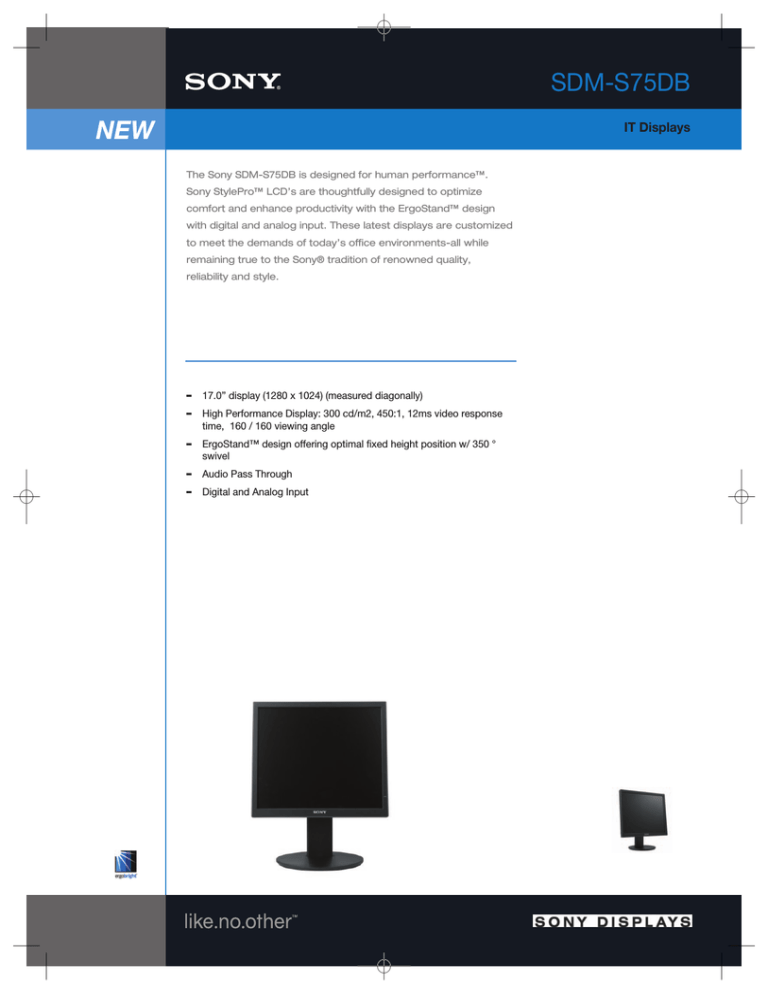

The Sony SDM-S75DB is designed for human performance™.
Sony StylePro™ LCD’s are thoughtfully designed to optimize comfort and enhance productivity with the ErgoStand™ design with digital and analog input. These latest displays are customized to meet the demands of today’s office environments-all while remaining true to the Sony® tradition of renowned quality, reliability and style.
SDM-S75DB
IT Displays
O
O
O
O
O
17.0” display (1280 x 1024) (measured diagonally)
High Performance Display: 300 cd/m2, 450:1, 12ms video response time, 160 / 160 viewing angle
ErgoStand™ design offering optimal fixed height position w/ 350 ° swivel
Audio Pass Through
Digital and Analog Input
SDM-S75DB
IT Displays
Features and Benefits
O
O
O
O
O
O
O
O
Pass-through audio out - Convenient audio connection for headphones that switches with PC input
5 Gamma presets - A greater ability to set proper tonal curve to match the application
Auto-input sensing - Easy set up: connect and go without manually switching inputs
VESA Wall Mount - Centered to allow for pivot / rotation
Tilt and Swivel - All models with a base-stand include a tilt and wide
350° swivel
Streamlined profile - Space-efficient design keeps workspace looking organized and clutter-free
ErgoBright™ technology - Optimizes brightness at the push of a button, reducing eyestrain
Versatile and easy to use - Sony’s automatic image adjustment feature optimizes your display’s performance instantly. Macintosh® and
PC compatible
Specifications
PART NUMBER
SCREEN SIZE
NATIVE RESOLUTION
SCREEN TREATMENT
PIXEL PITCH
HORIZONTAL SCAN RANGE
VERTICAL REFRESH RANGE
RESPONSE TIME
LUMINANCE
CONTRAST RATIO
COLORS
VIEWING ANGLE
INPUT(S)
WALL/ARM MOUNT
CABLE MANAGEMENT SYSTEM
ON SCREEN CONTROLS
ERGOSTAND™ DESIGN
KENSINGTON LOCK
FORMAT
INPUT POWER
POWER CONSUMPTION
POWER MANAGEMENT
EMISSIONS/ERGONOMICS
PLUG & PLAY
LIMITED WARRANTY
EXTENDED WARRANTY
OPERATING SYSTEM COMPATIBILITY
WEIGHT
DIMENSIONS (WXHXD)
PACKAGE CONTENTS
WARRANTY
SDM-S75DB
17.0"
1280 x 1024
Anti-Glare / Protective Coating
0.264 mm
28k-80kHz
48-75Hz
12ms
300cd/m2
450:1
16.2 million
160°/160°
Video Input Connector(s): Digital (DVI-D), Analog
(HD15)
100mm
Yes
Power, Menu, Contrast, Brightness, Sharpness, Eco
Mode, Color, Temperature, Backlight, Auto Adjust, H/V
Adjust, Phase, Pitch, Reset, Gamma, Menu Lock, OSD
Position, Multi Lang. (Eng, Fre, Spa, Ita, Ger, Jap, Dut,
Swe, Rus, Chi)
Height: Ergonomic Fixed Height; Tilt: Yes, -5 to 20;
Swivel: Swivel Range 350°
Yes
Switched Audio pass-thru to HPJ
Internal Power Supply 100-240Vac. 50/60Hz
45w max, 33w typ, 1w Active off. 1w Switch off
International Energy Star
TCO 99
Plug and Play: DDC/Ci
3 years (Parts, Labor, Backlight)
4th and 5th year available
Designed For: PC2001, Windows® 98, 2000, NT, XP and Macintosh®
14.1 lb; 9.5 lbs w/o base stand, 20 lbs packaged
14.5" x 16.7" x 8.9"; 14.5" x 12.4" x 2.6" w/o base stand
CD-ROM User Manual
AC Power Cord
DVI-D Digital Cable
HD15 Video Signal Cable
Audio cable (stereo mini jack)
Quick Setup Guide
Windows® & Macintosh® Utility Files
Warranty Card
3 years (Parts, Labor, Backlight)
4th and 5th year available
©2005 Sony Electronics Inc.
Sony and ErgoStand are trademarks of Sony. All other trademarks are property of their respective owners. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Macintosh is a registered trademarks of Apple Computer, Inc.
Features and specifications are subject to change without notice. Non-metric weights and measures are approximate.
®
Sony Electronics, Inc. • 16450 West Bernardo Drive • San Diego, CA 92127 • 1-866-357-7669 • www.sony.com/businesssolutions Last Updated 2005-05-20
