Philips KEY010 Datasheet

Philips KEY010 Datasheet

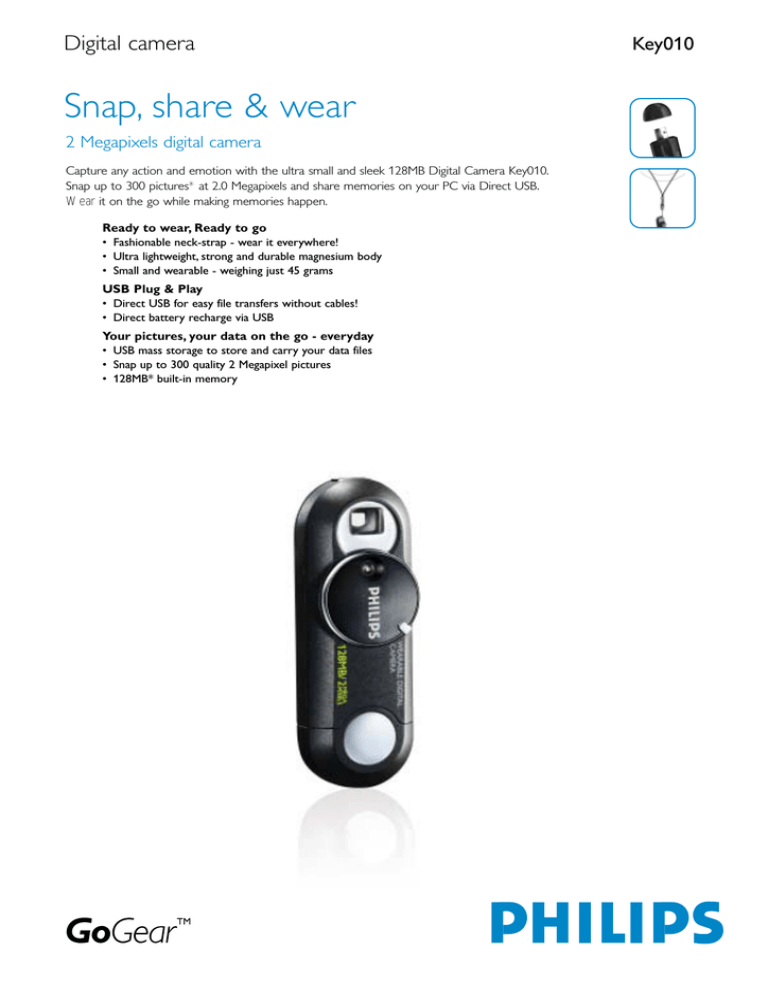

Digital camera
Snap, share & wear
2 Megapixels digital camera
Capture any action and emotion with the ultra small and sleek 128MB Digital Camera Key010.
Snap up to 300 pictures* at 2.0 Megapixels and share memories on your PC via Direct USB.
Wear it on the go while making memories happen.
Ready to wear, Ready to go
• Fashionable neck-strap - wear it everywhere!
• Ultra lightweight, strong and durable magnesium body
• Small and wearable - weighing just 45 grams
USB Plug & Play
• Direct USB for easy file transfers without cables!
• Direct battery recharge via USB
Your pictures, your data on the go - everyday
• USB mass storage to store and carry your data files
• Snap up to 300 quality 2 Megapixel pictures
• 128MB* built-in memory
Digital camera
Technical specifications
Product highlights
Still Picture Capturing
Dimensions (/00 only)
• Casing material: Magnesium
• Master carton dimensions (WxHxD):
183 x 164 x 172 mm
• Master carton quantity: 3
• Packaging dimensions (WxHxD):
150 x 150 x 46 mm
• Packaging type: D-box
• Product dimension (WxHxD):
30 x 90 x 20 mm
• Product weight: 45 g
Aperture: F3.0
Exposure range: EV 7-14
Focus distance: 1.3 m to infinite
Image sensor size: 1/2 inch
Image sensor type: CMOS
Lens: fixed focus length
Picture file format: JPEG
Picture resolution: 2M
Sensitivity: ISO equivalent 50-200,
• Viewfinder: 2 element optical viewfinder
• White balance: Automatic
Storage Media
Built-in memory capacity: 128MB*
Built-in memory type: NAND Flash
Mass storage class compliant
Picture memory capacity:
up to 300 pictures*
Direct USB
Cameras with direct USB can be plugged directly into
the USB port of your PC without the need for any
cable. Your computer will automatically recognize the
camera as a removable USB mass storage device
(Windows 98 needs drivers).
USB direct battery recharge
Direct battery recharge via USB offers ultra
convenience when recharging your camera. No need
to bother with separate chargers or cables, simply plug
n' recharge your camera directly on your PC.
• Battery capacity: 180 mAh
• Battery type: LI-Polymer
• Charging time: approximately 3 hours
USB mass storage class
USB mass storage devices offer a convenient way
to save, backup and move your files around. The
camera connects to your computer using a USB
connection and does not require any special software
to be installed (Windows 98 needs drivers). The
camera automatically shows up as a removable drive
in Windows Explorer or Mac folders allowing you to
simply drag and drop files to and from the camera.
• USB: 1.1
CD-ROM (AY4490)
Neck strap (AY3296)
USB extension cable (AY3913)
Printed User Guide
Quick start guide
* Available storage capacity will be less. Capacity
based on an average picture file size of 430 KB per
** Battery life varies with use
• Photo software:
Photo impression, Collage creator
Green Specifications
• Lead-free soldered product
System Requirements
CD-ROM drive
Hard disk space: 50MB
Mac OS: 9-X and higher
PC OS:Win 98 SE, 2000, ME, XP
Processor: Pentium MMX 166 MHz or higher
RAM memory: 128MB RAM
Video card
EAN 87 10895 80909 2 (/00)
87 10895 84082 8 (/05)
Printed in Hong Kong 2004-06-04
Specifications are subject to change without notice
2004 © Royal Philips Electronics - All rights reserved
