Philips SBCSC364 Datasheet

Philips SBCSC364 Datasheet

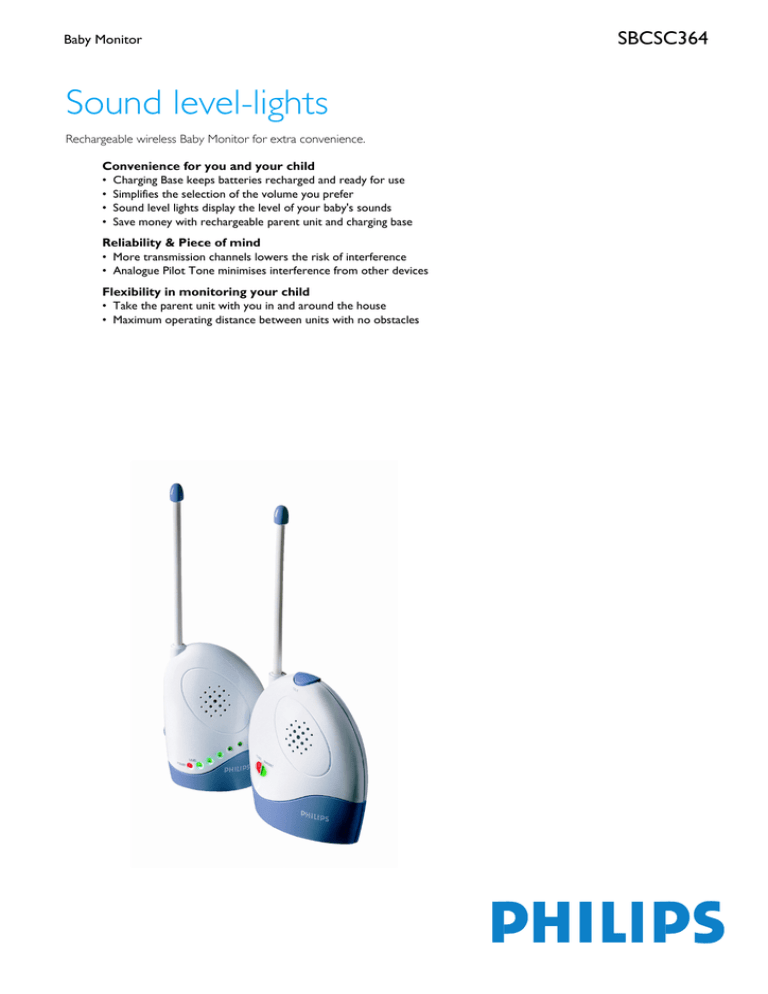

Baby Monitor
Sound level-lights
Rechargeable wireless Baby Monitor for extra convenience.
Convenience for you and your child
Charging Base keeps batteries recharged and ready for use
Simplifies the selection of the volume you prefer
Sound level lights display the level of your baby's sounds
Save money with rechargeable parent unit and charging base
Reliability & Piece of mind
• More transmission channels lowers the risk of interference
• Analogue Pilot Tone minimises interference from other devices
Flexibility in monitoring your child
• Take the parent unit with you in and around the house
• Maximum operating distance between units with no obstacles
Baby Monitor
Technical specifications
Product highlights
Tuner / Reception / Transmission
Frequency band: 40.675 - 40.690 MHz
Number of pilot tones: 4
Pilot tone: Analogue
Maximum range: 150 m
Number of channels: 2
Battery charging indication
Battery low indication
Power on indication
Sound level lights
Volume control
AC/DC adaptor: 2x 9V DC 200mA
Batteries: 4 x AA baby unit not incl.
Battery pack: NiMH pack parent unit incl.
Belt clip: Belt clip on parent unit
Charger: Charging base for parent unit
User manual
Battery voltage: 4.8 V
Charging time: 14 hours hr
Operating time on battery: 12 hr
Sound level lights
Sometimes its a great help to 'see' when your baby
makes a sound. This row of lights provide you with a
clear visual indication.
Rechargeable parent unit
Putting the parent unit on the charging base will
automatically start recharging of the batteries, so it's
always ready for portable use.
Range in open air
In the open air with no obstacles, the safe distance
between the baby unit and parent unit is greater than
indoors, so you can take the parent unit with you into
the garden or to the neighbour's house without losing
Charging base
Thanks to the built in battery charger in the base, you
get extra freedom (when fully charged) to take the
parent unit with you around the home and stay in touch
with your baby. It' s also a convenient place to store the
parent unit, and ensure it's always ready for use.
Number of channels
A choice of channels significantly reduces the risk of
interference or sounds from other baby monitors in the
Volume control
A handy rotary control sets the volume to the ideal level
to suit your preference.
Use in & around the house
Rest assured that as you take the parent unit with you
as you move in and around your house, the parent unit
will stay in touch with the baby unit. It keeps you
reassuringly informed and able to respond quickly when
baby calls.
Analogue Pilot Tone
A special tone that is transmitted along with the audio
signal minimises the chance of interference from other
wireless appliances.
Date of issue 2005-09-23
Version: 4.0
12 NC: 9082 100 02998
EAN: 87 10101 67328 8
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2005 Koninklijke Philips Electronics N.V.
All Rights reserved.
