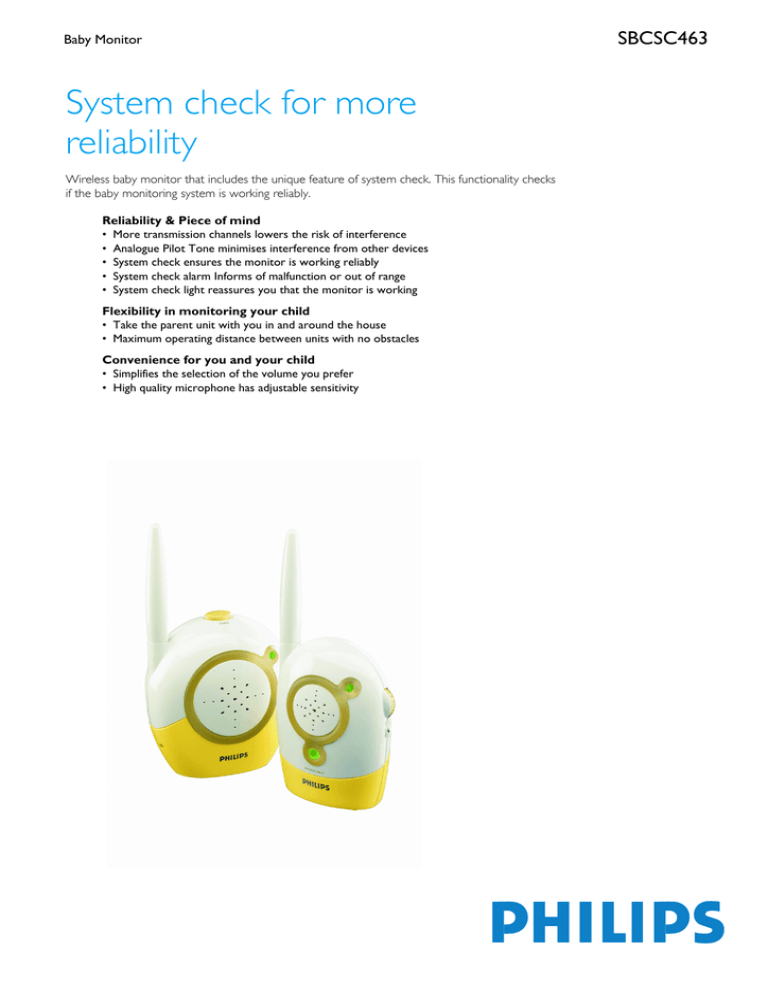

Philips SBCSC463 Datasheet

Philips SBCSC463 Datasheet
Baby Monitor
System check for more
Wireless baby monitor that includes the unique feature of system check. This functionality checks
if the baby monitoring system is working reliably.
Reliability & Piece of mind
More transmission channels lowers the risk of interference
Analogue Pilot Tone minimises interference from other devices
System check ensures the monitor is working reliably
System check alarm Informs of malfunction or out of range
System check light reassures you that the monitor is working
Flexibility in monitoring your child
• Take the parent unit with you in and around the house
• Maximum operating distance between units with no obstacles
Convenience for you and your child
• Simplifies the selection of the volume you prefer
• High quality microphone has adjustable sensitivity
Baby Monitor
Technical specifications
Product highlights
Tuner / Reception / Transmission
Frequency band: 40.675 - 40.690 MHz
Number of pilot tones: 4
Pilot tone: Analogue
Maximum range: 250 m
Number of channels: 2
Auto out of range warning
Battery low indication
Power on indication
Volume control
System check
When interference is detected in the communication
link between the baby unit and parent unit or if the
signal is too weak, the visual and audible alarms will be
System check alarm
The parent unit gives an audible alarm when it is
outside the communication range of the baby unit or
when the communication link is not reliable.
AC/DC adaptor: 2x 9V DC 200mA
Batteries: 4 x AA baby unit not incl.
Belt clip: Belt clip on parent unit
User manual
• Battery voltage: 4.8 V
• Operating time on battery: 12 hr
System check light
Green light on the parent unit lights when the
connection between the baby and the parent unit is
reliable and flashes when the parent unit is outside the
range of the baby unit or when the communication link
is not reliable.
Range in open air
In the open air with no obstacles, the safe distance
between the baby unit and parent unit is greater than
indoors, so you can take the parent unit with you into
the garden or to the neighbour's house without losing
Analogue Pilot Tone
A special tone that is transmitted along with the audio
signal minimises the chance of interference from other
wireless appliances.
Number of channels
A choice of channels significantly reduces the risk of
interference or sounds from other baby monitors in the
Adjust microphone sensitivity
Possibility to set the sensitivity of the microphone so you
only hear the sounds you want to hear.
Use in & around the house
Rest assured that as you take the parent unit with you
as you move in and around your house, the parent unit
will stay in touch with the baby unit. It keeps you
reassuringly informed and able to respond quickly when
baby calls.
Volume control
A handy rotary control sets the volume to the ideal level
to suit your preference.
Date of issue 2005-09-23
Version: 2.0
12 NC: 9082 100 00092
EAN: 87 10101 69602 7
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2005 Koninklijke Philips Electronics N.V.
All Rights reserved.
