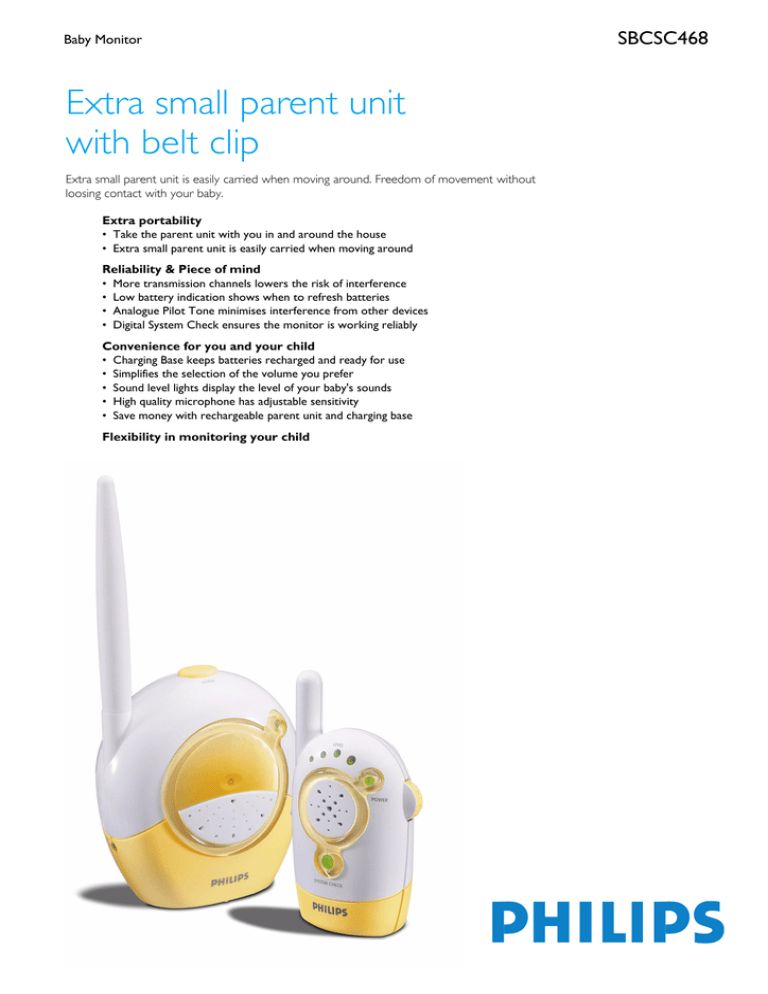

Philips SBCSC468 Datasheet

Philips SBCSC468 Datasheet
Baby Monitor
Extra small parent unit
with belt clip
Extra small parent unit is easily carried when moving around. Freedom of movement without
loosing contact with your baby.
Extra portability
• Take the parent unit with you in and around the house
• Extra small parent unit is easily carried when moving around
Reliability & Piece of mind
• More transmission channels lowers the risk of interference
• Low battery indication shows when to refresh batteries
• Analogue Pilot Tone minimises interference from other devices
• Digital System Check ensures the monitor is working reliably
Convenience for you and your child
• Charging Base keeps batteries recharged and ready for use
• Simplifies the selection of the volume you prefer
• Sound level lights display the level of your baby's sounds
• High quality microphone has adjustable sensitivity
• Save money with rechargeable parent unit and charging base
Flexibility in monitoring your child
Baby Monitor
Technical specifications
Product highlights
Tuner / Reception / Transmission
Frequency band: 40.675 - 40.690 MHz
Number of pilot tones: 16
Pilot tone: Digital
Maximum range: 200 m
Number of channels: 4
• Auto out of range warning
• Battery charging indication
• Battery low indication
• Power on indication
• Volume control
AC/DC adaptor: 2x 9V DC 200mA
Batteries: 4 x AA baby unit not incl.
Belt clip: Belt clip on parent unit
User manual
• Battery voltage: 4.8 V
• Operating time on battery: 12 hr
Extra small parent unit
The parent unit is very small, so that you can put it
easily in your pocket or clip it to your belt. Easy to take
with you when you move around the house.
Digital System check
A visible and audible warning is activated if the
communication link between the baby unit and parent
unit is unreliable.
Rechargeable parent unit
Putting the parent unit on the charging base will
automatically start recharging of the batteries, so it's
always ready for portable use.
Number of channels
A choice of channels significantly reduces the risk of
interference or sounds from other baby monitors in the
Sound level lights
Sometimes its a great help to 'see' when your baby
makes a sound. This row of lights provide you with a
clear visual indication.
Range in open air
In the open air with no obstacles, the safe distance
between the baby unit and parent unit is greater than
indoors, so you can take the parent unit with you into
the garden or to the neighbour's house without losing
Night light
A soft, glowing light is reassuring and provides a focal
point in the dark.
Digital Pilot Tone
A special tone that is transmitted along with the audio
signal minimises the chance of interference from other
wireless appliances.
Adjust microphone sensitivity
Possibility to set the sensitivity of the microphone so you
only hear the sounds you want to hear.
Use in & around the house
Rest assured that as you take the parent unit with you
as you move in and around your house, the parent unit
will stay in touch with the baby unit. It keeps you
reassuringly informed and able to respond quickly when
baby calls.
Charging base
Thanks to the built in battery charger in the base, you
get extra freedom (when fully charged) to take the
parent unit with you around the home and stay in touch
with your baby. It' s also a convenient place to store the
parent unit, and ensure it's always ready for use.
Low battery indication
To know in time when the batteries need to be
recharged or replaced.
Volume control
A handy rotary control sets the volume to the ideal level
to suit your preference.
Date of issue 2005-09-23
Version: 7.0
12 NC: 9082 100 02571
EAN: 87 10895 80504 9
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2005 Koninklijke Philips Electronics N.V.
All Rights reserved.
