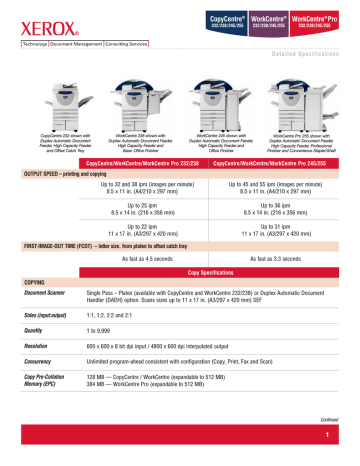

Detailed Specifications
CopyCentre 232 shown with
Duplex Automatic Document
Feeder, High Capacity Feeder
and Offset Catch Tray
WorkCentre 238 shown with
Duplex Automatic Document Feeder,
High Capacity Feeder and
Basic Office Finisher
WorkCentre 245 shown with
Duplex Automatic Document Feeder,
High Capacity Feeder and
Office Finisher
CopyCentre/WorkCentre/WorkCentre Pro 232/238
WorkCentre Pro 255 shown with
Duplex Automatic Document Feeder,
High Capacity Feeder, Professional
Finisher and Convenience Stapler/Shelf
CopyCentre/WorkCentre/WorkCentre Pro 245/255
OUTPUT SPEED – printing and copying
Up to 32 and 38 ipm (images per minute)
8.5 x 11 in. (A4/210 x 297 mm)
Up to 45 and 55 ipm (images per minute)
8.5 x 11 in. (A4/210 x 297 mm)
Up to 25 ipm
8.5 x 14 in. (216 x 356 mm)
Up to 36 ipm
8.5 x 14 in. (216 x 356 mm)
Up to 22 ipm
11 x 17 in. (A3/297 x 420 mm)
Up to 31 ipm
11 x 17 in. (A3/297 x 420 mm)
FIRST-IMAGE-OUT TIME (FCOT) – letter size, from platen to offset catch tray
As fast as 4.5 seconds
As fast as 3.3 seconds
Copy
CopySpecifications
Specifications
COPYING
Document Scanner
Single Pass – Platen (available with CopyCentre and WorkCentre 232/238) or Duplex Automatic Document
Handler (DADH) option. Scans sizes up to 11 x 17 in. (A3/297 x 420 mm) SEF
Sides (input:output)
1:1, 1:2, 2:2 and 2:1
Quantity
1 to 9,999
Resolution
600 x 600 x 8 bit dpi input / 4800 x 600 dpi interpolated output
Concurrency
Unlimited program-ahead consistent with configuration (Copy, Print, Fax and Scan)
Copy Pre-Collation
Memory (EPC)
128 MB — CopyCentre / WorkCentre (expandable to 512 MB)
384 MB — WorkCentre Pro (expandable to 512 MB)
Continued
1
CopyCentre® WorkCentre® WorkCentre® Pro
232/238/245/255
232/238/245/255
232/238/245/255
Copy Specifications
COPYING (Continued)
Basic Copy
Features/Options
Collation
Hole Punching
Stapling
Booklet Creation (Folding — V-fold only and Stapling)
Automatic 2-Sided/Duplex
Auto Reduction and Enlargement to fit selected paper size
Auto Paper Select
Auto Tray Switching
Imaging Copy
Features/Options
Image Quality
• Original Type Selections: Normal, Text, Halftone, Photo
• Output Quality Selections: Lighter/Darker, Background Suppression, Contrast, Sharpness or Screening
Book Copying/Bound Copying
Edge Erase (with Print to Edge option)
Mixed Size Original
Image Shift (with Auto Center option)
Output Copy
Features/Options
Transparencies (including dividers – blank or printed)
Booklet Creation (Folding — V-fold only and Stapling)
Multi-up (up to six columns by six rows)
Invert Image (negative or mirror image)
Covers (Front only, Front and Back, Back only: Blank or Printed)
Annotation and Bates Stamping
Build Job (Enables page-level programming to include tab copying and also lets you proof each section or delete
last section as the job is built)
Inserts and Tab copying
Sample Set and Job Storage (Store and Recall job programming)
Heavy weight paper (not rough stock)
Other Copy/Device
Features
Job Interrupt (Interrupt the current job)
Help (Intuitive text and graphic descriptions)
Internal Auditron (Copy)
Languages (Select up to 20 languages for User Interface – US English, International English, International
French, Italian, German, International Spanish, Dutch, Portuguese, Brazilian [Latin Portuguese], Swedish,
Norwegian, Danish, Finnish, Turkish, Greek, Russian, Czech, Polish, Hungarian or Romanian)
Reduction/Enlargement
Variable Zoom from 25% - 200% in 1% increments
Six User-Programmable percentages (25%, 64%, 78%, 129%, 154% and 200%)
Foreign Device Interface
(FDI) (Optional)
Interface to third-party access control devices, coin machines, card readers
Supports a variety of vending stations available through the Xerox Custom Application Service
USB Port
PC interface for upload/download of internal auditron data and Xerox Copier Assistant
Customer device administration/software upgrade
Continued
2
CopyCentre® WorkCentre® WorkCentre® Pro
232/238/245/255
232/238/245/255
232/238/245/255
Copy Specifications
COPYING (Continued)
Accessibility Option
Xerox Copier Assistant (XCA) Software provides a PC-based alternative to the user interface touchscreen.
Used in conjunction with a customer-supplied PC attached via the USB port, this software provides
text-to-speech, screen magnification and easy PC keyboard access to basic and advanced copy features.
PAPER HANDLING – Duplex Automatic Document Feeder (DADF) (optional)
Capacity*
75 sheets
Speed
232/238: Up to 35 ipm (images per minute), 8.5 x 11 in. (A4/210 x 297 mm) long edge feed (LEF)
245/255: Up to 55 ipm (images per minute), 8.5 x 11 in. (A4/210 x 297 mm) long edge feed (LEF)
Paper Sizes Sensed
Statement – 5.5 x 8.5 in. (A5/148 x 210 mm long edge feed (LEF) or short edge feed (SEF)
Letter – 8.5 x 11 in. (A4/210 x 297 mm) LEF or SEF
Legal – 8.5 x 14 in. (216 x 356 mm) SEF
Ledger – 11 x 17 in. (A3/297 x 420 mm) SEF
Weights
13 lb to 32 lb bond (50 to 120 gsm)
PAPER HANDLING – Two Front Loading Paper Trays
Capacity*
550 sheets each
Sizes
User adjustable from 5.5 x 8.5 in. (A5/148 x 210 mm) to 11 x 17 in. (A3/297 x 420 mm)
Weights
16 lb to 53 lb bond/110 lb index (60 to 200 gsm)
Types
Letterhead
Preprinted forms
Plain Paper
Drilled/Hole-punched
Heavyweight
Recycled
Tab Stock
Bond
Envelopes
Custom Settings (up to 7)
Options
Envelope Tray Kit (for occasional use with C10 envelopes)
*Paper capacities are based on 20 lb bond (75 gsm, N. America / 80 gsm, Europe) stock; capacities will vary with different weight stocks.
3
CopyCentre® WorkCentre® WorkCentre® Pro
232/238/245/255
232/238/245/255
232/238/245/255
Copy Specifications
PAPER HANDLING – Bypass Tray
Capacity*
100 sheets
Sizes
User Adjustable from 4.13 x 5.83 in. (105 x 148 mm) to 11 x 17 in. (A3/297 x 420 mm)
Weights
16 lb to 57 lb bond/80 lb cover (60 to 216 gsm)
Types
Letterhead
Preprinted forms
Plain Paper
Drilled/Hole-punched
Heavyweight
Recycled
Label Stock
Transparencies
Tab Stock
Bond
Envelopes
Custom Settings (up to 7)
PAPER HANDLING – High Capacity Feeder (HCF) (optional)
Capacity*
Two trays: 1,600 and 2,000 sheets each
Sizes
8.5 x 11 in. (A4/210 x 297 mm) LEF
Weights
16 lb to 53 lb bond/110 lb index (60 to 200 gsm)
PAPER HANDLING – Total Capacity
Device Total Capacity*
4,800 sheets (with Bypass tray, front loading paper trays and High Capacity Feeder)
OUTPUT OPTION – Offset Catch Tray (OCT) option
Capacity*
300 sheets
Sizes
4.25 x 5.5 in. (A6/105 x 148 mm) to 11 x 17 in. (A3/297 x 420 mm)
Weights
16 lb to 57 lb bond/80 lb cover (60 to 216 gsm)
OUTPUT OPTION – Basic Office Finisher option (available for 232, 238 and 245 only)
Capacity*
Top Tray — 250 sheets
Stacking Tray — 1,000 sheets
Sizes
4.25 x 5.5 in. (A6/105 x 148 mm) to 11 x 17 in. (A3/297 x 420 mm)
Weights
16 lb to 57 lb bond/80 lb cover (60 to 216 gsm)
Stapling*
30 sheets
Single position (top right hand corner)
*Paper capacities are based on 20 lb bond
(75 gsm, N. America / 80 gsm, Europe) stock;
capacities will vary with different weight stocks.
4
CopyCentre® WorkCentre® WorkCentre® Pro
232/238/245/255
232/238/245/255
232/238/245/255
Copy Specifications
OUTPUT OPTION – Office Finisher option
Capacity*
Top Tray — 250 sheets
Stacking Tray — 2,000 sheets
Sizes
4.25 x 5.5 in. (A6/105 x 148 mm) to 11 x 17 in. (A3/297 x 420 mm)
Weights
16 lb to 57 lb bond/80 lb cover (60 to 216 gsm)
Stapling*
50 sheets
Single (any corner) and dual
Hole Punch (Optional)
2-hole punch (Europe)
3-hole punch (North America)
2-hole Legal punch (North America)
4-hole punch (Europe)
4-hole “Swedish” punch (Europe)
OUTPUT OPTION – Professional Finisher option
Capacity*
Top Tray — 250 sheets
Stacking Tray — 1,500 sheets
Sizes
4.25 x 5.5 in. (A6/105 x 148 mm) to 11 x 17 in. (A3/297 x 420 mm)
Weights
16 lb to 57 lb bond/80 lb cover (60 to 216 gsm)
Stapling*
50 sheets
Single (any corner), dual, front, rear, SEF and 4-stitch
Hole Punch
2-hole punch (Europe) - Standard
3-hole punch (North America) - Standard
2-hole Legal punch (North America)
4-hole punch (Europe)
4-hole “Swedish” punch (Europe)
Options
Booklet Maker
Capacity*
• Tray stop up: 30 booklets (1-5 sheets per booklet)
• Tray stop down: Unlimited
Sizes
• Letter — 8.5 x 11 in. (A4/210 x 297 mm)
• Legal — 8.5 x 14 in. (216 x 356 mm)
• Ledger — 11 x 17 in. (A3/297 x 420 mm)
Weights
• 16 lb to 57 lb bond/80 lb cover (60 to 216 gsm)
Stapling*
• Saddle-stitch (2-15 sheets / 8-60 page booklet)
Folding
• V-folding (1-5 sheets / unstapled)
*Paper capacities are based on 20 lb bond (75 gsm, N. America / 80 gsm, Europe) stock; capacities will vary with different weight stocks.
5
CopyCentre® WorkCentre® WorkCentre® Pro
232/238/245/255
232/238/245/255
232/238/245/255
Copy Specifications
OUTPUT OPTION – Convenience stapler option (available only with shelf kit)
Capacity*
50 sheets
MONTHLY DUTY CYCLE
232 – up to 125,000 pages
238 – up to 150,000 pages
245 – up to 175,000 pages
255 – up to 200,000 pages
BASIC CONFIGURATIONS**
CopyCentre and WorkCentre with Platen, Two Trays and Stand (232/238option)
CopyCentre, WorkCentre and WorkCentre Pro with DADF, Two Trays and Stand
CopyCentre, WorkCentre and WorkCentre Pro with DADF and HCF
ACCESSORY OPTIONS**
CopyCentre
Walkup Fax
• One line
• Two lines
Offset Catch Tray (OCT)
Basic Office Finisher
Office Finisher
Professional Finisher
Convenience Stapler (available only with Shelf Kit)
Hole Punch (with Office Finisher — see Output Options for details)
Shelf Kit
Envelope Kit
256 MB Pre Collation Memory (EPC)
Foreign Interface Device (FDI)
Xerox Copier Assistant (XCA)
Upgrade Kits to WorkCentre or WorkCentre Pro
WorkCentre — same as
CopyCentre, plus:
Walkup Fax with LAN Fax
• One line
• Two lines
PostScript 3 emulation/MAC Ethertalk
Image Overwrite Security
Scan to email with LDAP Authentication and additional memory
WorkCentre Pro — same
as CopyCentre and
WorkCentre, plus:
USB 2.0 (IEEE1284)/Parallel Port Kit
Fax/Scan/Accounting Xerox Business Alliance Partner solutions
FreeFlow Scan to PC Desktop SE and Professional
Internet Fax
*Paper capacities are based on 20 lb bond (75 gsm, N. America / 80 gsm, Europe) stock; capacities will vary with different weight stocks.
**Features, configurations and options may vary by location.
6
CopyCentre® WorkCentre® WorkCentre® Pro
232/238/245/255
232/238/245/255
232/238/245/255
Copy Specifications
ELECTRICAL REQUIREMENTS
110-140 Volt Nominal, 60 Hz, 15A (North America)
220-240 Volt Nominal, 50 Hz, 10A (Europe)
Note: Convenience Stapler requires separate 110V 15A circuit
POWER CONSUMPTION1
232/238 CopyCentre
232/238 WorkCentre/WorkCentre Pro
245/255 CopyCentre
245/255 WorkCentre/WorkCentre Pro
Running
1080 watts
1130 watts
1180 watts
1230 watts
Standby
220 watts
260 watts
240 watts
290 watts
Low Power Mode
90 watts
120 watts
100 watts
125 watts
Auto Off / Sleep mode
5 watts
41 watts
5 watts
41 watts
28 seconds
28 seconds
28 seconds
28 seconds
NA
130 seconds
NA
130 seconds
20 seconds
20 seconds
20 seconds
20 seconds
Warm up to Copy
Ready to Print
Low Power Recovery
ENVIRONMENTAL CONSIDERATIONS
Required Temperature Range 10° to 32° C
Required Relative Humidity 10% to 85%
DIMENSIONS AND WEIGHTS (CopyCentre)
Width
Depth
Height 3
Weight 2
Configuration With OCT
38 in. / 955 mm
26 in. / 650 mm
57 in. / 1,460 mm
Platen/HCF/OCT 221.43 lbs/100.65 kg
DADH/HCF/OCT 263.23 lbs/119.65 kg
With Basic Office Finisher
48 in. / 1,214 mm
26 in. / 650 mm
57 in. / 1,460 mm
Platen/HCF/BOF 272.25 lbs/123.75 kg
DADH/HCF/BOF 314.05 lbs/142.75 kg
With Office Finisher
48 in. / 1,214 mm
26 in. / 650 mm
57 in. / 1,460 mm
Platen/HCF/OF 282.15 lbs/128.25 kg
DADH/HCF/OF 323.95 lbs/147.25 kg
With Professional Finisher
56 in. / 1,420 mm
26 in. / 650 mm
57 in. / 1,460 mm
Platen/HCF/PF 387.75 lbs/176.25 kg
DADH/HCF/PF 429.55 lbs/195.25 kg
/
DIMENSIONS AND WEIGHTS (WorkCentre
WorkCentre Pro)
Width
Depth
Height 3
Weight 2
Configuration With OCT
49 in. / 1,240 mm
33 in. / 830 mm
57 in. / 1,460 mm
DADH/HCF/OCT 278.63 lbs/126.65 kg
With Basic Office Finisher
59 in. / 1,499 mm
33 in. / 830 mm
57 in. / 1,460 mm
DADH/HCF/BOF 329.45 lbs/149.75 kg
With Office Finisher
59 in. / 1,499 mm
33 in. / 830 mm
57 in. / 1,460 mm
DADH/HCF/OF 339.35 lbs/154.25 kg
With Professional Finisher
67 in. / 1,705 mm
33 in. / 830 mm
57 in. / 1,460 mm
DADH/HCF/PF 444.95 lbs/202.25 kg
2
1
With Office Finisher
Weights do not include Rear Wall (3.78 lbs. / 1.72 kg) or Shelf (2.99 lbs. / 1.36 kg).
3
Height with DADH raised
7
CopyCentre® WorkCentre® WorkCentre® Pro
232/238/245/255
232/238/245/255
232/238/245/255
Copy Specifications
SPACE REQUIREMENTS (Fixed)
Width
Configuration With OCT
116 in. / 2,955 mm
With Basic Office Finisher
Depth
CopyCentre
WorkCentre/
WorkCentre Pro
CopyCentre
WorkCentre/
WorkCentre Pro
CopyCentre
WorkCentre/
WorkCentre Pro
CopyCentre
WorkCentre/
WorkCentre Pro
127 in. / 3,214 mm
With Office Finisher
127 in. / 3,214 mm
With Professional Finisher
135 in. / 3,420 mm
SPACE REQUIREMENTS (Moveable)
Width
Configuration With OCT
87 in. / 2,214 mm
87 in. / 2,214 mm
With Office Finisher
95 in. / 2,420 mm
With Professional Finisher
104 in. /2,650mm
107 in. /2,710mm
104 in. /2,650mm
107 in. /2,710mm
104 in. /2,650mm
78 in. / 1,981 mm
78 in. / 1,981 mm
78 in. / 1,981 mm
107 in. /2,710mm
104 in. /2,650mm
107 in. /2,710mm
Depth
77 in. / 1,955 mm
With Basic Office Finisher
Height
78 in. / 1,981 mm
Height
CopyCentre
WorkCentre/
WorkCentre Pro
CopyCentre
WorkCentre/
WorkCentre Pro
CopyCentre
WorkCentre/
WorkCentre Pro
CopyCentre
WorkCentre/
WorkCentre Pro
65 in. /1,650mm
67 in. /1,710mm
65 in. /1,650mm
67 in. /1,710mm
65 in. /1,650mm
67 in. /1,710mm
65 in. /1,650mm
78 in. / 1,981 mm
78 in. / 1,981 mm
78 in. / 1,981 mm
78 in. / 1,981 mm
67 in. /1,710mm
CERTIFICATIONS
FCC Class A Compliant (US), DOC Class A Compliant (Canada)
89/336/EEC (Europe)
UL Listed (UL 1950, Third Edition)
CB Certified (IEC 60950/EN 60950)
73/23/EEC (Europe)
95/5/EEC (Europe)
Energy Star
Blue Angel
SUPPLIES
Description
Toner Cartridge
Order Number
No. per Box
6R01046
2
30,000 at 6% area coverage
1
100,000
108R00682 /
108R00535
3
5,000 per cartridge (15,000 staples)
108R00493
3
5,000 per cartridge (15,000 staples)
8R12897
8 (4 x 2)
2,000 per cartridge (16,000 staples)
Waste Toner Bottle
(supplied with each toner cartridge box)
Staple Cartridge / Pack
(for Basic Office Finisher)
Staple Cartridge
(for Office Finisher)
Staple Cartridge
(for Booklet maker saddle-stitch stapling)
Expected Yield
Continued
8
CopyCentre® WorkCentre® WorkCentre® Pro
232/238/245/255
232/238/245/255
232/238/245/255
Copy Specifications
SUPPLIES (Continued)
Description
Order Number
No. per Box
8R12964
8R12941
3
5,000 per cartridge (15,000 staples)
1
350,000
Staple Cartridge (for Convenience Stapler)
• Complete Cartridge
• Refill Cartridge
Fuser Module (includes ozone filter)
109R00752 (N. America)
109R00751 (Europe)
Expected Yield
Xerographic Module- Metered (232/238)
113R00608
1
200,000
Xerographic Module - Metered (245/255)
113R00672
1
400,000
Xerographic Module - Sold (232/238) 113R00610 (N. America)
113R00607 (Europe)
1
200,000
Xerographic Module - Sold (245/255) 113R00674 (N. America)
113R00673 (Europe)
1
400,000
Document Handler Feeder Rolls
1
150,000 feeds
113R00686
Print Specifications
NETWORK PRINTING – SMart Controller (Simultaneous rip, receive, program ahead, queue processing, and transmit)
Processor
1 GHz AMD Duron dedicated
Memory (ESS)
WorkCentre 128 MB (expandable to 256 MB)
WorkCentre Pro 256 MB
System Disk
80 GB Hard Drive shared
Printer Language (PDL)
auto switching
WorkCentre
• PCL 6/PCL 5e
• PostScript 3 emulation (Optional)
WorkCentre Pro
• PCL 6/PCL 5e
• PostScript 3 emulation
• TIFF (6.0 Old JPEG and New JPEG)
• TIFF Fax Extended (TIFF - FX)
• PDF
• LCDS, SCS, XES and IPDS through third party transforms
NETWORK PRINTING – Resolution (printing via CentreWare software)
PostScript emulation: 600 x 600 dpi and 1200 x 1200 dpi (up to 256 shades of grey)
PCL: 600 x 600 dpi
Supports PCL and PS switching within job
NETWORK PRINTING – Printing Features
Bi-directional Print Drivers
Embedded web server for remote control/monitor/setup
Job monitoring at the device and at desktop
Continued
9
CopyCentre® WorkCentre® WorkCentre® Pro
232/238/245/255
232/238/245/255
232/238/245/255
Print Specifications
NETWORK PRINTING – Printing Features (Continued)
Advanced Features Include: PS
Special font
Banner Sheet
Rotate Image
Offset
Paper Output
Job Type
• Secure, Sample, Delay
• LAN Fax-with fax option
Paper Selection by attribute (including transparency separators)
Duplex (2-sided)
Finishing
• Stapling positions
• Hole punch with option
• Booklet creation with Professional finisher
• Fit to new paper size
• Saddle stitch
Output tray selections
Store and recall driver setting
Special Pages
Page level programming (covers, inserts/tabs, exception pages)
Image Options
Light/Dark
Toner saver
Resolution options (600 x 600 and 1200 x 1200 dpi)
Reduction/Enlargement
Margins (edge to edge printing)
Invert Image (negative/mirror)
Layout/Watermark
N-up (16)/Multi-up
Booklet Layout/Finishing
Fit to new paper size
Image orientation
Watermark options
PRINT PROTOCOLS AND NETWORKS
Physical
Ethernet 10/100BaseT, 10BaseT, 10Base2(IEEE802.5) (Token ring) –via adapter, wireless Ethernet (IEEE802.11a/b/g)
-via third party adapter
USB 2.0 (IEEE1284)/Parallel Port Kit (WorkCentre Pro option)
Operating Systems
WorkCentre
• Microsoft Windows 98, Me, NT 4.0, 2000, XP, Windows Server 2003, Citrix, Novell NetWare 4.x, 5.x, 6
Continued
10
CopyCentre® WorkCentre® WorkCentre® Pro
232/238/245/255
232/238/245/255
232/238/245/255
Print Specifications
PRINT PROTOCOLS AND NETWORKS (Continued)
Operating Systems
(Continued)
WorkCentre Pro
• Microsoft Windows 98, Me, NT 4.0, 2000, XP, Windows Server 2003, Citrix, Novell NetWare 4.x, 5.x, 6
• Mac OS 8.x, 9.x, OS X, 10.3 and higher
• Solaris 2.8, 2.9, 2.10
• HPUX 11.0
• IBM AIX 4.3.3
• Linux Fedora Core 1 (Intel)
• Linux Yellowdog 3.0
Network Protocols
WorkCentre (without PS)
• TCP/IP, LPR/LPD, Raw IP (Port 9100), NetBIOS SMB, IPX/SPX and Net BEUI, IPP, NDPS, NEPS
WorkCentre Pro
• TCP/IP, LPR/LPD, Raw IP (Port 9100), NetBIOS SMB, IPX/SPX and Net BEUI, IPP, NDPS, NEPS
• AppleTalk/EtherTalk, Bonjour
Administration Protocols
DHCP, BOOTP, SNMP, WINS, DDNS, SLP v2, HTTP, RARP, DHCP Autonet
Security Protocols/Features HTTPS, IPsec, IP filtering
Unlimited Secure Print, Audit log, Image Overwrite (optional)
Fonts
PCL: 80 scalable fonts, line printer and bitmap format line printer fonts (true type fonts)
PostScript 3: 136 PostScript standard fonts (true type fonts/send fonts as/substitution table)
Font Management Utility for downloading additional fonts (available for Windows and Mac)
Print Drivers
Environment
PCL6/5e
Windows 98/Me, NT 4.0, 2000/XP,
Windows Server 2003, Windows
Walk-up (PS), Microsoft Certified
Bi-directional features
Bi-directional features
(Xerox custom graphical user interface) (Xerox custom graphical user interface)
• Job, Paper and Toner status
• Job status notification
• Just in time Bi-Di
• Auto population of IP address
• Delete jobs
• Job, Paper and Toner status
• Job status notification
• Just in time Bi-Di
• Auto population of IP address
• Delete jobs
Macintosh System 8.x – 10.2
N/A
Generic PPD
Bi-Directional via AppleTalk (9.x)
Macintosh System 10.3 and higher
N/A
Bi-directional features
(Xerox custom graphical user interface)
PostScript 3
• Watermark, booklet creation,
JBA, secure, sample, delay print
and LAN Fax (option)
11
CopyCentre® WorkCentre® WorkCentre® Pro
232/238/245/255
232/238/245/255
232/238/245/255
Print Specifications
PRINT PROTOCOLS AND NETWORKS (Continued)
Print Submission Tools
Environment
PCL
PostScript 3
Solaris 2.8, 2.9, 2.10; HPUX 11.0,
IBM AIX 4.3.3;
Linux Fedora Core 1 (Intel);
Linux YellowDog 3.0
Submission Tool only
Submission Tool with full feature set
(includes administration, GUI/TTY
print driver and software installation)
TIFF/PDF: Supported in
Windows 98/Me/NT 4.0/2000/XP,
Windows Server 2003
Submission Tool for any
TIFF or PDF file
N/A
DEVICE MANAGEMENT
Management Support
SNMP Version 1. SNMP Version 2c and SNMP Version 3
MIB access (IETF-MIBII RFC 1213), host resources
MIB RFC 2790, Printer MIB RFC v.2
Xerox CentreWare Internet
Services
Allows simple remote installation setting of configuration options and management of the device
Xerox CentreWare Web
A Web-based server application for network administrators that permits Web browser-based device management from
any workstation, whether running Windows, UNIX or any other operating system.
Works with any SNMP-managed printer from any manufacturer.
Provides help with device discovery and installation, health checks and troubleshooting, and device upgrades, as well as
basic accounting and asset management.
Requires Windows XP or 2000 (Professional or Advanced Server) Windows 2003 and Internet Explorer 6.0 and higher
Novell NDPS/NEPS
Server gateway application: centralized management tool
(gateway for WorkCentre Pro)
Xerox CentreWare for
Unicenter TNG
Provides added identification to the general discovery performed by Unicenter TNG and the ability to see the
WorkCentre Pro under a Unicenter TNG Business Process View
Xerox CentreWare for
Tivoli NetView
Provides for the identification of Xerox N-Series printers and WorkCentre Pro multifunction systems in the general
discovery performed by Tivoli NetView
Xerox CentreWare for HP
OpenView
Provides for the identification of Xerox N-Series printers and WorkCentre Pro multifunction systems in the general
discovery performed by HP Openview
Provides traps and message updates to the Open View alarm browser and the ability to launch CentreWare Internet
Services for device management directly from OpenView
Xerox Barcode Pro PS
(optional)
Purchase via www.font.net
Enables intelligent PostScript printing on Xerox multifunction systems by storing Xerox software, as well as, the barcode
fonts on the printer hard disk. Enables the printing of barcodes from any application (SAP R/3 client or mainframe) that
supports PostScript printing. Automatically calculates the check digit, places start/stop and middle bar characters in the
data string, compresses and encodes the data string, and rotates the barcode through 90 or 270 degrees.
Continued
12
CopyCentre® WorkCentre® WorkCentre® Pro
232/238/245/255
232/238/245/255
232/238/245/255
Print Specifications
DEVICE MANAGEMENT (Continued)
Xerox Device Types
for SAP R/3 Environment
are available at
www.xeroxofficesapsolutions.com
Xerox SAP R/3 Intelligent
Barcode Utility (optional)
Purchase via www.font.net
Simplifies printing in SAP R/3 environments by providing users of SAP R/3 3.x, 4.x, 4.5x, 4.6x, SAP Enterprise 4.7x, ERP
applications with enhanced WorkCentre Pro printing functionality (PostScript and PCL):
• One- to Two-sided printing
• Finishing provides single or dual stapling
• Tray pull location from any tray
• # of copies – provide the ability to print multiple copies
• Paper Type and color – provide ability to select different paper types and paper colors, such as transparency, red, etc.
• Print security via PIN ID capability at the WorkCentre Pro
• Job Based Accounting (JBA) – Provides capability to add JBA UserIDs to SAP print jobs
• Printer banner sheet – Provide the ability to enable/disable printer banner sheets
• Barcode printing – Xerox standard PostScript device types available at www.xeroxofficesapsolutions.com supports
Intelligent Barcode Printing with Xerox Barcode Pro PS. This Barcode Pro PS can be purchased at www.font.net
Provides built-in process intelligence that allows the printing of barcodes on any appropriately configured PostScript printer
on the SAP R/3 4.1x, 4.5x, 4.6x and within Latin-1 (ISO8859-1) SAP system code pages only. Used in conjunction with
Xerox PostScript Device Types for SAP R/3 environment and Xerox Font Center Barcode Fonts. Utility enables automated
checksum calculation, placement of start/stop characters, encoding of data string, and data compression.
CENTREWARE INTERNET SERVICES – Integrated device Web page
Device Status
Web server embedded on SMart Controller
• Tray status/contents
• Consumables status
• Alerts
Job-Print Queue Viewing
Complete job print queue management –delete
Job Submission
Print ready files PS, PCL (TIFF, PDF with WorkCentre Pro only)
Output feature selection (2-sided, staple, fold, hole punch, paper select)
Delivery options (Immediate, proof, delay and secure)
Device Administration
Allows simple, remote installation setting of configuration options and management of the device
Scan Template
Management
250 templates can be created
Create device specific CentreWare scan templates
Select confirmation sheet options
Share scan templates via device cloning
Browsers
Netscape 6.2, 7.x (Mozilla 1.x)
Internet Explorer 5.5.x, 6.x
Safari 1.x
Mozilla Firefox 1.x
Support
Online support available via web page
13
CopyCentre® WorkCentre® WorkCentre® Pro
232/238/245/255
232/238/245/255
232/238/245/255
Scan Specifications
NETWORK SCANNING WITH EMAIL (Enables device-specific network scan workflows (destination templates) to be easily created and edited via CentreWare Internet Services)
Concurrency
Scan while the system is printing, copying, or while it is transferring scan to network or fax jobs
Input Speed
Scan at 35 ipm (232/238) or 55 ipm (245/255) - 8.5 x 11 in. (A4/210 x 297 mm) LEF at all resolutions
Resolutions
Scan Presets
• Archival Record (Normal Quality - Smallest file size)
• For Sharing and Printing (Normal Quality – Small file size)
• For High Quality Printing (High Quality – Large file size)
• For OCR (High Quality – Large file size)
• Simple Scan (Normal Quality – Small file size)
Quality/File Size
• Normal Quality (Small file size)
• Higher Quality (Large file size)
• Maximum Quality (Largest file size)
Maximum Scan Area
11 x 17 in. (A3/297 x 420 mm)
Capability for WorkCentre - Scan to e-mail (manual address entry or directory (Exchange/Notes/LDAP) address searching (internal address book or
optional (scan to email only) Public address book – up to 128 recipients)
Capability for
WorkCentre Pro - standard
Scan to e-mail (manual address entry or directory (Exchange/Notes/LDAP) address searching (internal address book or
Public address book – up to 128 recipients)
Scan to file
Scan to network server / directory
Scan to Windows XP client via Windows Image Acquisition (WIA) or TWAIN driver downloadable from www.xerox.com
Authentication
Secure device login with network user name and password
Supports Kerberos (Windows 2000/UNIX/Windows Server 2003)
SMB (Windows NT 4.0/Windows 2000/Windows Server 2003)
Novell over IP/IPX (Novell NetWare 4.x/5.x/6.x)
Optional PIN-based guest login
Network Protocol
Network Scanning
Email
Novell (NCP via IPX/SPX)
FTP
Microsoft SMB via TCP/IP
HTTP/HTTPS
SMTP
MIME encoded
File Formats
TIFF 6.0 with G3 MH, G4 MMR, MRC or JPEG compression (single page or multiple pages)
PDF (image only with G3 MH, G4 MMR, JPEG or JBIG2 compression)
Document Management
Fields (Metadata)
Features only available in Network Scan to File Templates:
• 1-6 user programmable metadata fields per network scan to file templates and unlimited fields within the template
- Metadata Fields consists of field name, display at the LUI or not, default value and other configurations
Customized fields viewed on user interface
Continued
Variable data entered using virtual keyboard at device
14
CopyCentre® WorkCentre® WorkCentre® Pro
232/238/245/255
232/238/245/255
232/238/245/255
Scan Specifications
NETWORK SCANNING WITH EMAIL (Continued)
Scan Template Management Share scan templates among WorkCentre Pro via device cloning
Scan template management (250 templates) with CentreWare Internet Services
Share scan templates via device cloning
Select confirmation sheet option
Scan Features
Build job for scan to file only (enables special programming for different pages in one document – can be used for inserts,
mixing input from the document glass and document feeder), Duplex scanning, Auto detect document size, Scan mixed
size originals, email signatures (6 lines each of 128 character max), email message body (user configurable), email CWIS
confirmation sheet options, scan to edge.
NETWORK SCANNING SOFTWARE OPTIONS with WorkCentre Pro
Supported Scan Destinations
–scan template creation
(Varies by scanning
software options purchased)
Scan to application (workflow, Electronic Document Management System/Repositories)
Scan to Microsoft Exchange 2000 Web folders
Scan to Web URL
Scan to remote printer
Scan to PC Desktop (SE and Professional editions)
FreeFlow SMARTsend
(optional)
Server base document routing software that supports multiple scan-enabled multifunctional systems
(up to 250 per device)
Enables transformation, distribution and routing of scanned documents – with features like LDAP and auto discovery
Workflow creation via Web browser-based task creation (destinations, devices, document attributes – 20 file types
including searchable PDF, workflow settings, workflow summary)
• Scan to File Destinations: email, Microsoft NetWare folder, network folder, FTP, Microsoft Exchange 2000 web
folders, web URL, remote printers
• Scan to Document Repository Destinations: DocuShare, Domino, Domino.doc, Microsoft SharePoint
Workflow initiation via device scanning user interface (template selection at device UI)
FreeFlow SMARTsend
Professional (optional)
Everything in Free Flow SMARTsend, plus:
• Workflow initiation via Paperware (Scan coversheets)
• Server-based Optical Character Recognition (OCR)
• Adding of Metadata information
• Scan to Internet fax file destination
FreeFlow Scan to PC
Desktop SE (optional)
A desktop offering that provides document imaging, archiving, editing and organization tools
ScanSoft PaperPort SE 10 – image viewing and file management software
ScanSoft OmniPage SE 3.0– offer desktop/client installation – OCR and file format conversion software
Image Retriever – provides fully automated retrieval of scanned images direct from WorkCentre Pro to individual desktops
FreeFlow Scan to PC
Desktop Professional
(optional)
A desktop offering that provides advanced document imaging, archiving, editing and organization tools.
ScanSoft PaperPort Professional 10 image viewing and file management software
• Complete PDF functionality
• Secure PDF workflow of all scanning applications
ScanSoft OmniPage Pro 14 Office (for desktop/client installation) Professional OCR software for digital archiving and
document conversion
Image Retriever – provides fully automated retrieval of scanned images direct from a scan enabled Xerox WorkCentre Pro
to individual desktops. Also includes an email inbox polling capability
15
CopyCentre® WorkCentre® WorkCentre® Pro
232/238/245/255
232/238/245/255
232/238/245/255
Fax Specifications
FAX OPTIONS –Walk-up option (One or Two Lines options)
Compatibility
ITU (CCITT) Group 3
Memory
32MB – One Line
256MB- Two Line
Speed/Modem(s)
1 or 2 V.34 modems: 33,600bps. Less than 4 seconds per page transmission time, ISDN via third party adapter
Compression/Speed
MH/MR/MMR/G3/Super G3
Fax Send Features
Quality/Resolution
• Original type: Normal, text, half tone, photo, lighter/darker, background suppression
• Fax - off Platen, mixed sizes or Bound/Book
Auto Send (Up to 5)
Audio line monitor
Transmission options (Report/Header)
Reduce/Split large documents
Cover letter
Delayed send
Build Job (up to 1000 images)
Polling
Fax Receive Features
One or two-sided printing
Stapled or unstapled, hole punch
Receive print mode --Manual (size, margin, stock, header)/Auto
Auto answer delay
Secure receive
Junk fax prevention
Fax Reports
Activity
Dial directory
Group directory
Options
Pending Jobs
Fax Mailboxes
Up to 100 password-protected
Poll Remote mailboxes (up to 255) password-protected
Auto Dialing Features
Speed Dials
• 200 (One-line option)
• 1,000 (Two-line option)
Group Dials
• Up to 100 groups with up to 200 recipients per group (One-line option)
• Up to 200 groups with up to 400 recipients per group (Two-line option)
Auto redial
• Up to 14 attempts
• Up to 25 min intervals
• Batch Send (up to memory capacity)
Resolutions
Standard (200 x 100 dpi)
Fine (200 x 200 dpi)
Superfine (300 x 300 dpi)
200 x 400 dpi
400 x 400 dpi
400 x 600 dpi
600 x 600 dpi
16
CopyCentre® WorkCentre® WorkCentre® Pro
232/238/245/255
232/238/245/255
232/238/245/255
Fax Specifications
FAX OPTIONS - LAN Fax with Walkup Fax (Optional with WorkCentre and WorkCentre Pro)
Driver based LAN fax for Windows and Macintosh users (PCL and PS drivers)
Recipient options (add recipient or add from phone book)
User personal phone book – up to 1,000 entries
Confirmation sheet
Send speed (14.4/33.6kbps or 4800bps)
Send time
Dialing options (prefix or credit card)
Cover sheet (add notes)
Preferences – Phonebook (personal or shared LDAP)
FAX OPTIONS – Internet Fax (Optional with WorkCentre Pro)
Capability
Direct document transmission to remote Internet Fax machines or e-mail clients (SMTP)
Reception and automatic printout of documents sent via e-mail from remote Internet Fax machines or e-mail clients
Maximum Scan Area
11 x 17 in. (A3/297 x 420 mm)
Authentication
Optional secure device login with network user name and password
Supports Kerberos (Windows 2000/UNIX/Windows Server 2003)
SMB (Windows NT 4.0/Windows 2000/Windows Server 2003)
Novell over IP/IPX (Netware 4.x/5.x/6.x)
Optional PIN-based guest login
Address Directory Access
Corporate address list via LDAPv3
Downloaded address list (comma-separated file format)
Internal LDAP or Public address book
File Formats
TIFF-FX profiles S, F with G3 MH or JPEG compression
PDF (image only) with G3 MH, G4 MMR or JPEG compression
PDF and Multi TIFF
Resolutions
600 x 600 dpi
400 x 400 dpi
300 x 300 dpi
200 x 200 dpi
Network Protocols
SMTP
POP3 (RFC 1939)
Compliance
ITU-T T.37 complaint
Features
Signature (SA configurable –16 lines each of 128 character max)
Delivery Confirmation
• Email receipt option
• Confirmation reply option
• Cover sheet option
• Subject (248 characters)
• User configurable message body
200 x 100 dpi
100 x 100 dpi
72 x 72 dpi
17
CopyCentre® WorkCentre® WorkCentre® Pro
232/238/245/255
232/238/245/255
232/238/245/255
Fax Specifications
FAX OPTIONS – Network Fax Server Integration (Optional with WorkCentre Pro)
Capability
Provides walk-up faxing and hard copy output of received faxes when integrated with fax server applications (fax server
and software must be purchased separately from supplier). Transmission speeds, number of lines, compatibility and
compression are dependent on fax server configuration (via SMTP).
Maximum Scan Size
11 x 17 in. (A3/297 x 420mm)
Authentication
Optional secure device login with network user name and password
Supports Kerberos (Windows 2000/UNIX/Windows Server 2003)
SMB (Windows NT 4.0/Windows 2000/Windows Server 2003)
Novell over IP/IPX (Netware 4.x, 5.x, 6.x)
Optional PIN-based guest login
Network Protocols
Novell (NCP via IPX/SPX)
FTP
Microsoft SMB via TCP/IP
HTTP/HTTPS
SMTP
Fax Send Features
One- or two-sided scanning (up to 11 x 17 in. (A3/297 x 420 mm)
Phone number entry
Add to send list (50 numbers maximum)
Delay send (specific time)
Resolution selection (fine, standard)
Image quality selection (normal, text, lighten/darken, photo, background suppression, seven levels of contrast,
seven levels of sharpness)
Fax Print Features
One – or two-sided printing
Quantity
Staple on/off
Collate on/off
Secure print on/off
Finisher output tray selection (top tray or main tray)
Supported Network Fax
Vendors
Multiple vendors, certified by the Xerox Business Alliance Partner Program. For details visit www.xerox.com
18
CopyCentre® WorkCentre® WorkCentre® Pro
232/238/245/255
232/238/245/255
232/238/245/255
Other Specifications
ACCOUNTING OPTIONS – Internal Auditron
Tracking
Copy usage
Accounting
Up to 2,150 User accounts
Up to 5,925 General accounts
Up to 256 Group accounts
Features
Auditron report printout, ability to upload/download account and usage data via direct connection using Microsoft
Windows based software
ACCOUNTING OPTIONS – Xerox Standard Accounting (Standard with WorkCentre and WorkCentre Pro)
Tracking
Copy, Print, Fax and Scan usage
Accounting
Up to 2,500 User accounts (User Id)
Up to 500 General accounts (Client)
Up to 500 Group accounts (Department)
Features
Enable/disable via the web UI or the GUI in tools, admin can manage the feature remotely via the web UI, Data
can be exported via a CSV file, user required to enter XSA ID into the print driver when submitting a print job, similar
to secure print.
ACCOUNTING OPTIONS – Job Based Accounting – 3rd Party (Optional with WorkCentre Pro)
Enhanced network accounting with up to the minute data on how the WorkCentre Pro system is being used;
comprehensive management and enterprise scale tracking and reporting of device usage of copy, print, scan and server
fax. Various options available through Xerox Business Alliance Partner solutions. For details visit www.xerox.com
Security enhancements with the addition of HTTPS protocol support
WCP requests account authentication from 3rd party server enabling larger databases of users and accounts
© 2005 Xerox Corporation. All rights reserved. XEROX ®, CentreWare ®, WorkCentre ® Pro and Copier Assistant are trademarks of Xerox Corporation. PostScript is a registered trademark of Adobe Systems Incorporated in the United States and/or other countries. Other marks
are trademarks or registered trademarks of the companies with which they are associated. In support of Xerox’s environmental leadership goals, these models may contain some recycled components that are reconditioned. ENERGY STAR ® is a U.S. registered mark. As an
ENERGY STAR ® Partner, Xerox Corporation has determined that these products meet the ENERGY STAR ® guidelines for energy efficiency. Product information and/or specifications are subject to change without notice. 06/05
610P723040
W55SS-01UA
19
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
