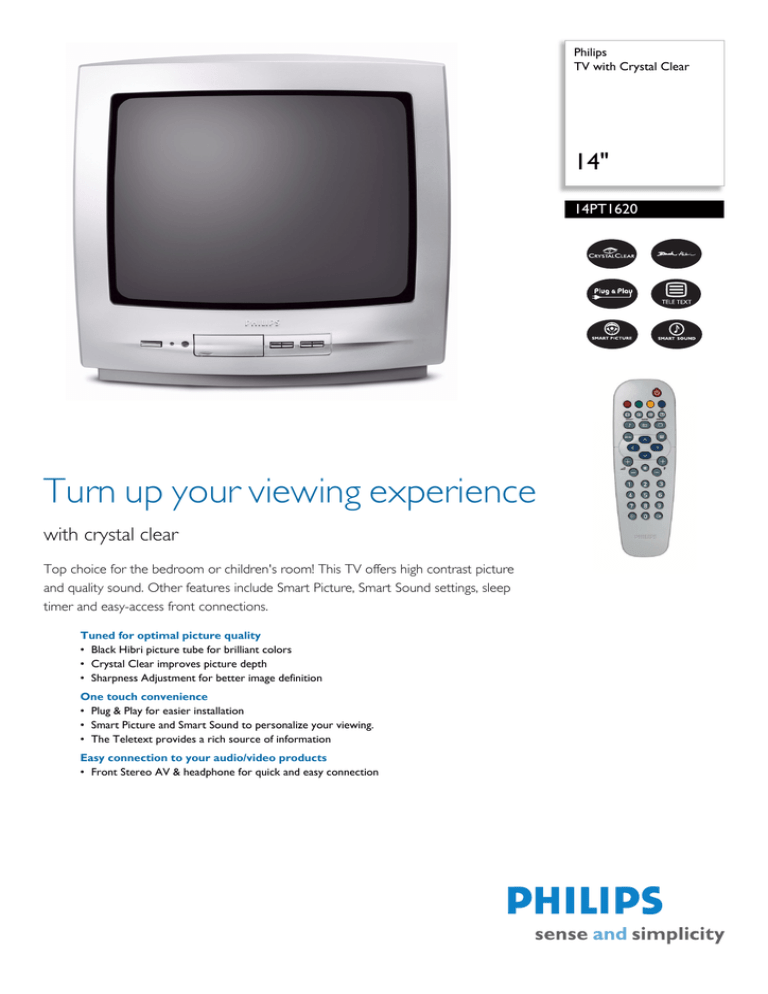

Philips 14PT1620 Datasheet

Philips 14PT1620 Datasheet
Philips
TV with Crystal Clear
14"
14PT1620
Turn up your viewing experience
with crystal clear
Top choice for the bedroom or children's room! This TV offers high contrast picture
and quality sound. Other features include Smart Picture, Smart Sound settings, sleep
timer and easy-access front connections.
Tuned for optimal picture quality
• Black Hibri picture tube for brilliant colors
• Crystal Clear improves picture depth
• Sharpness Adjustment for better image definition
One touch convenience
• Plug & Play for easier installation
• Smart Picture and Smart Sound to personalize your viewing.
• The Teletext provides a rich source of information
Easy connection to your audio/video products
• Front Stereo AV & headphone for quick and easy connection
14PT1620/01
TV with Crystal Clear
14"
Specifications
Product highlights
Picture/Display
•
•
•
•
•
Aspect ratio: 4:3
Diagonal screen size: 14 inch / 37 cm
Visible diagonal screen size: 34 cm
Display screen type: Black Hibri picture tube
Picture enhancement: Crystal Clear, Sharpness
Adjustment
• Picture processing: 50 Hz
Sound
• Sound System: Mono
• Output power (RMS): 4w
• Music Power: 8 W
Loudspeakers
Tuner/Reception/Transmission
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• TV system: PAL B/G, PAL D/K, PAL I, SECAM B/
G, SECAM D/K, SECAM L/L'
• Video Playback: NTSC
• Aerial Input: 75 ohm coaxial (IEC75)
• Number of Preset Channels: 100
Connectivity
• Number of Scarts: 1
• Ext 1 Scart: CVBS in/out, RGB
• Front / Side connections: Audio in, CVBS in,
Headphone out
• Headphone: 3.5 mm
Power
• Built-in speakers: 1
Convenience
• Ease of Installation: Autostore, PLL Digital
Tuning, Plug & Play
• Ease of Use: Smart Picture Control, Smart Sound
Control
• Remote control type: RCLE011
• Teletext: 1 page Teletext
• Teletext enhancements: Program information
Line
• Clock: Sleep Timer
• Screen Format Adjustments: 4:3, 4:3 expand
• Remote Control: TV
• Power consumption: 38 W
• Standby power consumption: < 3 w
• Mains power: AC 90-276V, 50/60Hz
Dimensions
•
•
•
•
Product weight: 9 kg
Weight incl. Packaging: 11 kg
Color cabinet: Silver Frost (11027)
Box dimensions (W x H x D):
460 x 480 x 460 mm
• Set dimensions (W x H x D):
376 x 348 x 372 mm
•
Black Hibri picture tube
Black HiBri is a TV tube technology used on Philips
small-screen TVs, giving good color reproduction on
smaller sets.
Crystal Clear
Combining picture enhancements like Contrast plus and
color improvement, Crystal Clear improves picture
depth.
Sharpness Adjustment
Plug & Play
Plug & Play gives you the ability to install or add a new
component and have it work without having to perform
any complex installation procedure or technical analysis.
Smart Picture and Smart Sound
Philips preset modes for Smart Picture and Smart Sound
provide you with direct access via a single key on the
remote control. You can select optimized picture and
sound settings for the various picture modes such as
Eco, Natural, Rich, Multimedia and Personal, and sound
modes such as Movie, Voice, Music and Personal.
Teletext
The Teletext is a communication system transmitted by
most broadcasters in Europe, which contains a rich
variety of information. This information can only be
viewed by a set equipped with a Teletext decoder.
Front Stereo AV & headphone
Front stereo AV & headphone makes it much more
convenient to connect external devices like audio
equipment, games and video cameras. It's the easy way
to enjoy an extra audio sensation or a totally immersive
gaming experience.
Date of issue 2007-02-22
© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 16.0
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 22404
EAN: 87 10895 88334 4
www.philips.com
