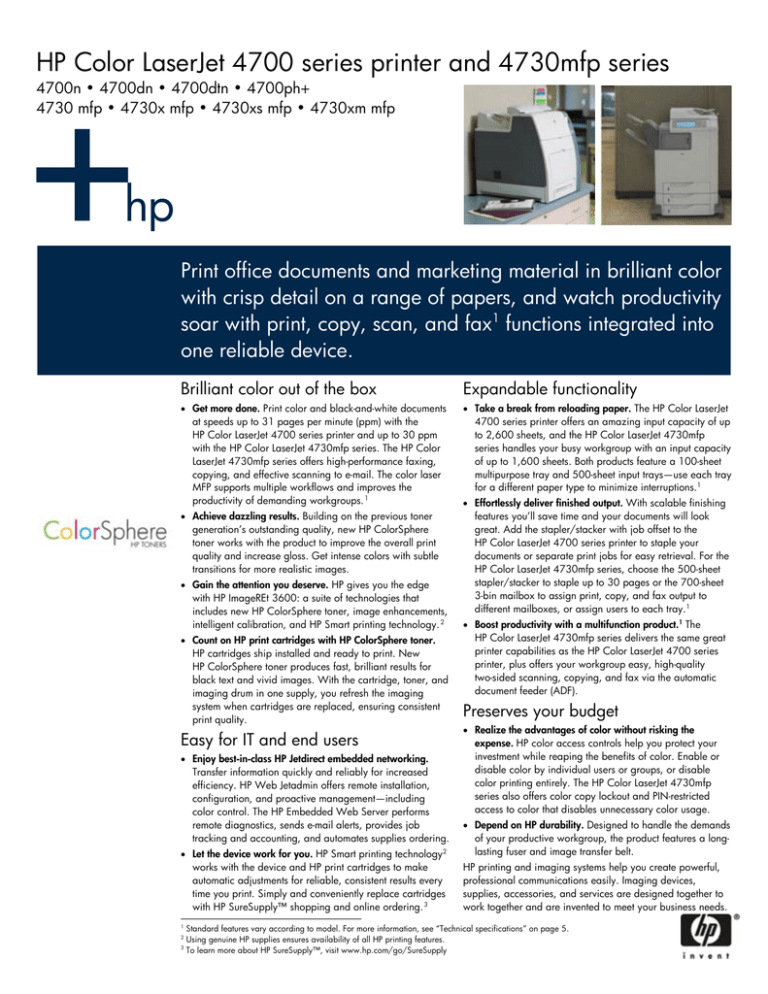

HP Color LaserJet 4700 series printer and 4730mfp series
4700n • 4700dn • 4700dtn • 4700ph+
4730 mfp • 4730x mfp • 4730xs mfp • 4730xm mfp
hp
Print office documents and marketing material in brilliant color
with crisp detail on a range of papers, and watch productivity
soar with print, copy, scan, and fax1 functions integrated into
one reliable device.
Brilliant color out of the box
Expandable functionality
• Get more done. Print color and black-and-white documents
at speeds up to 31 pages per minute (ppm) with the
HP Color LaserJet 4700 series printer and up to 30 ppm
with the HP Color LaserJet 4730mfp series. The HP Color
LaserJet 4730mfp series offers high-performance faxing,
copying, and effective scanning to e-mail. The color laser
MFP supports multiple workflows and improves the
productivity of demanding workgroups. 1
• Take a break from reloading paper. The HP Color LaserJet
4700 series printer offers an amazing input capacity of up
to 2,600 sheets, and the HP Color LaserJet 4730mfp
series handles your busy workgroup with an input capacity
of up to 1,600 sheets. Both products feature a 100-sheet
multipurpose tray and 500-sheet input trays—use each tray
for a different paper type to minimize interruptions.1
• Achieve dazzling results. Building on the previous toner
generation’s outstanding quality, new HP ColorSphere
toner works with the product to improve the overall print
quality and increase gloss. Get intense colors with subtle
transitions for more realistic images.
• Gain the attention you deserve. HP gives you the edge
with HP ImageREt 3600: a suite of technologies that
includes new HP ColorSphere toner, image enhancements,
intelligent calibration, and HP Smart printing technology. 2
• Count on HP print cartridges with HP ColorSphere toner.
HP cartridges ship installed and ready to print. New
HP ColorSphere toner produces fast, brilliant results for
black text and vivid images. With the cartridge, toner, and
imaging drum in one supply, you refresh the imaging
system when cartridges are replaced, ensuring consistent
print quality.
Easy for IT and end users
• Enjoy best-in-class HP Jetdirect embedded networking.
Transfer information quickly and reliably for increased
efficiency. HP Web Jetadmin offers remote installation,
configuration, and proactive management—including
color control. The HP Embedded Web Server performs
remote diagnostics, sends e-mail alerts, provides job
tracking and accounting, and automates supplies ordering.
• Let the device work for you. HP Smart printing technology2
works with the device and HP print cartridges to make
automatic adjustments for reliable, consistent results every
time you print. Simply and conveniently replace cartridges
with HP SureSupply™ shopping and online ordering. 3
1
2
3
• Effortlessly deliver finished output. With scalable finishing
features you’ll save time and your documents will look
great. Add the stapler/stacker with job offset to the
HP Color LaserJet 4700 series printer to staple your
documents or separate print jobs for easy retrieval. For the
HP Color LaserJet 4730mfp series, choose the 500-sheet
stapler/stacker to staple up to 30 pages or the 700-sheet
3-bin mailbox to assign print, copy, and fax output to
different mailboxes, or assign users to each tray.1
• Boost productivity with a multifunction product.1 The
HP Color LaserJet 4730mfp series delivers the same great
printer capabilities as the HP Color LaserJet 4700 series
printer, plus offers your workgroup easy, high-quality
two-sided scanning, copying, and fax via the automatic
document feeder (ADF).
Preserves your budget
• Realize the advantages of color without risking the
expense. HP color access controls help you protect your
investment while reaping the benefits of color. Enable or
disable color by individual users or groups, or disable
color printing entirely. The HP Color LaserJet 4730mfp
series also offers color copy lockout and PIN-restricted
access to color that disables unnecessary color usage.
• Depend on HP durability. Designed to handle the demands
of your productive workgroup, the product features a longlasting fuser and image transfer belt.
HP printing and imaging systems help you create powerful,
professional communications easily. Imaging devices,
supplies, accessories, and services are designed together to
work together and are invented to meet your business needs.
Standard features vary according to model. For more information, see “Technical specifications” on page 5.
Using genuine HP supplies ensures availability of all HP printing features.
To learn more about HP SureSupply™, visit www.hp.com/go/SureSupply
HP Color LaserJet 4700 series printer
1
750-sheet stapler/stacker
with job offset staples up to
30 sheets for instant reports
or presentations
2
Automatic two-sided printing
at full engine speed
3
100-sheet multipurpose tray
handles heavy custom media
up to 58 lb bond
(220 g/m2)
4
5
6
HP Color LaserJet 4700ph+ printer shown
1
Five universal 500-sheet
input trays support paper up
to 32 lb bond (120 g/m2)
Control panel simultaneously
displays up to four lines of
text and animated graphics
Front door allows convenient
access to all four HP print
cartridges and supplies
7
40 GB HP high-performance
embedded hard disk
8
544 MB total memory
quickly and easily handles
complex print jobs
9
Hi-Speed USB 2.0 port
10 Host USB accessory port
2
5
9
6
10
7
11
12
8
3
13
4
11 Bidirectional IEEE-1284-C
parallel port
12 HP Jetdirect Fast Ethernet
embedded print server
13 Two open EIO slots
Right side view
Front view
Series at a glance
HP Color LaserJet 4700n printer
(Q7492A)
• 100-sheet multipurpose tray and
500-sheet input tray 2 for a 600-sheet
capacity
• 500-sheet output bin
• 128 MB RAM
• One empty DIMM slot and two empty
flash memory slots
• HP Jetdirect Fast Ethernet embedded
print server
• Two open EIO slots
HP Color LaserJet 4700dn printer
(Q7493A)
HP Color LaserJet 4700dtn printer
(Q7494A)
HP Color LaserJet 4700n plus:
HP Color LaserJet 4700n plus:
HP Color LaserJet 4700n plus:
• Additional 128 MB RAM for 256
• Two additional 500-sheet input trays
• Four additional 500-sheet input trays
MB total memory
• Automatic two-sided printing
for a1,600-sheet capacity
• Additional 128 MB RAM for
256 MB total memory
• Automatic two-sided printing
• Printer stand
HP Color LaserJet 4700ph+ printer
(Q7495A)
for a 2,600-sheet capacity
• 750-sheet stapler/stacker with job
offset in place of the 500-sheet
output bin
• 40 GB HP high-performance
embedded hard disk
• Additional 384 MB RAM for
512 MB total memory
• Automatic two-sided printing
• Printer stand
HP Color LaserJet 4730mfp series
1
100-sheet multipurpose tray
handles heavy custom media
up to 58 lb bond
(220 g/m2)
2
Side door allows convenient
access to four, all-in-one
HP print cartridges
3
50-sheet ADF scanner
processes two-sided
documents at full speed
4
Easy-to-use touch-screen
control panel with 10-key
number pad provides
effortless interaction with the
MFP
5
500-sheet stapler/stacker
staples up to 30 sheets for
instant reports or
presentations
6
Automatic two-sided printing
at full engine speed
7
Three universal 500-sheet
input trays support paper up
to 32 lb bond (120 g/m2)
8
Foreign interface harness for
third-party paper-handling
solutions
9
Host and device Hi-Speed
USB 2.0 ports
4
3
2
1
5
8
9
6
12
10
13
11
14
15
7
10 Bidirectional IEEE-1284-C
parallel port
HP Color LaserJet
4730xs mfp front view
11 HP Jetdirect Fast Ethernet
embedded print server
HP Color LaserJet
4730x mfp rear view
12 RJ-11 fax port
13 One open EIO slot to add
even more functionality,
including Apple networking
14 40 GB HP high-performance
embedded hard disk
15 320 MB total memory
quickly and easily handles
complex print jobs
Series at a glance
HP Color LaserJet 4730mfp
(Q7517A)
HP Color LaserJet 4730x mfp
(Q7518A)
HP Color LaserJet 4730xs mfp
(Q7519A)
HP Color LaserJet 4730xm mfp
(Q7520A)
• 100-sheet multipurpose tray and
HP Color LaserJet 4730mfp plus:
HP Color LaserJet 4730mfp plus:
HP Color LaserJet 4730mfp plus:
• HP LaserJet MFP Analog Fax
• 500-sheet stapler/stacker in place
• 700-sheet 3-bin mailbox in place of
three 500-sheet input trays for
1,600-sheet capacity
• 500-sheet output bin
• 256 MB RAM
• One empty DIMM slot and two
empty flash memory slots
• HP Jetdirect Fast Ethernet embedded
print server
Accessory 300
of the 500-sheet output bin
the 500-sheet output bin
• HP LaserJet MFP Analog Fax
• HP LaserJet MFP Analog Fax
Accessory 300
Accessory 300
Get the best-in-class color laser solution that meets your
workgroup’s demanding performance and print quality needs.
Vivid color and powerful performance
Intelligent printing
If you want brilliant print quality that exceeds your
expectations every time you print, but you don’t want to
make a lot of adjustments or sacrifice fast printing speed and
flexible features, then the HP Color LaserJet 4700 series
printer and HP Color LaserJet 4730mfp series offer just what
you’ve been looking for. For vibrant color documents and
expandable paper-handling capabilities, choose the
HP Color LaserJet 4700 series printer, with an input capacity
of up to 2,600 sheets as well as finished output with the
optional 750-sheet stapler/stacker with job offset.4
Designed with office workgroups in mind, the product is
simple to install, use, and maintain.
The HP Color LaserJet 4730mfp series expands on the
performance and output quality of the HP Color LaserJet
4700 series printer by offering the ability to copy, scan, fax,
and digitally send documents to e-mail or network folder (you
cannot upgrade the printer to include these features). The
MFP also offers a standard input capacity of up to 1,600
sheets and a choice of paper-handling output solutions with
the 700-sheet 3-bin mailbox or the 500-sheet
stapler/stacker. 4
• The HP Color LaserJet 4730mfp series touch-screen control
panel has an integrated design to monitor and operate the
device. Employed across several HP MFPs, this intuitive
control panel provides users of HP MFPs with a familiar
walk-up experience. The HP Color LaserJet 4700 series
printer control panel offers complete, timely information
about the printer and print jobs. Designed for quick and
easy troubleshooting, the control panel displays up to four
lines of text and animated graphics simultaneously.
In-house color marketing
• An always-on, internal clock improves product availability
for both the HP Color LaserJet 4730mfp series and
HP Color LaserJet 4700 series printer. Once you enter the
date and time in the control panel, the product can be
configured to automatically wake up from sleep mode so
that it is ready to work when you are.
Print short-run color documents in-house, quickly and
affordably. When you print materials in-house, you have
control over the process: you ensure that printing is effective,
efficient, and affordable, and that any private company
information stays safe. Printing frequently updated materials
on-demand, such as promotional material or brochures,
means that you can make changes at a moments notice and
never waste printed material due to obsolete information.
You also save the time and cost of inventory management.
Companies ranging from small to large report that HP’s
affordable, best-in-class color solutions deliver money to their
bottom line. Some ways, such as improving your image and
adding impact to marketing publications, are indirect, while
others are direct and measurable, such as productivity gains
and tangible cost savings with in-house color printing.
New HP ColorSphere toner
With HP ColorSphere toner and the HP Color LaserJet 4700
series printer and the HP Color LaserJet 4730mfp series
printer, your prints will shine with uniform gloss and a
dynamic range of color. The new toner features gloss levels
that are significantly improved over previous HP color toners
when printing on glossy paper. Improved melting and fusing
technologies work in sync with the toner to enable superior
toner release and flow. The result is brilliant, intense colors
and excellent photo quality output for your business
documents.
HP’s new color toner enables a finer range of colors because
each toner particle conforms to an extremely consistent size
and shape. This consistency allows particles to be placed on
the page with the precision needed to produce a wide range
of colors with the most subtle differences in shading.
HP ColorSphere toner is also designed to enable faster
printing time. The toner particles are chemically grown
around an optimally sized wax core, producing particle sizes
that are designed to work with HP's fusing technology for
faster printing without sacrificing quality.
4
5
• Integrate documents into workflows with the HP Color
LaserJet 4730mfp series. Building on the MFP’s embedded
scanning functionality, optional HP Digital Sending
Software 4.0 facilitates document workflow and enhances
business communications by enabling Optical Character
Recognition (OCR), and sending to shared network folders
and fax services, including LAN fax, Internet fax, and
Windows fax services.
HP color management tools
The HP color access control solution makes color printing and
copying more affordable than ever by helping you control
who uses color and when they use it:
• Control color copying. Color copy lockout allows IT
administrators to password-protect the HP Color LaserJet
4730mfp series as a black-and-white-only copier, so you
can control when and how color is used in your
workgroup.
• Assign color access to specific users or workgroups. Use
either your printer’s embedded Web server or HP Web
Jetadmin’s fleet configuration capability to designate who
has access to color printing. That way, people who truly
need color—such as your sales team and marketing
department—can use it.
• Assign color access by application. Designate certain
applications for printing color and others for printing
black-and-white to ensure that users only print color on
their most important print jobs and that other printouts—
such as Web pages—are always black-and-white.
• Shut down color completely or temporarily disable color
capability. Disable color printing on shared printers—
locking out all individuals and workgroups—so you can
save your color resources for special projects or seasonal
needs. HP Web Jetadmin’s Print Driver Pre-configuration
Plug-in lets IT Administrators set users’ print settings to
control color printing by print queue.
• Track color use by job, by user, and by device. HP Web
Jetadmin’s Report Generation Plug-in generates real-time
and periodic usage reports that make it easy to track color
use by job, by user, and by device. Plus, it allows you to
easily allocate costs to individual departments. 5
Standard features vary according to model. For more information, see “Technical specifications” on page 5.
Billing solutions are an optional feature available at an additional cost through HP’s solution partners.
Technical specifications
4700n (Q7492A)
Print and copy speed 6
First page out, copying
First page out, printing
Print resolution
Copying
Faxing
Scanning resolution
Processor
Memory, standard
Available memory slots
Memory, maximum
Hard disk
Maximum monthly duty cycle
Recommended monthly volume
Media
Paper handling
Two-sided printing
Output
Sizes
Weights
Types
Connectivity
Interfaces
Network connectivity
Fax interface
Languages
Fonts
Client operating systems
Network operating systems 7
Network protocols
supported7
Dimensions (w by d by h)
Weight
What’s in the box
Environmental ranges
Operating temperature
Relative humidity
Altitude
Acoustics
Power
Pressure (bystander)
Required input voltage9
Power consumption 9
Active
Active copy
Ready
Standby
Powersave
Off
Power certifications
EMC
Safety
Telecom
Warranty
HP SureSupply™ enabled
6
7
8
9
4700dn (Q7493A)
4700dtn (Q7494A)
4700ph+ (Q7695A)
4730mfp (Q7517A)
4730x mfp (Q7518A)
4730xs mfp (Q7519A) 4730xm mfp (Q7520A)
Up to 31 ppm
Not available
Less than 10 seconds letter, Ready; less than 16.5 seconds letter, Powersave
Up to 30 ppm
Less than 10 seconds letter, Ready; less than 16.5 seconds letter, Powersave
Less than 13 seconds letter, Ready;
less than 26 seconds letter, Powersave
600 by 600 dpi, with HP ImageREt 3600
Not available
Reduce or enlarge: 25 to 400% from scanner glass (25 to 200% from ADF); resolution: up to 600 by 600
dpi, 30 bit depth
Not available
Optional via
Fax speed: up to 33.6 kbps; resolution best mode: 300 by 300 dpi; JBIG
HP LaserJet MFP
compression, fax forwarding, fax polling, broadcasting to up to 100 locations,
Analog Fax Accessory
speed-dial to up to 100 numbers (each can contain 100 numbers), auto fax
300
reduction, and auto redialing supported
Not available
Up to 600 by 600 dpi 30 bit (flatbed), up to 600 by 300 dpi 30 bit (ADF)
533 MHz RISC
160 MB total
288 MB total
544 MB total
256 MB
One available DIMM slot for memory and two available flash memory card slots
Expandable to 544 MB RAM through one available DIMM slot, two available flash memory slots for font cards or third party solutions
Optional 20 GB HP high-performance via EIO slot
40 GB HP high-performance
100,000 pages
175,000 pages
3,000 to 10,000 pages
5,000 to 9,000 pages
100-sheet multipurpose tray, 500-sheet tray 2 for a
total of 600 sheets
100-sheet multipurpose
tray, 500-sheet trays 2,
3, 4 for a total of 1,600
sheets
100-sheet multipurpose
100-sheet multipurpose tray; 500-sheet input trays 2, 3, 4 for a total of 1,600 sheets
tray, 500-sheet trays 2,
50-sheet ADF
3, 4, 5, 6 for a total of
2,600 sheets
Manual
Standard automatic two-sided printing
500-sheet face-down output bin
750-sheet stapler/
500-sheet face-down output bin
500-sheet
700-sheet 3-bin mailbox
stacker with job offset
stapler/stacker
Multipurpose tray: 3 by 5 in (76 by 127 mm) to 8.5 by 14 in (216 by 356 mm); letter, legal, statement, executive, envelopes (No. 10, commercial); 500-sheet input trays: 5.8 by 8.3 in (148 by 210 mm) to 8.5 by 14
in (216 by 356 mm); letter, legal, executive; custom sizes not supported for automatic two-sided printing, optional 3-bin mailbox, and stapling with the optional stapler/stacker
Multipurpose tray: 16 to 58 lb bond (60 to 220 g/m2)
Automatic two-sided printing, 500-sheet input trays, optional 3-bin mailbox, stapling with the optional stapler/stacker: 16 to 32 lb bond (60 to 120 g/m2)
Paper (plain, preprinted, letterhead, prepunched, bond, recycled, color, light, intermediate, heavy, extra heavy, rough, glossy, heavy glossy, tough), transparencies, labels, envelopes, card stock
Bidirectional IEEE-1284-C parallel port, Hi-Speed USB 2.0 port, two open EIO slots, foreign interface for
Bidirectional IEEE-1284-C parallel port, Hi-Speed USB 2.0 port, one open EIO slot, foreign interface
third party solutions, Host USB accessory port
harness, Host USB accessory port
HP Jetdirect Fast Ethernet embedded print server
Not available
Optional
RJ-11 fax port
HP PCL6, HP PCL5c, HP postscript level 3 emulation, direct PDF printing (v 1.4), PML (Printer Management Language)
93 internal TrueType fonts scalable in HP PCL and HP postscript level 3 emulation; additional font solutions
80 internal TrueType fonts scalable in HP PCL and HP postscript level 3 emulation; additional font solutions
available via flash memory
available via flash memory
Windows 98, 2000, Me, XP Home, XP Professional, Server 2003; Mac OS 9.x and higher; Mac OS X 10.1 or higher; optional: OS/2, UNIX®, HP OpenVMS
Via the HP Jetdirect print server: Windows 98, 2000, Me, XP Home, XP Professional, XP 64-bit, Server 2003; Novell NetWare 3.2, 4.2, 5.x, 6.x (NDPS); Mac OS 8.6 or higher; Red Hat Linux 6.x, 7.x; SuSE Linux 6.x;
HP-UX 10.20, 11.x; Solaris 2.5x, 2.6, 7, 8 (SPARC systems only); IBM AIX 3.2.5 or higher; MPE-iX; Citrix MetaFrame; Windows Terminal Services; optional: OS/2, UNIX, HP OpenVMS
Via the HP Jetdirect print server: TCP/IP (IP Direct Mode; may require software from the NOS vendor or 3rd party vendor: LPD, FTP, IPP), IPX/SPX, DLC/LLC, AppleTalk, Auto-IP, Apple Rendezvous compatible, NDS,
Bindery, NCP, Telnet, SLP, IGMP, BOOTP/DHCP, WINS, SNMP v 1, v 2c and v 3, HTTP
31 by 25.2 by 45.4 in
43.5 by 25.2 by 45.4 in
24.8 by 28.2 by
24.8 by 28.2 by
20.5 by 23.5 by
20.5 by 23.5 by
(788 by 639 by 1153 mm)
(1106 by 639 by 1153 mm)
54.2 in (630 by 715
39.8 in (630 by 715
24.7 in (521 by 598
22.9 in (521 by 598
by 1375.5 mm)
by 1010.6 mm)
by 628.6 mm)
by 582 mm)
105.1 lb (47.7 kg)
107.8 lb (48.9 kg)
230 lb (104.3 kg)
288 lb (130.5 kg)
273 lb (124 kg)
298 lb (136 kg)
HP Color LaserJet
HP Color LaserJet
HP Color LaserJet
HP Color LaserJet
HP Color LaserJet
HP Color LaserJet
HP Color LaserJet
HP Color LaserJet
4700ph+ printer,
4730mfp, HP Jetdirect
4730xm mfp,
4730xs mfp, HP
4700dn printer,
4700dtn printer,
4730x mfp, HP Jetdirect
4700n printer,
HP Jetdirect Fast
Fast Ethernet embedded
HP Jetdirect Fast
Jetdirect Fast Ethernet
HP Jetdirect Fast
HP Jetdirect Fast
Fast Ethernet embedded
HP Jetdirect Fast
Ethernet embedded
print server power
Ethernet embedded
embedded print server
Ethernet embedded
Ethernet embedded
print server power
Ethernet embedded
print server, power
cable, IEEE 1284-C
print server power
power cable, IEEE
print server, power
print server, power
cable, IEEE 1284-C
print server, power
cable, software drivers
parallel cable, software
cable, IEEE 1284-C
1284-C parallel cable,
cable, software drivers
cable, software drivers
parallel cable, software
cable, software drivers
and documentation on
drivers and
parallel cable, software
software drivers and
and documentation on
and documentation on
drivers and
and documentation on
CD, in-box
documentation on CD,
drivers and
documentation on CD,
CD, in-box
CD, in-box
documentation on CD,
CD, in-box
documentation: Getting
in-box documentation:
documentation on CD,
in-box documentation:
documentation: Getting
documentation: Getting
in-box documentation:
documentation: Getting
Started Guide, fullGetting Started Guide,
in-box documentation:
Getting Started Guide,
Started Guide, fullStarted Guide, fullGetting Started Guide,
Started Guide, fullcapacity 11,000-page
full-capacity 12,000Getting Started Guide,
full-capacity 12,000capacity 11,000-page
capacity 11,000-page
full-capacity 12,000capacity 11,000-page
black and 10,000-page
page black, cyan,
full-capacity 12,000page black, cyan,
black and 10,000-page
black and 10,000-page
page black, cyan,
black and 10,000-page
cyan, magenta, and
magenta, and yellow
page black, cyan,
magenta, and yellow
cyan, magenta, and
cyan, magenta, and
magenta, and yellow
cyan, magenta, and
HP Color LaserJet print
magenta, and yellow
HP Color LaserJet print
HP Color LaserJet print
yellow HP Color LaserJet yellow HP Color LaserJet yellow HP Color LaserJet yellow HP Color LaserJet
print cartridges with
cartridges with
HP Color LaserJet print
cartridges with HP
print cartridges with
print cartridges with
cartridges with
print cartridges with
HP ColorSphere Toner,8
HP ColorSphere Toner,8
cartridges with
ColorSphere Toner,8
HP ColorSphere Toner,8
HP ColorSphere Toner,8
HP ColorSphere Toner,8
HP ColorSphere Toner, 8
HP ColorSphere Toner,8
one 100-sheet
automatic two-sided
automatic two-sided
40 GB embedded hard
Walk Up Wall Poster,
Analog Fax Accessory
Analog Fax Accessory
multipurpose tray, one
printing unit, one 100printing unit, one 100drive, one 100-sheet
Telephone Support
300, phone cord, Fax
300, phone cord, Fax
Analog Fax Accessory
500-sheet input tray
sheet multipurpose tray,
sheet multipurpose tray,
multipurpose tray, four
Flyer, information and
Install Guide,
Install Guide Walk Up
300, phone cord, Fax
one 500-sheet input tray
two 500-sheet input
500-sheet input trays,
training CD
stapler/stacker, Walk
Wall Poster, Telephone
Install Guide, 3 bin
trays, printer stand
stapler/stacker with job
Up Wall Poster,
Support Flyer,
mailbox, Walk Up Wall
offset, automatic twoTelephone Support
information and training
Poster, Phone Support
sided printing unit,
Flyer, information and
CD
Flyer, information and
printer stand
training CD
training CD
Operating: 50° to 86° F (10° to 30° C); recommended: 62.6° to 77° F (17° to 25° C)
Operating: 59° to 86° F (15° to 30° C); recommended: 62.6° to 77° F (17° to 25° C)
Operating: 10 to 80 %; recommended: 30 to 70 %
0 to 7500 ft (0 to 2300 m)
0 to 8530 ft (0 to 2600 m)
Active: 6.7 B(A); Ready: 7.7 B(A)
Active: 50 dB(A), standby: 31 d(B)A
110 to 127 V (±10%), 50/60 Hz (±2 Hz); 220 to 240 V (±10%), 50/60 Hz (±2 Hz)
567 watts
591 watts
Active (copying): 6.8 B(A); Ready: 7.7 B(A)
Active (copying): 52 dB(A), standby: 37 d(B)A
115 to 127 VAC (±10%), 50/60 Hz (±2 Hz); 220 to 240 VAC (±10%), 50/60 Hz (+/-2 Hz)
623 watts
55 watts
17 watts
604 watts
615 watts
83 watts
626 watts
640 watts
86 watts
63 watts
66 watts
18 watts
24 watts
25 watts
0.3 watts
0.5 watts
Energy Star® compliant
Energy Star, Blue Angel compliant
CISPR 22: 1997/EN 55022: 1998 Class B; EN 61000-3-2: 1995/A14; EN 61000-3-3: 1995; EN
CISPR 22: 1993/EN 55022:1994 Class A, EN 61000-3-2:2000, EN 61000-3-3:1995, EN
55024: 1998; FCC Title 47 CFR, Part 15 Class B/ICES-003, Issue 3/GB9254-1998, GB17625.1-1998;
55024:1998, FCC Title 47 CFR, Part 15 Class B / ICES-003, Issue 4 / GB9254-1998, GB17625.1EMC Directive 89/336/EEC, the Low Voltage Directive 73/23/EEC, and carries the CE-Marking
2003, EMC Directive 89/336/EEC and the Low Voltage Directive 73/23/EEC, and carries the CEaccordingly
Marking accordingly
Argentina (TÃœV S Mark-Rs.92/98/Ds.1009/98), Canada (cUL-CAN/CSA C22.2 No.60950-00), US
Argentina (TUV S Mark-Rs.92/98/Ds.1009/98), Australia (AS/NZ 3260), Canada (cUL-CAN/CSA
(UL-UL 60950; FDA-21 CFR Chapter 1 Subchapter J for lasers. Class 1 Laser/LED Product.)
C22.2 No.60950-00), Mexico (NOM NYCE-NOM 019 SCFI), USA (UL-UL 60950; FDA-21 CFR Chapter 1
Subchapter J for lasers); Class 1 Laser/LED Product
Not available
TBR-21:1998; EG 201 121:1998, FCC Part 68, Industry Canada CS03, NOM-151-SCTI-1999 (Mexico)
One-year, next day, on-site limited hardware warranty with phone and e-mail support
One-year, next day, on-site limited warranty
To learn more about HP SureSupply™, please visit www.hp.com/go/SureSupply
Exact speed varies depending on the system configuration, software application, driver, and document complexity.
Not all protocol and operating system combinations are supported. For more information, go to: www.hp.com/support/net_printing.
All print cartridge page yields are based at five percent page coverage.
Values subject to change. See www.hp.com/support/clj4700 or www.hp.com/support/clj4730 for current information. Power reported is the highest value measured using all standard voltages.
Ordering information
HP Color LaserJet 4700 series printer
Number
HP Color LaserJet 4730mfp series
Number
HP
HP
HP
HP
Q7492A
Q7493A
Q7494A
Q7495A
HP
HP
HP
HP
Q7517A
Q7518A
Q7519A
Q7520A
Color
Color
Color
Color
LaserJet 4700n printer
LaserJet 4700dn printer
LaserJet 4700dtn printer
LaserJet 4700ph+ printer
Accessories
500-sheet paper input feeder
750-sheet stapler/stacker with job offset 10
Printer stand
Q5950A
Q5951A
Q5952A
Q5953A
Connectivity accessories
HP Jetdirect 625n Gigabit Ethernet internal print server
HP Jetdirect 635n IPv6/IPsec and Gigabit Ethernet internal print server
HP Jetdirect ew2400 802.11g Wireless & Fast Ethernet external print
server (USB Hi-Speed)
HP Jetdirect en3700 Fast Ethernet external print server (USB Hi-Speed)
HP bt1300 Bluetooth® Wireless Printer Adapter
J7960G
J7961G
J7951G
J7942G
J6072G
Memory and storage
20 GB HP high-performance EIO hard disk
128 MB 200-Pin DDR DIMM
256 MB 200-Pin DDR DIMM
512 MB 200-Pin DDR DIMM
J6073A
Q7721A
Q7722A
Q7723A
Cables
Parallel cable, 3-meter IEEE 1284 (a to c)
Parallel cable, 10-meter IEEE 1284 (a to c)
HP USB cable, 1.83-meter (a-b)
Black Print Cartridge (12,000 pages)
Cyan Print Cartridge (12,000 pages)
Yellow Print Cartridge (12,000 pages)
Magenta Print Cartridge (12,000 pages)
HP Jetdirect 625n Gigabit Ethernet internal print server
HP Jetdirect 635n IPv6/IPsec and Gigabit Ethernet internal print server
HP Jetdirect ew2400 802.11g Wireless & Fast Ethernet external print
server (USB Hi-Speed)
HP Jetdirect en3700 Fast Ethernet external print server (USB Hi-Speed)
HP bt1300 Bluetooth Wireless Printer Adapter
North America: www.hp.com/go/everydaypapers
Contact HP via phone: USA: 1-800-477-5010
Third-party solutions
www.hp.com/go/gsc
128 MB 200-Pin DDR DIMM
256 MB 200-Pin DDR DIMM
512 MB 200-Pin DDR DIMM
Parallel cable, 3-meter IEEE 1284 (a to c)
Parallel cable, 10-meter IEEE 1284 (a to c)
HP USB cable, 1.83-meter (a-b)
Staple cartridge (5,000 staples) for stapler/stacker
ADF replacement Mylar sheets
ADF maintenance kit
110 volt image fuser
220 volt image fuser
110 volt image transfer kit
3 year warranty service, 4-hour response, standard business hours (9x5)
3 year next business day response
Networked hardware installation and configuration
Paper
North America: www.hp.com/go/everydaypapers
Contact HP via phone: USA: 1-800-477-5010
www.hp.com/go/gsc
11
Compatible with HP Color LaserJet 4700dn, 4700dtn, and 4700ph+ printer models only.
All print cartridge page yields are based at five percent page coverage.
© Copyright 2005, 2006 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth
in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
The Bluetooth trademarks are owned by its proprietor and used by Hewlett-Packard Company under license. Energy Star and the
Energy Star logo are U.S. registered marks of the United States Environmental Protection Agency. HP and the invent signature are
trademarks of the Hewlett-Packard Company. Microsoft, Windows, and Windows XP are U.S. registered trademarks of Microsoft
Corporation. UNIX is a registered trademark of The Open Group. Linux is a U.S. registered trademark of Linus Torvalds.
Printed in U.S.A.
For more information visit our website at www.hp.com
4AA0-0588ENUC, 06/2006, Rev. 5
J7942G
J6072G
Q7721A
Q7722A
Q7723A
C2946A
C2947A
C6518A
C8091A
Q6496A
Q5997A
Q7502A
Q7503A
Q7504A
Service and support
Third-party solutions
10
J7960G
J7961G
J7951G
Memory and storage
Supplies
Paper
Q6460A
Q6461A
Q6462A
Q6463A
Connectivity accessories
C8091A
Q7502A
Q7503A
Q7504A
U3795E
H3113E
H2872E
Q7521A
Q7523A
Q3701A
T1936AA
T1943AA
HP Color LaserJet Print Cartridges with HP ColorSphere Toner11
Cables
Service and support
3 year warranty service, 4-hour response, standard business hours (9x5)
3 year next business day response
Networked hardware installation and configuration
500-sheet stapler/stacker
700-sheet, 3-bin mailbox
HP LaserJet MFP Analog Fax Accessory 300
HP Digital Sending Software 4.0
HP AutoStore
C2946A
C2947A
C6518A
Supplies
Staple cartridge (5,000 staples) for stapler/stacker with job offset
110 volt image fuser
220 volt image fuser
110 volt image transfer kit
LaserJet 4730mfp
LaserJet 4730x mfp
LaserJet 4730xs mfp
LaserJet 4730xm mfp
Accessories and software
Q7499A
Q7003A
Q7501A
HP Color LaserJet Print Cartridges with HP ColorSphere Toner 11
Black Print Cartridge (11,000 pages)
Cyan Print Cartridge (10,000 pages)
Yellow Print Cartridge (10,000 pages)
Magenta Print Cartridge (10,000 pages)
Color
Color
Color
Color
HC116E
HC113E
U2010E
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
