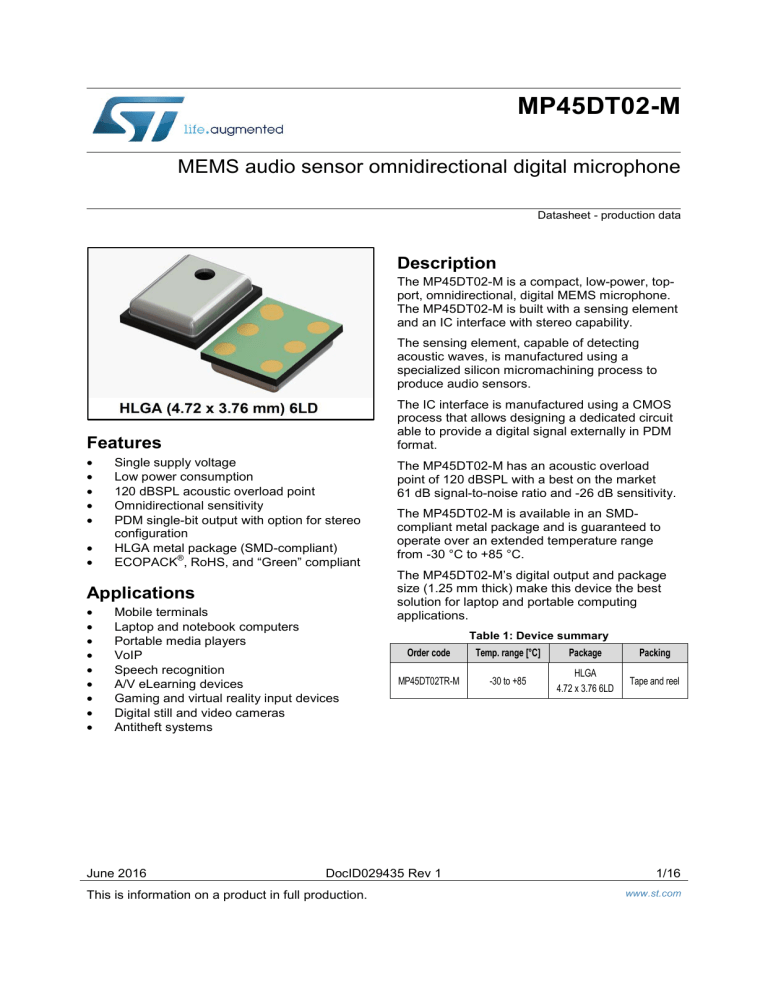

MEMS audio sensor omnidirectional digital microphone

MEMS audio sensor omnidirectional digital microphone

MP45DT02-M

MEMS audio sensor omnidirectional digital microphone

Datasheet - production data

Features

Single supply voltage

Low power consumption

120 dBSPL acoustic overload point

Omnidirectional sensitivity

PDM single-bit output with option for stereo configuration

HLGA metal package (SMD-compliant)

ECOPACK

®

, RoHS, and “Green” compliant

Applications

Mobile terminals

Laptop and notebook computers

Portable media players

VoIP

Speech recognition

A/V eLearning devices

Gaming and virtual reality input devices

Digital still and video cameras

Antitheft systems

Description

The MP45DT02-M is a compact, low-power, topport, omnidirectional, digital MEMS microphone.

The MP45DT02-M is built with a sensing element and an IC interface with stereo capability.

The sensing element, capable of detecting acoustic waves, is manufactured using a specialized silicon micromachining process to produce audio sensors.

The IC interface is manufactured using a CMOS process that allows designing a dedicated circuit able to provide a digital signal externally in PDM format.

The MP45DT02-M has an acoustic overload point of 120 dBSPL with a best on the market

61 dB signal-to-noise ratio and -26 dB sensitivity.

The MP45DT02-M is available in an SMDcompliant metal package and is guaranteed to operate over an extended temperature range from -30 °C to +85 °C.

The MP45DT02-M’s digital output and package size (1.25 mm thick) make this device the best solution for laptop and portable computing applications.

Order code

Table 1: Device summary

Temp. range [°C] Package Packing

MP45DT02TR-M -30 to +85

HLGA

4.72 x 3.76 6LD

Tape and reel

June 2016 DocID029435 Rev 1

This is information on a product in full production.

1/16

www.st.com

Contents

Contents

MP45DT02-M

1 Pin description ................................................................................ 5

2 Acoustic and electrical specifications ........................................... 6

2.1

2.2

2.3

Acoustic and electrical characteristics ............................................... 6

Timing characteristics ....................................................................... 7

Frequency response ......................................................................... 8

3 Sensing element .............................................................................. 9

4 Absolute maximum ratings ........................................................... 10

5 Functionality .................................................................................. 11

5.1

L/R channel selection ...................................................................... 11

6 Application recommendations ..................................................... 12

7 Package information ..................................................................... 13

7.1

7.2

Soldering information ...................................................................... 13

HLGA (4.72 x 3.76 mm) 6L (metal) package information ................ 14

8 Revision history ............................................................................ 15

2/16 DocID029435 Rev 1

MP45DT02-M

List of tables

List of tables

Table 1: Device summary ........................................................................................................................... 1

Table 2: Pin description .............................................................................................................................. 5

Table 3: Acoustic and electrical characteristics .......................................................................................... 6

Table 4: Distortion specifications ................................................................................................................ 6

Table 5: Timing characteristics ................................................................................................................... 7

Table 6: Absolute maximum ratings ......................................................................................................... 10

Table 7: L/R channel selection ................................................................................................................. 11

Table 8: Recommended soldering profile limits ........................................................................................ 13

Table 9: Document revision history .......................................................................................................... 15

DocID029435 Rev 1 3/16

List of figures

List of figures

MP45DT02-M

Figure 1: Pin connections ........................................................................................................................... 5

Figure 2: Timing waveforms ....................................................................................................................... 7

Figure 3: Typical frequency response normalized at 1 kHz........................................................................ 8

Figure 4: MP45DT02-M electrical connections ......................................................................................... 12

Figure 5: MP45DT02-M electrical connections for stereo configuration ................................................... 12

Figure 6: Recommended soldering profile limits ...................................................................................... 13

Figure 7: HLGA (4.72 x 3.76 mm) 6-lead package outline and mechanical data ..................................... 14

4/16 DocID029435 Rev 1

MP45DT02-M

1 Pin description

Figure 1: Pin connections

Vdd

6

DOUT

CLK

2

GND

LR

GND

Pin description

3

4

5

6

Pin n°

1

2

( B O T T O M V I E W )

Table 2: Pin description

Pin name

Function

GND 0 V supply

LR

Left/right channel selection;

MIC1 LR is connected to GND or Vdd and MIC2 LR is connected to Vdd or GND

(see

Figure 5: "MP45DT02-M electrical connections for stereo configuration"

GND 0 V supply

CLK Synchronization input clock

DOUT Left/right PDM data output

Vdd Power supply

DocID029435 Rev 1 5/16

Acoustic and electrical specifications

2

2.1

Acoustic and electrical specifications

MP45DT02-M

Acoustic and electrical characteristics

The values listed in the table below are specified for Vdd = 1.8 V, Clock = 2.4 MHz,

T = 25 °C, unless otherwise noted.

Symbol

Table 3: Acoustic and electrical characteristics

Parameter Test condition Min.

Typ.

(1)

Max.

Vdd

Idd

IddPdn

Supply voltage

Current consumption in normal mode

Current consumption in

power-down mode

(2)

Scc Short-circuit current

AOP Acoustic overload point

So Sensitivity

SNR Signal-to-noise ratio

PSR Power supply rejection

No load on data line

A-weighted @1 kHz, 1 Pa

Guaranteed by

design

(3)

1.64

1

-29

1.8

0.65

20

120

-26

61

-70

3.6

10

-23

Clock

Input clock frequency

(4)

1 2.4 3.25

TWK

Wake-up time

(5)

Guaranteed by design

10

Unit

V mA

µA mA dBSPL dBFS dB dBFS

MHz ms

Top

V

IOL

V

IOH

Operating temperature range

Low level logic input/output voltage

High level logic input/output voltage

I out

= 1 mA

I out

= 1 mA

-30

-0.3

0.65xVdd

+85

0.35xVdd

Vdd+0.3

°C

V

V

Notes:

(1)

Typical specifications are not guaranteed.

(2)

Input clock in static mode.

(3)

Test signal: 217 Hz square wave, 100 mVpp on Vdd pin.

(4)

Duty cycle: min = 40% max = 60%.

(5)

Time from the first clock edge to valid output data.

Parameter

Table 4: Distortion specifications

Test condition

Distortion

Distortion

100 dBSPL (50 Hz - 4 kHz)

115 dBSPL (1 kHz)

Value

< 1% THD + N

< 5% THD + N

6/16 DocID029435 Rev 1

MP45DT02-M

2.2 Timing characteristics

Parameter

Acoustic and electrical specifications

Table 5: Timing characteristics

Description Min Max Unit

f

CLK f

PD

T

CLK

T

R,EN

T

R,DIS

T

L,EN

T

L,DIS

Clock frequency for normal mode

Clock frequency for power-down mode

Clock period for normal mode

Data enabled on DATA line, L/R pin = 1

Data disabled on DATA line, L/R pin = 1

Data enabled on DATA line, L/R pin = 0

Data disabled on DATA line, L/R pin = 0

1

308

30

(1)

30

(1)

3.25

0.23

1000

16

(1)(2)

16

(1)(2)

Notes:

(1)

From design simulations

(2)

In order to measure the disable time, a 1 kΩ pull-down resistor must be added to the DOUT pin.

Figure 2: Timing waveforms

MHz

MHz ns ns ns ns ns

DocID029435 Rev 1 7/16

Acoustic and electrical specifications

2.3 Frequency response

Figure 3: Typical frequency response normalized at 1 kHz

MP45DT02-M

8/16 DocID029435 Rev 1

MP45DT02-M

3

Sensing element

Sensing element

The sensing element shall mean the acoustic sensor consisting of a conductive movable plate and a fixed plate placed in a tiny silicon chip. This sensor transduces the sound pressure into the changes of coupled capacity between those two plates.

Omron Corporation supplies this element for STMicroelectronics.

DocID029435 Rev 1 9/16

Absolute maximum ratings

4 Absolute maximum ratings

MP45DT02-M

Stresses above those listed as “absolute maximum ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device under these conditions is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.

Symbol

Table 6: Absolute maximum ratings

Ratings Maximum value Unit

Vdd

Vin

T

STG

ESD

Supply voltage

Input voltage on any control pin

Storage temperature range

Electrostatic discharge protection

-0.3 to 6

-0.3 to Vdd +0.3

-40 to +125

2 (HBM)

V

V

°C kV

10/16 DocID029435 Rev 1

MP45DT02-M

5

5.1

Functionality

Functionality

L/R channel selection

The L/R digital pad lets the user select the DOUT signal pattern as explained in

Table 7:

"L/R channel selection"

. The L/R pin must be connected to Vdd or GND.

L/R

Table 7: L/R channel selection

CLK low CLK high

GND

Vdd

Data valid

High impedence

High impedence

Data valid

DocID029435 Rev 1 11/16

Application recommendations

6 Application recommendations

Figure 4: MP45DT02-M electrical connections

10 µF

Vdd

10 0 nF

MP45DT02-M

L/R

2

1

3

5

4

6

Dout

C L K

Figure 5: MP45DT02-M electrical connections for stereo configuration

Vd d

1 0 µ F

10 0 n F

MIC 1

1

2

3

6

5

D out

4

MIC 2

1

Vd d

2

3

6

5

D out

4

CODEC

12/16

Power supply decoupling capacitors (100 nF ceramic, 10 µF ceramic) should be placed as near as possible to pin 6 of the device (common design practice).

The L/R pin must be connected to Vdd or GND (refer to

Table 7: "L/R channel selection"

).

DocID029435 Rev 1

MP45DT02-M

7

7.1

Package information

Package information

In order to meet environmental requirements, ST offers these devices in different grades of

ECOPACK

®

packages, depending on their level of environmental compliance. ECOPACK

® specifications, grade definitions and product status are available at: www.st.com.

ECOPACK

®

is an ST trademark.

Soldering information

The HLGA (4.72 x 3.76 x 1.25) mm package is also compliant with the RoHS and “Green” standards and is qualified for soldering heat resistance according to JEDEC J-STD-020.

Landing pattern and soldering recommendations are available at www.st.com.

Figure 6: Recommended soldering profile limits

Table 8: Recommended soldering profile limits

Description Parameter

Average ramp rate

Preheat

Minimum temperature

Maximum temperature

Time (T

SMIN

to T

SMAX

)

Ramp-up rate

Time maintained above liquidus temperature

Liquidus temperature

Peak temperature

Time within 5 °C of actual peak temperature

Ramp-down rate

Time 25 °C (t25 °C) to peak temperature

T

L

to T

P

T

SMIN

T

SMAX t

S

T

SMAX

to T

L t

L

T

L

T

P

Pb free

3 °C/sec max

150 °C

200 °C

60 sec to 120 sec

60 sec to 150 sec

217 °C

260 °C max

20 sec to 40 sec

6 °C/sec max

8 minutes max

DocID029435 Rev 1 13/16

Package information

7.2

MP45DT02-M

HLGA (4.72 x 3.76 mm) 6L (metal) package information

Figure 7: HLGA (4.72 x 3.76 mm) 6-lead package outline and mechanical data

ITEM

L e n g t h [ L ]

W i d t h

H e i g h t

[ W ]

[ H ]

Dimensions are in millimeter unless othe rwise specified

General Tolerance is +/-0.15mm unless otherwise spe cified

OUTER DIMENSIONS

DIMENSION [mm ]

4 .

7 2

3 .

7 6

1 .

2 5

TOL ERANCE [mm ]

± 0 .

1

± 0 .

1

± 0 .

1

8499123_A

Note: The MEMS microphone metal cap can exhibit some level of variation in color when

the device is subjected to a thermal process.

14/16 DocID029435 Rev 1

MP45DT02-M

8 Revision history

Date Revision

Table 9: Document revision history

Changes

13-Jun-2016 1 Initial release

Revision history

DocID029435 Rev 1 15/16

MP45DT02-M

IMPORTANT NOTICE – PLEASE READ CAREFULLY

STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement.

Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’ products.

No license, express or implied, to any intellectual property right is granted by ST herein.

Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.

ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners.

Information in this document supersedes and replaces information previously supplied in any prior versions of this document.

© 2016 STMicroelectronics – All rights reserved

16/16 DocID029435 Rev 1

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
