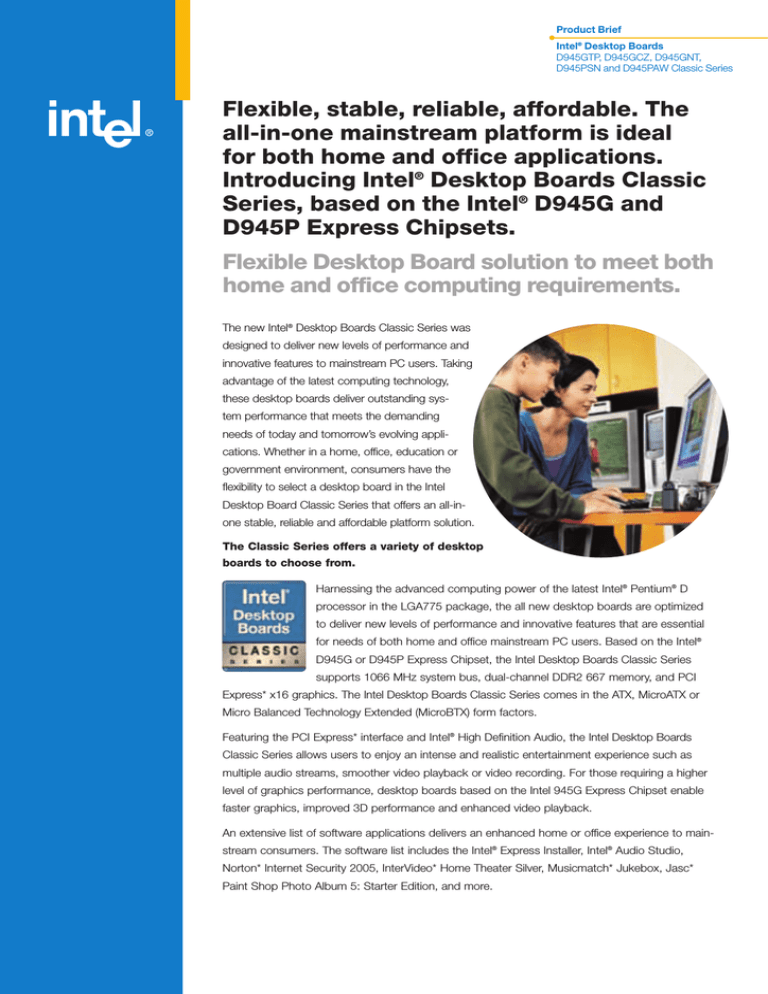

Product Brief
Intel® Desktop Boards
D945GTP, D945GCZ, D945GNT,
D945PSN and D945PAW Classic Series
Flexible, stable, reliable, affordable. The
all-in-one mainstream platform is ideal
for both home and office applications.
Introducing Intel® Desktop Boards Classic
Series, based on the Intel® D945G and
D945P Express Chipsets.
Flexible Desktop Board solution to meet both
home and office computing requirements.
The new Intel® Desktop Boards Classic Series was
designed to deliver new levels of performance and
innovative features to mainstream PC users. Taking
advantage of the latest computing technology,
these desktop boards deliver outstanding system performance that meets the demanding
needs of today and tomorrow’s evolving applications. Whether in a home, office, education or
government environment, consumers have the
flexibility to select a desktop board in the Intel
Desktop Board Classic Series that offers an all-inone stable, reliable and affordable platform solution.
The Classic Series offers a variety of desktop
boards to choose from.
Harnessing the advanced computing power of the latest Intel® Pentium® D
processor in the LGA775 package, the all new desktop boards are optimized
to deliver new levels of performance and innovative features that are essential
for needs of both home and office mainstream PC users. Based on the Intel®
D945G or D945P Express Chipset, the Intel Desktop Boards Classic Series
supports 1066 MHz system bus, dual-channel DDR2 667 memory, and PCI
Express* x16 graphics. The Intel Desktop Boards Classic Series comes in the ATX, MicroATX or
Micro Balanced Technology Extended (MicroBTX) form factors.
Featuring the PCI Express* interface and Intel® High Definition Audio, the Intel Desktop Boards
Classic Series allows users to enjoy an intense and realistic entertainment experience such as
multiple audio streams, smoother video playback or video recording. For those requiring a higher
level of graphics performance, desktop boards based on the Intel 945G Express Chipset enable
faster graphics, improved 3D performance and enhanced video playback.
An extensive list of software applications delivers an enhanced home or office experience to mainstream consumers. The software list includes the Intel® Express Installer, Intel® Audio Studio,
Norton* Internet Security 2005, InterVideo* Home Theater Silver, Musicmatch* Jukebox, Jasc*
Paint Shop Photo Album 5: Starter Edition, and more.
D945GNT
D945GTP
8
7
10
8
5
7
10
5
4
1
9
1
9
2
2
11
11
3
3
6
6
12"/30.48 cm
9.6"/24.38 cm
Features and Benefits
Intel® Desktop Board D945GNT, D945GTP and D945GCZ
1 Support for the Intel® Pentium® D processor,
Pentium® 4 processor, and the Celeron® D processor
in the LGA775 package: Features 1066 MHz system
bus, Intel® EM64T2, and boxed Intel processors with
packaging indicated by 05A, 05B, 04A or 04B.
2 Intel® 945G Express Chipset: Offers a new level of
visual quality with integrated Intel GMA 950.
3 Dual-channel DDR2 667 / 533 / 400 memory
support: Four DIMM sockets designed to support up
to 4 GB3 of DDR2 667 / 533 / 400 memory for greater
platform performance and flexible memory.
4 PCI Express* x16 graphics connector: Increased
graphics bandwidth delivers up to 4 GB/s per direction,
and is up to 3.5 times faster than previous highperformance discrete graphics solutions.
5 Two PCI Express* x1 connectors (Desktop Board
D945GNT) or one PCI Express x1 connector
(Desktop Board D945GTP and D945GCZ):
Designed for bandwidth-intensive applications,
PCI Express x1 I/O offers three and a half times
the bandwidth over traditional PCI architecture.
2
6 Four Serial ATA ports (3.0 Gb/s): Facilitates highspeed storage and data transfers at up to 3.0 Gb/s for
each of four ports.
7 Integrated Intel® PRO 10/100 Network Connection:
Features on-board 10/100-Mbps Ethernet LAN
connectivity.
8 Intel® High Definition Audio with 5.1 Surround
Sound: Provides flexible six-channel audio with jack
sensing and high-quality integrated audio rivals the
performance of high-end discrete solutions.
9 Four PCI connectors (Desktop Board D945GNT)
or two PCI connectors (Desktop Board D945GTP
and D945GCZ): Offers expansion slots to support
custom system configurations and future add-in card
upgrades.
10 Eight Hi-Speed USB 2.0 ports: Provides four back
panel ports and an additional four USB ports via two
internal headers.
11 Intel® Precision Cooling Technology: Advanced fan
speed control helps keep system cool and improve
noise levels.
9.6"/24.38 cm
9.6"/24.38 cm
4
D945GCZ
8
7
10
5
10.5"/26.67 cm
6
4
9
The Boxed Intel® Desktop Board D945GNT,
D945GTP and D945GCZ Solution includes:
3
2
1
■
ATX 2.2-Compliant I/O Shield (Desktop Board
D945GNT and D945GTP) or BTX 1.0a-Compliant I/O
Shield (Desktop Board D945GCZ)
■
Floppy, SATA, and ATA 100 / 66 Cables
■
Board and Back Panel I/O Layout Stickers
■
Intel® Desktop Board D945GNT Quick Reference,
Intel® Desktop Board D945GTP Quick Reference or
Intel® Desktop Board D945GCZ Quick Reference
■
Intel® Express Installer Driver and Software CDs
11
10.4"/26.41 cm
Software included:
■
Intel® Express Installer
■
Intel® Desktop Utilities4
■
Intel® Audio Studio
■
Farstone RestoreIT!* Lite
■
Norton* Internet Security 2005
■
InterVideo* Home Theater Silver
■
InterVideo* MediaOne* Silver
■
Kaspersky* AntiVirus Business Optimal (Russian only)
■
Musicmatch* Jukebox
■
Jasc* Paint Shop Photo Album 5: Starter Edition
■
Kingsoft* AntiVirus 2005 (Chinese only)
■
Yahoo!* Toolbar with Anti-spy
The Intel® Desktop Boards D945GNT (ATX), D945GTP
(MicroATX) and D945GCZ (MicroBTX) are designed to
showcase the latest integrated graphics chipset for the
Intel® Pentium D processor. These platforms deliver
outstanding system performance through high-bandwidth
interfaces such as dual-channel DDR2 667 / 533 / 4001
memory, 1066 MHz system bus and stunning displays
featuring both PCI Express* x16 graphics and Intel®
Graphics Media Accelerator 950 (Intel® GMA 950).
3
D945PSN
D945PAW
7
8
10
10
8
7
11
11
5
5
6
4
9
1
3
9
2
2
12
3
1
6
12
12"/30.48 cm
10.4"/26.41 cm
Features and Benefits
Intel® Desktop Board D945PSN and D945PAW
1 Support for the Intel® Pentium® D processor,
Pentium® 4 processor, and the Celeron® D processor
in the LGA775 package: Featuring 1066 MHz system
bus and Intel® EM64T2. Supports boxed Intel processors
with packaging indicated by 05A, 05B, 04A or 04B.
2 Intel® 945P Express Chipset: Offers a new level
of outstanding system performance through highbandwidth interfaces and discrete graphics.
3 Dual-channel DDR2 667 / 533 / 400 memory
support: Four DIMM sockets designed to support up
to 4 GB3 of DDR2 667 / 533 / 400 memory for greater
platform performance and flexible memory support.
4 PCI Express* x16 graphics connector: Increased
graphics bandwidth delivers up to 4 GB/s per direction,
and is up to 3.5 times faster than previous highperformance discrete graphics solutions.
5 Two PCI Express x1 connectors (Desktop Board
D945PSN) or one PCI Express x1 connector
(Desktop Board D945PAW): Designed for bandwidthintensive applications, PCI Express x1 I/O offers 3.5
times the bandwidth over traditional PCI architecture.
6 Four Serial ATA ports (3.0 Gb/s): Facilitates highspeed storage and data transfers at up to 3.0 Gb/s
for each of four ports.
4
7 Integrated Intel® PRO 10/100/1000 Network
Connection: Features on-board 10/100/1000-Mbps
Ethernet LAN connectivity.
8 Intel® High Definition Audio with 5.1 Surround
Sound: Provides flexible six-channel audio with jack
sensing and high-quality integrated audio that rivals
the performance of high-end discrete solutions.
9 Four PCI connectors (Desktop Board D945PSN)
or two PCI connectors (Desktop Board D945PAW):
Offers expansion slots for custom system configurations and future add-in card upgrades.
10 1394a connectors: One back panel port and two
internal headers for an additional two ports enable
data transfer from consumer electronic devices such
as digital camcorders and MP3 players
11 Eight Hi-Speed USB 2.0 ports: Provides four back
panel ports and an additional four USB ports via two
internal headers.
12 Intel® Precision Cooling Technology: Enables
advanced fan speed control to help keep system
cool and improve noise levels.
10.5"/26.67 cm
9.6"/24.38 cm
4
Boxed Intel® Desktop Board D945PSN and
D945PAW Solution includes:
■
ATX 2.2-Compliant I/O Shield (Desktop Board
D945PSN) or BTX 1.0a-Compliant I/O Shield
(Desktop Board D945PAW)
■
Floppy, SATA, and ATA 100 / 66 Cables
■
Board and Back Panel I/O Layout Stickers
■
Intel® Desktop Board D945PSN Quick Reference
or Intel® Desktop Board D945PAW Quick Reference
■
Intel® Express Installer Driver and Software CDs
Software included:
The Intel® Desktop Boards D945PSN (ATX) and D945PAW
(MicroBTX) are designed to showcase the latest discrete
graphics chipset for the Intel® Pentium® D processor.
These platforms deliver outstanding system performance
through high-bandwidth interfaces such as dual-channel
DDR2 667 / 533 / 4001 memory, 1066 MHz system bus
and stunning visual and audio featuring the PCI Express*
x16 graphics and Intel® High Definition Audio.
■
Intel® Express Installer
■
Intel® Desktop Utilities4
■
Intel® Audio Studio
■
Farstone RestoreIT!* Lite
■
Norton* Internet Security 2005
■
InterVideo* Home Theater Silver
■
InterVideo* MediaOne* Silver
■
Kaspersky* AntiVirus Business Optimal (Russian only)
■
Musicmatch* Jukebox
■
Jasc* Paint Shop Photo Album 5: Starter Edition
■
Kingsoft* AntiVirus 2005 (Chinese only)
■
Yahoo!* Toolbar with Anti-spy
5
Intel® Desktop Boards Classic Series
Product Family
Intel® Desktop
Board D945GNT
Intel® Desktop
Board D945GTP
Intel® Desktop
Board D945GCZ
Intel® Desktop
Board D945PSN
Intel® Desktop
Board D945PAW
Form Factor
ATX
MicroATX
Micro Balanced
Technology Extended
(MicroBTX)
ATX
Micro Balanced
Technology Extended
(MicroBTX)
Product Code/
UPC
BOXD945GNTL
(Intel® PRO 10/100) /
00735858174695
BOXD945GTPL
(Intel® PRO 10/100) /
00735858174756
BOXD945GCZL
(Intel® PRO 10/100) /
00735858174817
BOXD945PSNLK
(Intel® PRO 10/100/
1000) /
00735858173902
BOXD945PAWLK
(Intel® PRO 10/100/
1000) /
00735858174039
10-pack
Product
Code/UPC
BLKD945GNTL
(Intel PRO 10/100) /
00735858174701
KD945GNTLPAK10
(Intel PRO 10/100)
BLKD945GTPL
(Intel PRO 10/100) /
00735858174763
KD945GTPLPAK10
(Intel PRO 10/100)
BLKD945GCZL
(Intel PRO 10/100) /
00735858174824
KD945GCZLPAK10
(Intel PRO 10/100)
BLKD945PSNLK
(Intel PRO 10/100/1000) /
00735858174831
KD945PSNLKPAK10
(Intel PRO 10/100/1000)
BLKD945PAWLK
(Intel PRO 10/100/1000) /
00735858174046
KD945PAWLKPAK10
(Intel PRO 10/100/1000)
Processor
Support
Intel® Pentium® D
processor, Pentium® 4
processor, and
Celeron® D processor
in the LGA775 package
Intel® Pentium® D
processor, Pentium® 4
processor, and
Celeron® D processor
in the LGA775 package
Intel® Pentium® D
processor, Pentium® 4
processor, and
Celeron® D processor
in the LGA775 package
Intel® Pentium® D
processor, Pentium® 4
processor, and
Celeron® D processor
in the LGA775 package
Intel® Pentium® D
processor, Pentium® 4
processor, and
Celeron® D processor
in the LGA775 package
Platform
Compatibility
Guide
05A, 05B, 04A, 04B
05A, 05B, 04A, 04B
05A, 05B, 04A, 04B
05A, 05B, 04A, 04B
05A, 05B, 04A, 04B
Supported FSB
1066 MHz / 800 MHz /
533 MHz
1066 MHz / 800 MHz /
533 MHz
1066 MHz / 800 MHz /
533 MHz
1066 MHz / 800 MHz /
533 MHz
1066 MHz / 800 MHz /
533 MHz
Chipset
Intel® 945G Express
Chipset
Intel® 945G Express
Chipset
Intel® 945G Express
Chipset
Intel® 945P Express
Chipset
Intel® 945P Express
Chipset
Yes
Yes
Yes
Yes
Supports
Yes
Hyper-Threading
Technology
Graphics
Intel® Graphics Media
Accelerator 950
Intel® Graphics Media
Accelerator 950
Intel® Graphics Media
Accelerator 950
None
None
Graphics
Connector
PCI Express* x16
PCI Express* x16
PCI Express* x16
PCI Express* x16
PCI Express* x16
DDR2 667 / 533 / 4001
DDR2 667 / 533 / 4001
DDR2 667 / 533 / 4001
DDR2 667 / 533 / 4001
Memory Support DDR2 667 / 533 / 4001
SDRAM 4 slots,
SDRAM 4 slots,
SDRAM 4 slots,
SDRAM 4 slots,
SDRAM 4 slots,
Dual-channel (4GB3 Max) Dual-channel (4GB3 Max) Dual-channel (4GB3 Max) Dual-channel (4GB3 Max) Dual-channel (4GB3 Max)
Expansion Slots 2 PCI Express* x1, 4 PCI
6
1 PCI Express* x1, 2 PCI
1 PCI Express* x1, 2 PCI
2 PCI Express* x1, 4 PCI 1 PCI Express* x1, 2 PCI
Audio
Intel® High Definition
Intel® High Definition
Intel® High Definition
Intel® High Definition
Intel® High Definition
Audio: Flexible 6-channel Audio: Flexible 6-channel Audio: Flexible 6-channel Audio: Flexible 6-channel Audio: Flexible 6-channel
audio with jack sensing
audio with jack sensing
audio with jack sensing
audio with jack sensing
audio with jack sensing
USB Ports
Hi-Speed USB 2.0,
4 Back Ports / 4 Ports
via 2 internal headers
Hi-Speed USB 2.0,
4 Back Ports / 4 Ports
via 2 internal headers
Hi-Speed USB 2.0,
4 Back Ports / 4 Ports
via 2 internal headers
Hi-Speed USB 2.0,
4 Back Ports / 4 Ports
via 2 internal headers
Hi-Speed USB 2.0,
4 Back Ports / 4 Ports
via 2 internal headers
1394
None
None
None
Up to 3 IEEE-1394a
ports (1 back port)
Up to 3 IEEE-1394a
ports (1 back port)
Storage
4 SATA ports (3.0 Gb/s)
4 SATA ports (3.0 Gb/s)
4 SATA ports (3.0 Gb/s)
4 SATA ports (3.0 Gb/s)
4 SATA ports (3.0 Gb/s)
RAID
None
None
None
None
None
On-Board LAN
Intel PRO 10/100
Network Connection
Intel PRO 10/100
Network Connection
Intel PRO 10/100
Network Connection
Intel PRO 10/100/1000
Network Connection
Intel PRO 10/100/1000
Network Connection
TPM
No
No
No
No
No
Lead Free Board Yes
Yes
Yes
Yes
Yes
Product Family
Intel® Desktop
Board D945GNT
Intel® Desktop
Board D945GTP
Intel® Desktop
Board D945GCZ
Intel® Desktop
Board D945PSN
Intel® Desktop
Board D945PAW
Software
Intel® Express Installer
Intel® Desktop Utilities4
Intel® Audio Studio
Farstone RestoreIT!* Lite
Norton* Internet
Security 2005
InterVideo* Home
Theater Silver
Kaspersky* AntiVirus
Business Optimal
(Russian only)
Musicmatch* Jukebox
Jasc* Paint Shop Photo
Album 5: Starter Edition
InterVideo* MediaOne*
Silver
Kingsoft* AntiVirus 2005
(Chinese only)
Yahoo!* Toolbar with
Anti-spy
Intel® Express Installer
Intel® Desktop Utilities4
Intel® Audio Studio
Farstone RestoreIT!* Lite
Norton* Internet
Security 2005
InterVideo* Home
Theater Silver
Kaspersky* AntiVirus
Business Optimal
(Russian only)
Musicmatch* Jukebox
Jasc* Paint Shop Photo
Album 5: Starter Edition
InterVideo* MediaOne*
Silver
Kingsoft* AntiVirus 2005
(Chinese only)
Yahoo!* Toolbar with
Anti-spy
Intel® Express Installer
Intel® Desktop Utilities4
Intel® Audio Studio
Farstone RestoreIT!* Lite
Norton* Internet
Security 2005
InterVideo* Home
Theater Silver
Kaspersky* AntiVirus
Business Optimal
(Russian only)
Musicmatch* Jukebox
Jasc* Paint Shop Photo
Album 5: Starter Edition
InterVideo* MediaOne*
Silver
Kingsoft* AntiVirus 2005
(Chinese only)
Yahoo!* Toolbar with
Anti-spy
Intel® Express Installer
Intel® Desktop Utilities4
Intel® Audio Studio
Farstone RestoreIT!* Lite
Norton* Internet
Security 2005
InterVideo* Home
Theater Silver
Kaspersky* AntiVirus
Business Optimal
(Russian only)
Musicmatch* Jukebox
Jasc* Paint Shop Photo
Album 5: Starter Edition
InterVideo* MediaOne*
Silver
Kingsoft* AntiVirus 2005
(Chinese only)
Yahoo!* Toolbar with
Anti-spy
Intel® Express Installer
Intel® Desktop Utilities4
Intel® Audio Studio
Farstone RestoreIT!* Lite
Norton* Internet
Security 2005
InterVideo* Home
Theater Silver
Kaspersky* AntiVirus
Business Optimal
(Russian only)
Musicmatch* Jukebox
Jasc* Paint Shop Photo
Album 5: Starter Edition
InterVideo* MediaOne*
Silver
Kingsoft* AntiVirus 2005
(Chinese only)
Yahoo!* Toolbar with
Anti-spy
Intel Advanced
BIOS
Intel® Platform Innovation
Framework for the
Extensible Firmware
Interface (EFI)
Intel® Rapid BIOS Boot
Intel® Precision Cooling
Technology
Intel® Express BIOS
Update
Digital Signature
Technology
Fault Tolerant Flashing
Multiple Language
Support
Intel® Platform Innovation
Framework for the
Extensible Firmware
Interface (EFI)
Intel® Rapid BIOS Boot
Intel® Precision Cooling
Technology
Intel® Express BIOS
Update
Digital Signature
Technology
Fault Tolerant Flashing
Multiple Language
Support
Intel® Platform Innovation
Framework for the
Extensible Firmware
Interface (EFI)
Intel® Rapid BIOS Boot
Intel® Precision Cooling
Technology
Intel® Express BIOS
Update
Digital Signature
Technology
Fault Tolerant Flashing
Multiple Language
Support
Intel® Platform Innovation
Framework for the
Extensible Firmware
Interface (EFI)
Intel® Rapid BIOS Boot
Intel® Precision Cooling
Technology
Intel® Express BIOS
Update
Digital Signature
Technology
Fault Tolerant Flashing
Multiple Language
Support
Intel® Platform Innovation
Framework for the
Extensible Firmware
Interface (EFI)
Intel® Rapid BIOS Boot
Intel® Precision Cooling
Technology
Intel® Express BIOS
Update
Digital Signature
Technology
Fault Tolerant Flashing
Multiple Language
Support
Warranty
3 year limited warranty
3 year limited warranty
3 year limited warranty
3 year limited warranty
3 year limited warranty
7
Technical Specifications
■
Processor
Processor Support
■
Intel® Pentium® D processor in the
LGA775 package
■
Intel Pentium 4 processor in the
LGA775 package
■
®
■
Intel® Celeron® D processor in the
LGA775 package
Supports Intel® EM64T2
■
Platform Compatible Guide: 04A,
04B, 05A, 05B
■
Intel® 945G Express Chipset
■
■
■
■
■
Intel 945P Express Chipset
■
■
Intel® 82945P Memory
Controller Hub (MCH)
Intel® 82801GB I/O Controller
Hub (ICH7)
Serial Peripheral Interface (SPI)
Flash or Firmware Hub (FWH)
Graphics and Memory
Controller Hub (GMCH) for Intel®
945G Express Chipset, Memory
Controller Hub (MCH) for Intel®
945P Express Chipset
8
Memory Types
■
DDR2 667 / 533 / 4001 SDRAM
memory support
■
Non-ECC Memory
Four PCI local bus slots
(Desktop Boards
D945GNT/D945PSN)
Two PCI local bus slots
(Desktop Boards D945GTP,
D945GCZ, D945PAW)
Two PCI Express* x1 local bus slot
(Desktop Boards D945GNT,
D945PSN)
One PCI Express* x1 local bus slot
(Desktop Boards D945GTP,
D945GCZ, D945PAW)
Dual or single-channel operation
support
Memory Voltage
■
1.8V
Hardware Management
Features
■
Processor fan speed control
■
System chassis fan speed control
■
Voltage and temperature sensing
■
Fan sensor inputs used to monitor
fan activity
■
Power management support for
ACPI 1.0b
USB 2.0
Wake-Up From Network
Integrated Intel® ICH7 controllers:
■
Wired for Management (WfM)
2.0-compatible
■
Support for system wake-up using
an add-in network interface card
with remote wake-up capability or
integrated LAN
■
■
Four back-panel ports (two dual
stack)
Four additional ports (via two
headers)
Expansion Capabilities
Firmware Hub
■
Four PCI bus add-in card connectors (Desktop Boards D945GNT,
D945PSN)
■
Two PCI bus add-in card connectors (Desktop Boards D945GTP,
D945GCZ, D945PAW)
■
Two PCI Express x1 bus add-in
card connectors (Desktop Boards
D945GNT, D945PSN)
■
One PCI Express x1 bus add-in
card connector (Desktop Boards
D945GTP, D945GCZ, D945PAW)
■
One PCI Express x16 graphics
connector
System BIOS
■
Designed to support up to 4 GB3
of system memory using DDR2 667 /
533 / 4001 SDRAM Memory
Intel® ICH7 I/O Controller Hub
Four 240-pin DIMM connectors
supporting up to four double-sided
DIMMs
■
®
■
■
Integrated super I/O LPC bus
controller
Intel 82945G Graphics and
Memory Controller Hub (GMCH)
Serial Peripheral Interface (SPI)
Flash or Firmware Hub (FWH)
Memory Capacity
I/O Features
®
Intel® 82801GB I/O Controller Hub
(ICH7)
Intel® PRO 10/100/1000 Network
Connection (Desktop Boards
D945PSN, D945PAW)
System Memory
Memory Modes
Chipset
■
Intel® PRO 10/100 Network
Connection (Desktop Boards
D945GNT, D945GTP, D945GCZ)
®
■
■
Two PCI request-grant pairs for
support of two PCI bus masters
(Desktop Boards D945GTP,
D945GCZ, D945PAW)
■
4 Mb Flash EEPROM with Intel®
Platform Innovation Framework
for EFI Plug and Play, IDE drive
auto-configure
Advanced configuration and power
interface V1.0b, DMI 2.0, multilingual support
■
Up to two Ultra ATA 100 / 66
devices
■
Four SATA (3.0 Gb/s) ports
Intel® Rapid BIOS Boot
■
Four PCI request-grant pairs for
support of four PCI bus masters
(Desktop Boards D945GNT,
D945PSN)
■
Optimized POST for faster access
to PC from power-on
Jumpers and
Front-Panel Connectors
Regulations
Jumpers
U.S. and Canada
UL 1950,Third edition—CAN/CSA
C22.2 No. 950-95 with recognized
U.S. and Canadian component
marks
■
Single configuration jumper design
■
Jumper access for BIOS
maintenance mode
Front-Panel Connectors
Safety Regulations
Europe
Nemko certified to EN 60950
■
Reset, HD LED, Power LEDs,
power on/off
■
Two front-panel Hi-Speed USB
2.0 headers
International
Nemko certified to IEC 60950
(CB report with CB certificate)
■
Two front-panel 1394a headers
(Desktop Boards D945PSN,
D945PAW)
EMC regulations (tested in
representative chassis)
■
Front-panel audio header
U.S.: FCC Part 15, Class B
U.S.: FCC Part 15, Class B
open-chassis (cover off) testing
Mechanical
Board Style
■
Desktop Boards D945GNT,
D945PSN—
ATX 2.2-compliant
■
Desktop Board D945GTP—
MicroATX 1.2-compliant
■
Desktop Boards D945GCZ,
D945PAW—
MicroBTX 1.0a-compliant
Board Size
■
Desktop Board D945GNT,
D945PSN—
12" x 9.6" (30.48 cm x 24.38 cm)
■
Desktop Board D945GTP—
9.6" x 9.6" (24.38 cm x 24.38 cm)
■
Desktop Boards D945GCZ,
D945PAW—
10.5”x10.4 (26.67 cm x 26.41 cm)
Canada: ICES-003, Class B
Europe: EMC directive 89/336/EEC;
EN 55022:1998 Class B;
EN 55024:1998
Australia/New Zealand: AS/NZS
3548, Class B
Taiwan: CNS 13438, Class B
International: CISPR 22:1997,
Class B
Power requirements vary. Complies
with US CRF via EN55022 +6 db
in system configurations with an
open chassis and EU Directive
89/336/EEC and use via EN55022
and EN50082-1 in a representative
chassis.
Baseboard Power Requirements
■
Desktop Board D945GNT,
D945PSN—ATX12V
■
Desktop Boards D945GTP,
D945GCZ, D945PAW—
ATX12V or SFX12V
Environment
Operating Temperature
■
0° C to +55° C
Storage Temperature
■
-40° C to +70° C
9
Ordering Information: See the Intel Web site at www.intel.com.
For the most current product information,
visit developer.intel.com/design/motherbd/
1 DDR2 400 memory is only supported in combination with Intel® Pentium® 4 processor with 800 MHz system bus.
2 Intel® Extended Memory 64 Technology (Intel® EM64T) requires a computer system with a processor, chipset, BIOS,
operating system, device drivers and applications enabled for Intel EM64T. Processor will not operate (including 32-bit
operation) without an Intel EM64T-enabled BIOS. Performance will vary depending on your hardware and software
configurations. See www.intel.com/info/em64t for more information including details on which processors support Intel
EM64T or consult with your system vendor for more information.
3 Desktop Boards D945GTP, D945GCZ, D945GNT, D945PSN and D945PAW were designed to support up to 4-GB total
system memory using DIMMs based on 512-Mbit or 1-Gbit technologies. 1-Gbit technology has not been validated on
these Intel® Desktop Boards. For more information about the latest list of tested memory, refer to the Intel World Wide
Web site at: http://support.intel.com/support/motherboards/desktop/.
4 Intel® Desktop Utilities includes: hardware monitoring, Diskeeper* Lite defragmentation, NTI Backup Now*, StressTest*,
OSA AdminWorks* and Symantec* Security Check.
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE, EXPRESS
OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS
DOCUMENT. EXCEPT AS PROVIDED IN INTEL’S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL
ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING
TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR
A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER
INTELLECTUAL PROPERTY RIGHT.
Intel products are not intended for use in medical, life-saving, or life-sustaining applications. Intel may make changes
to specifications and product descriptions at any time, without notice.
All products, dates and figures specified are preliminary based on current expectations, and are subject to change without
notice. Availability in different channels may vary.
Intel, Pentium, Celeron, Intel Inside and the Intel logo are trademarks or registered trademarks of Intel Corporation or its
subsidiaries in the United States and other countries.
*Other names and brands may be claimed as the property of others.
Copyright © 2005 Intel Corporation. All rights reserved.
Order Number: 307670-001
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
