NEC UF0002 FDD 1,44MB 3.5", black Datasheet

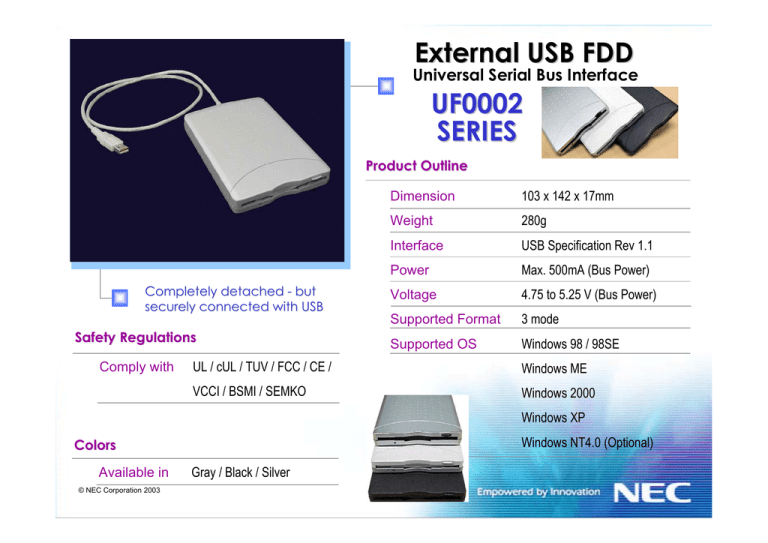

External USB FDD
Universal Serial Bus Interface
UF0002
SERIES
Product Outline
Completely detached - but
securely connected with USB
Safety Regulations
Comply with
Dimension
103 x 142 x 17mm
Weight
280g
Interface
USB Specification Rev 1.1
Power
Max. 500mA (Bus Power)
Voltage
4.75 to 5.25 V (Bus Power)
Supported Format
3 mode
Supported OS
Windows 98 / 98SE
UL / cUL / TUV / FCC / CE /
Windows ME
VCCI / BSMI / SEMKO
Windows 2000
Windows XP
Windows NT4.0 (Optional)
Colors
Available in
© NEC Corporation 2003
Gray / Black / Silver
Mechanical Specification
Environment Specification
Dimenｓion
103(W) x 142(L) x 17(H)
Temperature
Cable Length
300 mm
Operational
Weight
280 g
Non-Operational -20~-60 deg C
5~35 deg C
Humidity
Operational 20~80%RH (Non condensing)
Non-Operational 10~90%RH (Non condensing)
Shock
Operational (Duration : 11ms Wave form : 1/2 Sine): 49.0m/s2 (5G)
Non-Operational (Duration : 11ms Wave form : 1/2 Sine): 980.7m/s2 (100G)
Vibration
Operational (5 to 500Hz) : 4.9m/s2 ( 0.5G )
Non-Operational (5 to 500Hz) : 19.6m/s2 ( 2G )
Reliability
MTTF : 30,000POH
© NEC Corporation 2003
