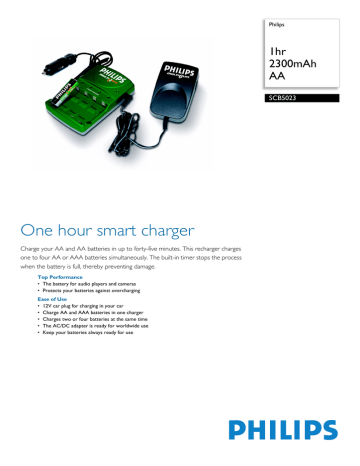

Philips SCB5023, SCB5023/05 Datasheet
For preview purpose only
Philips
1hr
2300mAh
AA
SCB5023
One hour smart charger
Charge your AA and AA batteries in up to forty-five minutes. This recharger charges
one to four AA or AAA batteries simultaneously. The built-in timer stops the process
when the battery is full, thereby preventing damage.
Top Performance
• The battery for audio players and cameras
• Protects your batteries against overcharging
Ease of Use
• 12V car plug for charging in your car
• Charge AA and AAA batteries in one charger
• Charges two or four batteries at the same time
• The AC/DC adapter is ready for worldwide use
• Keep your batteries always ready for use
For preview purpose only
SCB5023/12
1hr 2300mAh AA
Technical specifications
Accessories
• Included batteries: 4x Multilife AA
Power
• Battery capacity: 2300 mAh
• Battery voltage: 1.2 V
• Power supply: 100-240VAC, 50/60Hz
Green Specifications
•
•
•
•
Chemical composition: Nickel metal hydride
Heavy metals: Cd free, Hg free
Packaging material: Carton, PET
Packaging type: Clam shell blister
Product highlights
Dimensions
• Blister dimensions (WxDxH): 255 x 137 x 79
mm
• Blister weight: 0.044 kg
• Master carton quantity: 4
• Outer carton dimensions WxDxH: 267 x 238 x
167 mm
• Product dimensions (WxDxH): 125 x 80 x 28
mm
• Product weight: 0.427 kg
•
2300 mAh rechargeable AA
The 2300 mAh of energy keeps your audio player or
digital camera going longer.
12V car plug
The charger has a special adapter that fits into the
cigarette lighter socket of your car. This means that next
to charging from the mains you can also do it when you
are on the move.
Charge AA and AAA
The charger is designed to charge AA and AAA
batteries.
Charge in pairs
The charger is designed to charge two or four batteries
at the same time.
Ready for worldwide use
An AC/DC adapter that can handle input voltages of
100 to 240V. By simply adding a plug converter for the
desired country the charger can be used worldwide.
Smart charge protection
The special sensor detects when the batteries are fully
charged and switches over to trickle charge to keep your
batteries full and ready for use. The overcharge
protection prolongs the life of your batteries by
preventing the damage caused by overcharging.
Trickle charge
Rechargeable batteries all suffer from self-discharge
over time. The automatically-started trickle charge
keeps your batteries full and ready for use when they
are kept inside the charger and in the power outlet.
Date of issue 2006-04-22
Version: 3.0
12 NC: 9082 100 05094
EAN: 87 10895 90906 8
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
