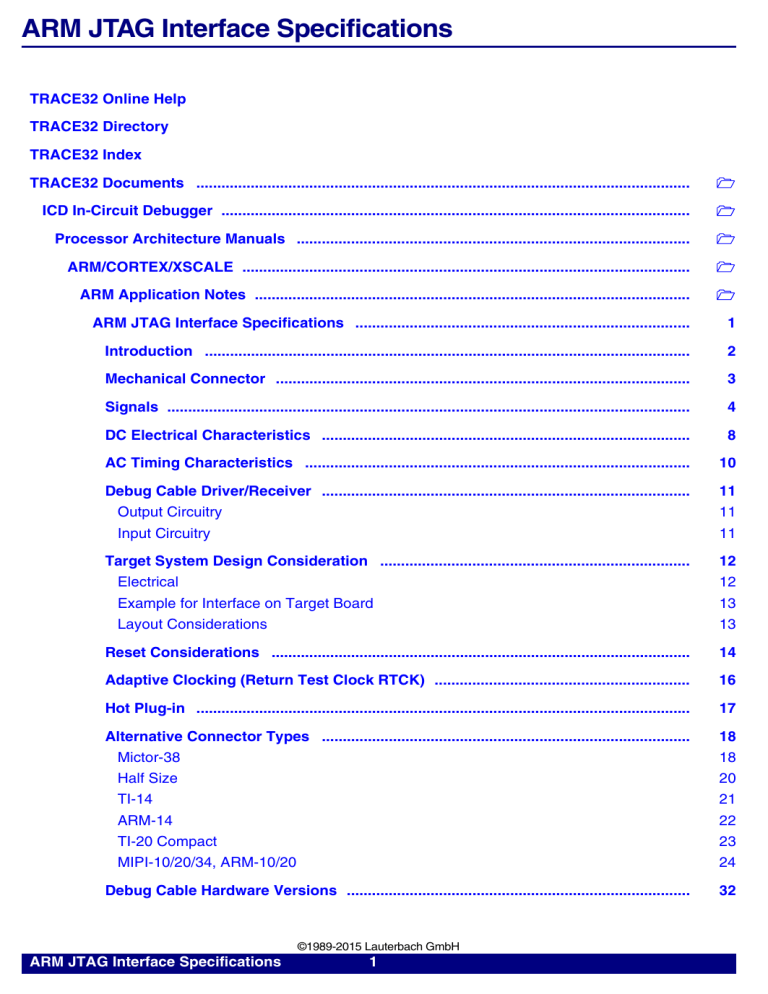

ARM JTAG Interface Specifications ................................................................................
1
Introduction ....................................................................................................................
2
Mechanical Connector ...................................................................................................
3
Signals .............................................................................................................................
4
DC Electrical Characteristics ........................................................................................
8
AC Timing Characteristics ............................................................................................
10
Debug Cable Driver/Receiver ........................................................................................
11
Output Circuitry
11
Input Circuitry
11
Target System Design Consideration ..........................................................................
12
Electrical
12
Example for Interface on Target Board
13
Layout Considerations
13
Reset Considerations ....................................................................................................
14
Adaptive Clocking (Return Test Clock RTCK) .............................................................
16
Hot Plug-in ......................................................................................................................
17
Alternative Connector Types ........................................................................................
18
Mictor-38
18
Half Size
20
TI-14
21
ARM-14
22
TI-20 Compact
23
MIPI-10/20/34, ARM-10/20
24
Debug Cable Hardware Versions ..................................................................................
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
1
32
ARM JTAG Interface Specifications
Version 19-May-2015
Introduction
The debugger communicates with the target processor via JTAG interface. It is connected with a probe cable
(debug cable”) to the JTAG connector on the target board.
This application note outlines the requirements to make the interface compatible with the LAUTERBACH
debugger for ARM and XScale cores. It describes the requirements with respect to logical functionality,
physical connector, electrical characteristics, timing behavior, and printed circuit board (PCB) design. It will
be useful for target board designers and for engineers suspecting an issue in an existing interface.
The following text assumes a debug cable version V3 (September 2003 or later) and the connector type of
standard delivery. The chapter Debug Cable Hardware Versions describes the main differences to other
versions. The chapter Alternative Connector Types lists optional connectors and available adapters.
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
2
Introduction
Mechanical Connector
The mechanical connector is specified by ARM (ARM-20).
Signal
VTREF
TRSTTDI
TMS
TCK
RTCK
TDO
SRSTDBGRQ
DBGACK
Pin
1
3
5
7
9
11
13
15
17
19
Pin
2
4
6
8
10
12
14
16
18
20
Signal
VSUPPLY(not used)
GND
GND
GND
GND
GND
GND
GND
GND
GND
On the target board a male standard 20-pin double row connector (two rows of ten pins), pin to pin spacing:
0.100 in. x 0.100 in., pin width 0.025 in. square post is required. A connector with housing (shrouded) and a
center polarization is recommended. These connectors, especially the headers without housing are
available from many connector manufacturers.
Examples with housing:
Samtec: HTST-110-01-L-D (through-hole)
Samtec: HTST-110-01-L-DV (surface mount)
Examples without housing:
Samtec: TSW-110-23-L-D
Berg: 67996-120H
Debug Cable
Target Connector
The connector of the debug cable mounted on the blue ribbon cable is an IDC female polarized socket
connector of type Tyco / T&B: 1-1658526-3 / 609-2041.
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
3
Mechanical Connector
Signals
This JTAG interface is a superset of IEEE Std 1149.1. TCK, TMS, TDI, TDO, TRST- are the standard JTAG
signals. A few more signals are added for advanced debug capabilities.
Signal
Pin
Description
Direction
(debugger
point of
view)
Compliance
VTREF
1
”Voltage Reference” is the target reference
voltage. It indicates if the target power is
applied, it is used to create the logic-level
reference (VTREF/2) for the debugger input
comparators and it auto adjusts the voltage
levels of the debugger output driver.
input
required
input
not
used
It shall be directly connected to the power
supply of the processors IO pins. It might
have a series resistor, although this is not
recommended. It has to be strong enough
to overdrive the 100 k pull-down resistor of
the debug cable.
VSUPPLY
2
”Voltage Supply” is used by some debug
tools to draw it's supply current. This is not
used (not connected) by LAUTERBACH
tools which are all self-powered.
You might connect this signal to a 5 V or
3.3 V power supply (no series resistor)
which is able to supply power to nonLAUTERBACH debug tools.
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
4
Signals
Signal
Pin
Description
Direction
(debugger
point of
view)
Compliance
TRST-
3
”Test Reset” (low active) is used for an
asynchronous reset of the JTAG Test
Access Port (TAP). It resets the TAP state
machine and on most ARM families the
debug register.
output
optional
output
required
output
required
output
required
See important notes in the chapter Reset
Considerations.
The debugger drives it by a push-pull driver.
From the debugger point of view it is
optional, because it resets the TAP also by
a certain JTAG sequence.
You should place a pull-down resistor
(1 k - 47 k) on this signal on target side,
although this is not JTAG conform. It
ensures the on-chip debug logic is inactive
when the debugger is not connected.
TDI
5
”Test Data In” is the data signal from
debugger to processor.
You can place a pull-up or pull-down resistor
(1 k - 47 k) on this line to ensure a
defined state even when the line is not
driven by the debugger.
TMS
7
”Test Mode Select” is the control signal for
the TAP controller.
You can place a pull-up or pull-down resistor
(1 k - 47 k) on this line in order to give it a
defined state even when the line is not
driven by the debugger.
TCK
9
”Test Clock” is the clock signal from
debugger to processor.
You should place a pull-up or pull-down
resistor (1 k - 47 k) on this line in order to
give it a defined state even when the line is
not driven by the debugger.
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
5
Signals
Signal
Pin
Description
Direction
(debugger
point of
view)
Compliance
RTCK
11
”Return Test Clock” can be used to
synchronize the JTAG signals to internal
clocks. For more details see chapter
Adaptive Clocking.
input
optional
input
required
input/
output
optional
(require
d for
XSCAL
E cores)
If this is not required, then it can be used to
compensate the propagation delays on
driver and cable. This allows to reach higher
JTAG clock frequencies. Therefore you
need to feed-back the TCK signal buffered
or unbuffered to this line. On an unbuffered
feed-back it might have negative effect on
signal reflection. Better provide a chance to
cut the connection on the target (jumper or
solder bridge) in case problems arise.
TDO
13
”Test Data Out” is the data signal from
processor to debugger.
You can place a 33  series resistor close
to the processor for series termination. You
can place a pull-up or pull-down resistor
(1 k - 47 k) on this line.
SRST-
15
”System Reset” (low active) is used to reset
the target system.
See important notes in the chapter Reset
Considerations.
The signal is also used by the debugger to
detect if the processor is held in reset.
There is no need to provide this indication,
but if a reset condition is not signalized by
this line it should be high (= no reset).
The debugger drives it open-drain. A 47 k
pull-up is within the debug cable.
There might be the need to place a pull-up
(1 k - 47 k) on target side to avoid
unintentional resets when the debugger is
not connected and probably to strengthen
the weak 47 k pull-up in the debug cable.
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
6
Signals
Signal
Pin
Description
Direction
(debugger
point of
view)
Compliance
DBGRQ
17
”Debug Request” (high active) is an output
of the debugger to cause the processor to
enter debug mode (to halt the processor).
The debugger can send a debug request
also in an other way which is just slower.
output
optional
input
optional
On many chips this signal is not provided
externally. If available it can be used for fast
stopping the processor with a hardware
trigger e.g. for synchronous halt of all cores
in a multicore system.
If this signal is provided by the processor
you should place a pull-down resistor
(1 k - 47 k) on target side for the case the
debugger is not connected.
DBGACK
19
”Debug Acknowledge” (high active) is an
input of the debugger to sense the
processors halt status.
On many chips this signal is not provided
externally. If available it can be used for fast
triggering e.g. for synchronous halt of all
cores in a multicore system.
GND
4, 6,
8,
10,
12,
14,
16,
18,
(20)
required
”Ground”.
All pins should be connected to minimize
noise pickup. In the debug cable Pin 20 is
connected to ground via a 100  resistor to
avoid damage of the debug cable in case it
will be connected inversely.
There is an additional, small gold plug on the side of the debug cable case. This signal is not required. It can
be used for customer specific solutions.
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
7
Signals
DC Electrical Characteristics
The table below describes the DC electrical characteristics at the 20-pin JTAG connector of the debug cable.
The values for current measures positive in direction from the debug cable to the target system. The
characteristics apply to the full operation range of the target system. The values below are for reference only
and are not guaranteed by LAUTERBACH.
Symbol
Description
Vvtref
VTREF
operating
voltage
0.38
Vvtref_
pwrdwn
VTREF
power
down
indication
-0.3
Ivtref
VTREF
current
Vil
Low-level
input
voltage
Vih
Vol
Voh
High-level
input
voltage
Low-level
output
voltage
High-level
output
voltage (1)
Condition
Min.
Vvtref = 5.25V
Typ.
Max.
Unit
5.25
V
0.27
0.35
V
-0.05
-0.1
mA
0.3 * Vvtref
V
5.25
V
0.3 * Vvtref
V
Vvtref
V
-0.3
0.6
0.75
1.1
1.5
2.3
Vvtref = 1.5V
Vvtref = 1.8V
Vvtref = 2.5V
Vvtref = 3.3V
Vvtref = 5.0V
0.7 * Vvtref
0.9
1.0
1.4
1.8
2.6
Vvtref = 1.5V
Vvtref = 1.8V
Vvtref = 2.5V
Vvtref = 3.3V
Vvtref = 5.0V
0
typ. values for:
Iol = -0.1mA
Iol = -1.6mA
Iol = -6mA
0.01
0.08
0.32
0.7* Vvtref
0.31
1.14
1.45
2.15
2.95
4.58
Vvtref = 0.4V
Vvtref = 1.5V
Vvtref = 1.8V
Vvtref = 2.5V
Vvtref = 3.3V
Vvtref = 5.0V
0.4V: Ioh=2mA
other:
Ioh=6mA
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
8
DC Electrical Characteristics
Symbol
Description
Iil
Condition
Min.
Typ.
Max.
Unit
Low-level
input
current
0.2
mA
Iih
High-level
input
current
-0.2
mA
Iol
Low-level
output
current
Vvtref < 1.5V
Vvtref >= 1.5V
Vol <
0.3*Vvtref
-2
-6
mA
Ioh
High-level
output
current (1)
Vvtref < 1.5V
Vvtref >= 1.5V
Voh >
0.7*Vvtref
2
6
mA
(1) except SRST- which is driven open-drain. There is a 47 k pull-up in the debug cable. An additional
pull-up on target side might be required.
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
9
DC Electrical Characteristics
AC Timing Characteristics
Important for the timing is that the data on TDI and TMS will be sampled with the rising edge of TCK (will be
output on the falling edge) and that TDO will change on the falling edge of TCK (exception see Adaptive
Clocking).
All delays will affect the maximum possible JTAG frequency (TCK) which is selectable in the LAUTERBACH
tool (default setting: 10 MHz). Issues with minimal setup and hold times can always be resolved by simply
decreasing the TCK frequency, because this increases the separation between signal changing and being
sampled. Nether the less you should minimize the delays in order to get a good performance e.g. when
downloading the application program by the debugger.
The following table should give you an example for the timing considerations in case you like to work with a
20 MHz JTAG clock frequency, which results in a very good performance. The timing is measured at the
JTAG connector of the debug cable. Setup times and hold times are measured with respect to 50% signal
level value, rise and fall times are measured at 20% and 80%. The measured values are for reference only
and are not guaranteed by LAUTERBACH.
Symbol
Description
Min.
Max.
Unit
Ttck_high
TCK high time
22
28
ns
Ttck_low
TCK low time
22
28
ns
Tsetup
TDI, TMS setup time before rising TCK
21
ns
Thold
TDI, TMS hold time after rising TCK
21
ns
Ttdo_out
TDO output delay time from falling TCK
0
Ttrst_low
TRST- low time
1
ms
Tsrst_low
SRST- low time
1
ms
Trf
output rise / fall time
load = 10 pF
load = 22 pF
load = 33 pF
16
ns
ns
6
7
8
Values in table for 20 MHz JTAG clock (TCK).
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
10
AC Timing Characteristics
Debug Cable Driver/Receiver
This chapter describes the actual driver/receiver circuitry inside the debug cable (version V3). For additional
information refer to the data sheets of MAX4616, MAX4615 and DS90C032.
Output Circuitry
The output signals TCK, TMS, TDI, TRST-, DBGRQ are driven by analog switches which switch the signal
level to VTREF (supplied by debugger), GND respectively. Another analog switch is used to tristate this
output signal. A 47  resistor is used for current limitation and serial termination. SRST- has a 47 k pull-up
instead the analog switch to VTREF (see Input Circuitry).
Input Circuitry
The input signals TDO, RTCK, DBGACK, SRST- are compared against VTREF/2.
Signal
R1
R2
RTCK
0
47 k pull-down, parallel to R2: termination 220 , 220 pF
TDO
0
100 k pull-down
DBGACK
1 k
47 k pull-down
SRST-
0
47 k pull-up
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
11
Debug Cable Driver/Receiver
Target System Design Consideration
Electrical
The JTAG interface is not error tolerant. A spike on TCK will most likely cause a break-down of the JTAG
communication which will need a re-initialization of the JTAG interface and a re-start of the debug session.
Therefore a careful interface design is required to get the debugger working stable.
A direct and short connection (no buffer or level-shifter) between JTAG connector and processor is
recommended.
The debugger output signals are series terminated to reduce signal reflections. A direct, unbuffered
connection of TCK to RTCK could have a negative effect. Connect TCK and RTCK with possibility to
disconnect them easily in case of coming up problems or use a buffer in between.
Optional, not used signals can be left open (recommended). If you put a fix level on a optional, not used
terminal you have to use the inactive state: RTCK = low, DBGRQ = low, DBGACK = low, TRST- = high,
SRST- = high.
Recommended pull-up/pull-down value is 10 k (1 k - 47 k). Pull-up or pull-down resistors can be used
to give signals a defined level in case of not connected or tristated debugger. Furthermore it reduces
crosstalk on the cable between debugger and connector.
To ensure compatibility to other debug cable revisions check chapter Other Debug Cable Hardware
Versions. The main difference is that older versions draw power from the VTREF signal. To be compatible
you should connect VTREF directly to the power supply without a series resistor and allow the older debug
cables to draw current which is mainly determined by the pull-ups/pull-downs on the signals driven by the
debug cable (about 2 mA).
For connecting several debug cables to the same target JTAG interface you need to use the “tristate” mode
of the debugger which requires a pull-up at TRST- and a pull-up or pull-down at TCK. ”Tristate” mode
ensures that TCK maintains its level and TRST- does not cause a reset during a control hand over between
the different debug cables.
NOTE: The procedure for connecting several debug cables differs from that recommended in chapter
Signals.
There are important design hints dedicated to each signal in chapter Signals.
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
12
Target System Design Consideration
Example for Interface on Target Board
Assumed is a processor which does not need synchronization of JTAG clock and internal clocks (e.g.
ARM9TDMI) and does not provide DBSRQ and DBGACK externally.
Layout Considerations
Keep the distance between JTAG connector and processor short (recommended < 5 inch). Preferred
position is the edge of the PCB.
The debugger output signals are series terminated to reduce signal reflections. This is negatively effected if
you wire the signals to different, optional used connectors.
Assuming a connector type with housing the debug cable requires no additional space around the
connector.
If you place the connector the way that the even pin numbers show to the edge of the PCB, then the flat
cable goes straight off the PCB.
Avoid tall components around the connector for easy access.
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
13
Target System Design Consideration
Reset Considerations
SRST- versus TRSTFor debugging the two reset lines have to be handled independently.
TRST-: Resets the JTAG TAP controller and the CPU internal debug logic.
SRST-: Resets the CPU core and peripherals.
If it does not work this way you will meet issues in the following two scenarios:
Debugging from the very beginning
The standard sequence to start-up debugging is:
•
force TRST- and SRST-
•
release TRST- (JTAG communication can start)
•
initialize debug logic via JTAG and send a break request
•
release SRST- (processor becomes active and starts executing the program)
•
the break request hits immediate, program execution stops before execution of the first
instruction
This scenario allows debug control from the very first instruction of the application code.
Problems arise if TRST- is directly connected to SRST-. The debugger can not send the break request
before SRST- is released. As a result the processor starts program execution and parts of the boot code will
be executed before a break request can take effect. The debug session does not reflect the real program
behavior anymore, since peripherals and interrupts might already be initialized.
When this situation can not be avoided due to an existing design, the following workarounds can help:
•
Place a endless loop at the reset vector, probably also disable the watchdog there. After start-up
load your program and set the program counter to the begin of your program.
•
Maybe there is a way to softreset the processor. This could be done after the start-up procedure
to put the processor in reset state. This assumes the softreset does not cause a TRST- like reset.
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
14
Reset Considerations
Debugging a reset event
In general debugging of a reset event is supported. Problems arise if this reset event
•
forces a reset to the JTAG TAP controller, because this cuts the communication between
debugger and processor
•
forces a reset to any debug related logic like on-chip breakpoints, because it becomes inactive
then
In both cases a new debugger start-up is required.
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
15
Reset Considerations
Adaptive Clocking (Return Test Clock RTCK)
The JTAG clock for synthetic cores (e.g. ARM9xxE-S, ARM11xx) must be synchronized externally to the
core clock. This might be done on-chip or off-chip. ARM recommends the following synchronization logic in
the technical reference manuals of the cores:
The debugger can be switched to ”RTCK” clock mode which causes it to issue a TCK edge and to wait for
the RTCK (Returned TCK) edge to come back before it progress to the next edge.
Instead of using the ”RTCK” clock mode and RTCK signal the debugger can work with a fix TCK frequency.
Theoretically a maximum of 1/6 (ARM9), 1/8 (ARM11) of the core clock frequency can be reached. Due to
propagation delays and tolerances an even lower TCK frequency must be selected. A fix TCK clock
selection will hardly work if the core clock is not known, dynamically changed or if a power saving mode
switch off the clock for a certain time. In this cases it is strongly recommended to provide and use RTCK.
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
16
Adaptive Clocking (Return Test Clock RTCK)
Hot Plug-in
The JTAG connector of the debug cable is not suitable for hot plug-in. Connect GND and VTREF first and
then the JTAG connector. Otherwise glitches might happen due to the connection of all of the uncharged
signals which could e.g. reset the device.
To solve this challenge a special adapter might be required which connects ground of the debugger and
target first and provides a voltage level to the reference voltage pin which causes a pre-charging of the
signals (then especially the reset signal SRST- is high at the moment of plugging).
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
17
Hot Plug-in
Alternative Connector Types
Besides the 20-pin header (ARM-20) which is the standard connector of the current debug cable and the
recommended one by LAUTERBACH, there are also other connector types used on the marked.
LAUTERBACH meet this by offering adapters for following connectors:
•
Mictor-38
•
Half Size
•
TI-14
•
ARM-14
•
TI-20 Compact
•
MIPI-10/20/34
Mictor-38
When the target board provides a trace port (ETM) and has just a Mictor connector for debug and trace
interfaces the Mictor-38 adapter can be used to connect a debug cable without a trace probe (preprocessor).
For a LAUTERBACH tool with trace probe (preprocessor) no adapter is necessary. You can plug the debug
cable to the preprocessor instead. The preprocessor passes the debug cable signals to the appropriate pins
of the Mictor.
Pin 7, 8, 9, 11, 13, 14, 15, 17, 19, 21 and the GND plane of the connector are used for the JTAG interface.
The other signals are for the trace interface. Please note that VTREF is at pin 14 (JTAG-VTREF).
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
18
Alternative Connector Types
Signal
N/C
N/C
N/C
DBGRQ
SRSTTDO
RTCK
TCK
TMS
TDI
TRSTTRACEPKT15
TRACEPKT14
TRACEPKT13
TRACEPKT12
TRACEPKT11
TRACEPKT10
TRACEPKT9
TRACEPKT8
Pin
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
Pin
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
Signal
N/C
N/C
TRACECLK
DBGACK
EXTRIG
ETM-VTREF
JTAG-VTREF
TRACEPKT7
TRACEPKT6
TRACEPKT5
TRACEPKT4
TRACEPKT3
TRACEPKT2
TRACEPKT1
TRACEPKT0
TRACESYNC
PIPESTAT2
PIPESTAT1
PIPESTAT0
There are other Mictor pinouts depending on the ETM version, but the JTAG interface signals will remain at
the same pins.
Examples:
AMP 2-5767004-2 (vertical, surface mount)
AMP 767054-1 (vertical, surface mount)
AMP 767061-1 (vertical, surface mount)
AMP 767044-1 (right angle, straddle mount)
The counterpart on the adapter is of type: AMP 5767007-8
LA-3722 Converter 20 Pin JTAG to Mictor 38
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
19
Alternative Connector Types
Half Size
Half size connector is recommended in case of limited space on the target board.
Function and pinout are the same as for the standard connector. The half size adapter has just a smaller
footprint for space reduction.
Signal
VTREF
TRSTTDI
TMS
TCK
RTCK
TDO
SRSTDBGRQ
DBGACK
Pin
1
3
5
7
9
11
13
15
17
19
Pin
2
4
6
8
10
12
14
16
18
20
Signal
VSUPPLY(not used)
GND
GND
GND
GND
GND
GND
GND
GND
GND
On the target board a male 20-pin double row connector (two rows of ten pins), pin to pin spacing: 0.050 in.
x 0.050 in., pin width 0.016 in. square post is necessary. A connector with housing (shrouded) and center
polarization is recommended.
Example: Samtec FTSH-110-01-L-DV-K (surface mount)
The counterpart, the gray ribbon cable with the two female connectors on the adapter, has the order
number: Samtec FFSD-10-D-04-00-01-N
LA-2101 Adapter Half-Size 20 pin
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
20
Alternative Connector Types
TI-14
This connector is defined by Texas Instruments and is used on many target boards from Texas Instruments.
The TI-14 connector does not provide the signal SRST- and has EMU0 and EMU1 instead of DBGRQ and
DBGACK. EMUx are signals of processors from Texas Instruments for additional, programmable debug
features. LAUTERBACH’s debugger supports just EMU0 which is used for the same purpose as DBGRQ
and DBGACK.
Signal
TMS
TDI
VTREF
TDO
RTCK
TCK
EMU0
Pin
1
3
5
7
9
11
13
Pin
2
4
6
8
10
12
14
Signal
TRSTGND
GND (KEY)
GND
GND
GND
EMU1
On the target board a male standard 14-pin double row connector (two rows of seven pins), pin to pin
spacing: 0.100 in. x 0.100 in., pin width 0.025 in. square post is necessary. These connectors, especially the
headers without housing are available from many connector manufacturers.
The same connector types as for the standard 20-pin connector can be used, but with 14-pin. For details
refer to Mechanical Connector.
Pin 6 of the female connector of the adapter is plugged to prevent improper connection. Therefore remove
the terminal at pin 6 of the target connector.
LA-7748 JTAG ARM Converter ARM-TI
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
21
Alternative Connector Types
ARM-14
This connector was the first connector definition by ARM. It is used on LAUTERBACH’s first debug cable
version (V1) and on old target board designs. Do not use it on new designs.
ARM-14 does not provide the signals RTCK, DBGRQ, DBGACK.
VCCS should be used as VSUPPLY when the adapter below is used. On LAUTERBACH’s debug cable
version V1 VCCS and VTREF are internally connected. When using this debug cable version you need to
connect VCCS=VTREF or leave VCCS not connected.
Signal
VCCS
TRSTTDI
TMS
TCK
TDO
VTREF
Pin
1
3
5
7
9
11
13
Pin
2
4
6
8
10
12
14
Signal
GND
GND
GND
GND
GND
SRSTGND
On the target board a male standard 14-pin double row connector (two rows of seven pins), pin to pin
spacing: 0.100 in. x 0.100 in., pin width 0.025 in. square post is necessary. A connector with housing
(shrouded) and center polarization is recommended. These connectors, especially the headers without
housing are available from many connector manufacturers.
The same connector types as for the standard 20-pin connector can be used, but with 14-pin. See
Mechanical Connector.
LA-7747 JTAG ARM Converter 14-20
The adapter can be used to connect a newer debug cable version (V2, V3, V4) to the 14-pin connector on
the target. It can also be used to connect the old debug cable version V1 to a 20-pin connector on the target.
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
22
Alternative Connector Types
TI-20 Compact
TI-20 Compact is a connector definition by Texas Instruments. The connector is smaller and provides more
signals than conventional TI-20.
The TI-20 Compact has five EMU signals and supports SRST- and TDIS. EMUx are signals for additional,
programmable debug features. LAUTERBACH’s debuggers support just EMU0 which is used for the same
purpose as DBGRQ and DBGACK. TDIS ”Target Disconnect” signal has to be connected to GND on target
side. It can be used to detect if the debug cable is connected to a target board. When using the adapter
below TDIS will be connected to GND on the debugger side. It will not be used for target detection.
Pin 6 (KEY) of the female connector of the adapter is plugged to prevent improper connection. Therefore
remove the terminal at pin 6 of the target connector.
Signal
TMS
TDI
VTREF
TDO
RTCK
TCK
EMU0
SRSTEMU2
EMU4
Pin
1
3
5
7
9
11
13
15
17
19
Pin
2
4
6
8
10
12
14
16
18
20
Signal
TRSTTDIS (GND)
N/C (KEY)
GND
GND
GND
EMU1
GND
EMU3
GND
On the target board a male 20-pin double row connector (two rows of ten pins), pin to pin spacing: 0.100 in.
x 0.050 in. is necessary.
Example: Samtec FTR-110-01-G-D-06
The female connector of the adapter is of type Samtec: SMS-110-02-S-D.
LA-3780 JTAG Converter to
TI Target Adapter 14/20
This adapter can also be adapted to the TI-14.
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
23
Alternative Connector Types
MIPI-10/20/34, ARM-10/20
The MIPI connectors have been defined by the Mobile Industry Processor Interface Alliance (MIPI). There
are compatible connector versions with different pin counts (10, 20, 34) providing different debug
capabilities. MIPI-10 provides the minimum signals the debugger needs. MIPI-20 and MIPI-34 provides
additionally the signals RTCK, TRST-, BCE, DBGRQ (or EMU0), DBGACK (or EMU1) and/or a trace port
which is not used by the standard debug cable.
Alternatively to JTAG a two wire “cJTAG” interface can be used. The bidirectional data pin is TMSC and the
clock pin is TCKC.
BCE ”Boundary Scan Compliancy Enable” pin is an optional static signal, active high. It can be used on
target side to deactivate JTAG debug mode by a pull-down on this line for the case no tool is connected. The
MIPI-10/20/34 adapter controls this signal the same way as TRST-.
ARM specifies in the CoreSight Components Technical Reference Manual four, quite similar connectors.
The Serial Wire Debug interface replaces the five signal JTAG interface by the bidirectional data signal
(SWDIO) and a clock signal (SWCLK). The freed up TDO signal can be re-used as a system trace output
“Serial Wire Output” (SWO) which is not supported by the standard debug cable.
MIPI-10-nRESET, ARM-10-JTAG (preferred pinout)
Signal
VREF DEBUG
GND
GND
(KEY) GND
GND
Pin
1
3
5
7
9
Pin
2
4
6
8
10
Signal
TMS
TCK
TDO
TDI
RESET-
Signal
VREF DEBUG
GND
GND
(KEY) GND
GND
Pin
1
3
5
7
9
Pin
2
4
6
8
10
Signal
TMS
TCK
TDO
TDI
TRST-
MIPI-10-nTRST
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
24
Alternative Connector Types
MIPI-10-BCE
Signal
VREF DEBUG
GND
GND
(KEY) GND
GND
Pin
1
3
5
7
9
Pin
2
4
6
8
10
Signal
TMS
TCK
TDO
TDI
BCE
Signal
VREF DEBUG
GND
GND
(KEY) GND
GND
Pin
1
3
5
7
9
Pin
2
4
6
8
10
Signal
TMSC
TCKC
EXT
BCE
RESET-
Signal
VREF DEBUG
GND
GND
(KEY) GND
GND
Pin
1
3
5
7
9
Pin
2
4
6
8
10
Signal
SWDIO
SWCLK
SWO
N/C
RESET-
MIPI-10-Narrow
ARM-10-SWD
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
25
Alternative Connector Types
MIPI-20-ARM (preferred pinout)
Signal
VREF DEBUG
GND
GND
(KEY) GND
GND
GND
GND
GND
GND
GND
Pin
1
3
5
7
9
11
13
15
17
19
Pin
2
4
6
8
10
12
14
16
18
20
Signal
TMS
TCK
TDO
TDI
RESETRTCK
BCE
TRSTDBGRQ
DBGACK
Signal
VREF DEBUG
GND
GND
(KEY) GND
GND
GND
GND
GND
GND
GND
Pin
1
3
5
7
9
11
13
15
17
19
Pin
2
4
6
8
10
12
14
16
18
20
Signal
TMS
TCK
TDO
TDI
RESETRTCK
BCE
TRSTEMU0
EMU1
MIPI-20-TI
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
26
Alternative Connector Types
MIPI-20-Narrow
Signal
VREF DEBUG
GND
GND
(KEY) GND
GND
GND
GND
GND
GND
GND
Pin
1
3
5
7
9
11
13
15
17
19
Pin
2
4
6
8
10
12
14
16
18
20
Signal
TMSC
TCKC
EXT
BCE
RESETTRC CLK
TRC DATA0
TRC DATA1
TRC DATA2
TRC DATA3
Signal
VREF DEBUG
GND
GND
(KEY) GND
GND
GND
GND
GND
GND
GND
Pin
1
3
5
7
9
11
13
15
17
19
Pin
2
4
6
8
10
12
14
16
18
20
Signal
SWDIO
SWCLK
SWO
N/C
RESETTRACE CLK
TRACE D0
TRACE D1
TRACE D2
TRACE D3
ARM-20-SWD
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
27
Alternative Connector Types
ARM-20-JTAG
Signal
VREF DEBUG
GND
GND
(KEY) GND
GND
GND
GND
GND
GND
GND
Pin
1
3
5
7
9
11
13
15
17
19
Pin
2
4
6
8
10
12
14
16
18
20
Signal
TMS
TCK
TDO
TDI
RESETTRACE CLK
TRACE D0
TRACE D1
TRACE D2
TRACE D3
Pin
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
Pin
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
Signal
TMS
TCK
TDO
TDI
RESETRTCK
BCE
TRSTDBGRQ
DBGACK
TRC CLK
TRC DATA0
TRC DATA1
TRC DATA2
TRC DATA3
TRC EXT
VREF TRACE
MIPI-34-ARM (preferred pinout)
Signal
VREF DEBUG
GND
GND
(KEY) GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
28
Alternative Connector Types
MIPI-34-TI
Signal
VREF DEBUG
GND
GND
(KEY) GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
Pin
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
Pin
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
Signal
TMS
TCK
TDO
TDI
RESETRTCK
BCE
TRSTEMU0
EMU1
TRC CLK
TRC DATA0
TRC DATA1
TRC DATA2
TRC DATA3
TRC EXT
VREF TRACE
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
29
Alternative Connector Types
J101-J102
J103-J104
J105-J108
J111
J112
J113
J114
J115
J116
The MIPI adapter will be delivered to support without change MIPI-10-nRESET(=ARM-10-JTAG), MIPI-20ARM and MIPI-34-ARM (in case DBGRQ and DBGACK is not needed; you need to close J103 and J104
otherwise). The other pinouts specified by MIPI and ARM are all supported, but need to be configured by
solder bridges:
MIPI-10-nRESET, ARM-10-JTAG
X
—
O
X
O
X
O
X
O
MIPI-10-nTRST
X
—
O
X
O
X
O
O
X
MIPI-10-BCE
X
—
O
X
O
X
O
O
X
MIPI-10-Narrow
—
O
X
O
X
O
X
X
O
ARM-10-SWD
—
O
O
O
X
O
X
X
O
MIPI-20-ARM
X
X
O
X
O
X
O
X
O
MIPI-20-TI
X
O
X
X
O
X
O
X
O
MIPI-20-Narrow
O
O
X
O
X
O
X
X
O
ARM-20-SWD
O
O
O
O
X
O
X
X
O
ARM-20-JTAG
O
O
O
X
O
X
O
X
O
MIPI-34-ARM
X
X
O
X
O
X
O
X
O
MIPI-34-TI
X
O
X
X
O
X
O
X
O
Table legend:
X = closed
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
30
Alternative Connector Types
O = open
— = don´t care
On the target board is a male double row connector, pin to pin spacing: 0.050 in. x 0.050 in., pin width 0.016
in. square post is necessary. A connector with housing (shrouded) and a center polarization is
recommended.
Example (surface mount):
MIPI-10: Samtec FTSH-105-01-L-DV-K
MIPI-20: Samtec FTSH-110-01-L-DV-K
MIPI-34: Samtec FTSH-117-01-L-DV-K
The counterpart, the gray ribbon cable with the two female connectors on the adapter, has the order
number:
MIPI-10: Samtec FFSD-05-D-04-00-01-N
MIPI-20: Samtec FFSD-10-D-04-00-01-N
MIPI-34: Samtec FFSD-17-D-04-00-01-N
LA-3770 Converter ARM-20 to
MIPI-10/20/34
Delivered with three flat cables
for MIPI-10, MIPI-20, MIPI-34
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
31
Alternative Connector Types
Debug Cable Hardware Versions
The above description assumes the debug cable version V3. You can identify the debug cable version by
typing ”version.hardware” into the TRACE32 command line or compare your debug cable with the pictures
below. Debug cable versions and a description of the main differences are described in the following.
Hardware Version
V1
V2
V3
V4
Delivery (year)
1998 … 2000
2001 … 2003
since 2004
since 2008
Last digits of serial
number
< 11250
<= 39000
> 39000
> 90853
(Cortex-M)
> 94121
(Cortex-A/R)
>C0801xxxxxx
x
(others)
Supported target
voltage range [V]
2.5…5.0
1.8…3.3
0.4.…5.0
0.4.…5.0
Supported target
connector
ARM-14
ARM-20
ARM-20
ARM-20
Support for Serial
Wire Debug and
cJTAG
no
no
no
yes
Serial termination
of output signals
no
no
yes
yes
Output drivers supplied by
VTREF (draws
about 3 mA)
VTREF (draws
about 3 mA)
debugger
hardware
debugger
hardware
output driver type
74VHC125
74ALVC16425
6
see Debug
Cable Driver/
Receiver
driver as V3
but placed
next to the
JTAG
connector
Input signals
TDO needs to
be TTL
compatible
TDO, RTCK,
DBGACK are
connected to
74ALVC16425
6 which is
supplied by
VTREF
see DC
Electrical
Characteristic
s and Debug
Cable Driver/
Receiver
receiver as V3
but placed
next to the
JTAG
connector
RTCK,
DBGRQ,
DBGACK are
not supported
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
32
Debug Cable Hardware Versions
Version V1
Version V2
Version V3
Version V4
©1989-2015 Lauterbach GmbH
ARM JTAG Interface Specifications
33
Debug Cable Hardware Versions
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
